校正代码 17100712 5.52 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Open RH front door
2. Lower RH front window
3. Move RH front seat backward
4. Open LH front door
5. Lower LH front window
6. Move LH front seat backward

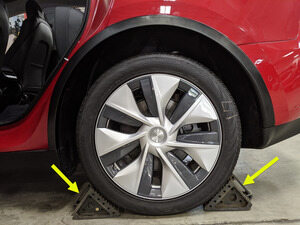

7. Chock LH rear wheel



8. Place vehicle into tow mode
   注

   Via Controls > Service > ''Towing''
9. Open hood
10. Power off vehicle from center display
    注

    Via Controls > Safety & Security > Power Off > Power Off

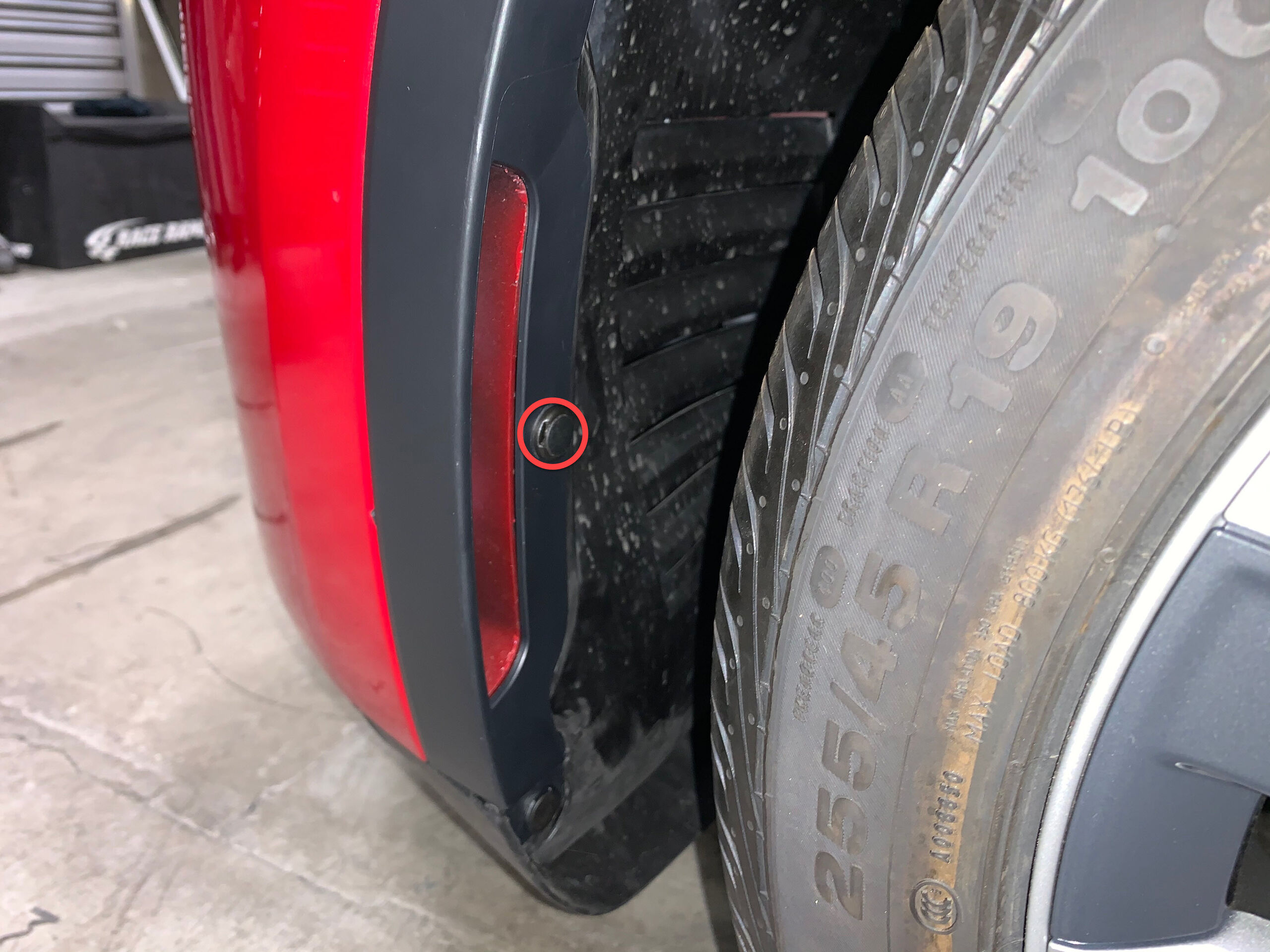

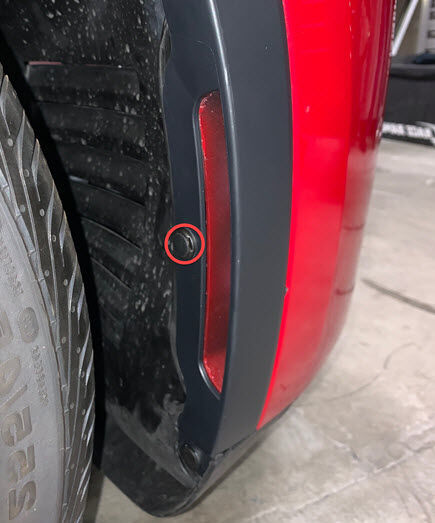

11. Remove the rear apron.

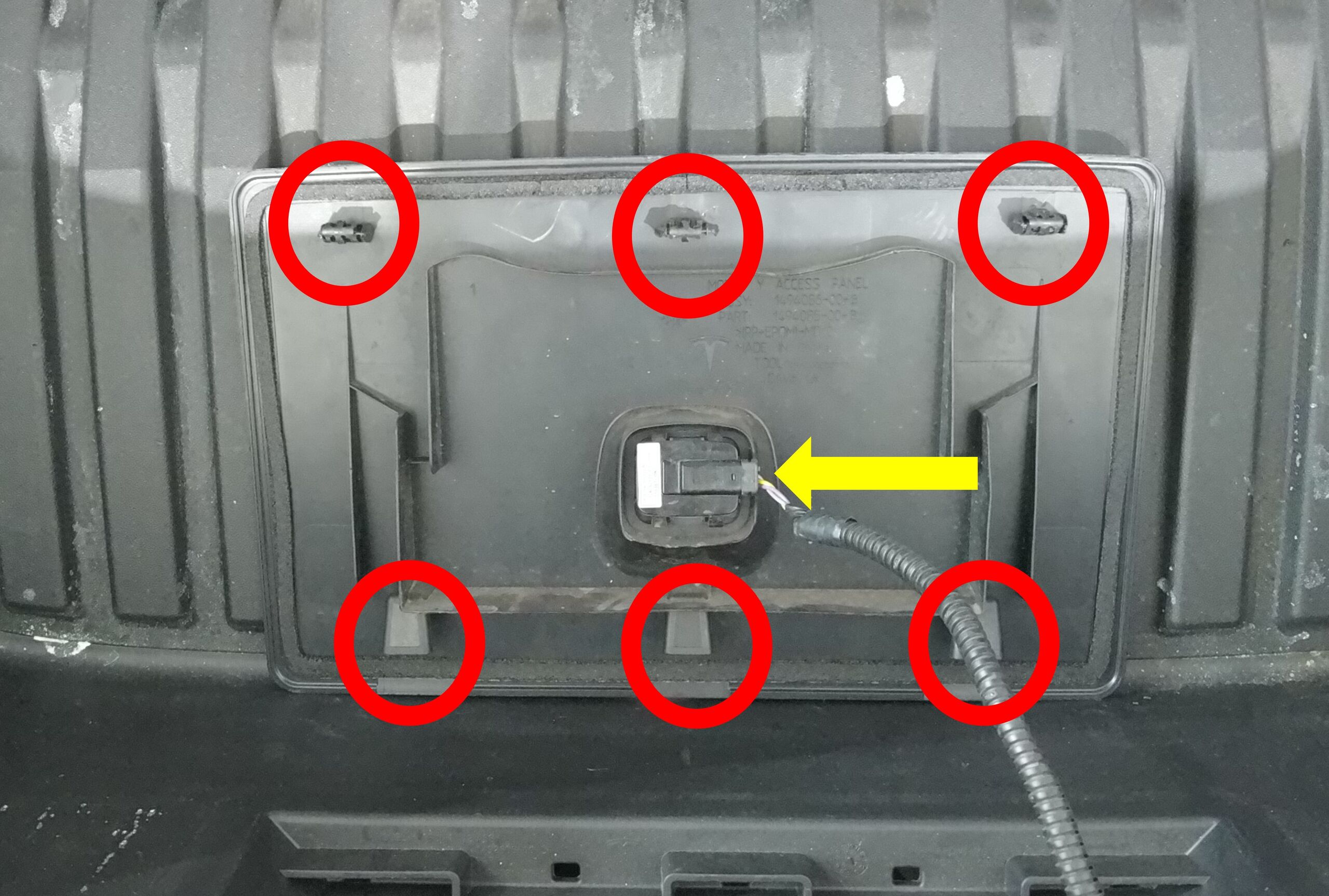

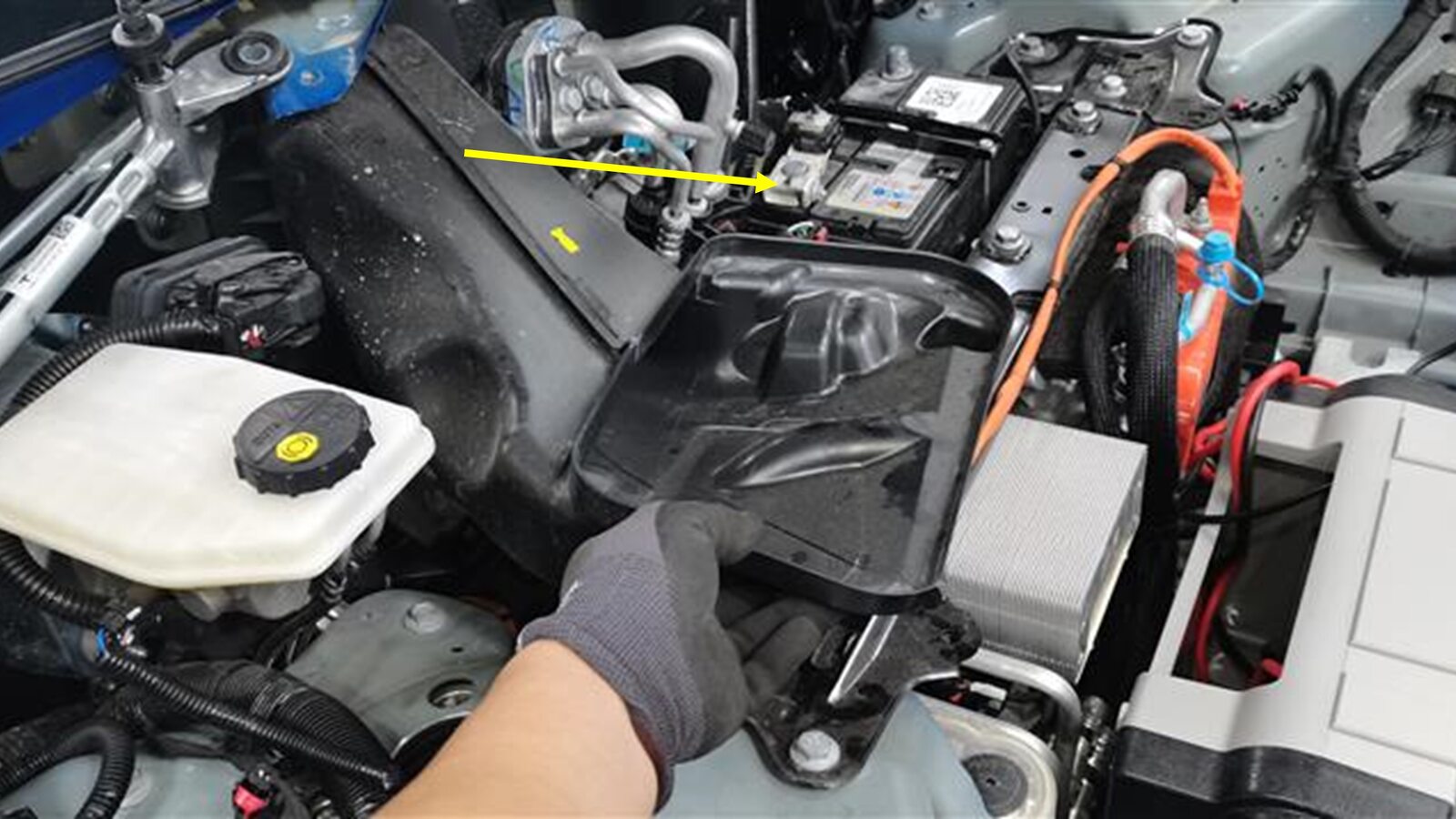

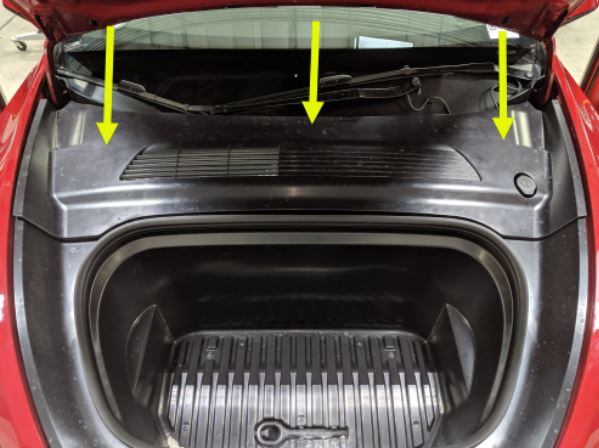

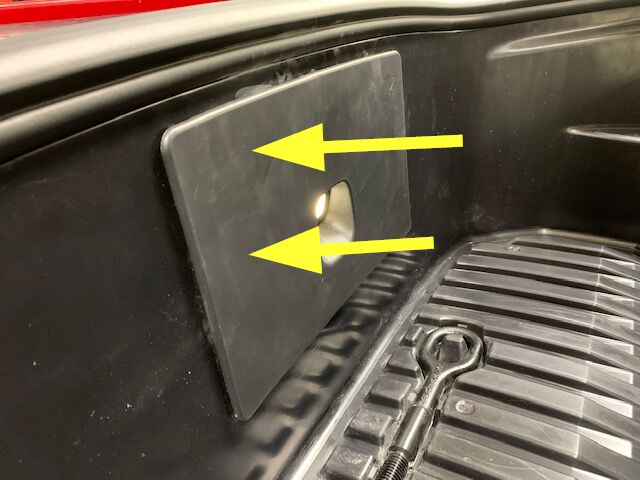

12. Remove access panel
    注

    3x clips, 1x connector

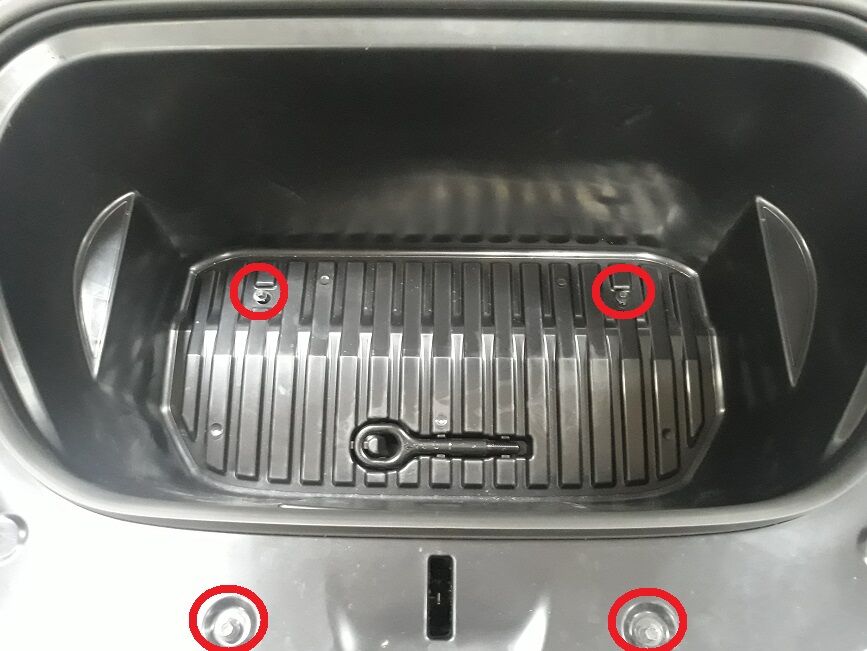

13. Remove fasteners securing the frunk assembly
    注

    5x bolts, 10mm, 5 Nm, Newer vehicles may be equipped with 4x bolts and 1x push clip securing frunk to reservoir neck





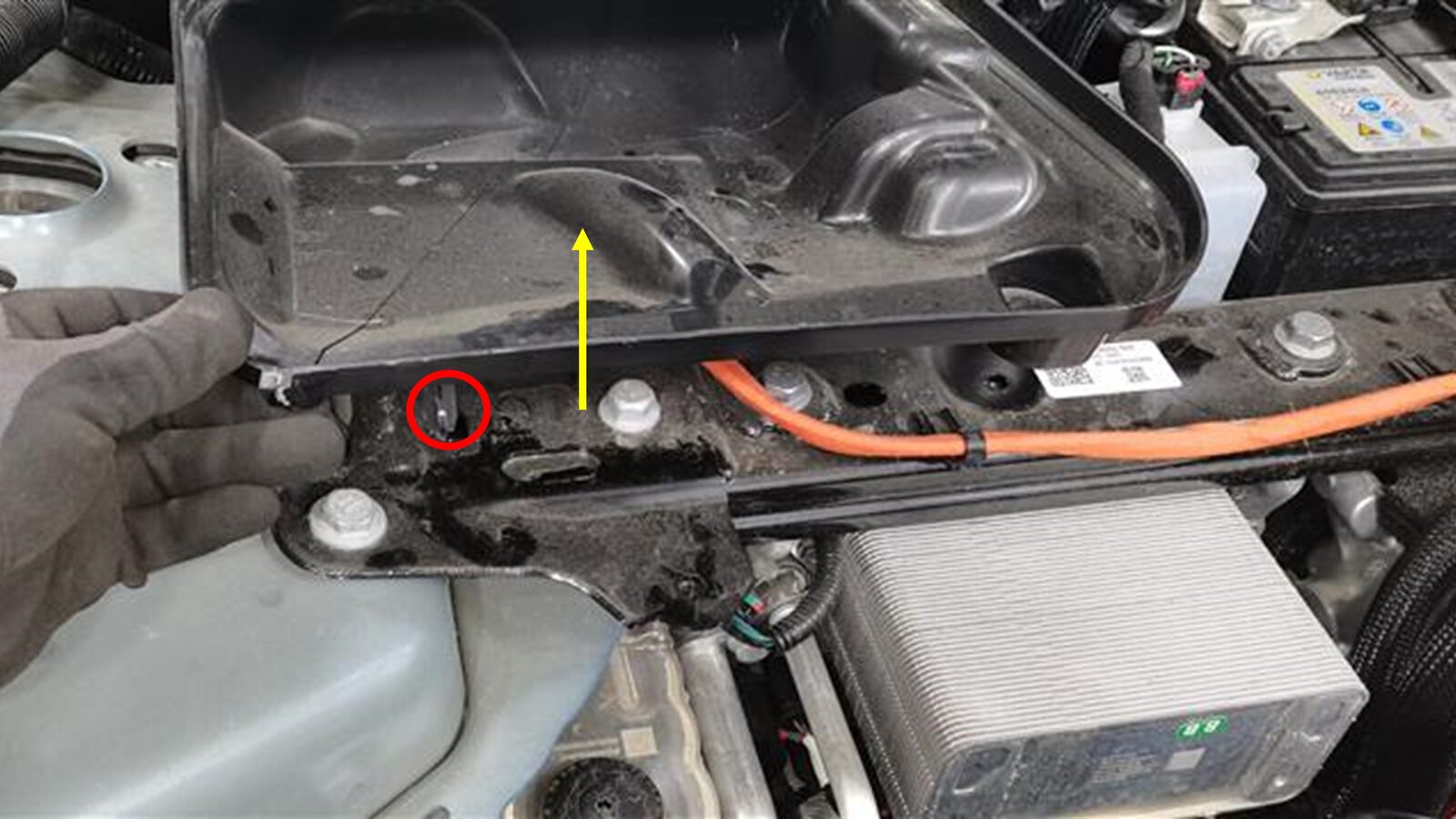

14. Remove frunk assembly from vehicle
    注

    6x clips, Replace any clips if broken or missing



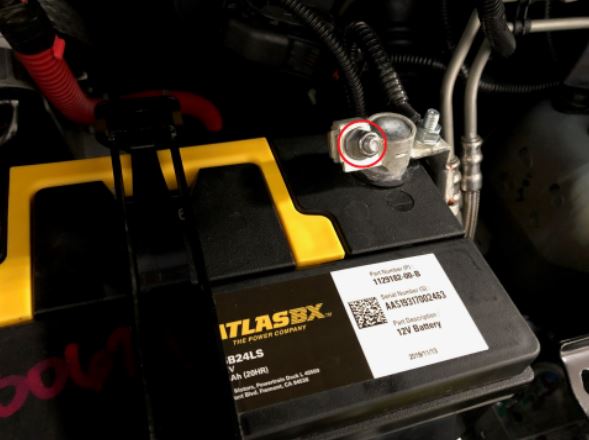

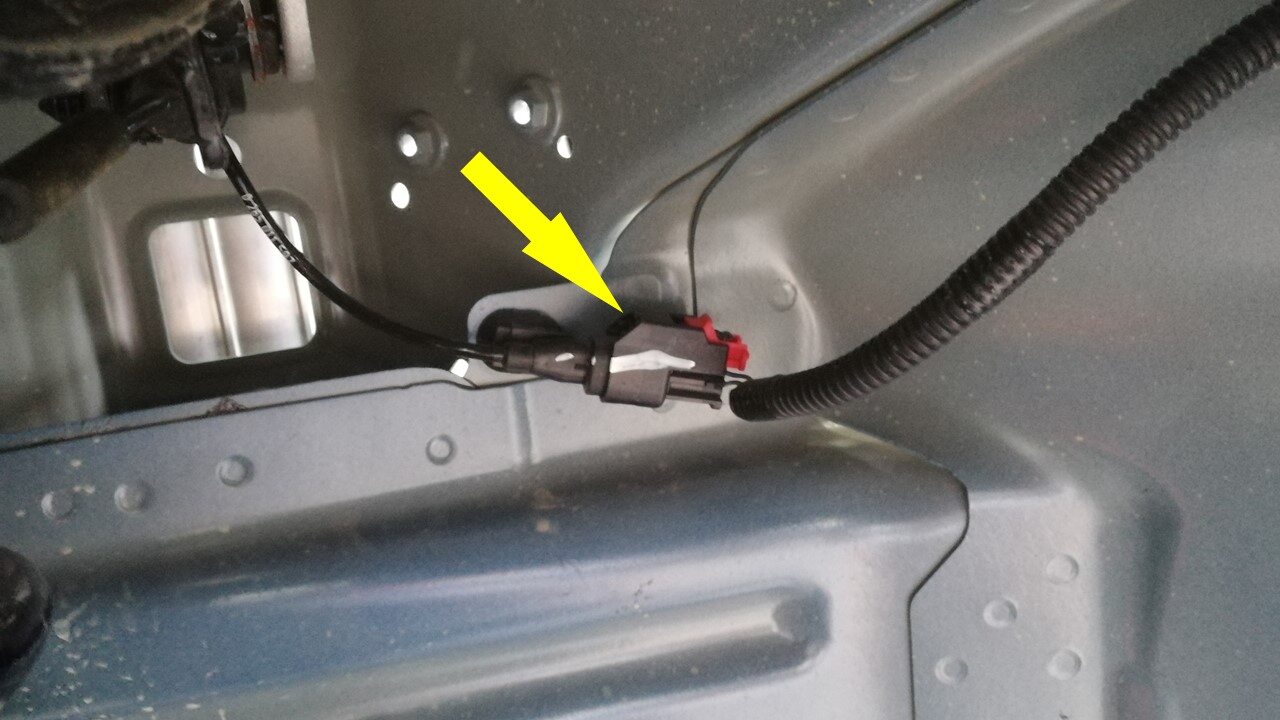

15. Disconnect 12V negative terminal and first responders loop
    注

    1x nut, 10mm, 6 Nm, 1x connector, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V, Negative terminal should be disconnected before FRL, Allow 2 minutes for all electrical circuits to fully discharge

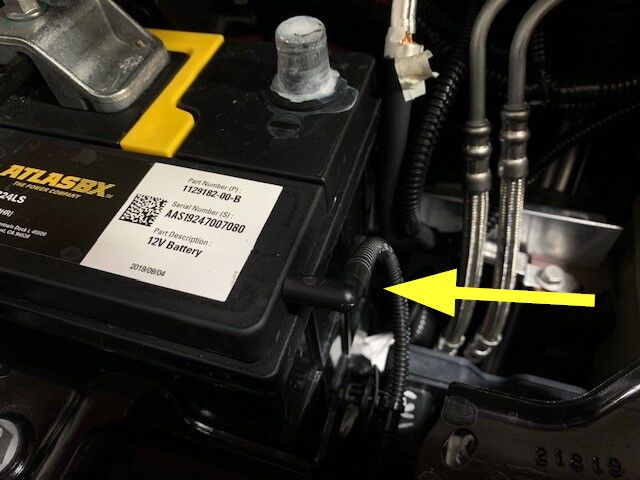

16. Remove vent tube hose from LH side of 12V battery
    注

    1x hose



17. Release terminal cover and remove positive terminal
    注

    2x clips, 1x nut, 10mm, 6 Nm, Do not fully remove positive terminal nut





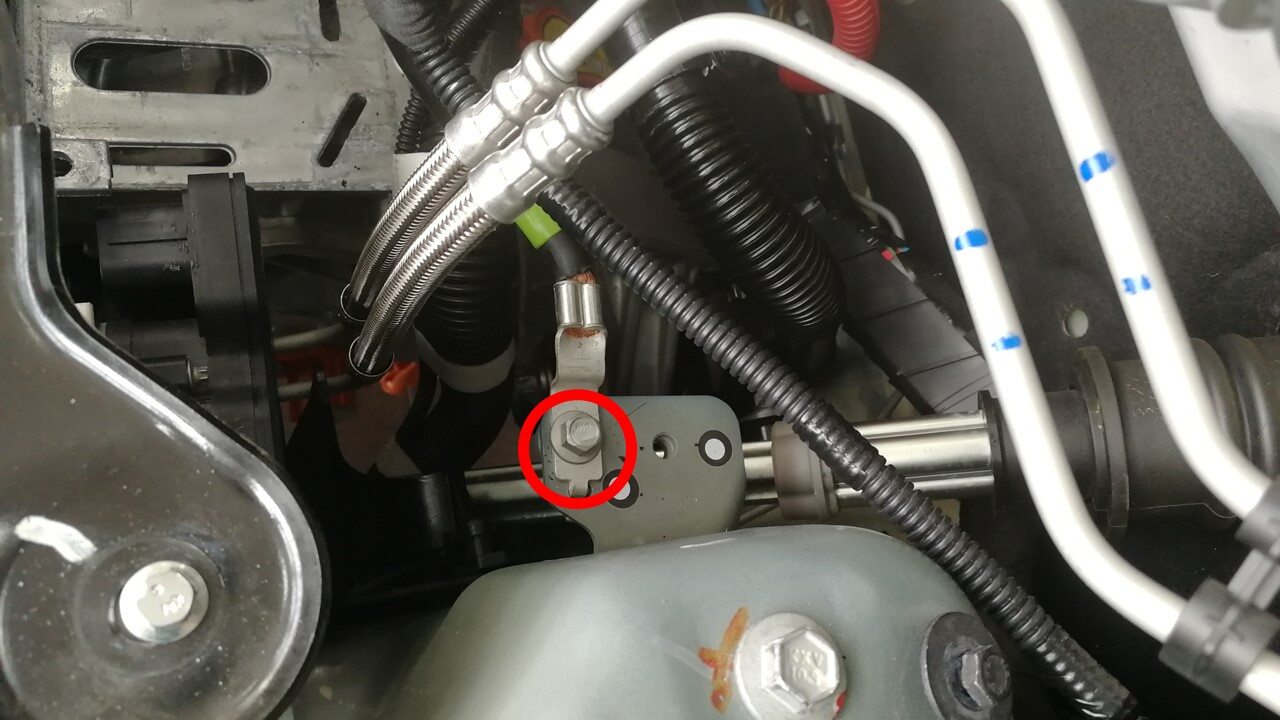

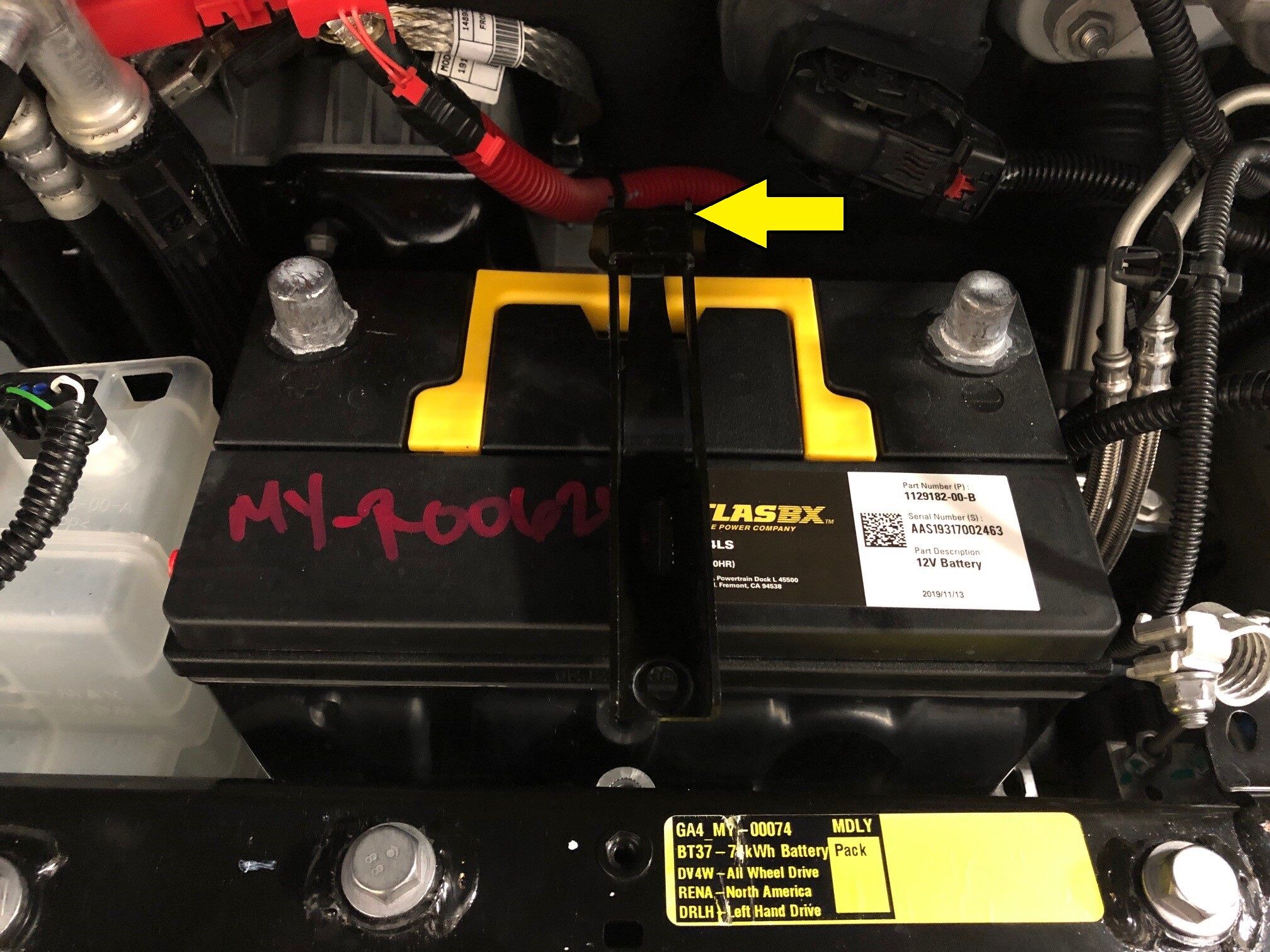

18. Remove bolt securing 12V battery upper tie down strap to AC compressor bracket
    注

    1x bolt, 10mm, 5 Nm



19. Remove battery upper tie down strap
    注

    Lift battery tie down strap up and remove it from the rear tie down hook strap







20. Remove 12V battery from vehicle





21. Release washer hose from washer tank neck
    注

    5x anchors





22. Remove washer tank neck from washer tank
    注

    1x O-ring, Pull straight out



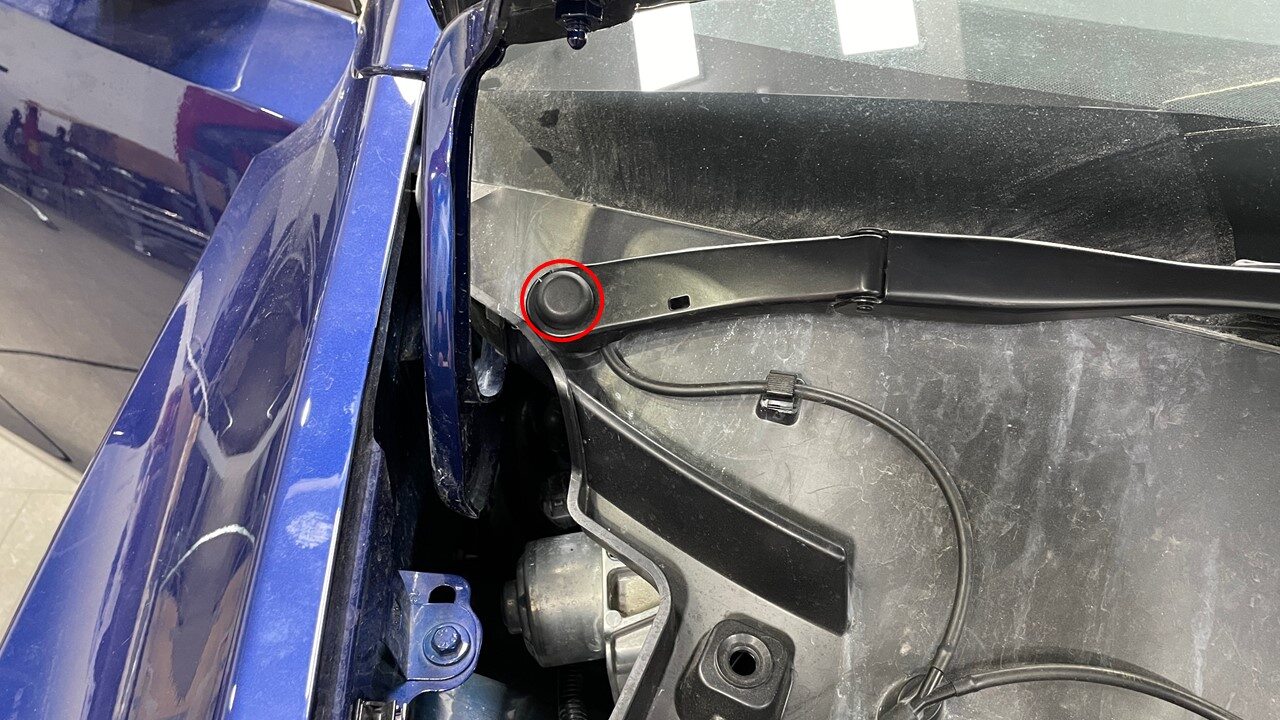

23. Remove RH wiper arm nut cover
    注

    1x cover

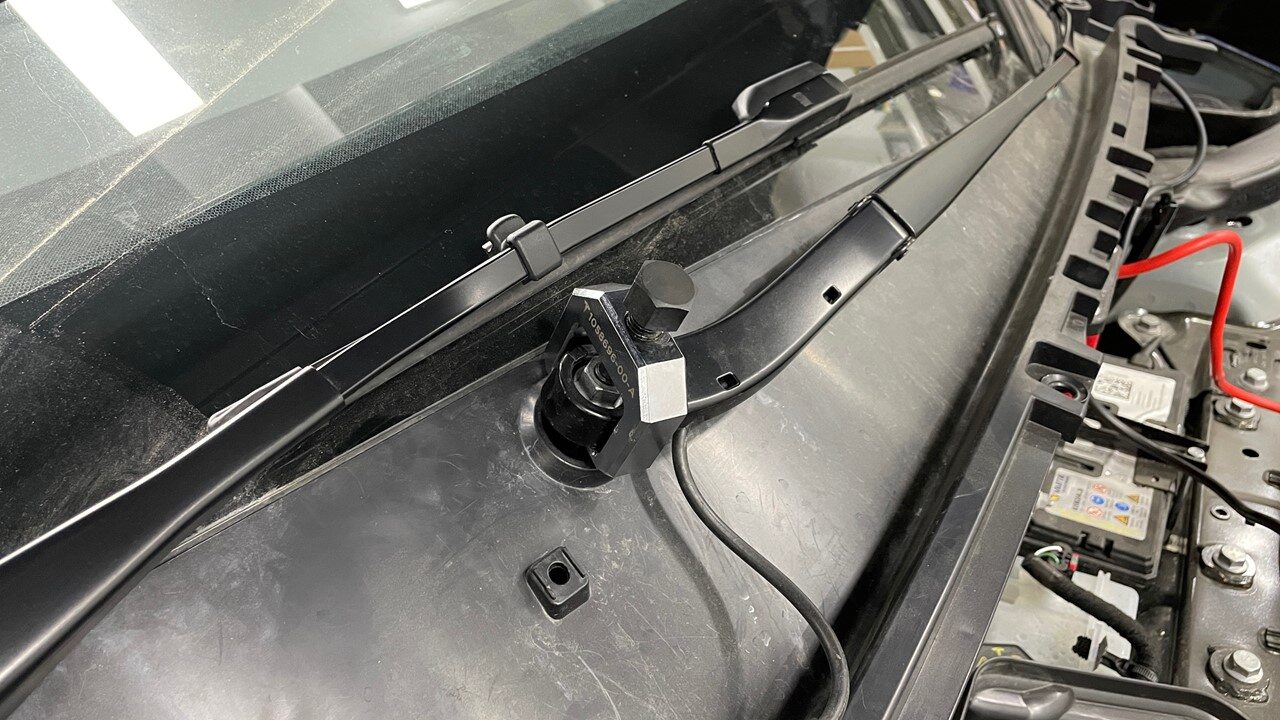

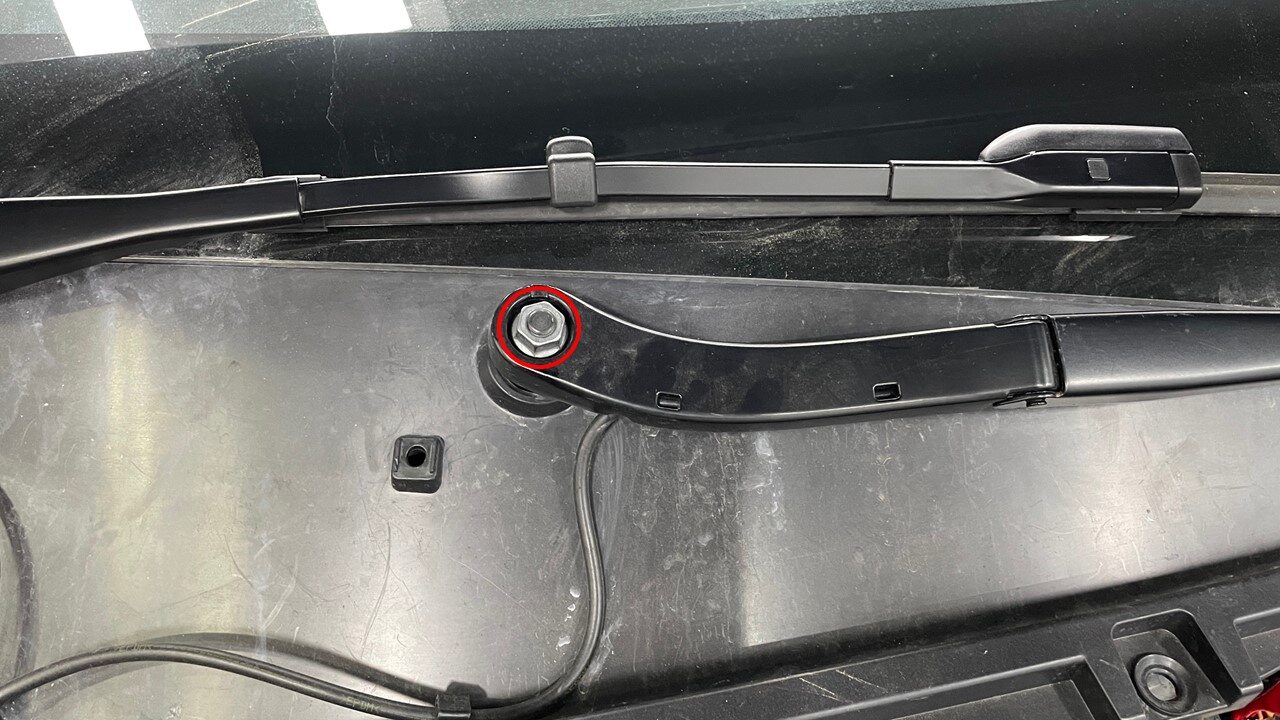

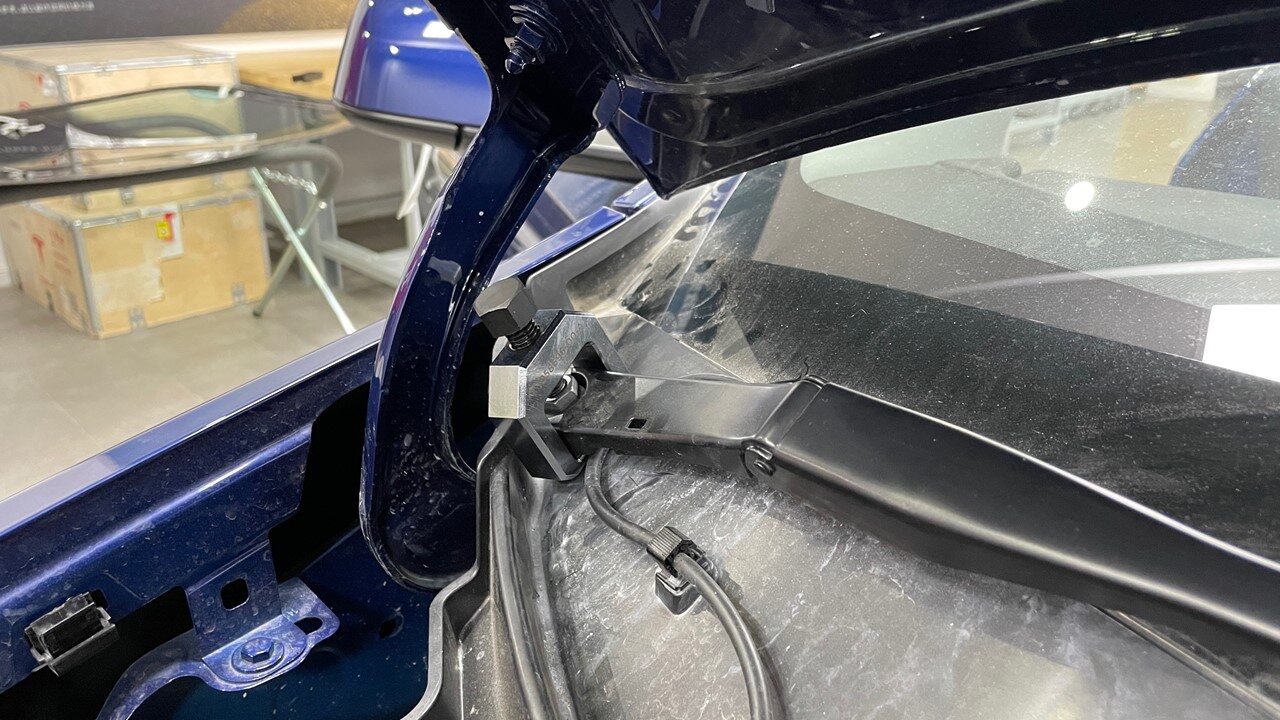

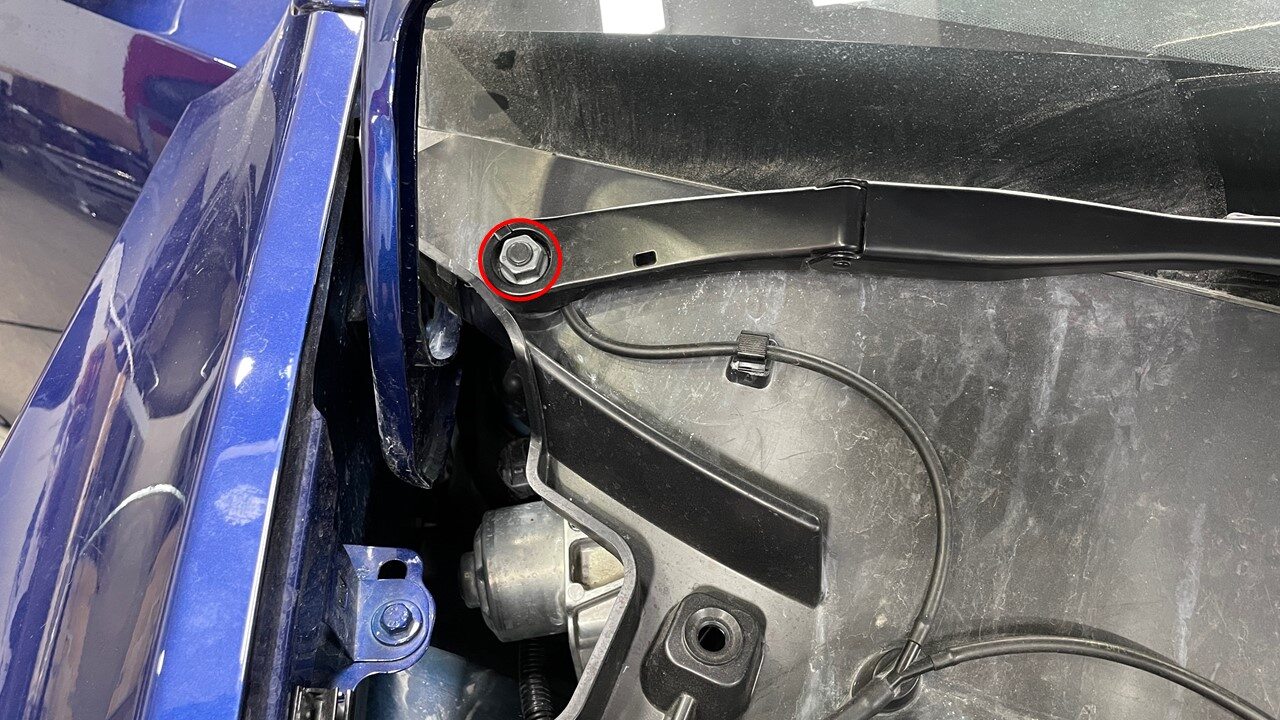

24. Remove the nut securing the RH wiper arm to wiper module
    注

    1x nut, 15mm, 25 Nm

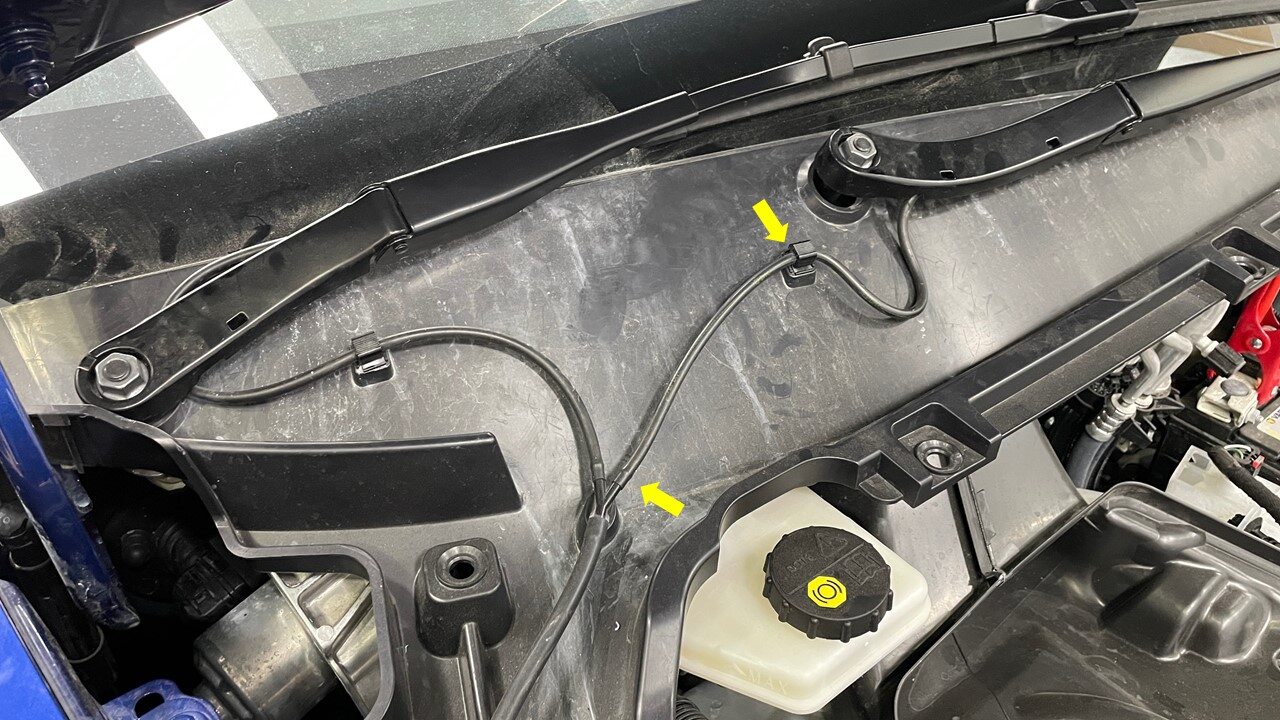

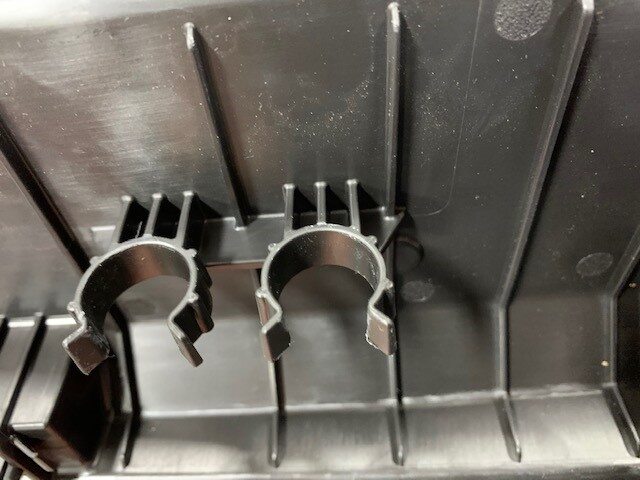

25. Disconnect washer hose from RH wiper arm to Y-tube fitting and release washer hose clip
    注

    1x clip, 1x hose

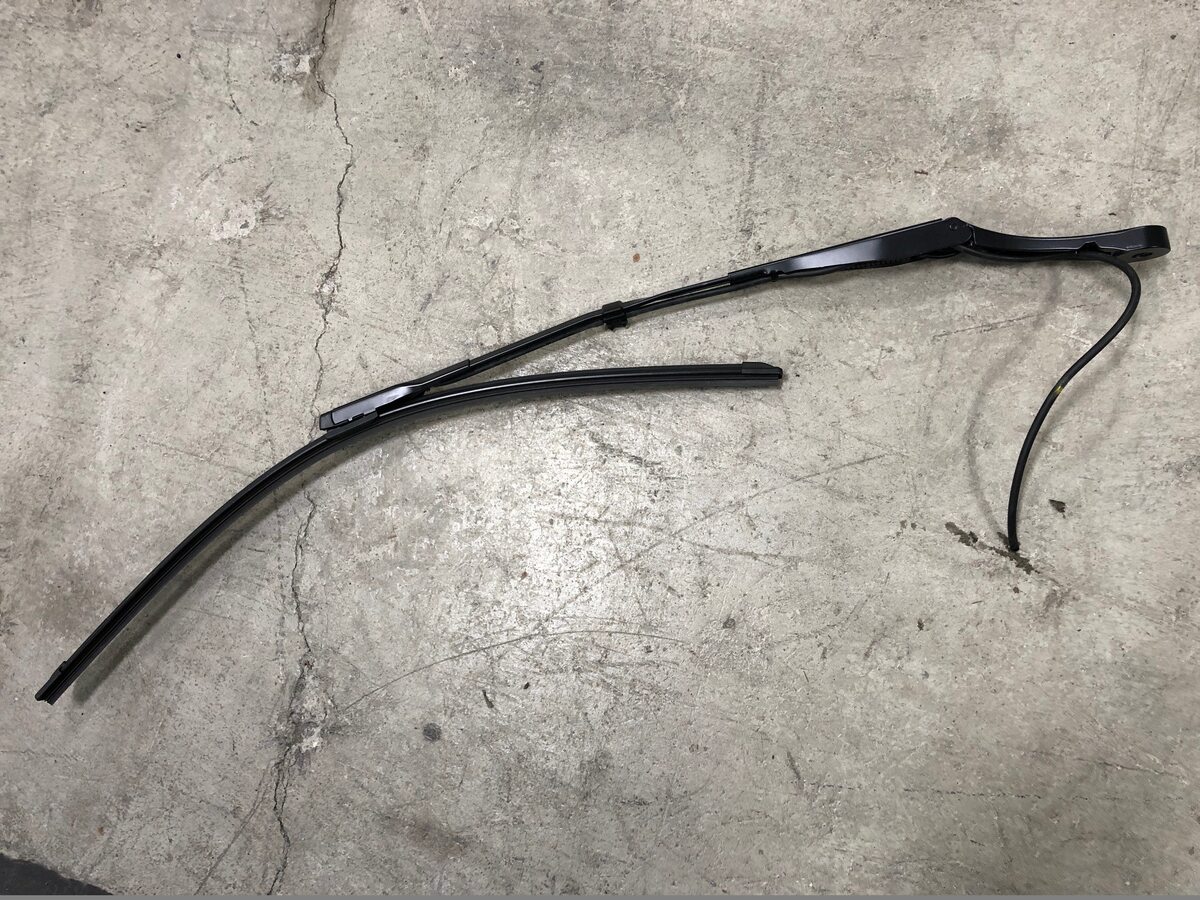

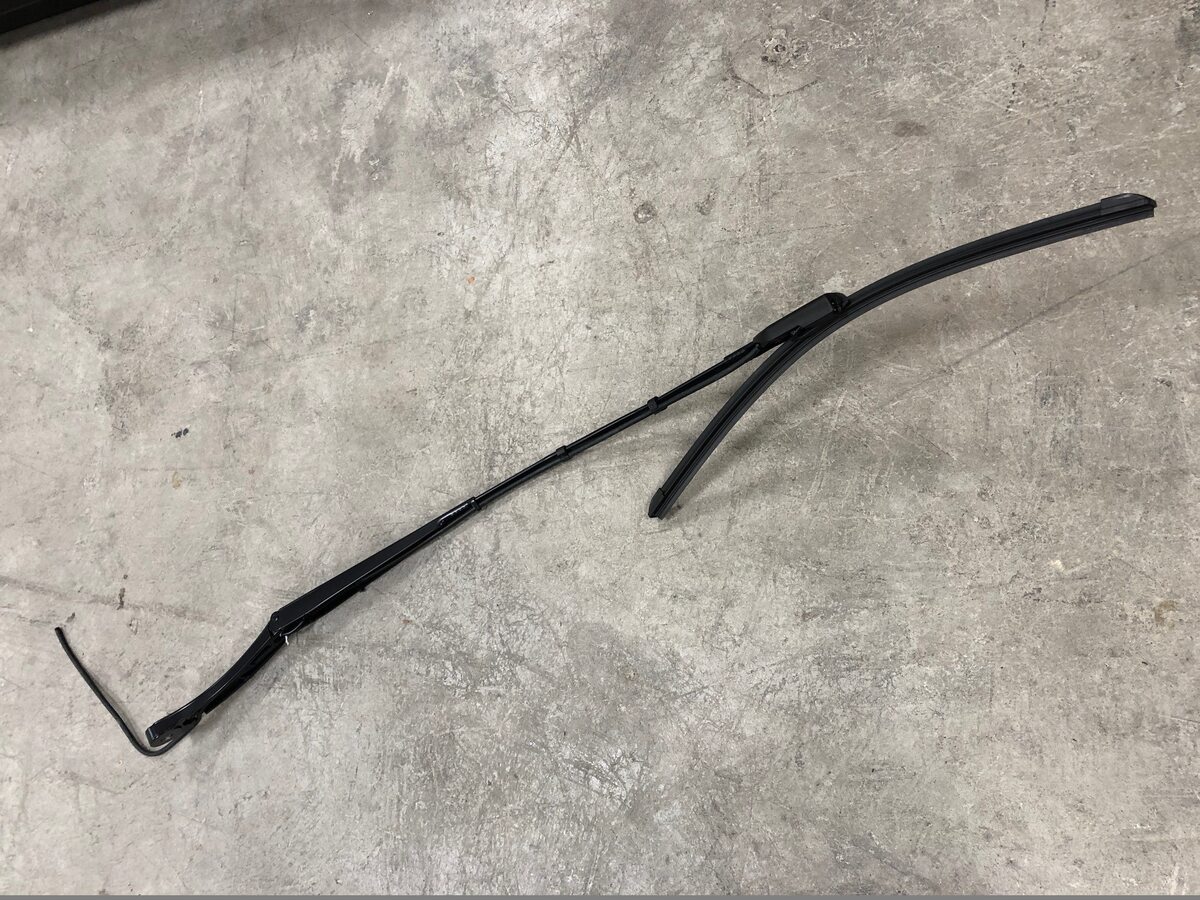

26. Remove the RH wiper arm and hose assembly from vehicle





27. Remove LH wiper arm nut cover
    注

    1x cover



28. Remove the nut securing the LH wiper arm to wiper module
    注

    1x nut, 15mm, 25 Nm



29. Disconnect washer hose from LH wiper arm to Y-tube fitting and release washer hose clip
    注

    1x clip, 1x hose



30. Remove the LH wiper arm and hose assembly from vehicle





31. Disconnect washer hose from washer pump to Y-tube fitting and release washer hose clip
    注

    2x clip, 1x hose







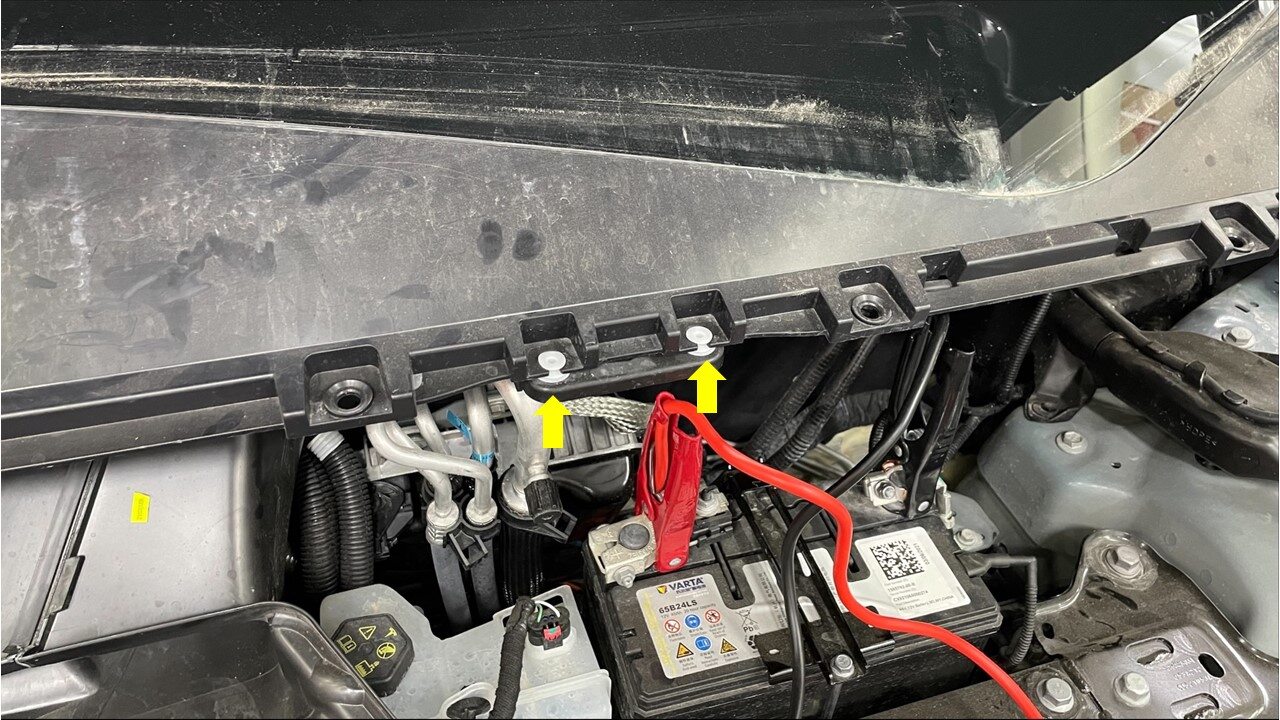

32. Remove cowl screen retaining clips
    注

    2x push clips





33. Release the cowl clips at the center bracket
    注

    2x retaining clips



34. Remove cowl screen from vehicle
    注

    2x clips, Release the corners of the cowl by pulling away from the body then lift the cowl off of the windshield

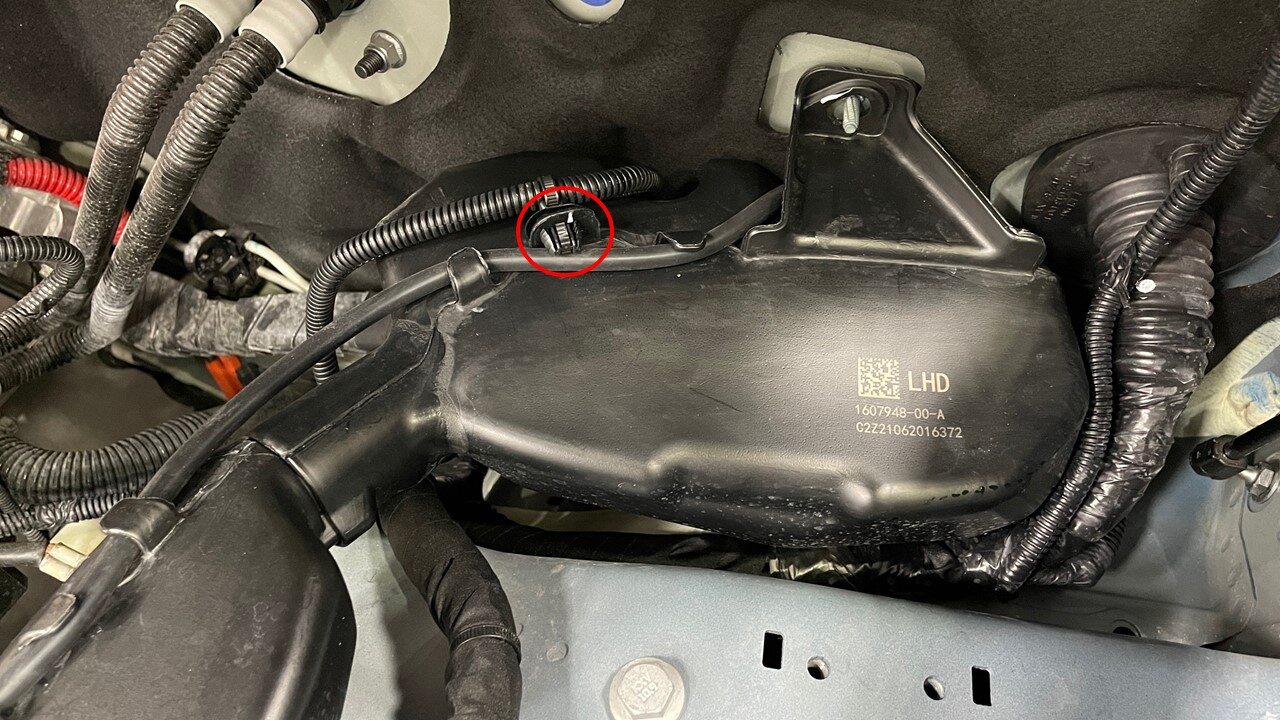

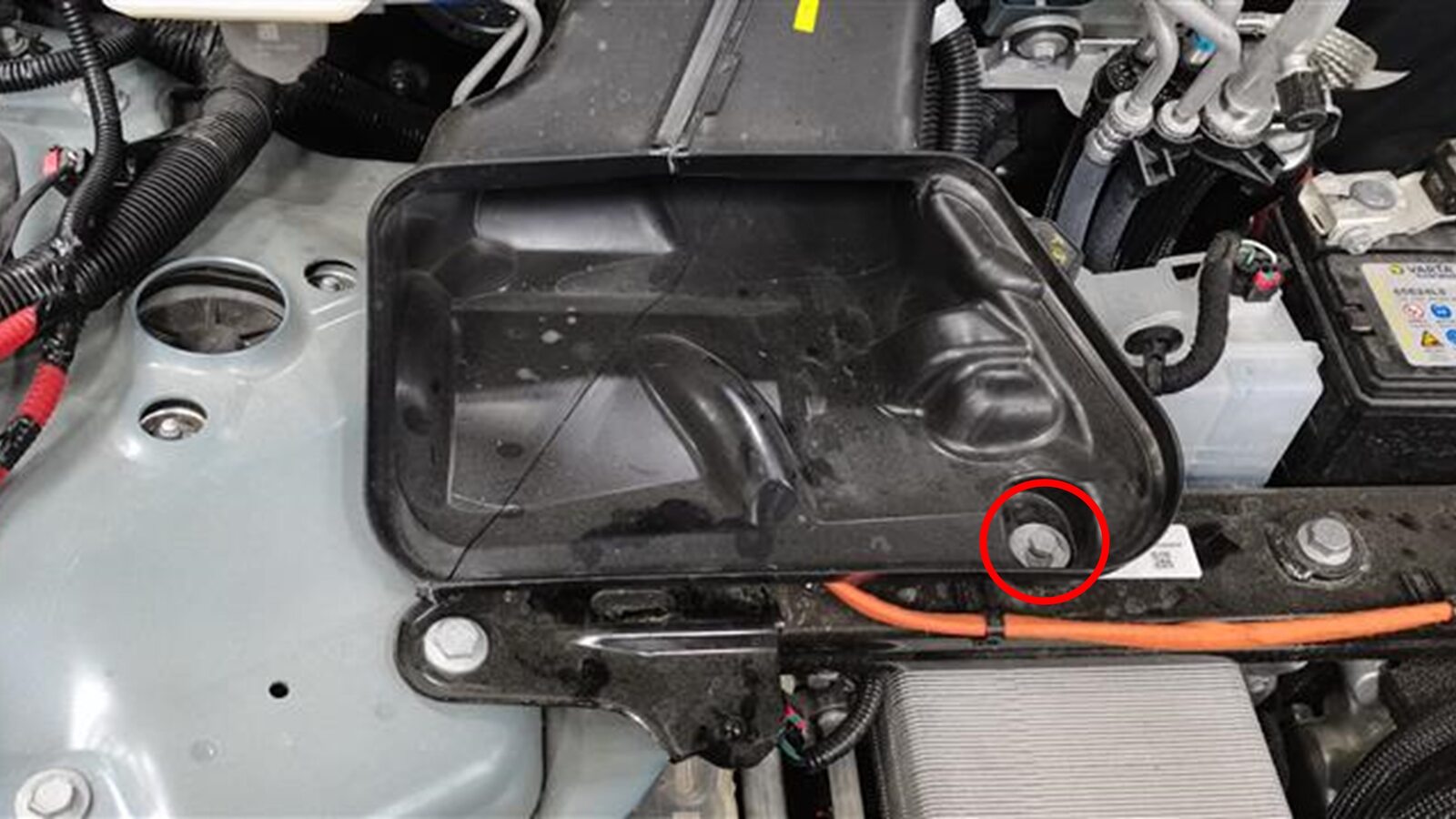

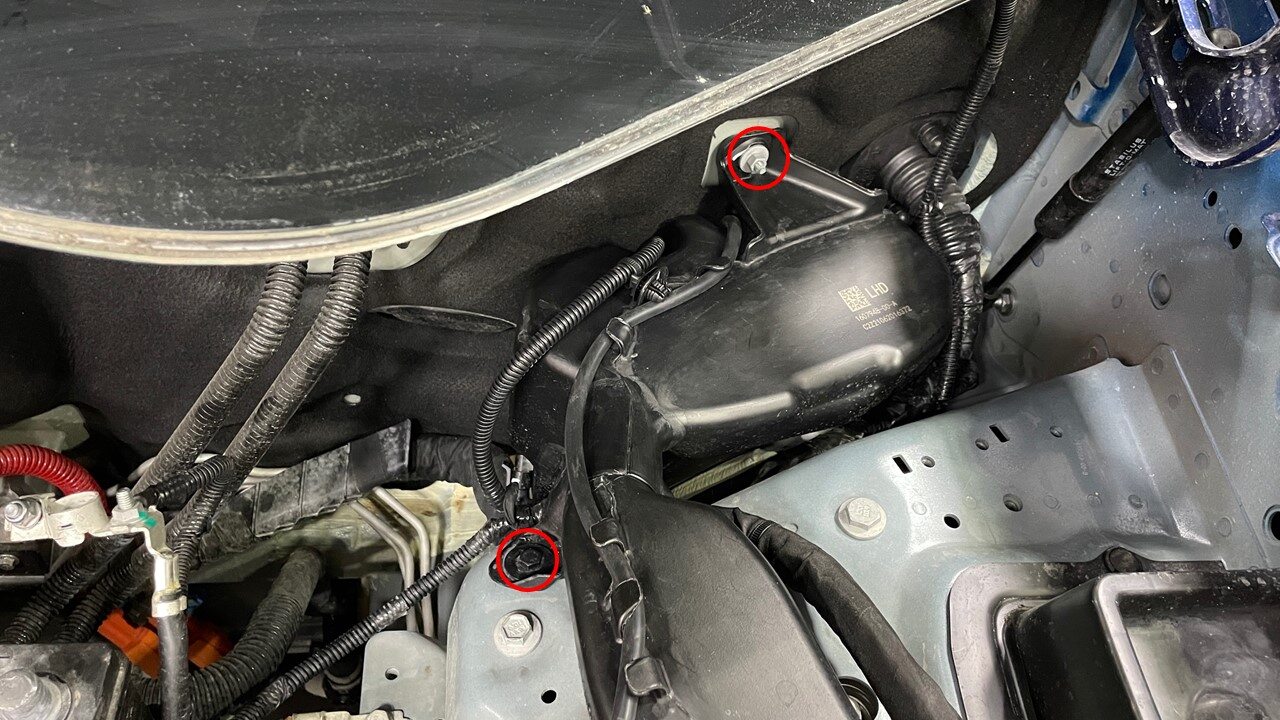

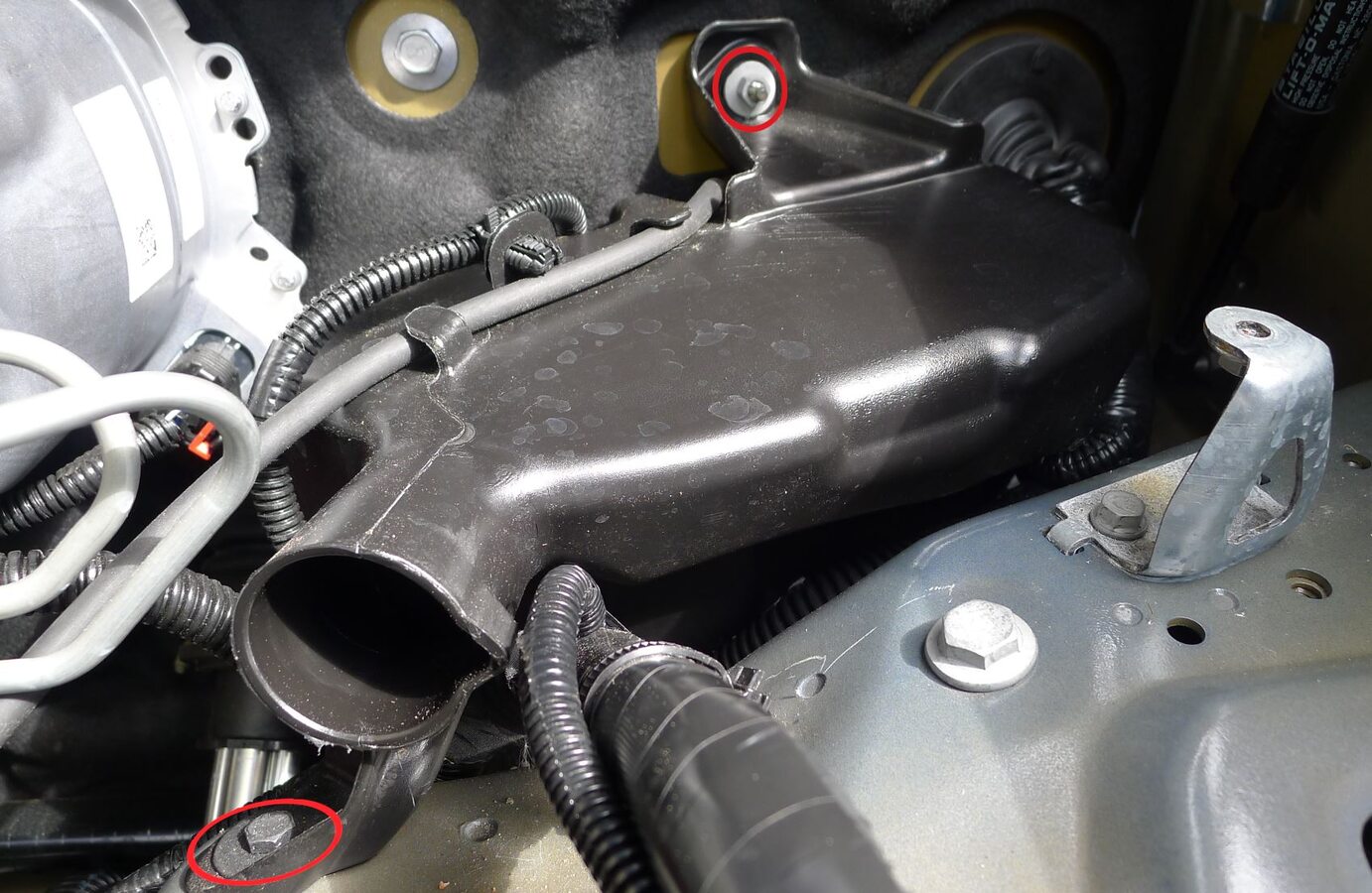

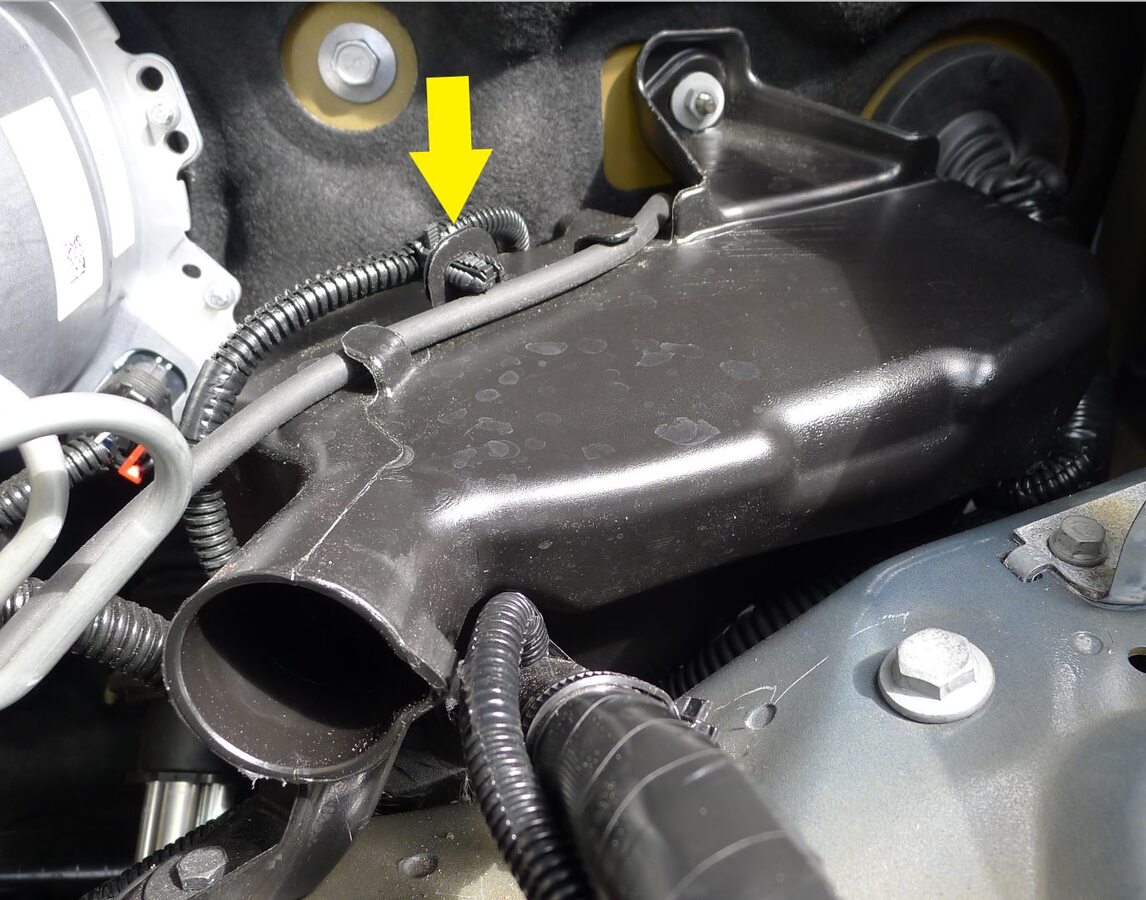

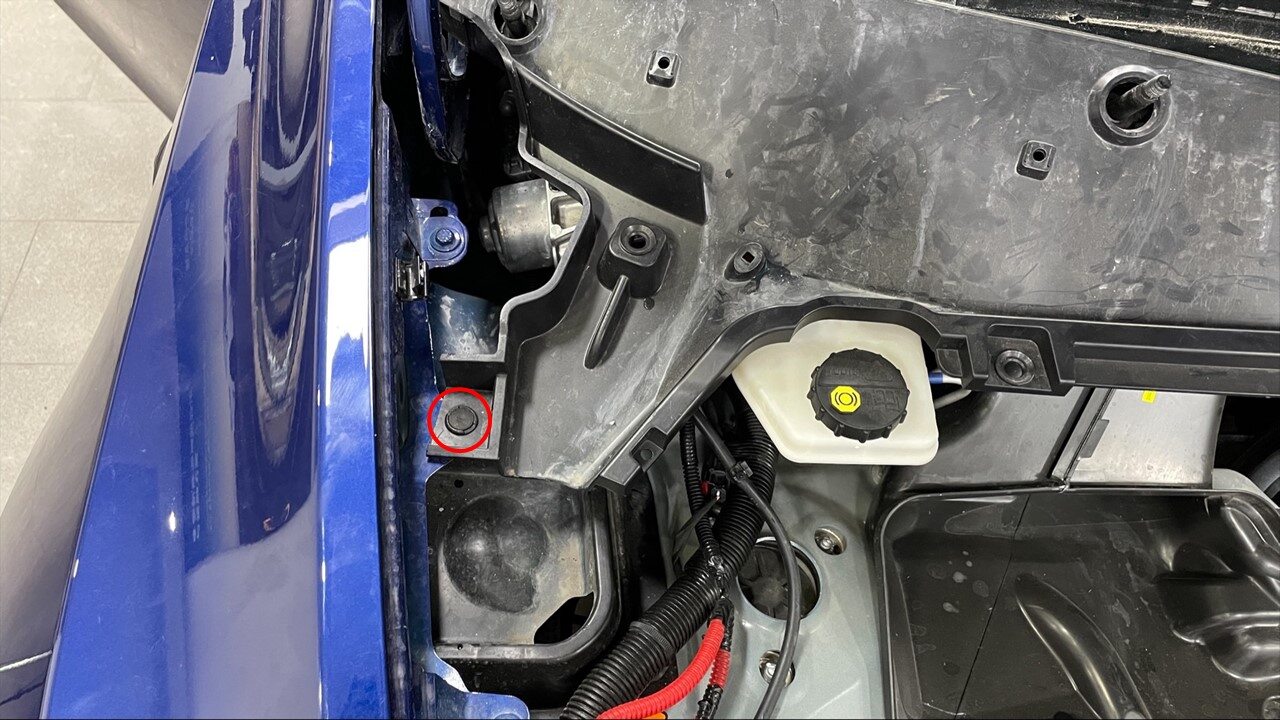

35. Remove fresh air intake duct

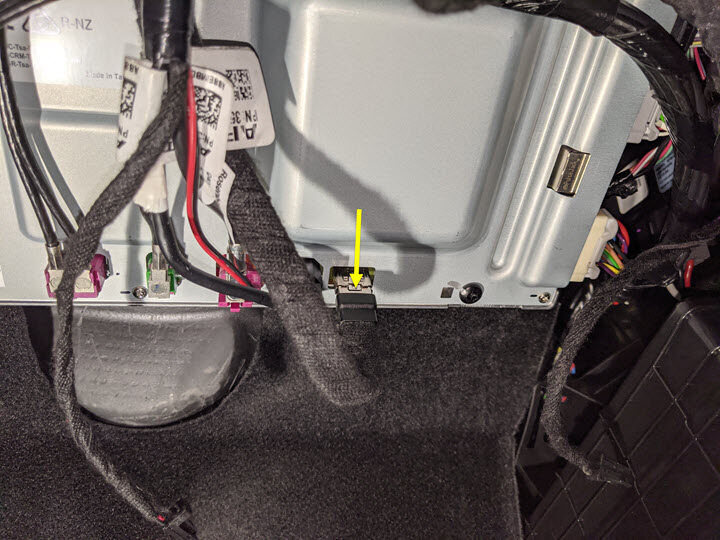

    注

    1x bolt, 10mm, 4 Nm, 2x clips, 1x pin, Remove bolt, Gently pry pin out from thermal beam, then remove from bulkhead studs

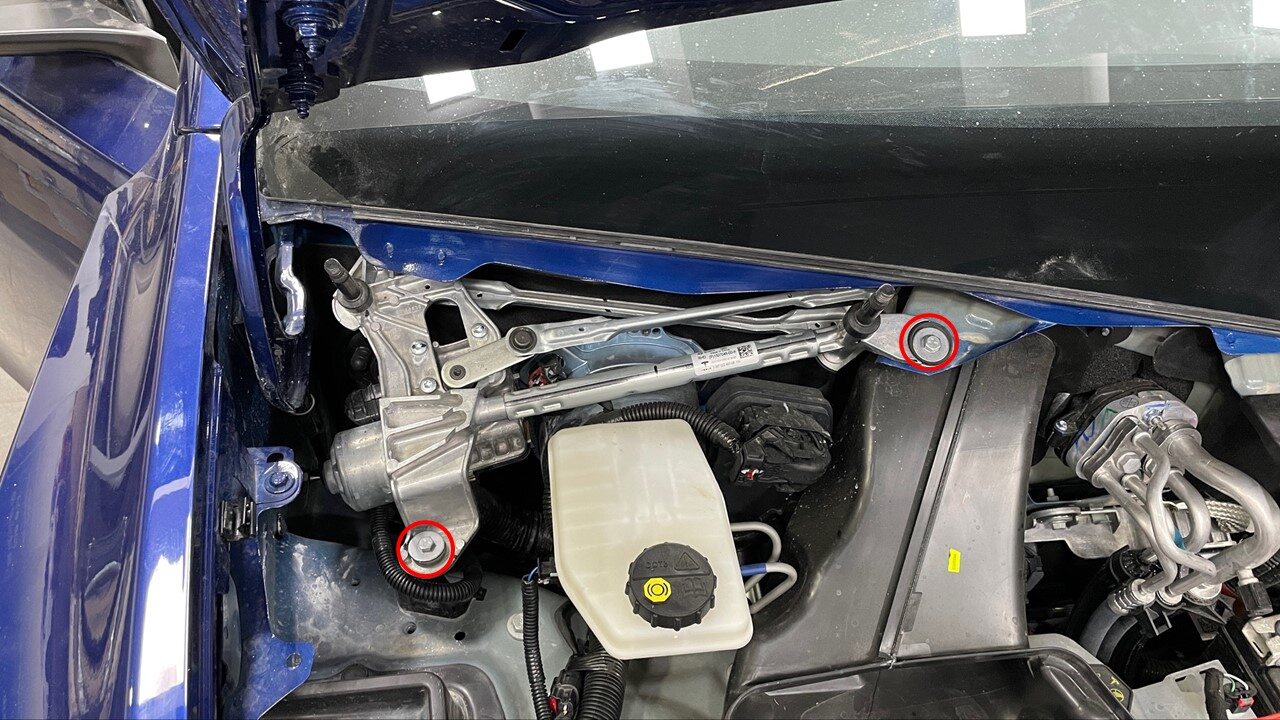

36. Remove the bolts securing wiper module
    注

    2x bolts, 10mm, 7 Nm

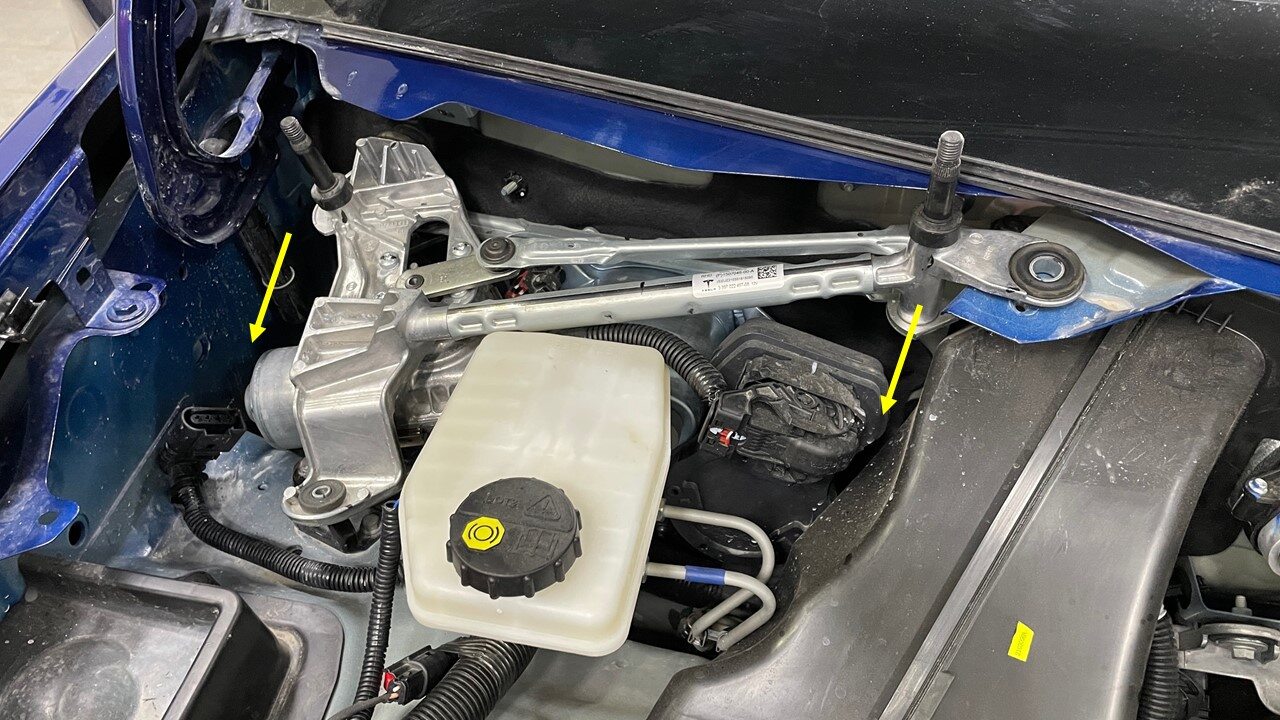

37. Remove wiper module from anchor bracket
    注

    1x rubber anchor, Carefully pull wiper assembly forward to disengage rubber anchor from under windshield bracket





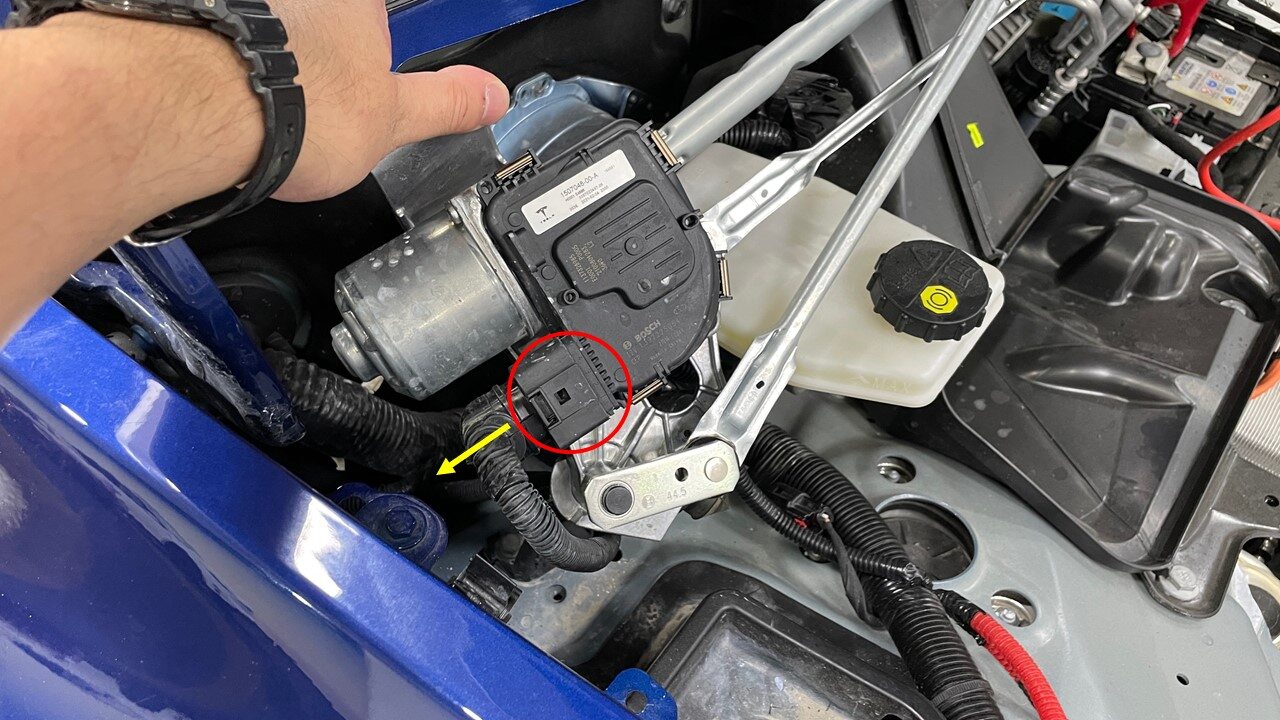

38. Disconnect wiper module harness

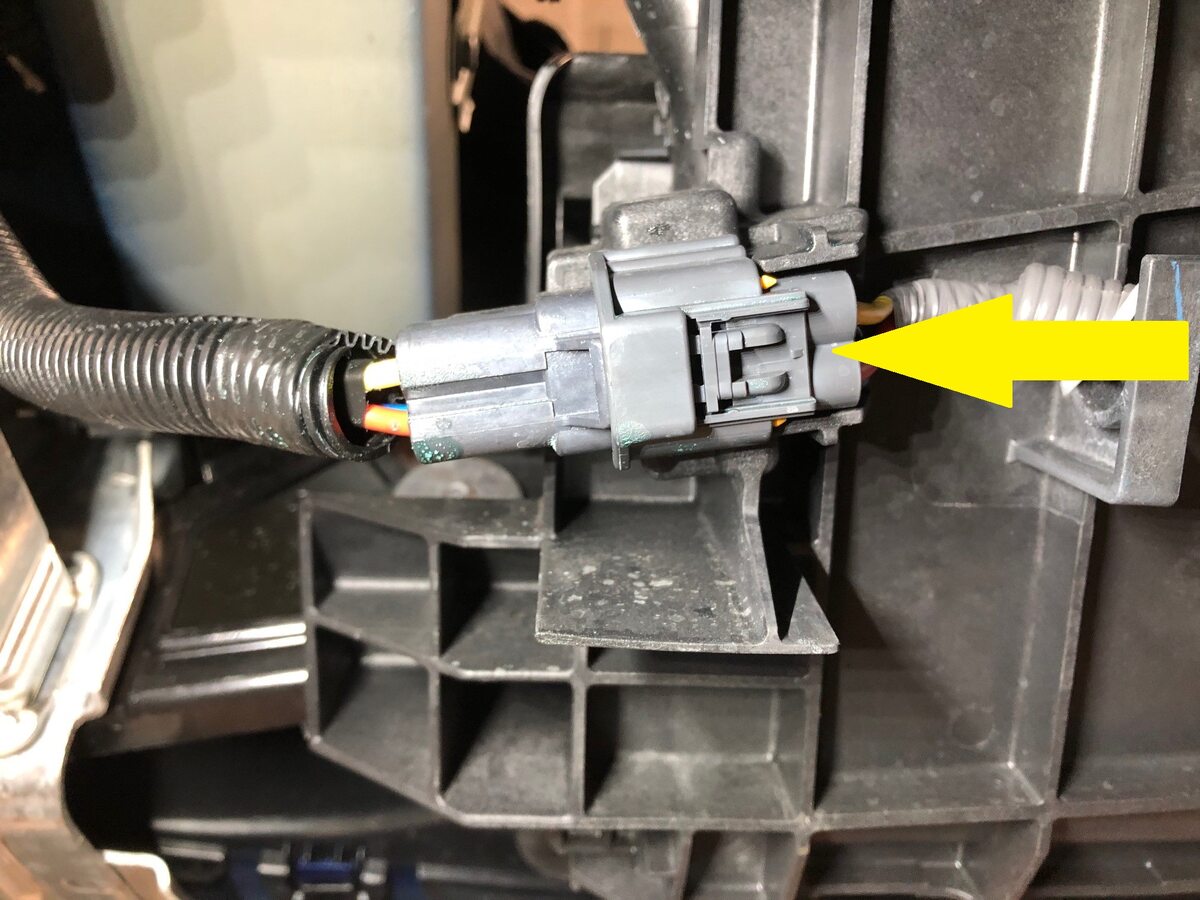

    注

    1x connector, Rotate wiper assembly to expose under side



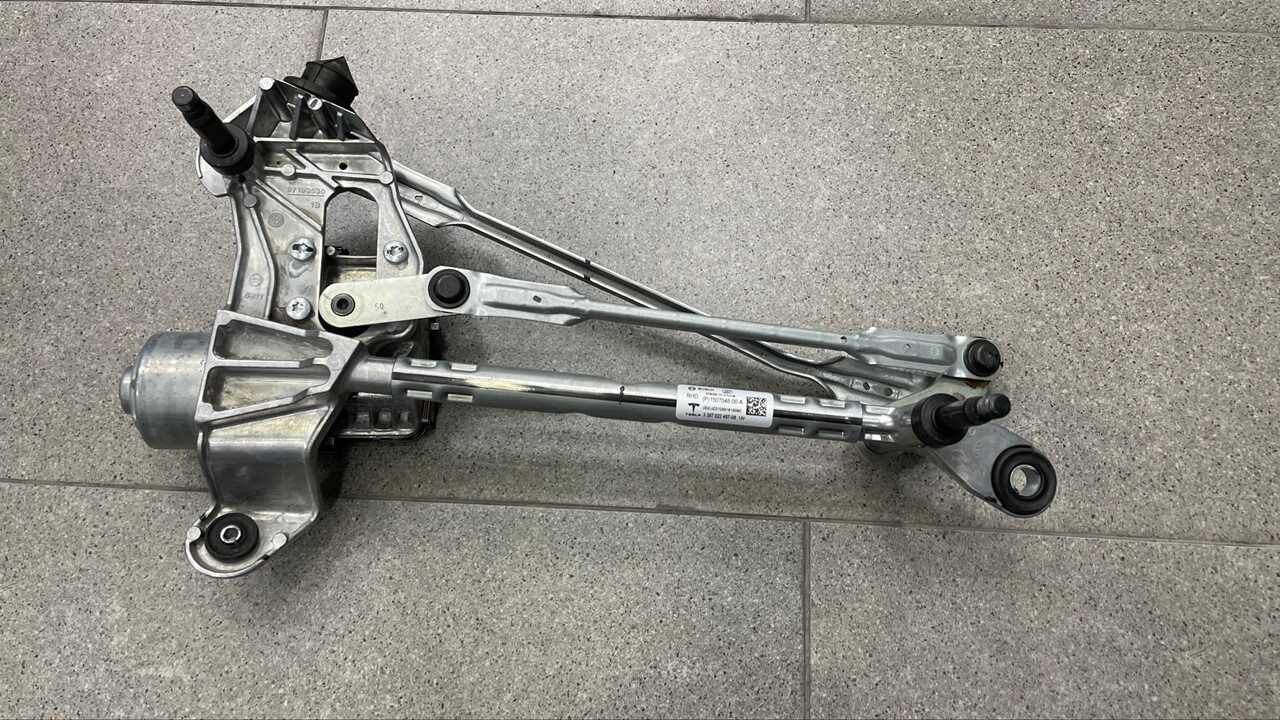

39. Remove wiper module from vehicle

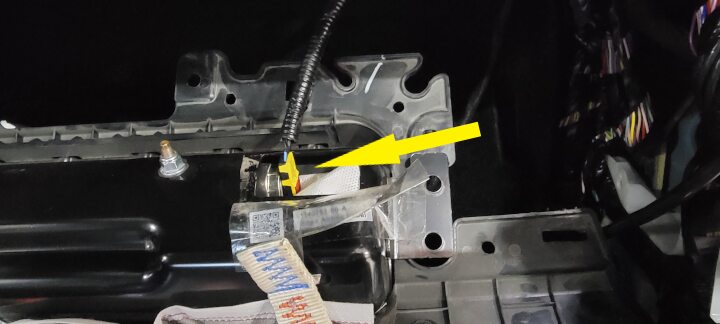

40. Disconnect harness connector for windshield heater and release clip
    注

    1x connector, 1x clip,Release locking tab

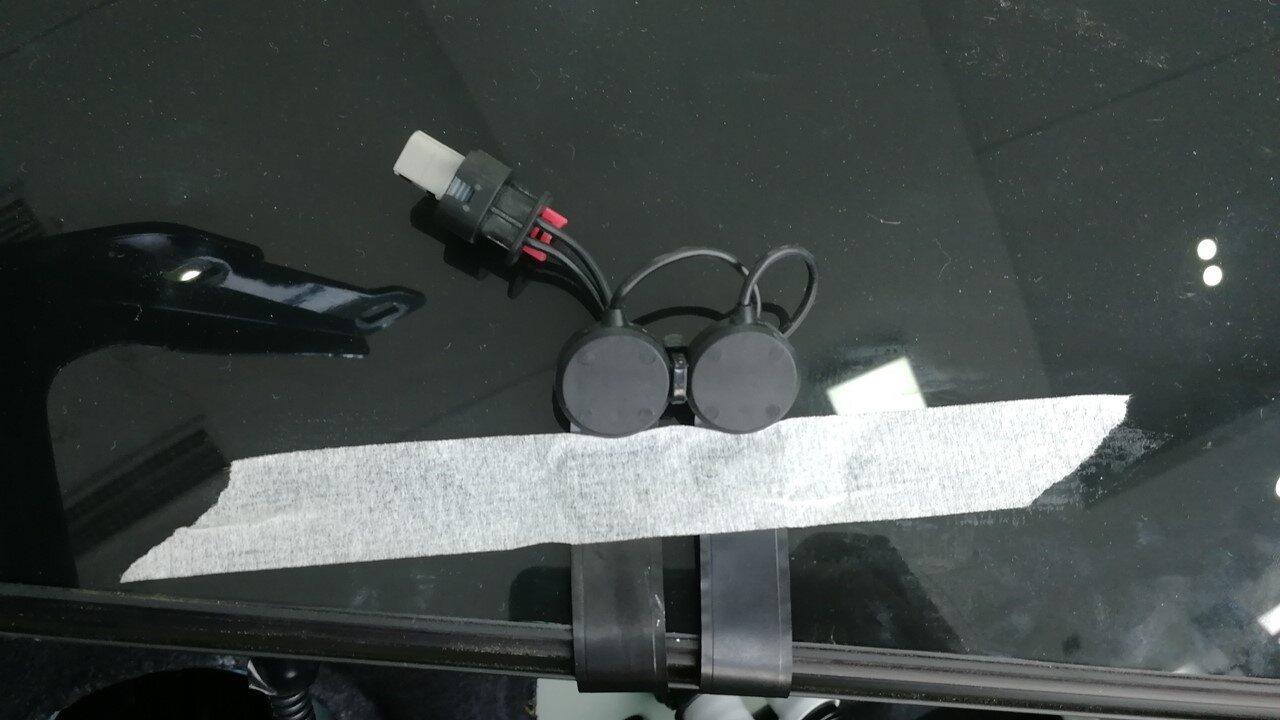

41. Secure the windshield harness out of the way to avoid damage
    注

    Secure using tape



42. Disconnect washer pump harness clip
    注

    1x fir clip

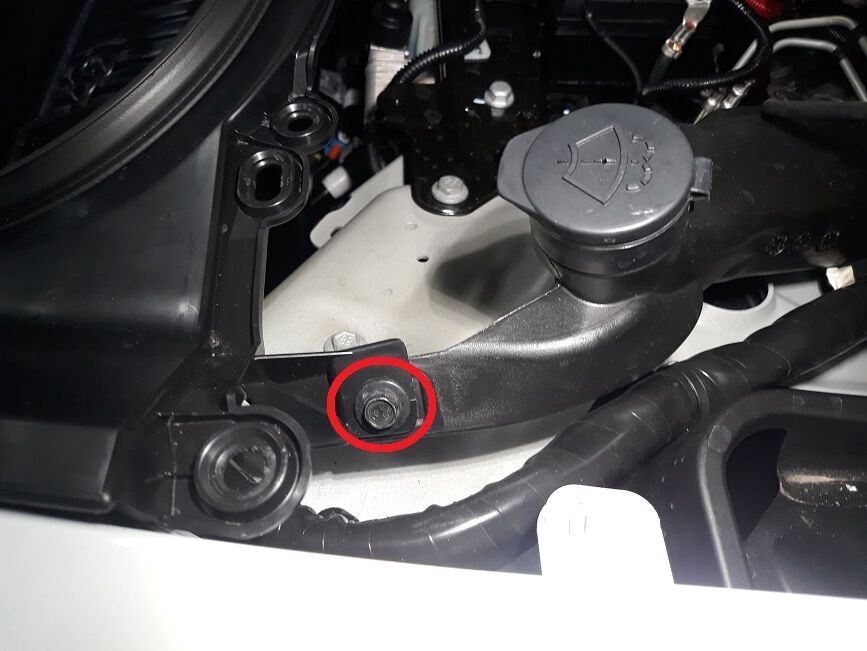

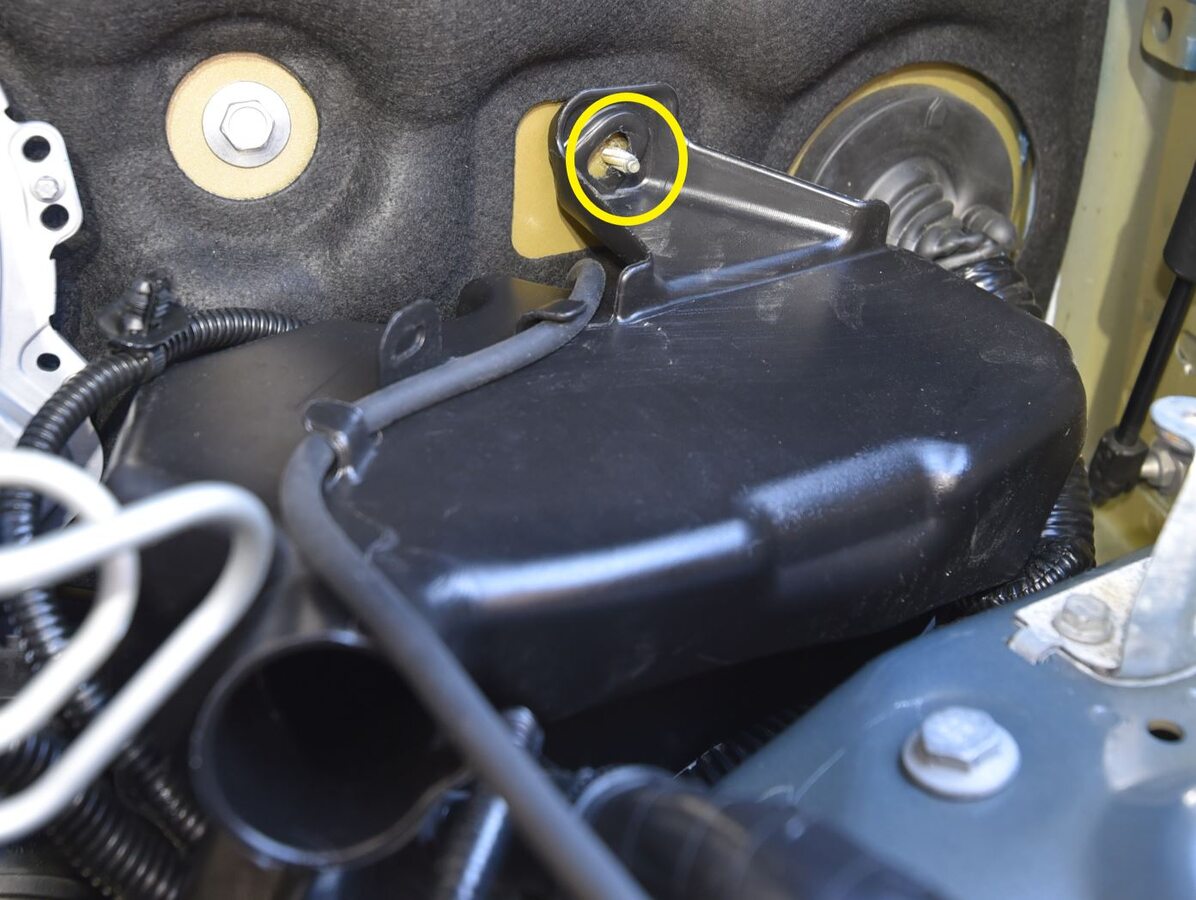

43. Remove bolts securing washer tank
    注

    1x bolt, 10mm, 3 Nm, 1x nut, 10mm, 3 Nm



44. Unplug washer tank level sensor
    注

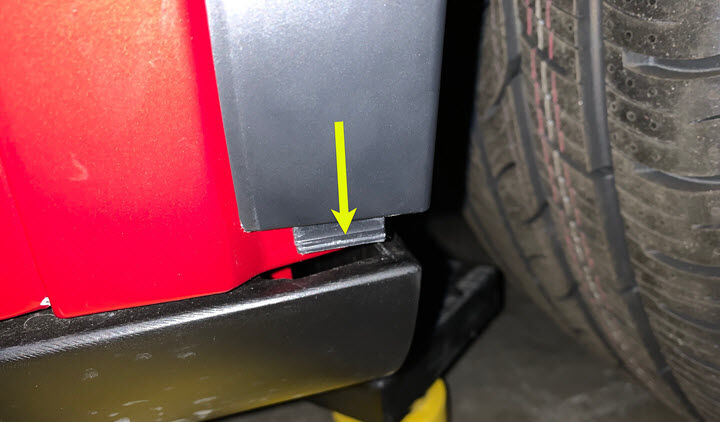

    1x connector

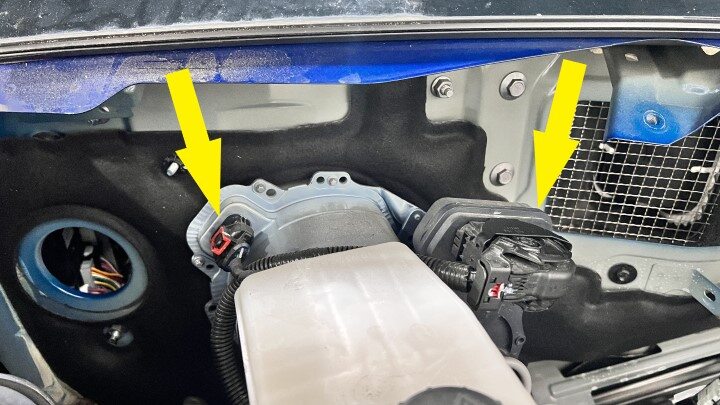

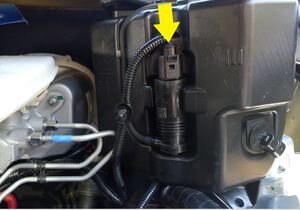

45. Disconnect washer tank pump connector
    注

    1x connector

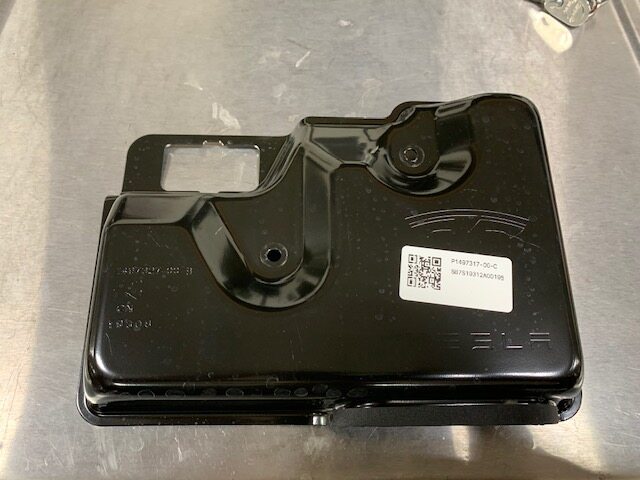

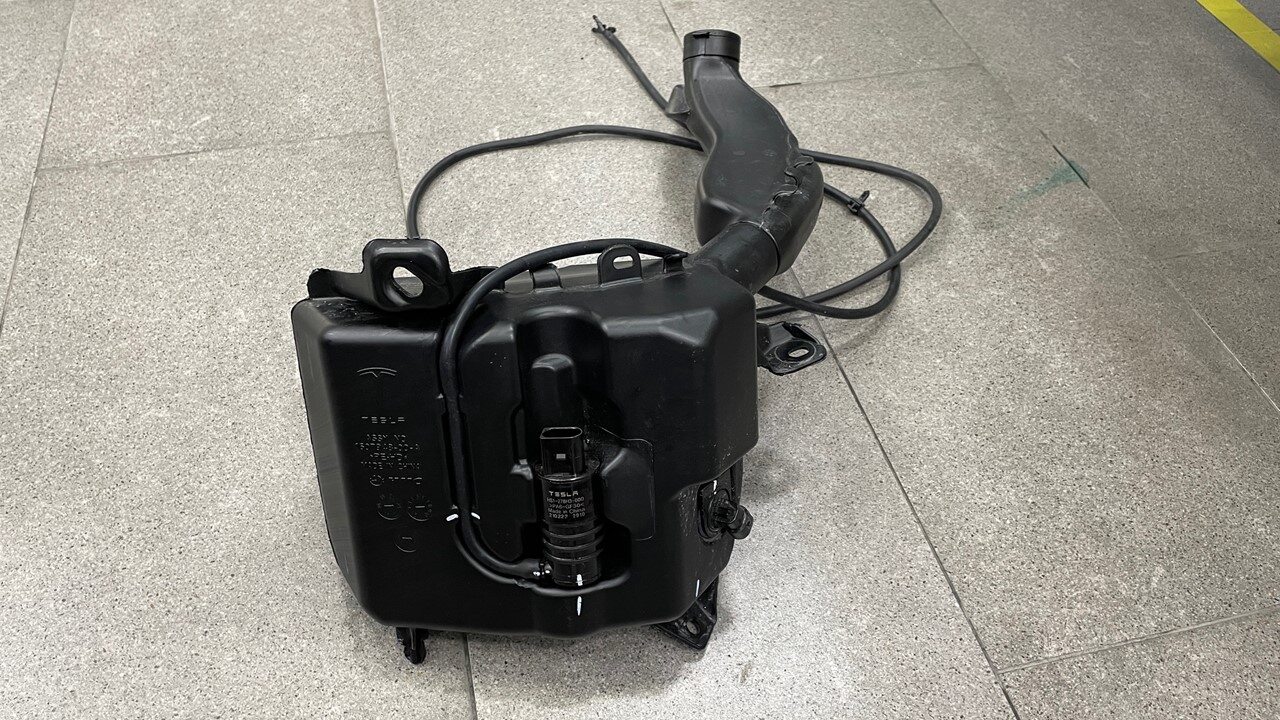

46. Remove washer assembly
    注

    Drain washer fluid once removed



47. Release 12V positive cable clip from front controller
    注

    1x clip

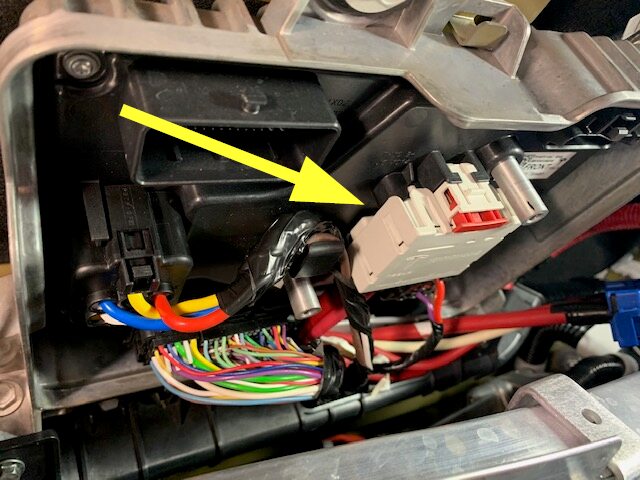

48. Disconnect the supermanifold harness from the front LV controller

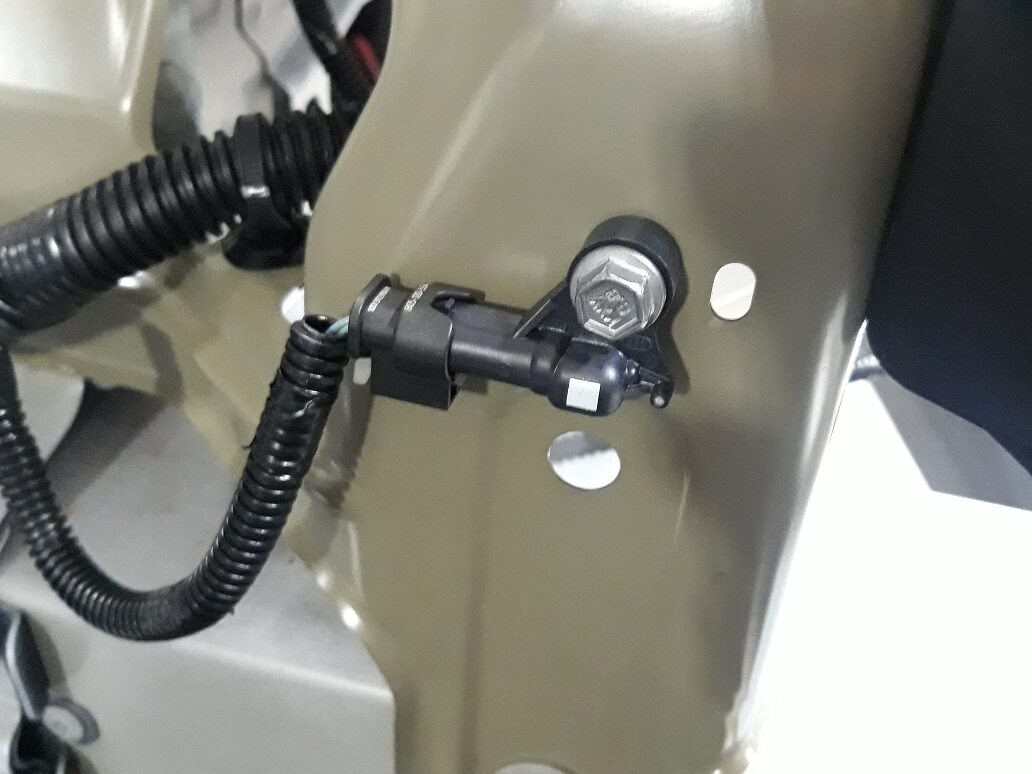

    注

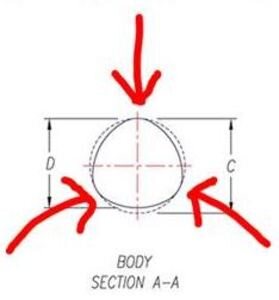

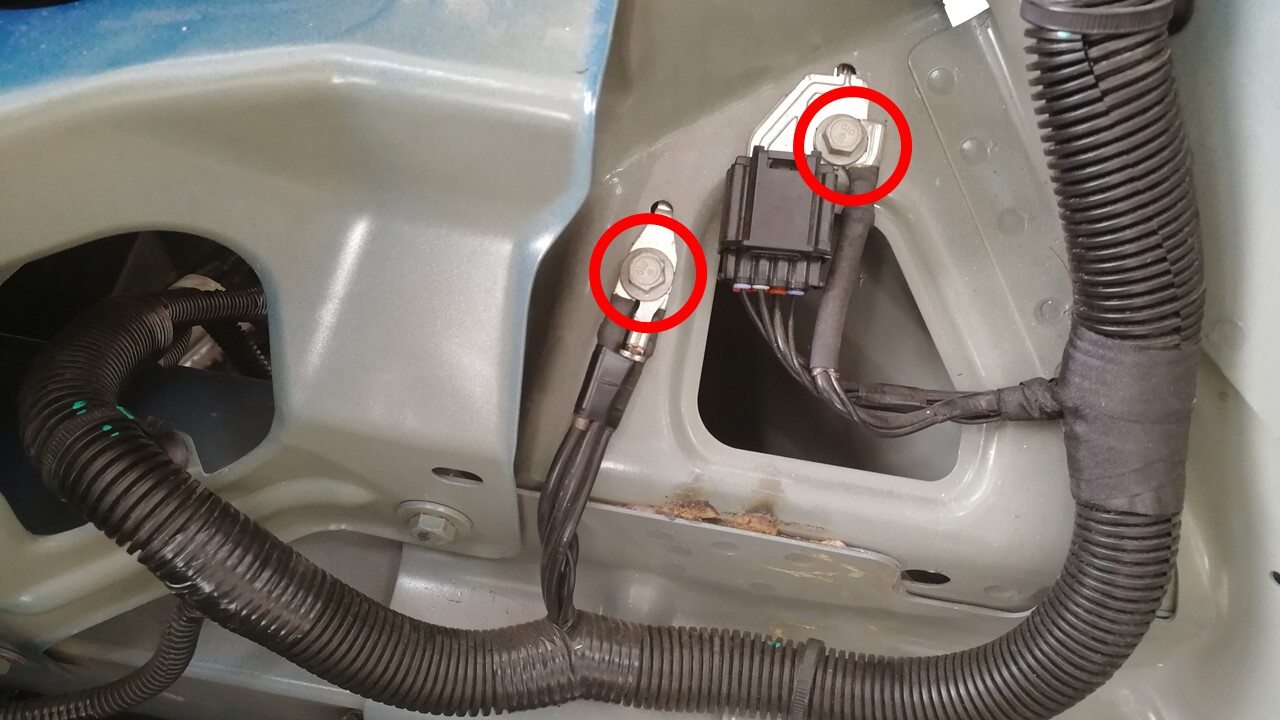

    1x connector, 1x clip





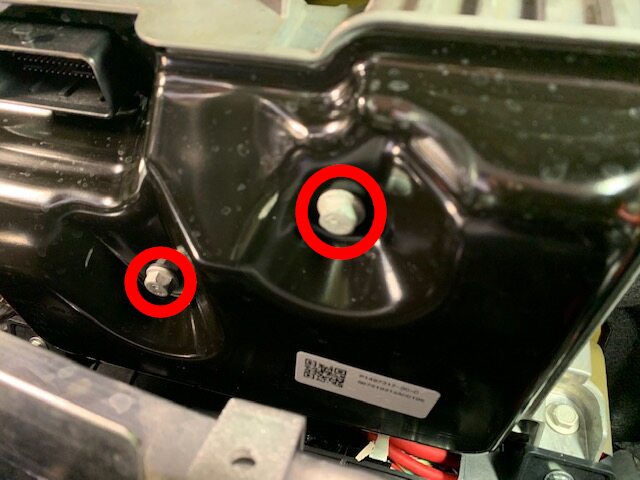

49. Remove bolts securing front LV controller shield assembly and remove from vehicle
    注

    2x bolts, 10mm, 8.5 Nm

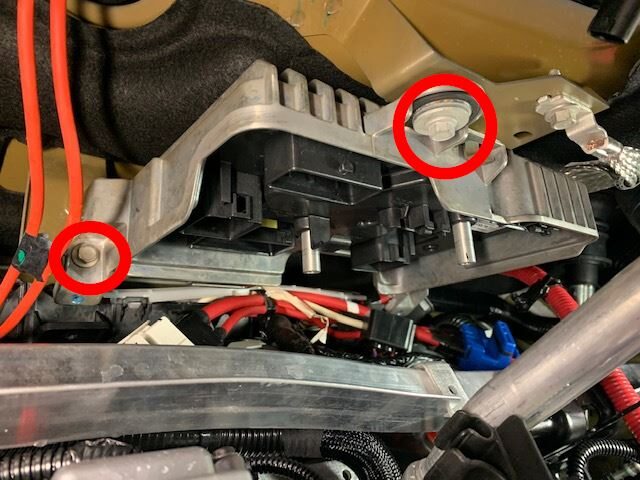

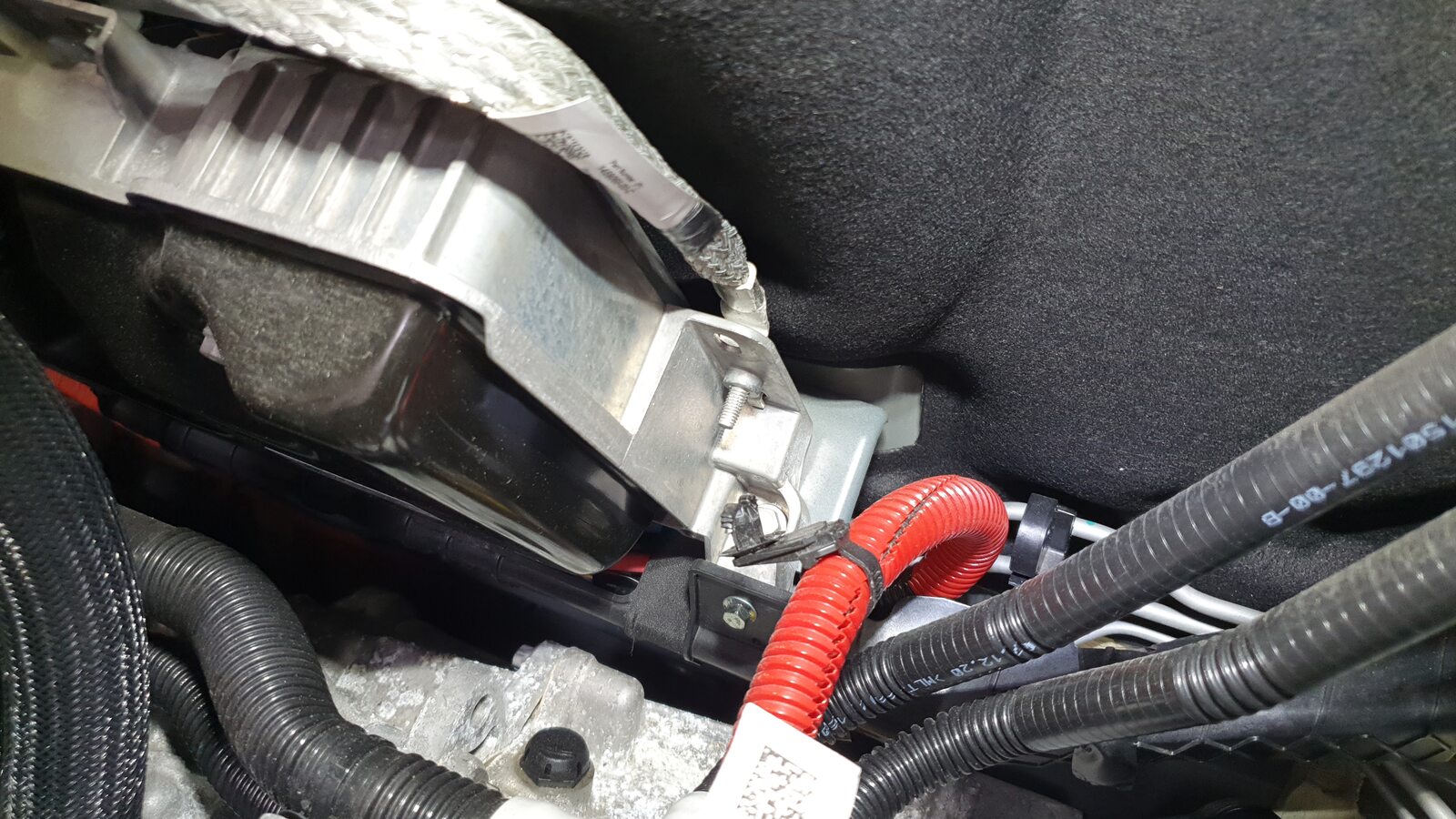

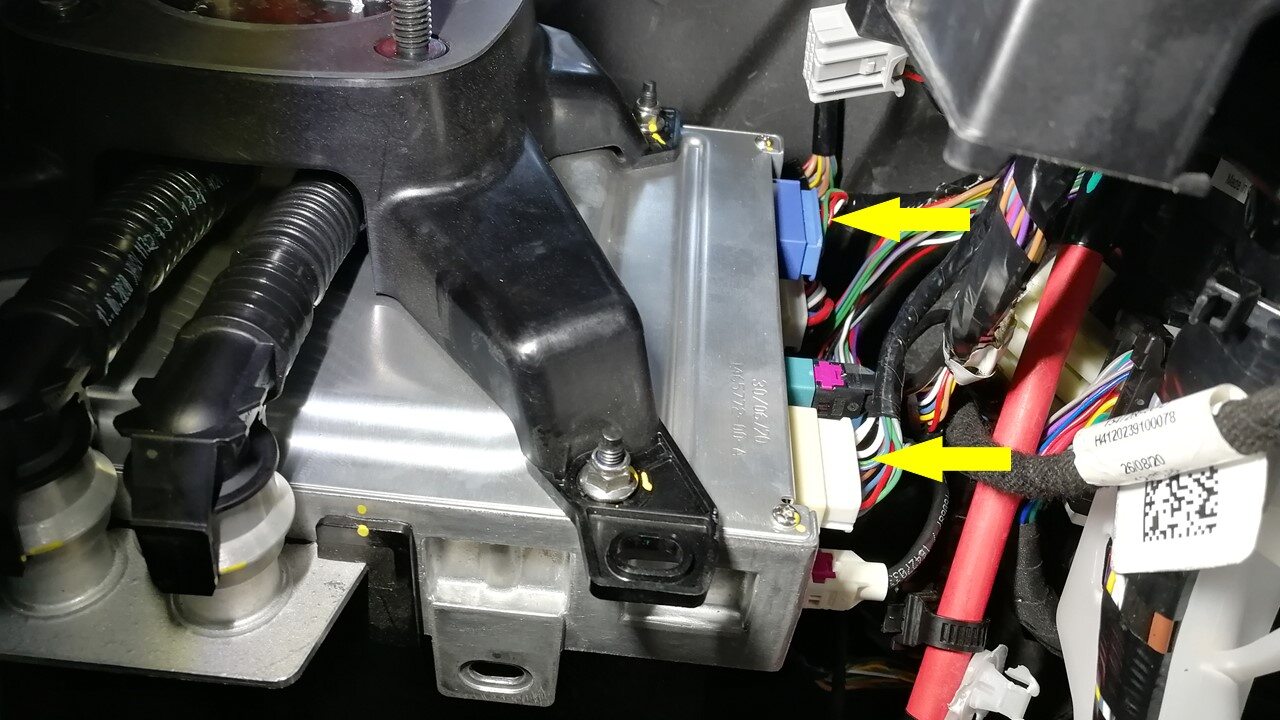

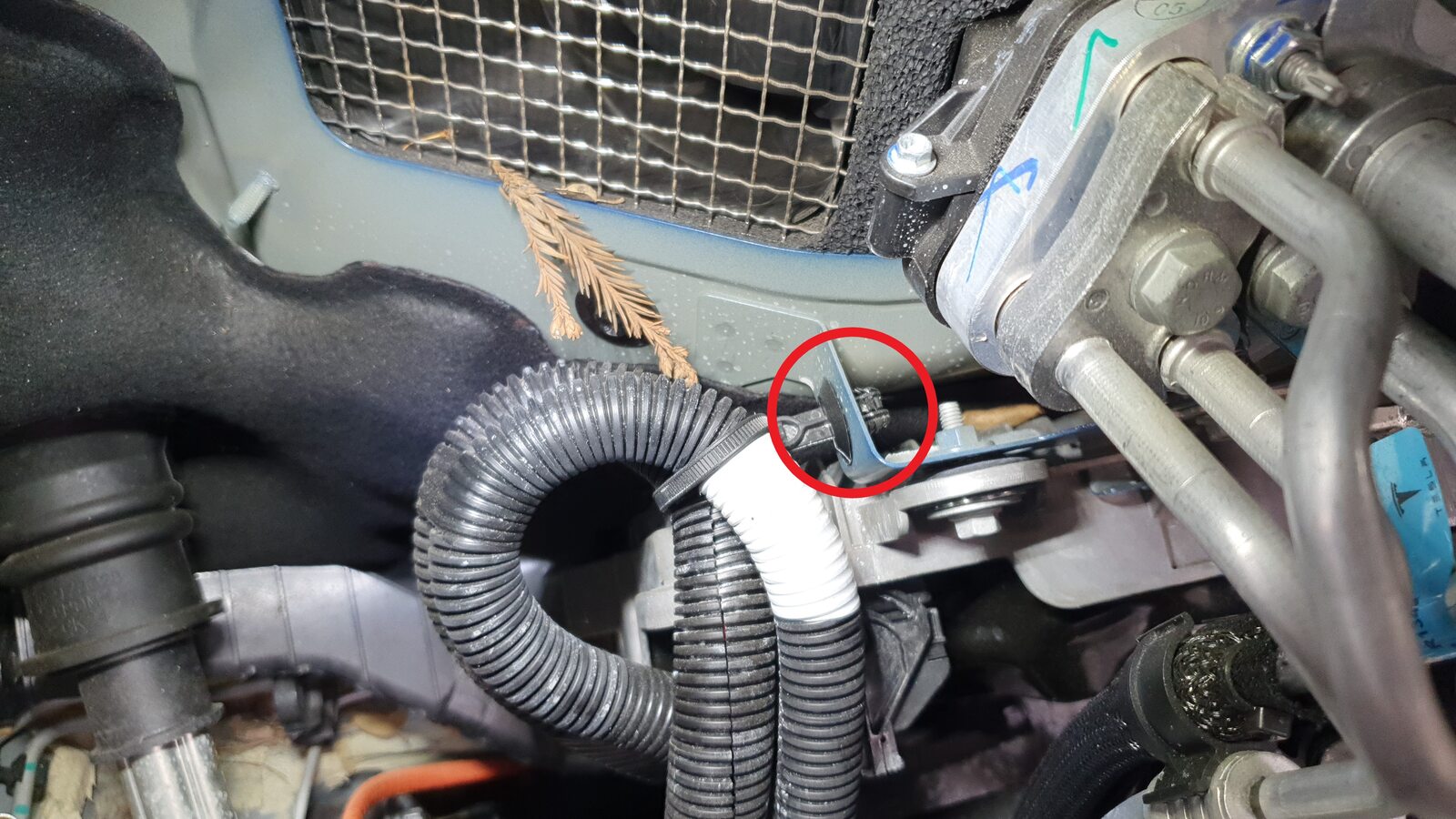

50. Disconnect remaining connectors on front LV controller
    注

    5x connectors, Release locking tabs first if equipped











51. Release harness guide from front LV controller
    注

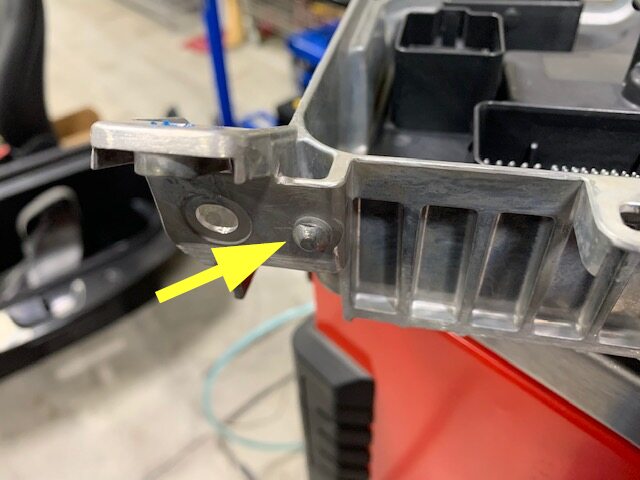

    2x patch bolts, 8mm, 6 Nm, 1x temp set clip, Discard bolts after removal, Remove bolts first, then pivot harness guide slightly forward and up to remove temp set clip from front harness









52. Remove bolts securing front LV controller
    注

    3x bolts, 10mm, 10 Nm

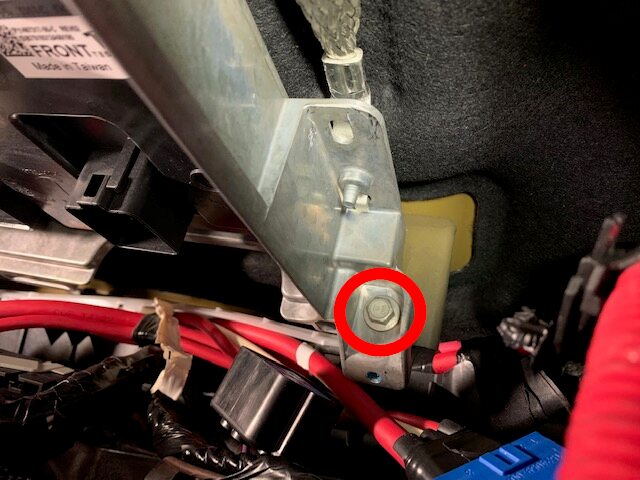

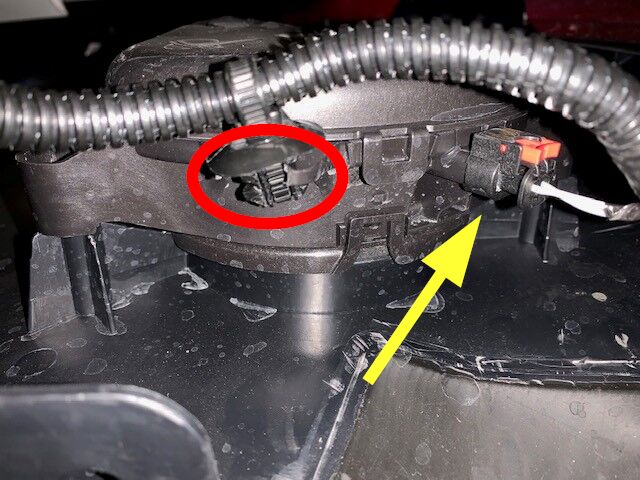

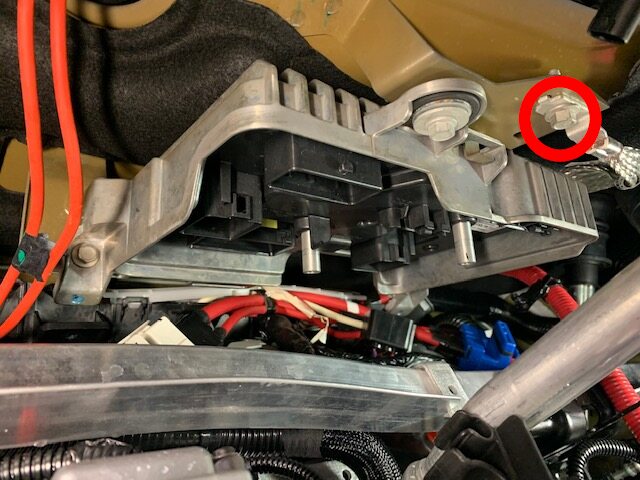

53. Remove front controller upper ground strap from body
    注

    1x bolt, 10mm, 10 Nm

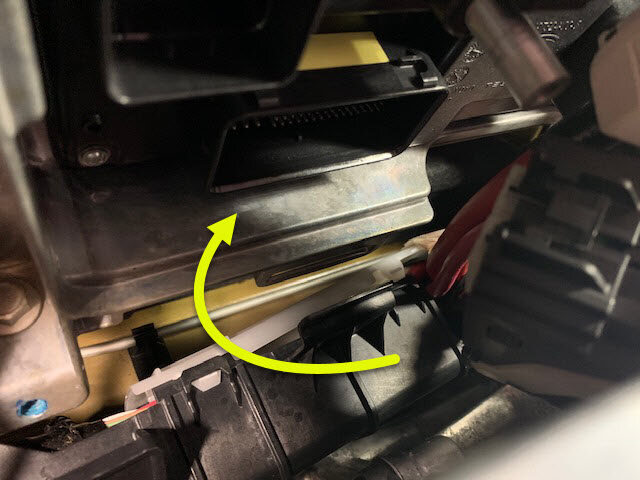

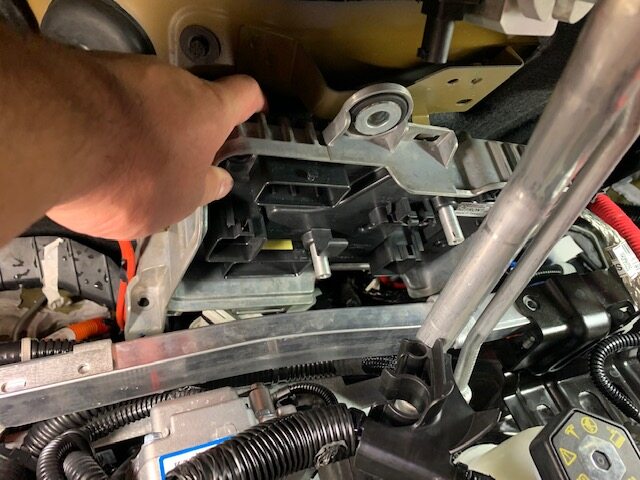

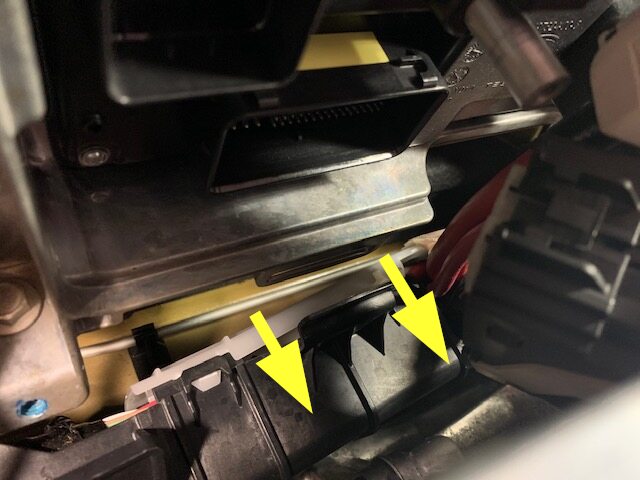

54. Remove the front LV controller from vehicle
    注

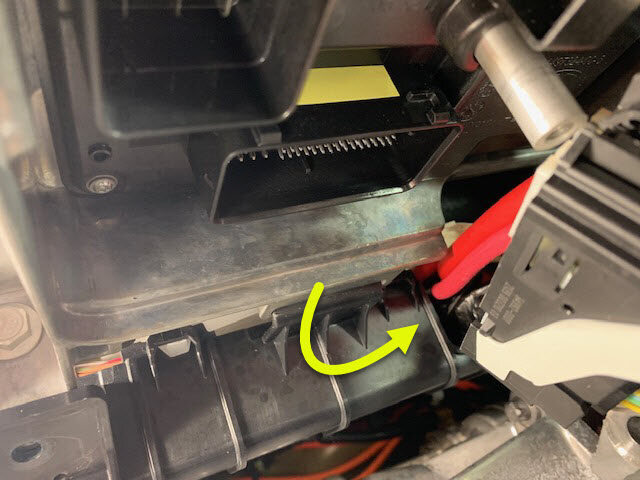

    Push harness connectors down to provide space, Gently pry bottom of controller out of BIW temp set holes, Then swing controller forward and up to release from top temp set

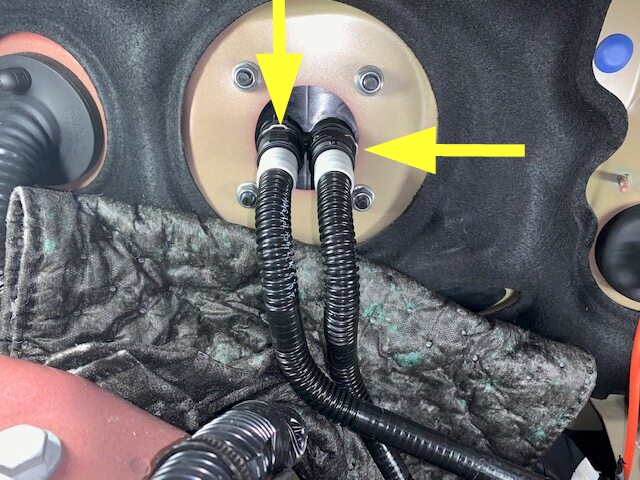

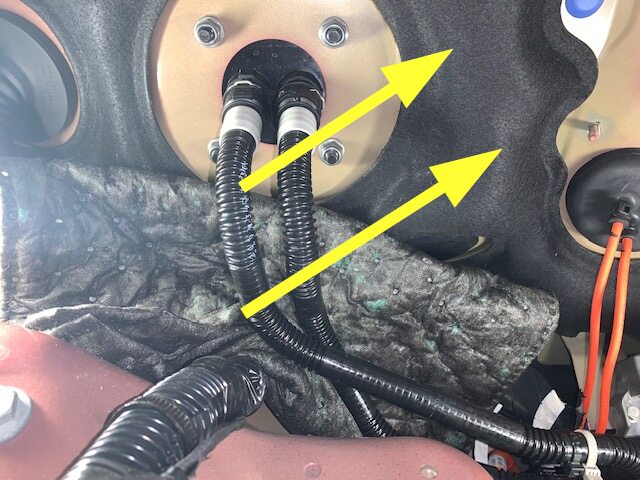

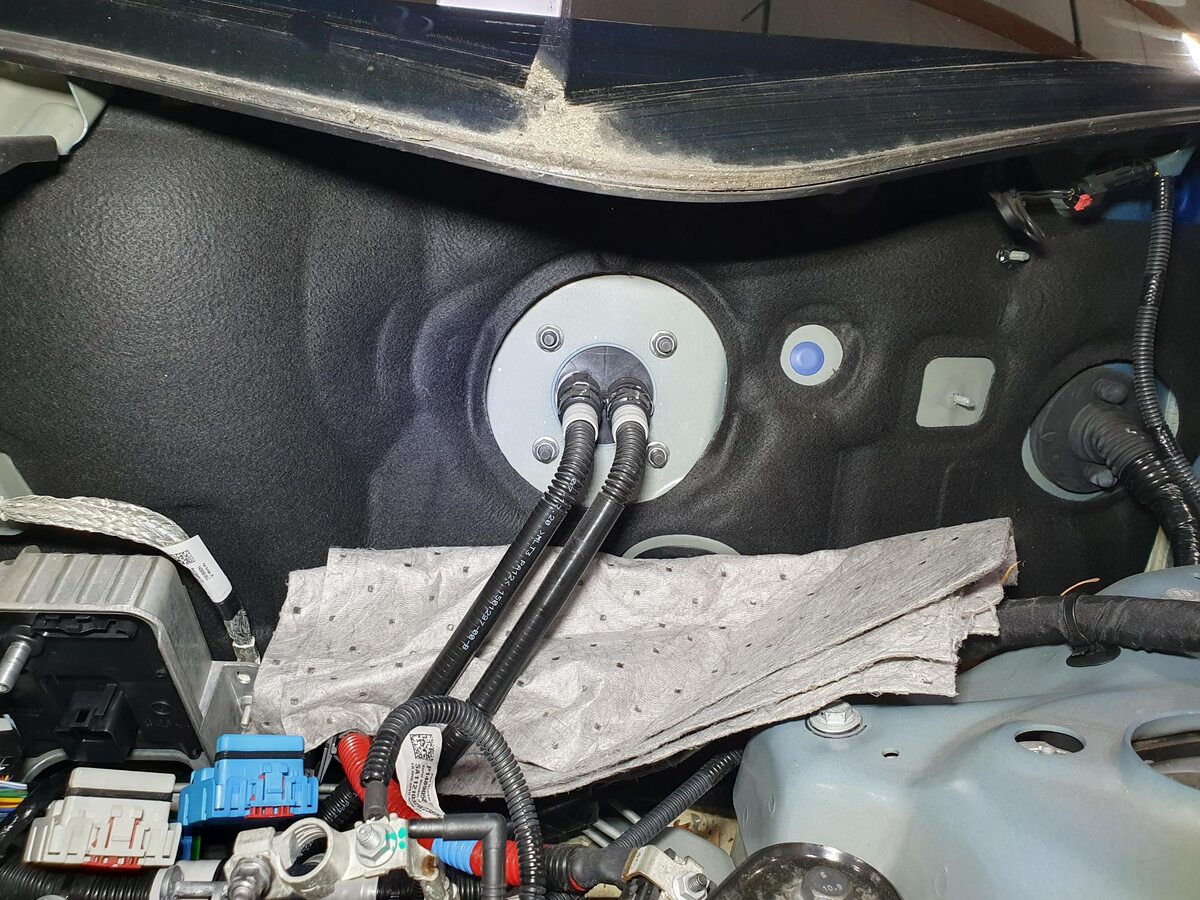

55. Place absorbent material below car computer coolant hose connection points to collect any spilled coolant



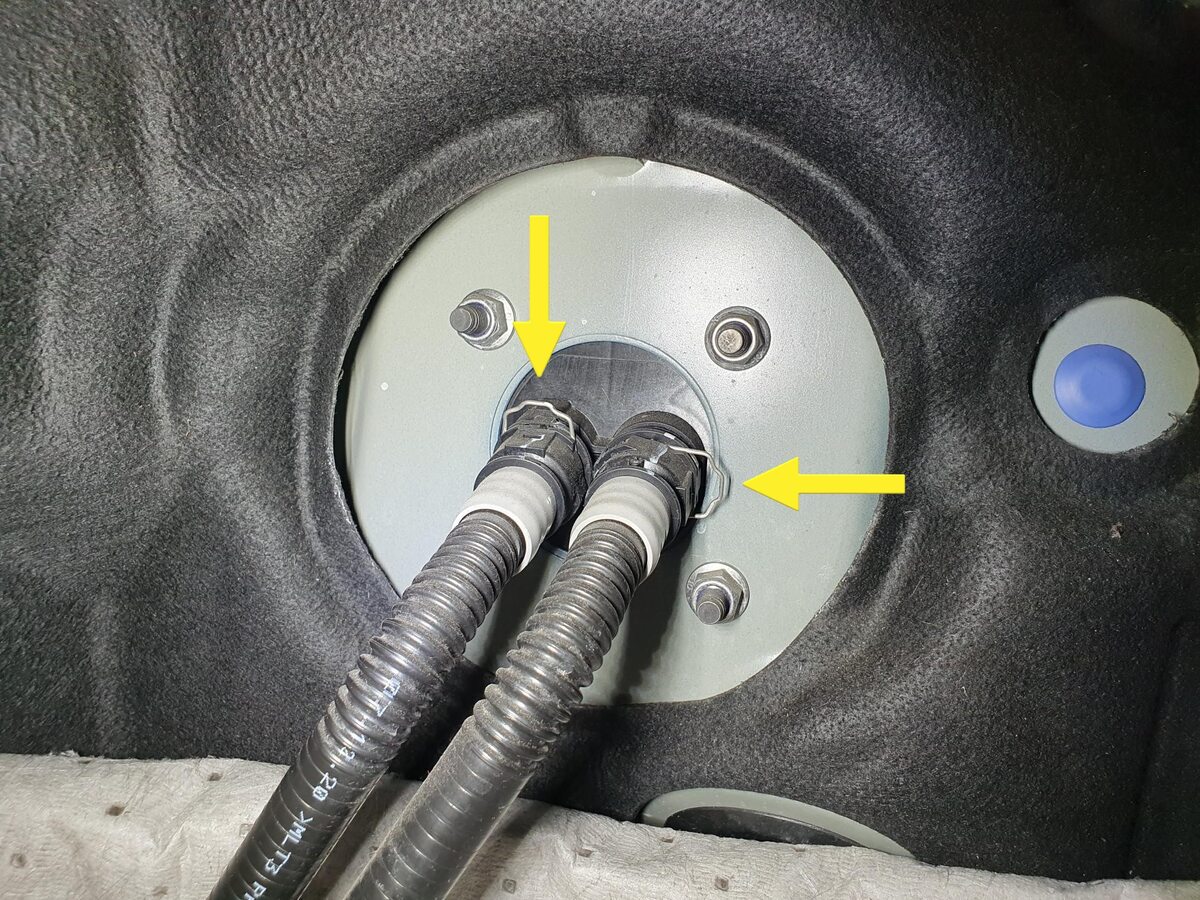

56. Release coolant hoses from car computer
    注

    2x spring clips



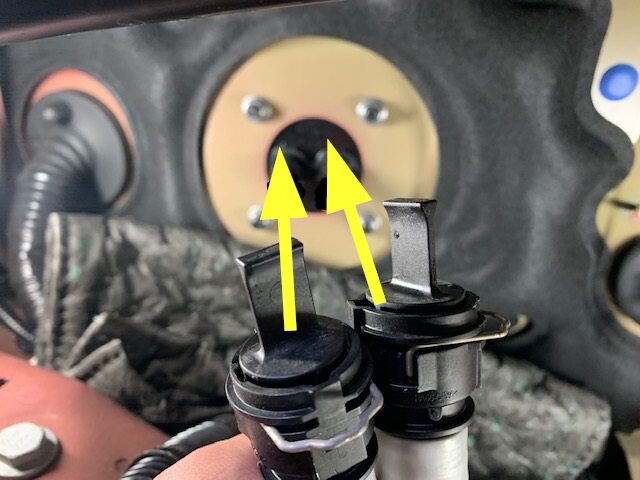

57. Install plugs to car computer coolant hoses
    注

    2x plugs, Do not need to engage spring clips



58. Install coolant plugs into coolant outlets of car computer that is being removed from vehicle



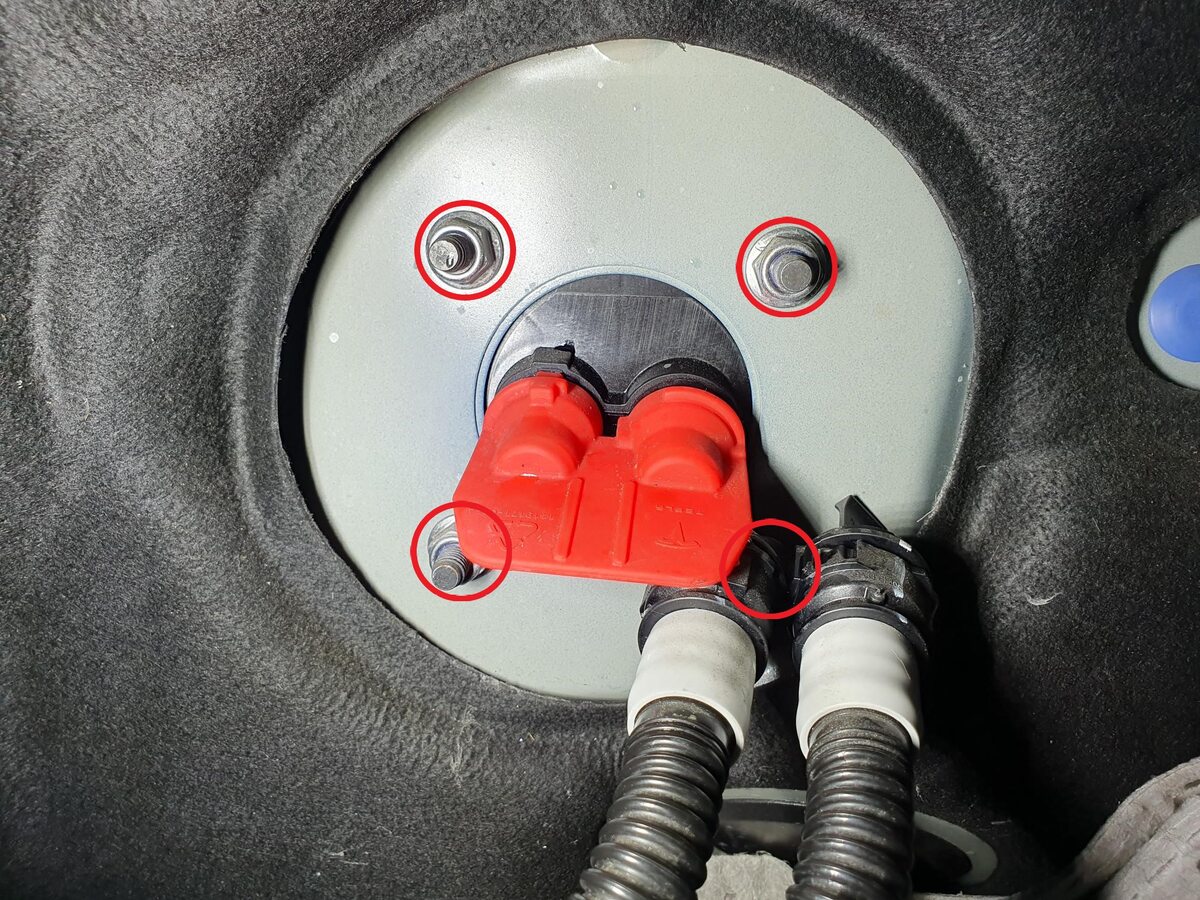

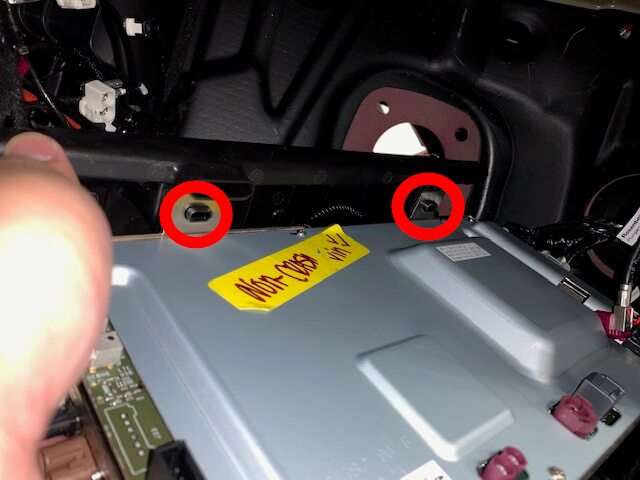

59. Remove nuts securing car computer to bulkhead
    注

    6x nyloc nuts, 7.1 Nm, Discard nuts after removal

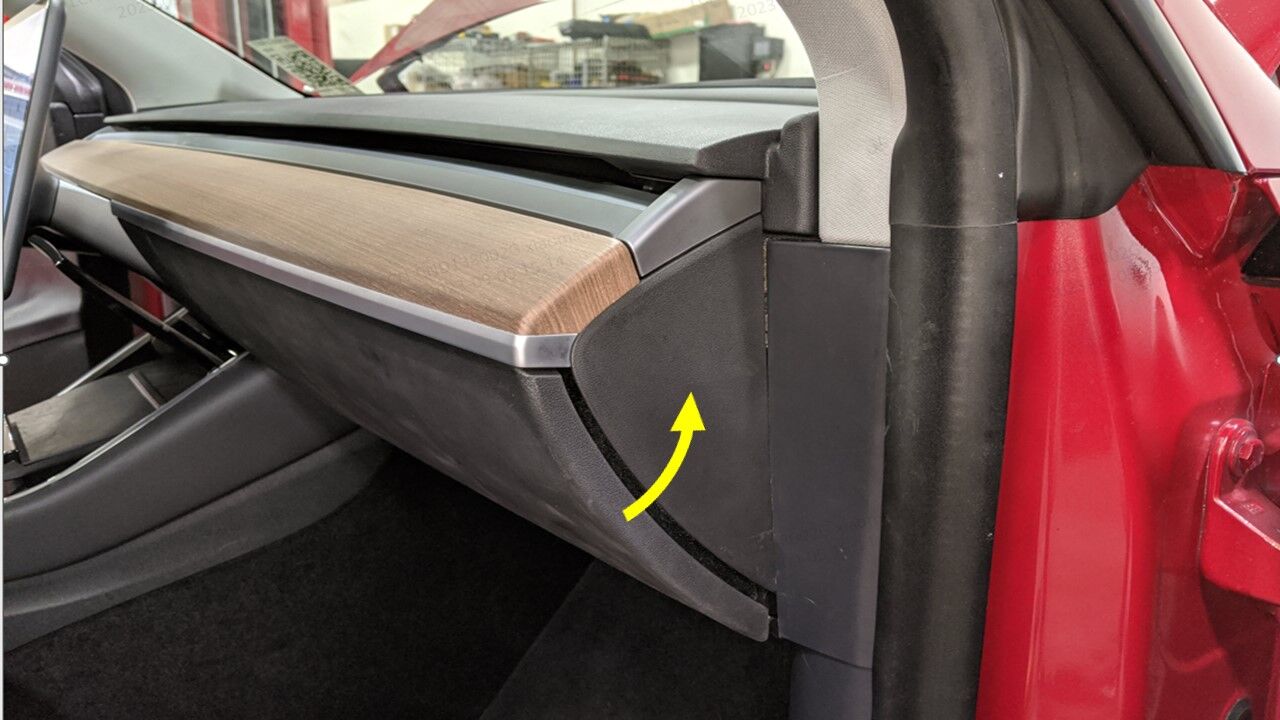

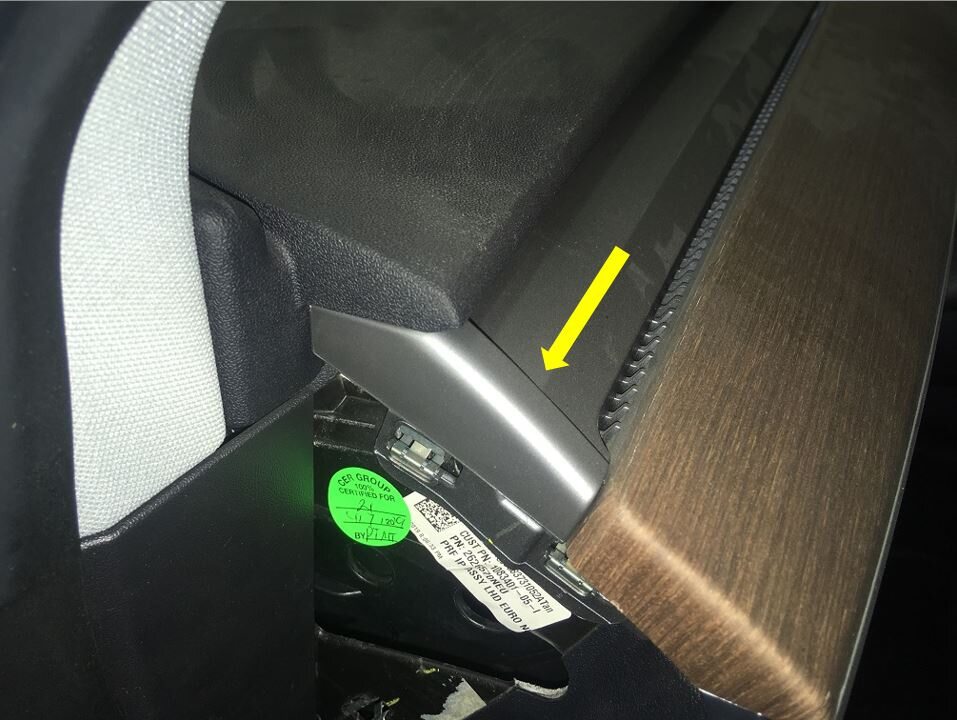

60. Remove RH IP end cap
    注

    3x clips



61. Remove RH mid A-pillar assembly
    注

    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove

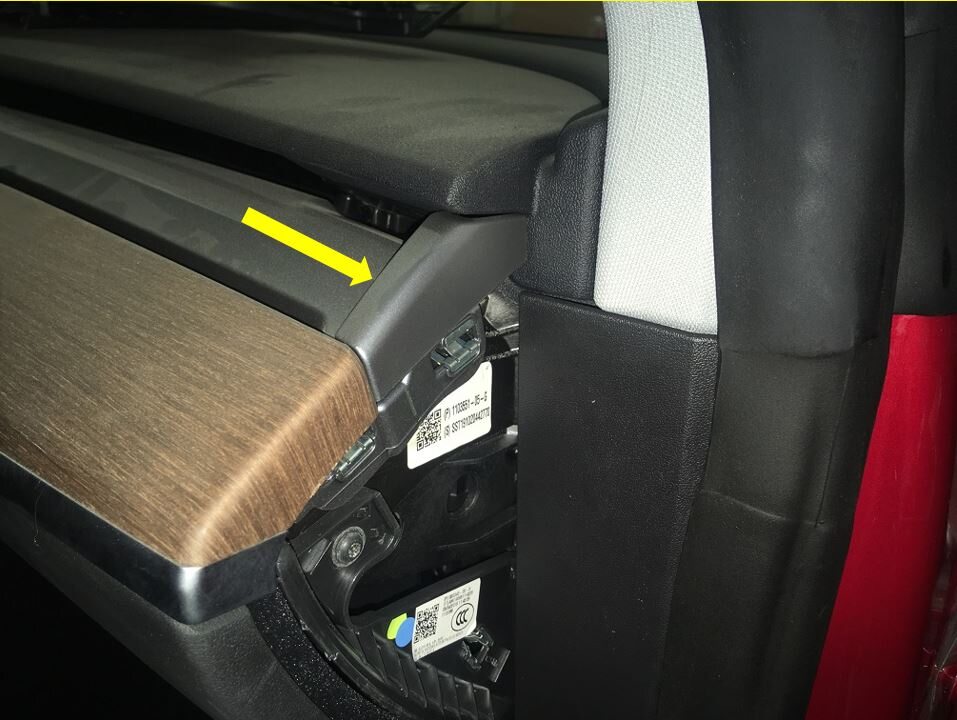

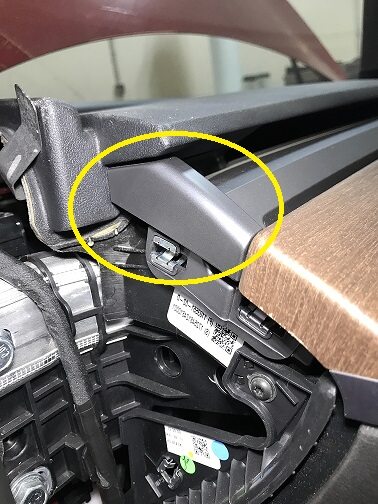

62. Remove RH air wave bezel cap from main decor assembly
    注

    2x clips



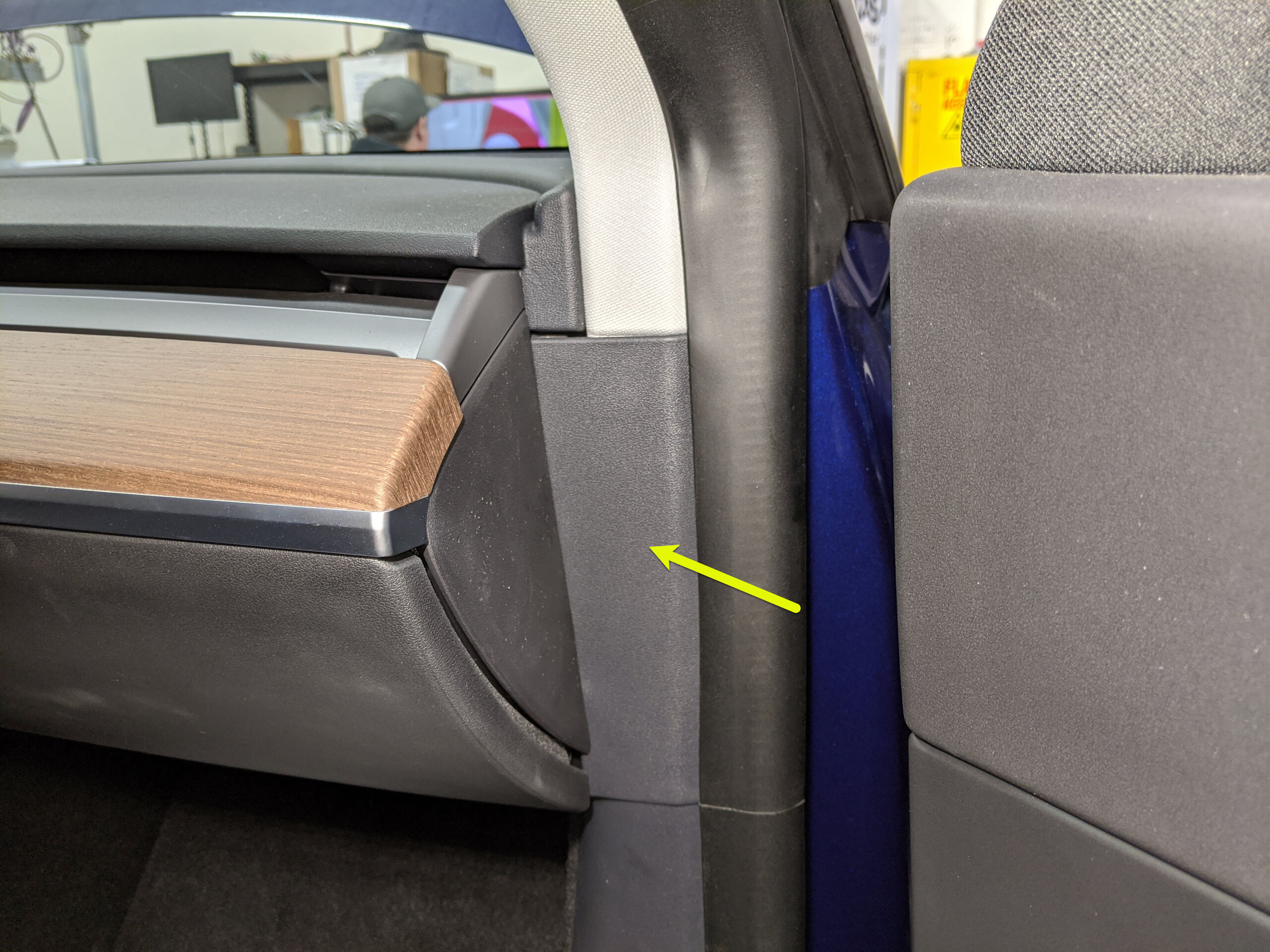

63. Remove clip securing RH lower A-pillar trim
    注

    1x push clip

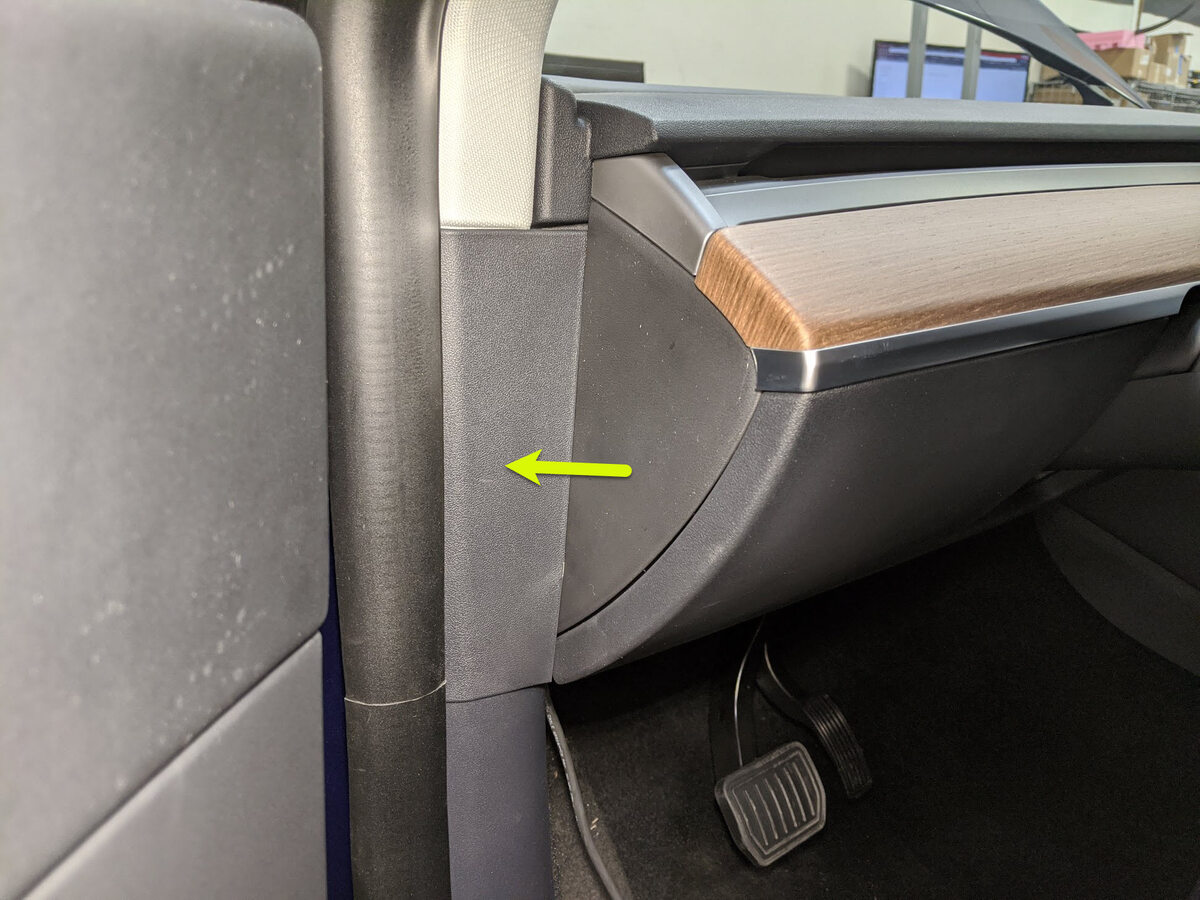

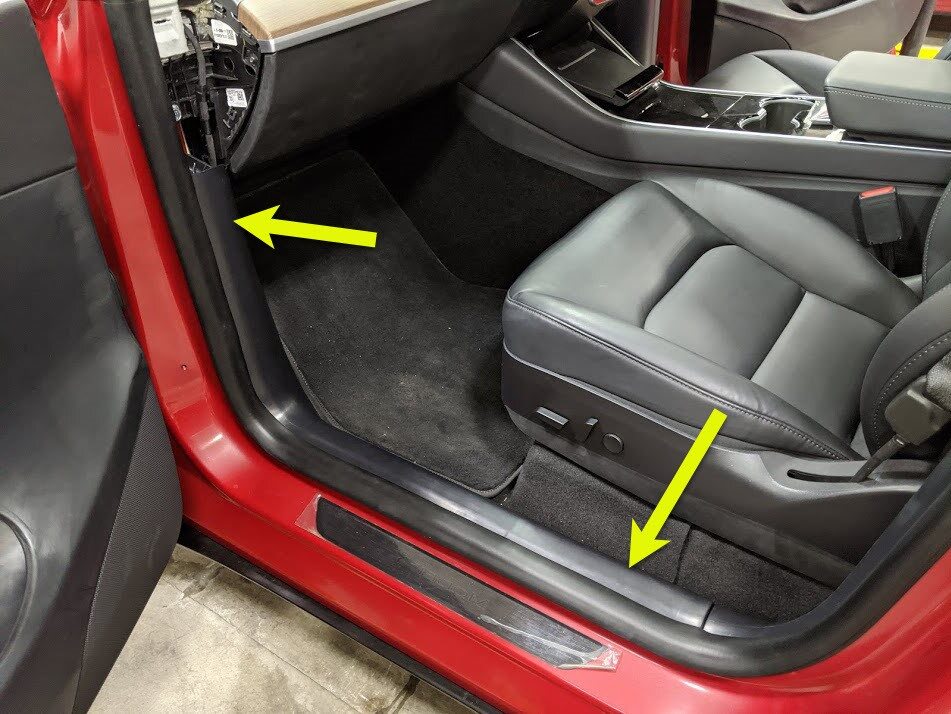

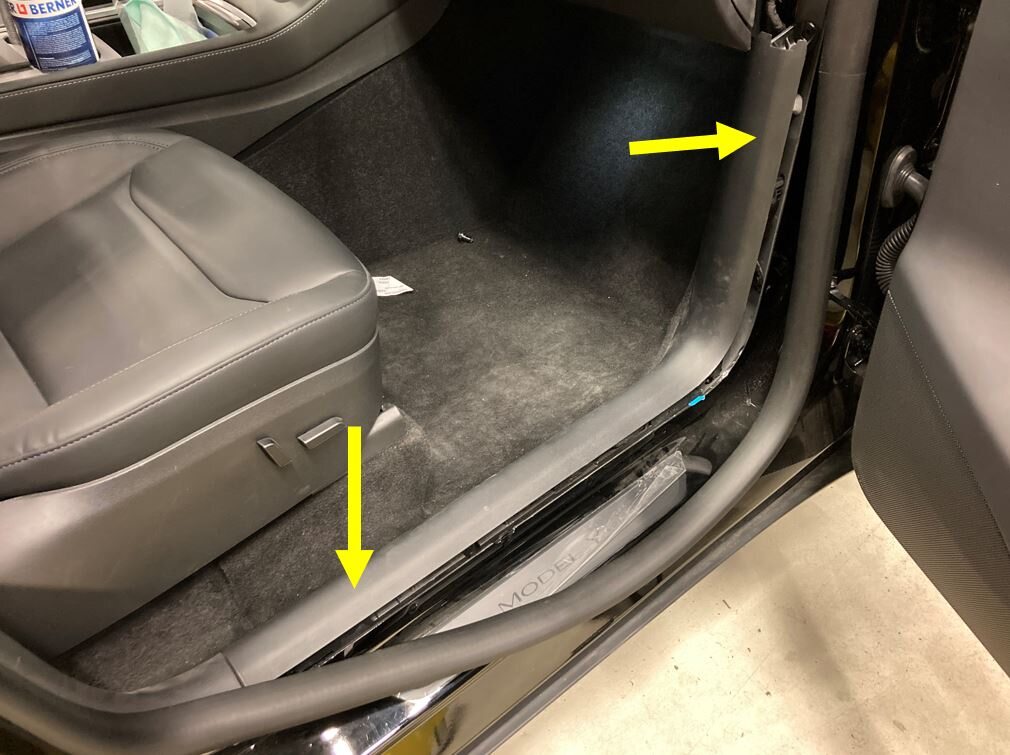

64. Remove RH lower A-pillar trim
    注

    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel

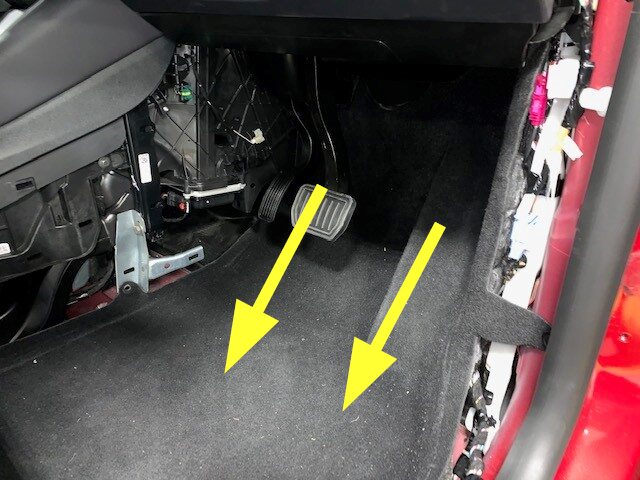

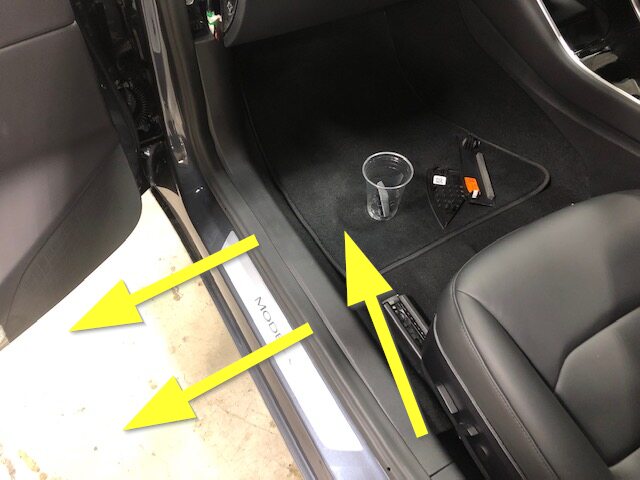

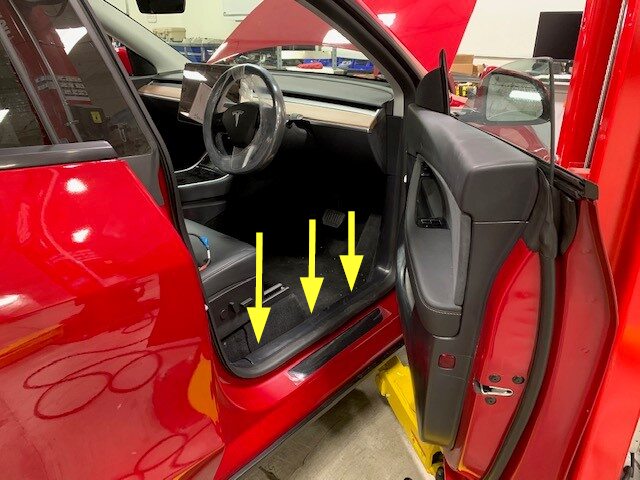

65. Remove RH front floormat

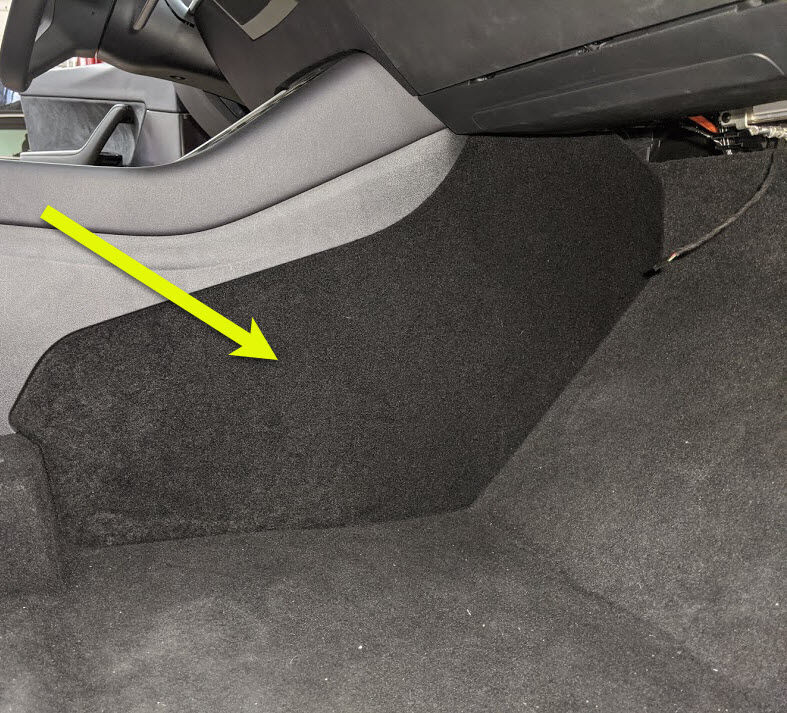

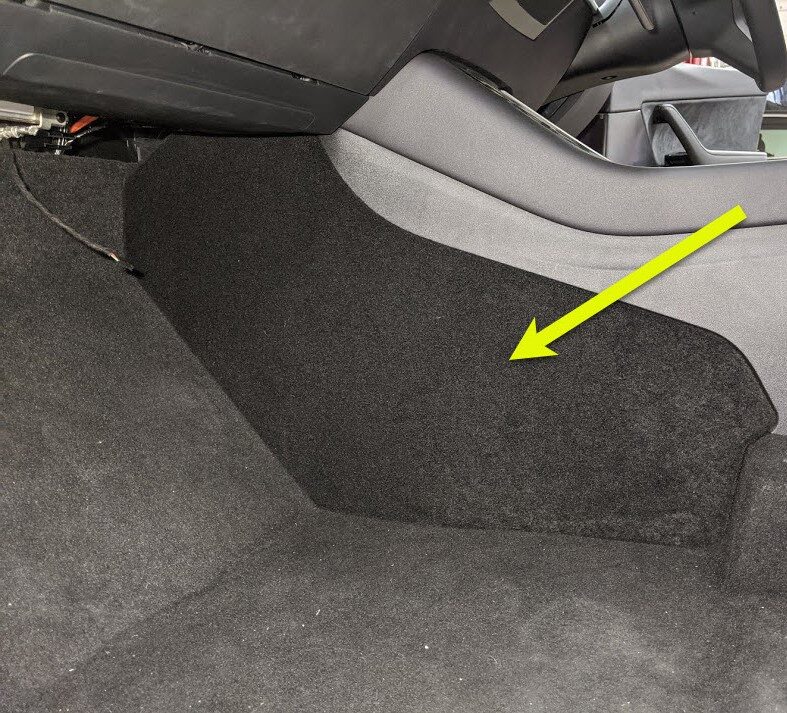

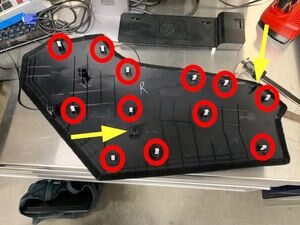

66. Remove RH console side panel carpet
    注

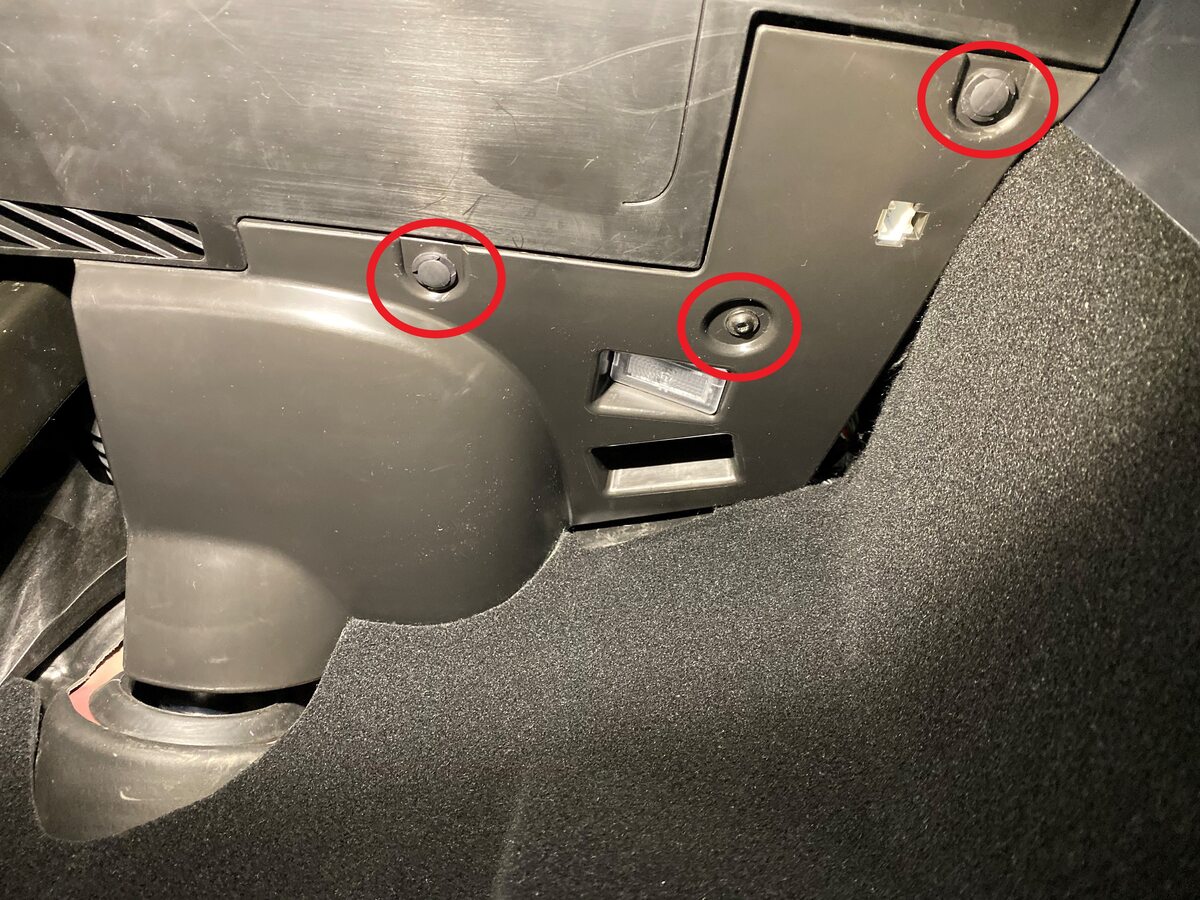

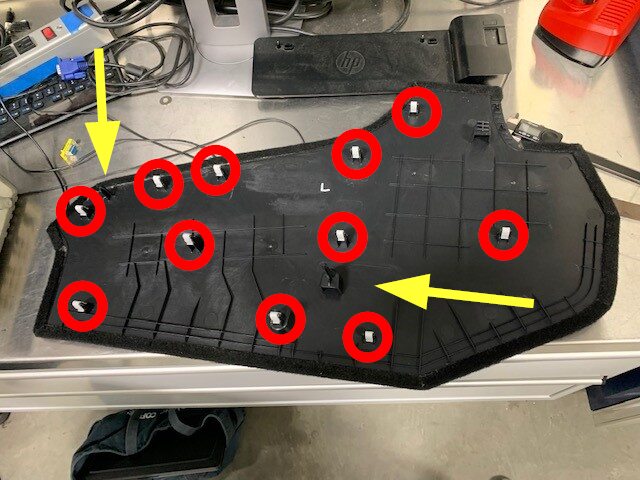

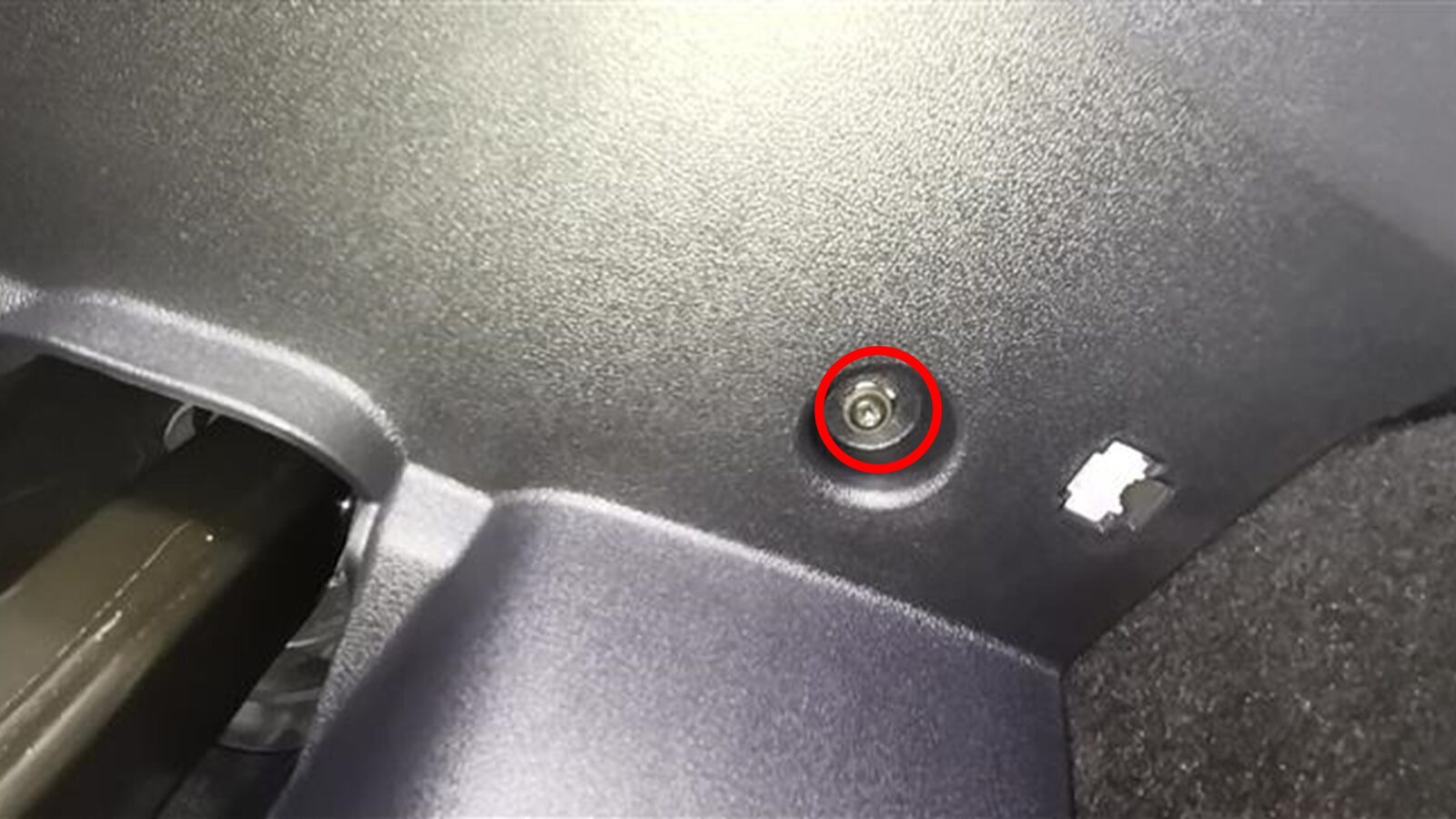

    12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged





67. Release RH footwell cover
    注

    1x push clip, 1x screw, T20, 2.5 Nm







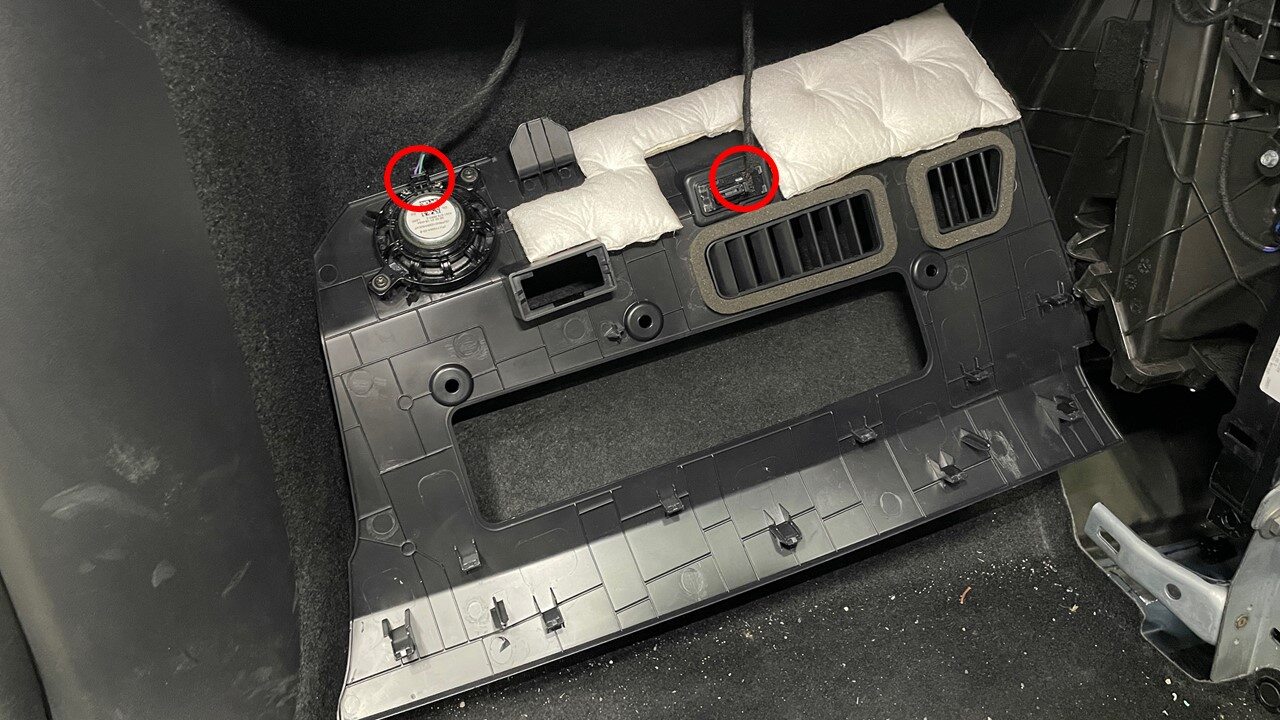

68. Remove connectors from RH footwell cover and remove from vehicle
    注

    1x Ethernet connector, 1x puddle light connector

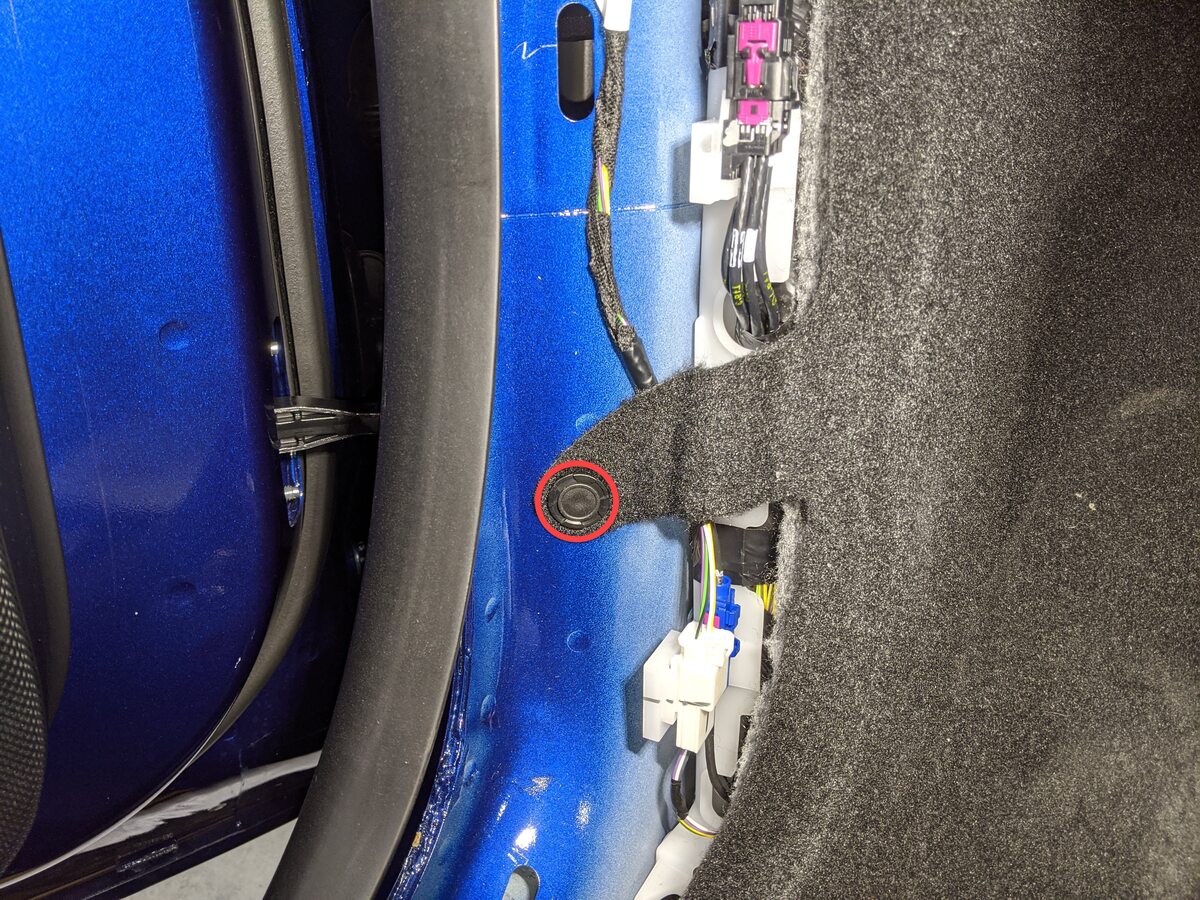

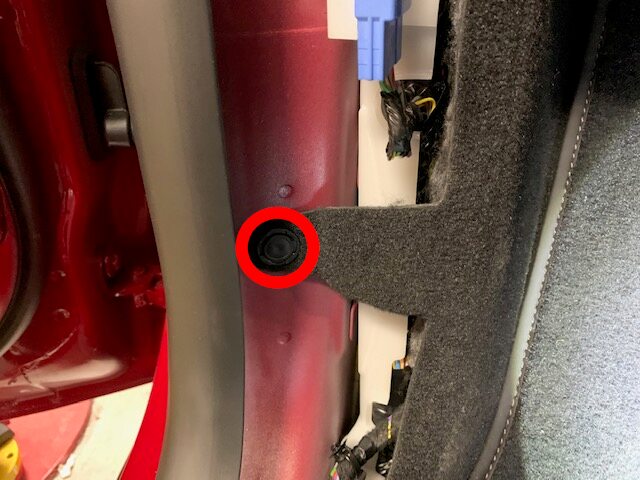

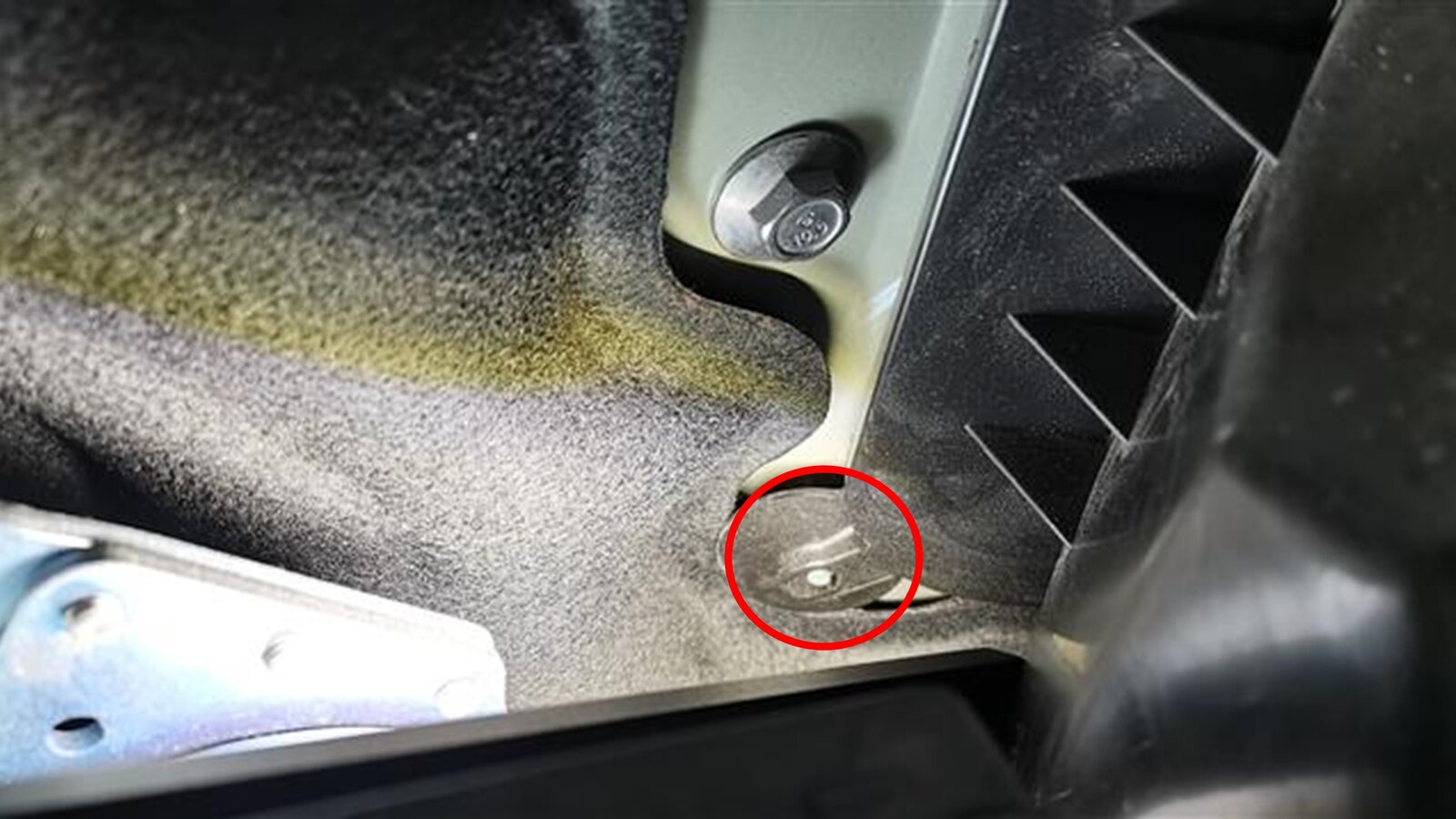

69. Remove clip securing RH front cabin carpet to body
    注

    1x clip

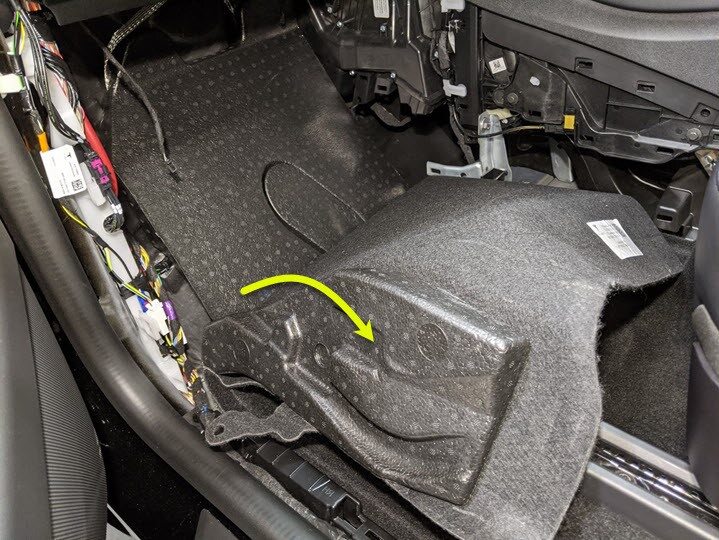

70. Fold RH front cabin carpet rearward

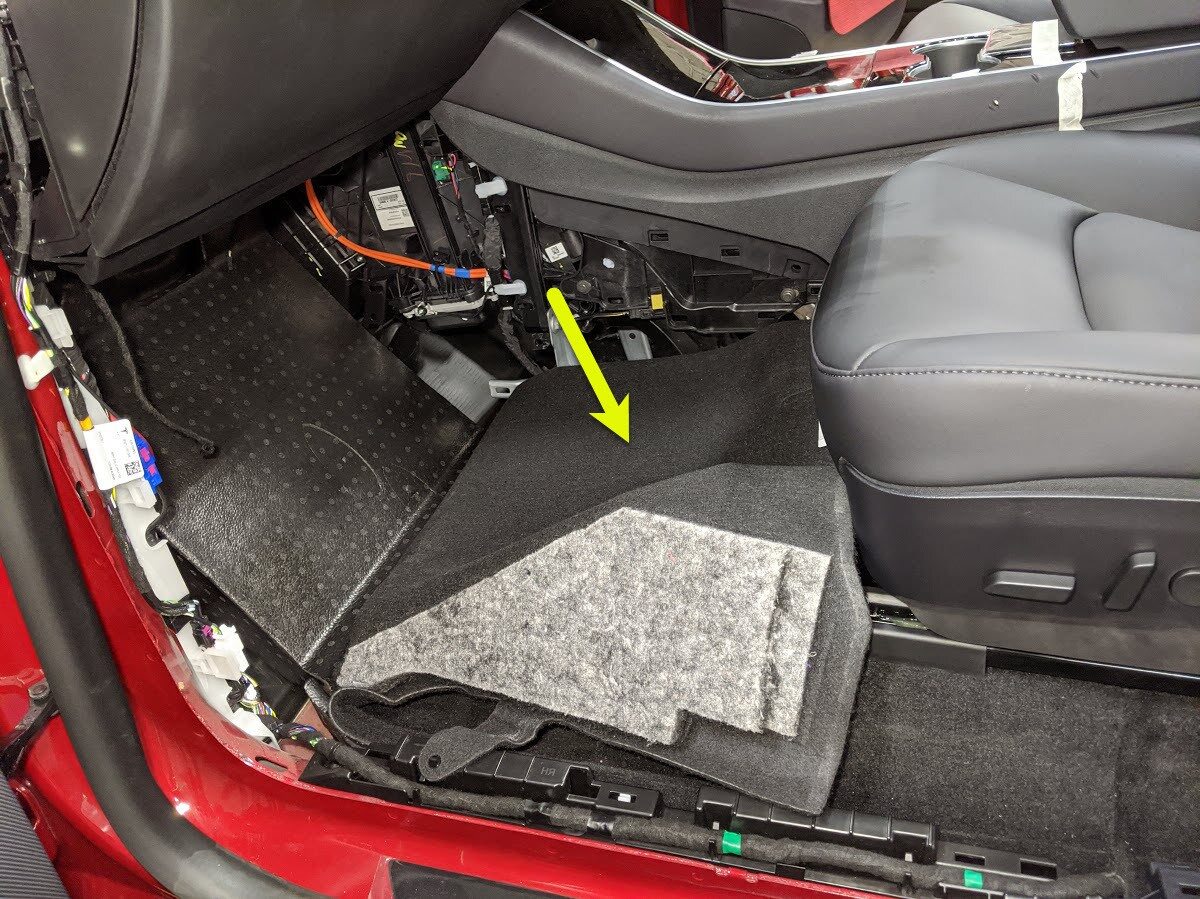

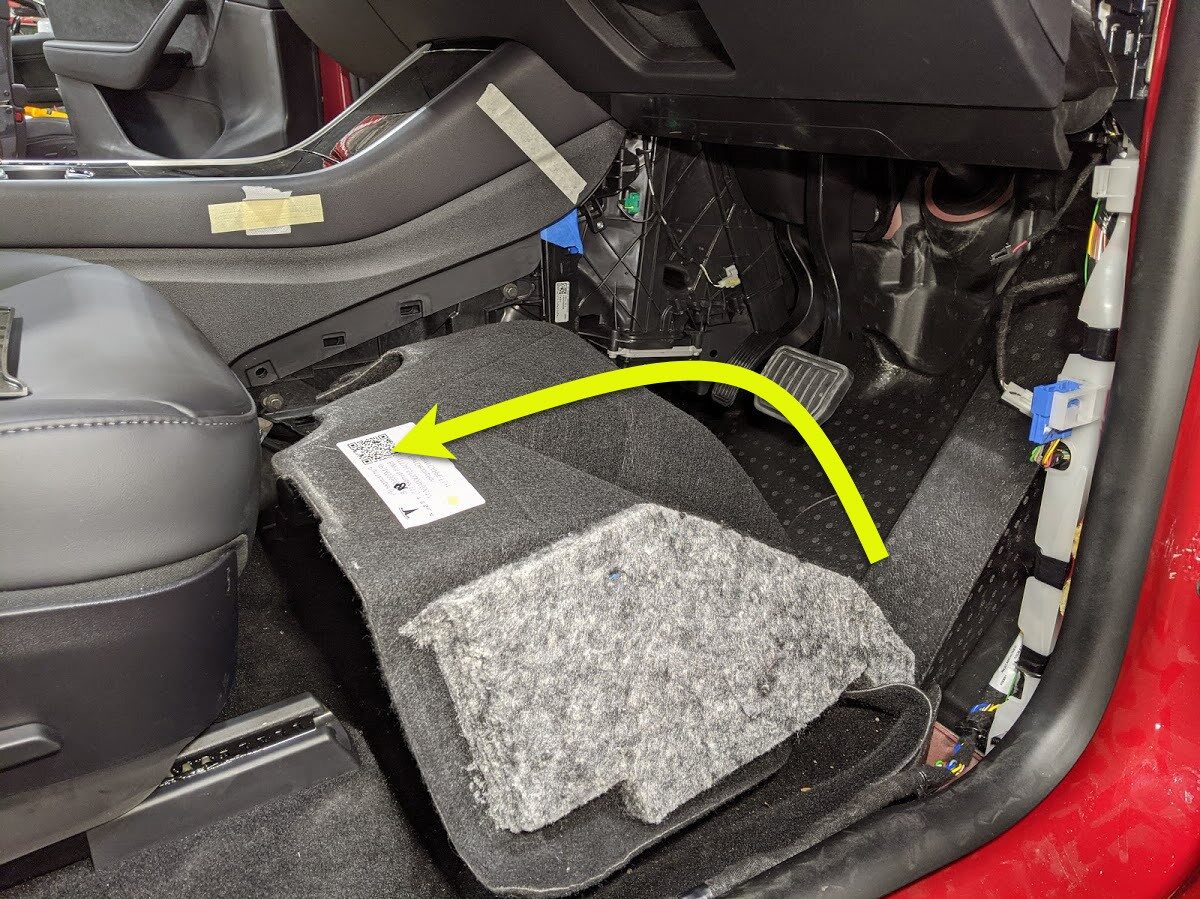

    注

    Newer Vins may be equipped with additional foam installed below carpet







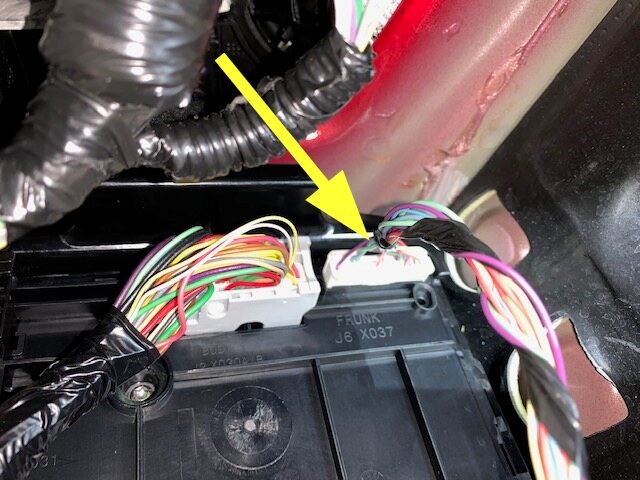

71. Disconnect J6 frunk connector

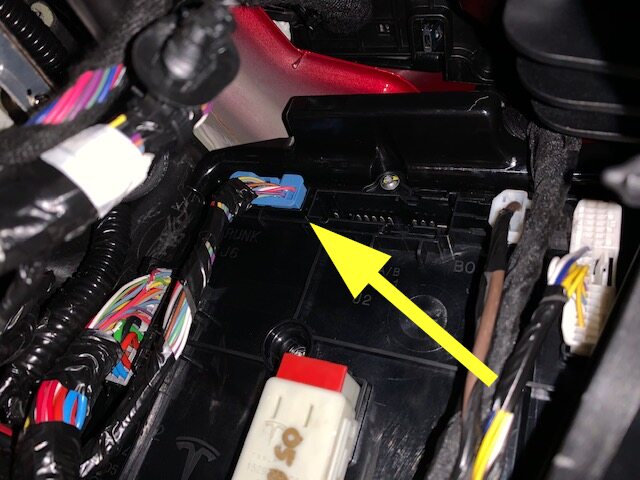

    注

    1x connector



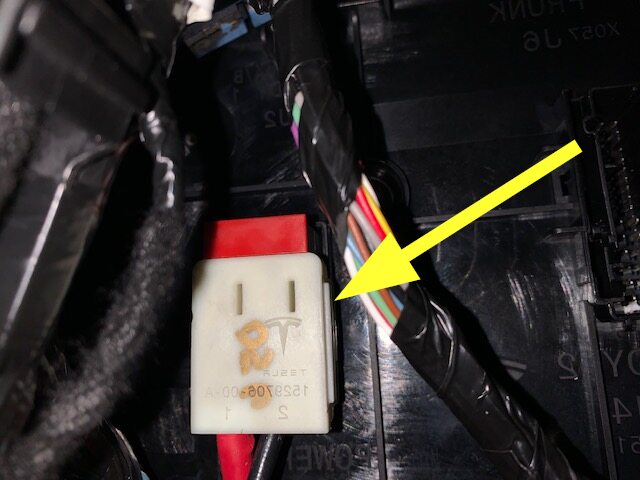

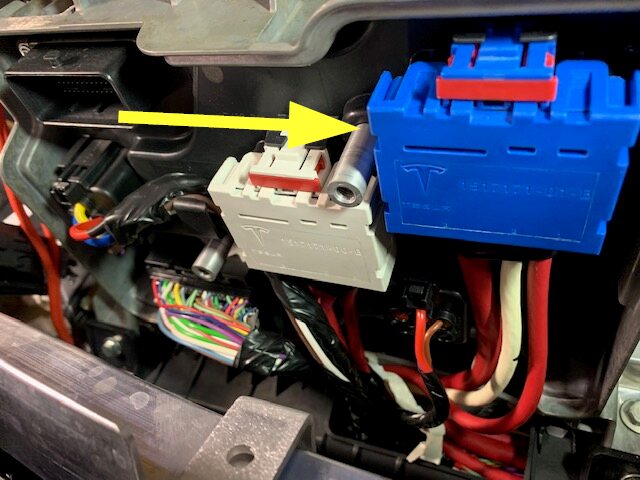

72. Disconnect J1 power connector
    注

    1x connector, Release lock then remove

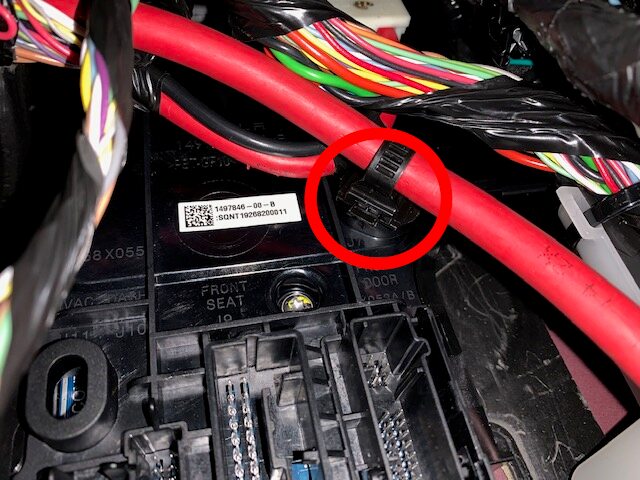

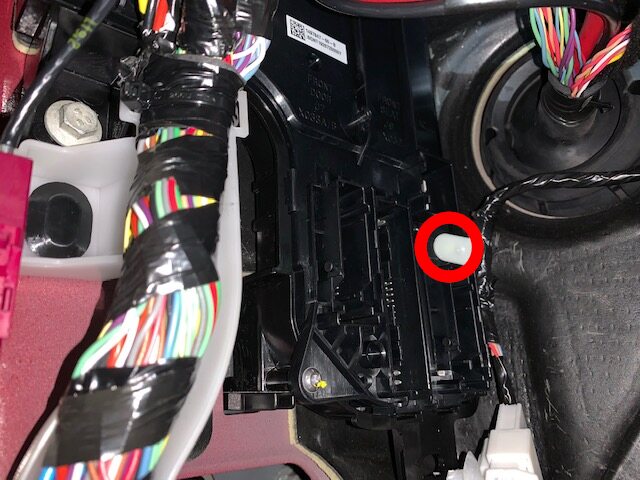

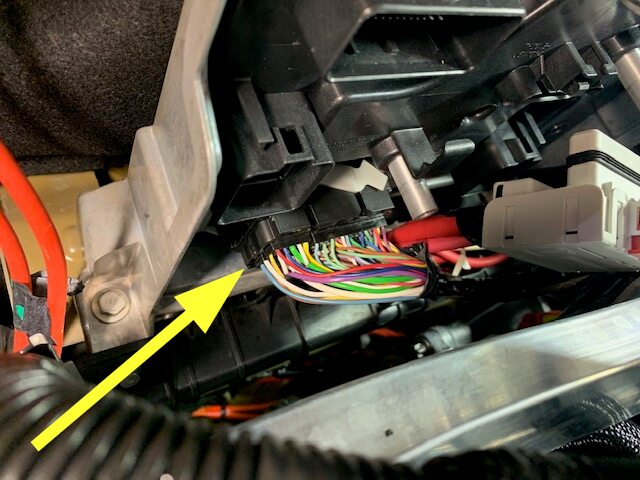

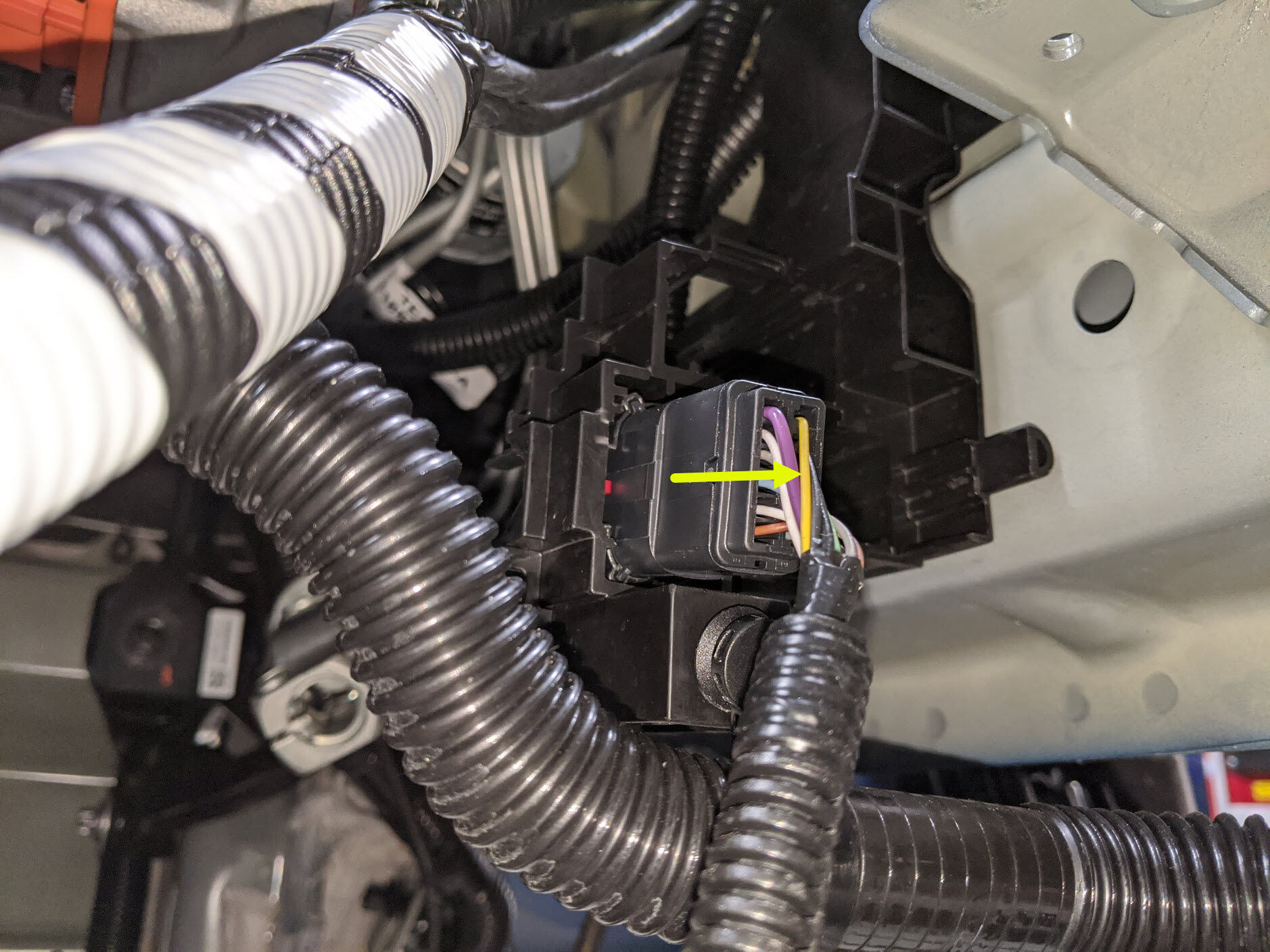

73. Release black connector from right body controller and disconnect
    注

    1x connector, 1x clip

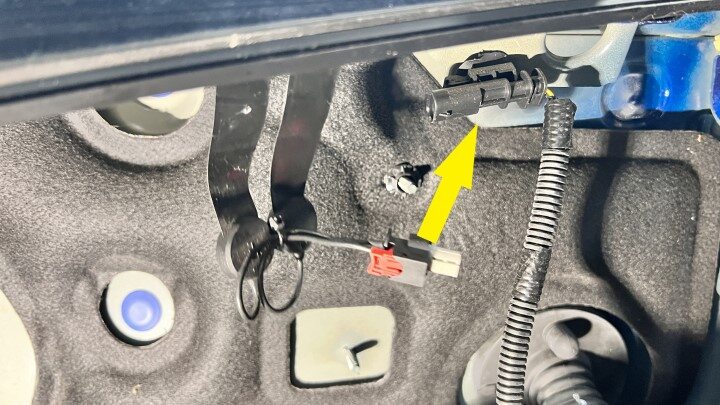

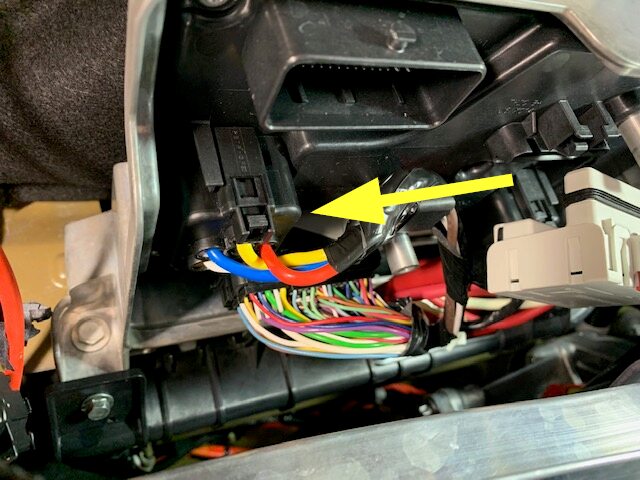

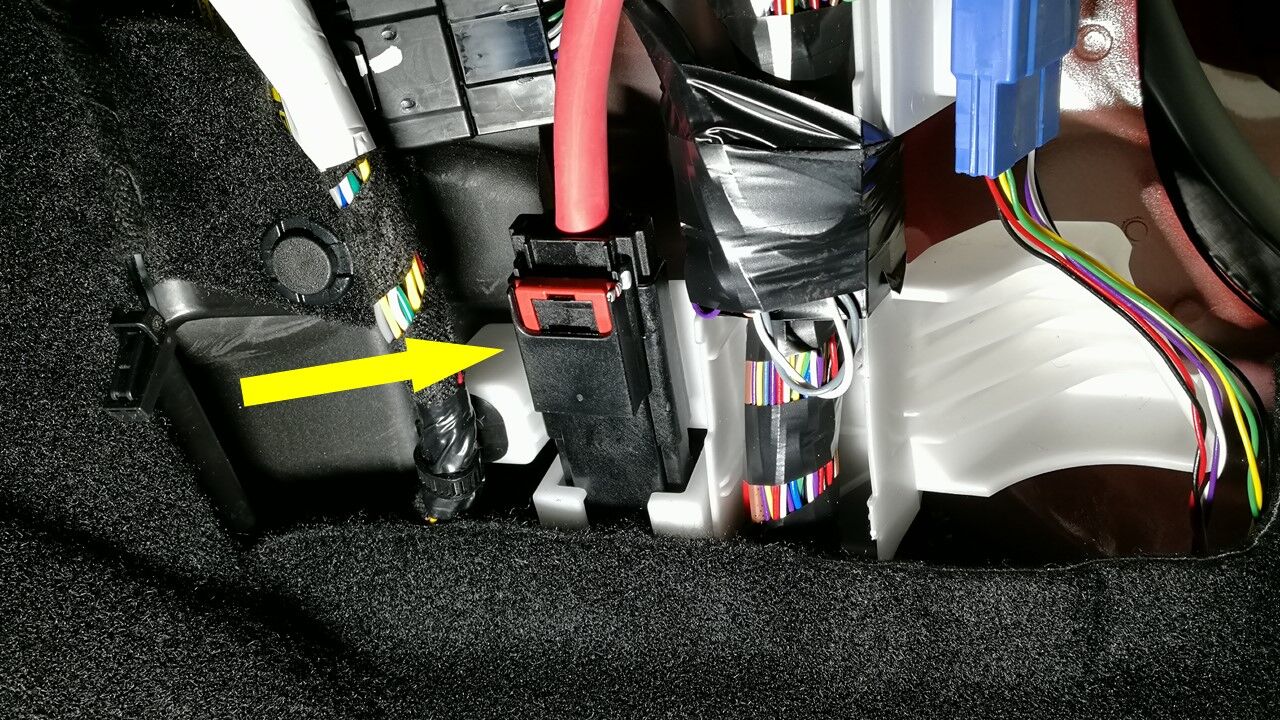

74. Disconnect 12V connector from vehicle
    注

    1x connector, Slide red locking tab up to unlock



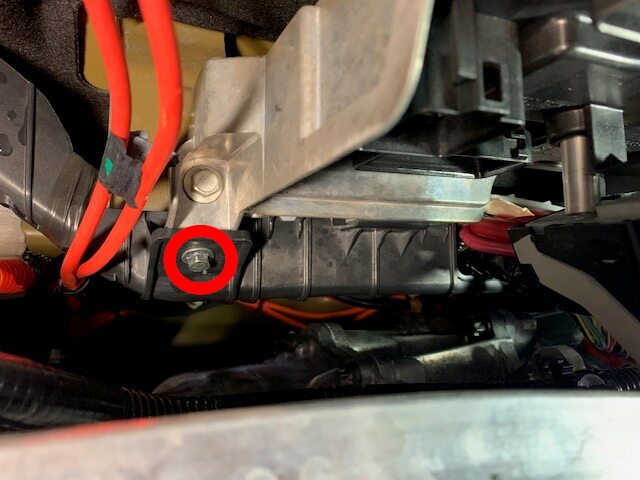

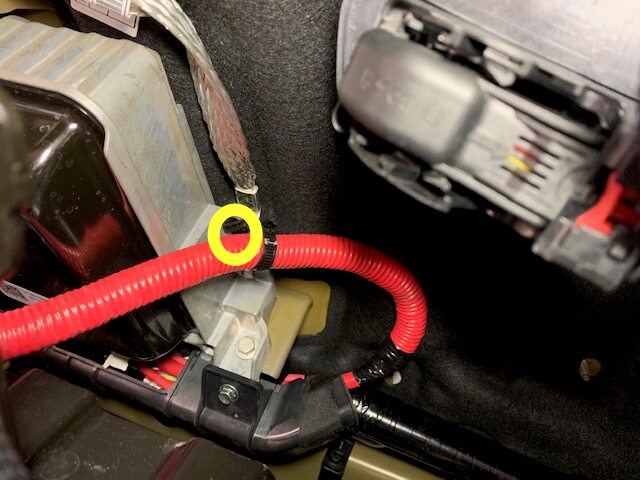

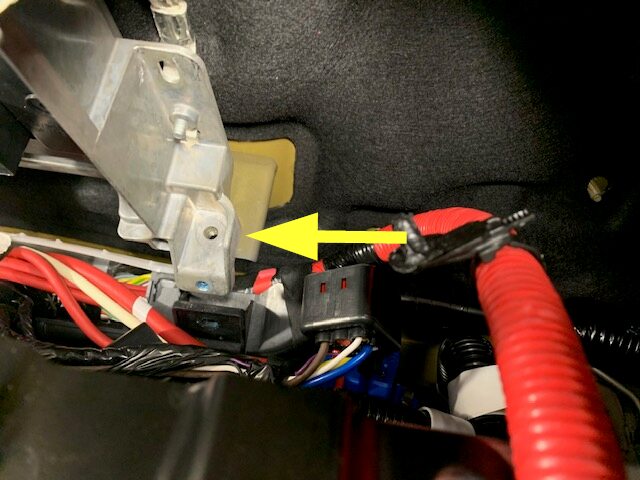

75. Release DCDC cable from RH controller
    注

    1x clip

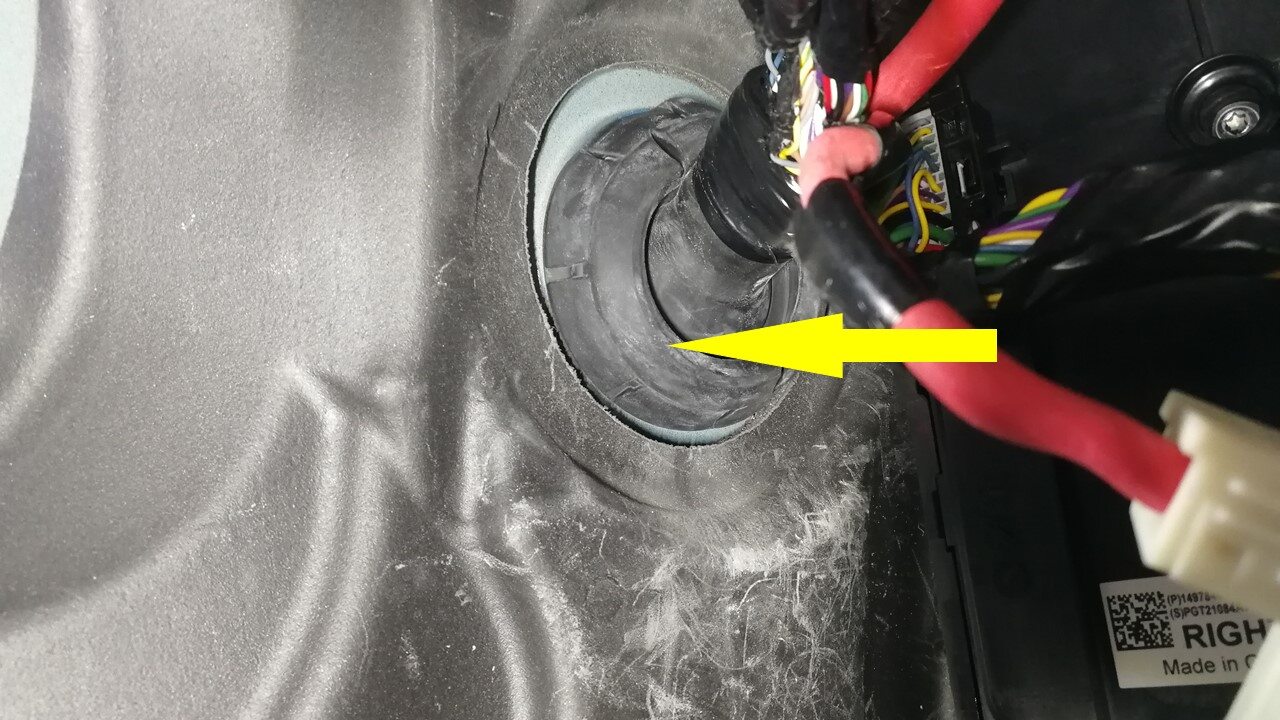

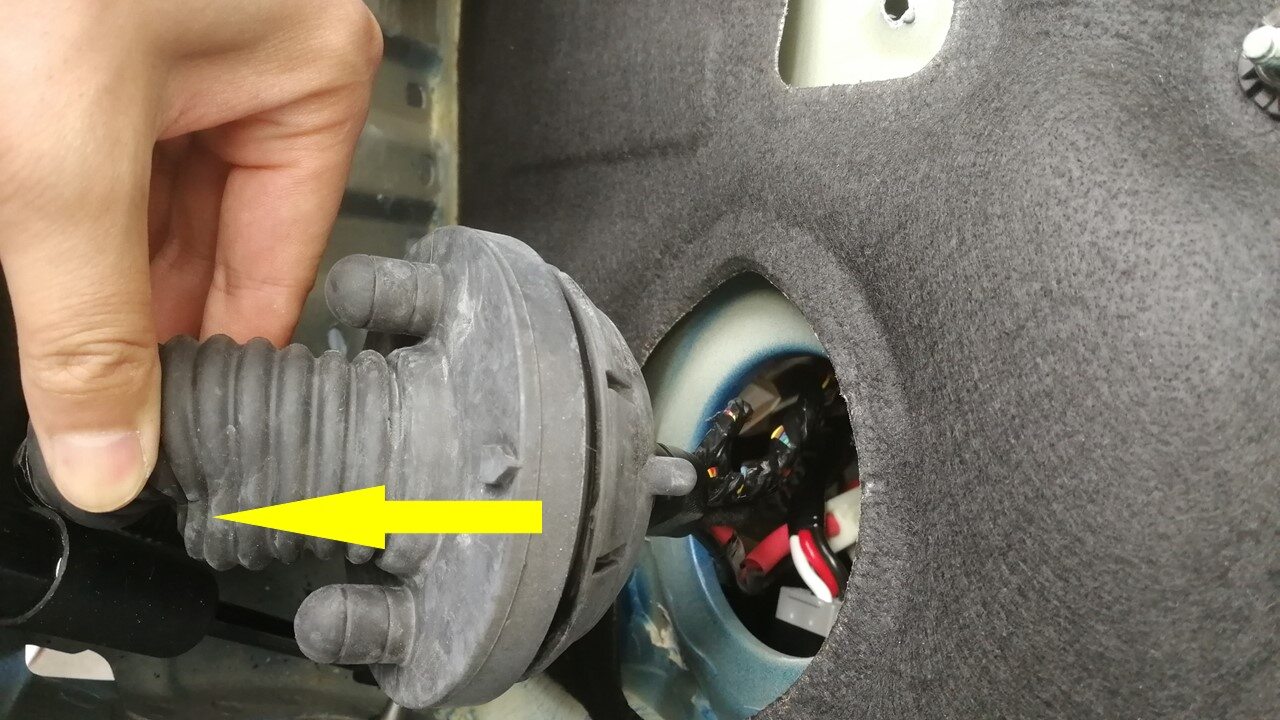

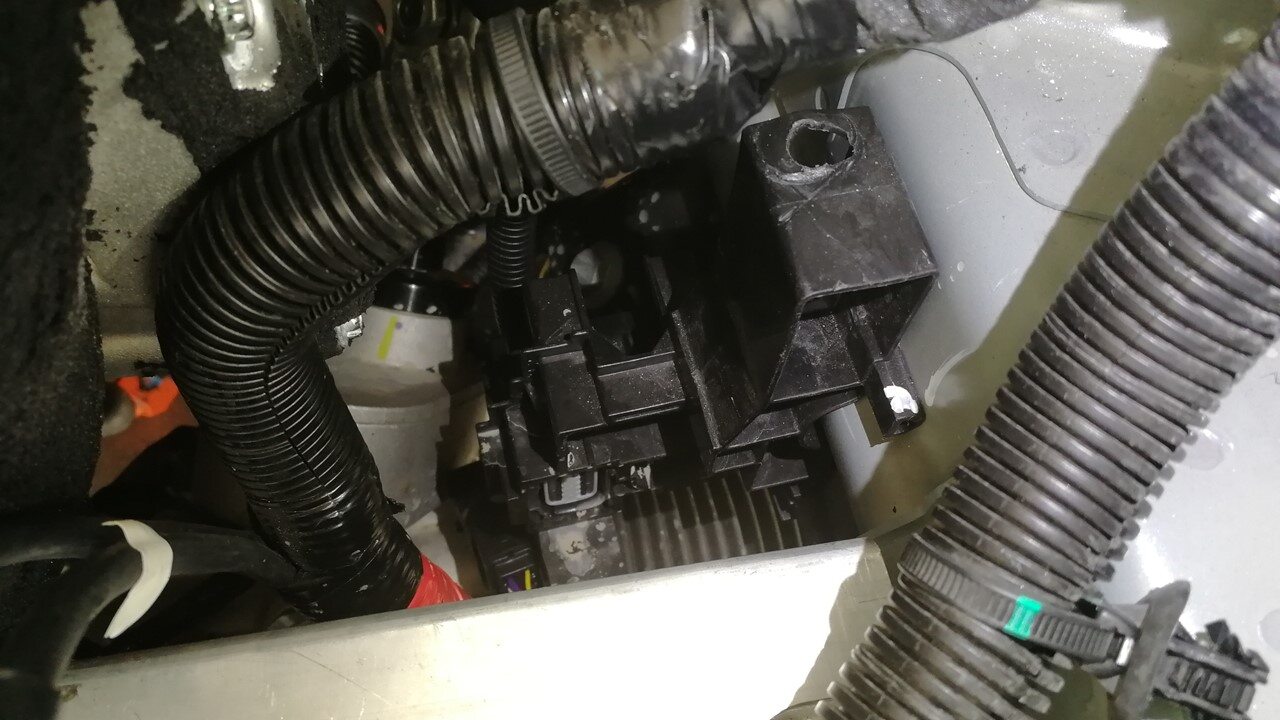

76. Push the RH side of the front harness through the bulkhead
    注

    Ensure that the RH harness is drawn without resistance





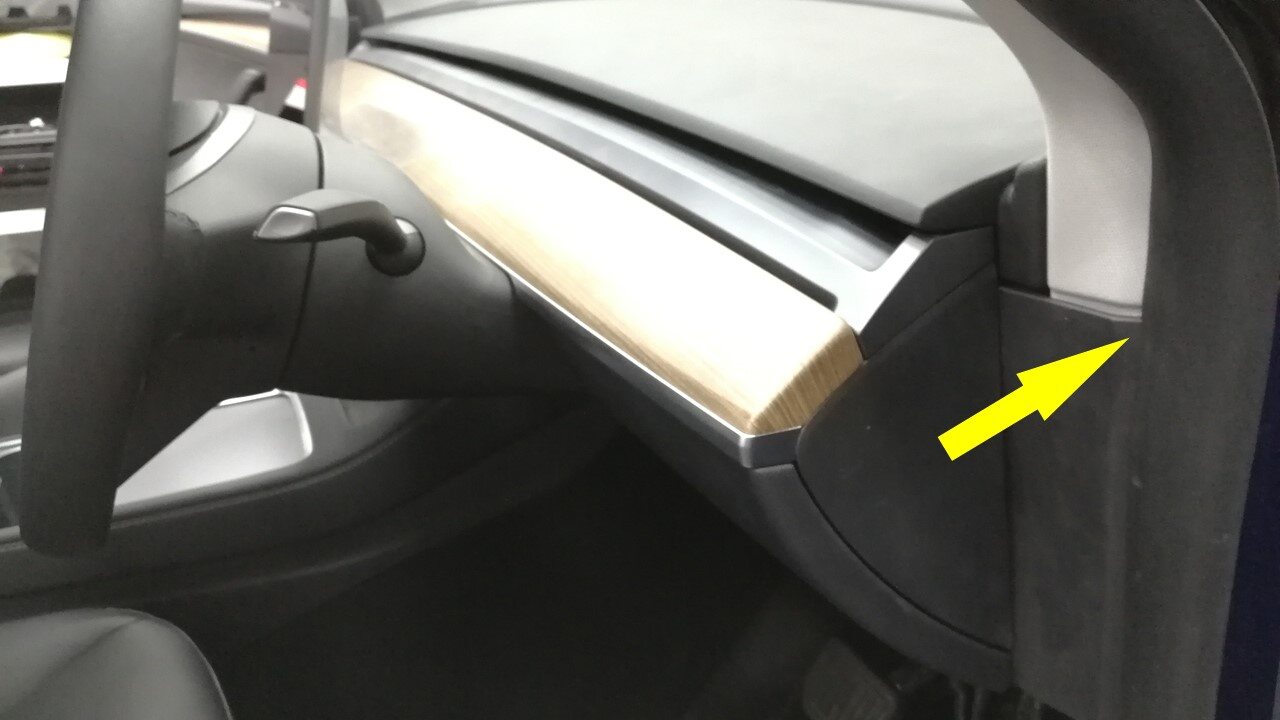

77. Remove LH IP end cap
    注

    3x clips



78. Remove LH mid A-pillar assembly
    注

    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove



79. Remove LH air wave bezel cap from main decor assembly
    注

    2x clips



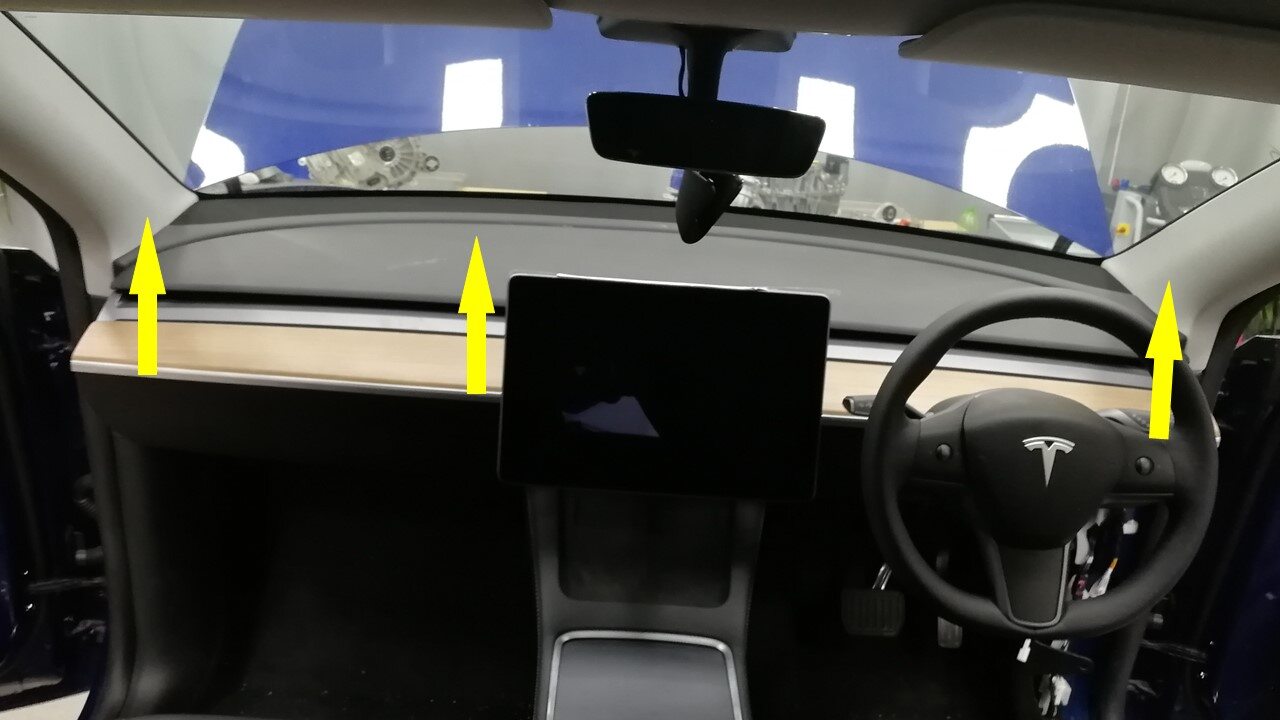

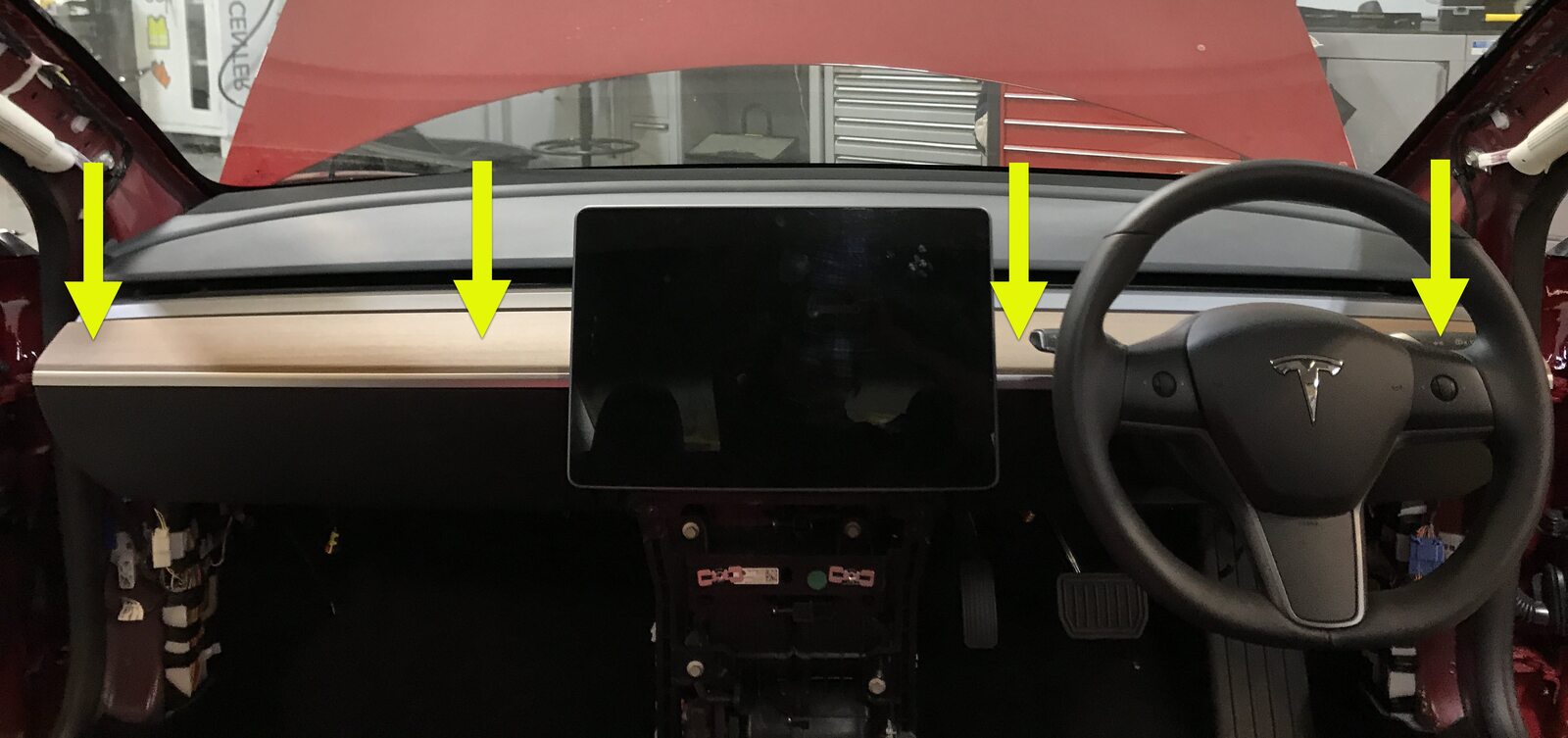

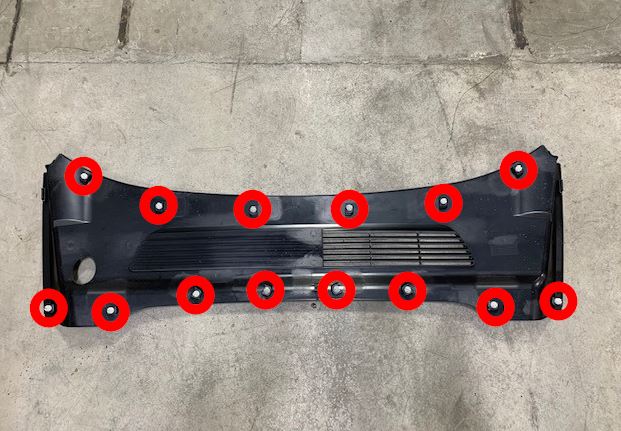

80. Remove main decor assembly
    注

    8x clips, 6x magic tapes, Replace securing clips as needed





81. Remove clip securing LH lower A-pillar trim
    注

    1x push clip



82. Remove LH lower A-pillar trim
    注

    1x clip, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet



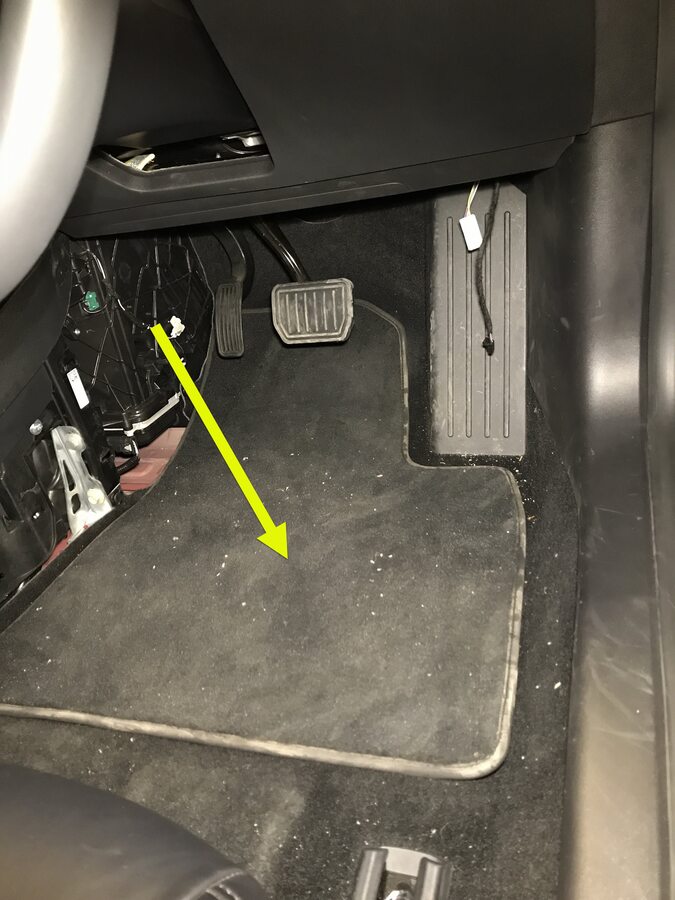

83. Remove LH front floormat
84. Remove clips securing LH footwell assembly
    注

    3x push clips



85. Disconnect LH footwell assembly connectors and remove from vehicle
    注

    2x connectors

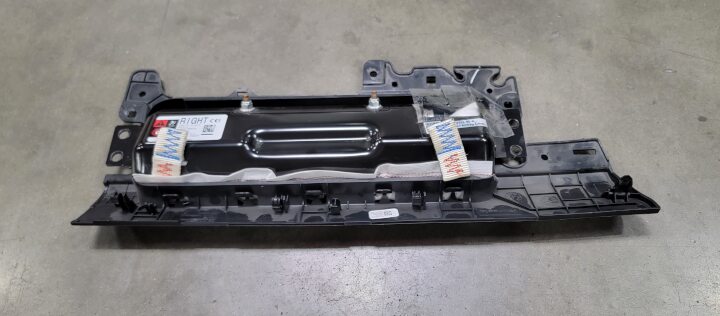

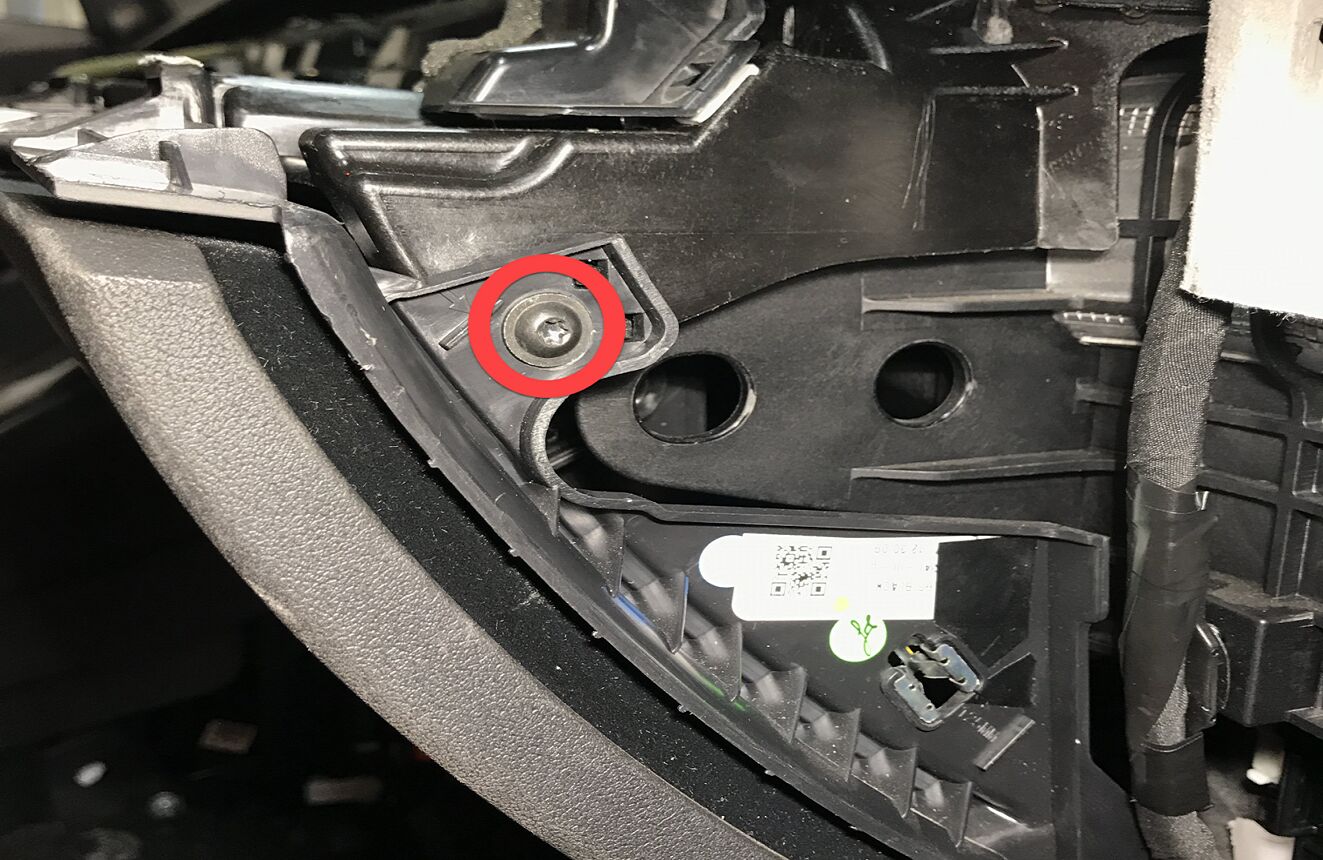

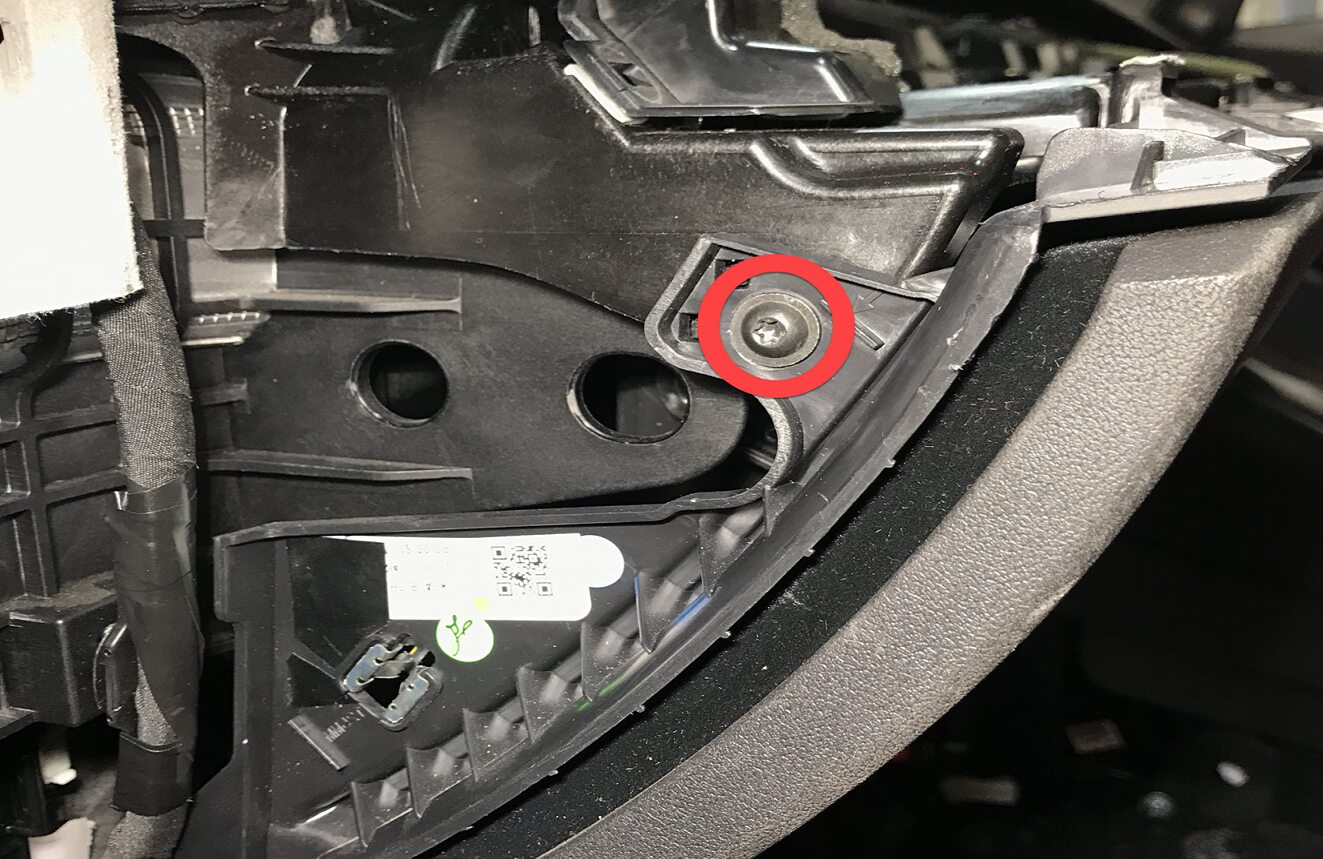

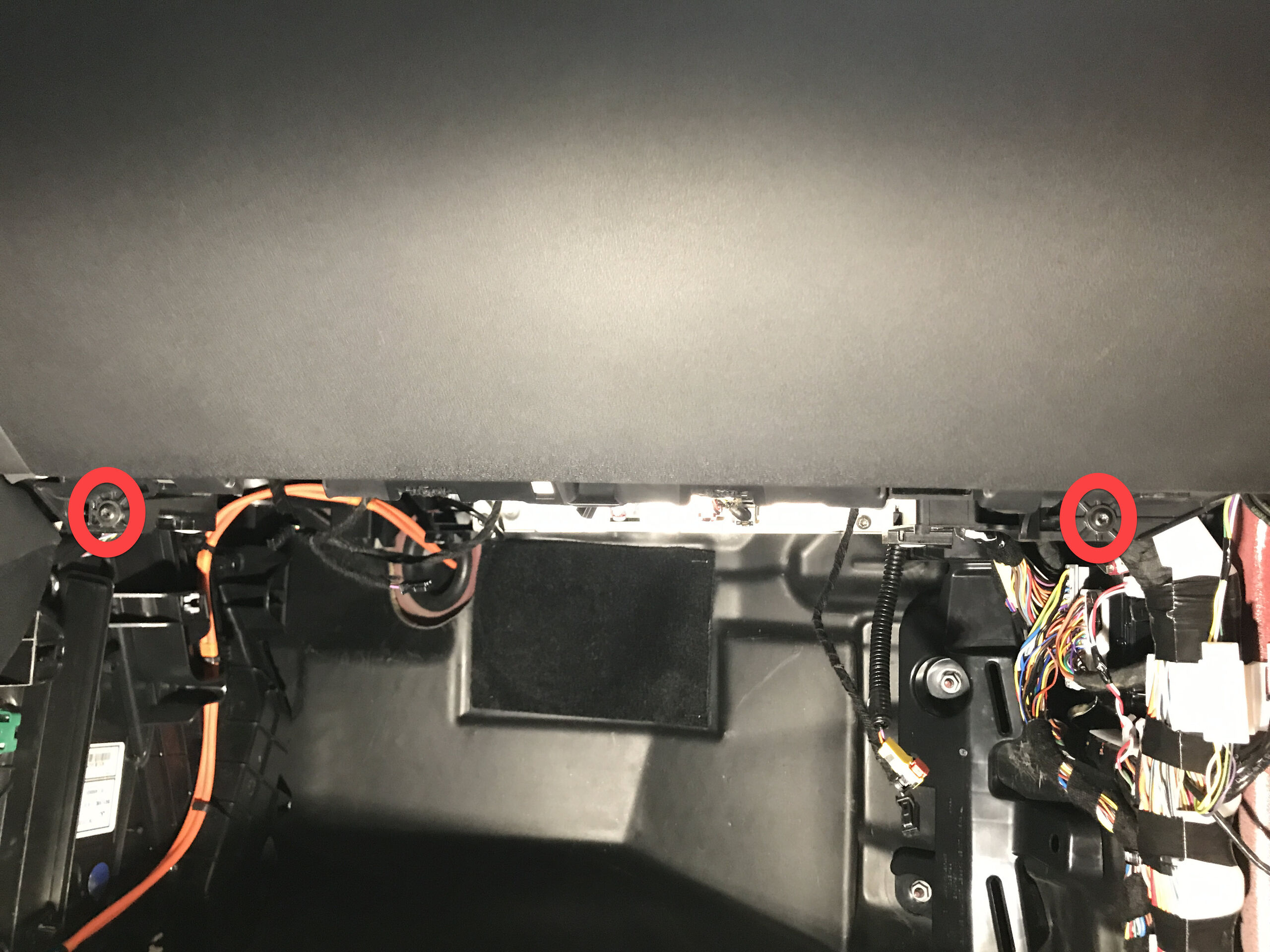

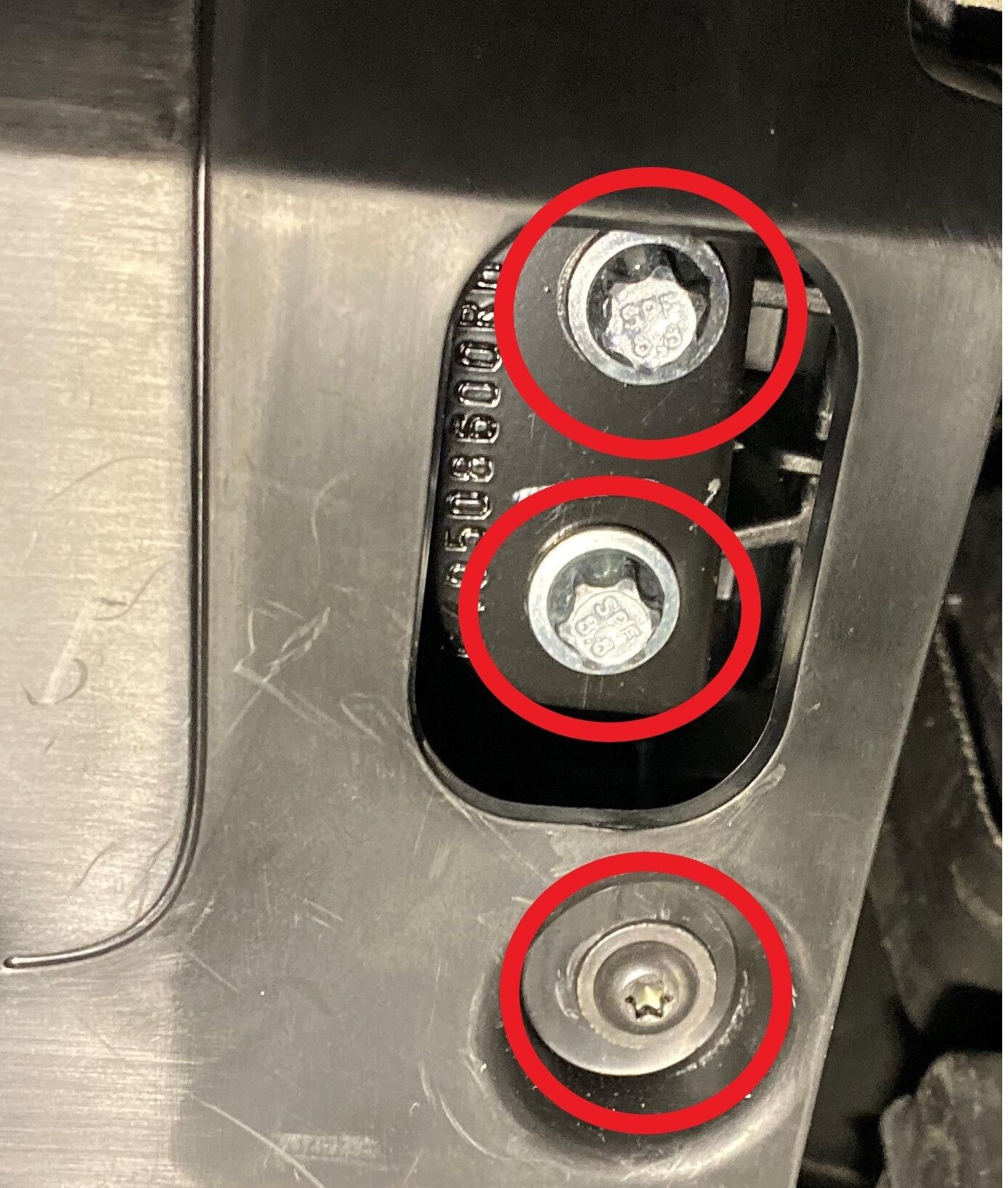

86. Remove fasteners securing passenger knee air bag to vehicle

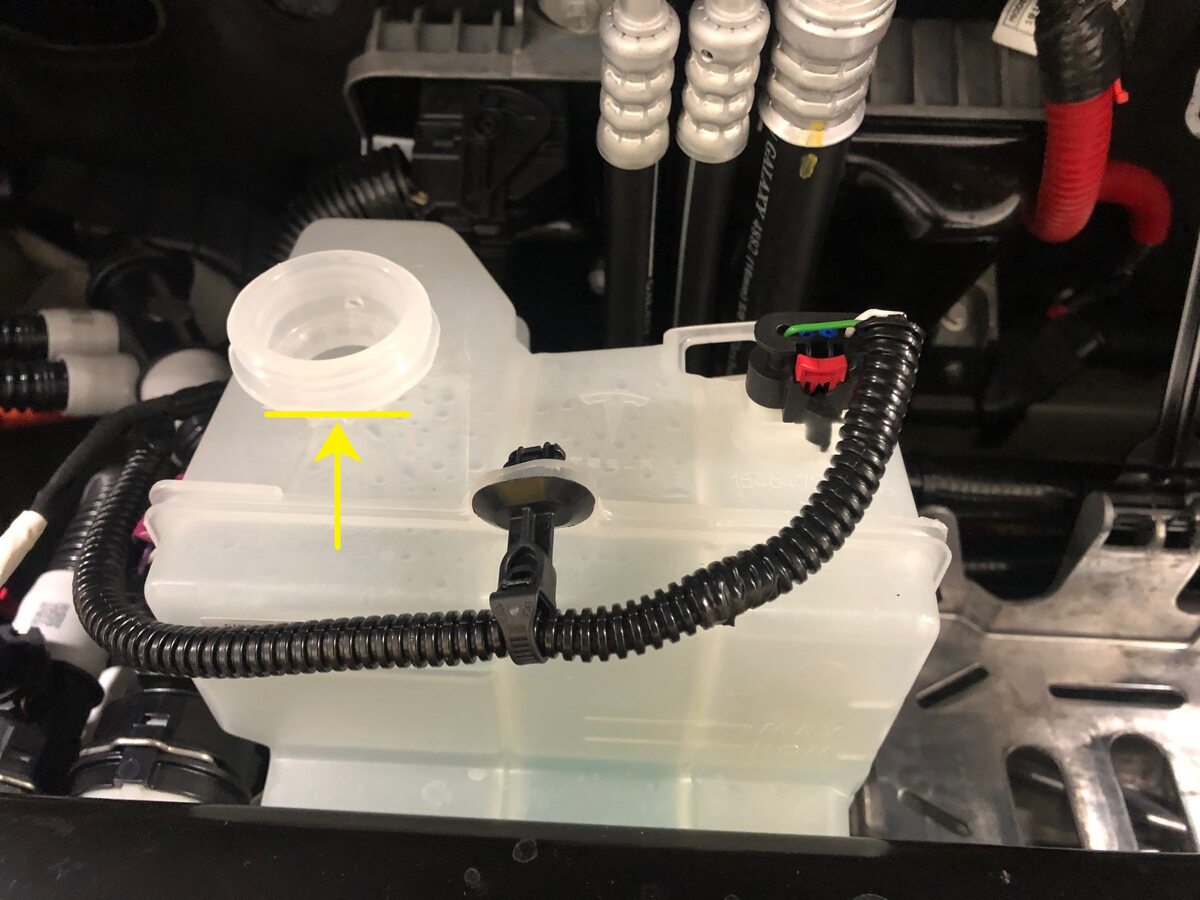

    注

    2x screws, T20, 2 Nm, 1x push clip, 4x patch bolts, E10, 8 Nm, Discard patch bolts after removal, Support the knee air bag while lowering, The connector / harness length is very short







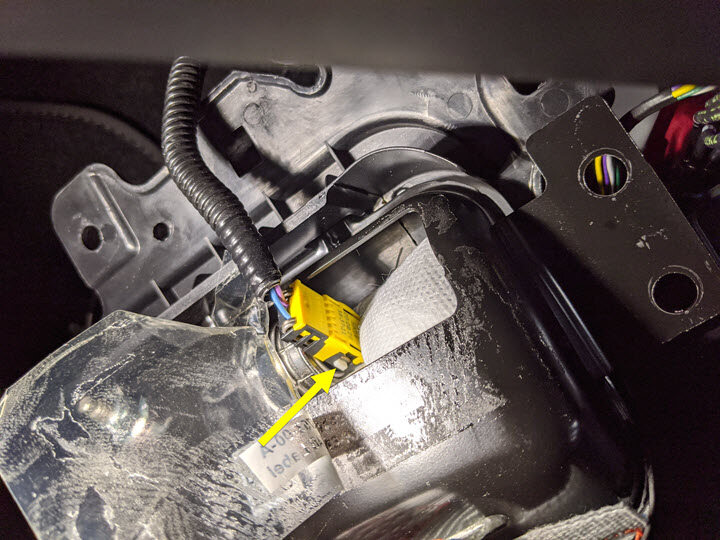

87. Remove passenger knee air bag
    注

    1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary







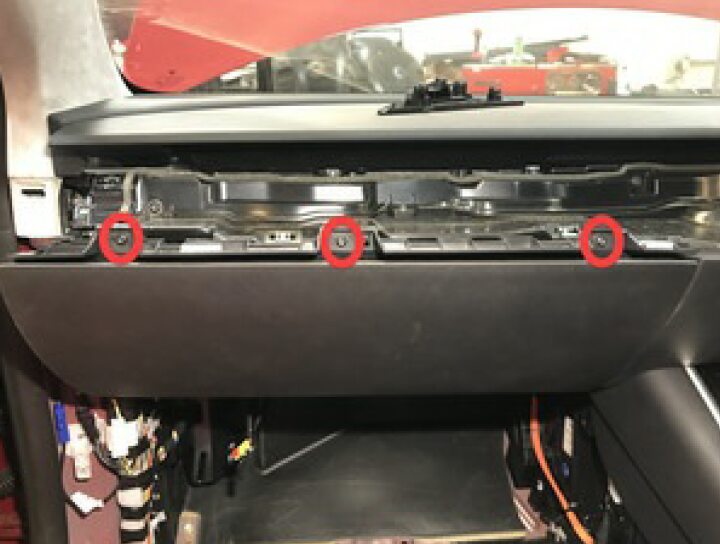

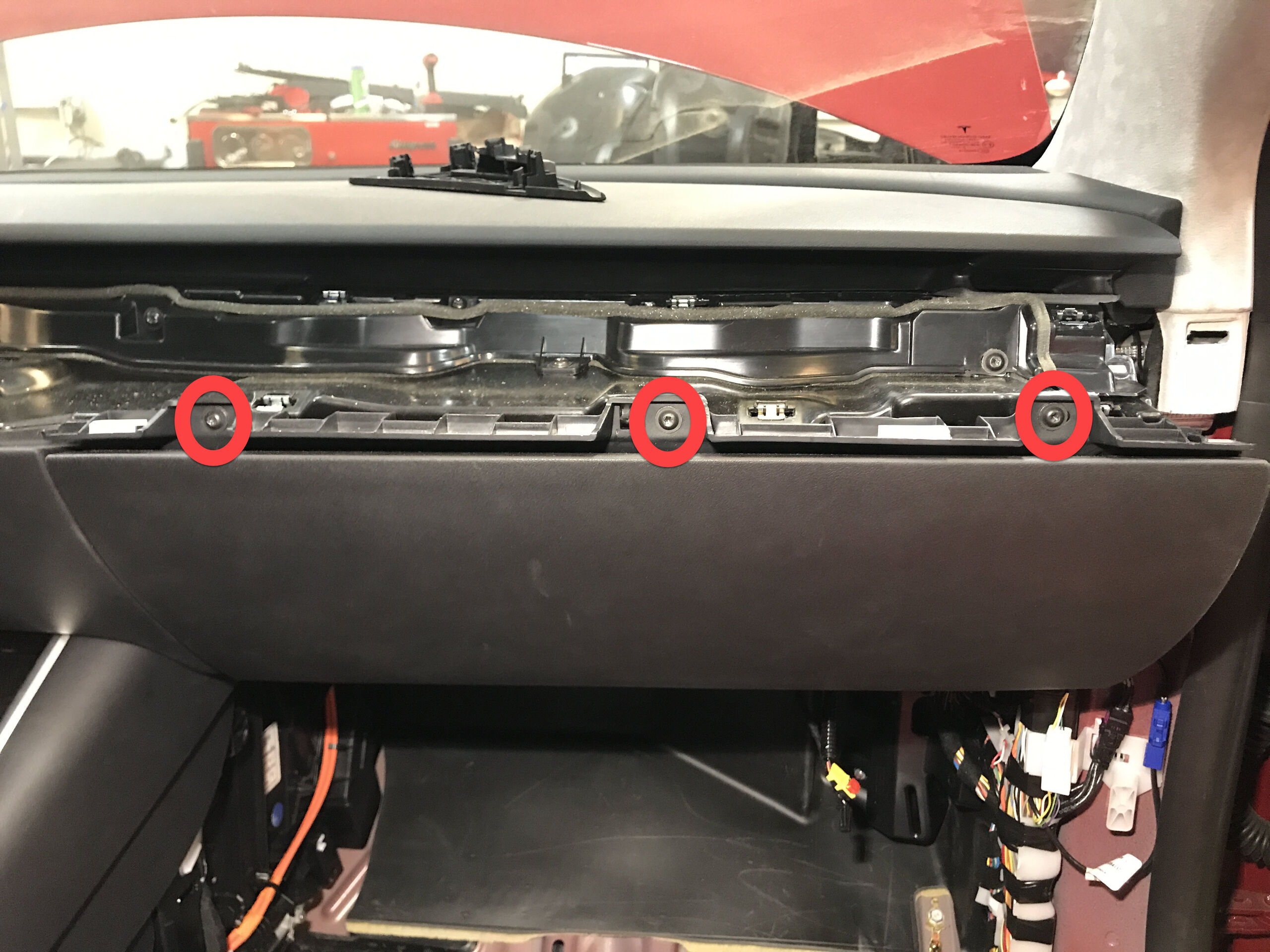

88. Remove screws securing glove box assembly to IP carrier
    注

    6x screws, T20, 2.3 Nm







89. Disconnect glove box assembly connectors
    注

    3x connectors



90. Disconnect glove box USB cable from car computer
    注

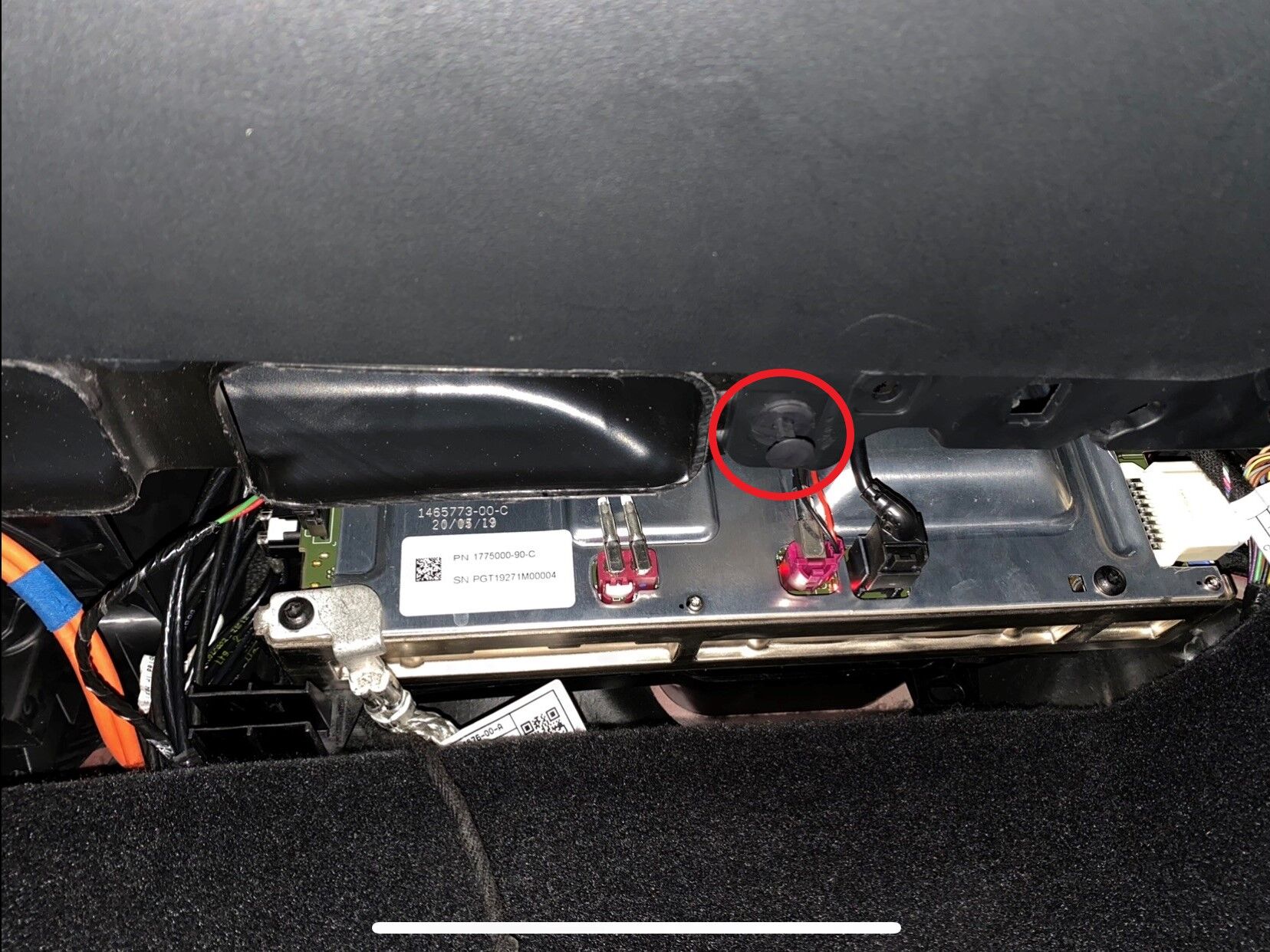

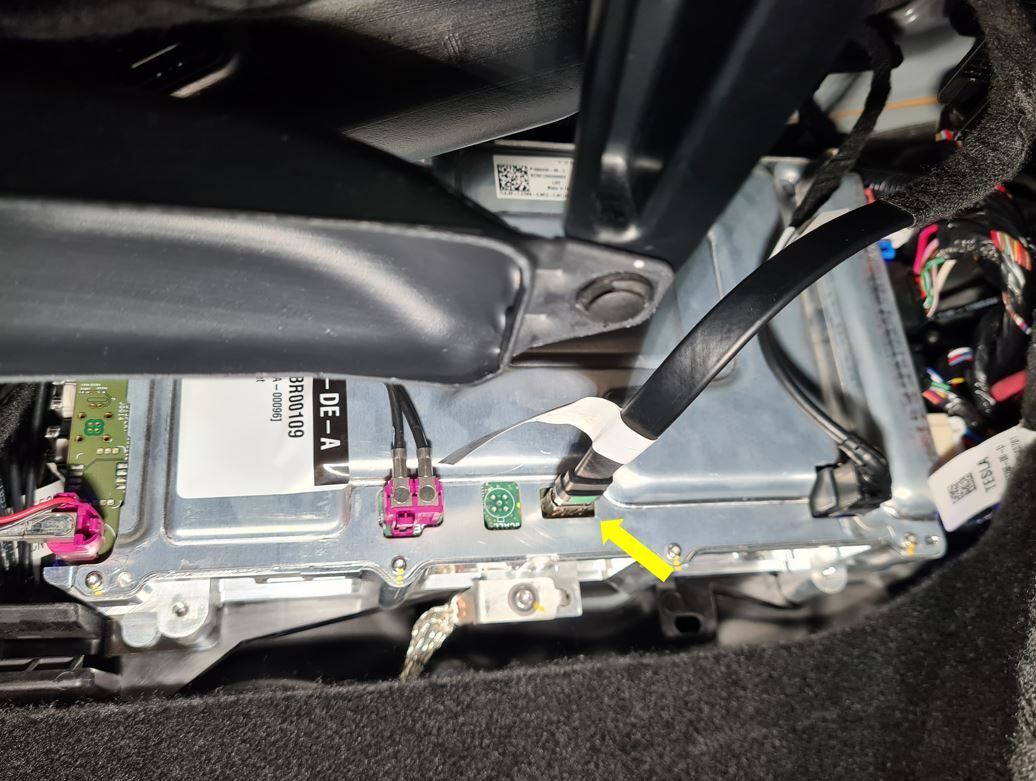

    1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer. Connector count may vary depending from config

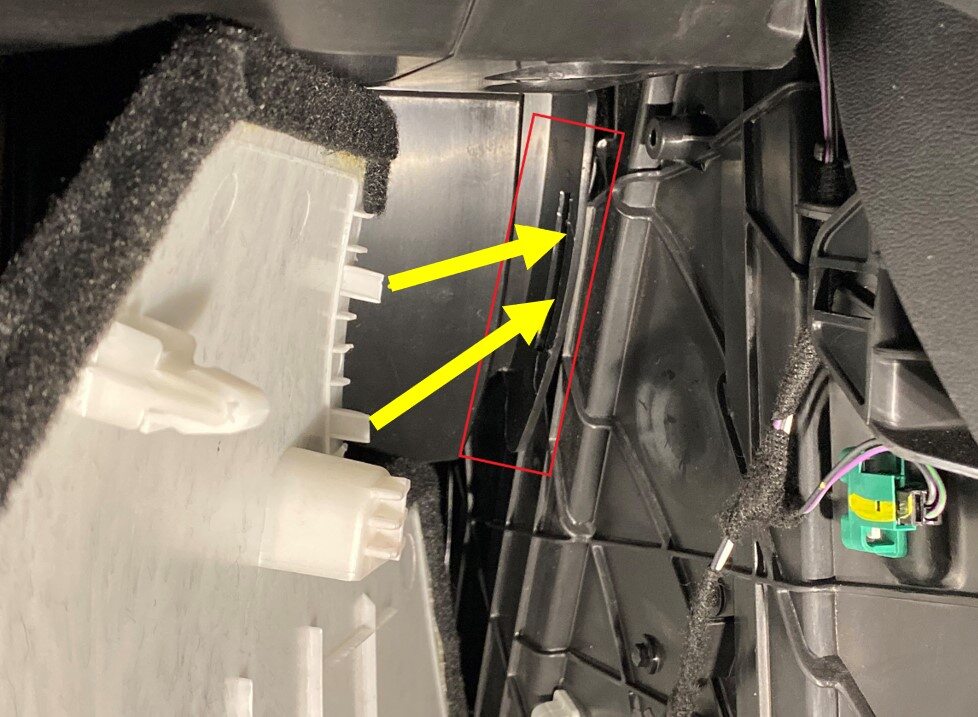

91. Remove the glove box from IP carrier
    注

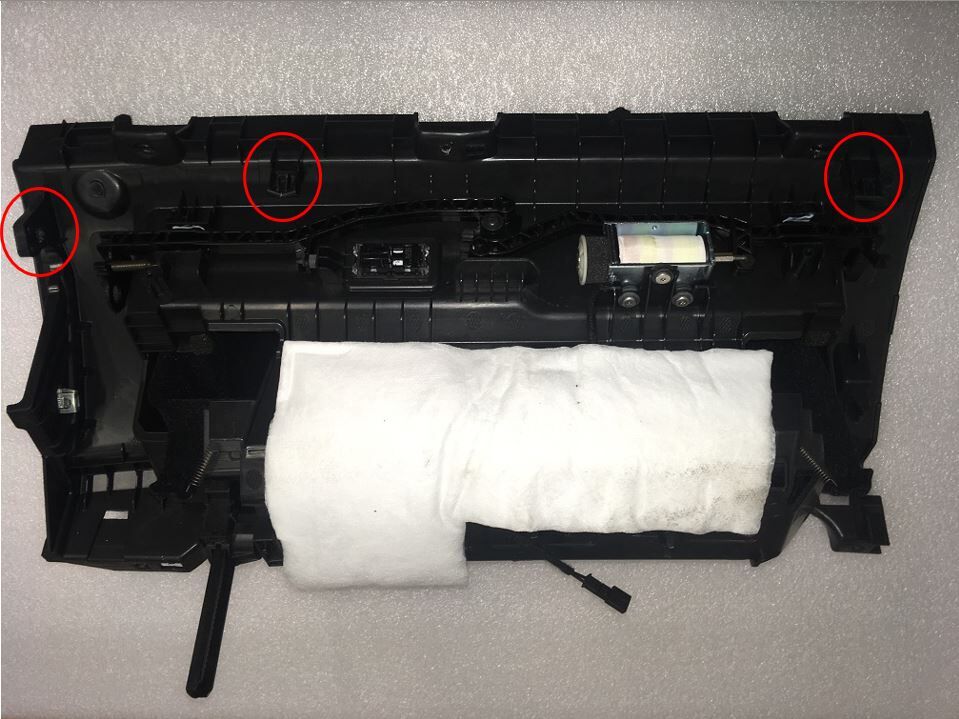

    3x clips

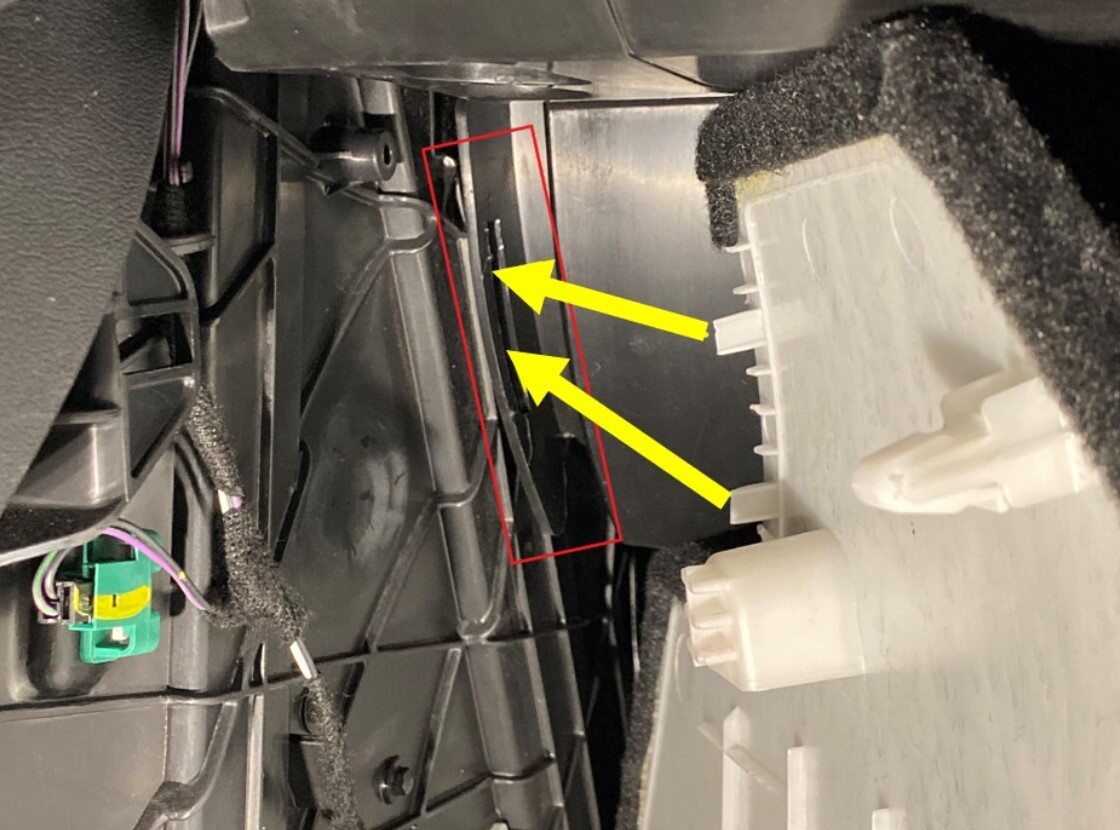

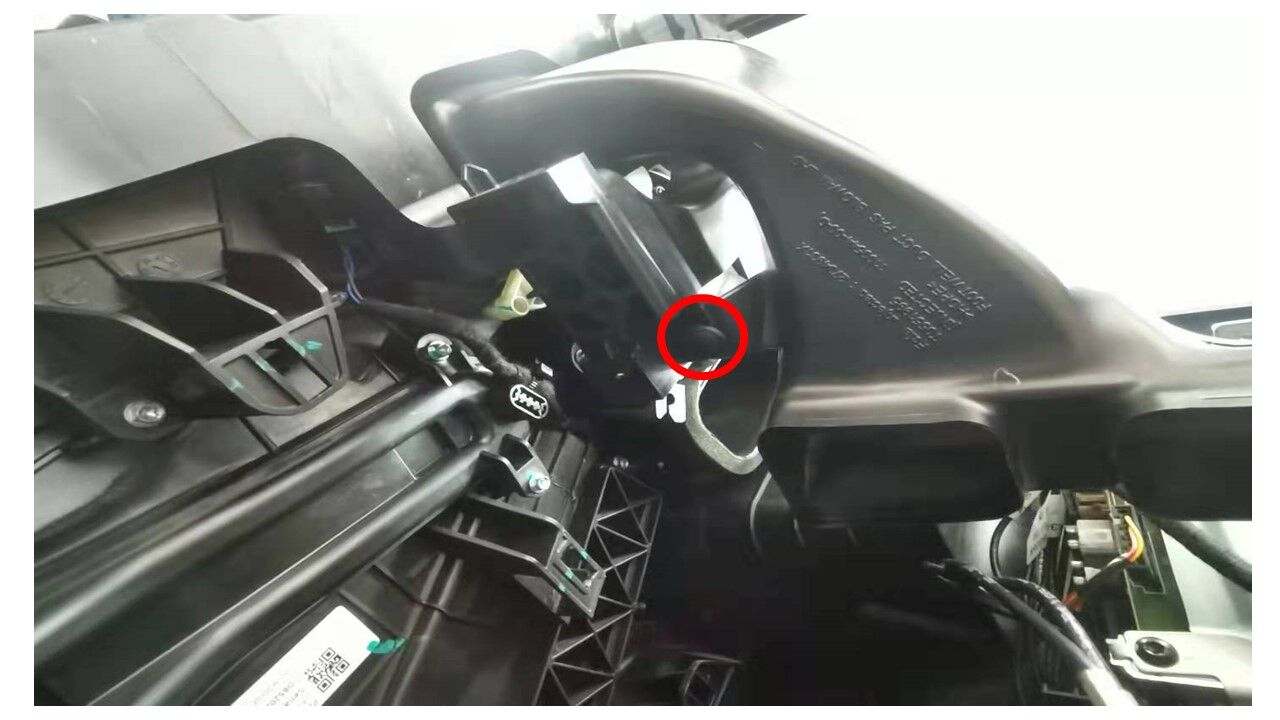

92. Remove the passenger footwell air duct
    注

    1x push clip



93. Remove the RH IP air wave duct
    注

    2x push clips



94. Remove LH console side panel carpet
    注

    11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged





95. Remove clip securing LH front cabin carpet to body
    注

    1x clip



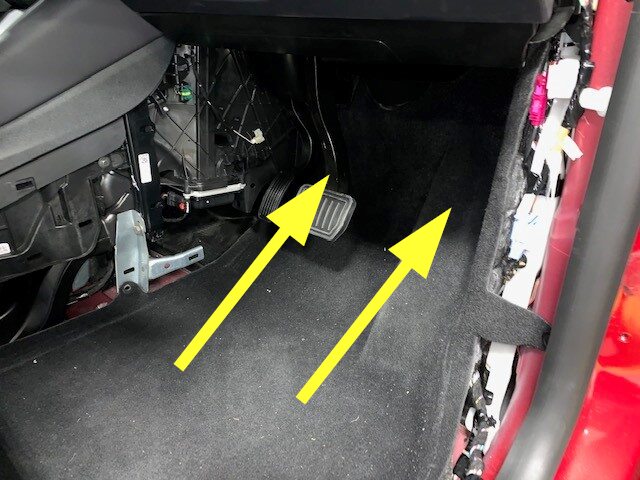

96. Fold RH front cabin carpet rearward
    注

    Newer Vins may be equipped with additional foam installed below carpet

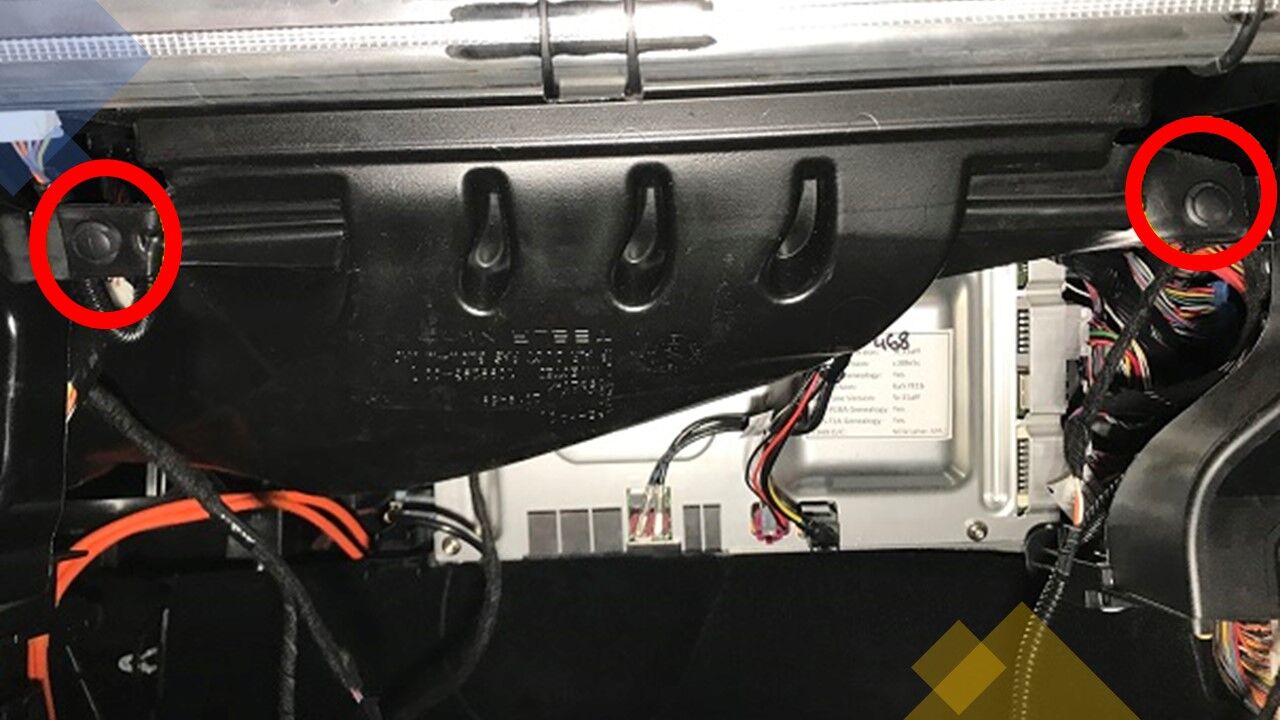

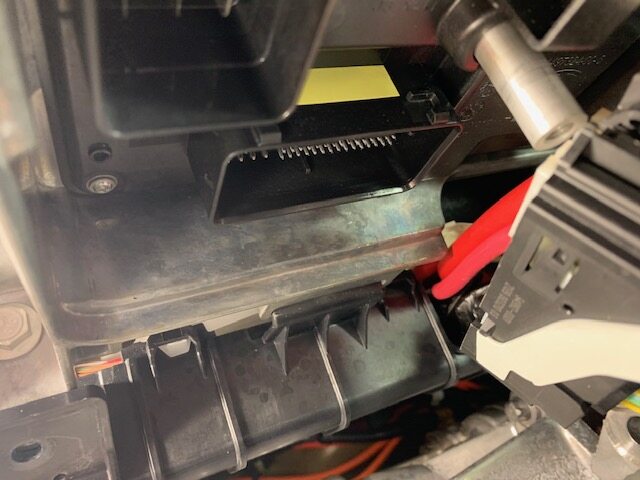

97. Remove car computer shroud
    注

    4x clips, Car computer does not need to be fully removed for access, removal of mounting nuts allows sufficient movement





98. Release harness clips from top of car computer
    注

    2x clips, Car computer partially removed for better visual



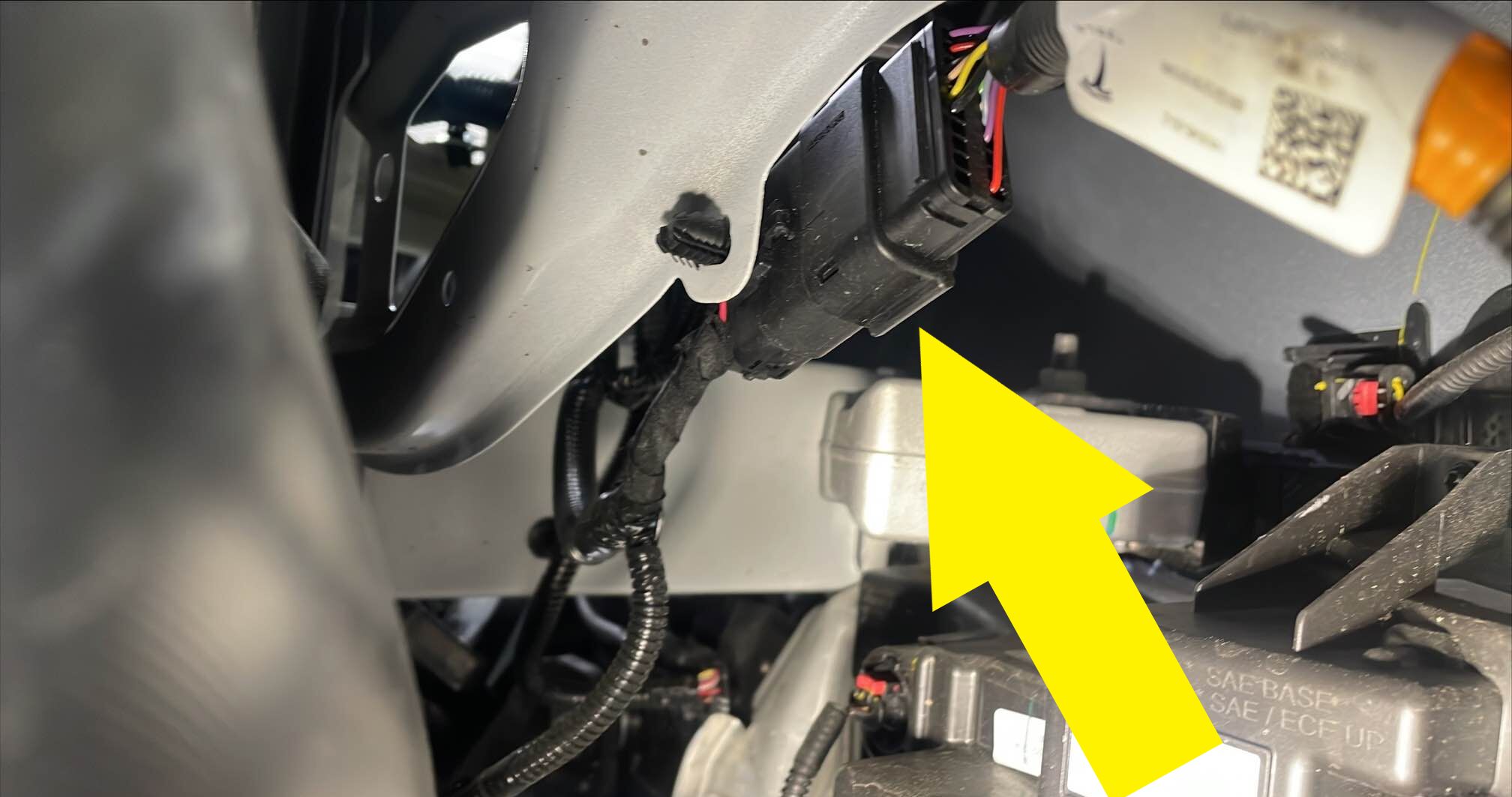

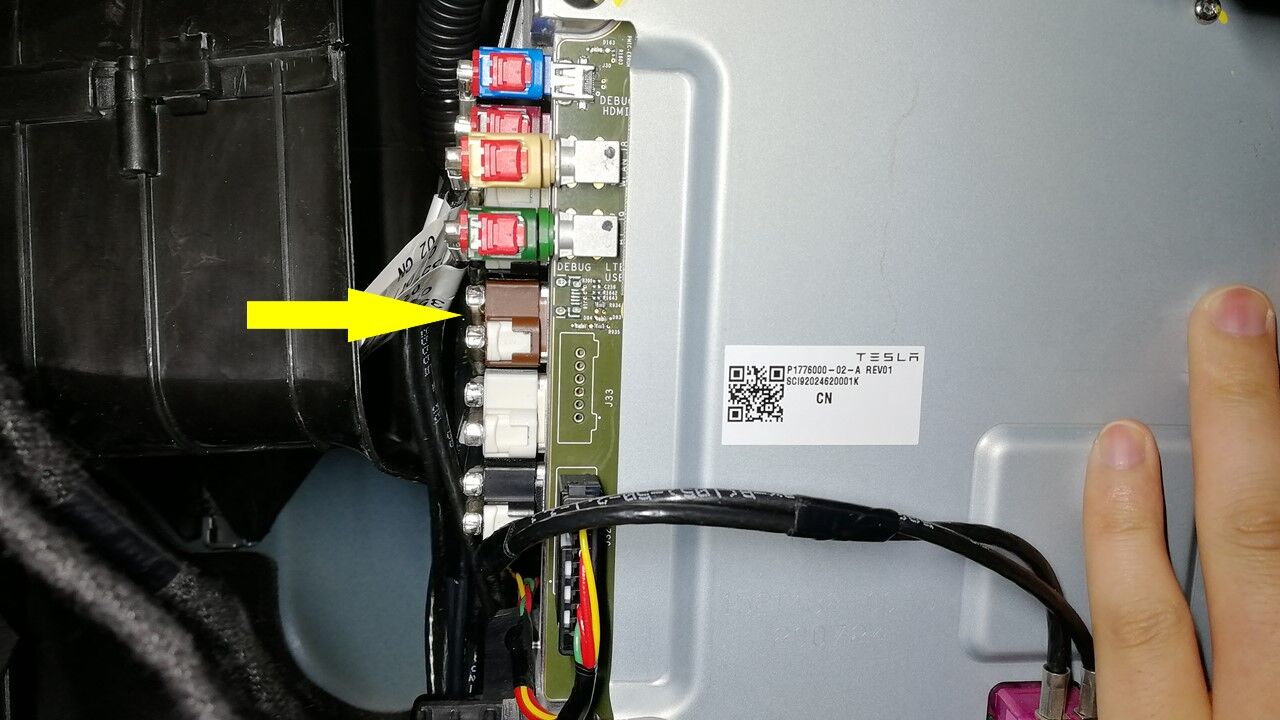

99. Disconnect the LH front repeater camera harness connector from car computer
    注

    1x connector, Release locking tab

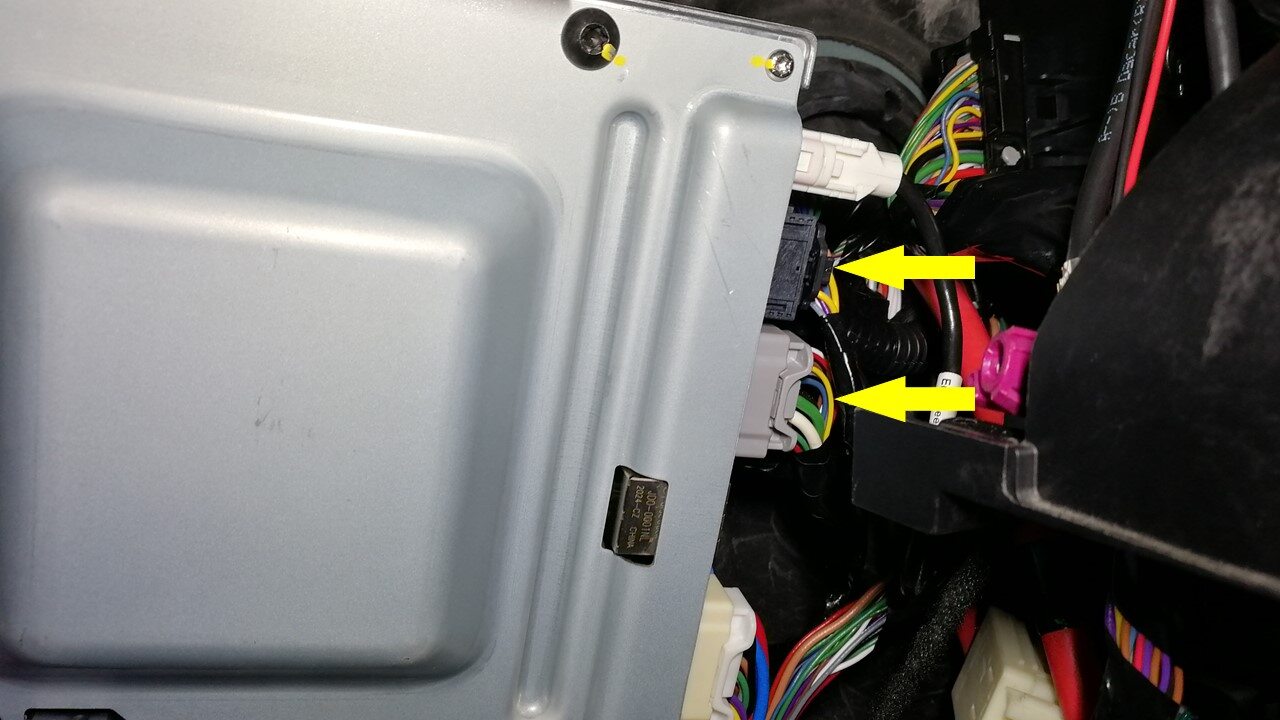

100. Disconnect the RH front harness connectors from car computer
     注

     4x connectors

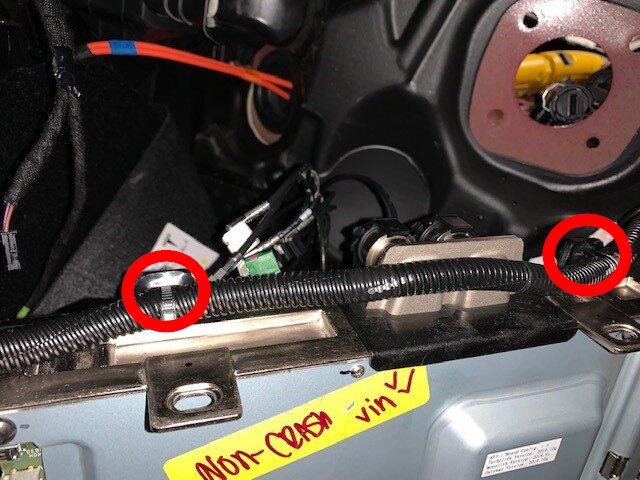

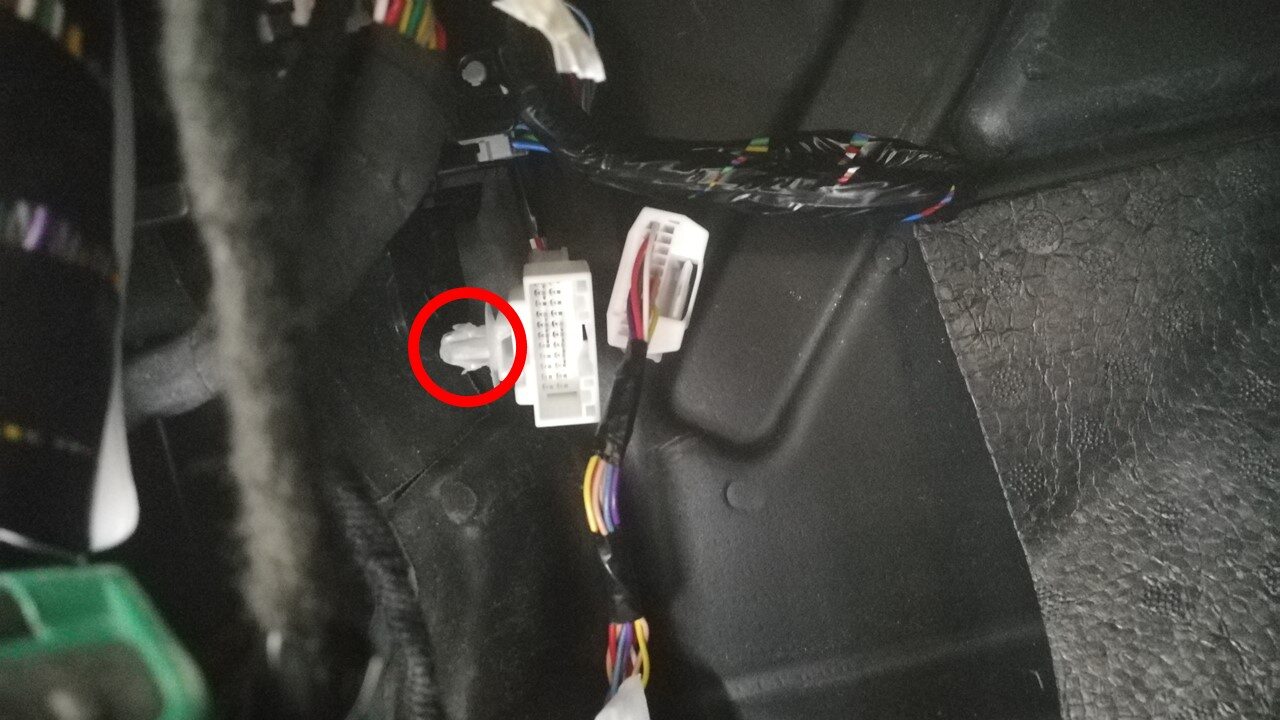

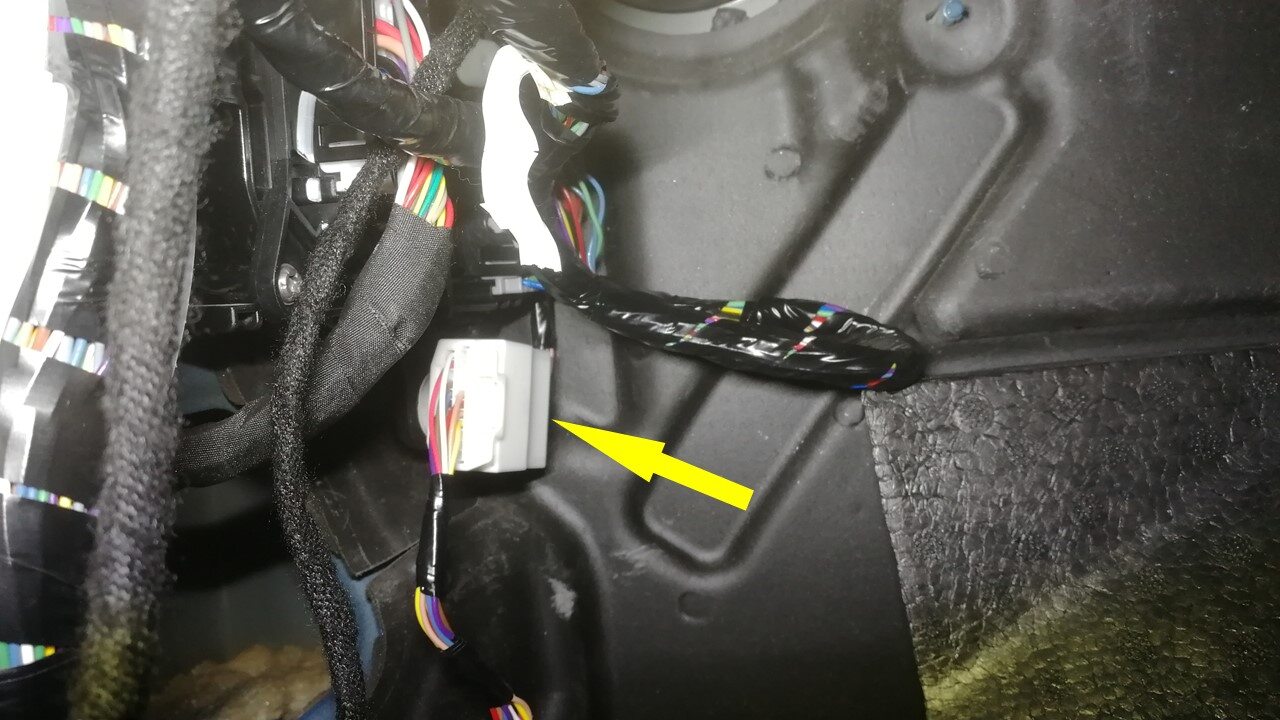

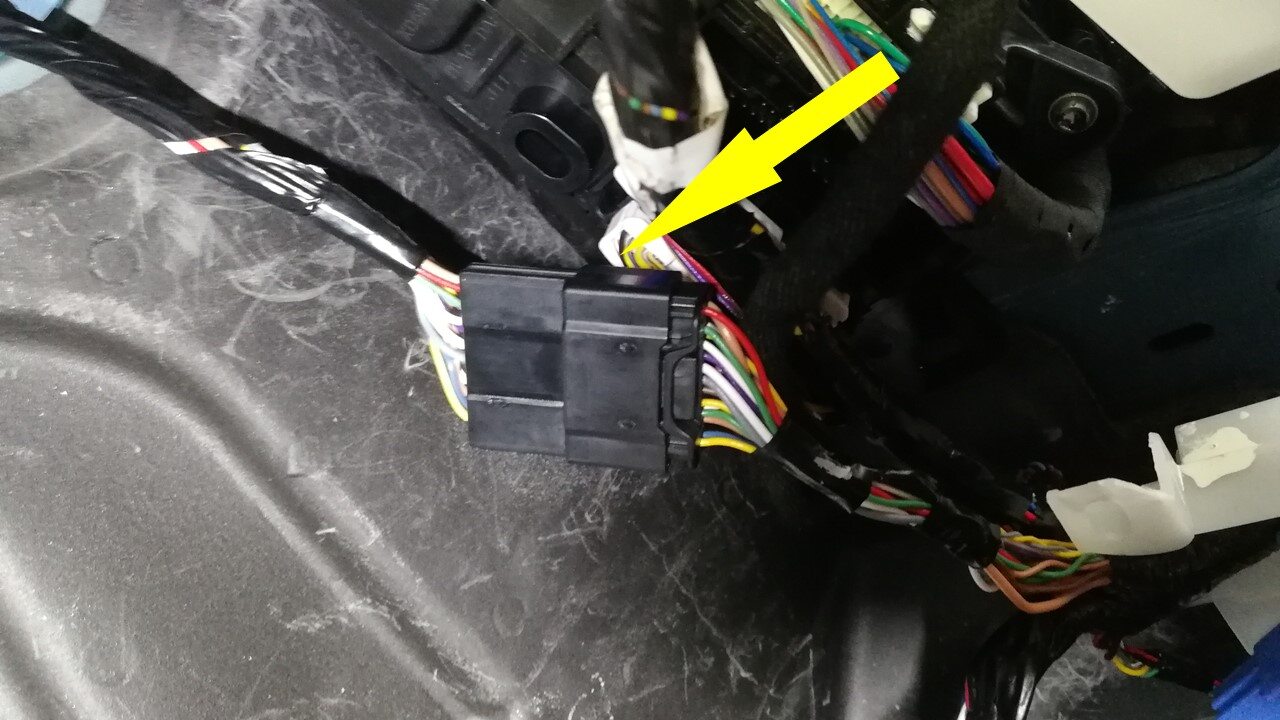

101. Disconnect front harness white connector X909 from LH body harness and separate from left body controller
     注

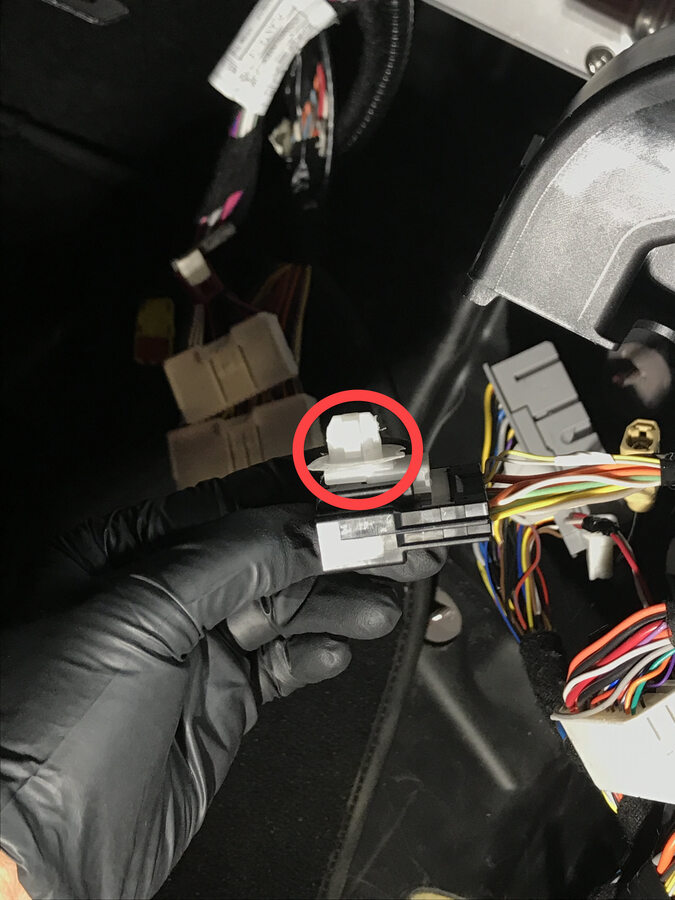

     1x connector, 1x clip





102. Release harness from LH controller
     注

     1x clip



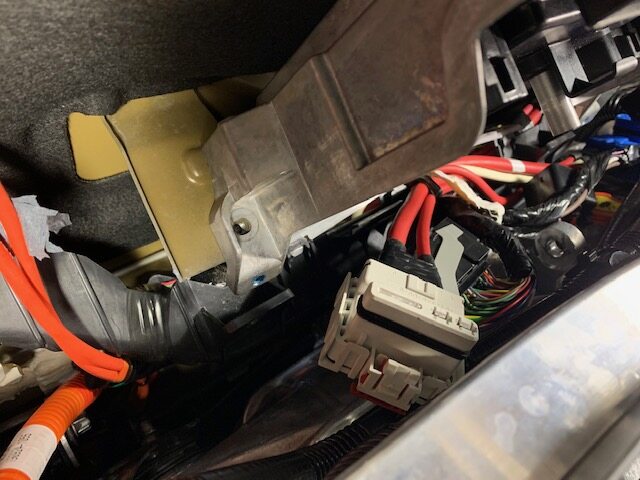

103. Disconnect J1 power connector
     注

     1x connector, Release lock then remove



104. Disconnect J6 frunk connector
     注

     1x connector



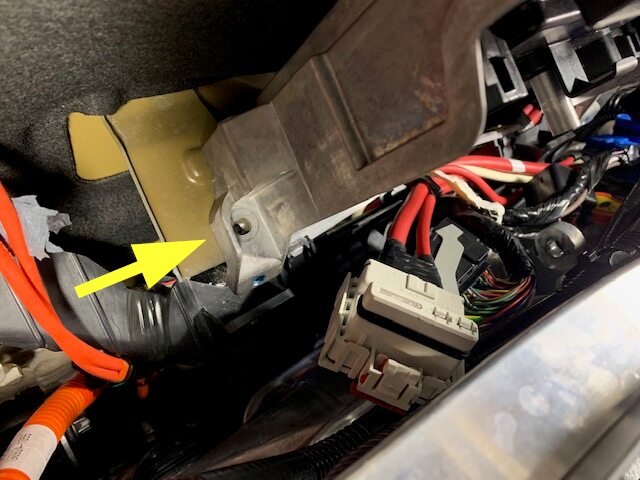

105. Push the LH side of the front harness through the bulkhead
     注

     Ensure that the LH harness is drawn without resistance





106. Remove wheel chocks and push vehicle onto lift
     注

     Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed, Replace wheel chocks once vehicle in correct position
107. Raise and support the vehicle.
108. Remove the LH front wheel cap.
109. Remove RH front wheel cap
     注

     1x cap, Use both hands to gently pull the wheel cap to release the clips, Wheels may be equipped with center caps
110. Loosen the lug nuts (x5) on the LH front wheel.
111. Loosen RH front wheel
     注

     5x nuts, 21mm, 175 Nm
112. Partially raise the vehicle, and then lower the lift onto the locks.
113. Remove the LH front wheel.
114. Remove RH front wheel
     注

     5x nuts, 21mm, 175 Nm
115. Fully raise the vehicle, and then lower the lift onto the locks.

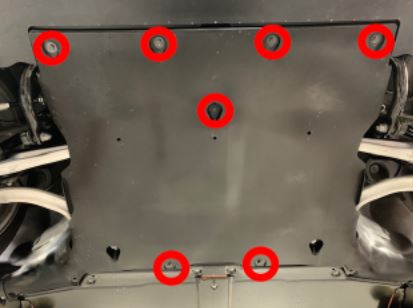

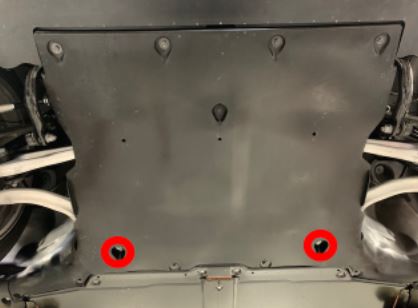

116. Remove the outer fasteners from the front aero shield.



117. Remove the remaining nuts (x2), and then remove the front aero shield from the vehicle.



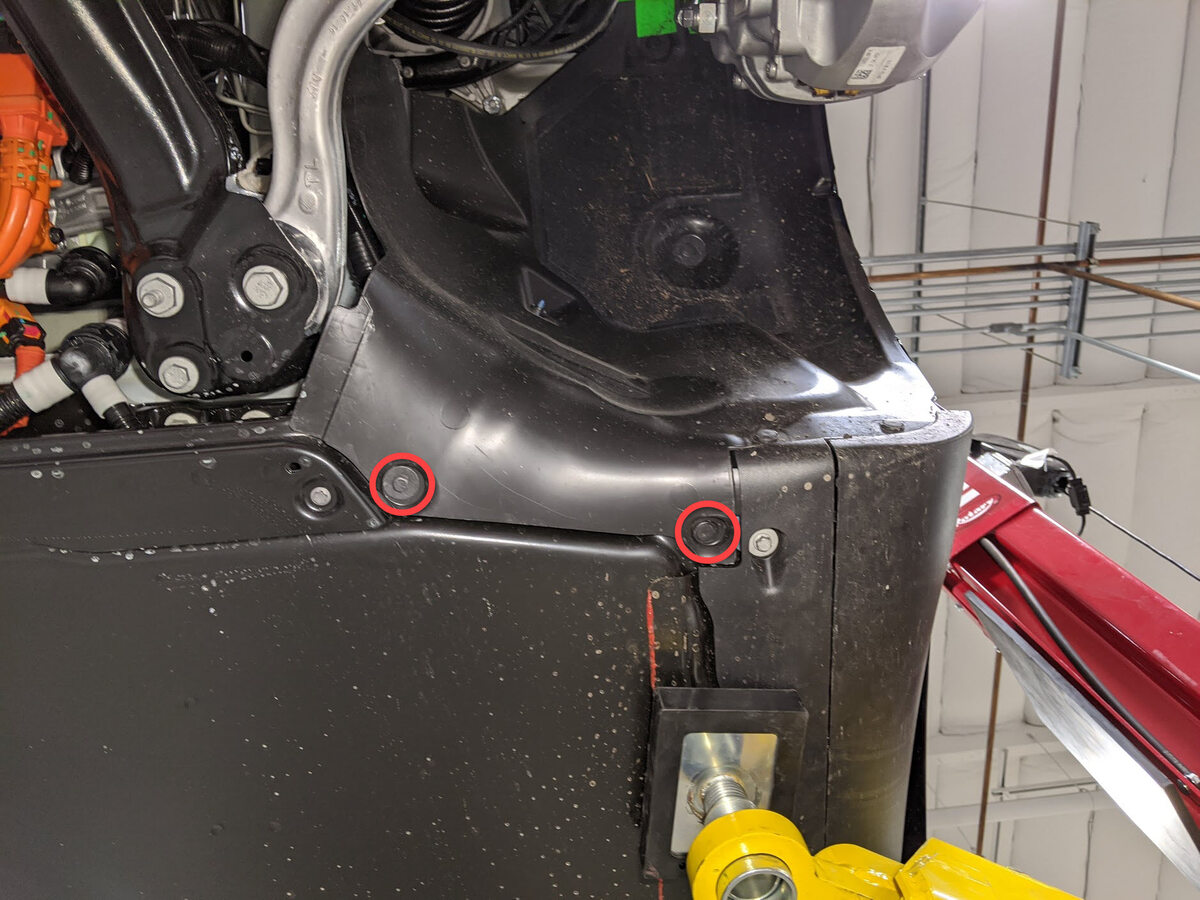

118. Release LH front wheel liner from HV battery
     注

     1x clip, 1x bolt, 10mm, 5 Nm



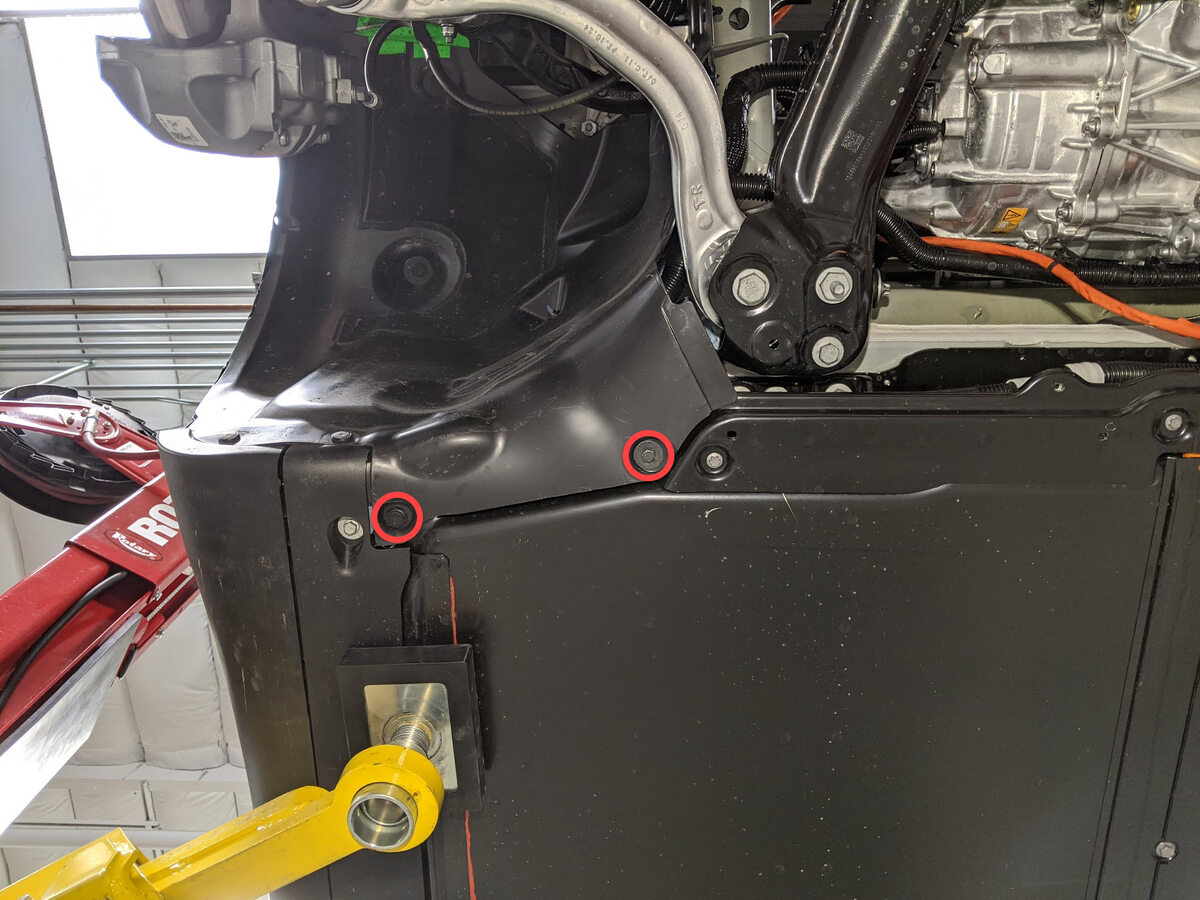

119. Release RH front wheel liner from HV battery
     注

     1x clip, 1x bolt, 10mm, 5 Nm



120. Lower vehicle to comfortable working level
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height

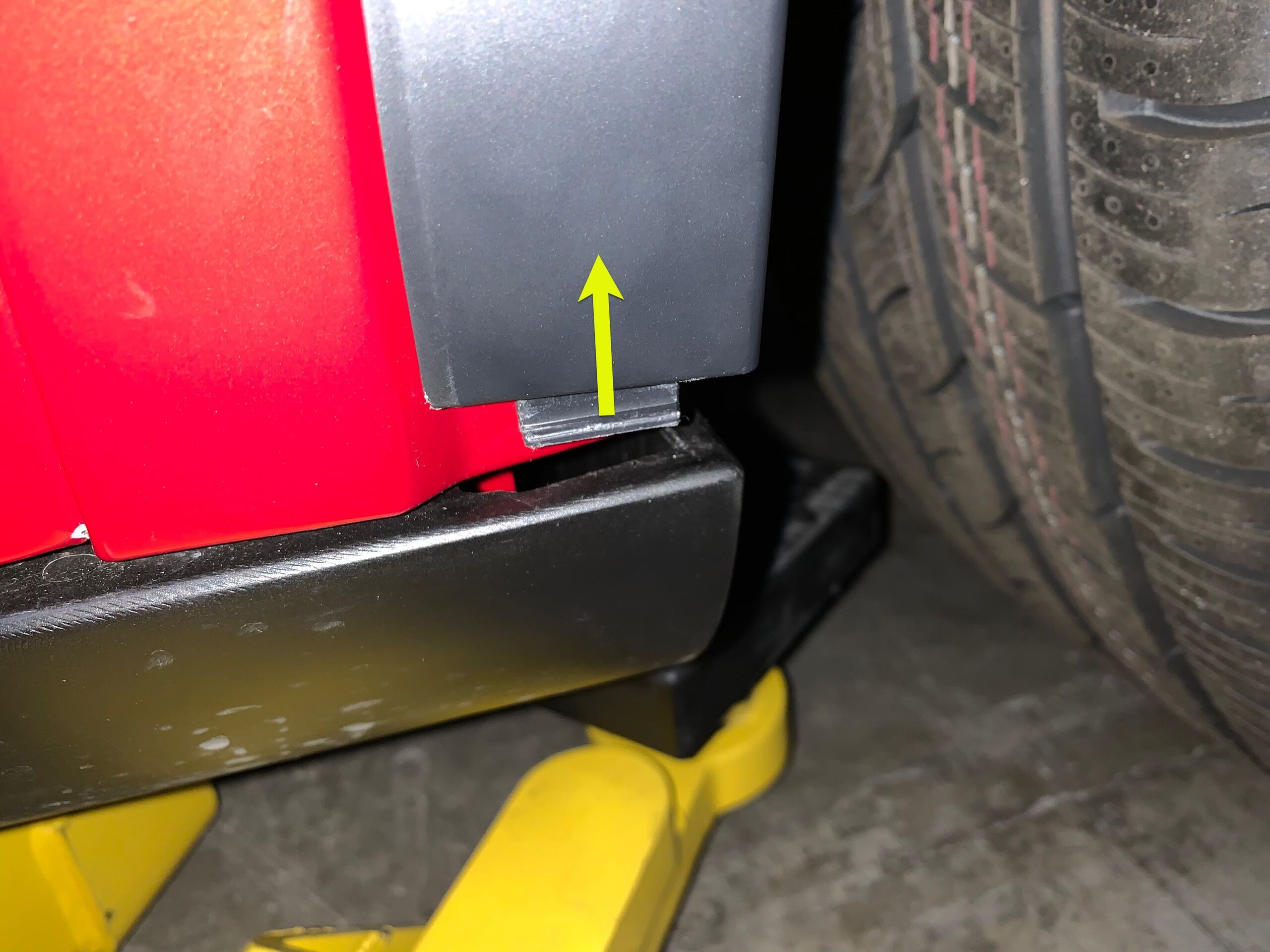

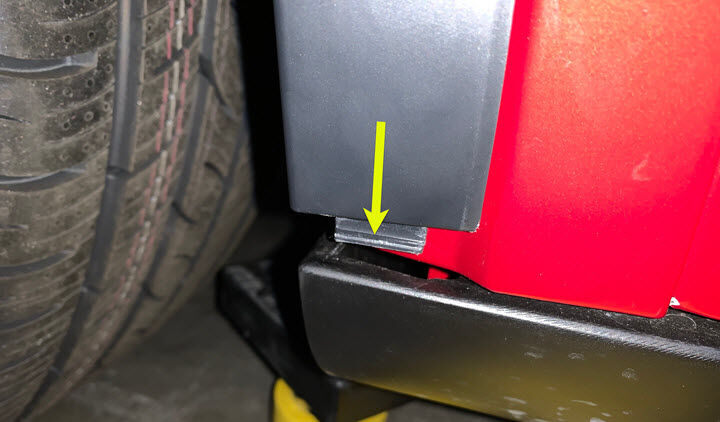

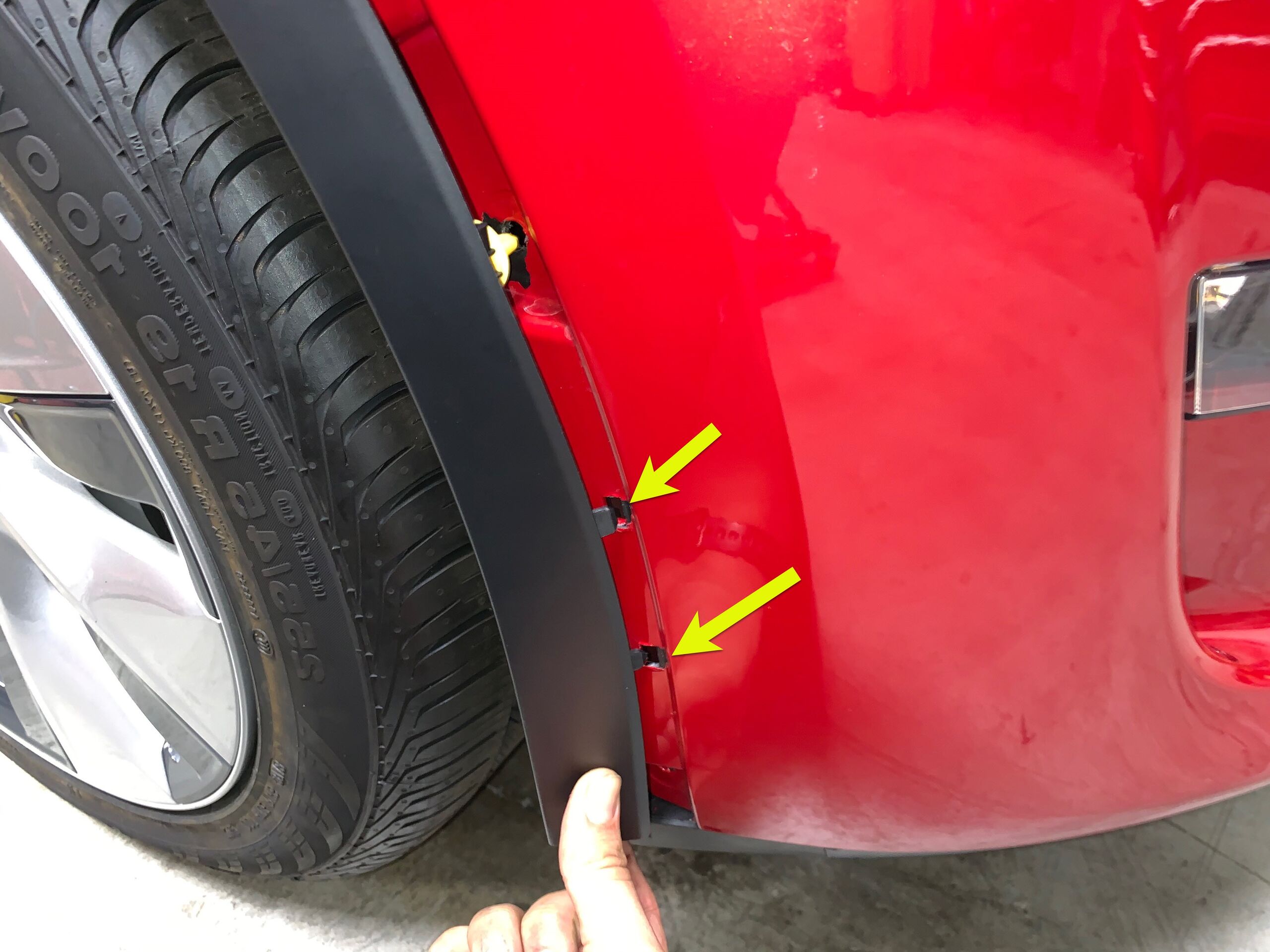

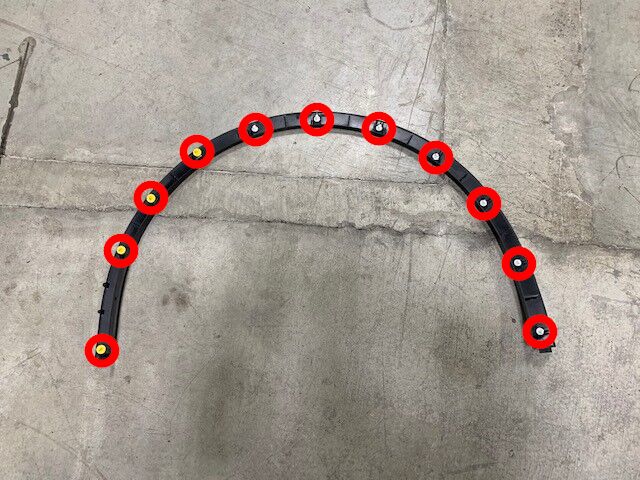

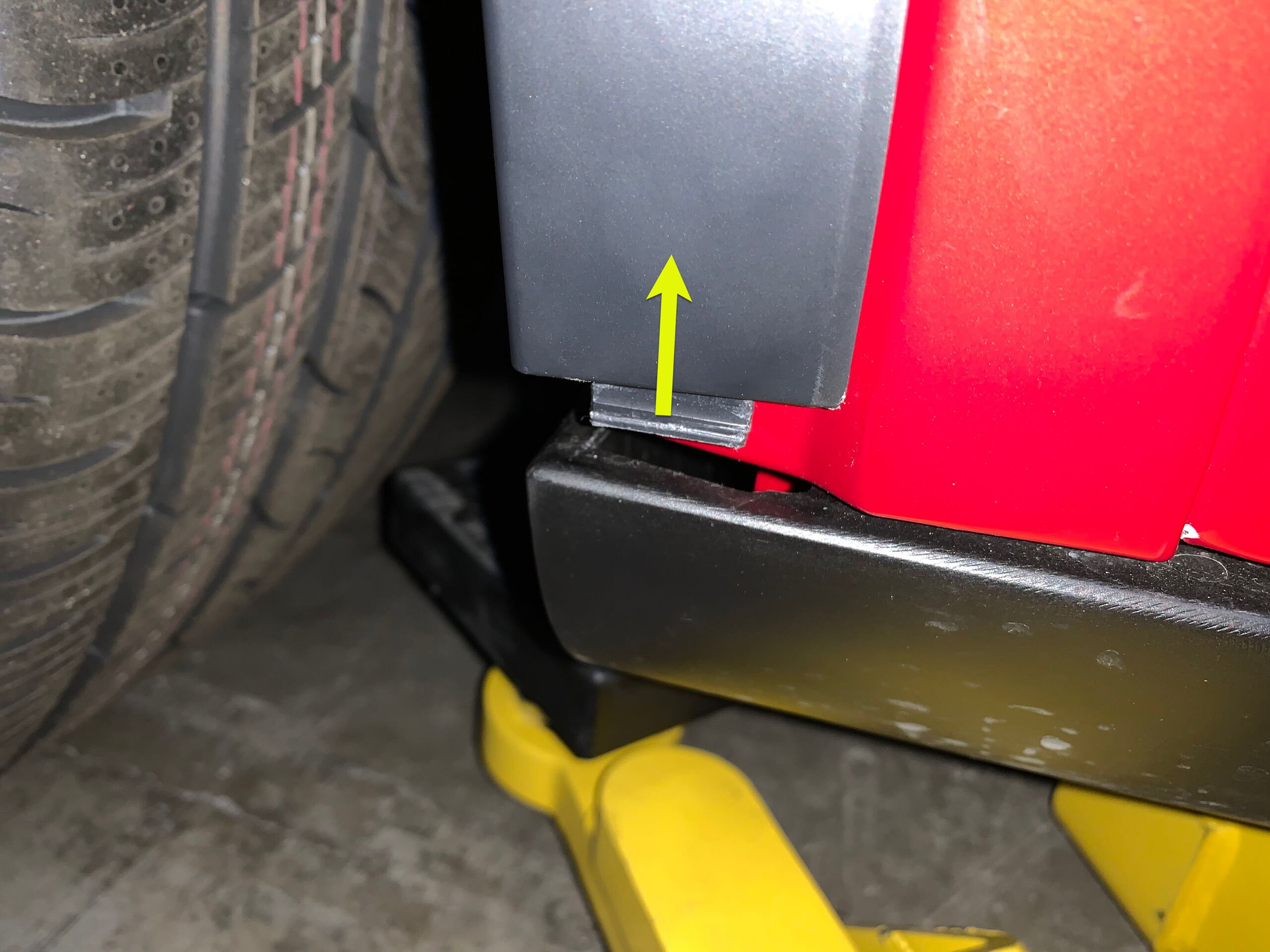

121. Remove LH front fender garnish
     注

     11x clips,1x push clip, 3x tabs, Release from center of garnish and work your way outward towards both ends, Be cautious not to bend front tabs going into front fascia

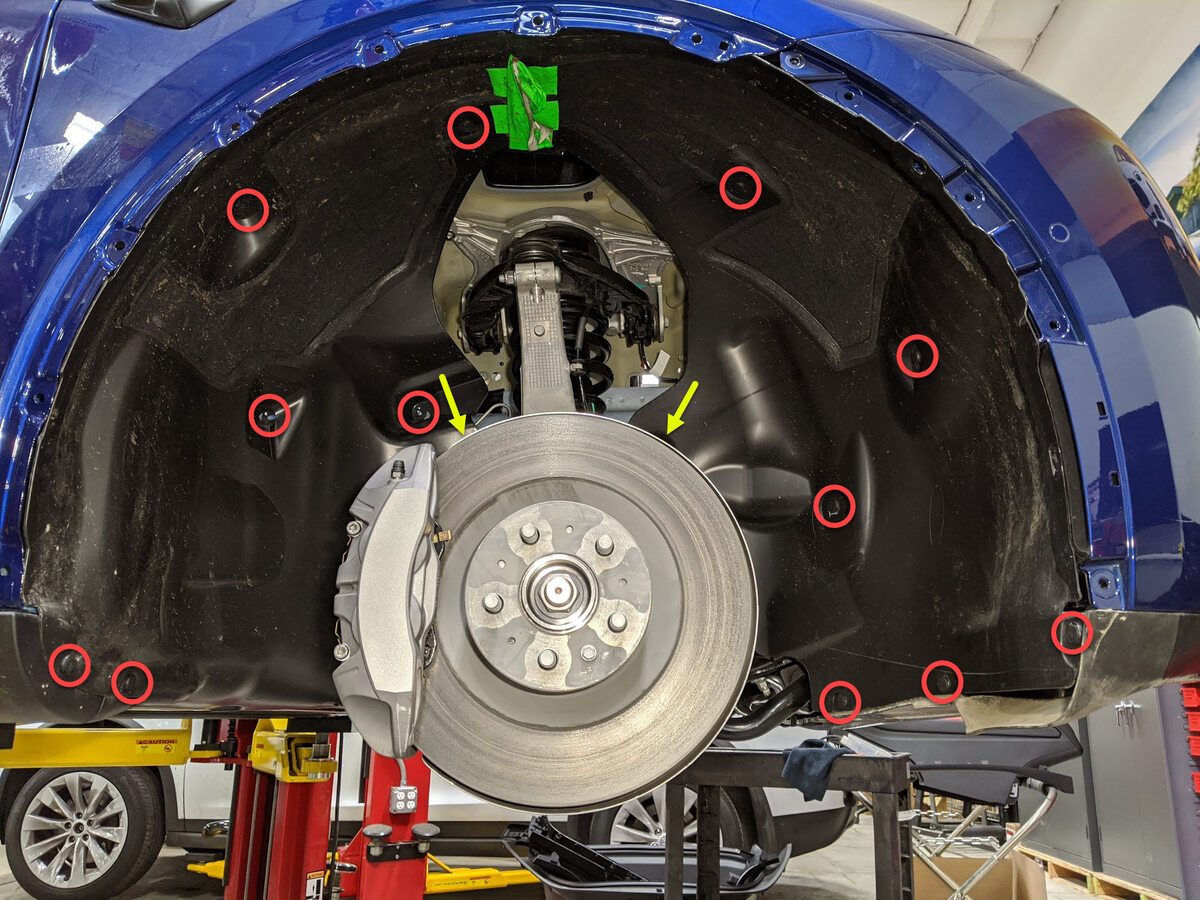

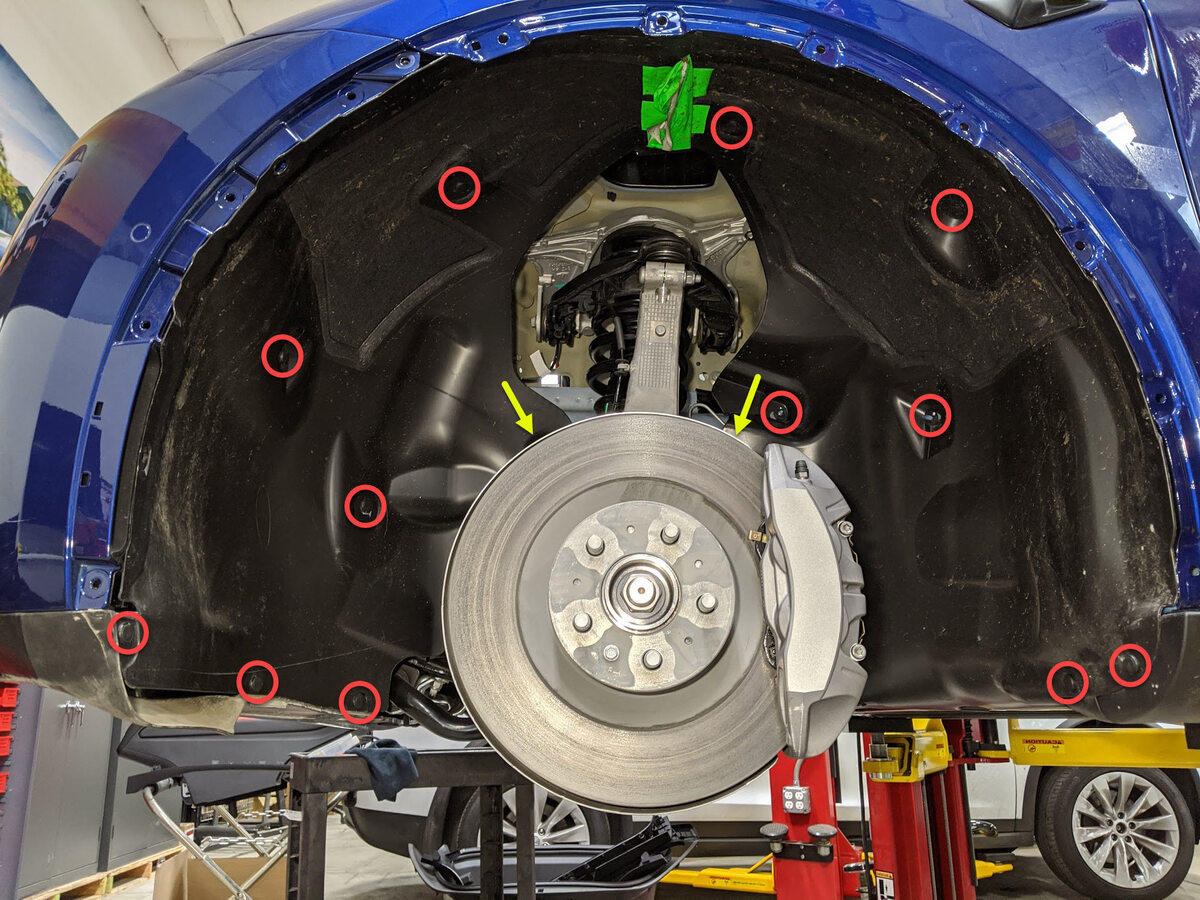

122. Remove clips securing LH front wheel liner to vehicle
     注

     14x clips



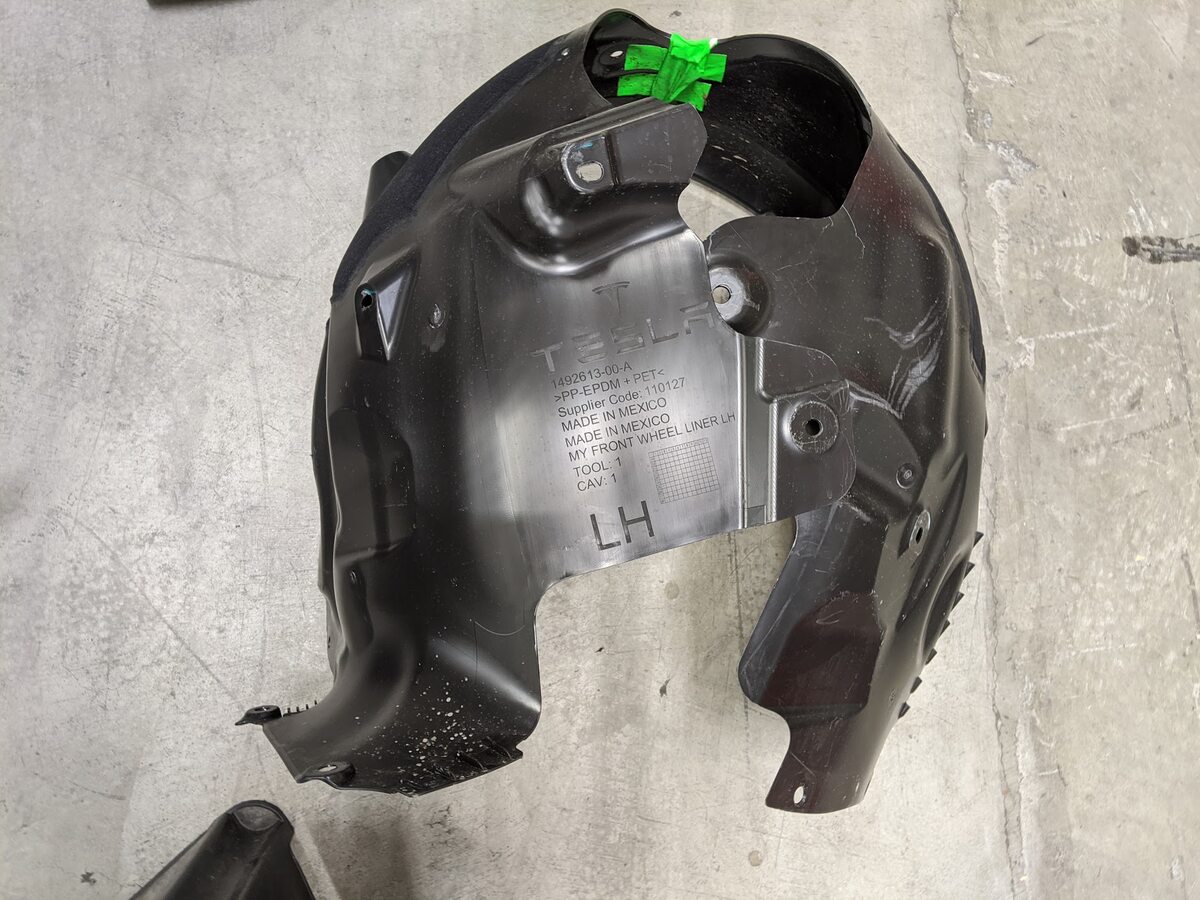

123. Remove LH front wheel liner from vehicle



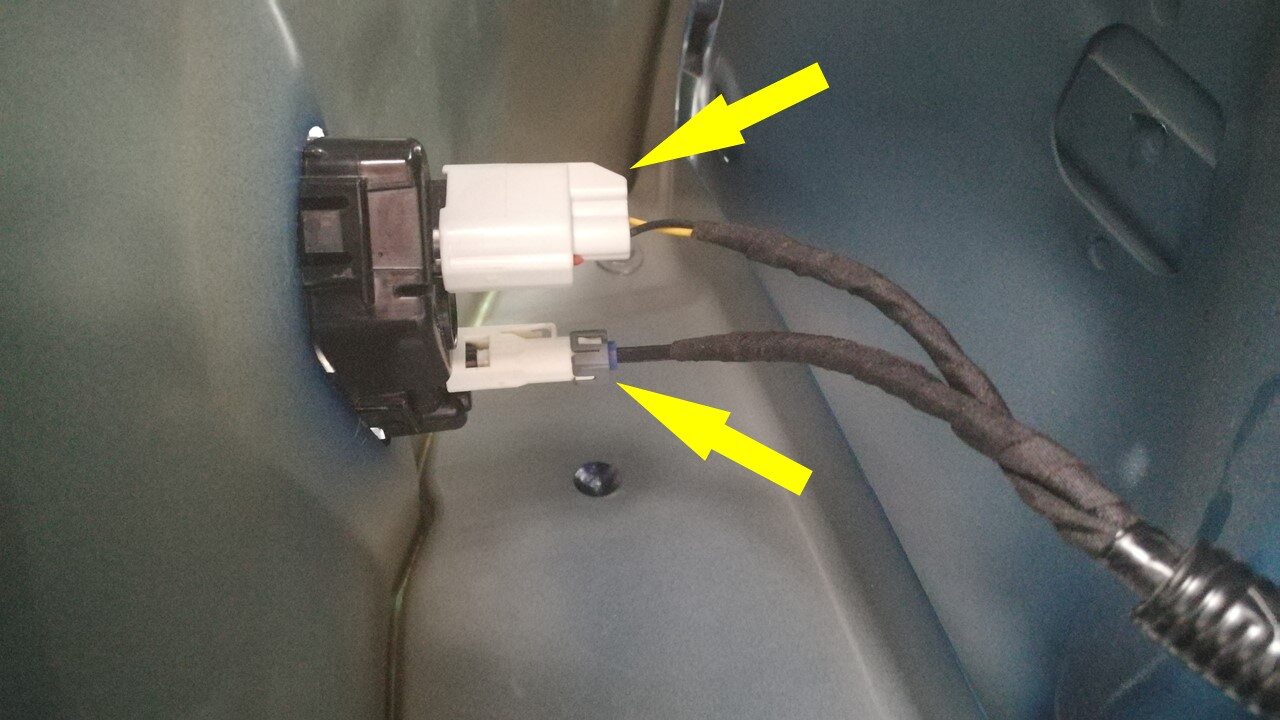

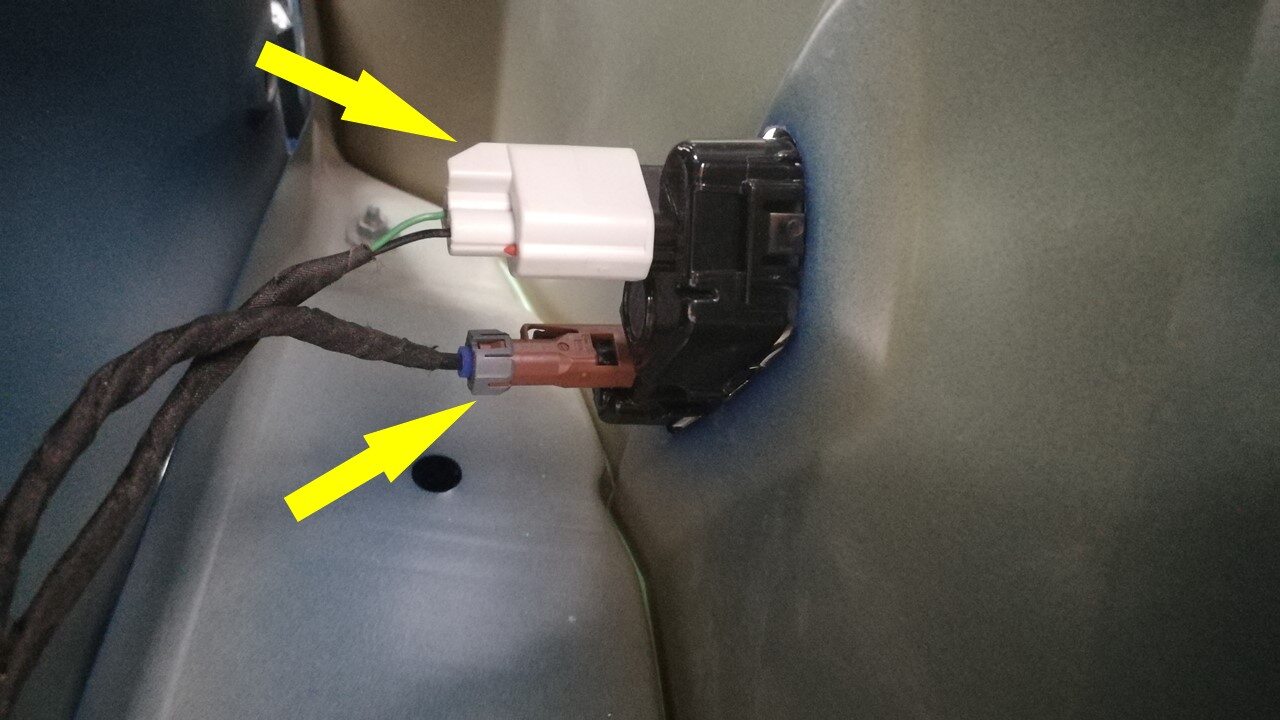

124. Disconnect the front harness connectors for the LH side repeater and camera
     注

     2x connectors

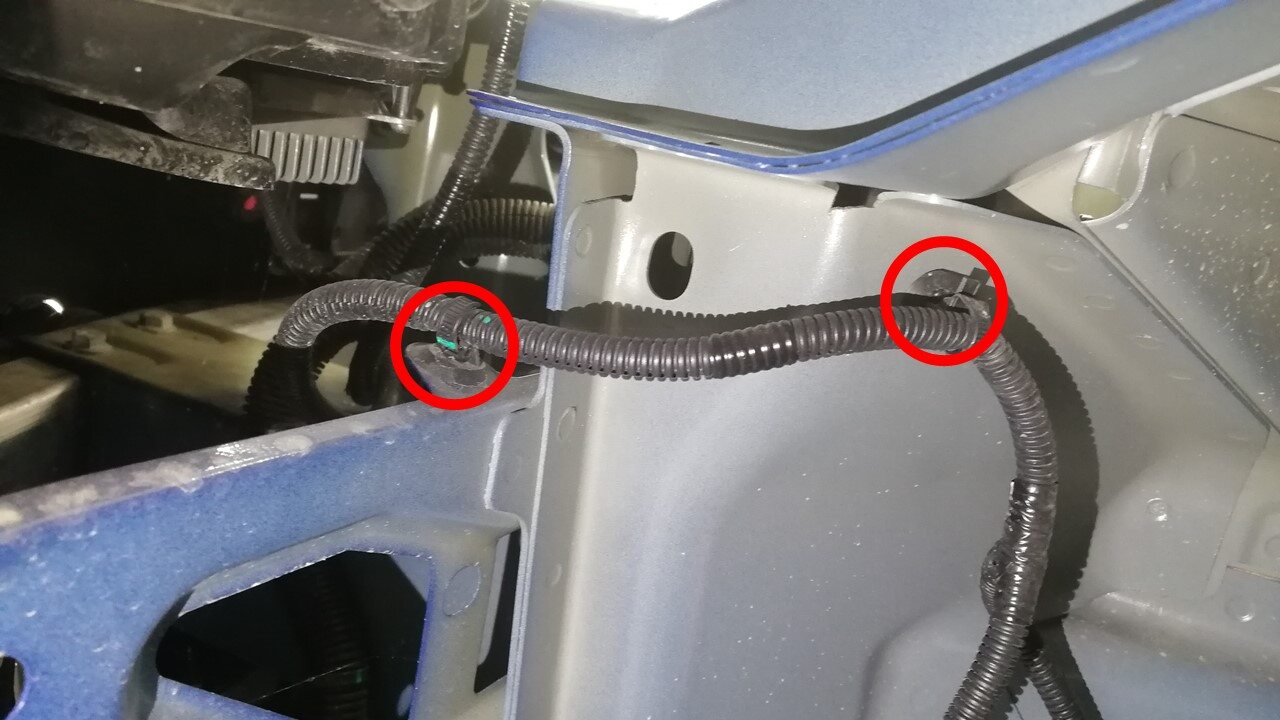

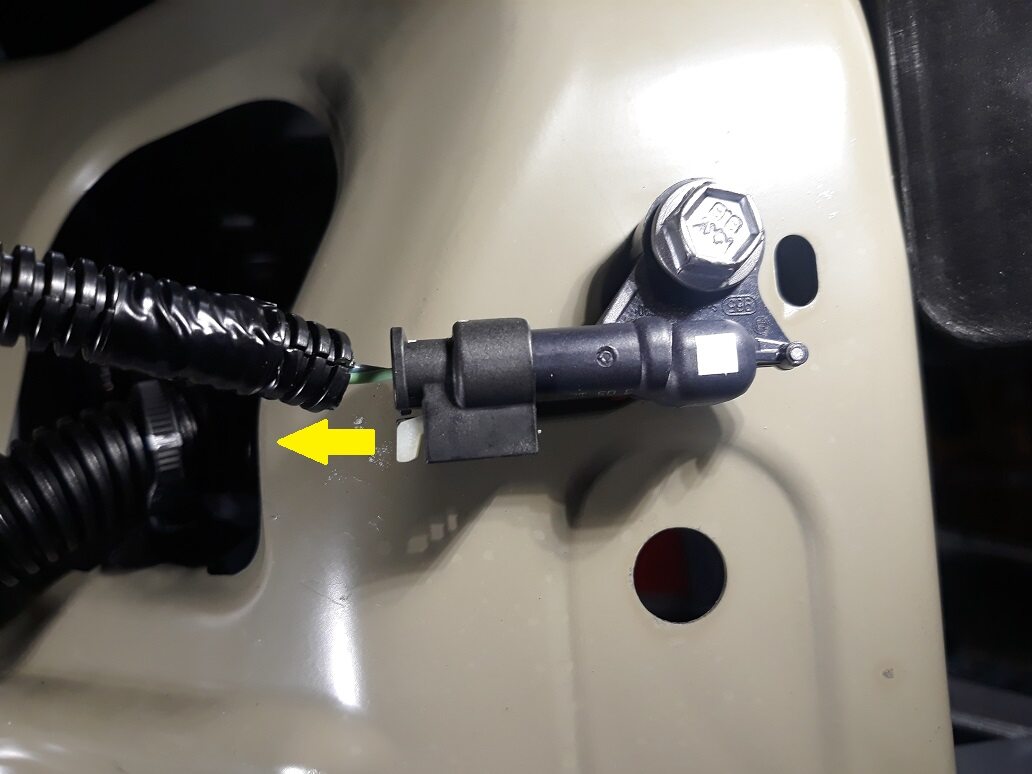

125. Remove the front harness clip for the LH side repeater and camera harness
     注

     1x clip

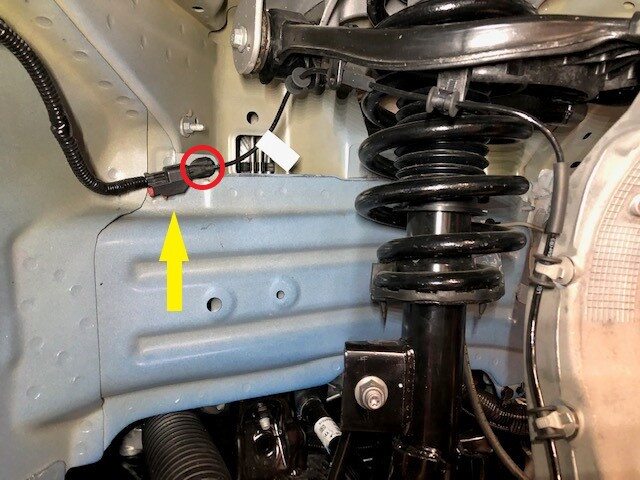

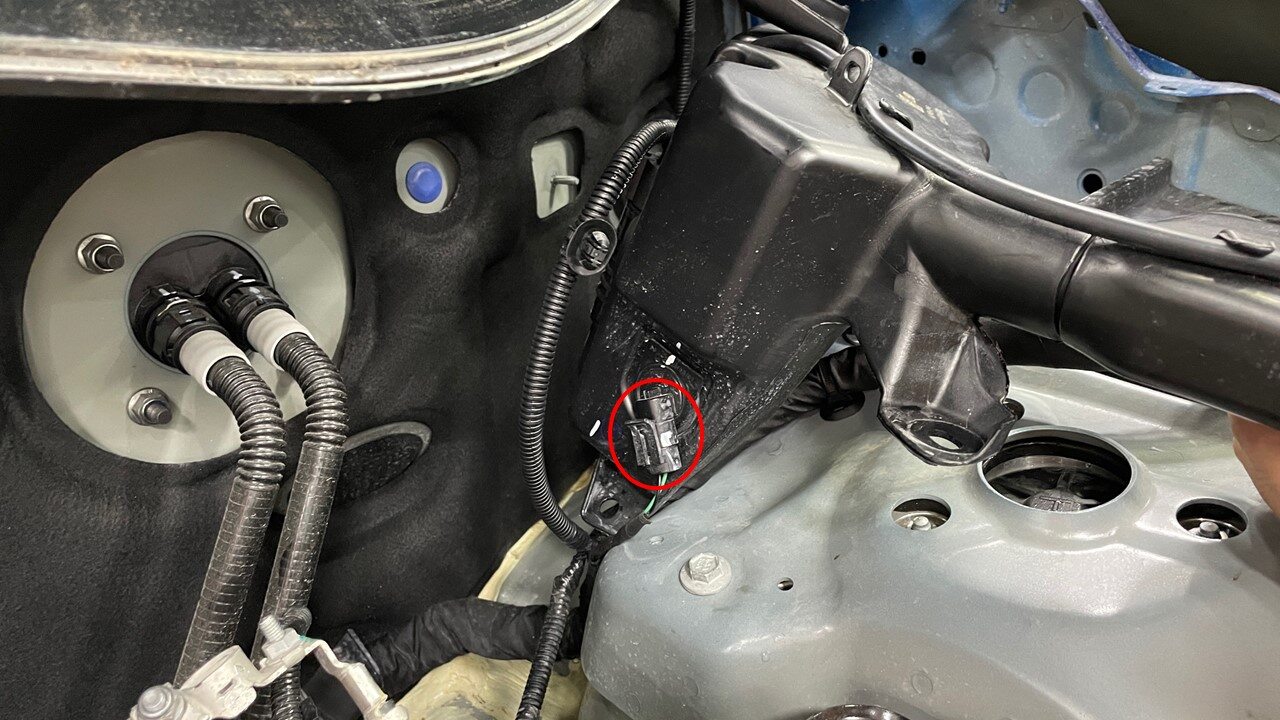

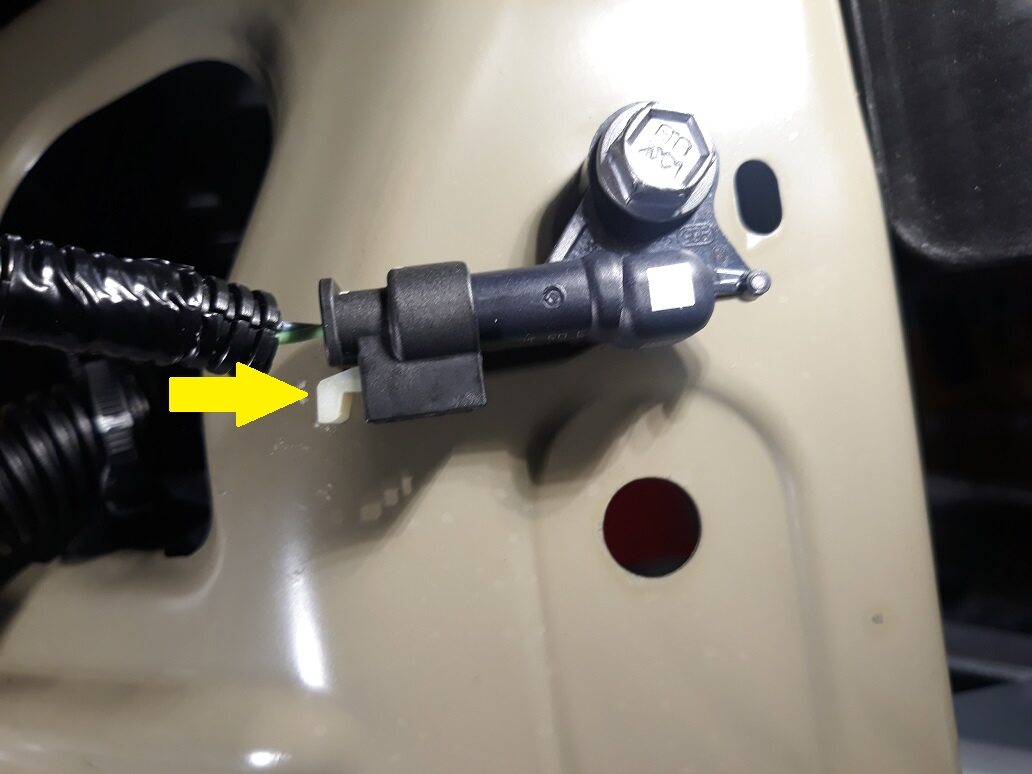

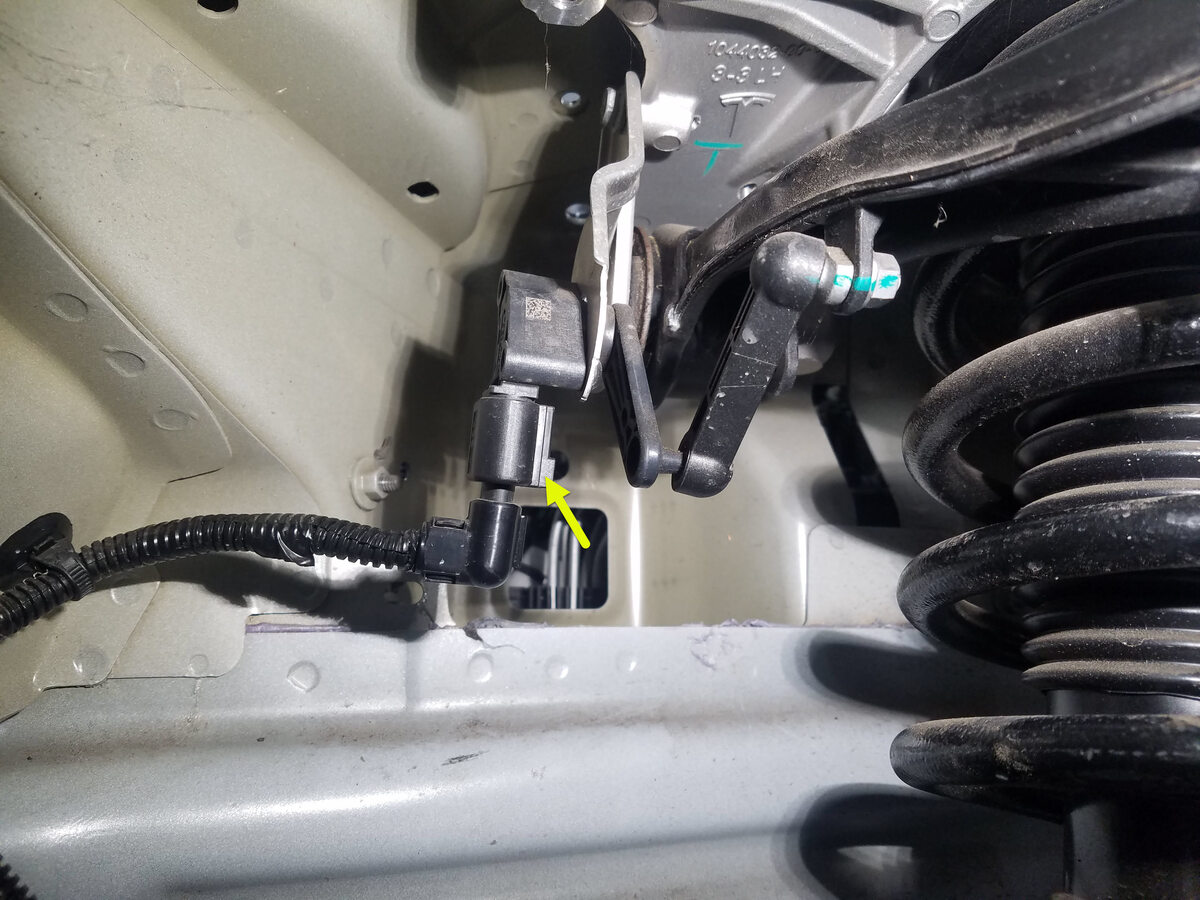

126. Disconnect LH front ride height sensor connector
     注

     1x connector



127. Remove the front harness for the LH front ride height sensor harness
     注

     2x clips



128. Disconnect LH Front wheel speed sensor connector
     注

     1x clip, 1x connector, Release locking tab

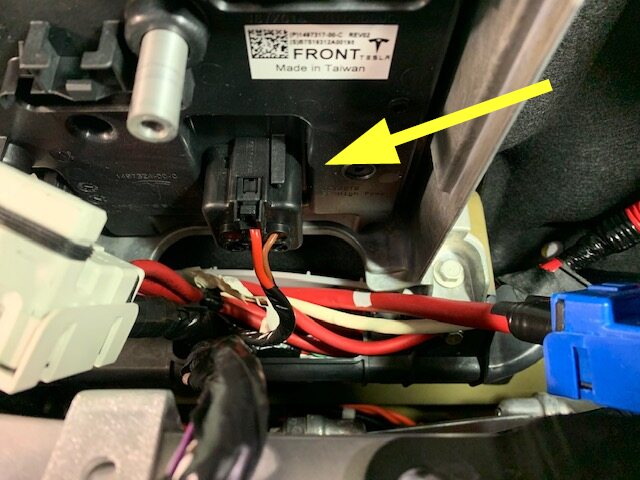

129. Disconnect LH FEM harness connector
     注

     1x connector, Disengage locking tab



130. Disconnect connector to cooling fan module
     注

     1x connector,

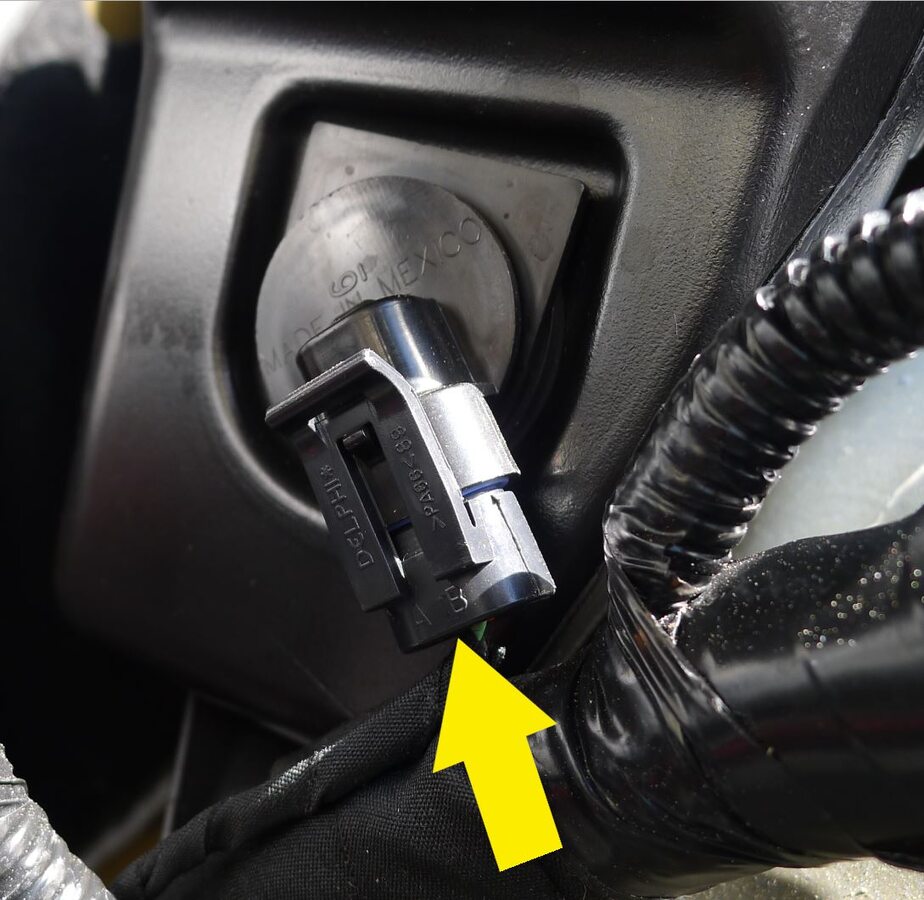

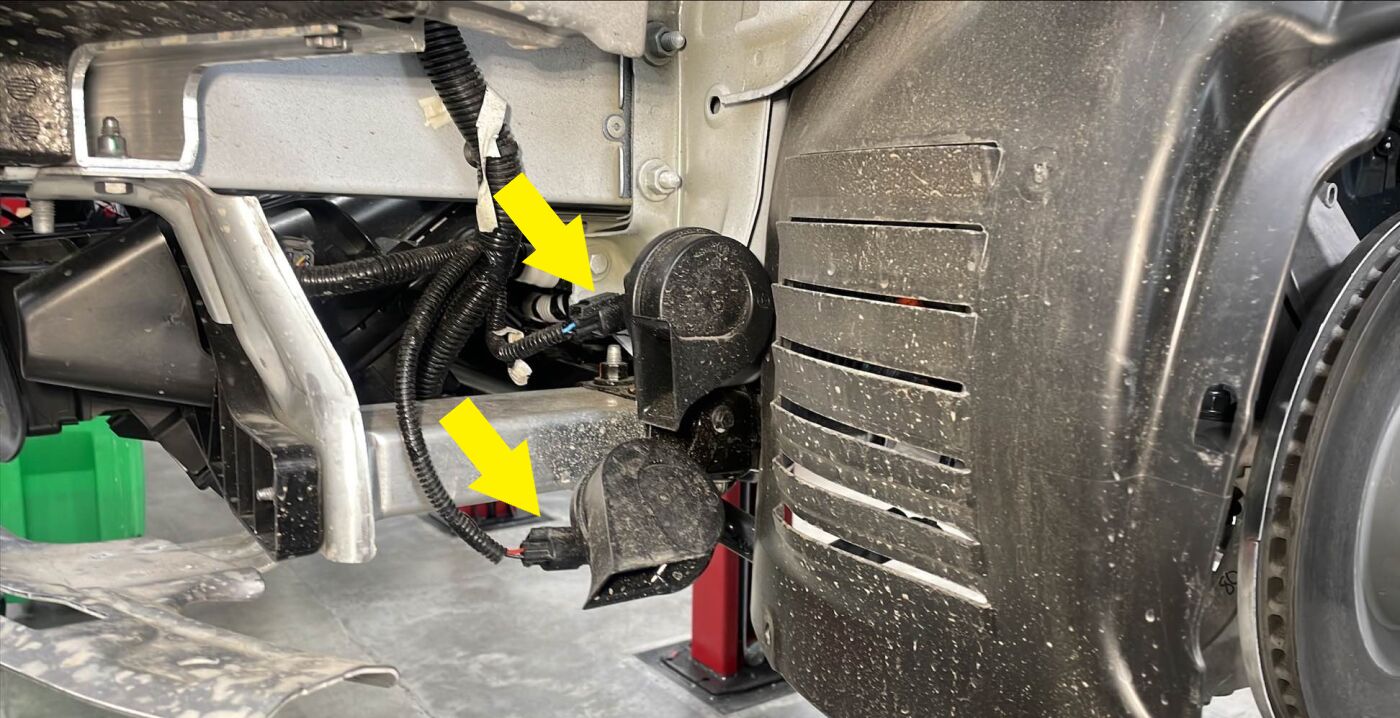

131. Disconnect connectors from horn assembly
     注

     2x connectors, Take note of original routing



132. Remove the front harness for the cooling fan module harness
     注

     1x clip

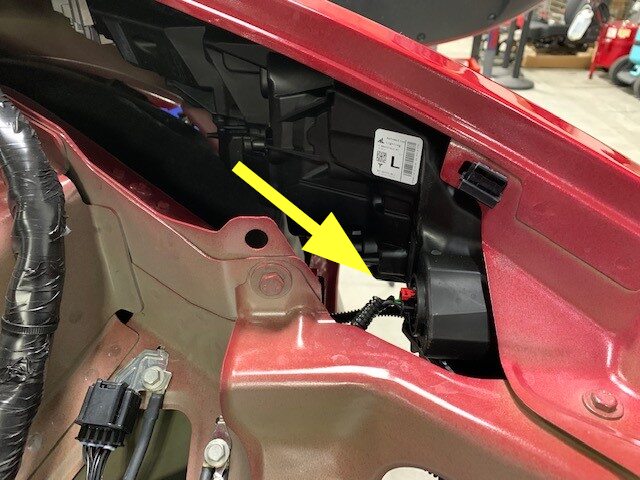

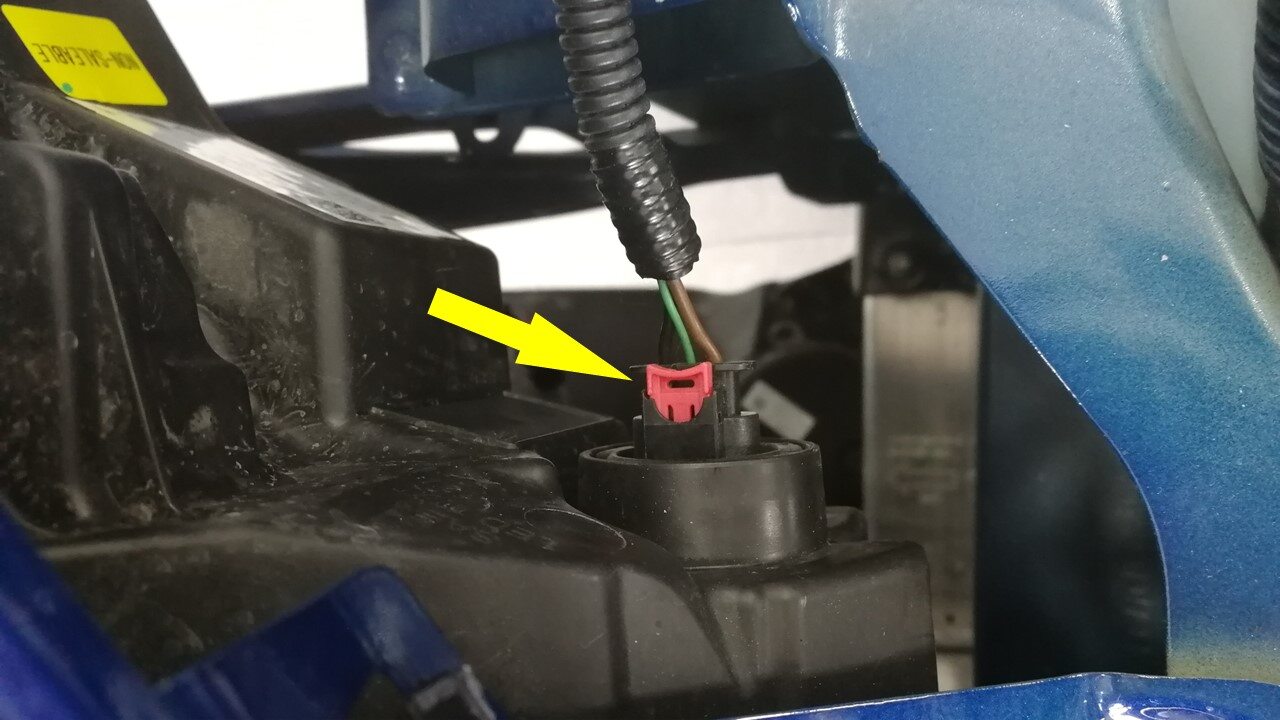

133. Disconnect LH headlamp connector
     注

     1x connector, Pull tab to disengage lock mechanism, Pull again to release connector, Do not press down on tab

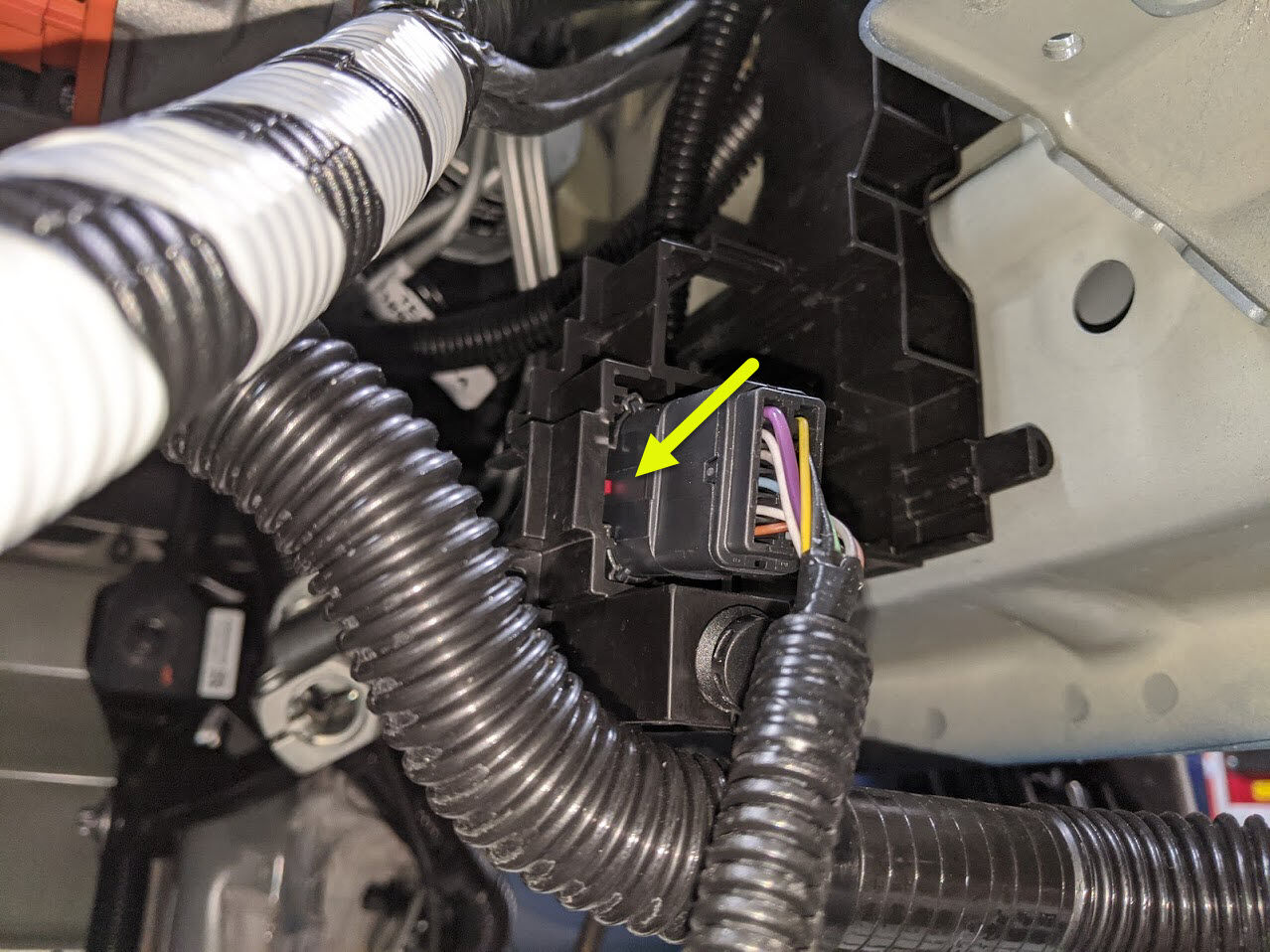

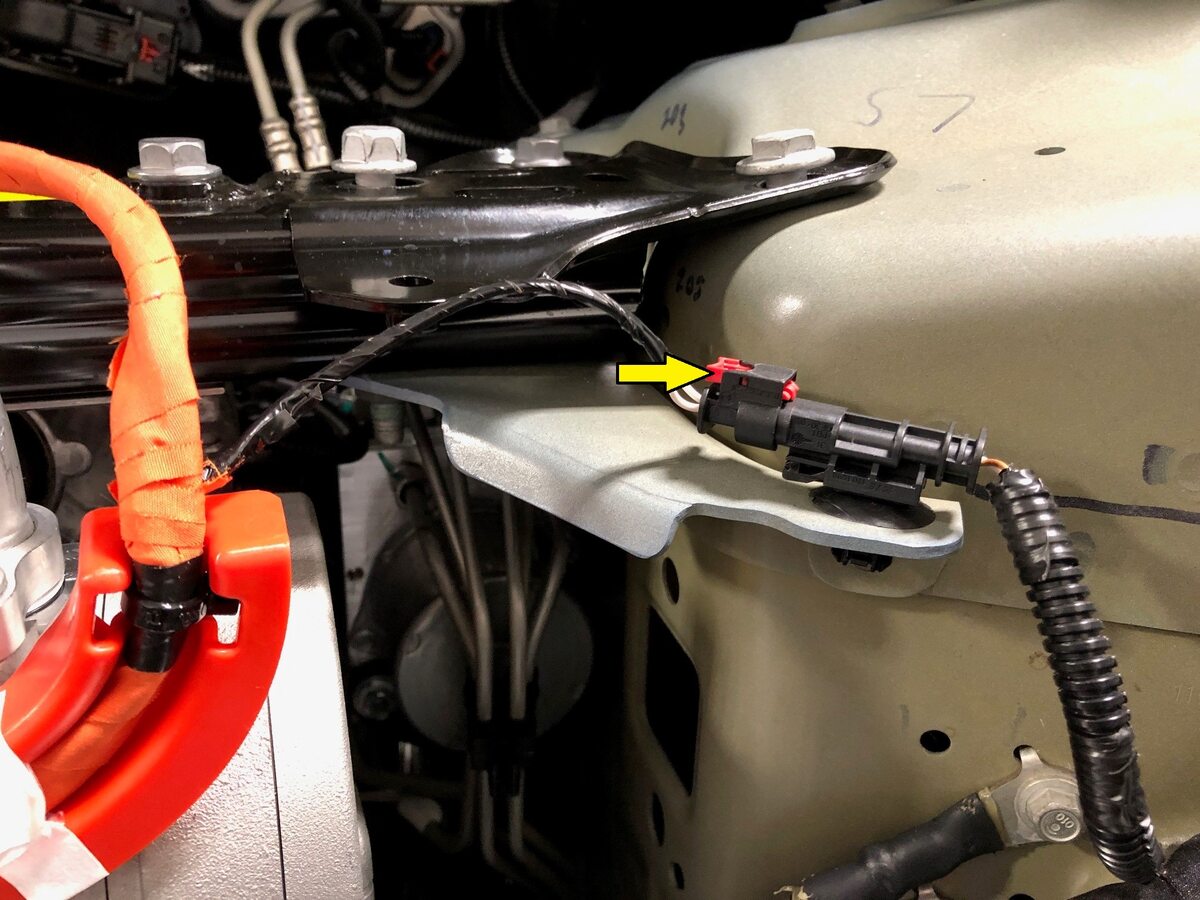

134. Disconnect the HVIL connector
     注

     1x locking connector, Do not push down on red tab, Pull red tab to disengage lock, Pull tab again to release connector

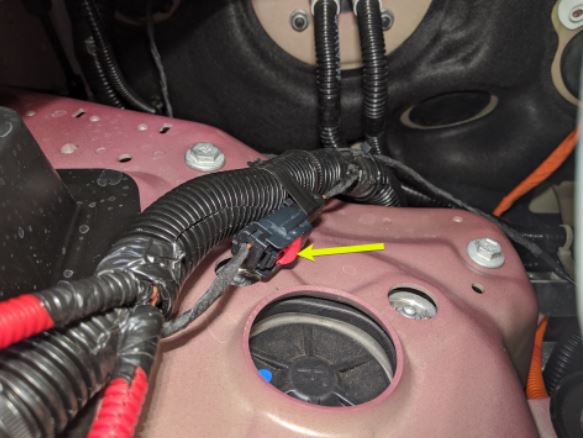

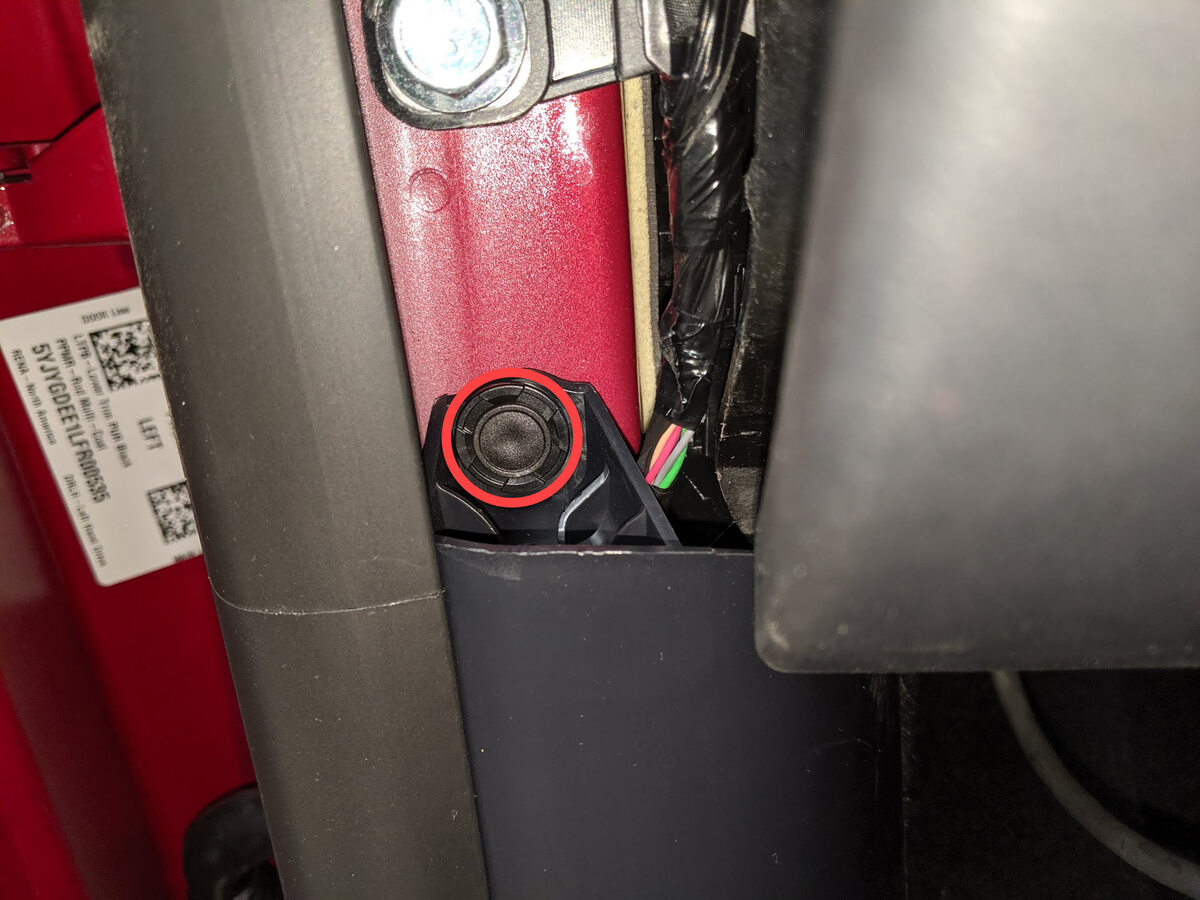

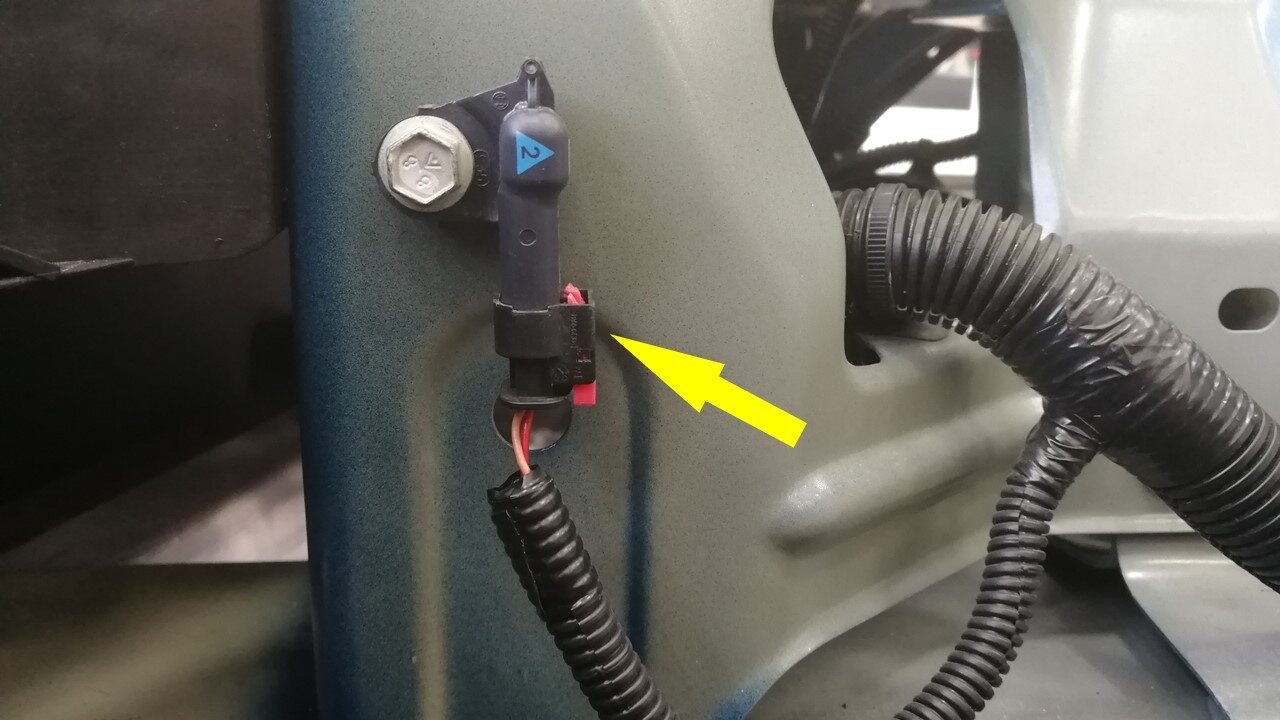

135. Locate and disconnect the LH front shotgun crash accelerometer
     注

     1x connector, Release locking tab and pull tab outward to release connector











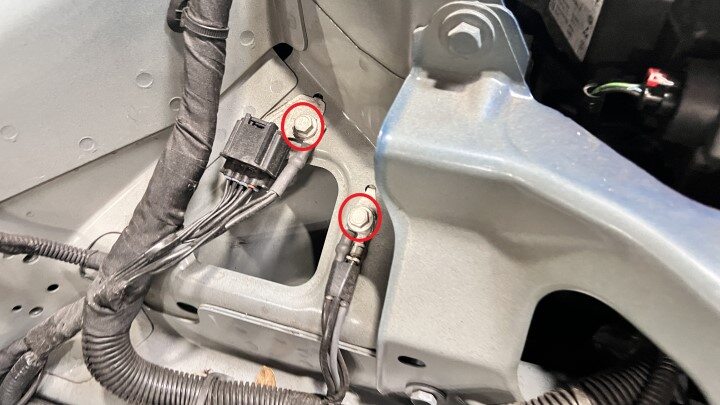

136. Remove the front harness ground terminals at LH front shock tower
     注

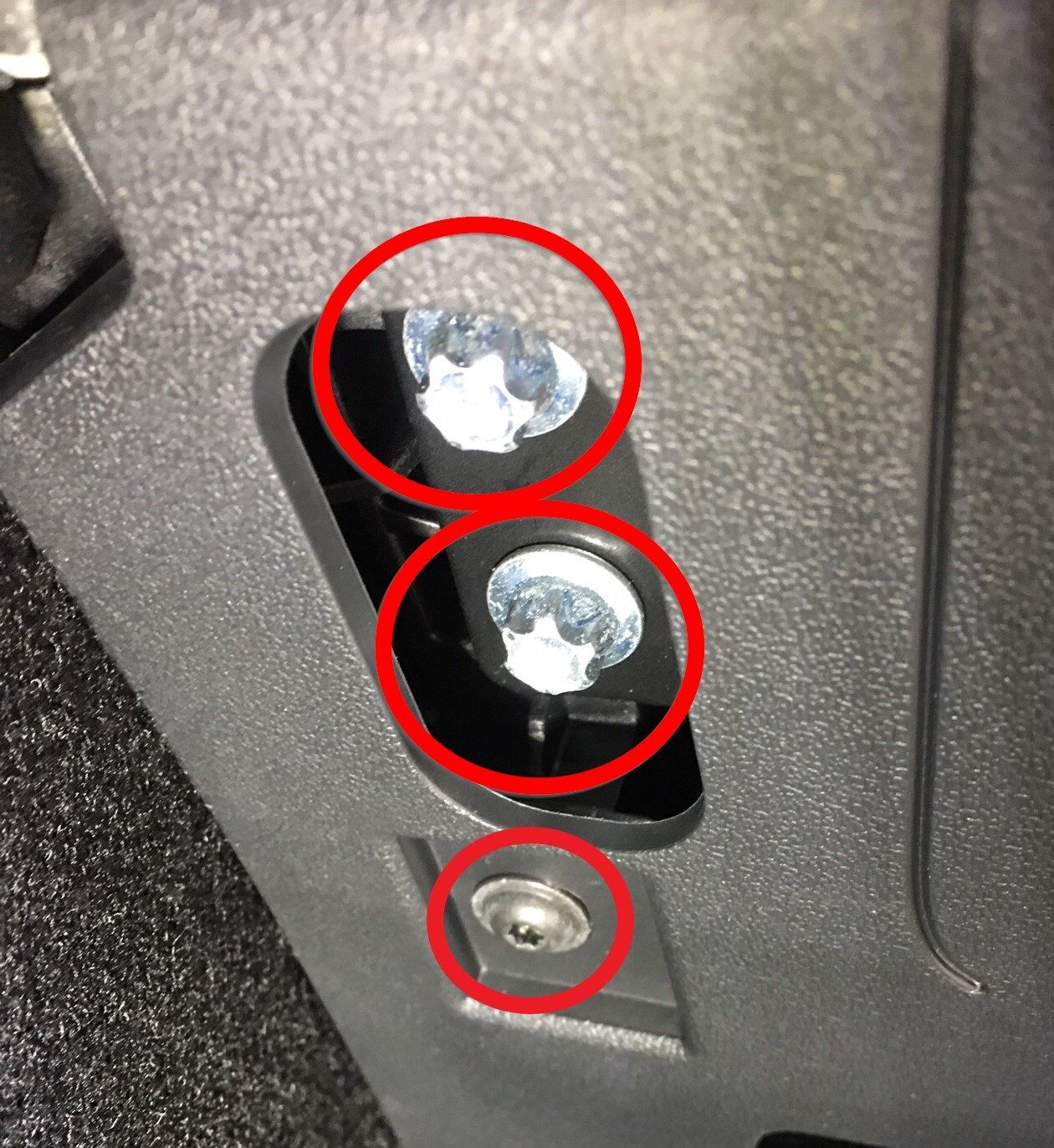

     2x bolts, 10mm, 8 Nm,Inspect bolts: if they are self tapping tri-lobular bolts (1128269-00-A) then discard, If they are normal bolts (1447438-00-A) they can be reused





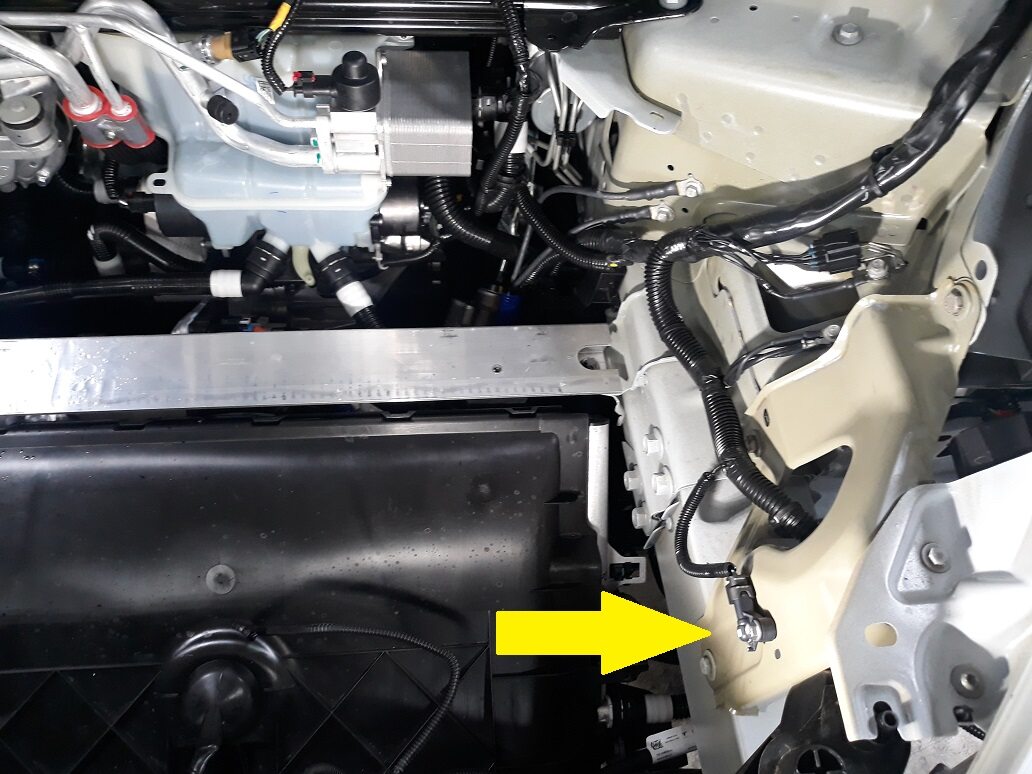

137. Remove the ground bolt from the 12V negative harness
     注

     1x bolt,10mm, 10 Nm

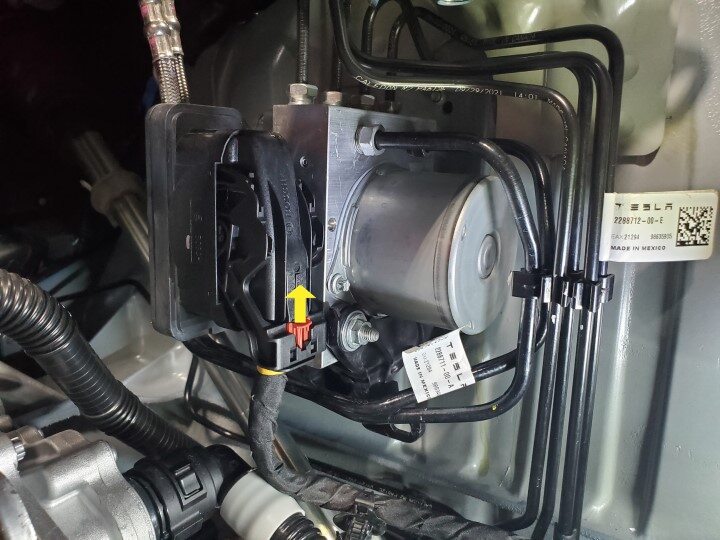

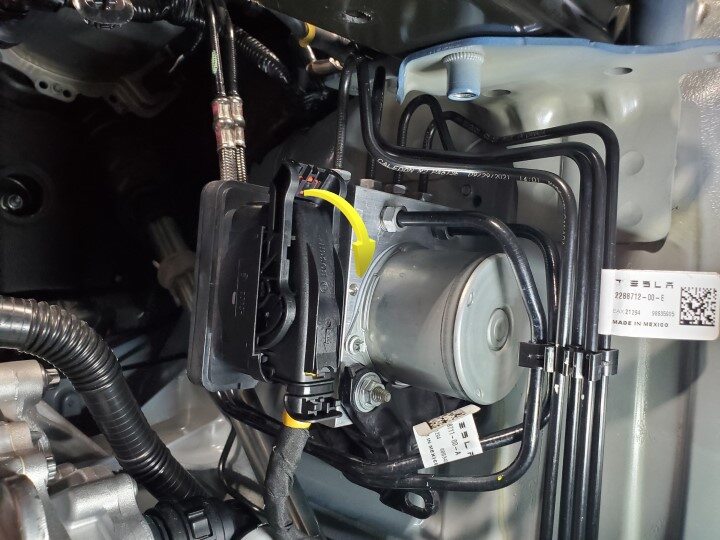

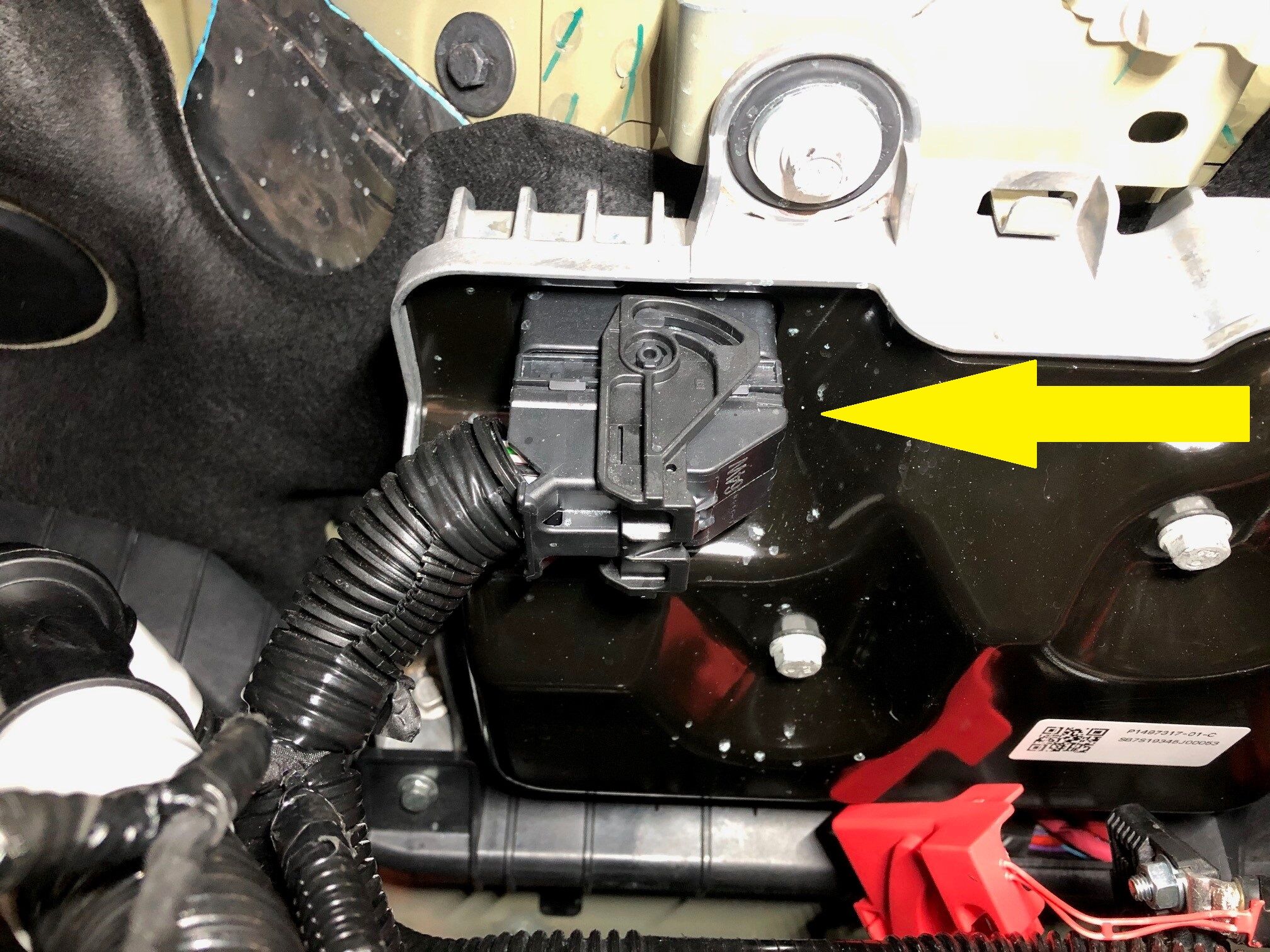

138. Disconnect HCU connector
     注

     1x connector, Release red locking tab, Press black release tab and rotate lever upward to remove





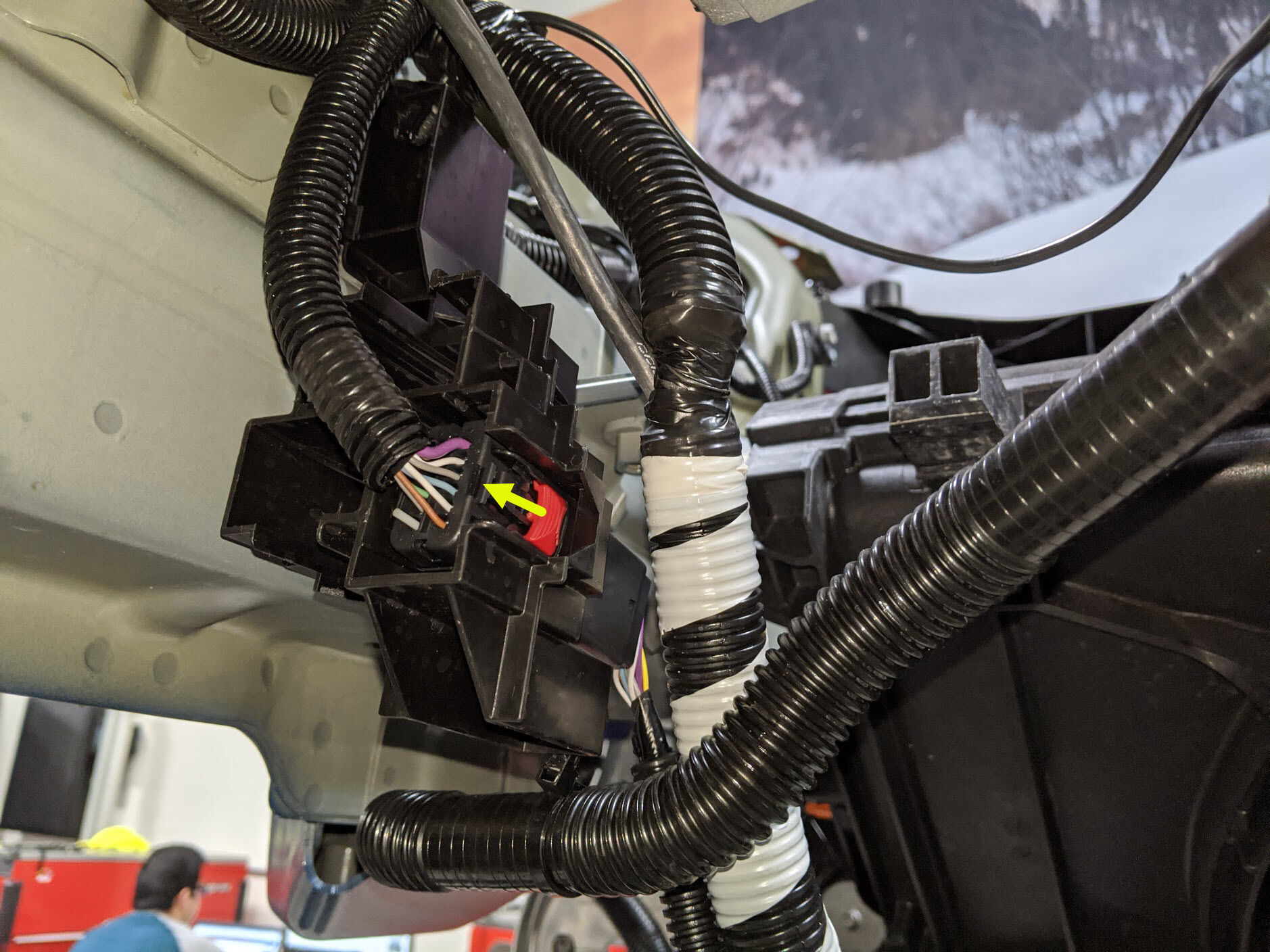

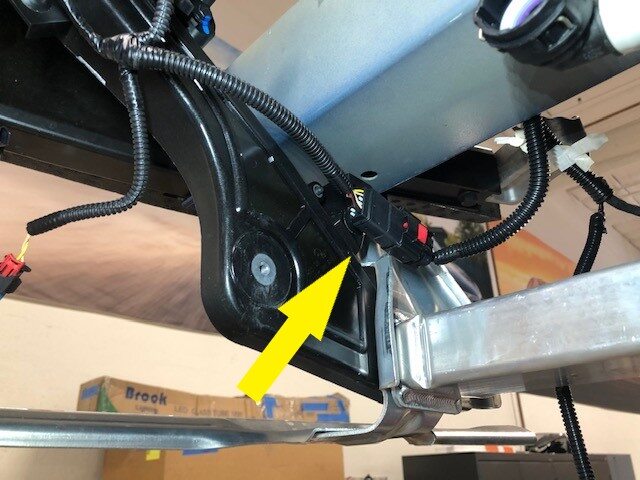

139. Release connection for the front subframe harness
     注

     1x locking connector, Release red locking tab, Disengage connection and release

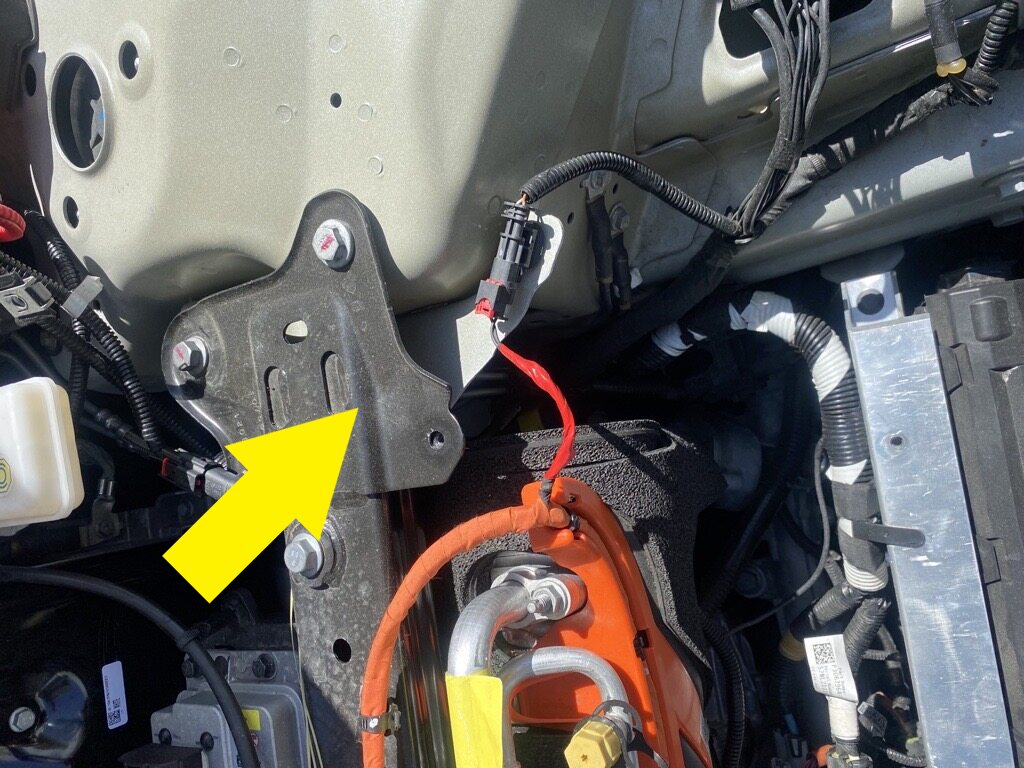

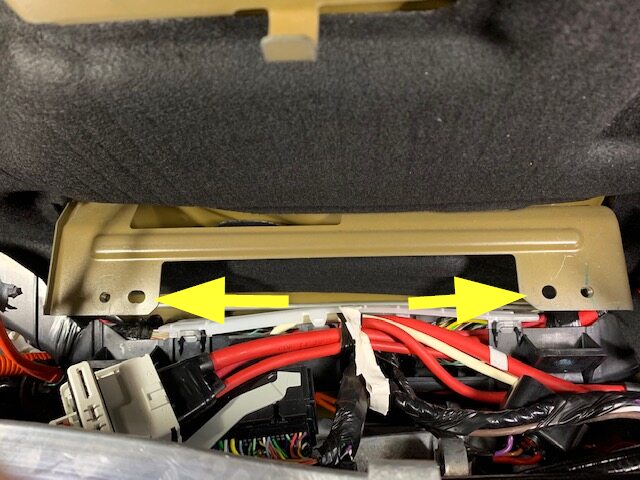

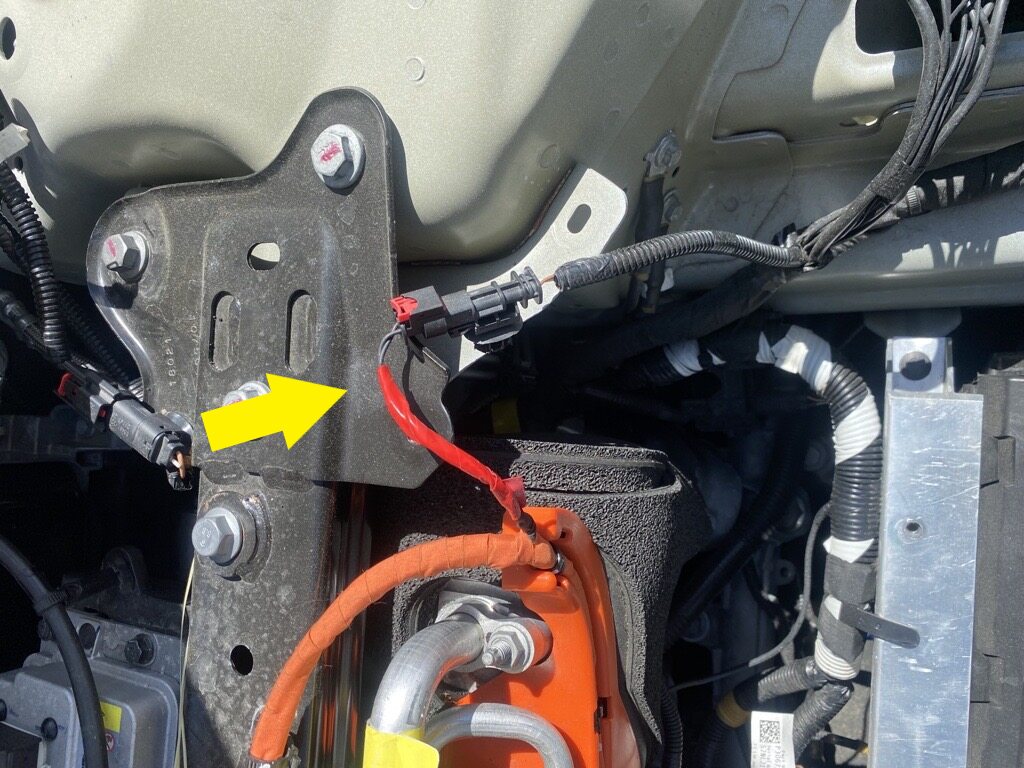

140. Remove the LH harness bracket from vehicle
     注

     2x tabs





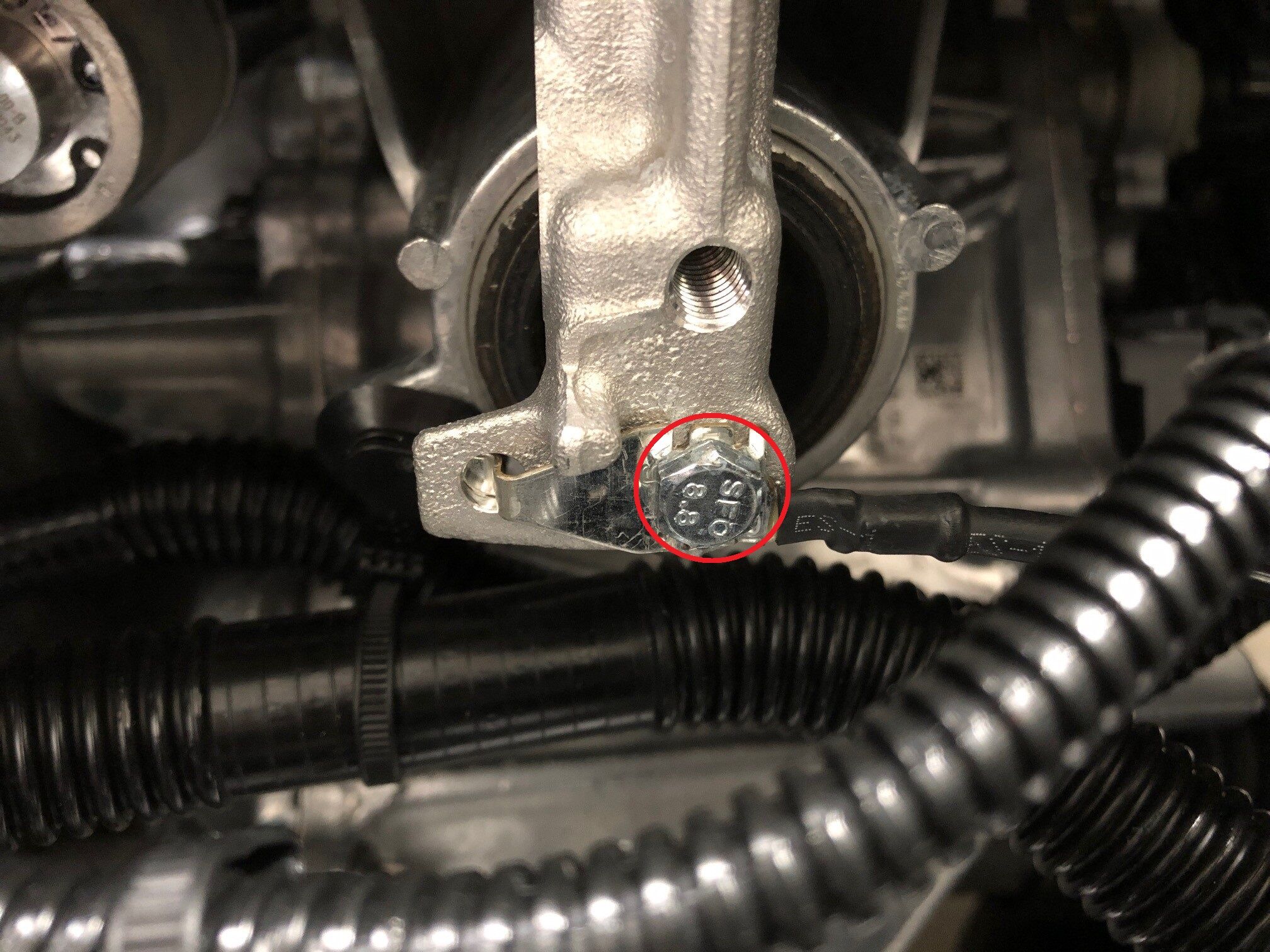

141. Remove AC compressor ground strap
     注

     1x bolt, 10mm, 7 Nm, Fastener may vary depending on production



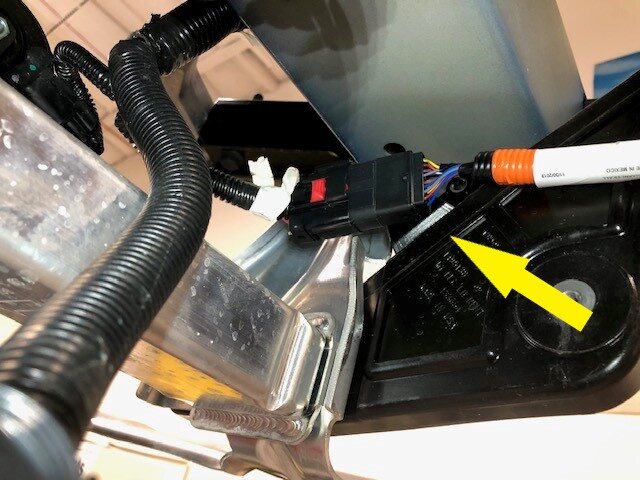

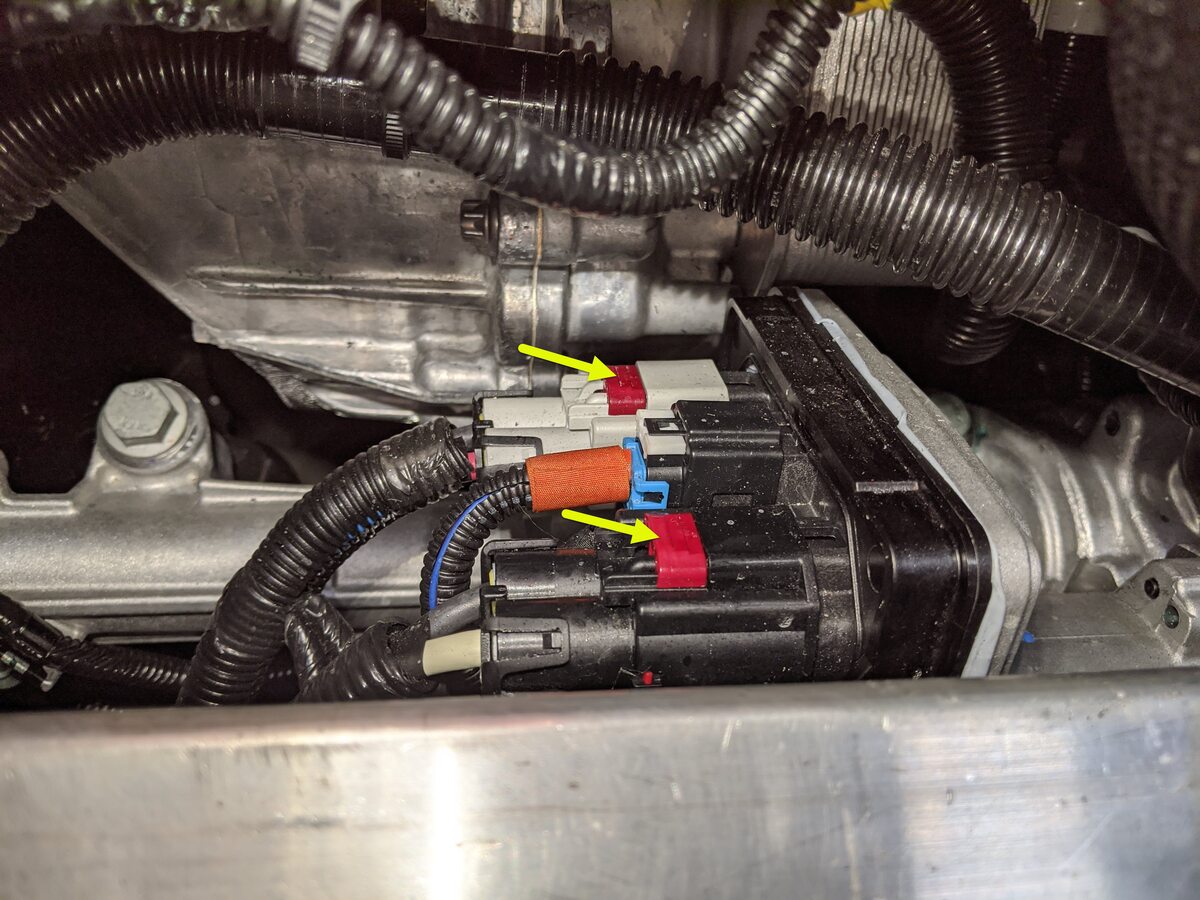

142. Disconnect the steering gear assembly connectors
     注

     2x connectors, Two stage connectors, Slide red locking tab to unlock, then depress the connector release to disconnect



143. Disconnect logic connectors from steering gear assembly
     注

     2x locking connectors, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector



144. Release front harness clip on RH side of front subframe
     注

     1x clip

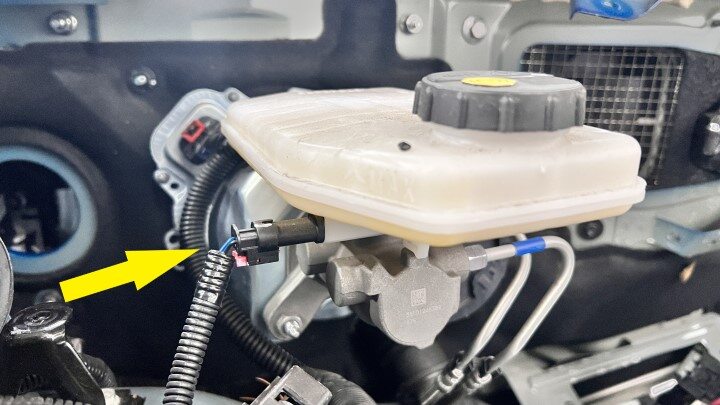

145. Disconnect brake fluid level sensor
     注

     1x connector, Slide locking tab away from connector to fully release



146. Disconnect iBooster assembly harness from brake booster assembly
     注

     2x connectors, Slide locking tab away from connector to fully release

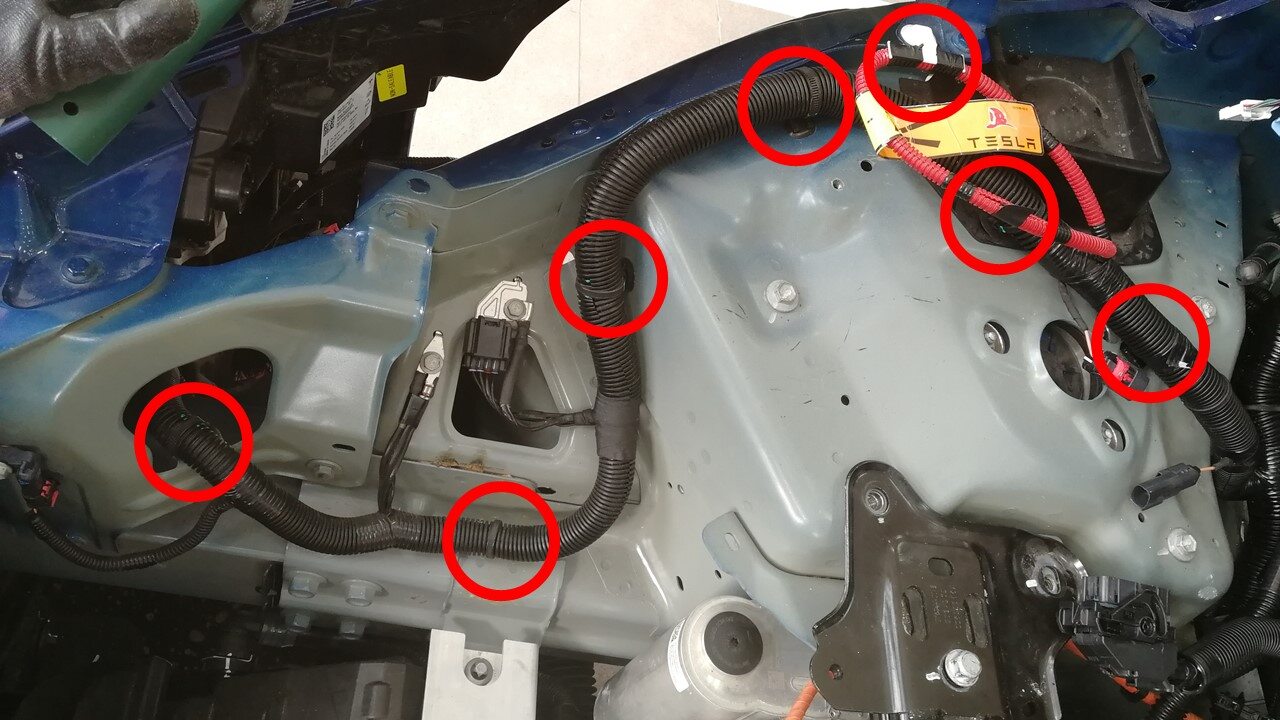

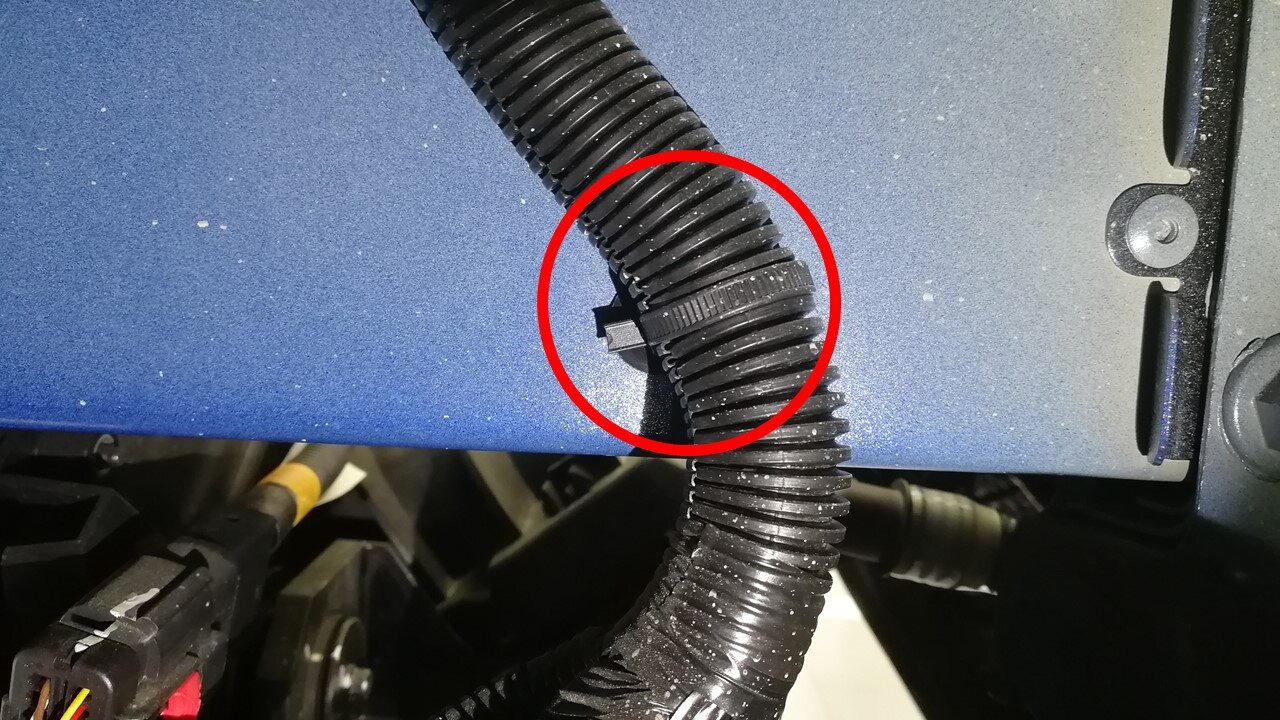

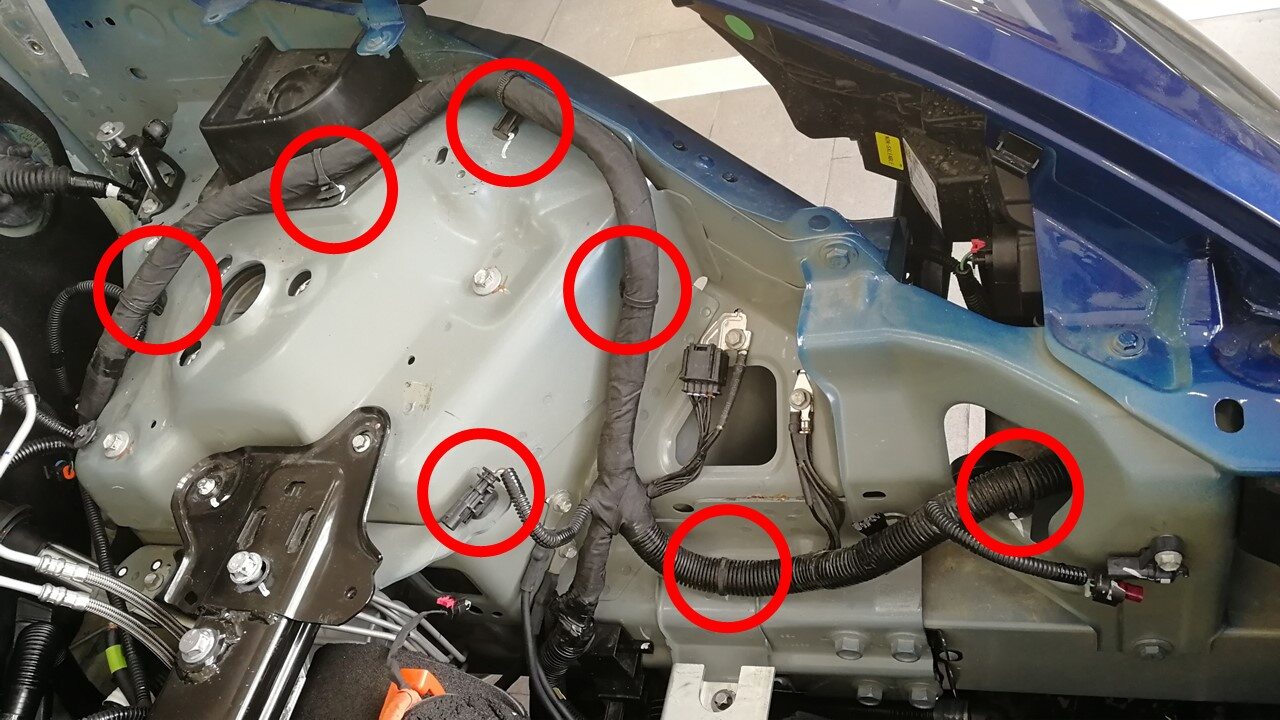

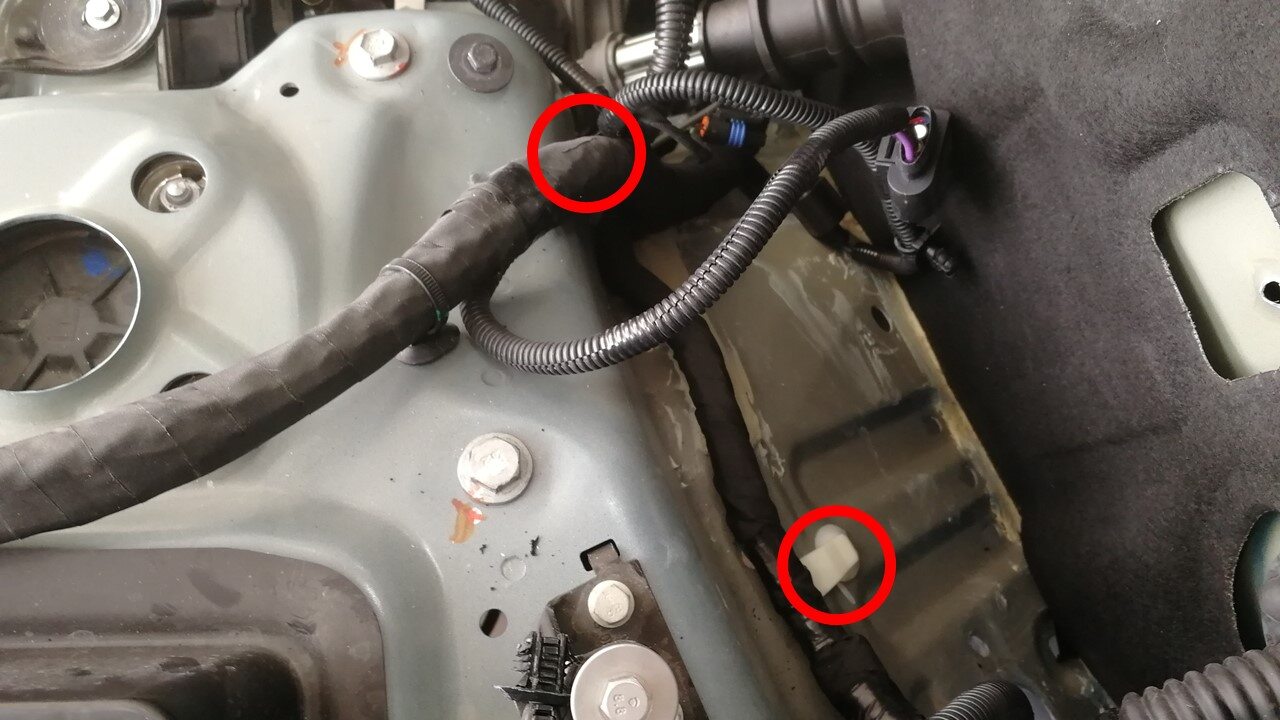

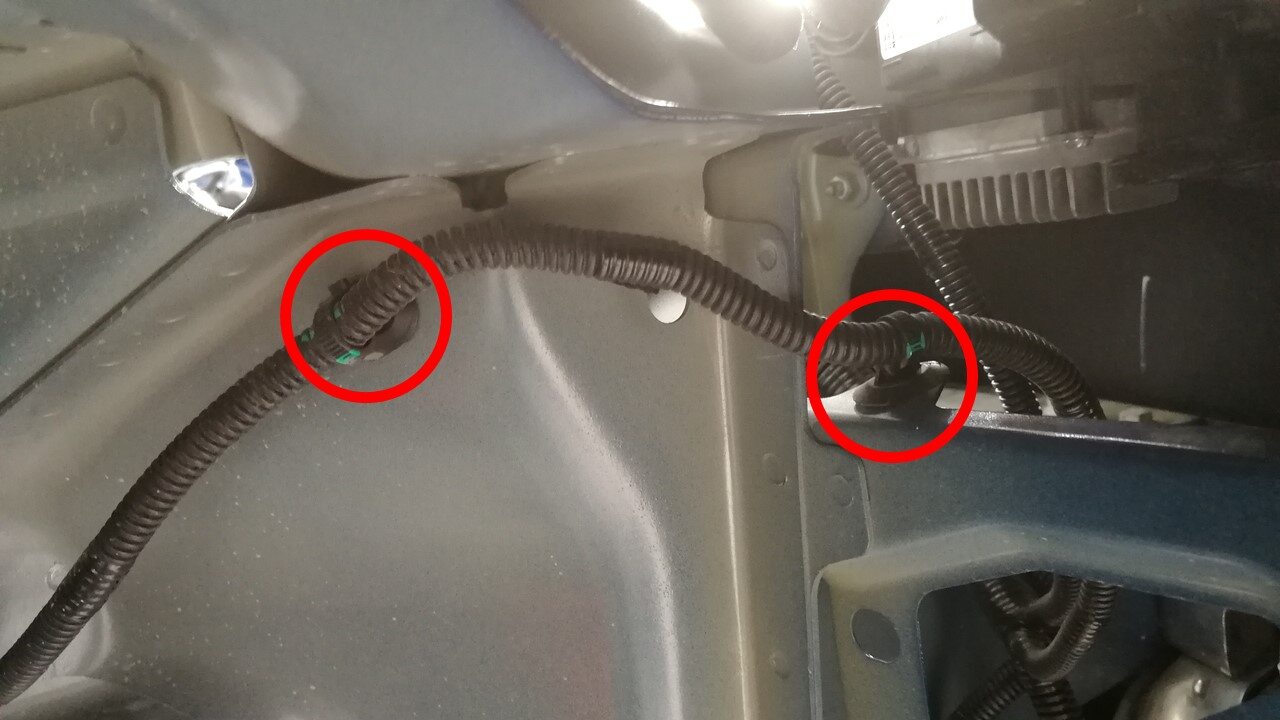

147. Release clips securing front harness to LH side of body
     注

     9x clips

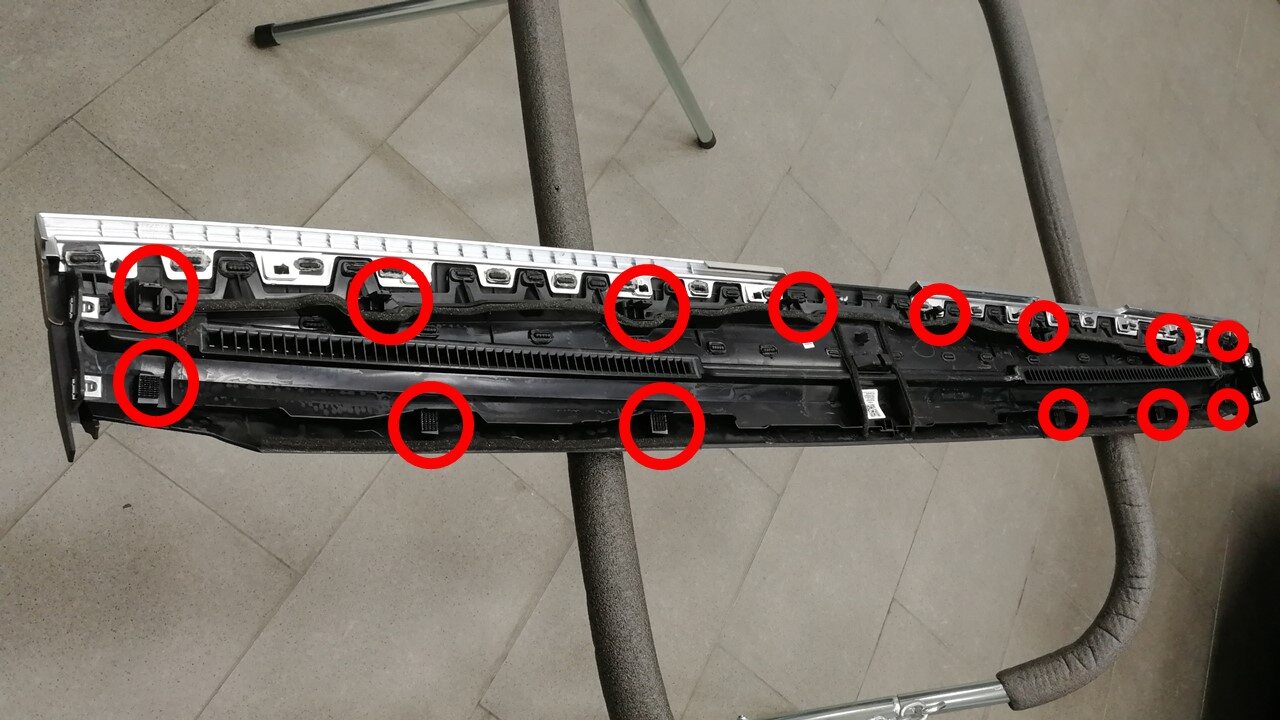

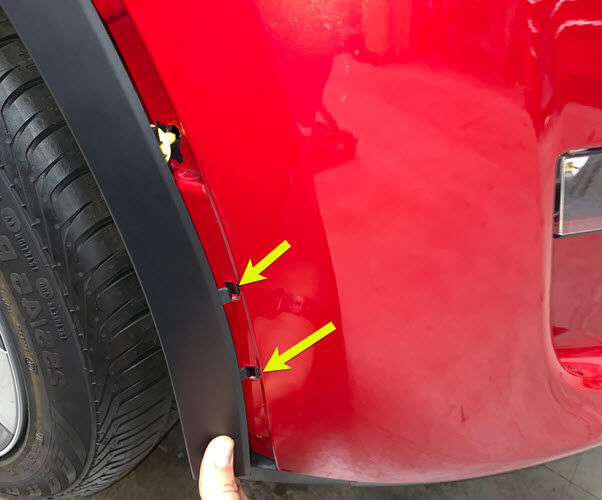

148. Remove RH front fender garnish
     注

     11x clips,1x push clip, 3x tabs, Release from center of garnish and work your way outward towards both ends, Be cautious not to bend front tabs going into front fascia

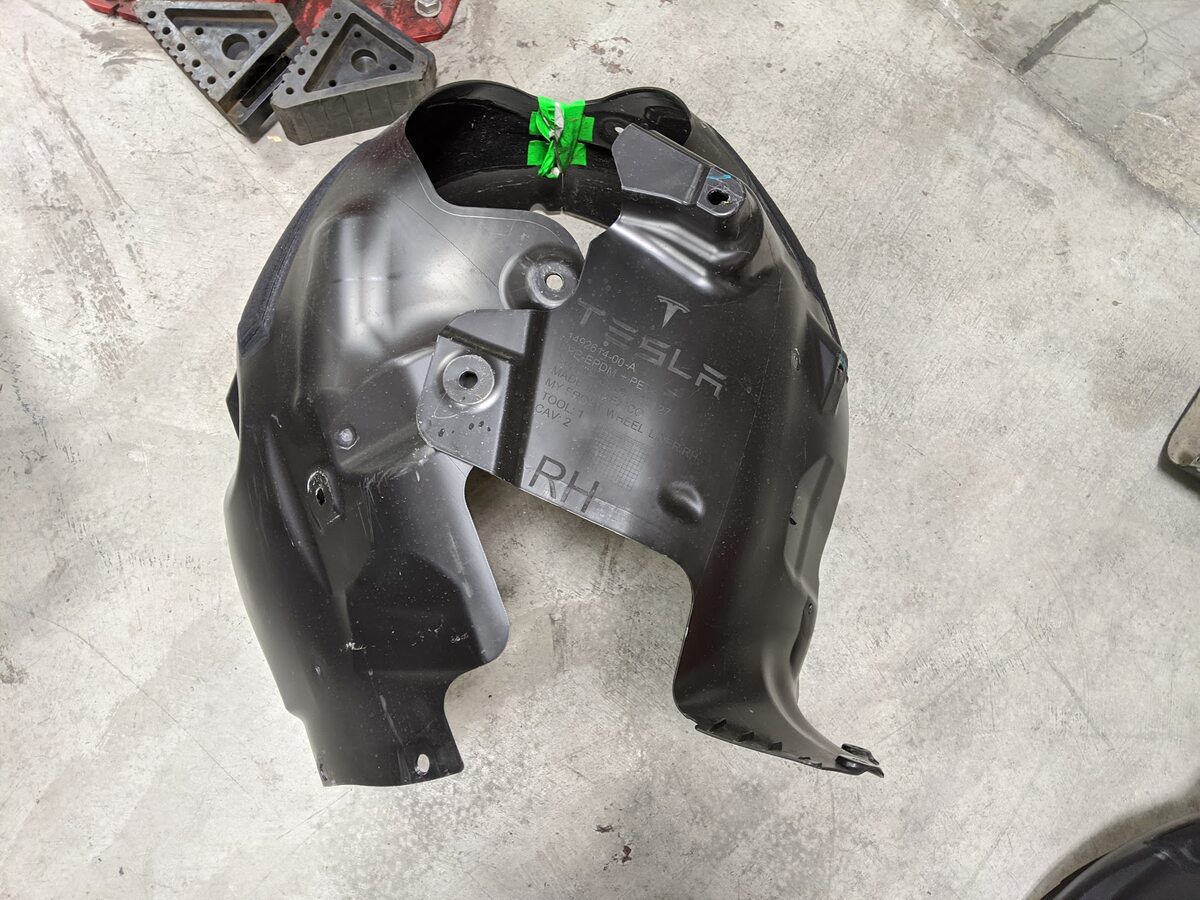

149. Remove clips securing RH front wheel liner to vehicle
     注

     14x clips



150. Remove RH front wheel liner from vehicle



151. Release connection for the front fascia
     注

     1x locking connector, Release red locking tab and disengage connector





152. Release harness clip and connector to pedestrian warning speaker
     注

     1x locking connector, 1x clip, Pull tab to disengage lock, Pull again release from connector, Speaker is located behind RH wheel liner



153. Disconnect RH FEM harness connector
     注

     1x connector, Disengage locking tab



154. Disconnect the RH front wheel speed sensor connector
     注

     1x connector, Release locking tab



155. Remove the front harness clip for the RH front wheel speed sensor harness
     注

     2x clips



156. Disconnect the front harness connectors for the RH side repeater and camera
     注

     2x connectors



157. Remove the front harness clip for the RH side repeater and camera harness
     注

     1x clip



158. Disconnect RH headlamp connector
     注

     1x connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector



159. Locate and disconnect the RH front shotgun crash accelerometer
     注

     1x connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector



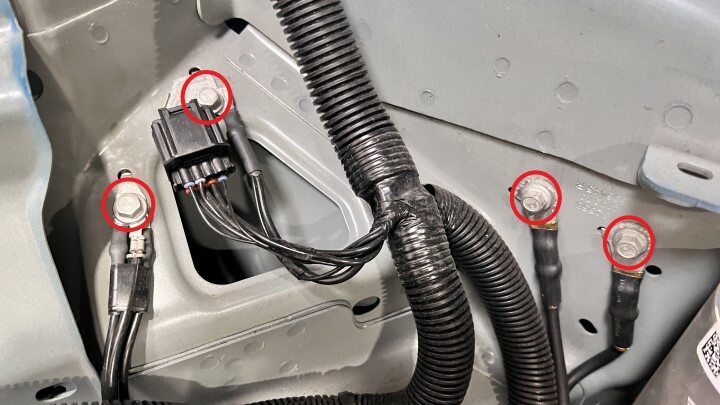

160. Remove the front harness ground terminals at RH front shock tower
     注

     4x bolts, 10mm, 8 Nm, Inspect bolts: if they are self tapping tri-lobular bolts (1128269-00-A) then discard, If they are normal bolts (1447438-00-A) they can be reused





161. Remove clips securing RH side of front end harness
     注

     8x clips

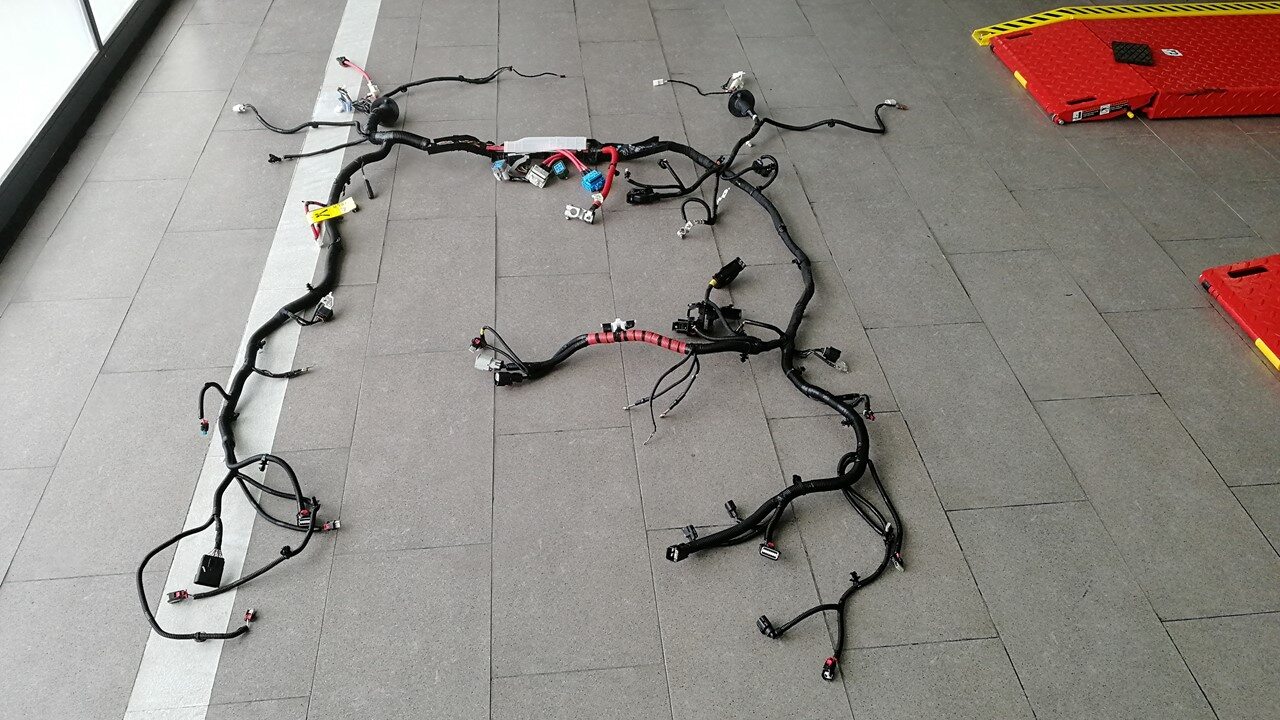

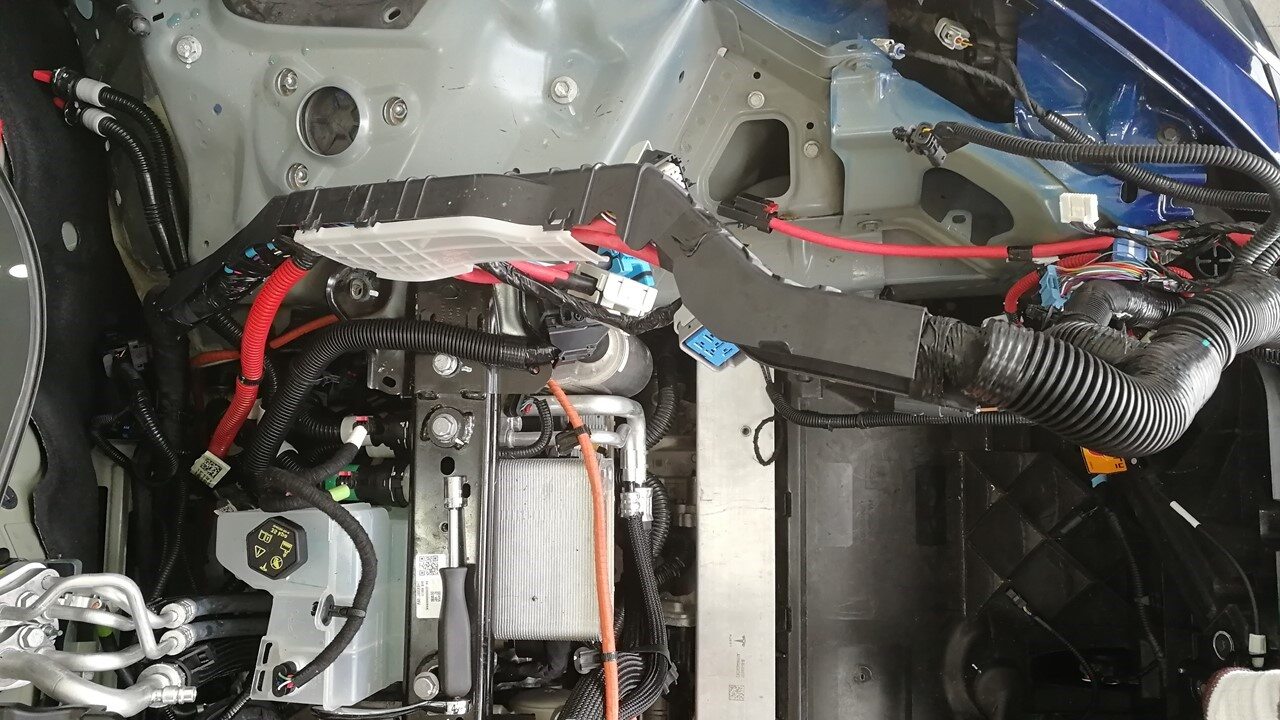

162. Remove the front harness from vehicle
     注

     Recommend assistance

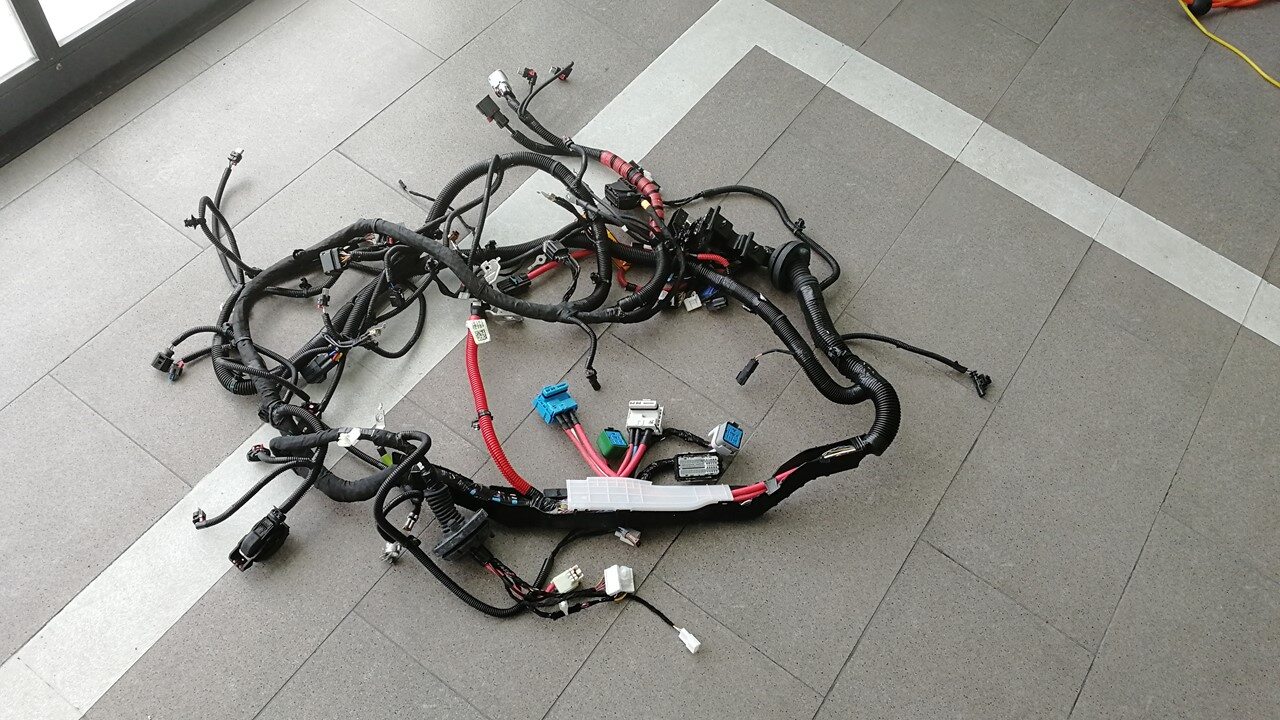

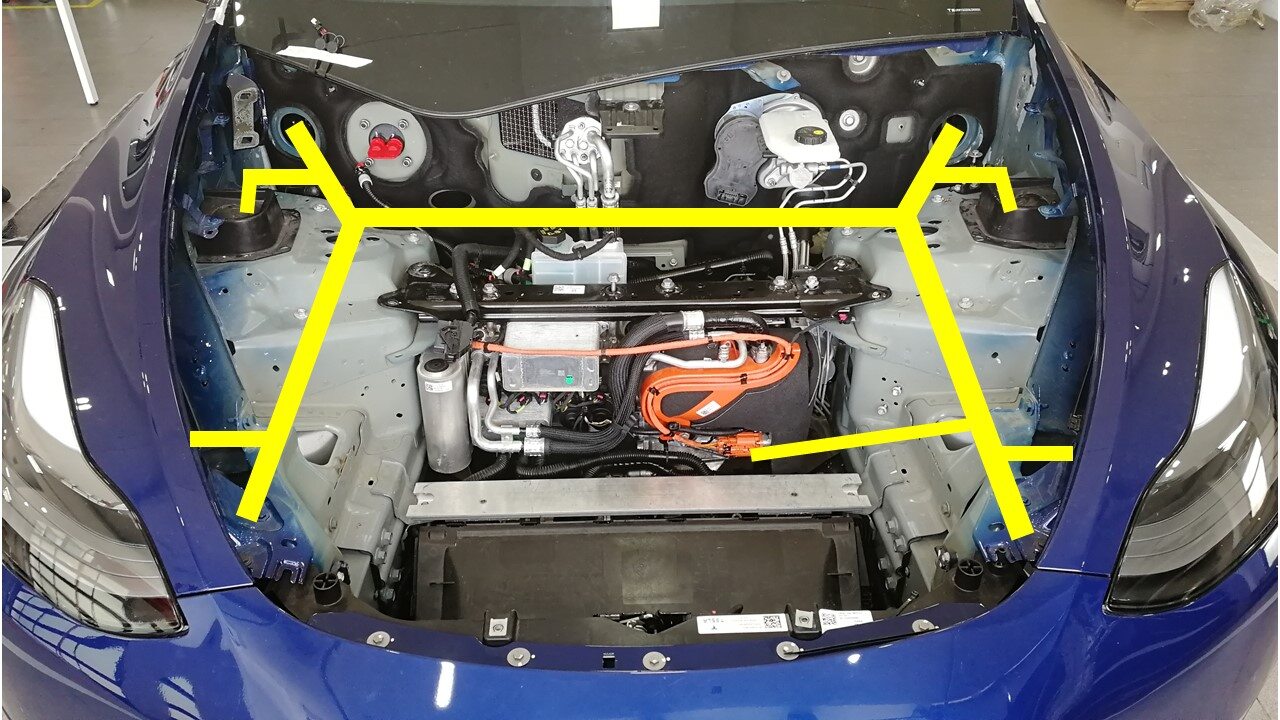

163. Position the front harness in vehicle for installation
     注

     Make sure the first responder loop is disconnected prior to the installation of the new main front harness.

     注

     Make sure to route LH branch underneath A/C compressor HV harness.

     注

     Recommend assistance.

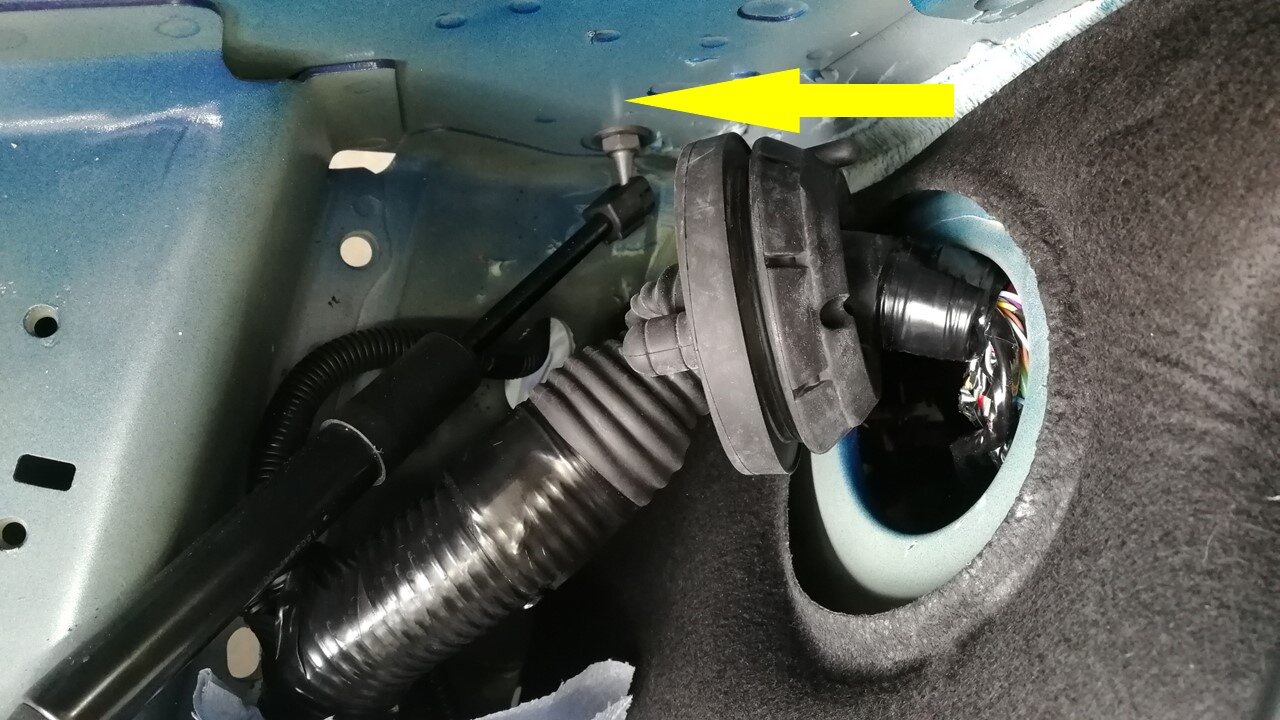

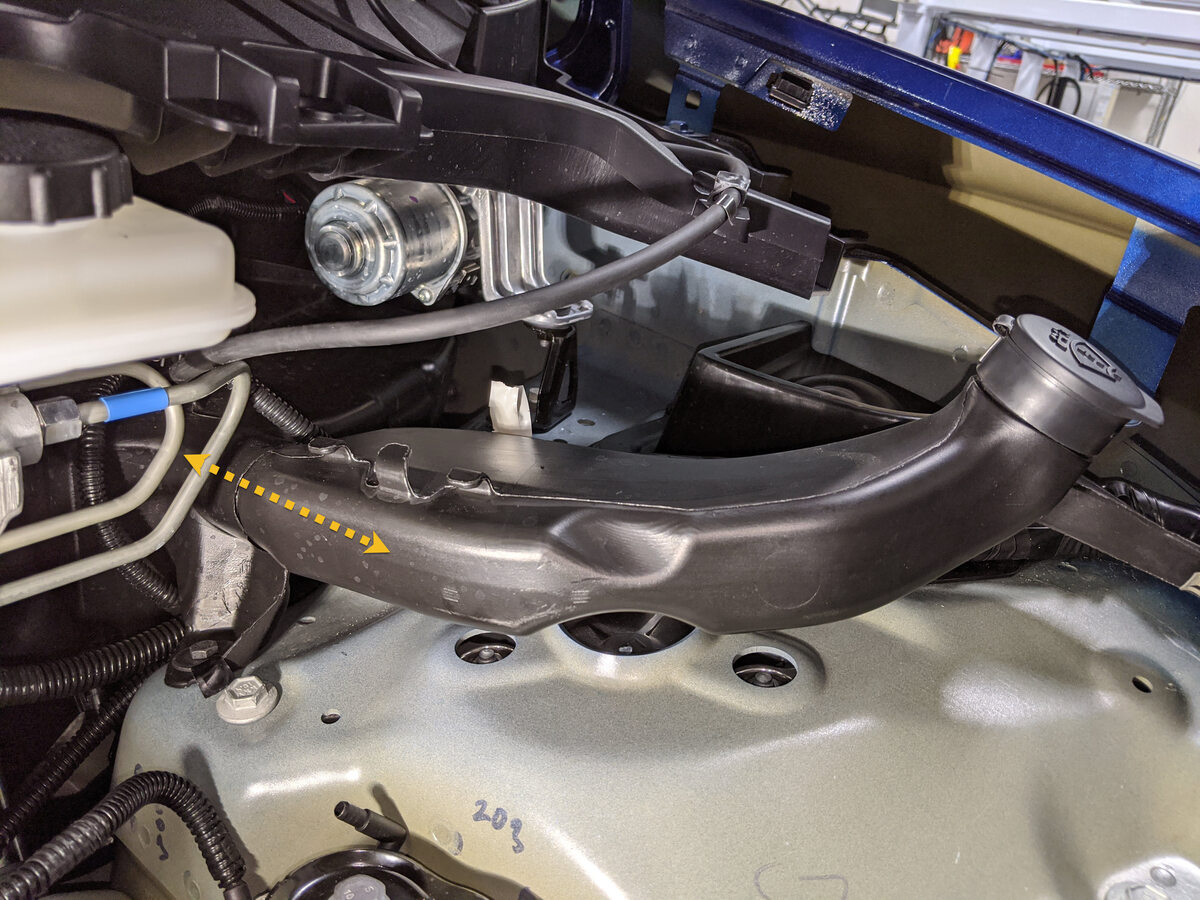

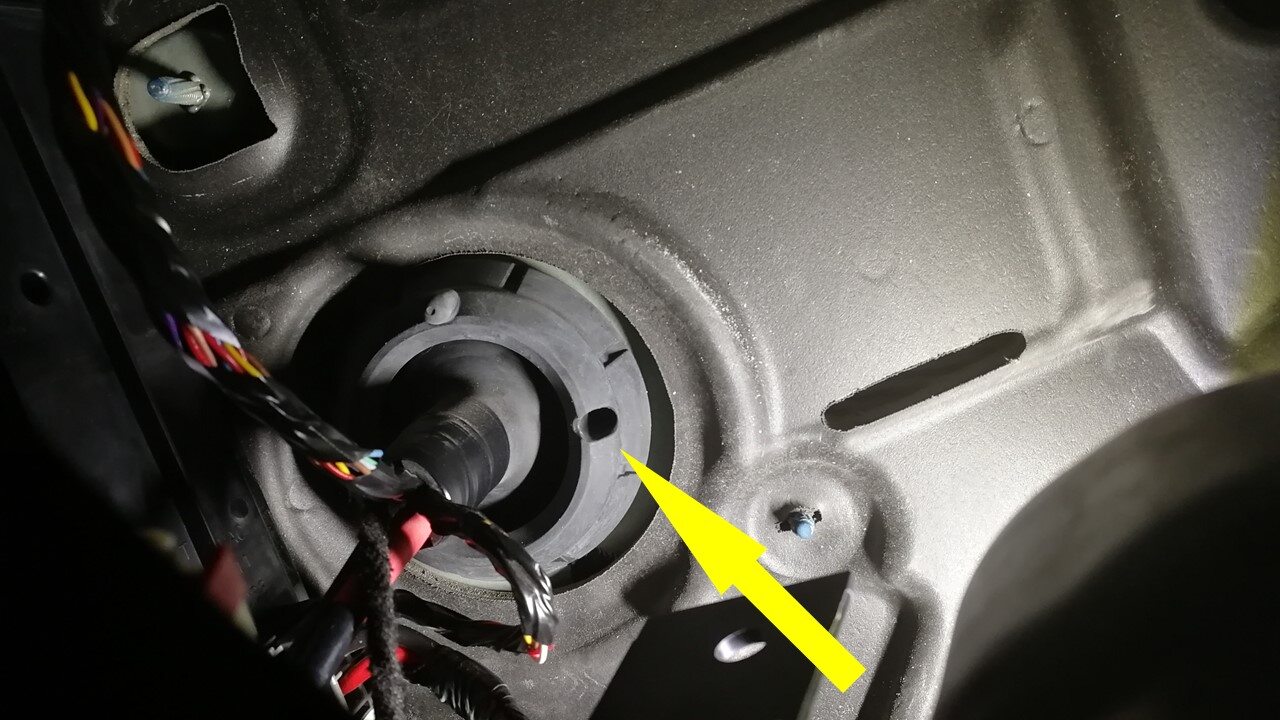

164. Route the front harness around the HVAC plenum duct area and push the RH side of the harness into passenger side compartment
     注

     Route harness underneath A/C HV harness, Make sure to install grommet in proper orientation

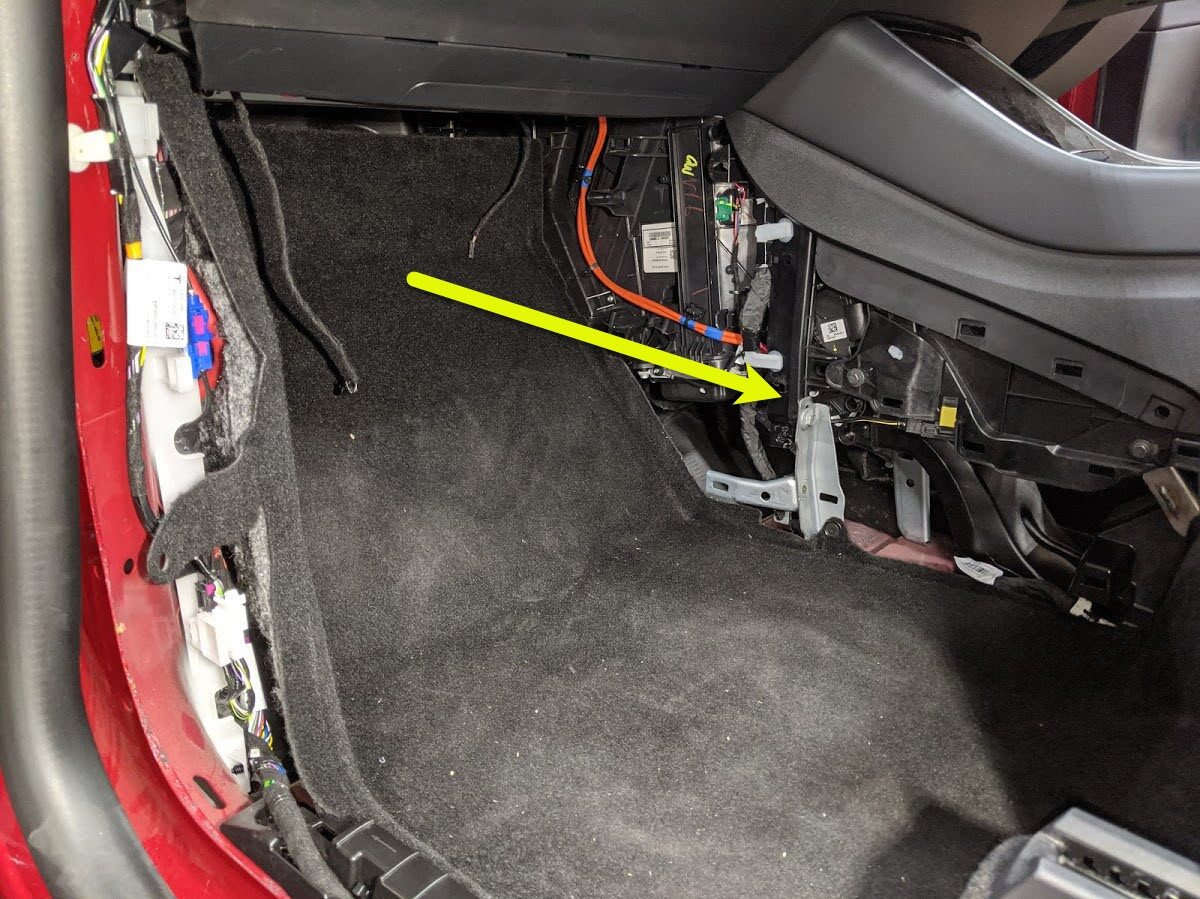

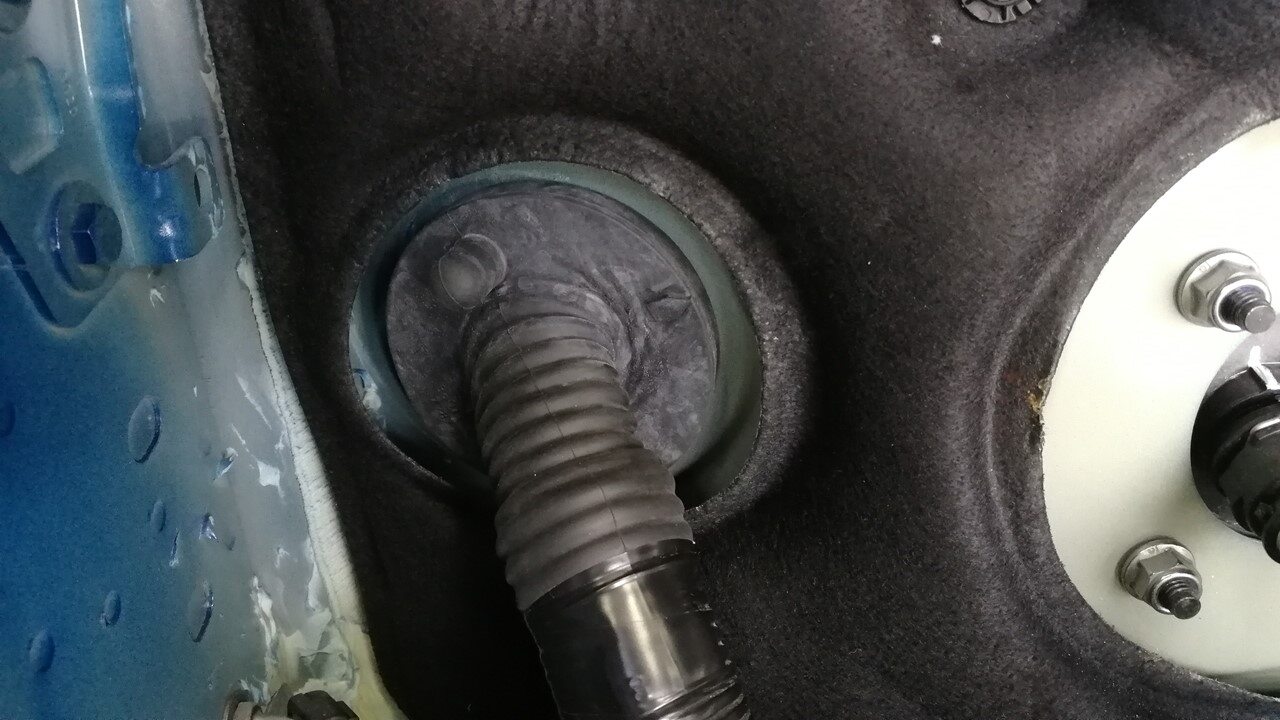

165. Route LH side of harness into driver compartment
     注

     Make sure to install grommet in proper orientation





166. Install clips securing front harness to LH side of body
     注

     9x clips





167. Install LH harness bracket
     注

     2x tabs





168. Install front harness clip on RH side of front subframe
     注

     1x clip



169. Connect logic connectors to steering gear assembly
     注

     2x connectors, Engage locking tab



170. Connect the steering gear assembly connectors
     注

     2x locking connectors, Engage locking tab



171. Secure connection for the front subframe harness
     注

     1x locking connector, Red locking tab, Connect from front of bracket and lock from opposite side of bracket





172. Connect HCU connector
     注

     1x connector, Seat connection and rotate lever downward, Secure red locking tab





173. Install AC compressor ground strap
     注

     1x bolt, 10mm, 7 Nm, Fastener may vary depending on production



174. Install the front harness ground terminals to LH front shock tower
     注

     2x bolts, 10mm, 8 Nm, Install new bolt if original was a self tapping tri-lobular bolt, otherwise bolts can be reused



175. Install the groud bolt from the 12V negative harness
     注

     1x bolt,10mm, 10 Nm



176. Connect iBooster assembly harness to brake booster assembly
     注

     2x connectors, Secure locking tab by sliding towards connector once installed



177. Connect brake fluid level sensor
     注

     1x connector, Secure locking tab by sliding towards connector once installed



178. Connect the HVIL connector
     注

     1x locking connector, Engage locking tab



179. Connect the front shotgun crash accelerometer
     注

     1x connector, 2 stage connection, Verify connection is fully secured





180. Connect LH headlamp
     注

     1x connector, 1x locking tab



181. Install the front harness clip for the LH side repeater and camera harness
     注

     1x clip



182. Connect electrical harness to LH side repeater
     注

     2x connectors, Ensure lock on camera connection is secure



183. Connect LH FEM harness connector
     注

     1x connector, Engage locking tab



184. Install connector to cooling fan module
     注

     1x connector



185. Install the front harness clip for the cooling fan module harness
     注

     1x clip



186. Connect horn assembly connectors
     注

     2x connectors



187. Connect LH Front wheel speed sensor connector
     注

     1x clip, 1x connector, Engage locking tab



188. Connect LH front ride height sensor connector and install harness clips
     注

     2x clips, 1x connector





189. Install LH front wheel liner to vehicle



190. Install LH front wheel liner clips securing LH front wheel liner to vehicle
     注

     14x clips



191. Install LH front fender garnish
     注

     12x clips, 3x tabs, Start at rear and maneuver into rocker panel, Be cautious not to bend front tabs going into front fascia









192. Install the front harness clip around RH front frame rail area
     注

     8x clips





193. Install the front harness ground terminals to RH front shock tower
     注

     2x bolts, 10mm, 8 Nm,Install new bolt if original was a self tapping tri-lobular bolt, New bolt (1447438-00-A) can be reused



194. Install RH headlamp connector
     注

     1x connector



195. Install RH front shotgun crash accelerometer
     注

     1x connector



196. Connect RH FEM harness connector
     注

     1x connector, Engage locking tab



197. Secure connection and clip for pedestrian warning speaker
     注

     1x connector, 1x clip, Engage locking tab



198. Secure connection for the front fascia
     注

     1x locking connector, Secure connection and fully engage red locking tab





199. Connect the front harness connectors for the RH side repeater and camera
     注

     2x connectors



200. Install the front harness clip for the RH side repeater and camera harness
     注

     1x clip



201. Connect the RH front wheel speed sensor connector
     注

     1x connector, Engage locking tab



202. Install the front harness clip for the RH front wheel speed sensor harness
     注

     2x clips



203. Position RH front wheel liner into RH front wheel well
     注

     Align wheel liner with studs and clip holes



204. Install clips securing RH front wheel liner to vehicle
     注

     14x clips



205. Install RH front fender garnish
     注

     11x clips, 1x push clip, 3x tabs, Start at rear and maneuver into rocker panel









206. Raise vehicle fully and lower lift onto locks
     注

     Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
207. Install LH front wheel liner to HV battery
     注

     1x clip, 1x bolt, 10mm, 5 Nm



208. Install RH front wheel liner to HV battery
     注

     1x clip, 1x bolt, 10mm, 5 Nm

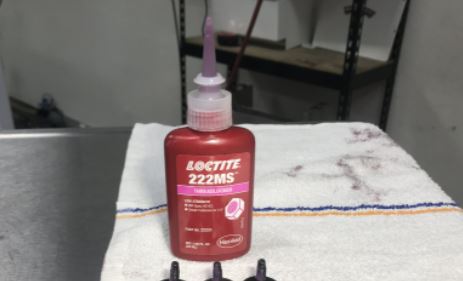

209. Apply Loctite 222 on the front aero shield bolts, and then install the bolts on the aero shield.





210. Position the front aero shield on the vehicle, and then install the nuts that attach the aero shield to the vehicle.



211. Lower vehicle partially and set onto locks
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
212. Install LH front wheel
     注

     5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
213. Install RH front wheel
     注

     5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
214. Lower vehicle until tires are touching the ground
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
215. Torque LH front wheel
     注

     5x nuts, 21mm, 175 Nm
216. Torque RH front wheel
     注

     5x nuts, 21mm, 175 Nm
217. Install LH front wheel cap
     注

     1x cap, Align valve stem with wheel cap cavity
218. Install RH front wheel cap
     注

     1x cap, Align valve stem with wheel cap cavity
219. Remove vehicle from lift
     注

     Lower rack arms fully and remove from under vehicle
220. Push vehicle away from lift
     注

     Recommend assistance, Place wheel chocks to keep vehicle from moving, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
221. Remove tape securing windshield heater harness



222. Connect the windshield heater harness and install clip
     注

     1x connector, 1x clip, Engage locking tab





223. Maneuver front LV controller into position
     注

     Slide over temp set hook first, then into bottom bracket temp set holes















224. Secure front LV controller
     注

     3x bolts, 10mm, 10 Nm





225. Secure front LV controller upper ground strap
     注

     1x bolt, 10mm, 10 Nm,



226. Install harness guide to the front LV controller
     注

     2x patch bolts, 8mm, 6 Nm, 1x temp set clip, Install new bolts, Pivot harness guide upwards and back to install temp set clip to front harness, then install bolts, If new bolts are not available apply Loctite 222 to the bolts











227. Connect front LV controller harness connectors
     注

     5x connectors, Fully seat connector, then engage locking tabs if equipped











228. Install front LV controller protection shield
     注

     2x bolts, 10mm, 8.5 Nm





229. Connect the supermanifold harness to the front LV controller
     注

     1x connector, Verify locking tab is fully engaged



230. Secure 12V positive cable to front controller
     注

     1x clip



231. Connect washer tank pump connector
     注

     1x connector



232. Connect washer tank level sensor
     注

     1x connector



233. Install washer tank assembly
     注

     Align retaining stud at firewall with washer tank upper bracket





234. Install washer tank retaining nut and bolt
     注

     1x bolt, 10mm, 3 Nm, 1x nut, 10mm, 3 Nm



235. Connect washer pump harness clip
     注

     1x fir clip



236. Place wiper module in vehicle



237. Connect wiper module harness
     注

     1x connector, Rotate wiper assembly to expose under side



238. Install wiper module to anchor bracket
     注

     1x rubber anchor, Push to engage





239. Install bolts securing wiper module
     注

     2x bolts, 10mm, 7 Nm



240. Install LH wiper arm and hose assembly to vehicle





241. Connect washer hose from LH wiper arm to Y-tube fitting and install washer hose clip
     注

     1x clip, 1x hose



242. Install nut securing LH wiper arm to wiper module
     注

     1x nut, 15mm, 25 Nm



243. Install LH wiper arm nut cover
     注

     1x cover



244. Install RH wiper arm and hose assembly to vehicle





245. Connect washer hose from RH wiper arm to Y-tube fitting and install washer hose clip
     注

     1x clip, 1x hose



246. Install nut securing RH wiper arm to wiper module
     注

     1x nut, 15mm, 25 Nm



247. Install RH wiper arm nut cover
     注

     1x cover



248. Install fresh air intake duct
     注

     1x bolt, 10mm, 4 Nm, 2x clips, 1x pin









249. Install washer tank neck to washer tank
     注

     1x O-ring



250. Install washer hose to washer tank neck
     注

     3x anchors



251. Install cowl screen to vehicle
     注

     Seat cowl along edge of windshield





252. Secure cowl clips at center bracket
     注

     2x retaining clips



253. Install cowl screen retaining clips
     注

     2x push clips





254. Install 12V battery into vehicle



255. Position battery tie down strap onto the battery
     注

     Hook the upper tie down strap into the rear tie down hook strap and position for installation



256. Install bolt securing upper tie down strap to the AC compressor bracket

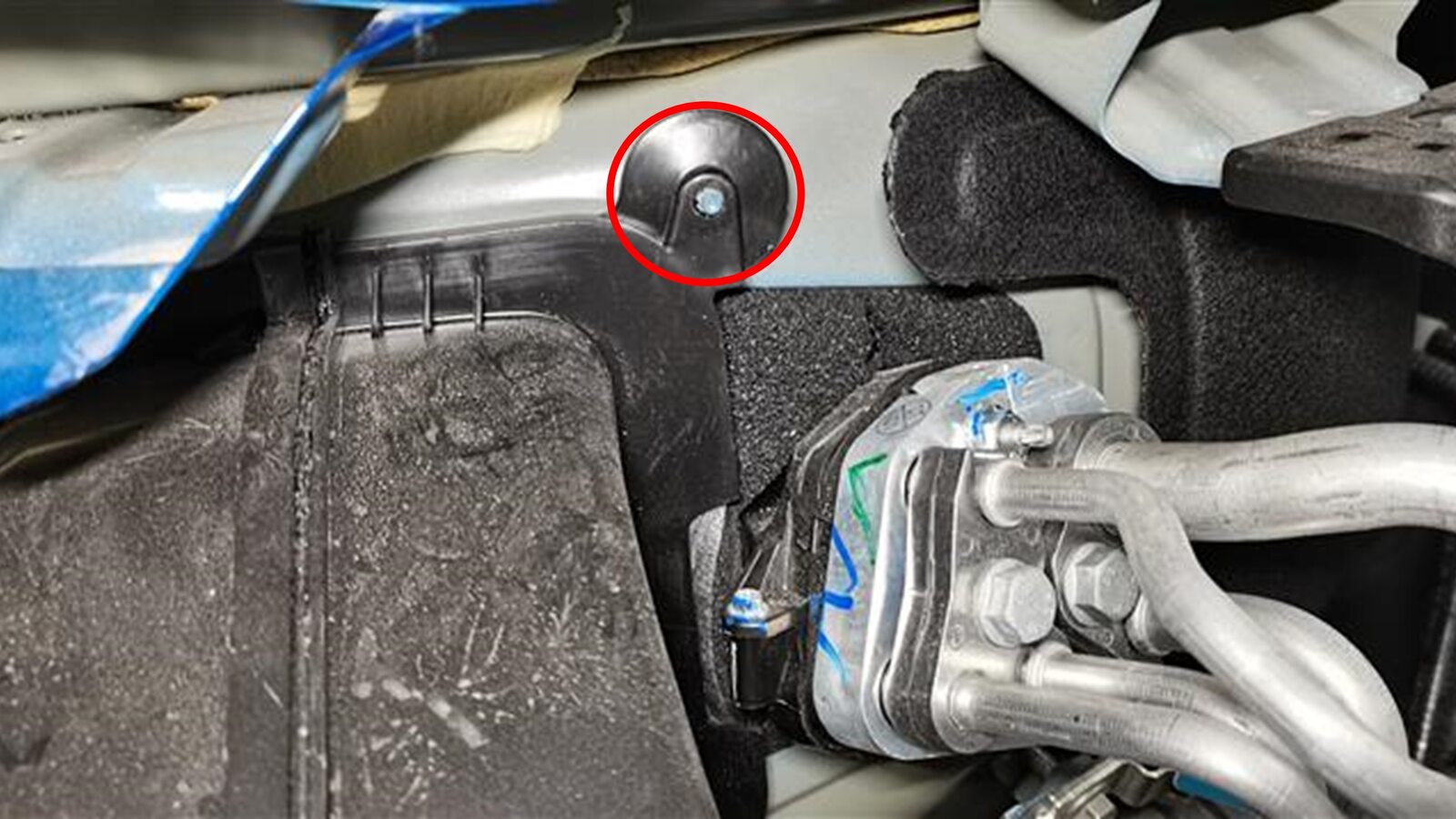

     注

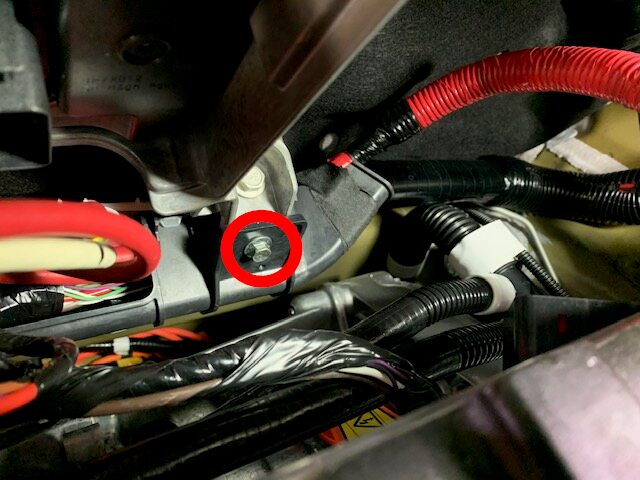

     1x bolt, 10mm, 5 Nm



257. Install vent tube hose in 12V battery

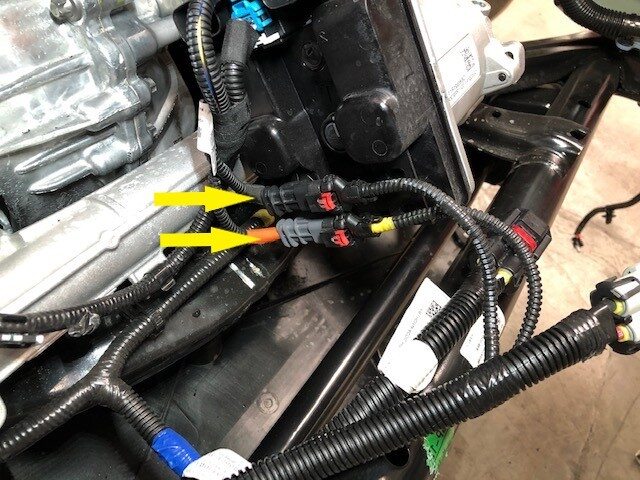

258. Connect the front harness connectors to RH side of car computer
     注

     4x connectors





259. Connect the front repeater camera harness connector to LH side of car computer
     注

     1x connector, Engage locking tab



260. Secure harness to top of car computer
     注

     2x clips



261. Install car computer shroud onto car computer
     注

     4x clips

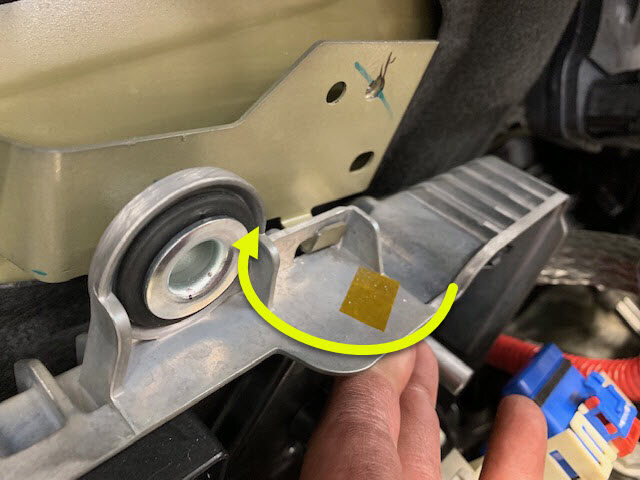

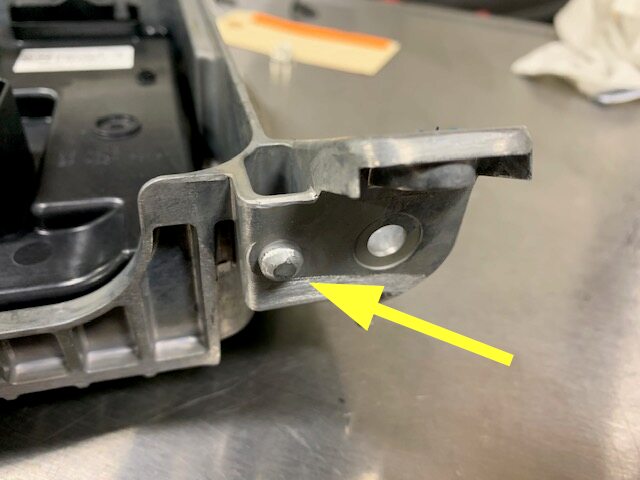

262. Install nuts securing car computer to the bulkhead
     注

     4x nyloc nuts, 13mm, 7.1 Nm, Install new nyloc nuts



263. Remove coolant plug from car computer



264. Remove plugs from car computer coolant hoses
     注

     2x plugs, Engage spring clips after removal



265. Secure hoses to car computer coolant inlet/outlet
     注

     2x spring clips, Perform push-pull-push test to ensure the hoses are fully seated



266. Remove absorbent material from below car computer coolant hose connection points



267. Remove coolant bottle cap



268. Fill coolant bottle to base of neck as indicated



269. Connect J6 frunk connector
     注

     1x connector

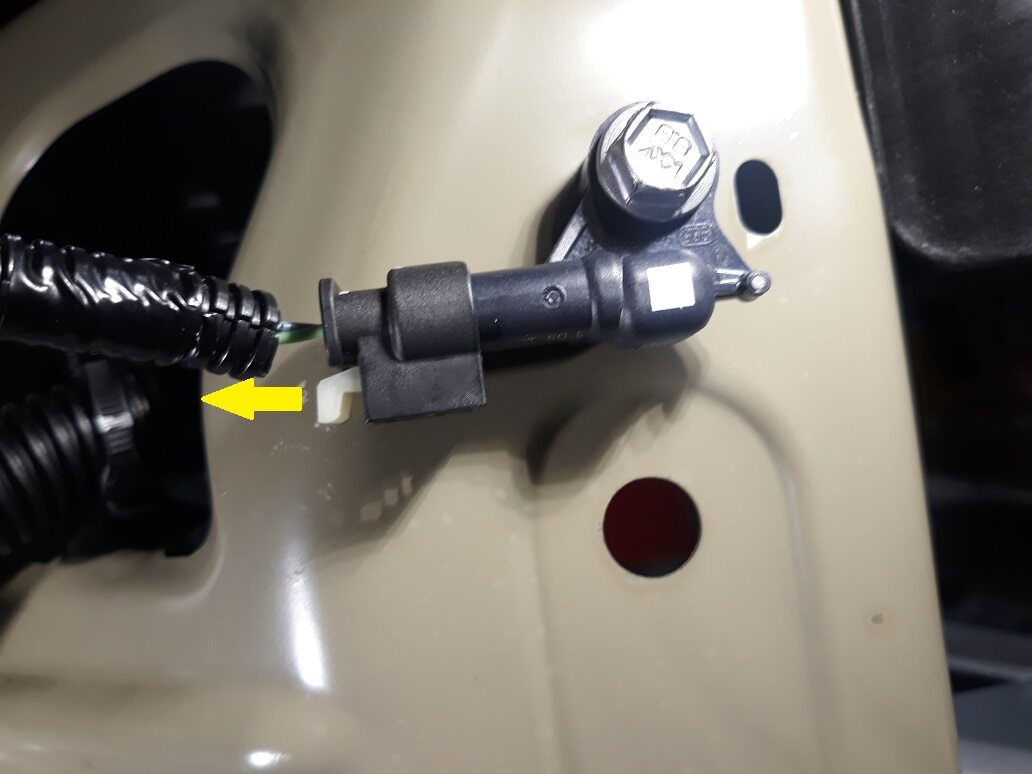

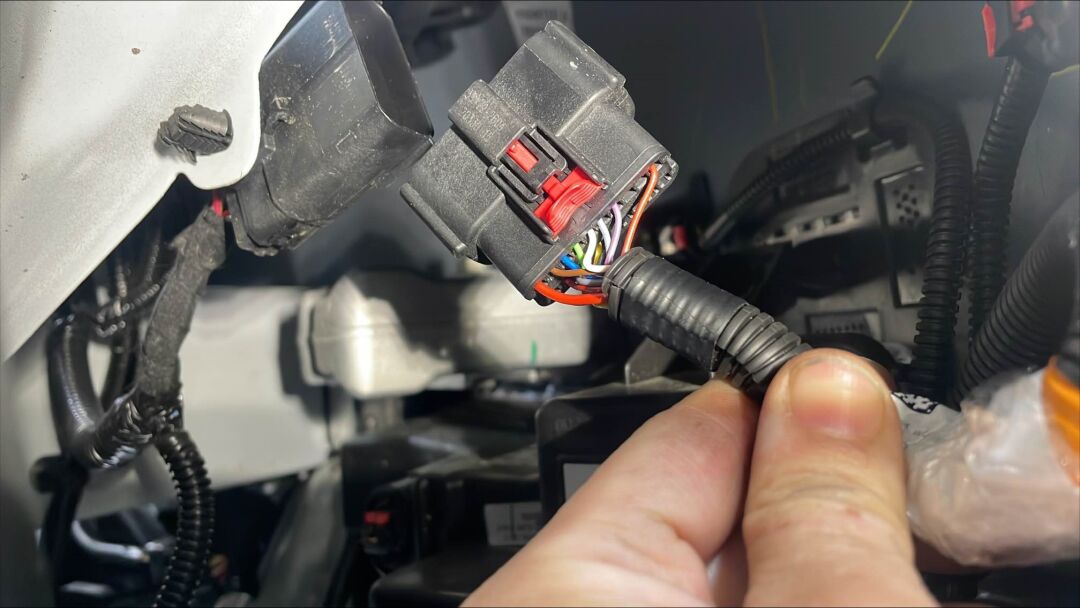

270. Connect J1 power connector
     注

     1x connector, Fully seat connector then engage lock

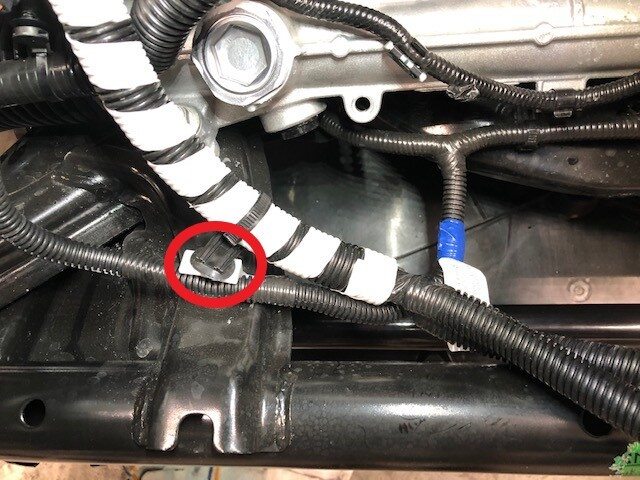

271. Secure harness to LH controller



272. Connect front harness white connector X909 to LH body harness and clip to LH body controller
     注

     1x connector, 1x clip





273. Install the RH IP air wave duct
     注

     2x push clips



274. Install the passenger footwell air duct
     注

     1x push clip

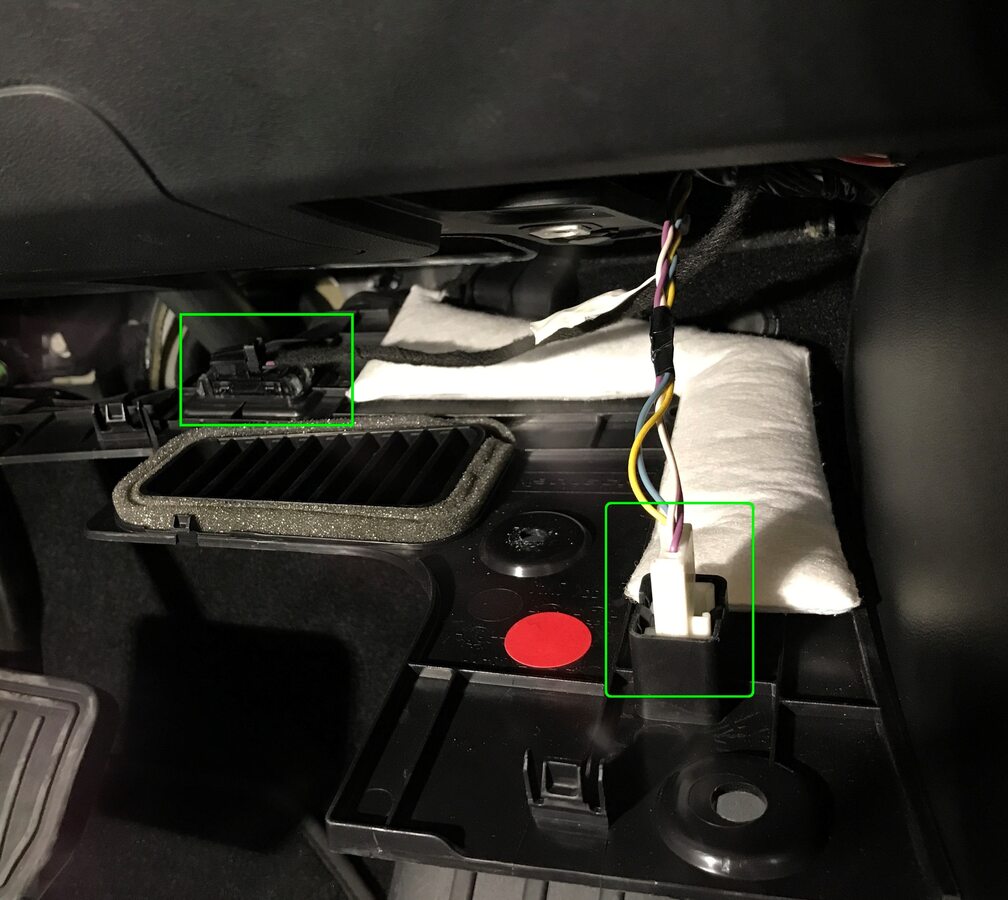

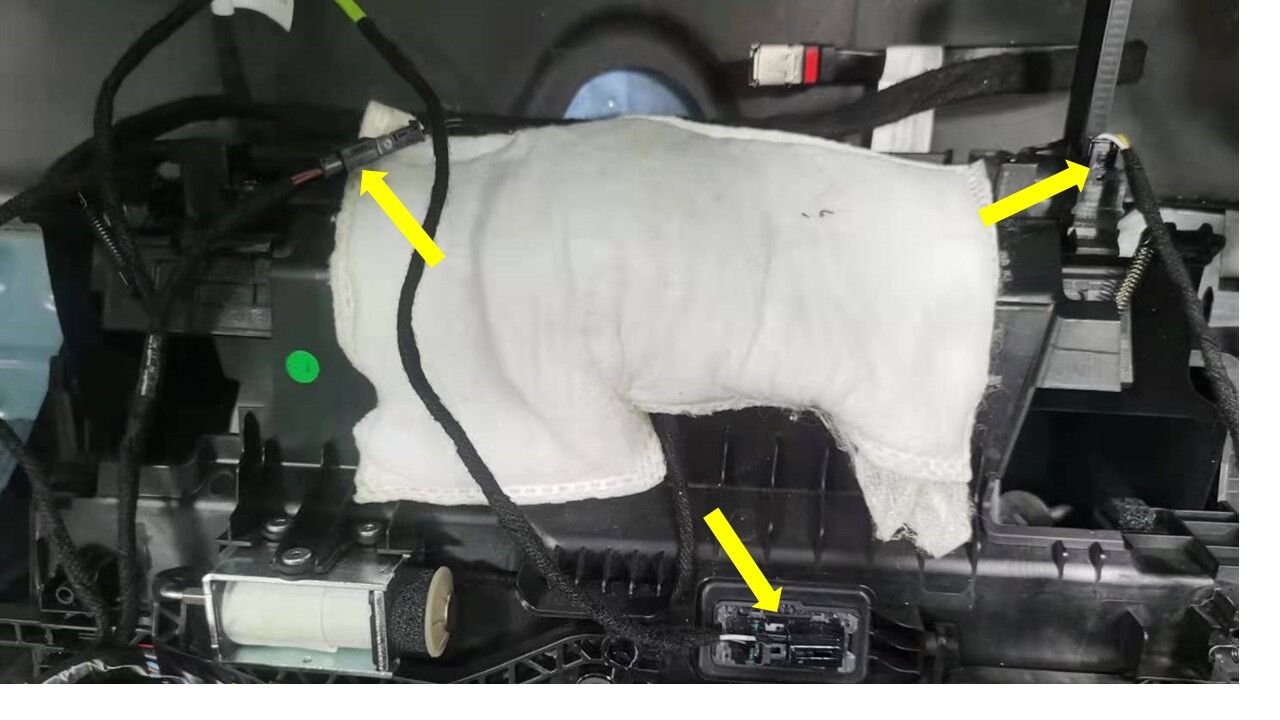

275. Connect glove box assembly connectors
     注

     3x connectors, Note puddle lamp harness routing to prevent blocking movement of pawls



276. Connect glove box USB cable to car computer
     注

     1x connector, Connector count may vary depending from config



277. Install the glove box into IP carrier
     注

     3x clips

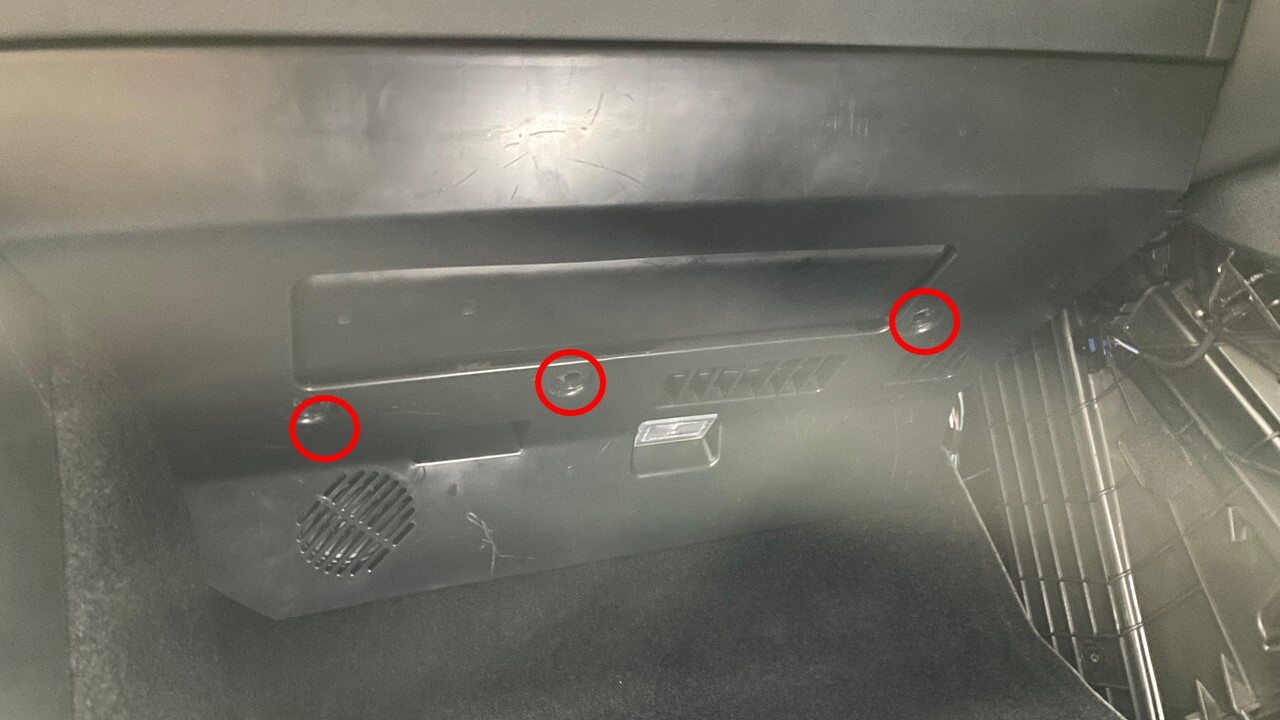

278. Install screws securing glove box assembly to IP carrier
     注

     6x screws, T20, 2.3 Nm







279. Install main decor assembly
     注

     15x clips, 1x center clip





280. Install passenger knee air bag
     注

     1x connector, Engage locking tab, Use caution not to damage connector/harness, Support air bag while connecting connector



281. Install fasteners securing passenger knee air bag to vehicle
     注

     4x patch bolts, E10, 8 Nm, 2x screws, T20, 2 Nm, 1x push clip, Install new patch bolts

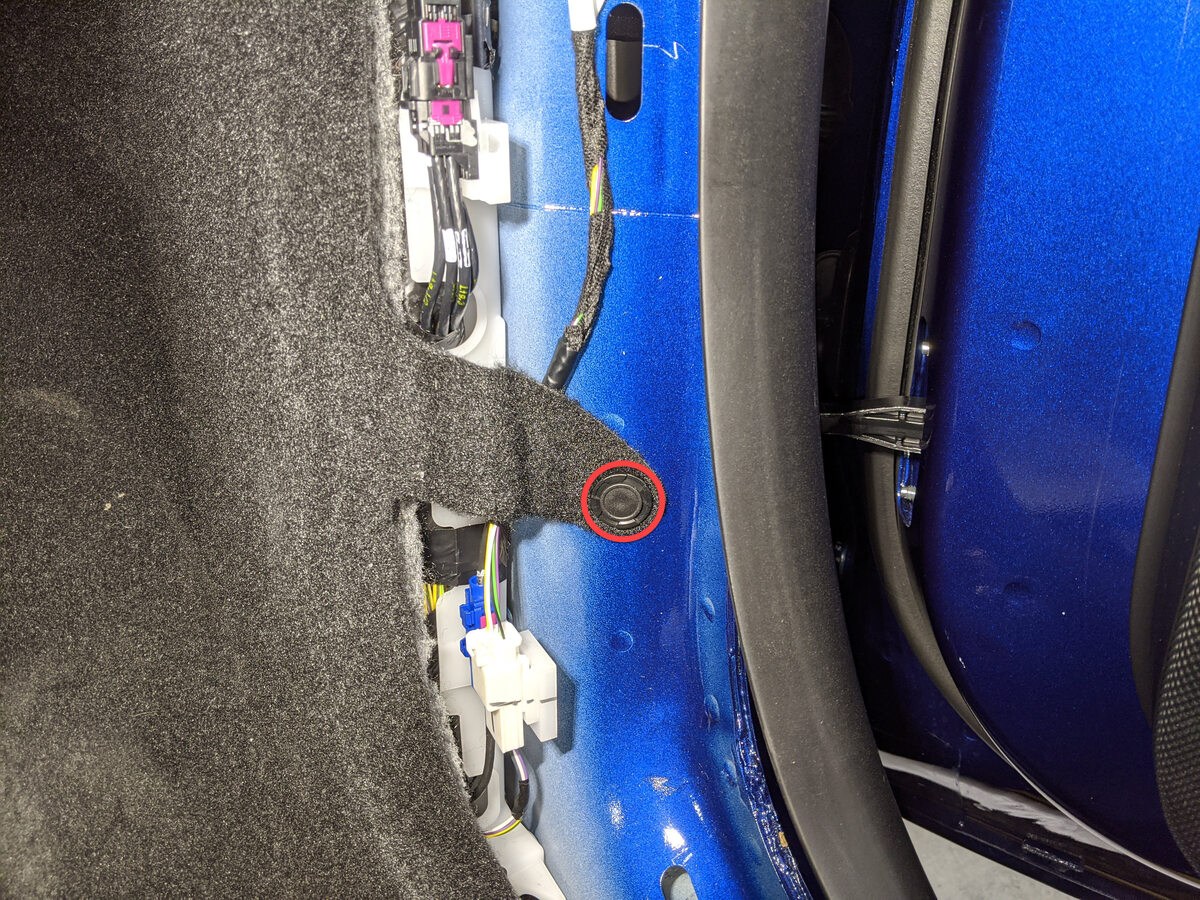

282. Fold LH main carpet back in place





283. Secure LH main carpet to body
     注

     1x push clip



284. Install LH console side panel carpet
     注

     11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install

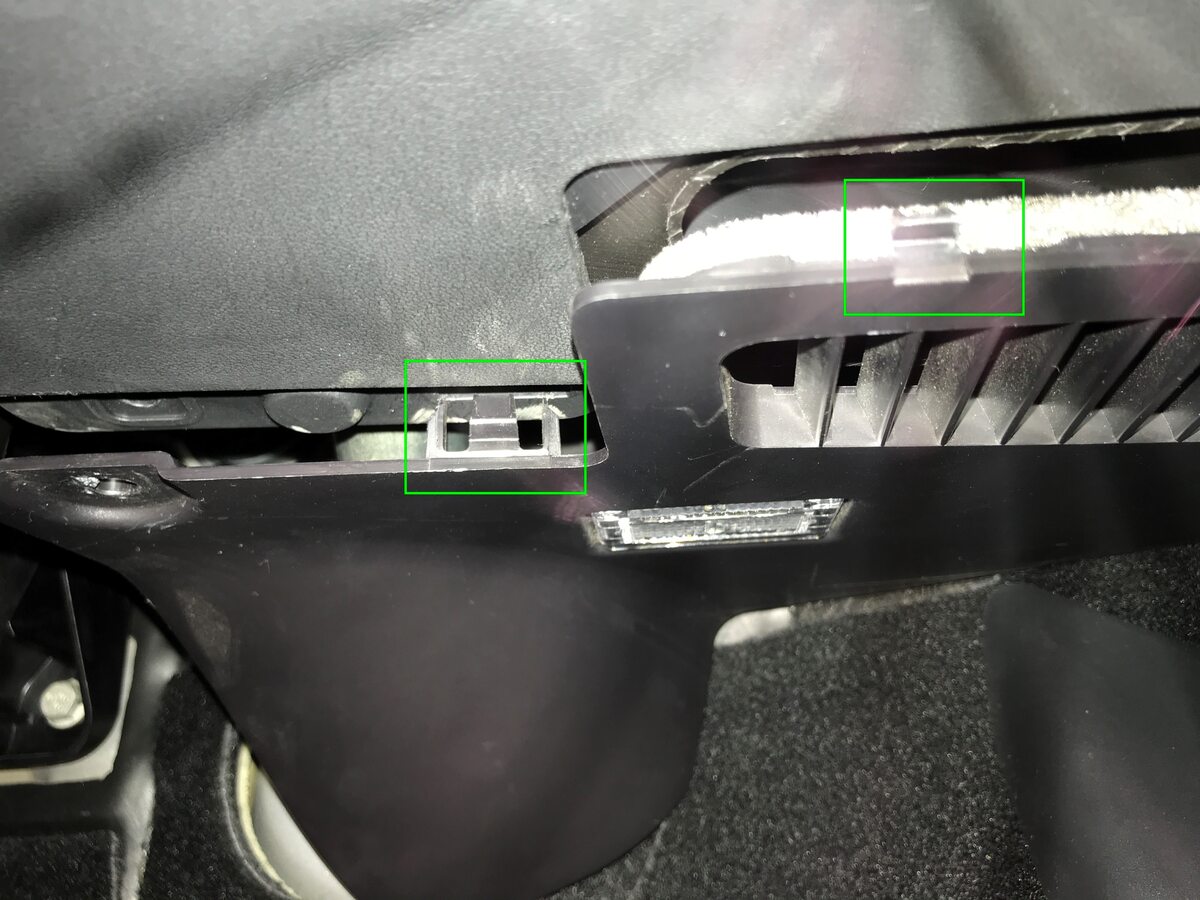

285. Install connectors to LH footwell cover and position for installation
     注

     2x connectors



286. Install clips securing LH footwell cover
     注

     3x push clips



287. Install LH front floormat

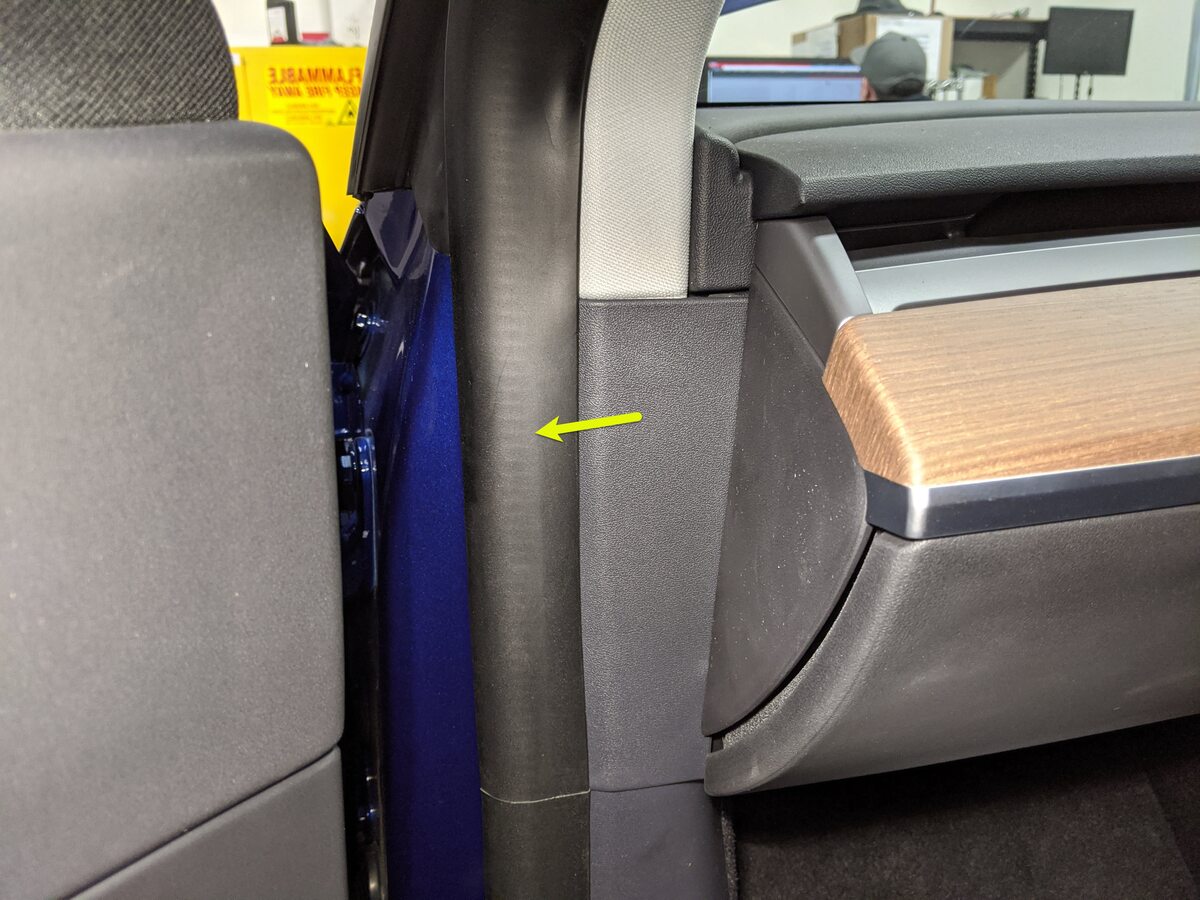

288. Install LH lower A-pillar trim
     注

     6x clips, 2 locating pins, Align front locating pin first



289. Install clip securing LH lower A-pillar trim
     注

     1x push clip



290. Install LH mid A-pillar assembly
     注

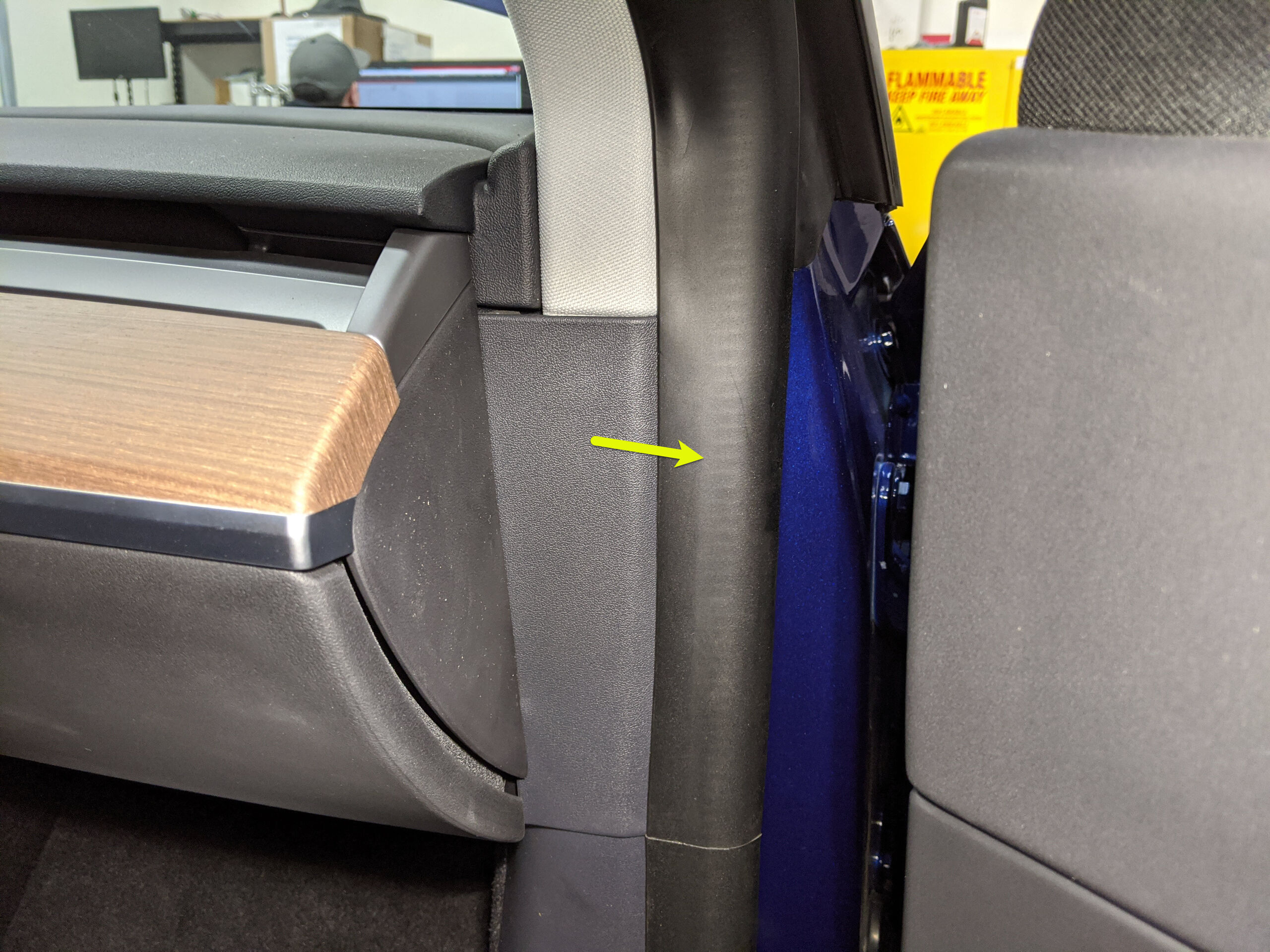

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim



291. Install LH air wave bezel cap to main decor assembly
     注

     2x clips

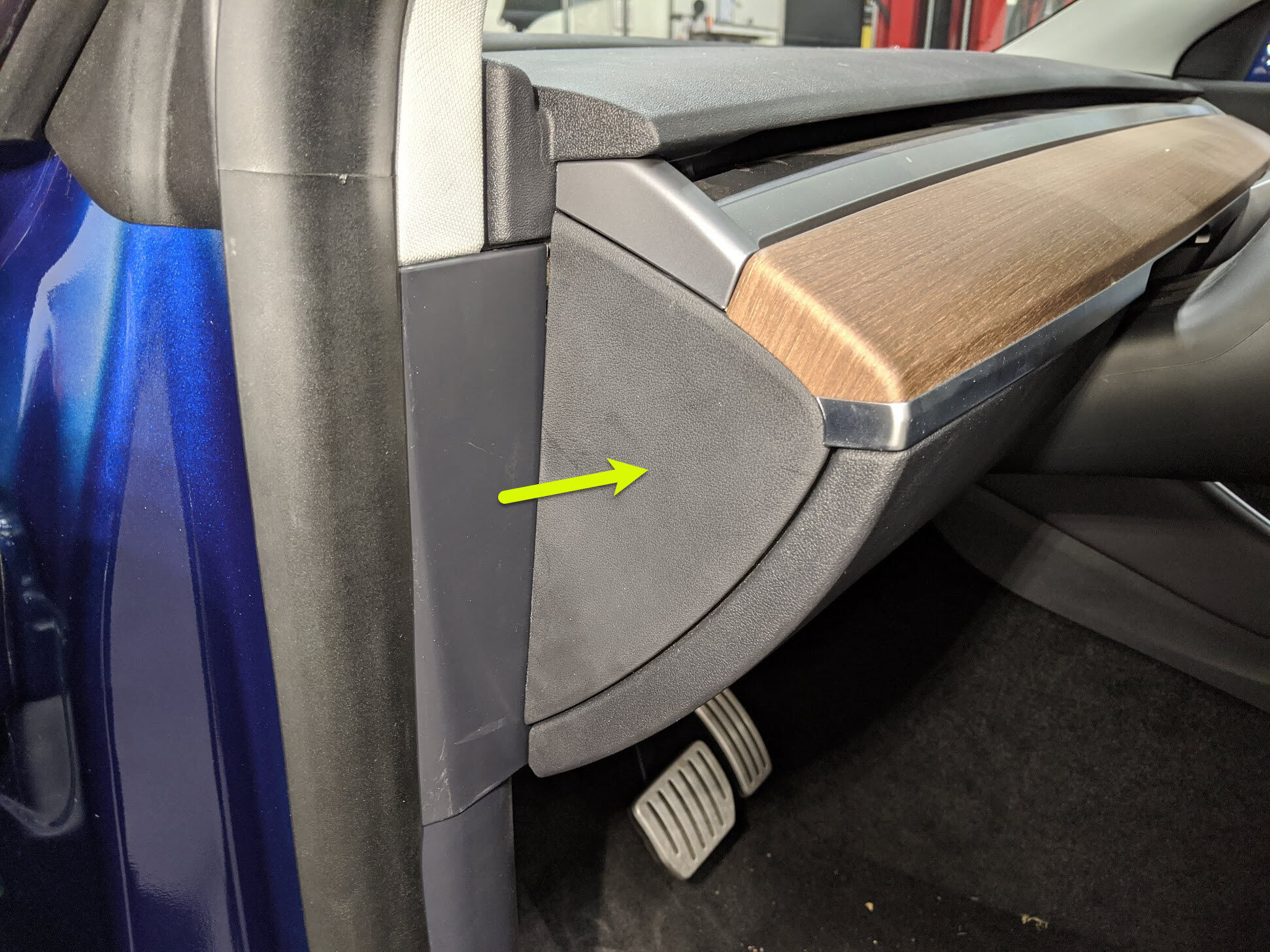

292. Install LH IP end cap
     注

     3x clips



293. Connect 12V connector to vehicle
     注

     1x connector, Engage locking tab



294. Secure DCDC cable to RH controller
     注

     1x clip



295. Connect black connector and secure to right body controller
     注

     1x connector, 1x clip





296. Connect J1 power connector
     注

     1x connector, Fully seat connector then engage lock



297. Connect J6 frunk connector
     注

     1x connector



298. Fold RH main carpet back in place



299. Install clip securing RH front cabin carpet to body
     注

     1x clip



300. Install RH console side panel carpet
     注

     12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install





301. Install RH lower A-pillar trim
     注

     6x clips, 2x locating pins, Align front locating pin first



302. Install clip securing RH lower A-pillar trim
     注

     1x clip



303. Install RH air wave bezel cap to main decor assembly
     注

     2x clips



304. Install RH IP end cap
     注

     3x clips



305. Install RH mid A-pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim



306. Connect the RH footwell assembly connectors
     注

     2x connectors, 2x tabs





307. Install clips securing RH footwell assembly
     注

     2x push clips, 1x screw, T20, 1 Nm



308. Install RH front floor mat

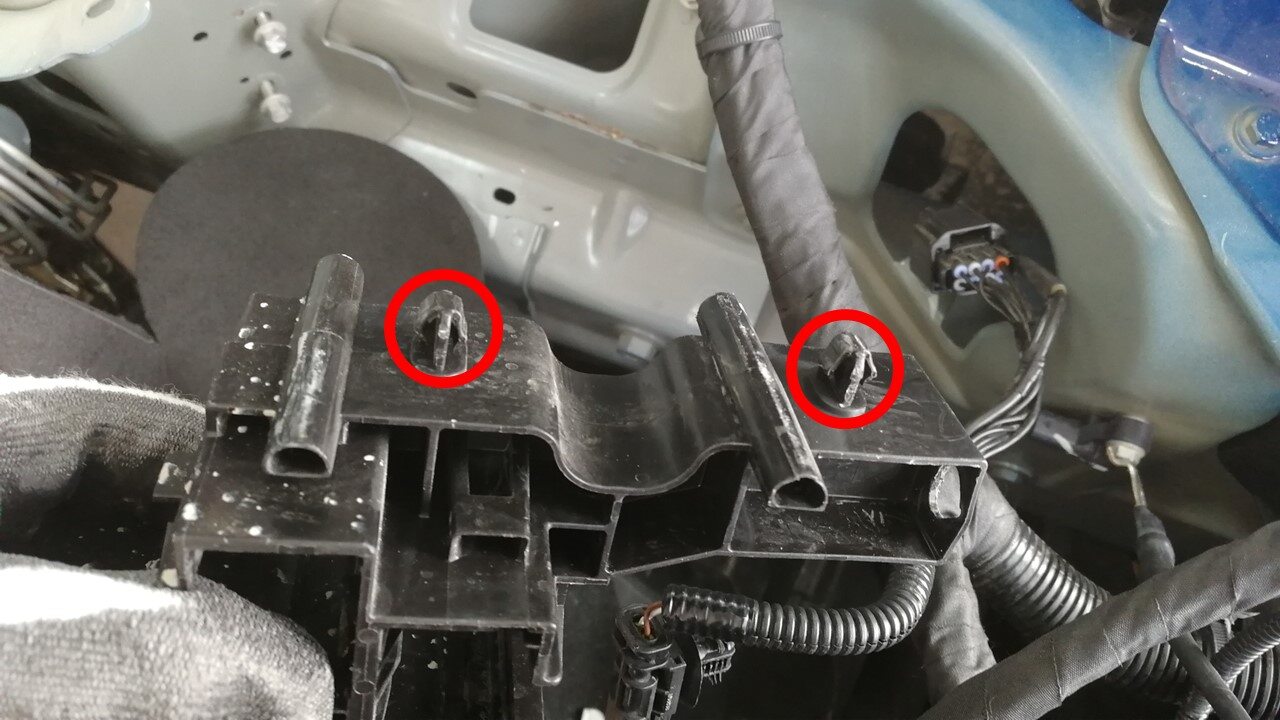

309. Install frunk assembly into vehicle
     注

     6x clips, Replace any clips if broken or missingEnsure A/C compressor HVIL harness is not pinched between frunk assembly and thermal beam

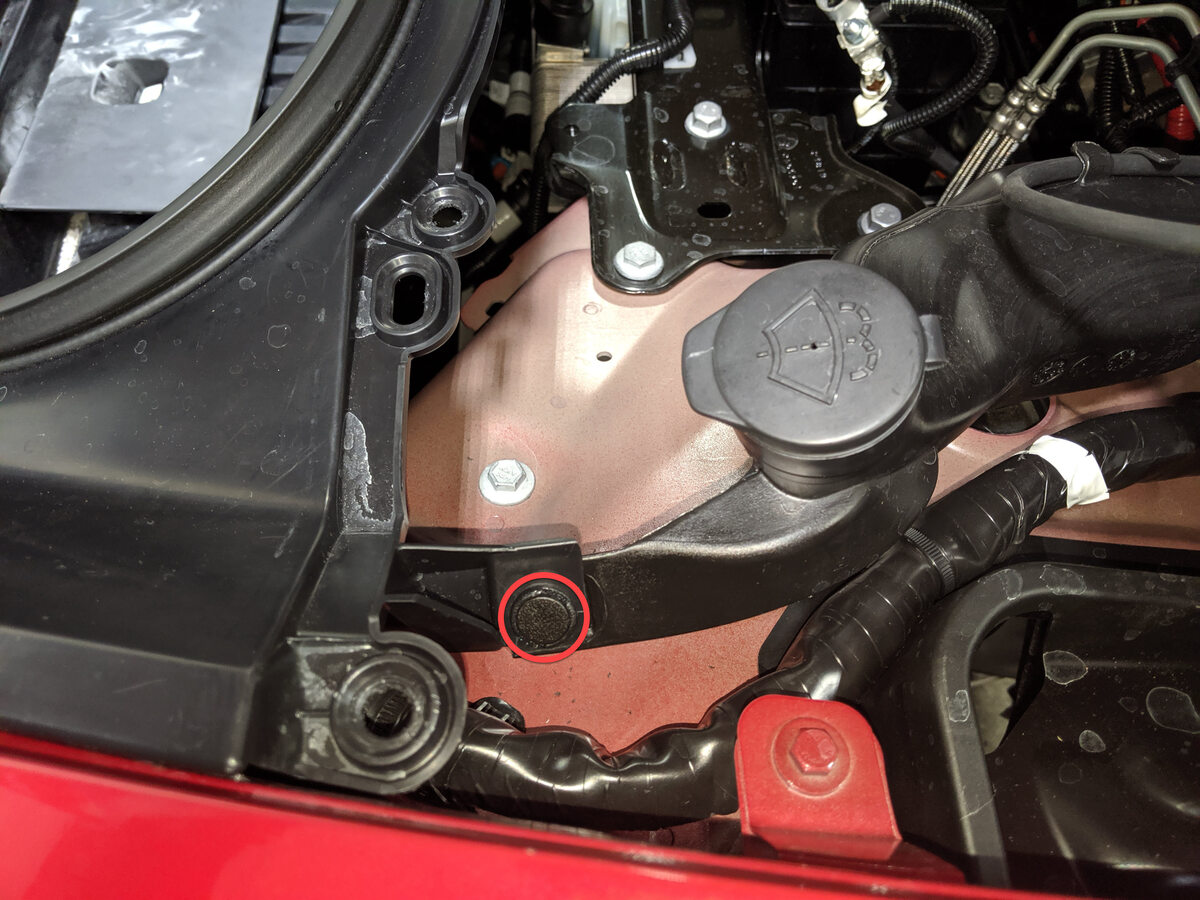

310. Secure frunk to washer fluid reservoir neck
     注

     1x push clip

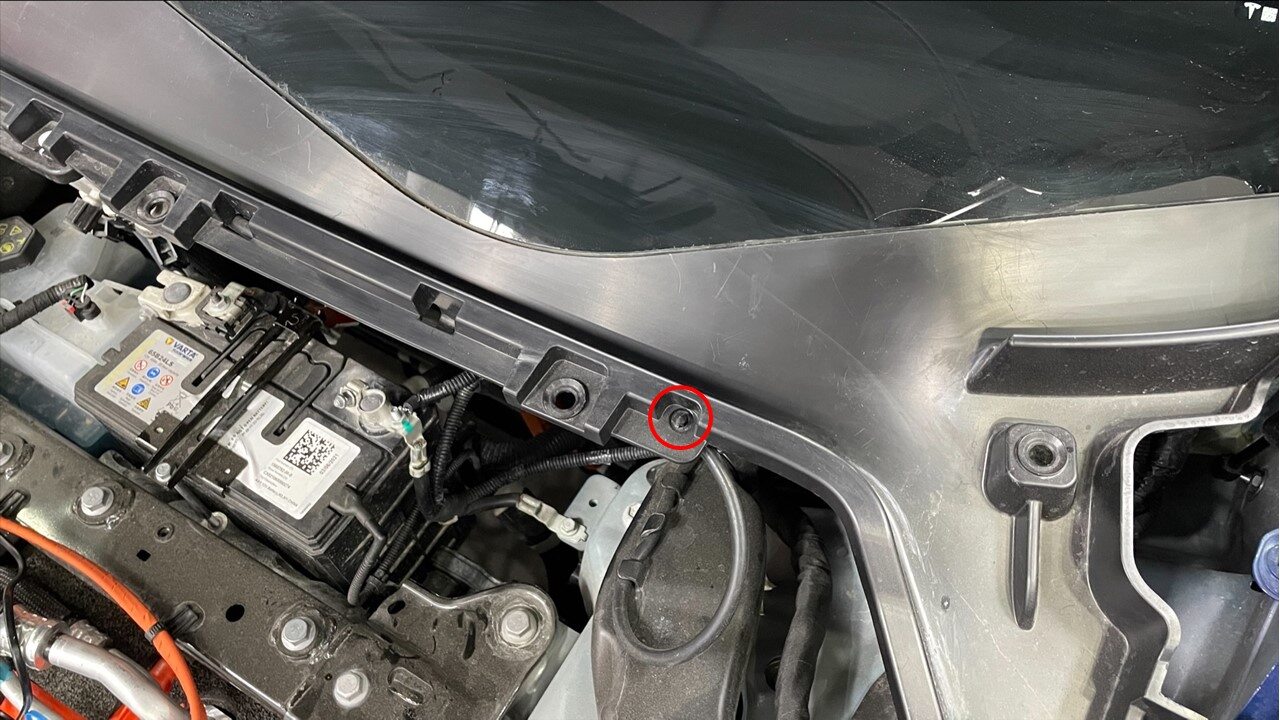

311. Install fasteners securing the frunk assembly
     注

     5x bolts, 10mm, 5 Nm, Newer vehicles may be equipped with 1x push clip securing frunk to washer bottle neck





312. Install access panel
     注

     3x clips, 1x connector





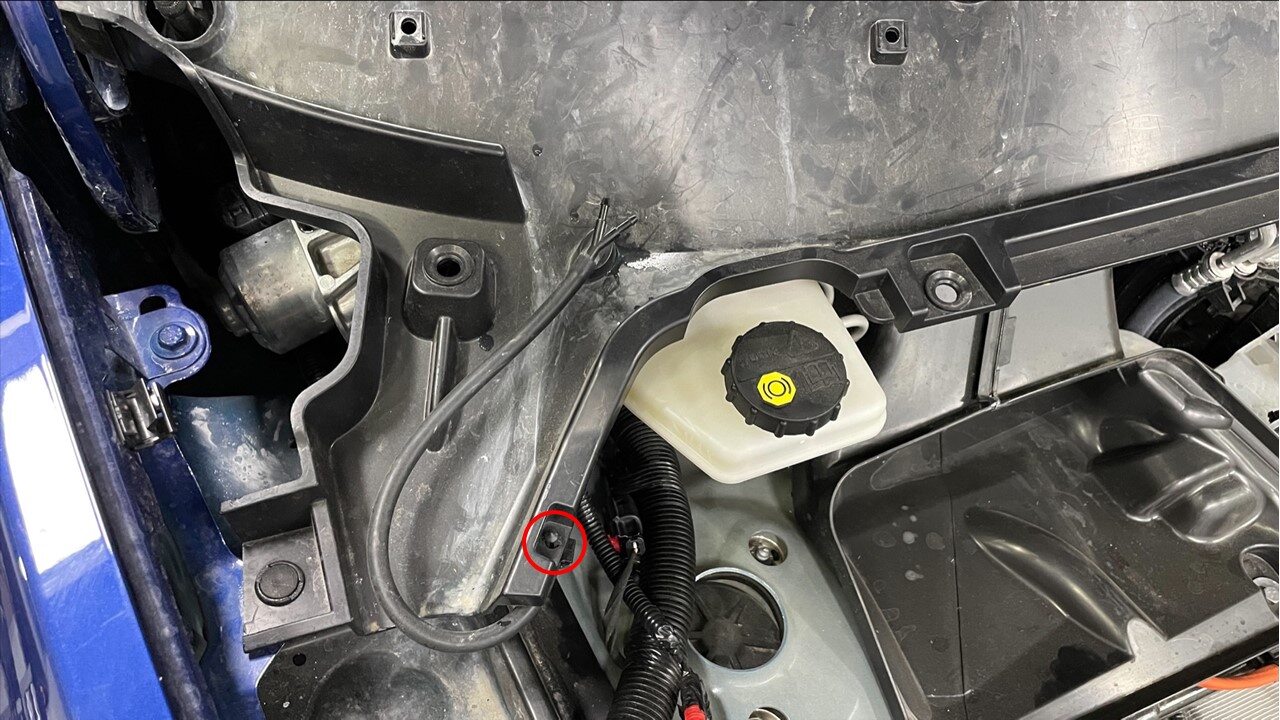

313. Install fastener securing frunk to washer fluid reservoir neck
     注

     1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



314. Connect the First Responder Loop and 12V negative battery cable.





315. Move LH front seat to original position
     注

     This can also be achieved by selecting driver profile via UI
316. Raise the LH front window.
317. Close the LH front door.
318. Place vehicle in service mode through UI
     注

     Select vehicle's badge icon in Controls > Software for four seconds and then type "service" into dialog box And then touch "ok"At last Select ‘X’ at top left of window to close once complete
319. Access thermal system routines using the UI
     注

     Select quick controls > Service mode > Thermal > Actions
320. Select "Start Coolant Air Purge" using the UI
     注

     Touch time only, wait until coolant pumps stop running (audible noise), Routine Passed will appear, but pumps will run for 10 minutes, If you start next another routine during this time, it will fail, Make sure vehicle is not in "Drive", Routine is still running despite the completed message, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valves between SERIES and PARALLEL, Putting vehicle into "Drive" will stop this routine, If speeds hover at 7000 RPM, this indicates the pumps are air locked, perform a vacuum fill, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle
321. Exit Service Mode through UI
     注

     Exit Service Mode: Controls > Service Mode > Exit Service Mode, Press and hold to exit
322. Inspect coolant level and top off as necessary
     注

     Ensure coolant is filled using G-48 coolant



323. Install coolant bottle cap

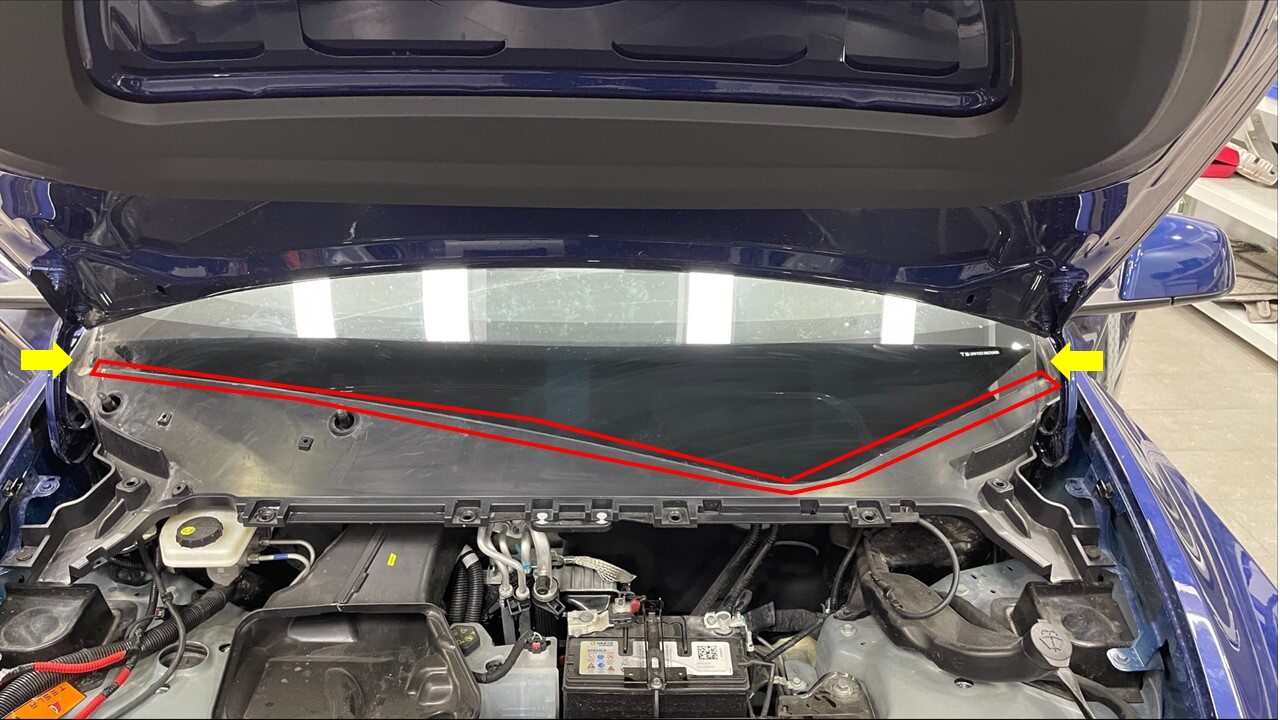

324. Install the rear apron.





325. Close the hood.
326. Move the RH front seat to its original position.
327. Raise the RH front window.
328. Close the RH front door.
