1. Remove the HV battery from the vehicle. See 高压电池（后轮驱动）（拆卸和安装）.
2. Position the oil drain under front brake line junction area

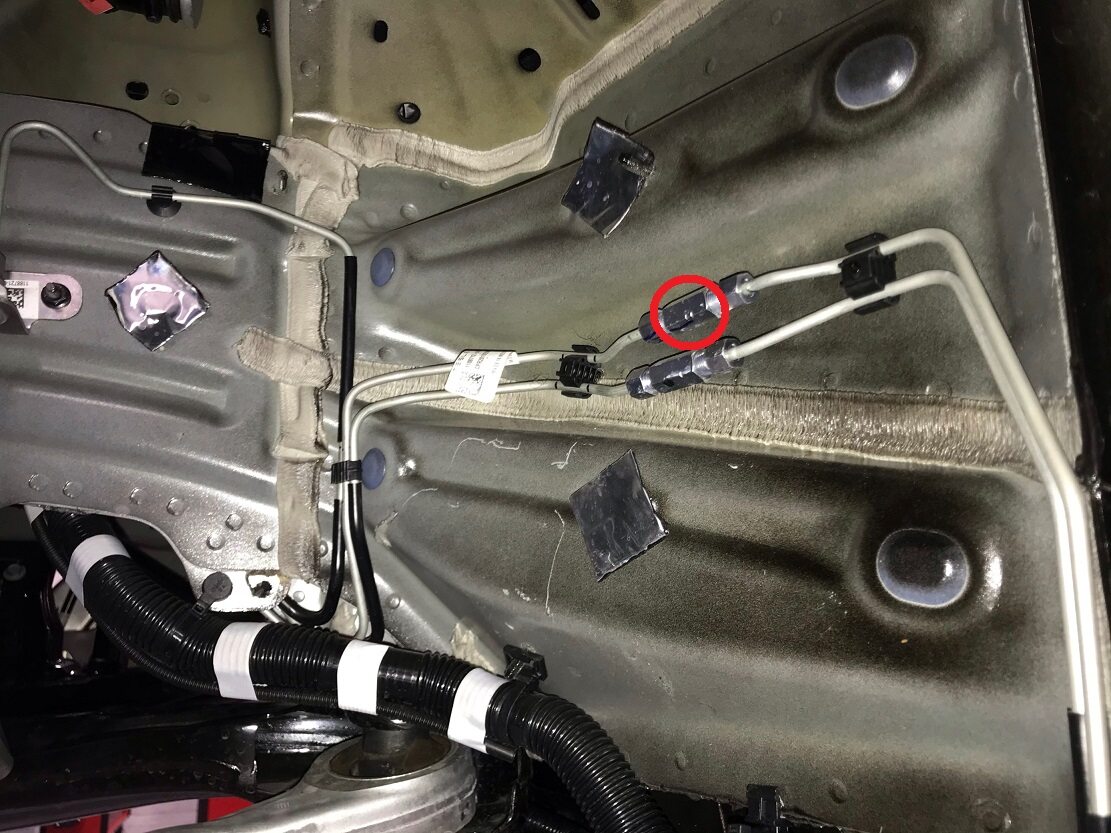

3. Release LH front bottom sill pipe from coupling
   注

   1x nut, 12mm, 16 Nm, 1x coupling, 13mm, 16 Nm



4. Release LH front top sill pipe from coupling
   注

   1x nut, 12mm, 16 Nm, 1x coupling, 13mm, 16 Nm



5. Release sill pipes from LH front body clip
   注

   1x clip



6. Place the oil drain pan under the brake line junction box
   注

   Lower vehicle if necessary



7. Remove the LH rear brake line tube nut from rear brake pipe junction block
   注

   1x nut, 12mm, 16 Nm



8. Remove the RH rear brake line tube nut from rear brake pipe junction block
   注

   1x nut, 12mm, 16 Nm, Inner nut



9. Remove black clip from LH rear junction block
   注

   1x clip



10. Release the brake lines from the LH rear junction block
    注

    2x brake lines



11. Remove the oil drain from underneath vehicle



12. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
13. Remove side sill brake pipes from vehicle
    注

    5x clips, 2x brake lines





14. Install side sill brake pipes to body
    注

    5x clips, 2x brake lines





15. Lower vehicle partially and set onto locks
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
16. Place the oil drain pan under the brake line junction box
    注

    Lower vehicle if necessary



17. Position brake lines into LH rear brake junction block
    注

    2x brake lines



18. Install black clip securing brakes lines at LH rear junction block
    注

    1x clip



19. Install the RH rear brake line tube nut to LH brake pipe junction block
    注

    1x nut, 12mm, 16 Nm



20. Install the LH rear brake line tube nut to rear brake pipe junction block
    注

    1x nut, 12mm, 16 Nm



21. Position the oil drain under front brake line junction area



22. Secure sill pipes to LH front body clip
    注

    1x clip



23. Install LH front top sill pipe to coupling
    注

    1x nut, 12mm, 16 Nm, 1x coupling, 13mm, 16 Nm



24. Install LH front bottom sill pipe to coupling
    注

    1x nut, 12mm, 16 Nm, 1x coupling, 13mm, 16 Nm



25. Remove the oil drain container from underneath drive unit



26. Remove ancillary bay perimeter seal from HV battery pack
    注

    Discard after removal



27. Install ancillary bay perimeter seal to HV battery pack
    注

    Install new perimeter seal every time the HV battery is removed and reinstalled



28. Install HV battery alignment rods
    注

    2x rods, Located on body at front of vehicle, 2x rods, Located at rear of HV battery near ancillary bay





29. Position HV battery under vehicle
    注

    Recommend assistance



30. Lower vehicle onto HV battery and align holes
    注

    Recommend assistance, Use alignment rods, Be sure coolant hoses do not get caught on alignment rods, Caution not to damage HV cable, Do not fully lower vehicle onto battery (this will help with installing battery bolts)









31. Loosely install RH bolts securing HV battery to vehicle hand tight
    注

    8x bolts, 13mm, 35 Nm



32. Loosely install LH bolts securing HV battery to vehicle hand tight
    注

    8x bolts, 13mm, 35 Nm



33. Remove HV battery front alignment rods
    注

    2x rods



34. Install bolts securing RH front support bracket to vehicle hand tight
    注

    4x bolts, 16mm, 110 Nm, Torque at later step



35. Install bolts securing LH front support bracket to vehicle hand tight
    注

    4x bolts, 16mm, 110 Nm, Torque at later step



36. Install central bolts securing HV battery through center ski cover hand tight
    注

    4x bolts, EP14, 34 Nm, Torque at later step



37. Open LH rear door
    注

    Use caution while working around this area not to damage any components
38. Remove HV battery alignment rod from LH rear inner bolt location
    注

    1x rod



39. Install LH rear inner HV battery bolt hand tight
    注

    1x bolt, 16mm, 66 Nm, Lift up LH rear main carpet for access, Torque at later step



40. Install LH middle inner HV battery bolt hand tight
    注

    1x bolt, 16mm, 66 Nm, Torque at later step



41. Close LH rear door
    注

    Do not latch
42. Open LH front door
    注

    Use caution while working around this area not to damage any components
43. Install both LH front inner HV battery bolts hand tight
    注

    2x bolts, EP20, 136 Nm, Torque at later step





44. Close LH front door
    注

    Do not latch
45. Open RH rear door
    注

    Use caution while working around this area not to damage any components
46. Remove HV battery alignment rod from RH rear inner bolt location
    注

    1x rod



47. Install RH rear inner battery bolt hand tight
    注

    1x bolt, 16mm, 66 Nm, Lift up LH rear main carpet for access, Torque at later step



48. Install RH inner HV battery bolt hand tight
    注

    1x bolt, 16mm, 66 Nm, Torque at later step



49. Close RH rear door
50. Open RH front door
    注

    Use caution while working around this area not to damage any components
51. Install both RH front inner HV battery bolts hand tight
    注

    2x bolts, EP20, 136 Nm, Torque at later step





52. Close RH front door
    注

    Do not latch
53. Lower vehicle onto pack completely
    注

    Recommend assistance
54. Torque RH bolts securing HV battery to vehicle
    注

    8x bolts, 13mm, 35 Nm



55. Torque LH bolts securing HV battery to vehicle
    注

    8x bolts, 13mm, 35 Nm



56. Torque bolts securing RH front support bracket to vehicle
    注

    4x bolts, 16mm, 110 Nm



57. Torque bolts securing LH front support bracket to vehicle
    注

    4x bolts, 16mm, 110 Nm



58. Torque central bolts securing HV battery through center ski cover
    注

    4x bolts, EP14, 34 Nm



59. Raise vehicle and lower onto locks, then remove battery table from under vehicle
    注

    Recommend assistance, Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





60. Position support stand to support front section of rear subframe



61. Remove bolt securing LH side of rear subframe to body
    注

    1x bolt, 21mm, 130 Nm, Discard after removal



62. Install bolt and shear plate to LH side of rear subframe hand tight
    注

    1x bolt, 21mm, 130 Nm, Torque at later step



63. Install bolts securing LH rear shear plate to body hand tight
    注

    2x bolts, 13mm, 35 Nm for non-Structural Pack vehicles, 62 Nm for Structural Pack vehicles. Torque at later step.



64. Torque bolt securing subframe and LH rear shear plate to body
    注

    1x bolt, 21mm, 130 Nm, Mark bolt after torque





65. Torque small fasteners securing LR rear shear plate to body
    注

    2x bolts, 13mm, 35 Nm for non-Structural Pack vehicles, 62 Nm for Structural Pack vehicles.



66. Remove bolt securing RH side of rear subframe to body
    注

    1x bolt, 21mm, 130 Nm, Discard after removal



67. Install bolt and shear plate to RH side of rear subframe hand tight
    注

    1x bolt, 21mm, 130 Nm, Torque at later step



68. Install bolts securing RH shear plate to HV battery hand tight
    注

    2x bolts, 13mm, 35 Nm for non-Structural Pack vehicles, 62 Nm for Structural Pack vehicles. Torque at later step.



69. Torque bolt securing subframe and RH rear shear plate to body
    注

    1x bolt, 21mm, 130 Nm



70. Torque small fasteners securing RH rear shear plate to body
    注

    2x bolts, 13mm, 35 Nm for non-Structural Pack vehicles, 62 Nm for Structural Pack vehicles.



71. Remove support stand from under vehicle



72. Install clips securing coolant hoses to RH shear plate
    注

    2x fir tree clips



73. Install clips securing coolant hoses to LH shear plate
    注

    2x fir tree clips



74. Connect RDU HV cable to HV battery
    注

    1x connector, Make sure the connector lock is 90 degrees from the connector before beginning to secure the connector, Use one hand to support the connector while other latching locking tab. Once installed, verify that the latch is not damaged and fully secured in the latched position





75. Install nut securing RDU HV cable bracket to HV battery
    注

    1x nut, 10mm, 10 Nm



76. Position coolant drain underneath RH rear of HV battery
77. Remove hose plugs and connect coolant outlet hose to rear PT return hose
    注

    1x spring clip, Perform push-pull-push test to make sure hose is fully seated, Use shop towel to clean any coolant residue if necessary





78. Position coolant drain container underneath LH rear of HV battery
79. Remove plugs and connect RDU inverter inlet hose to rear of HV battery
    注

    1x spring clip, Perform push-pull-push test to make sure hose is fully seated





80. Remove coolant drain container from underneath vehicle
81. Position rear battery enclosure skid plate to HV battery for installation



82. Install upper bolts securing rear battery enclosure skid plate to HV battery hand tight
    注

    4x bolts, 13mm, 35 Nm, Torque at later step



83. Install upper nut securing rear battery enclosure skid plate hand tight
    注

    1x nut, 10mm, 13 Nm, Torque at later step



84. Install lower bolts securing HV battery rear skid plate enclosure
    注

    2x bolts, EP10, 13 Nm, Torque at later step, Earlier vins may be equipped with additional bolts



85. Torque bolts securing HV battery and rear skid plate to vehicle
    注

    4x bolts, 13mm, 35 Nm



86. Torque upper nut securing rear battery enclosure skid plate
    注

    1x nut, 10mm, 13 Nm



87. Install lower bolts securing HV battery rear skid plate enclosure
    注

    2x bolts, EP10, 13 Nm, Torque at later step, Earlier vins may be equipped with additional bolts



88. Install RH side hose clips to rear battery skid plate
    注

    2x fir tree clips



89. Install LH side hose clip to HV battery rear skid plate enclosure
    注

    2x clips, Clip quantity may vary on older vehicles



90. Apply Loctite 222 onto mid aero shield bolts and install mid aero shield
    注

    11x bolts, 10mm, 5 Nm, Fasteners may vary, Model Y Structural Pack will one less bolt and one extra clip



91. Position coolant drain container underneath LH front of HV battery



92. Remove plugs then connect HV battery coolant return hose
    注

    1x spring clip, 2x plugs, Perform push-pull-push test to make sure hose is fully seated





93. Position coolant drain container below HV battery manifold hose



94. Remove plugs then connect HV battery front manifold coolant hose
    注

    1x spring clip, 2x plugs, Perform push-pull-push test to make sure hose is fully seated





95. Install HV battery front manifold hose clips to body
    注

    2x clips, Newer vehicles may be equipped with 1x clip



96. Position coolant drain container underneath RH front of HV battery
97. Remove plugs then connect PT supply hose
    注

    1x spring clip, 1x hose clip, 2x plugs, Perform push-pull-push test to make sure hose is fully seated





98. Remove plugs and connect PT return hose
    注

    1x spring clip, 1x hose clip, 2x plugs, Perform push-pull-push test to make sure hose is fully seated





99. Remove coolant drain container from underneath vehicle
100. Connect both AC compressor HV harness connectors on HV battery
     注

     2x locking connectors, 2 stage locking connector, After the connector is seated and there is an audible click, Engage the second lock by pressing towards the connector



101. Install front skid plate onto HV battery
     注

     2x tabs, Slide tabs onto front of HV battery







102. Install the bolts securing the front skid plate to the HV battery
     注

     4x bolts, E10, 13 Nm



103. Release LH front wheel liner from bungee strap
     注

     Remove strap from vehicle



104. Install LH front wheel liner to HV battery and lower wheel well area
     注

     3x clips, 1x bolt, 10mm, 5 Nm





105. Release RH front wheel liner from bungee strap
     注

     Remove strap from vehicle



106. Install RH front wheel liner to HV battery and lower wheel well area
     注

     3x clips, 1x bolt, 10mm, 5 Nm





107. Position the front aero shield to vehicle and install nuts
     注

     2x nuts, 15mm, 5 Nm



108. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
     注

     7x bolts, 10mm, 5 Nm



109. Lower vehicle partially and set onto locks
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
110. Open all four doors
     注

     Latch rear doors to prevent accidental closure
111. Install positive 12V output
     注

     1x nut, 13mm, 9 Nm, Install new nut, Make sure rubber boot is not pinched between cable terminal and pass through



112. Install positive 12V output cover to PCS cable
     注

     1x cover



113. Install nut securing DCDC ground strap to HV battery
     注

     1x nut, 13mm, 15 Nm, Install new nut



114. Remove logic cap and connect the HVC logic connector
     注

     1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated





115. Clean busbar HV connector contact surface of residual Penetrox
     注

     Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



116. Clean HV connector contact surface of residual Penetrox
     注

     Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



117. Apply Penetrox onto HV connector joints
     注

     Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered





118. Position busbar kit connector and lower onto HV header



119. Install bolts securing charge port busbar kit to HV Header
     注

     2x bolts, 10mm, 9 Nm



120. Inspect HV insulating gloves
     注

     Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



121. Put on HV insulating gloves and leather over gloves
     注

     Make sure to wear Electrical Protective Gloves any time Hioki tester is used



122. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
     注

     2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), there is too much resistance in the High Voltage joint. Remove the fastener, clean areas with isopropyl alcohol, install fastener back and test again.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step



123. Remove HV insulating gloves
124. Install fastener securing busbar cover access door
     注

     1x bolt, 10mm, 9 Nm



125. Connect logic connector at LH 60 seat frame
     注

     1x connector



126. Install clip securing logic connector harness to LH seat frame
     注

     1x clip



127. Remove coolant bottle cap



128. Inspect coolant level and top off as necessary
     注

     Ensure that the fluid level is at the Max line



129. Connect first responder loop and 12V negative terminal
     注

     1x nut, 10mm, 6 Nm, 1x connector, Engage locking tab, Connect FRL first before connecting 12V to avoid damage to car computer





130. Press and hold park button to release EPB service mode
     注

     Remove wheel chocks if necessary





131. Re-establish vehicle connection to Toolbox 3.0
132. Select ‘Actions/Autodiag’ and search for ‘Thermal’
133. Select ‘PROC_VCFRONT_X_THERMAL-FILL-DRAINSearch for routine in ToolboxThermal Fluid Fill/Drain’, click ‘Run’, and allow routine to complete
     注

     This will ensure the octovalve is in the Series position, Coolant pumps will also be disabled, Once run is selected routine is in progress despite the prompt with loading circle, Routine will time out after several hours and return valves to parallel position if unattended, Select 'X' at top right of window to close once complete
134. Place empty coolant container into front storage area



135. Fill container with at least 15L of coolant



136. Place filled coolant container into front storage area



137. Close air inlet and coolant refill valves





138. Install vacuum refill cap onto coolant bottle assembly



139. Setup vacuum refill tool
     注

     Verify all valves on refill tool are in the closed position, See image for clarity





140. Install vacuum refill hose into refill cap on coolant bottle
     注

     Perform push-pull-push test to verify hose is fully installed



141. Place end of overflow hose into empty container



142. Place refill hose inside filled coolant container
     注

     Make sure hose end is fully submerged into coolant





143. Connect shop air supply to coolant refill tool
     注

     If not already done, Verify refill valve is set to off



144. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
     注

     Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed





145. Slowly open the refill valve to allow coolant to be drawn into the system
     注

     Make sure hose end of refill hose is fully submerged during entire process



146. Once the gauge reads zero, close the refill valve





147. Slowly open the coolant refill valve to allow coolant to be drawn into the system
     注

     Make sure end of coolant refill hose is fully submerged during entire process



148. Monitor gauge for 30 seconds to verify a vacuum is maintained in the cooling system



149. Reopen the air inlet valve for 3 minutes to continue evacuating cooling system, then close valve





150. Disconnect shop air supply from coolant refill tool



151. Remove coolant refill hose from coolant container



152. Remove coolant overflow hose from coolant container



153. Remove vacuum refill hose from refill cap on coolant bottle



154. Remove coolant refill tool from vehicle





155. Remove both coolant containers from inside underhood area



156. Select ‘Actions/Autodiag’ tab and search for ‘ Purge'
157. Select ‘TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGESearch for routine in ToolboxCoolant Air PurgeThermal / Coolant System - Coolant Purge Starthv / Front Drive Inverter Replacement - Coolant Air Purgehv / Rear Drive Inverter Replacement - Coolant Air Purgehv / Rear Left Drive Inverter Replacement - Coolant Air Purgehv / Rear Right Drive Inverter Replacement - Coolant Air Purgehv / Front Drive Unit Replacement - Coolant Air Purgehv / Rear Drive Unit Replacement - Coolant Air PurgeThermal / Actions - Coolant Purge Stop or Coolant Purge Start ’, click ‘Run’, and allow routine to complete
158. Inspect coolant level and top off as necessary
     注

     Ensure that the fluid level is at the Max line



159. Install coolant bottle cap



160. Select ‘Actions/Autodiag’ and search for ‘Thermal’
161. Select ‘TEST-SELF_VCFRONT_X_HEAT-PUMP-THERMAL-PERFORMANCESearch for routine in ToolboxHeat Pump Thermal System Performance Test’, click ‘Run’, and allow routine to complete
     注

     Select ‘X’ at top right of window to close once complete.
162. Fill brake bleeder reservoir to full level



163. Clean area around brake fluid reservoir and remove brake reservoir cap



164. Top off brake fluid reservoir
     注

     Top off brake fluid as needed



165. Install pressure bleeder adapter onto reservoir



166. Set brake bleed reservoir pressure to 30 psi
     注

     Connect power supply to bleeder and turn on the power, Set pressure to 30 psi, Attach brake bleed reservoir to brake bleed adapter





167. Select Actions/Autodiag and search for "bleed"
168. Remove bleeding valve covers and install the fluid catching bottle to LH front brake caliper outer bleeding valve before starting the ESP
     注

     2x covers





169. Open LH front brake caliper outer bleeding valve then click the play button next to "PROC_ESP_FRONT-L-REAR-R-BRAKE-BLEEDSearch for routine in ToolboxFL and RR brake bleed procedureChassis / Brakes - Brake Bleed FL-RRChassis / Brakes - Brake Bleed FL-RR" and select Run to start the ESP, then close the bleeding valve once the pump stop running, then repeat the process for inner bleeding valve, and then lastly repeat the process for outer bleeding valve again
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



170. Repeat the above step till clear fluid and no air bubbles come out of the LH front brake caliper bleeding valve
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



171. Remove the fluid catching bottle, Torque LH front brake caliper bleeding valves then install covers
     注

     2x covers, 2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers





172. Remove bleeding valve covers and install the fluid catching bottle to RH front brake caliper outer bleeding valve before starting the ESP
     注

     2x covers





173. Open RH front brake caliper outer bleeding valve then Click the play button next to "PROC_ESP_FRONT-R-REAR-L-BRAKE-BLEEDSearch for routine in ToolboxFR and RL brake bleed procedureChassis / Brakes - Brake Bleed FR-RLChassis / Brakes - Brake Bleed FR-RL" and select Run to start the ESP, then close the bleeding valve once the pump stop running, then repeat the process for inner bleeding valve, and then lastly repeat the process for outer bleeding valve again
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



174. Repeat the above step till clear fluid and no air bubbles come out of the RH front brake caliper bleeding valves
     注

     2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers



175. Remove the fluid catching bottle, Torque RH front brake caliper bleeding valves and install covers
     注

     2x covers, 2x bleeding valves, 11mm, 18.5 Nm (+/- 2 Nm) Base and Plus calipers





176. Remove bleeding valve cover and install the fluid catching bottle to RH rear brake caliper bleeding valve before starting the ESP
     注

     1x cover





177. Open RH rear brake caliper bleeding valve then Click the play button next to "PROC_ESP_FRONT-L-REAR-R-BRAKE-BLEEDSearch for routine in ToolboxFL and RR brake bleed procedureChassis / Brakes - Brake Bleed FL-RRChassis / Brakes - Brake Bleed FL-RR" and select Run to start the ESP, then close the bleeding valve once the pump stop running
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper





178. Repeat the above step till clear fluid and no air bubbles come out of the RH rear brake caliper bleeding valve
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper



179. Remove the fluid catching bottle, Torque RH rear brake caliper bleeding valve and install cover
     注

     1x cover, 1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper



180. Remove bleeding valve cover and install the fluid catching bottle to LH rear brake caliper bleeding valve before starting the ESP
     注

     1x cover





181. Open LH rear brake caliper bleeding valve then Click the play button next to "PROC_ESP_FRONT-R-REAR-L-BRAKE-BLEEDSearch for routine in ToolboxFR and RL brake bleed procedureChassis / Brakes - Brake Bleed FR-RLChassis / Brakes - Brake Bleed FR-RL" and select Run to start the ESP, then close the bleeding valve once the pump stop running
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper





182. Repeat the above step untill clear fluid and no air bubbles come out of the LH rear brake caliper bleeding valve
     注

     1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper



183. Remove the fluid catching bottle, Torque LH rear brake caliper bleeding valve and install cover
     注

     1x cover, 1x bleeding valve, 11mm, 10 Nm (+/- 3 Nm) Base caliper, 14 Nm (+/- 2 Nm) Plus caliper





184. Power off brake bleed reservoir and detach brake bleed reservoir from brake bleed adapter





185. Remove pressure bleeder adapter from reservoir



186. Check fluid level
     注

     Top off if necessary



187. Install brake reservoir cap



188. Pump the brake pedal a few times to ensure the brake pedal feels normal
189. 使用Toolbox 3：
     1. 选择Actions选项卡，然后搜索 “刚度”。
     2. 选择 ODIN 例行程序TEST_BRAKE_X_STIFFNESS-TEST-SERVICESearch for routine in ToolboxIBST Stiffness Test - Service - BURNISHED/UNBURNISHEDChassis / Brakes - Brake Stiffness Test，然后点击例行程序链接。
     3. 如果已更换制动片或制动盘，请在 “Action_Type” 下选择UNBURNISHED。否则请选择BURNISHED。
     4. 点击RUN，然后等待例行程序完成。
        注

        测试期间，请勿踩下制动踏板。
190. Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
191. Close all four doors
     注

     If 12V is powered up, Unlatch rear doors before closing
192. Raise vehicle partially and lower lift onto locks
     注

     Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
193. Install all four wheels
     注

     5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
194. Lower vehicle until tires are touching the ground
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
195. Torque all four wheels
     注

     5x nuts, 21mm, 175 Nm
196. Install all four wheel caps
     注

     1x cap, Align valve stem with wheel cap cavity
197. Install rear apron
     注

     14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





198. Close hood
199. Remove vehicle from lift
     注

     Lower rack arms fully and remove from under vehicle
200. Get into driver seat and slowly reverse vehicle enough to allow clearance for all four doors open
     注

     Adjust driver seat if needed
201. Open all four doors
     注

     Latch rear doors to prevent accidental closure
202. Torque LH rear inner HV battery bolt
     注

     1x bolt, 16mm, 66 Nm, Located below LH rear main carpet



203. Torque RH rear inner battery bolt
     注

     1x bolt, 16mm, 66 Nm, Located below RH rear main carpet for access



204. Remove object positioned beneath rear cabin carpet



205. Install clips securing rear main cabin carpet to vehicle
     注

     3x push clips



206. Install clip securing RH lower B-pillar to body
     注

     1x push clip, Clip goes through B-pillar and rear cabin carpet



207. Install RH rear sill trim
     注

     5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of RH rear sill trim into trunk side trim and work your way forward securing clips





208. Reseat RH rear door seal
     注

     Seat pillar and sill trim tabs underneath seal



209. Install clip securing LH lower B-pillar to body
     注

     1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



210. Install LH rear sill trim
     注

     5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of LH rear sill trim into trunk side trim and work your way forward securing clips, Trim part may slightly differ, by vehicle build location





211. Reseat LH rear door seal
     注

     Seat pillar and sill trim tabs underneath seal



212. Install 2nd row seat cushion
     注

     1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test







213. Torque LH middle inner HV battery bolt
     注

     1x bolt, 16mm, 66 Nm



214. Fold LH side of rear main carpet to its original position



215. Torque RH middle inner HV battery bolt
     注

     1x bolt, 16mm, 66 Nm



216. Fold RH side of rear main carpet to its original position



217. Install 2nd row floor mat into vehicle



218. Torque both RH forward HV battery bolts
     注

     2x bolts, EP20, 136 Nm





219. Install RH front cabin carpet support access plugs
     注

     2x plugs, Newer Vins may be equipped with 1x foam plug





220. Fold the RH front main cabin carpet back to original position



221. Install clip securing RH front cabin carpet to body
     注

     1x clip



222. Install RH lower A-pillar trim
     注

     6x clips, 2x locating pins, Align front locating pin first



223. Install clip securing RH lower A-pillar trim
     注

     1x clip



224. Install RH mid A-pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim



225. Install RH IP end cap
     注

     3x clips



226. Install RH console side panel carpet
     注

     12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install





227. Install RH front floor mat



228. Connect the RH footwell assembly connectors
     注

     2x connectors



229. Install clips securing RH footwell assembly
     注

     4x push clips, 2x connectors, Puddle lamp and speaker



230. Move RH front seat to original position



231. Torque both LH front inner HV battery bolts
     注

     2x bolts, EP20, 136 Nm





232. Install LH front cabin carpet support access plugs
     注

     2x plugs, Newer vins may be equipped with 1x foam plug





233. Fold the LH front main cabin carpet back to original position



234. Install clip securing LH front cabin carpet to body



235. Install LH console side panel carpet
     注

     11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install









236. Install LH front floor mat



237. Install connectors to LH footwell cover and position for installation
     注

     3x tabs, 1x Ethernet connector, 1x puddle light connector







238. Install screw and clips securing LH footwell cover
     注

     1x screw, T20, 2.5 Nm, 2x push clips



239. Install LH lower A-pillar trim
     注

     6x clips, 2 locating pins, Align front locating pin first



240. Install clip securing LH lower A-pillar trim
     注

     1x push clip



241. Install LH mid A-pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim



242. Install LH IP end cap
     注

     3x clips



243. Move LH front seat to original position
244. Raise all four windows
245. Close all four doors
     注

     If 12V is powered up, Unlatch rear doors before closing
246. Remove lift pad adapters from RH rocker
     注

     2x lift pad adapters





247. Install butyl patches onto RH rocker access holes
     注

     2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch if needed, Roughly 2" x 2 1/2"





248. Install RH rocker carrier onto body
     注

     10x clips



249. Install bolts securing RH rocker carrier to body
     注

     2x bolts, 10mm, 5 Nm





250. Install RH rocker panel onto RH rocker carrier
     注

     11x clips, 11x tabs, Recommend assistance, Tabs go into cavities on the rocker carrier and cannot be accessed from outer side of trim



251. Install clips securing RH rocker cover to front and rear wheel liner
     注

     4x push clips





252. Remove lift pad adapters from LH rocker
     注

     2x lift pad adapters





253. Install butyl patches onto LH rocker access holes
     注

     2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch if needed, Roughly 2" x 2 1/2"





254. Install LH rocker carrier onto body
     注

     10x clips



255. Install bolts securing LH rocker carrier to body
     注

     2x bolts, 10mm, 5 Nm





256. Install LH rocker panel onto LH rocker carrier
     注

     11x clips, 11x tabs, Recommend assistance, Tabs go into cavities on the rocker carrier and cannot be accessed from outer side of trim



257. Install clips securing LH rocker cover to front and rear wheel liner
     注

     4x push clips





258. Perform a road test and ensure proper brake pedal feel and performance
     注

     Per current FRT (00040100)
