电子控制单元 (ECU) - 充电接口(七座)(拆卸和更换)

校正代码 44015032 0.36 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com
  1. Place vehicle in service mode through UI
    Informational PurposesAn informational icon, calling your attention

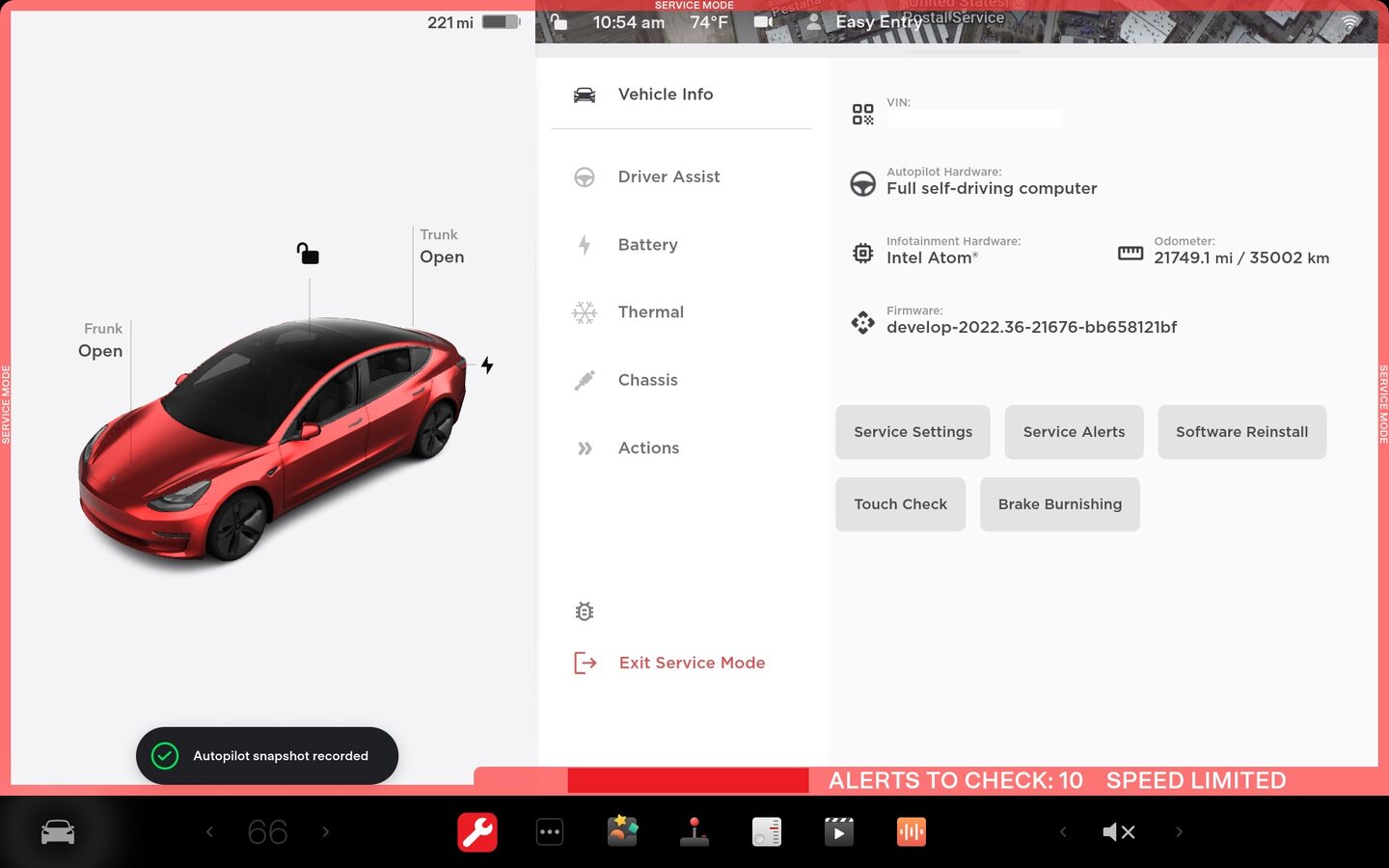

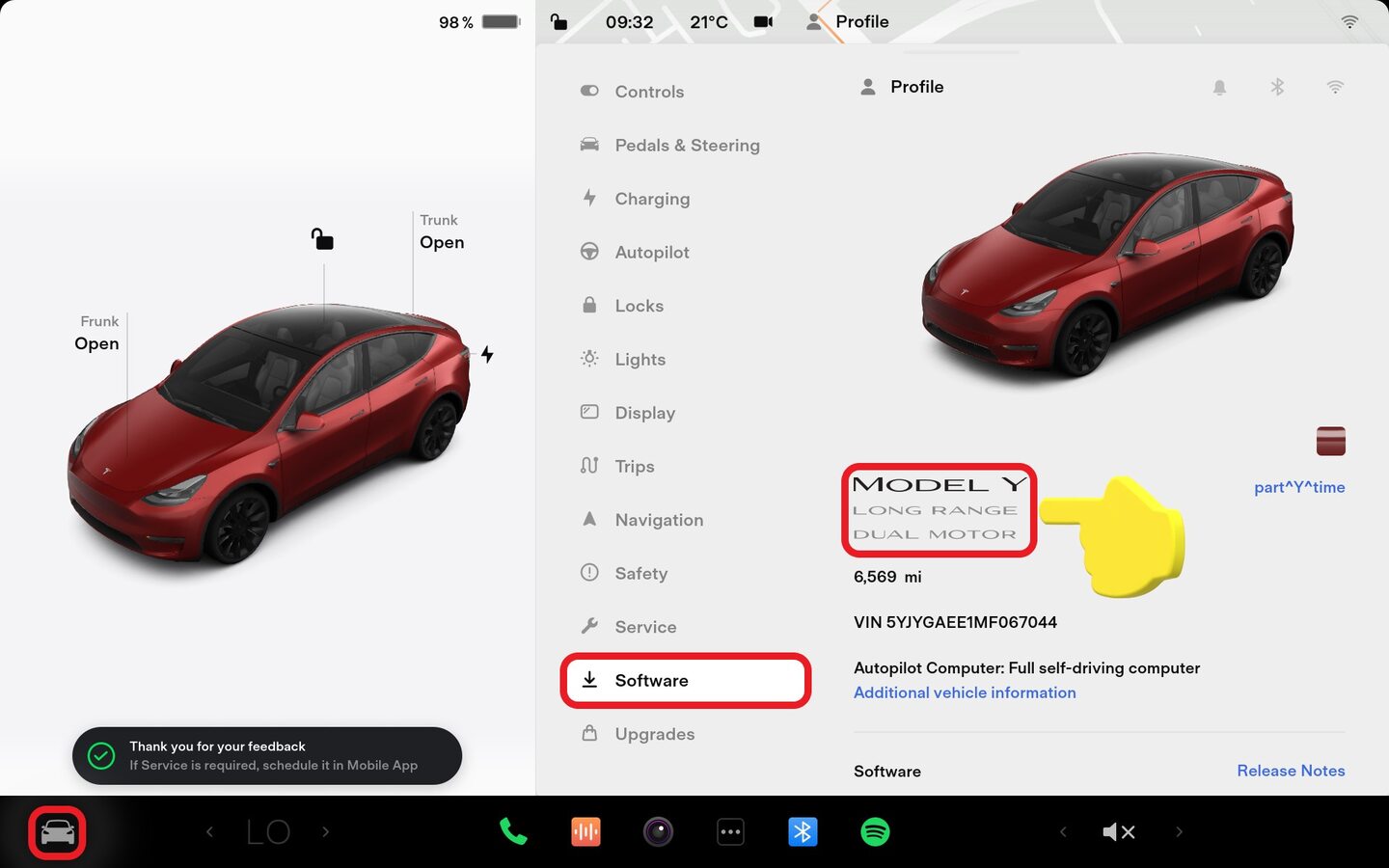

    Select vehicle's badge icon in Controls > Software for four seconds and then type "service" into dialog boxAnd then touch "ok"At last Select ‘X’ at top left of window to close once complete
  2. Open the LH front door.
  3. Lower all four windows

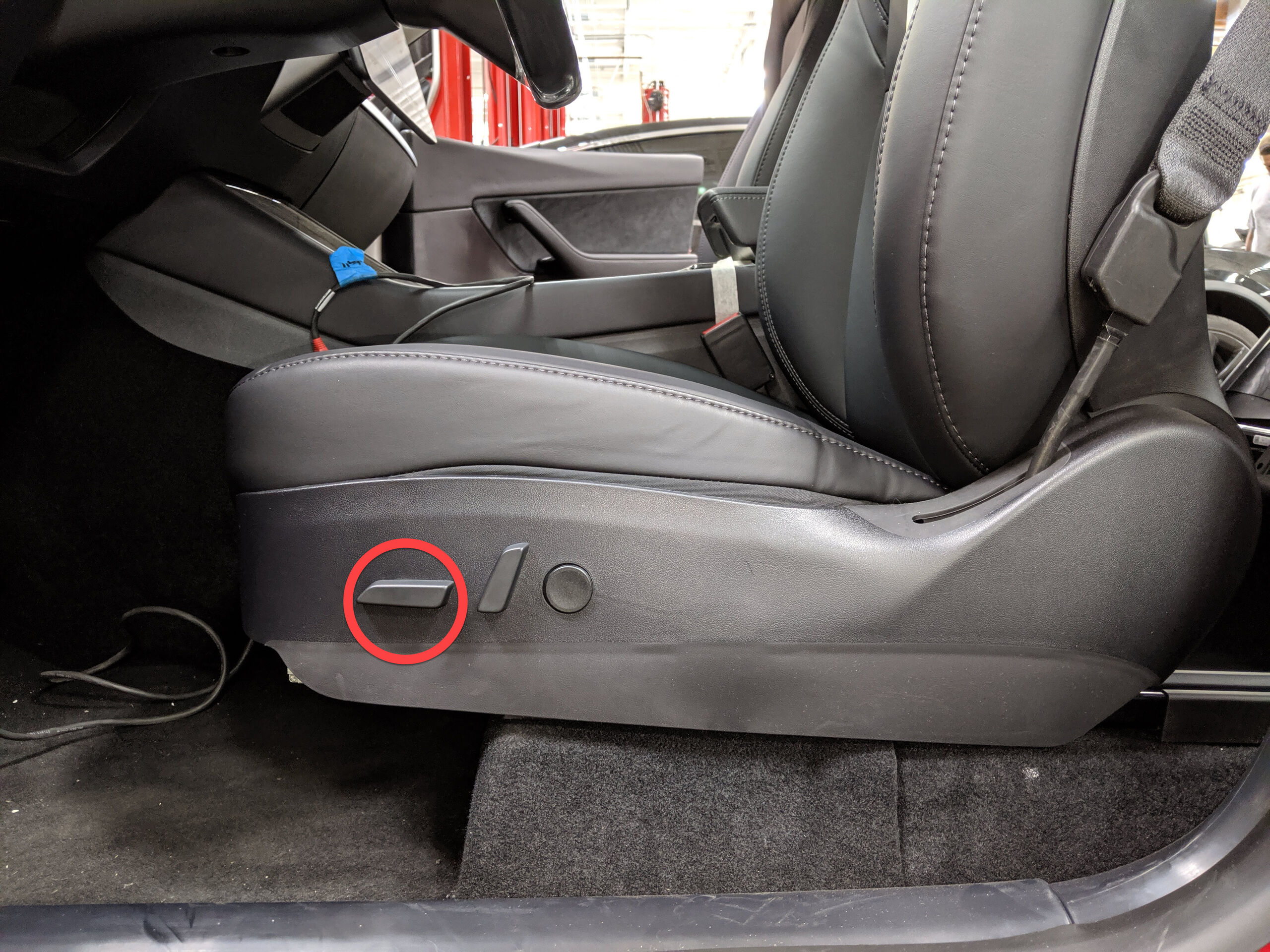

  4. Move LH front seat forward
  5. Open LH rear door

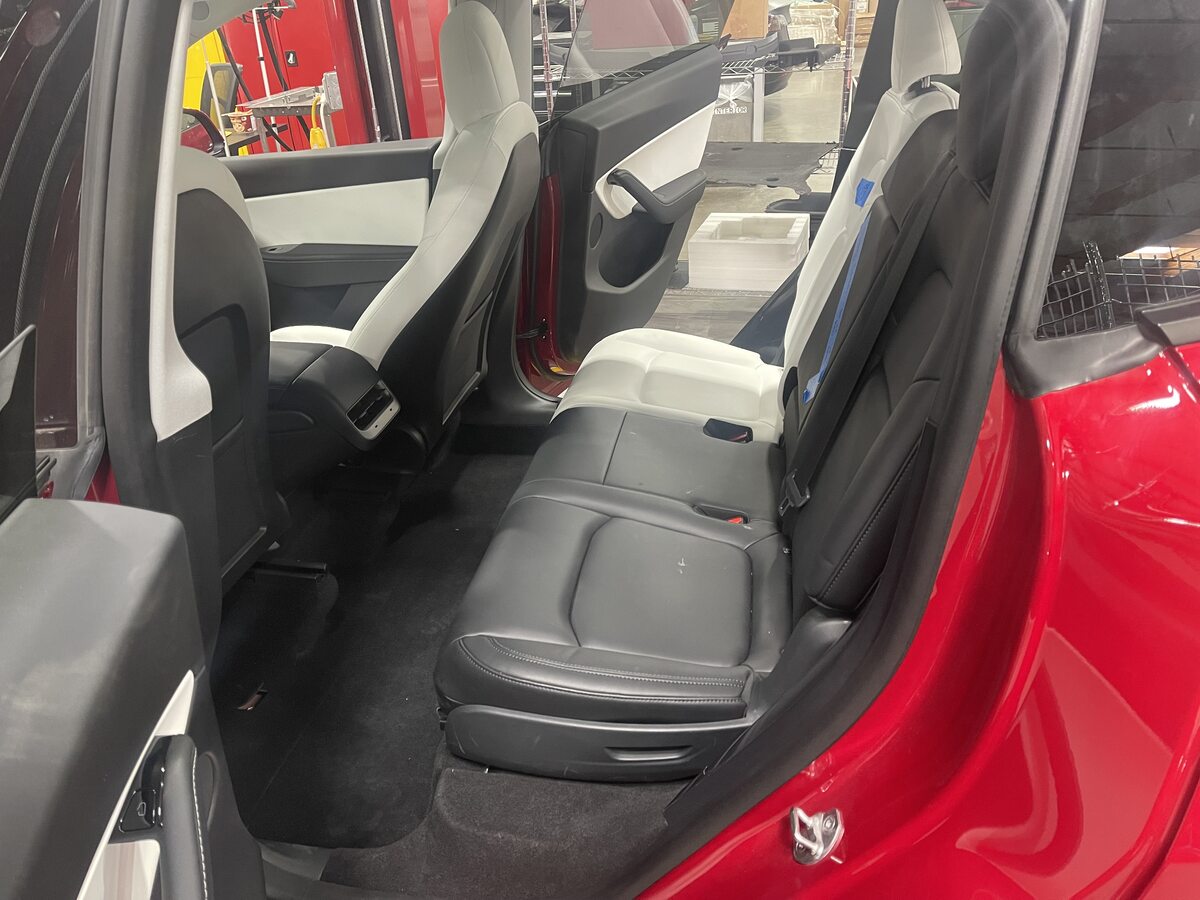

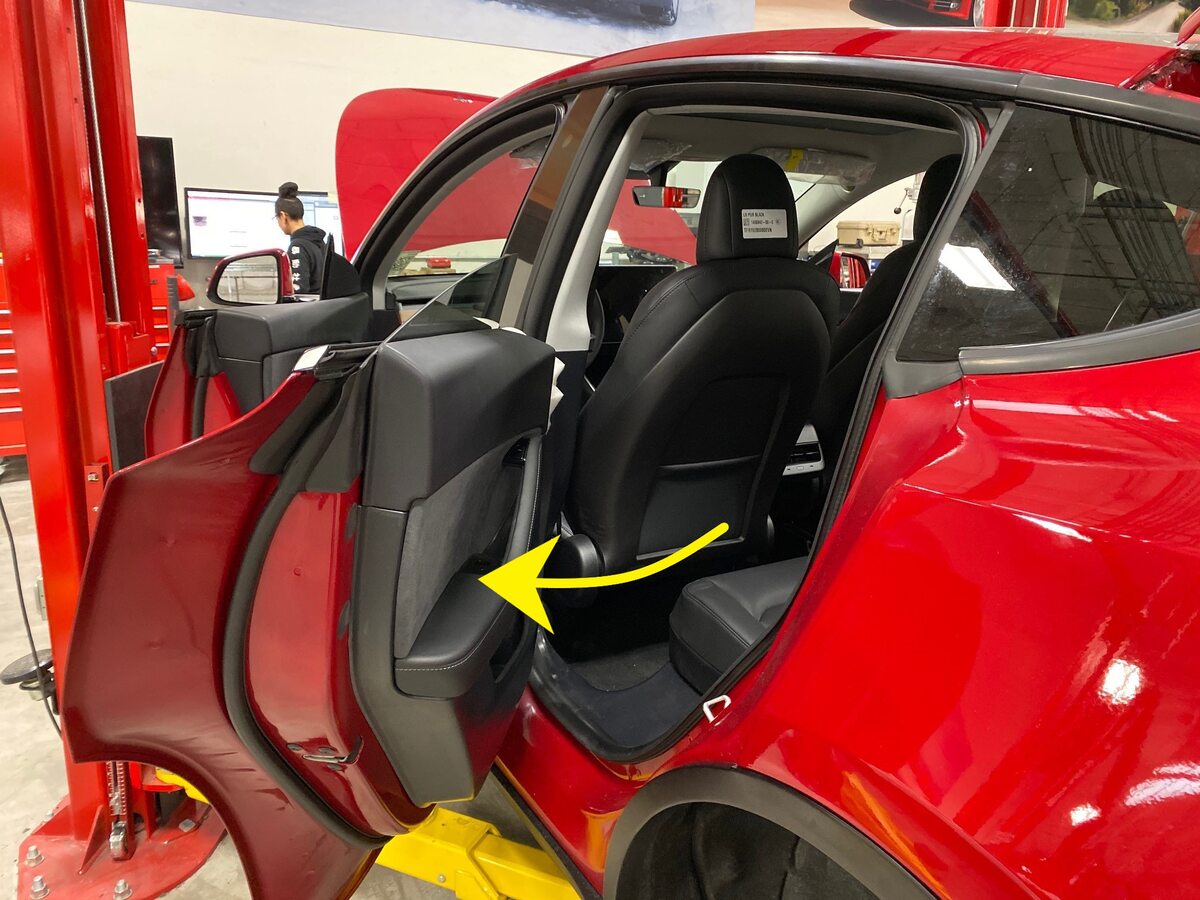

  6. Tilt 7s 2nd row 60 seat forward
    Informational PurposesAn informational icon, calling your attention

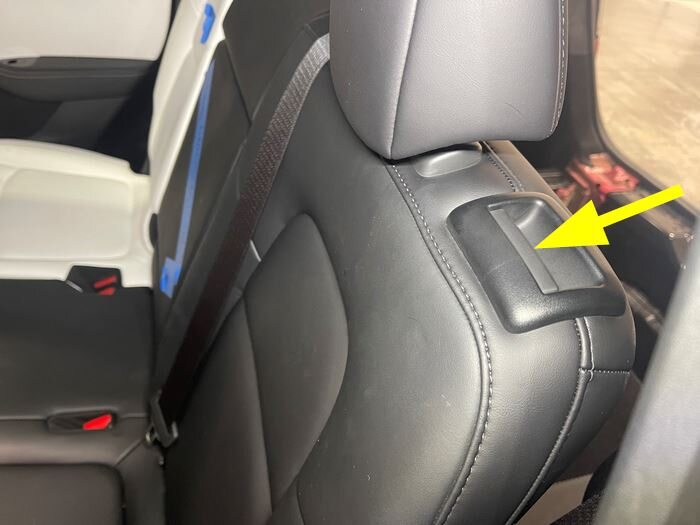

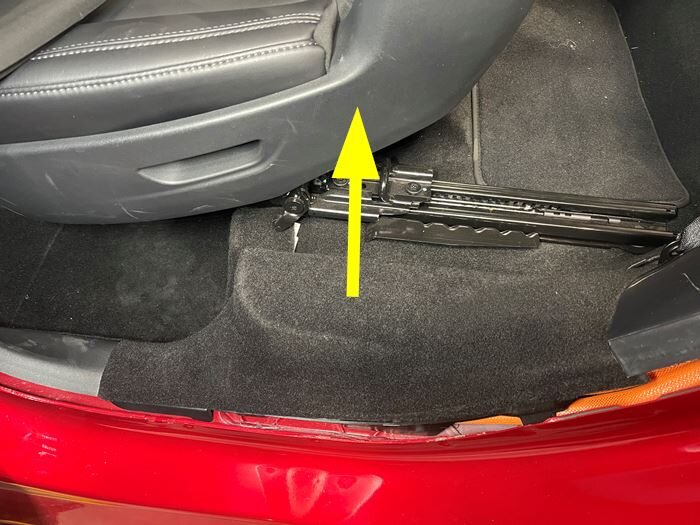

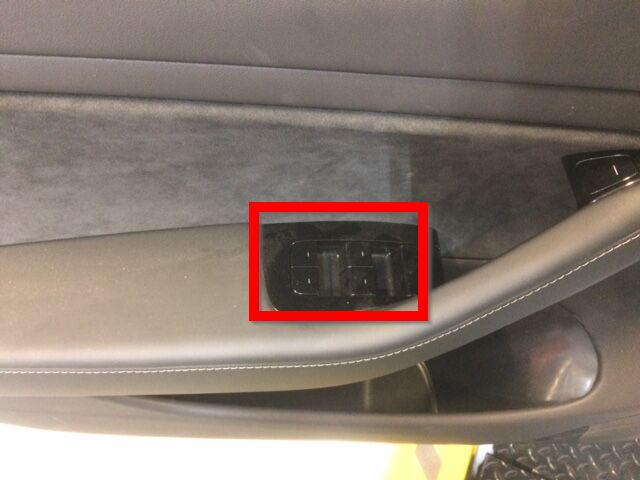

    Hold 2nd row 60 seat LH shoulder switch, Slide seat all the way forward and tit up

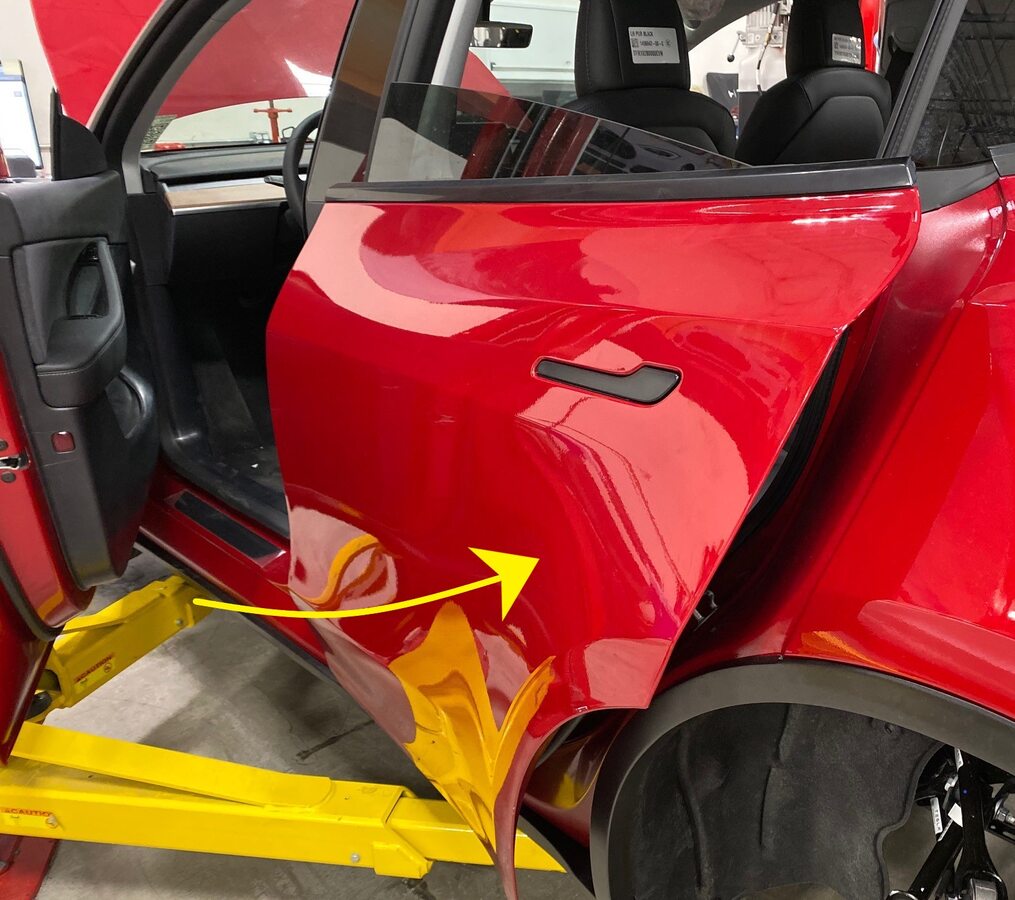

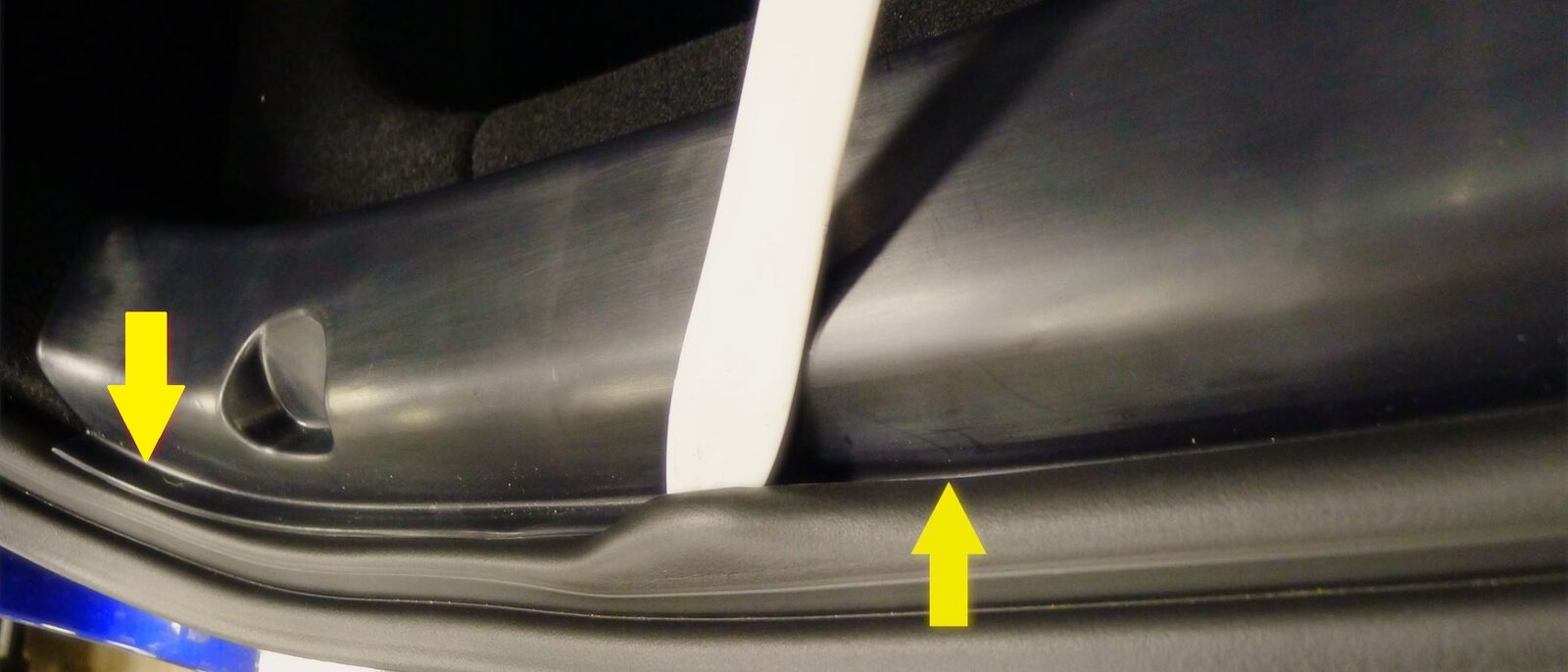

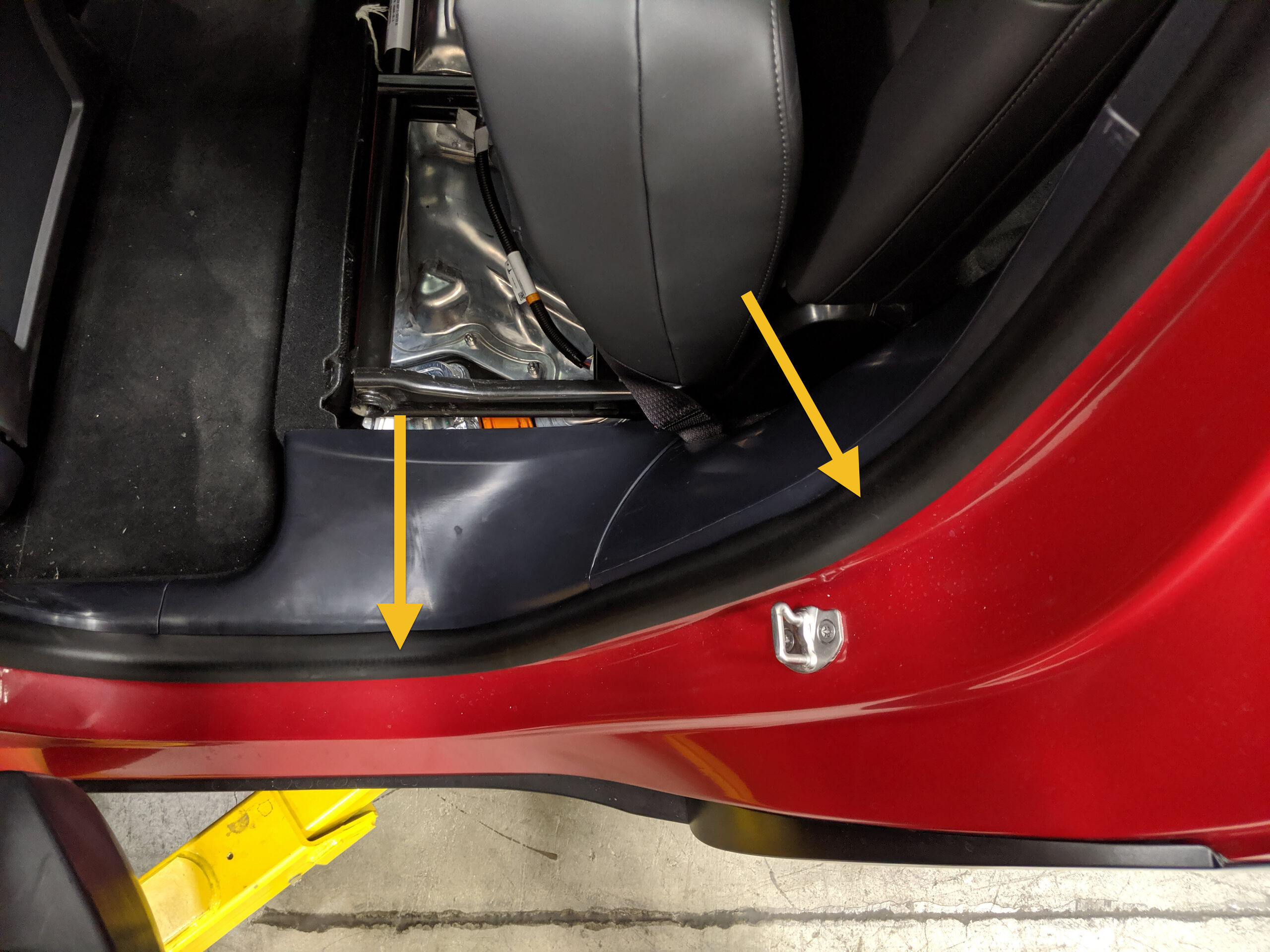

  7. Partially remove LH rear door seal

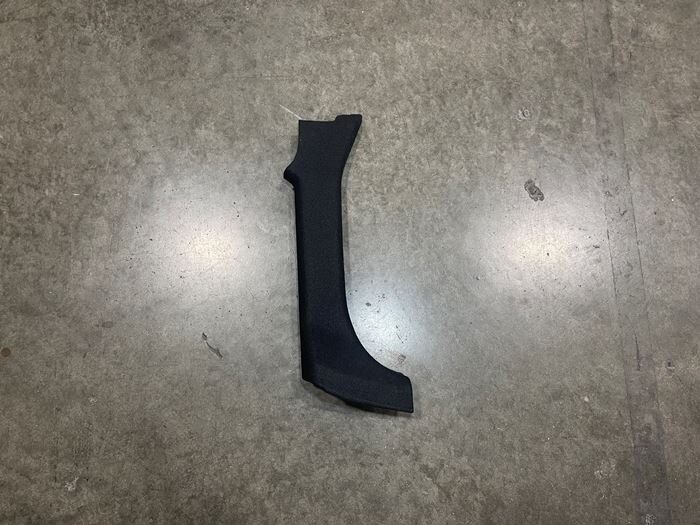

  8. Remove LH 7s lower C-pillar trim
    Informational PurposesAn informational icon, calling your attention

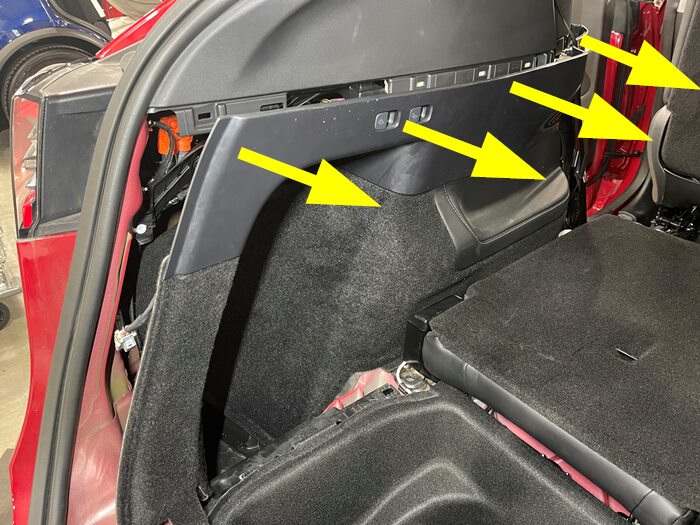

    8x clips, Rear edge secures onto trunk side trim, Release front clips then rear clips
  9. Open liftgate

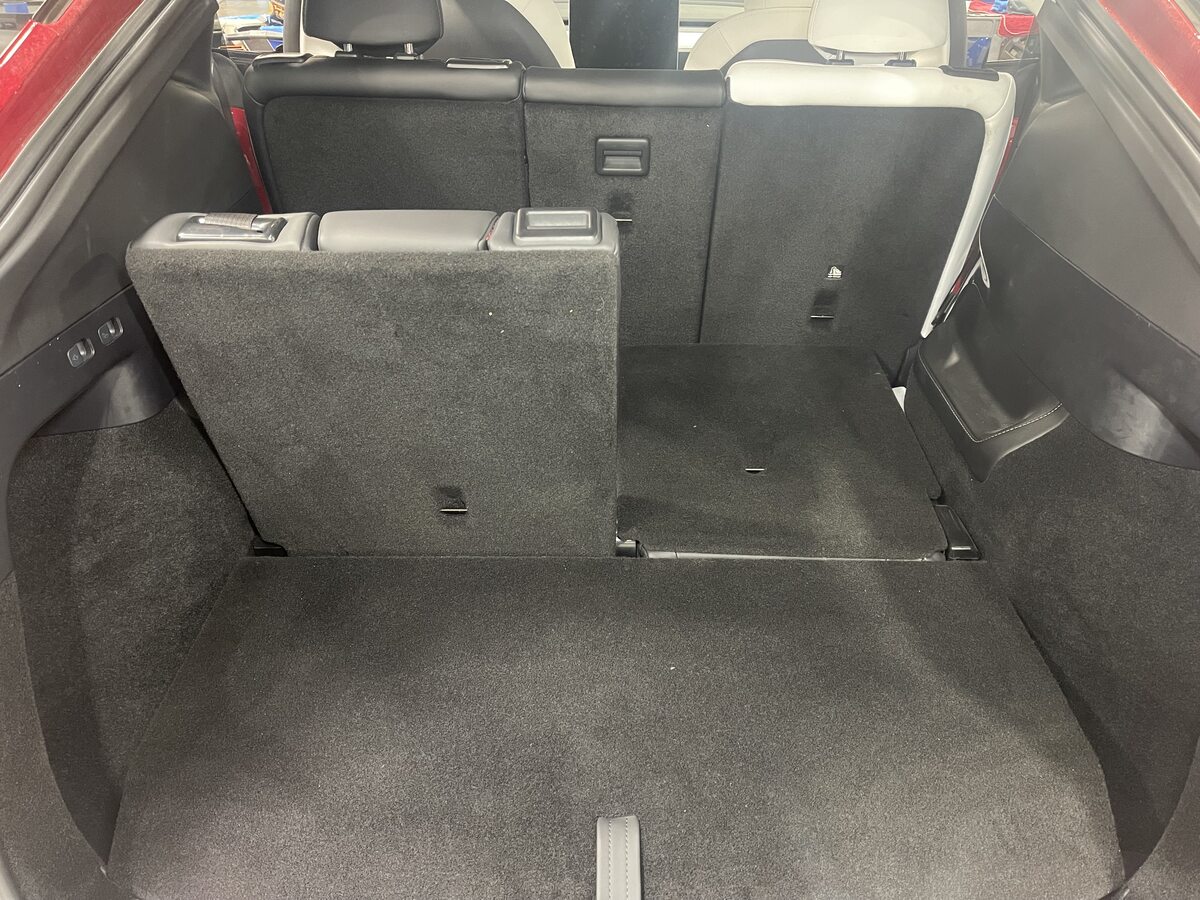

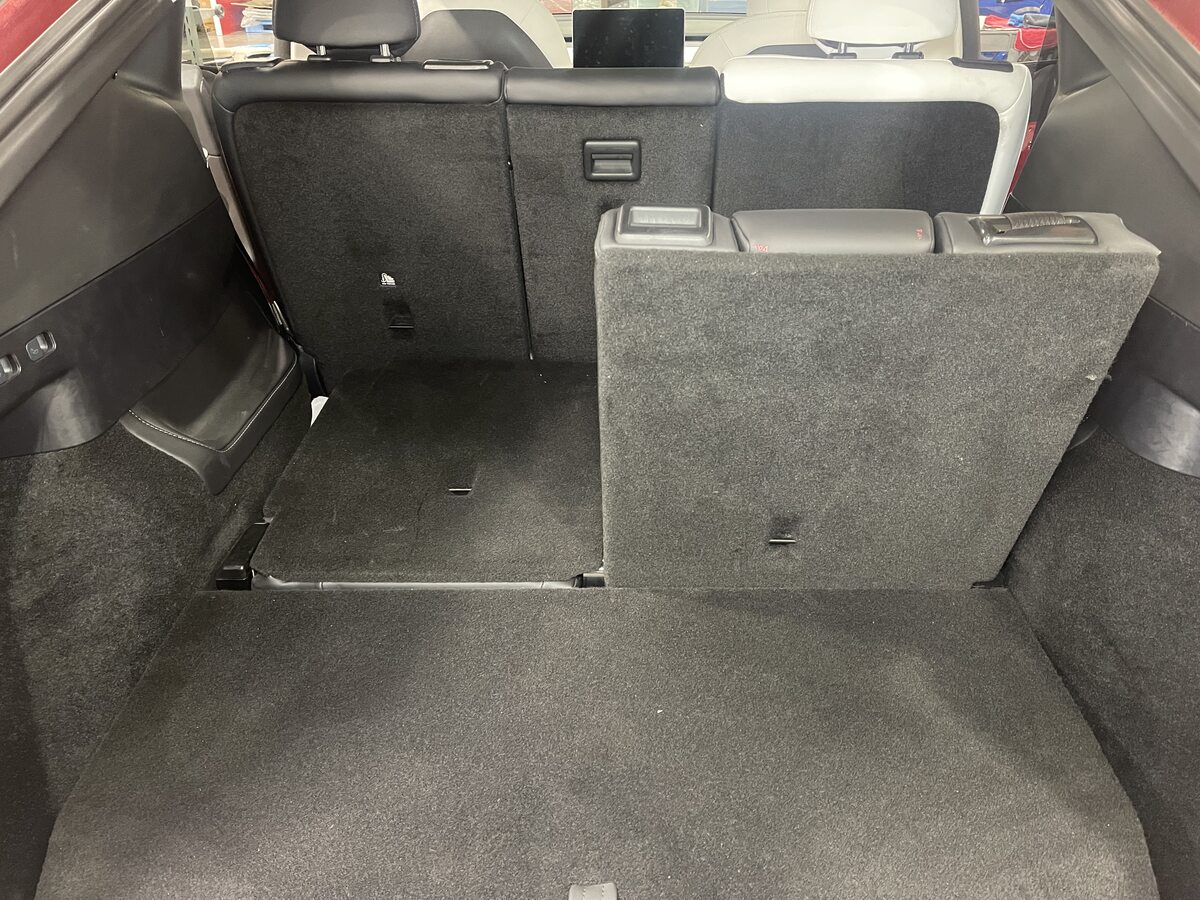

  10. Release 3rd row LH seat backrest
    Informational PurposesAn informational icon, calling your attention

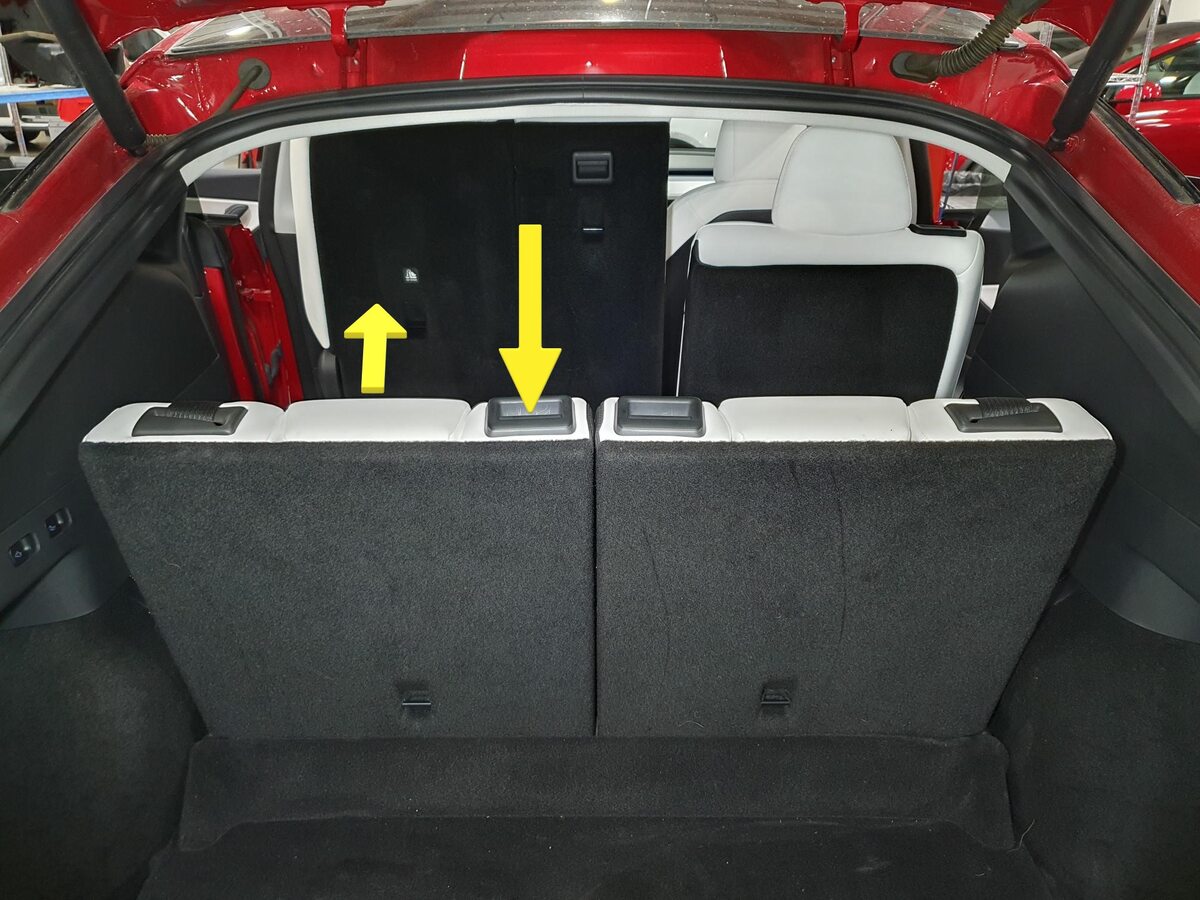

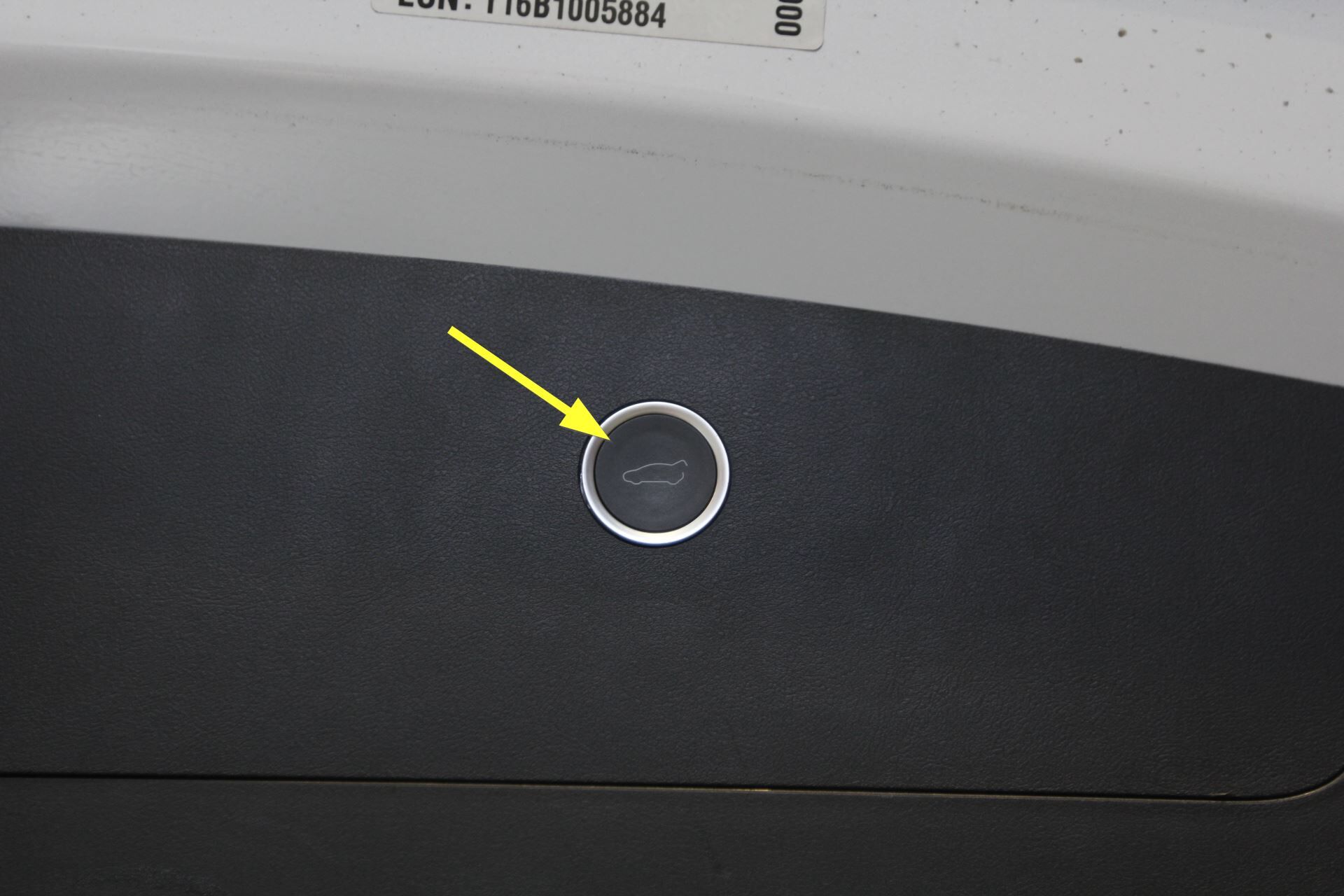

    Front switch at LH trunk trim panel
  11. Release 3rd row RH seat backrest
    Informational PurposesAn informational icon, calling your attention
    Rear switch at LH trunk trim panel

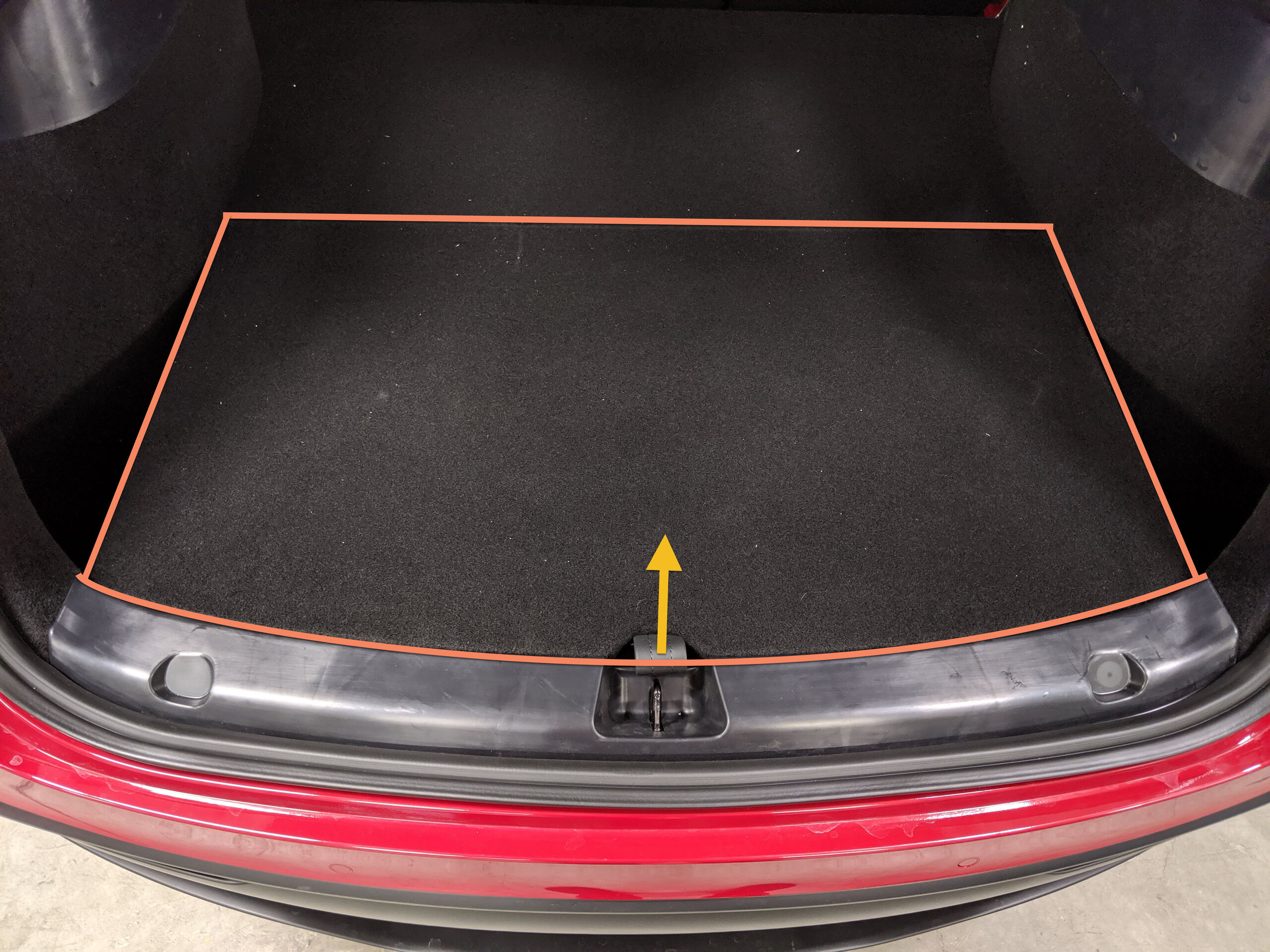

  12. Remove rear load floor

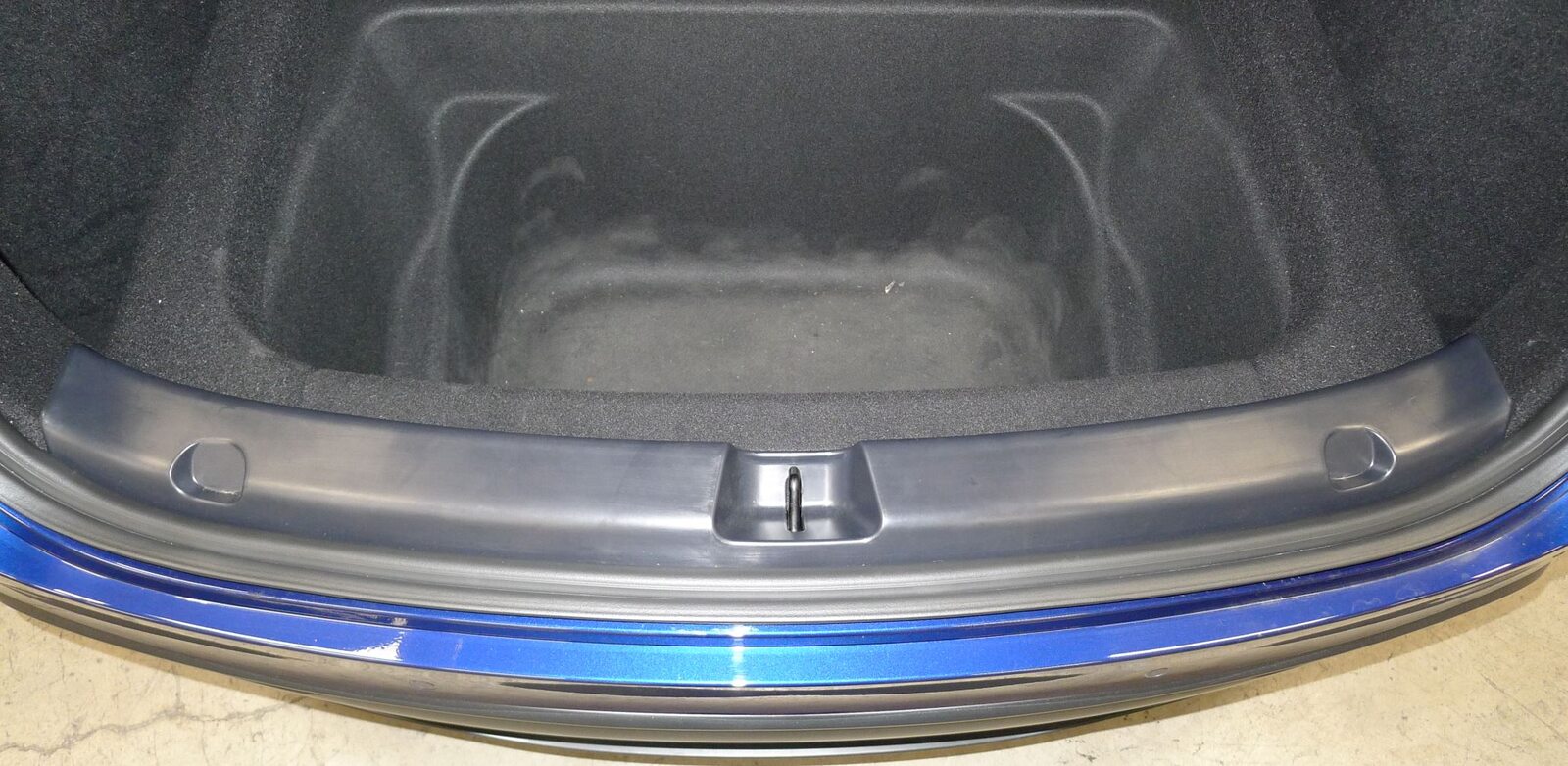

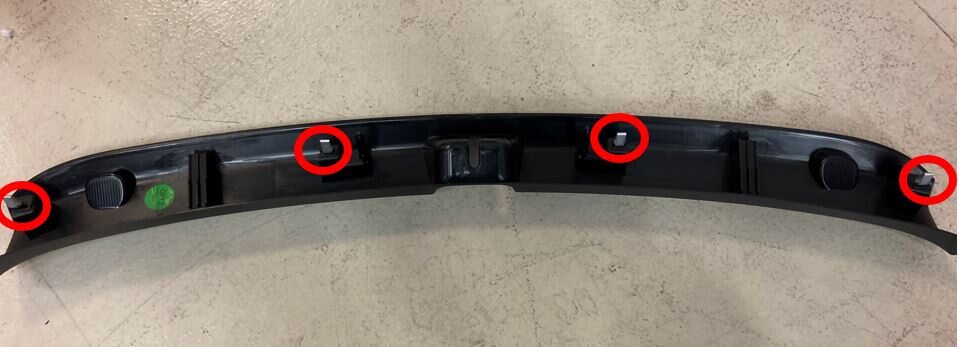

  13. Remove trunk sill trim
    Informational PurposesAn informational icon, calling your attention

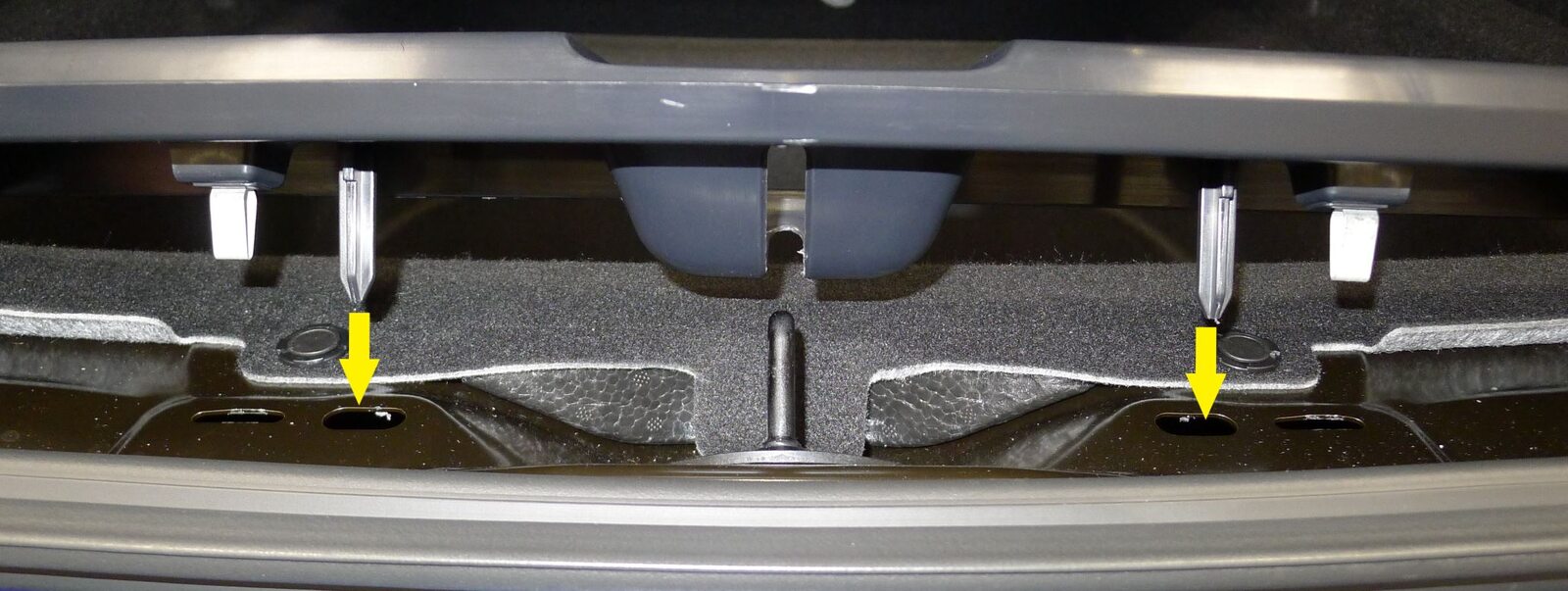

    4x clips

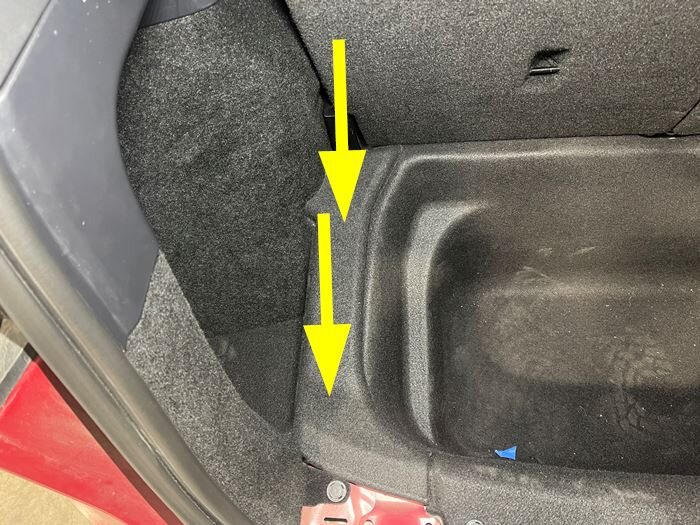

  14. Remove 7s LH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    2x clips

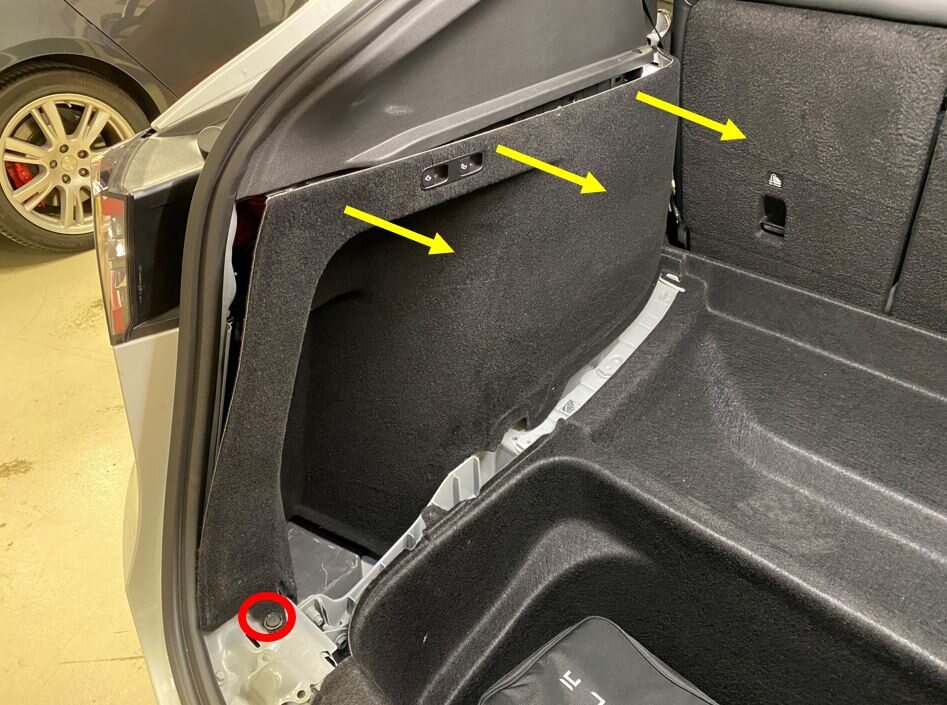

  15. Remove LH trunk side trim
    Informational PurposesAn informational icon, calling your attention

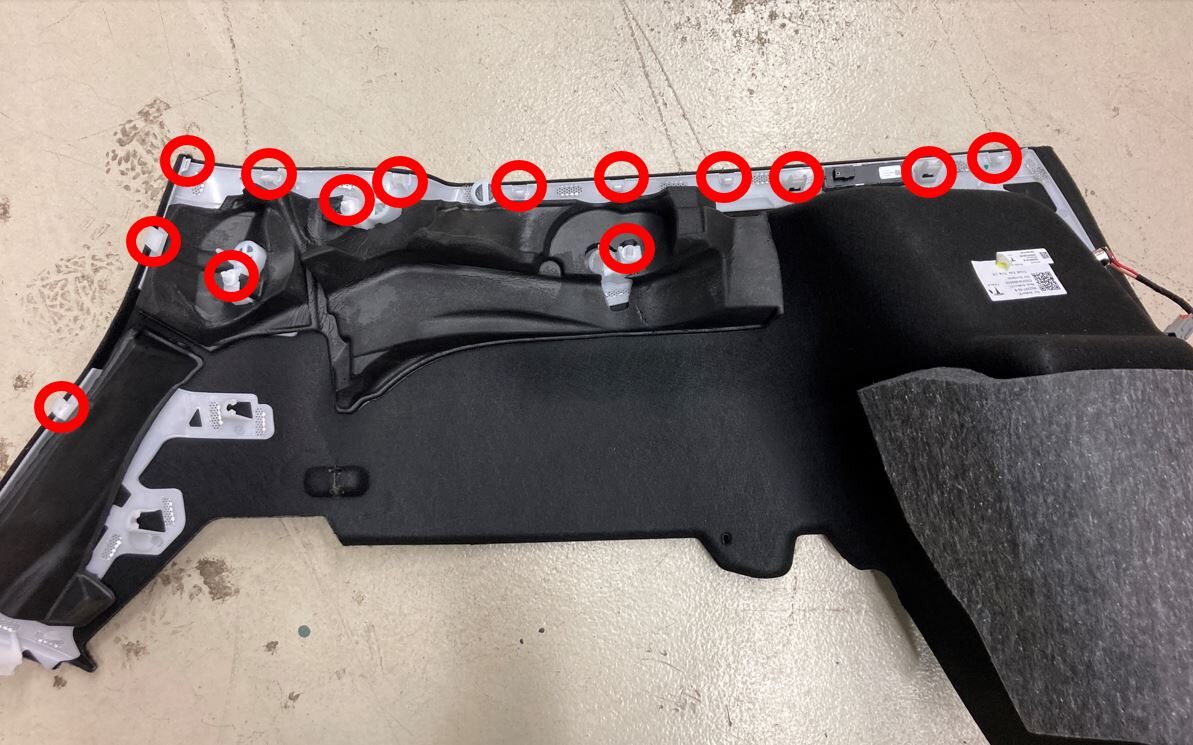

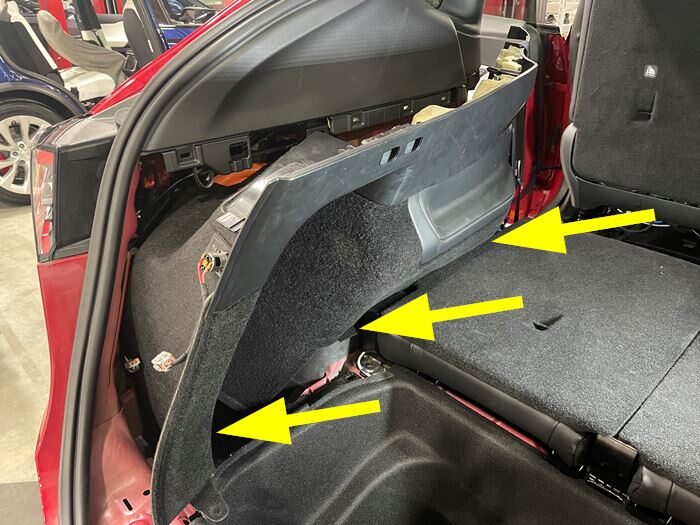

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ, by vehicle build location

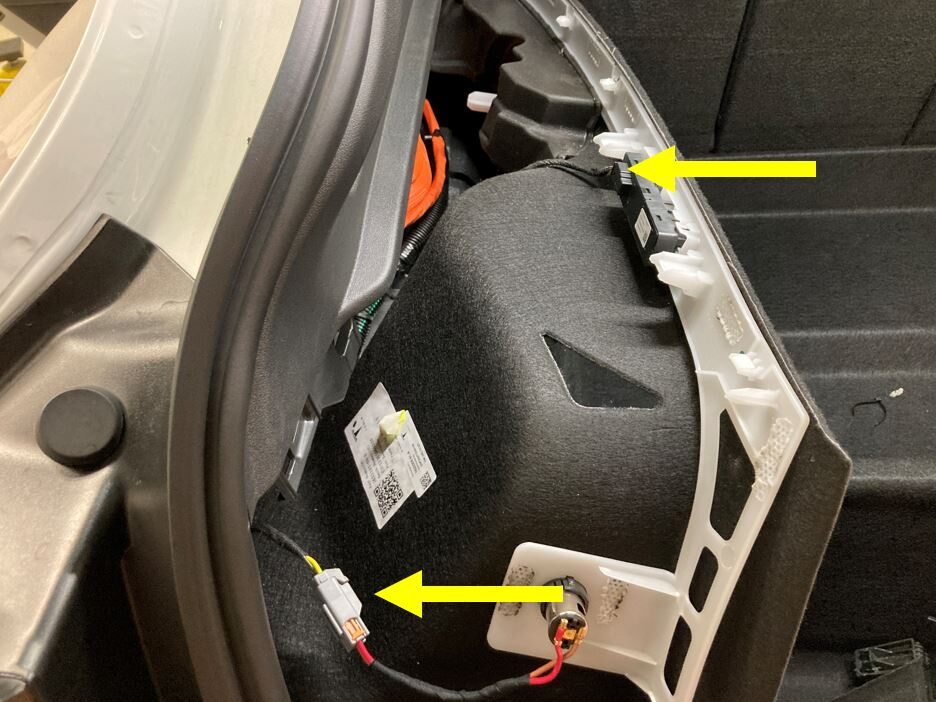

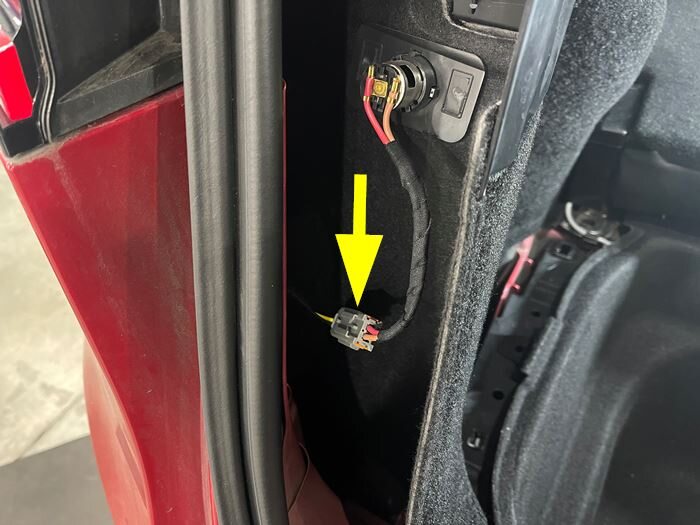

  16. Release top edge of LH 7s trunk side trim and disconnect 12V outlet and trunk switch connectors
    Informational PurposesAn informational icon, calling your attention
    6x clips, 2x connectors
  17. Release remaining clips and remove LH 7s trunk side trim
    Informational PurposesAn informational icon, calling your attention

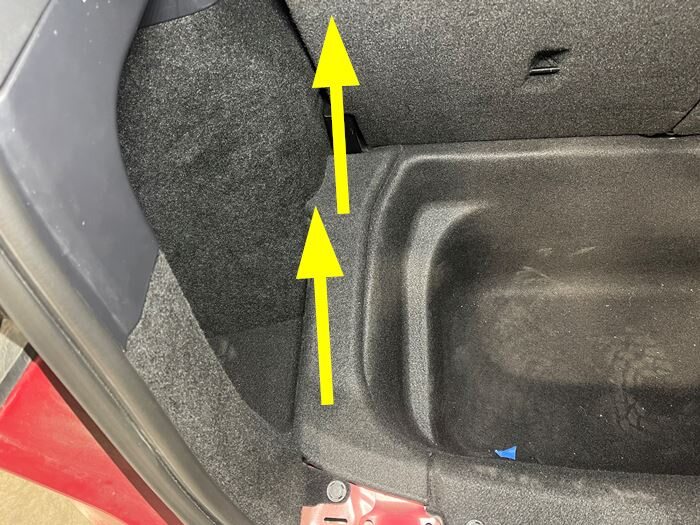

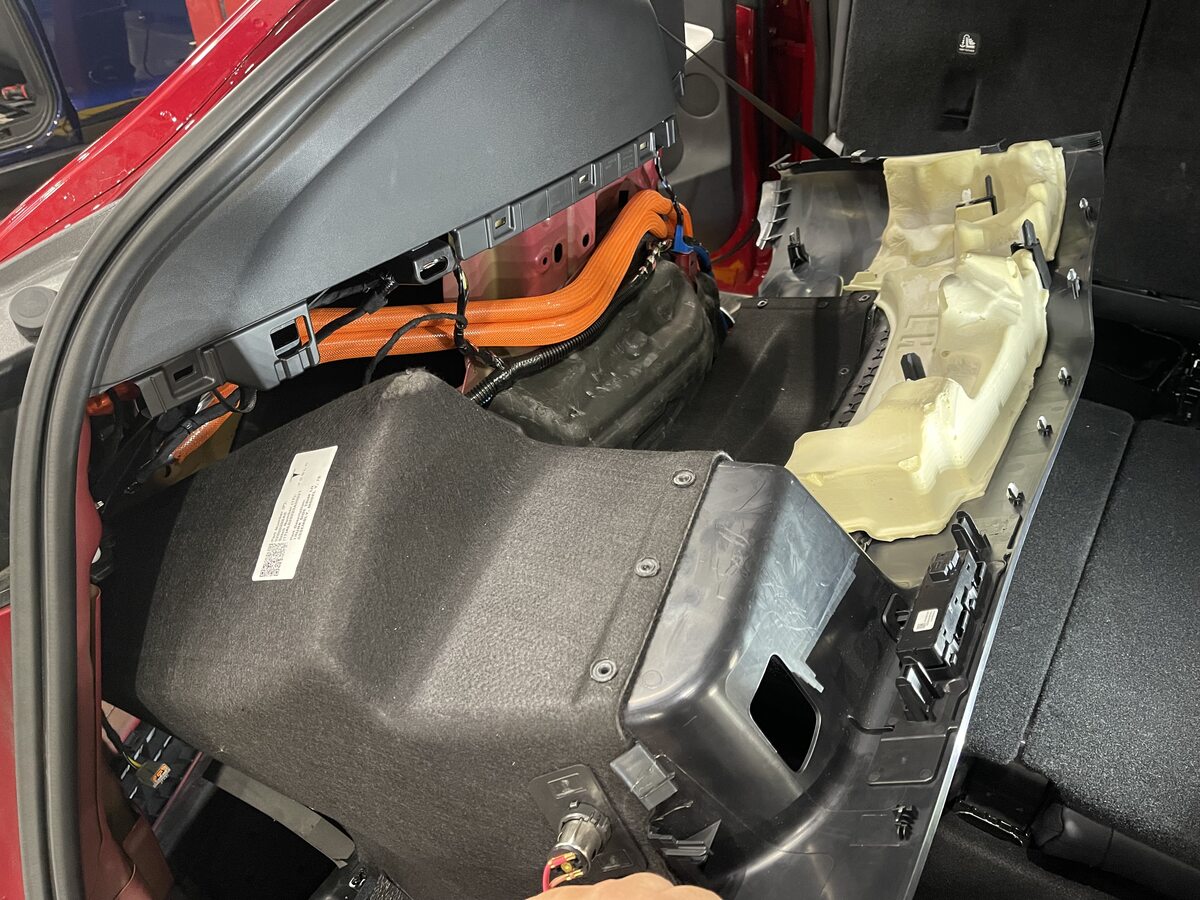

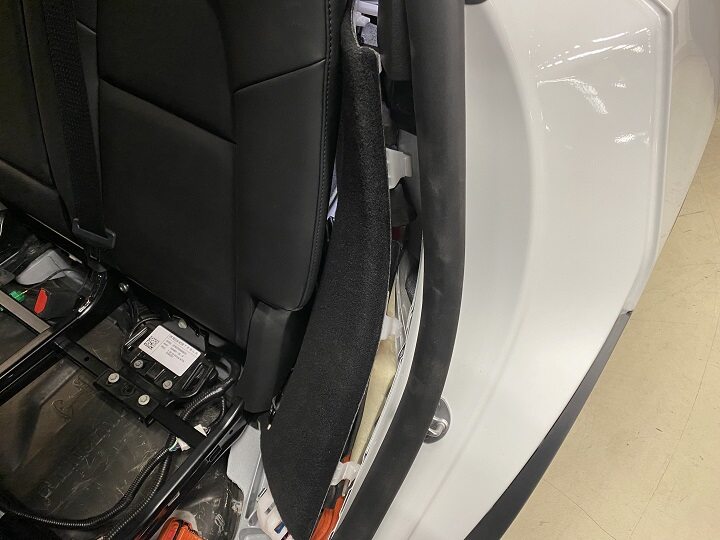

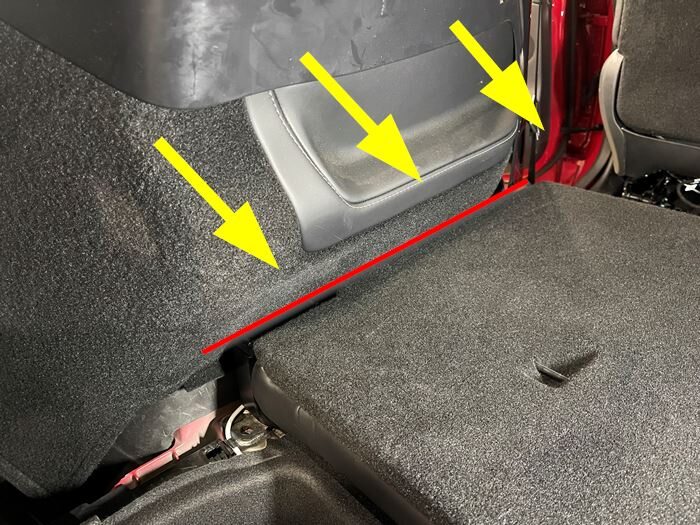

    1x push clip, 5x clips, Guide front clip stanchions around LH C-pillar, Pull the top of the trunk side trim all the way down flat so it clears the edge of the folded down LH 3rd row seatback and pull straight out

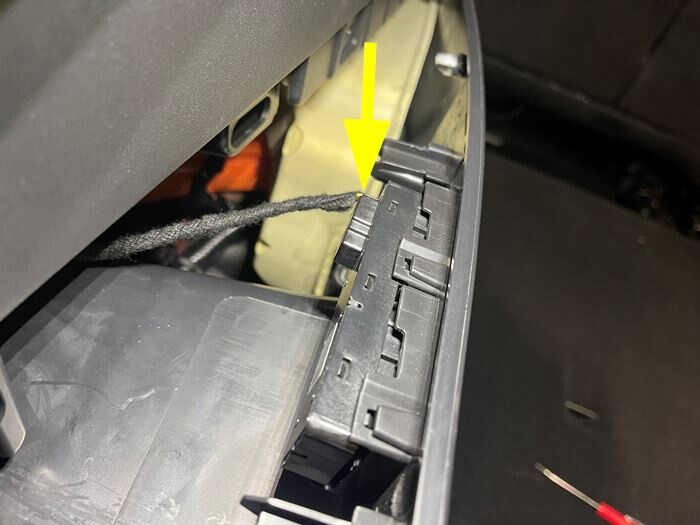

  18. Disconnector ECU connectors.
    Informational PurposesAn informational icon, calling your attention

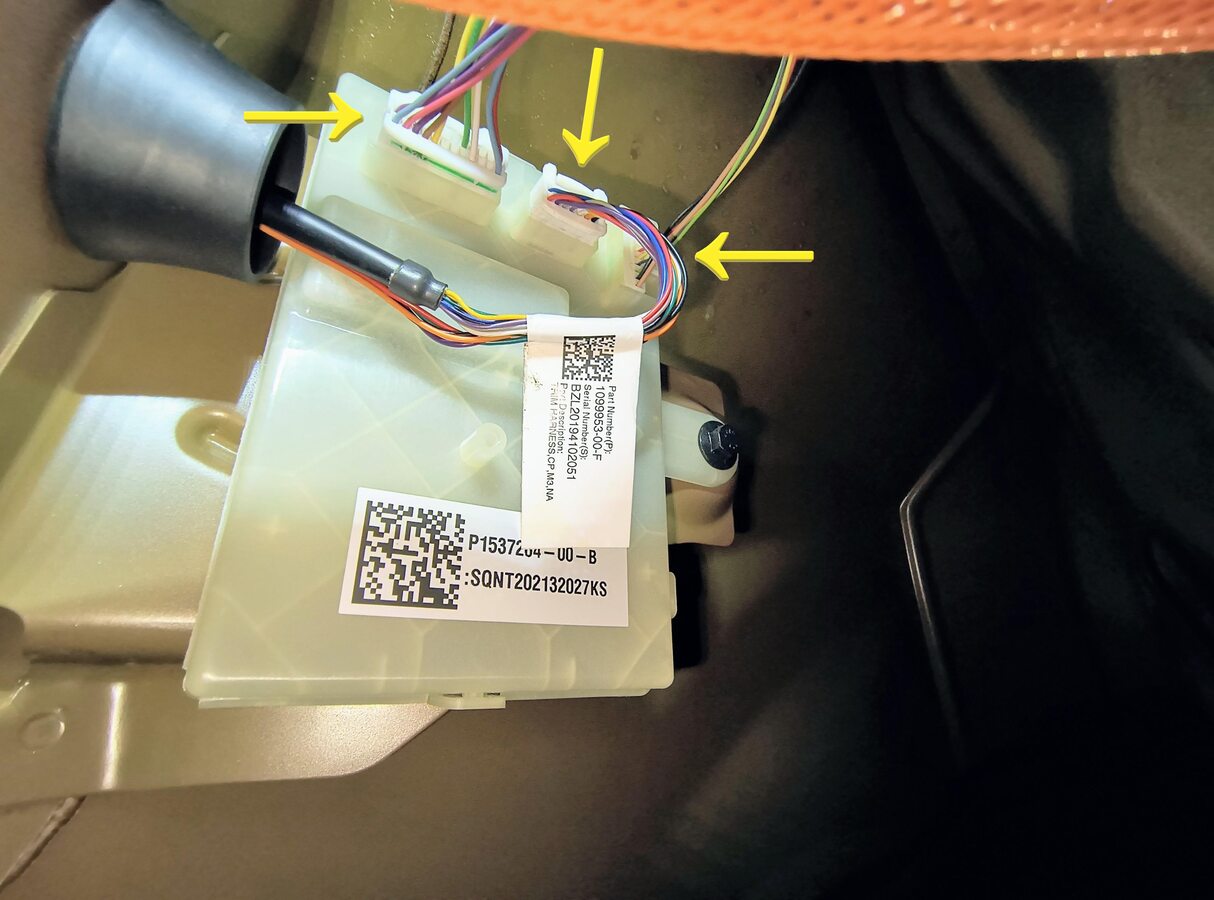

    3x connectors
  19. Remove Charge Port ECU
    Informational PurposesAn informational icon, calling your attention

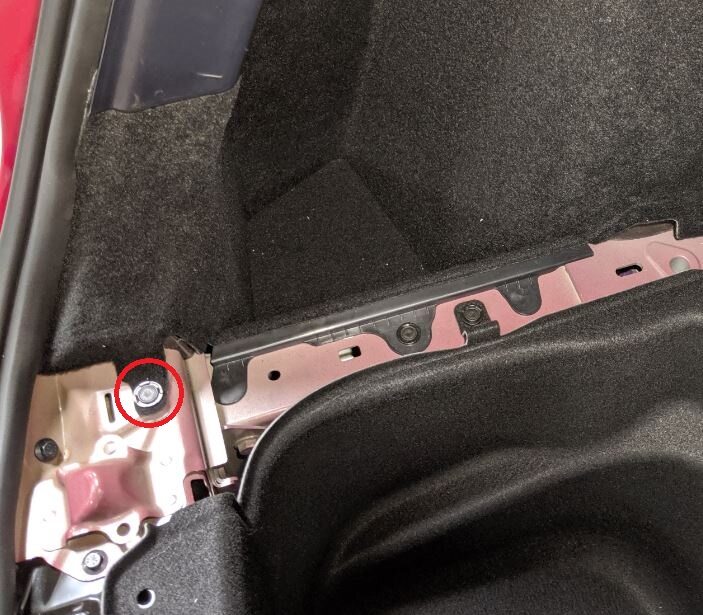

    1x 10mm bolt, slide the Charge Port ECU to the front of the vehicle.
  20. Install Charge Port ECU
    Informational PurposesAn informational icon, calling your attention
    1x 10mm bolt, 3x connectors, slide the Charge Port ECU to the rear of the vehicle
  21. Re-install software via UI
    Informational PurposesAn informational icon, calling your attention

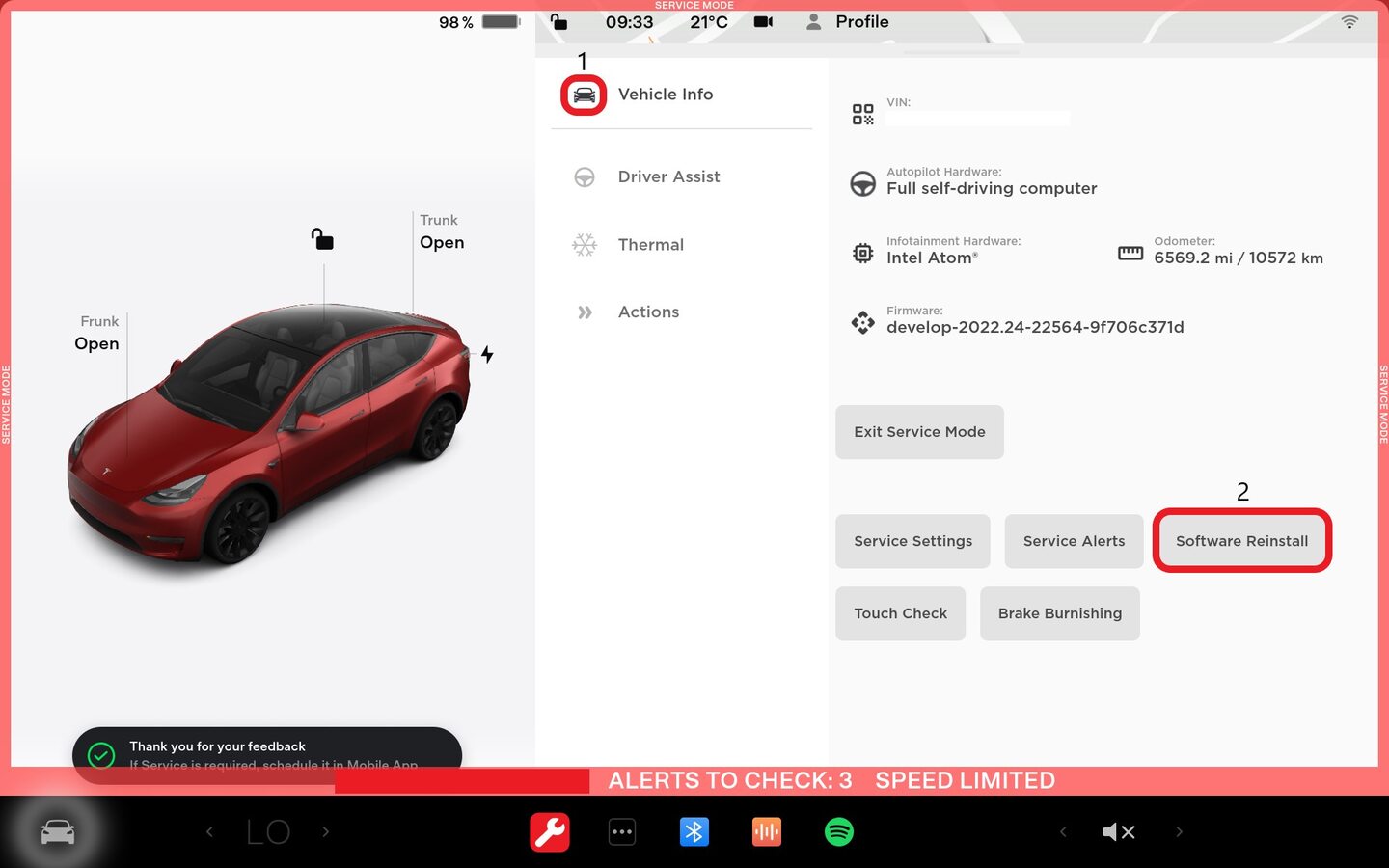

    Via Controls > Service Mode > Software Reinstall

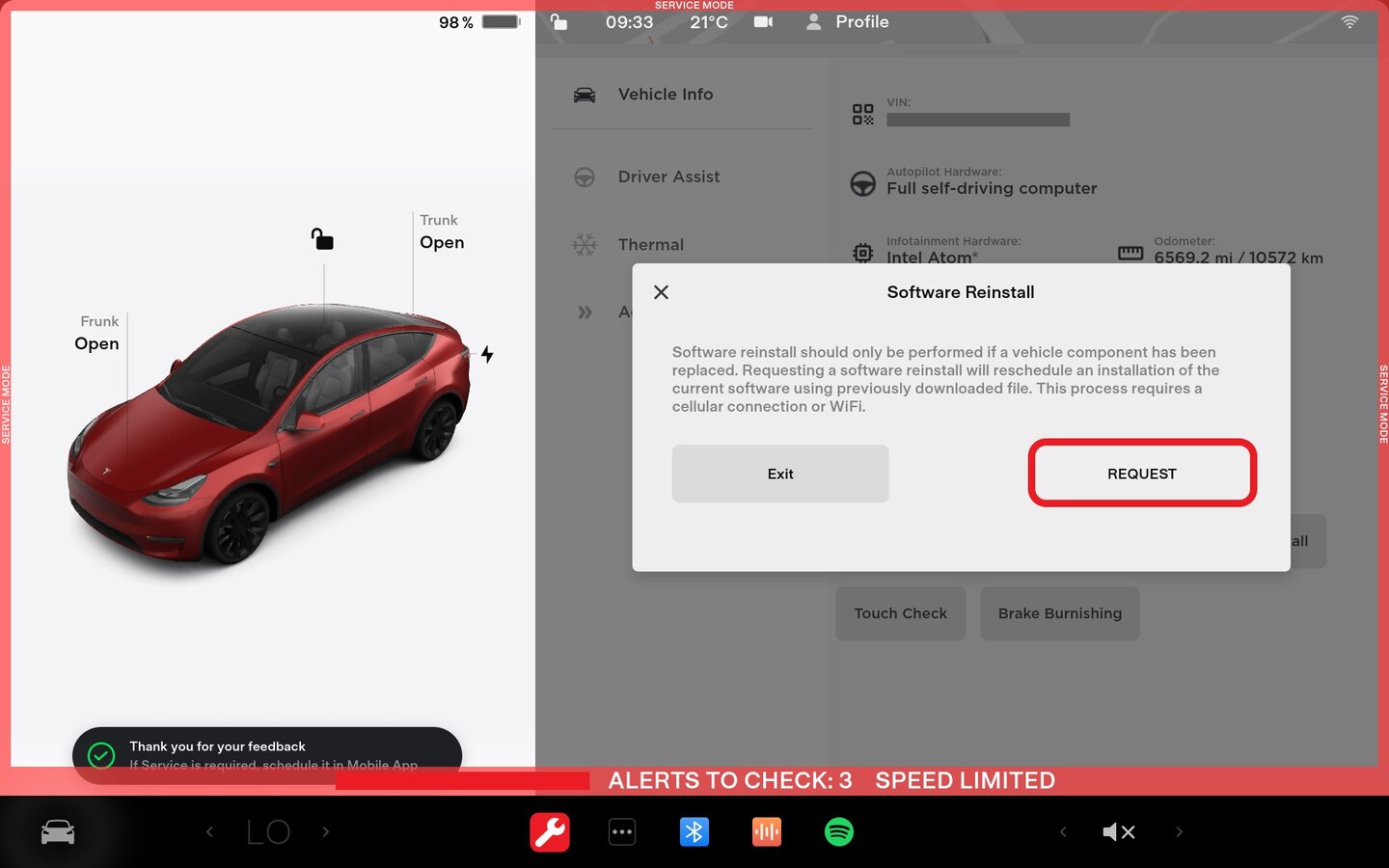

  22. Select "REQUEST" to initiate software installation
    Informational PurposesAn informational icon, calling your attention

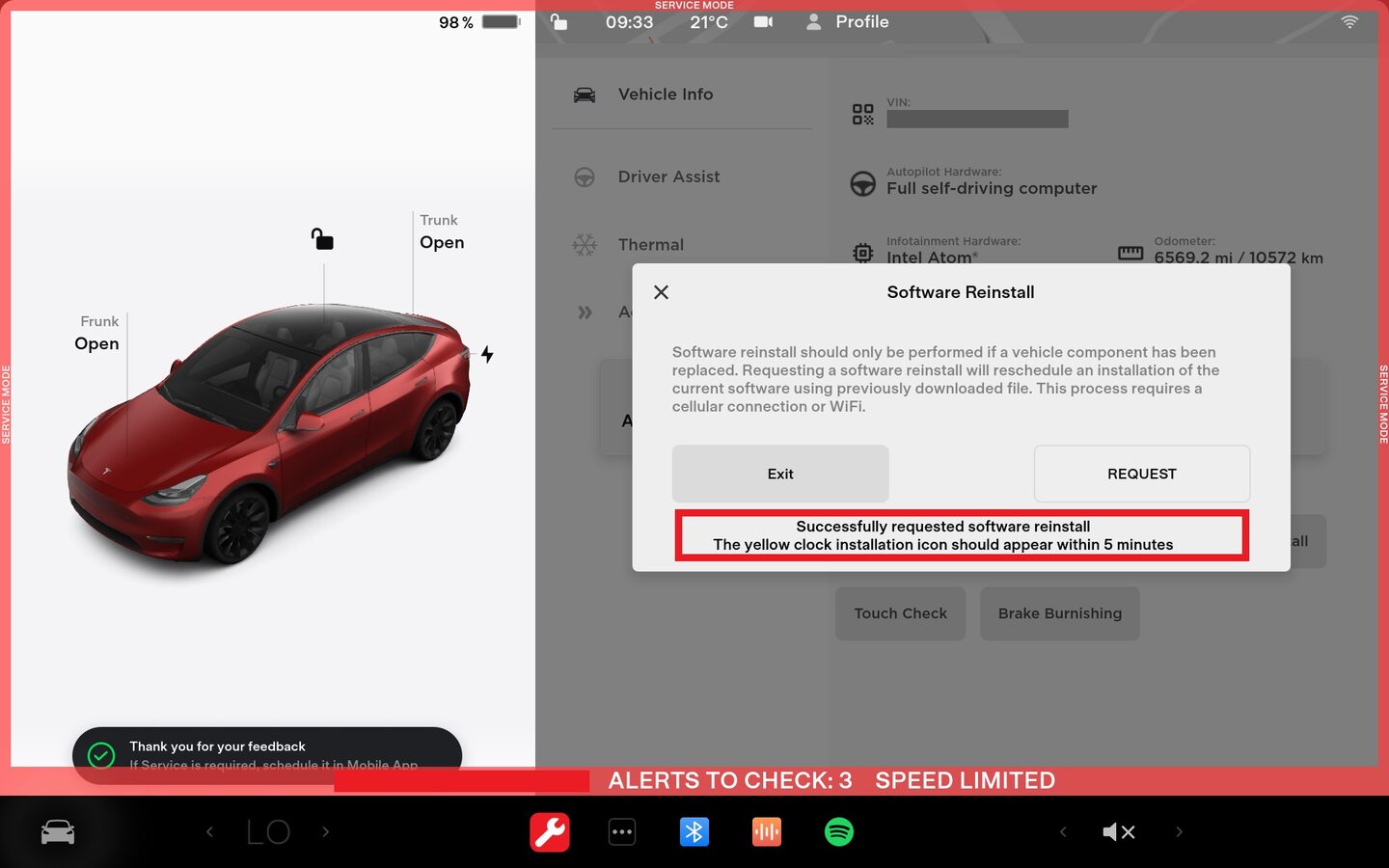

    Vehicle will send a request to Tesla server for the re-installation of the current firmware, Read instructions on the UI then select request if you meet the criteria, Vehicles with software version before 2022.20.7 will require internet connectivity to request the software job from the server
  23. Position LH 7s trunk side trim and install lower clips
    Informational PurposesAn informational icon, calling your attention

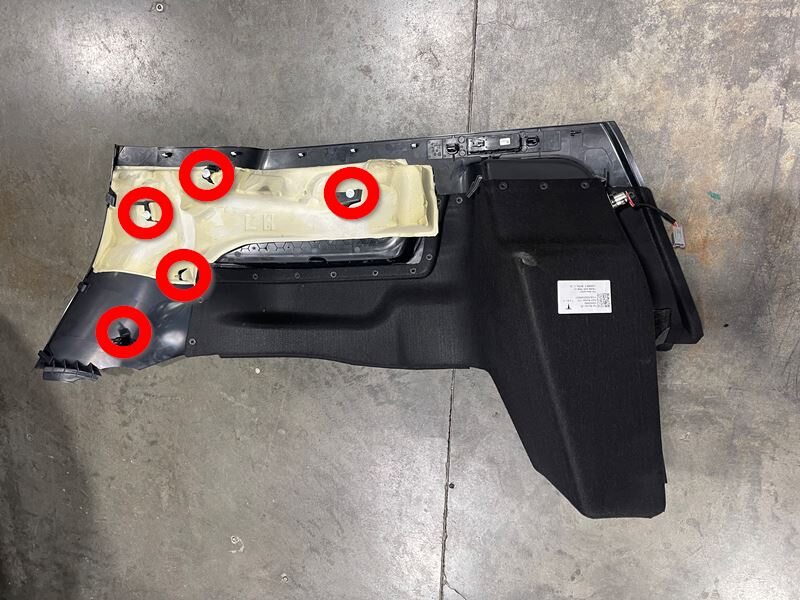

    1x push clips, 5x clips, Start by tucking the lower portion of the trunk side trim around the edge of the 3rd row LH backrest so it slides in and seats properly, Guide front clip stanchions around LH C-pillar
  24. Connect 12V outlet and trunk switch connectors then install top edge of LH 7s trunk side trim
    Informational PurposesAn informational icon, calling your attention
    6x clips, 2x connectors

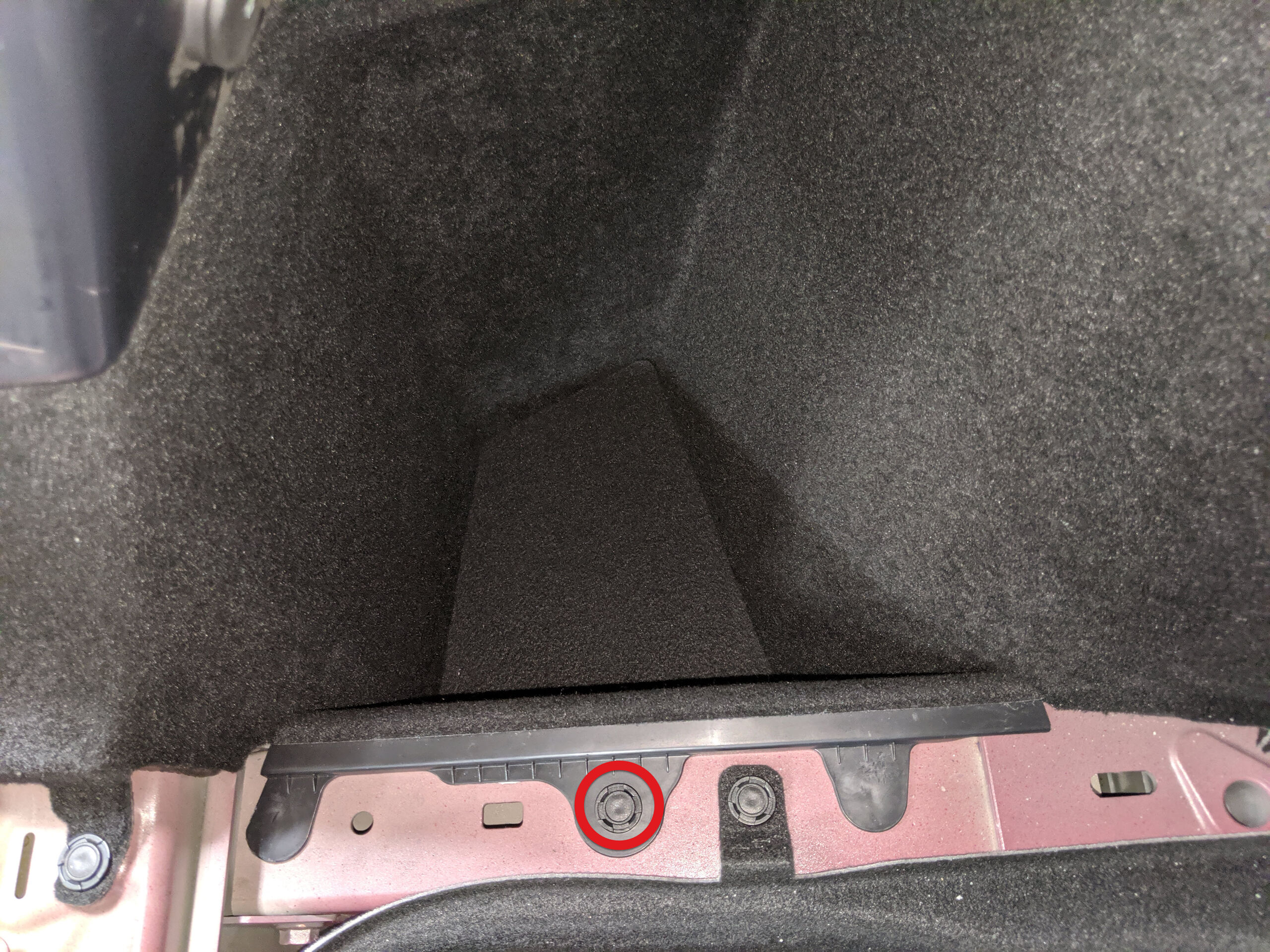

  25. Install LH trunk pocket bracket
    Informational PurposesAn informational icon, calling your attention
    1x push clip, 5x alignment tabs
  26. Install 7s LH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    2x clips

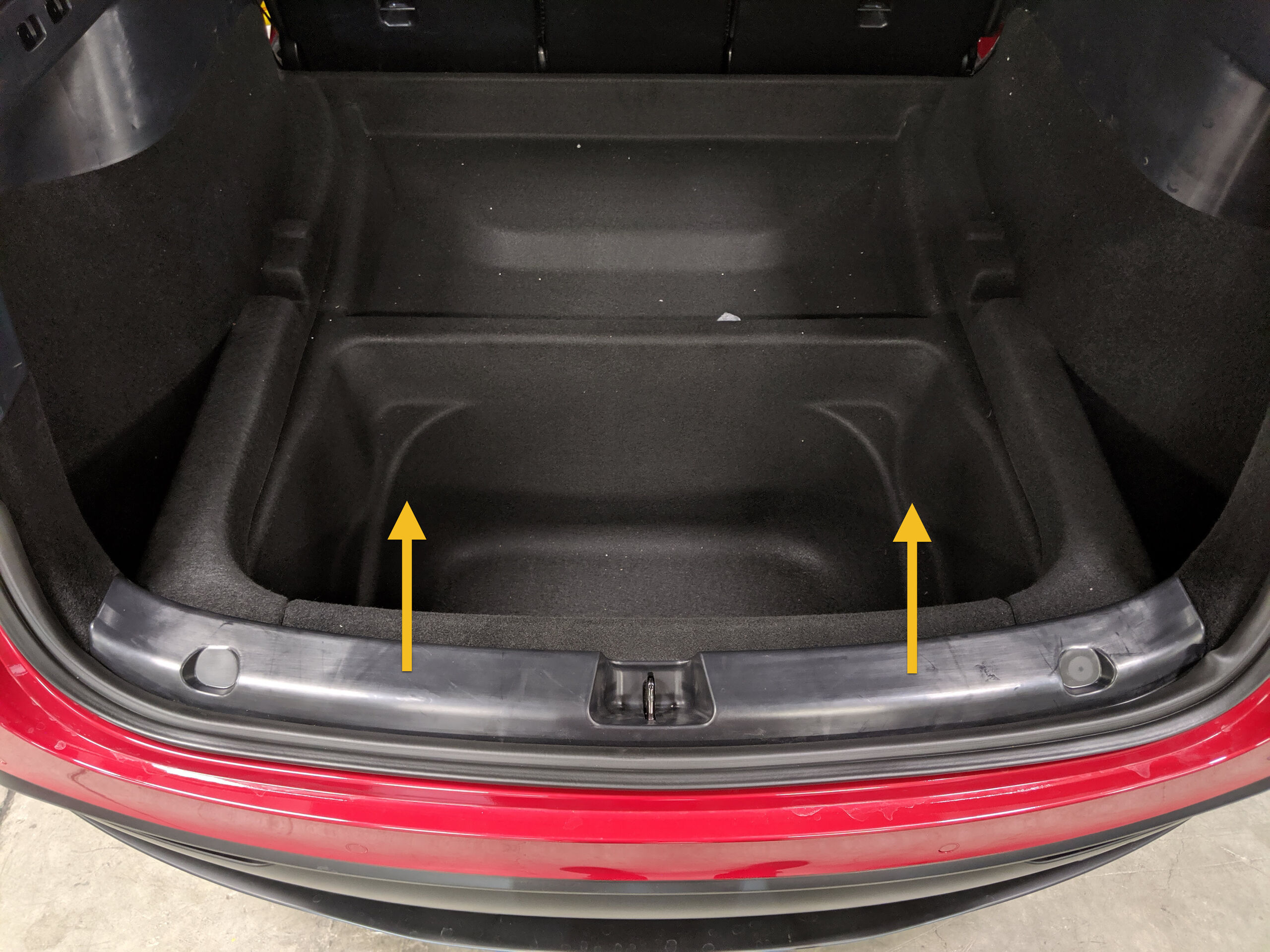

  27. Install trunk sill trim
    Informational PurposesAn informational icon, calling your attention
    4x clips, Seat seal around edge of trim
  28. Install rear load floor
  29. Raise 3rd row RH seat backrest to its original position
    Informational PurposesAn informational icon, calling your attention
    Manually raise backrest up to its original position until it locks into place
  30. Raise 3rd row LH seat backrest to its original position
    Informational PurposesAn informational icon, calling your attention
    Manually raise backrest up to its original position until it locks into place
  31. Close liftgate
  32. Install LH 7s lower C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    8x clips, Rear edge is secures onto trunk side trim, Secure rear clips then front clips
  33. Reseat LH rear door seal
    Informational PurposesAn informational icon, calling your attention
    Seat pillar and sill trim tabs underneath seal
  34. Position 7s 2nd row 60 seat back to its original position
    Informational PurposesAn informational icon, calling your attention
    Tilt 2nd row 60 seat down, Press LH shoulder switch and slide back into original position
  35. Close LH rear door

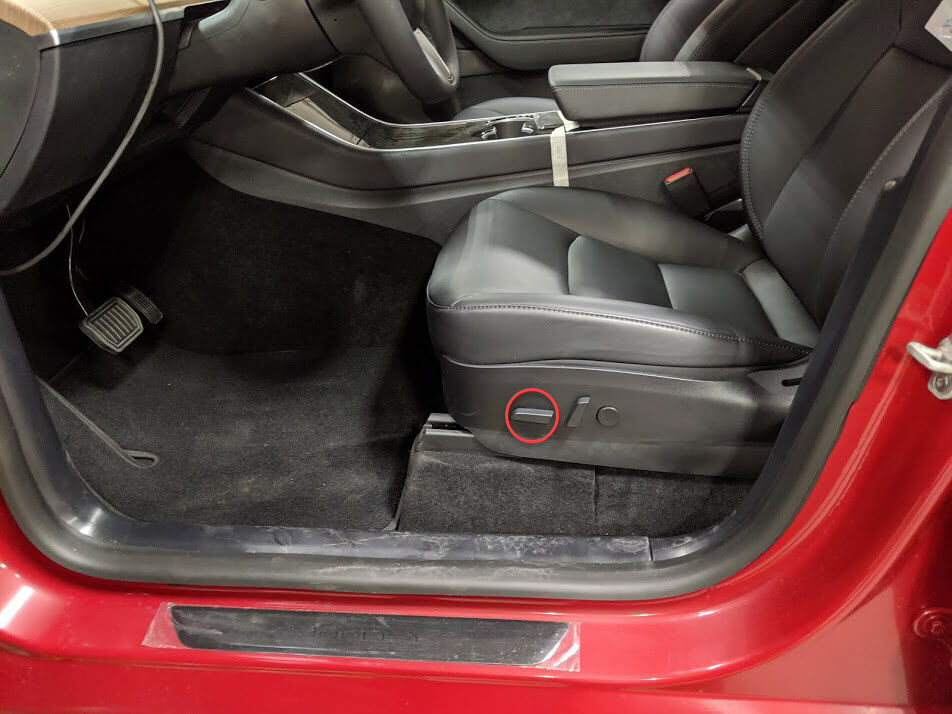

  36. Move LH front seat to original position
  37. Verify operation of charging system
    Informational PurposesAn informational icon, calling your attention
    Use customer's charging equipment if available, Ensure all charging adapters are present
  38. Raise all four windows
  39. Close the LH front door.
