Radio Tuner FM/DAB (Remove and Replace)
Correction code
2130010502
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2026-09-21: Added the steps to disconnect and connect the LV power.
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolts (x2) that attach the tuner to the body |
 8 Nm (5.9 lbs-ft) |
|
Reuse |
Remove
- Remove the liftgate upper trim. See Liftgate Upper Trim (Remove and Replace).
- Disconnect the LV power. See LV Power (Disconnect and Connect) (Modify).
-

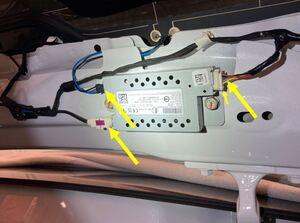

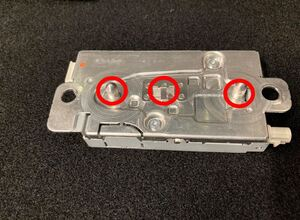

Disconnect the electrical connectors (x3) from the tuner.
-

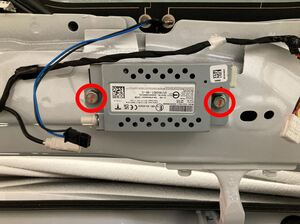

Remove the bolts (x2) that attach the tuner to the body, and then remove
the tuner from the vehicle.
TipUse of the following tool(s) is recommended:
- 10 mm deep socket
Install
-
Position the tuner to the vehicle, and then install the bolts (x2) that
attach the tuner to the body.8 Nm (5.9 lbs-ft)TipUse of the following tool(s) is recommended:
- 10 mm deep socket
-
Connect the electrical connectors (x3) to the tuner.
- Connect the LV power. See LV Power (Disconnect and Connect) (Modify).
- Install the liftgate upper trim. See Liftgate Upper Trim (Remove and Replace).
