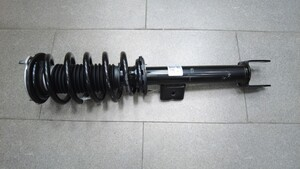

Damper Assembly - Front - LH (RWD) (Remove and Replace)

Correction code 3115010502 FRT 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-08: Added steps to remove/install LH wiper bracket pencil brace.
  • 2025-06-09: Removed steps for removing/installing the upper control arm from/to knuckle; added notes to press the knuckle down appropriately to ensure sufficient space to remove/install the damper.
CAUTION
If performing this procedure as a result of a collision, see the Collision Repair Manual to verify whether the steering gear must be replaced as well.

Torque Specifications

Table 1. Torque Specifications: Damper Assembly - Front - LH (RWD) (Remove and Replace) and Damper Coil - Dual Motor - Front - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the LH brace to the vehicle
18.8 Nm (13.9 lbs-ft)
  • 10 mm socket
 Reuse
Bolt and nut that attach the LH front lower lateral link to the strut
106 Nm (78.2 lbs-ft)
  • 21 mm socket
Reuse
Nut that attaches the front stabilizer bar end link to the LH front strut
98 Nm (72.3 lbs-ft)
  • 18 mm socket
  • Torx T40 socket
Replace 1111543-00-A
Nuts (x3) that attach the front upper control arm mount to the LH front spring and damper assembly
23 Nm (17.0 lbs-ft)
  • 13 mm socket
Reuse
Bolt and nut that attach the LH front upper control arm to the knuckle
56 Nm (41.3 lbs-ft)
  • 15 mm socket
  • Torx T50 socket
Nut: Replace; Bolt: Reuse 1111145-00-A

Remove

  1. Inspect the vehicle for abnormal tire wear that might indicate the need for a wheel alignment. Note any findings.
  2. Raise and support the vehicle. See Raise Vehicle - 2-Post Lift.
  3. Remove the HEPA filter. See HEPA Filter Assembly (Remove and Replace).
  4. Remove the LH wiper bracket pencil brace. See Pencil Brace - Wiper Bracket - LH (Remove and Replace).
  5. Remove the LH front wheel. See Wheel Assembly (Remove and Install).

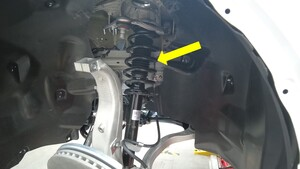

  6. Remove and discard the nut that attaches the front stabilizer bar end link to the LH front strut and separate the end link from the strut.
    Note
    Counter-hold the ball joint while loosening the nut.
    Tip
    If needed, use a pry bar to release the end link.
    Tip
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Torx T40 socket
  7. Remove the bolt and nut that attach the LH front lower lateral link to the strut.
    Tip
    Use of the following tool(s) is recommended:
    • 21 mm socket
  8. Remove the nuts (x3) that attach the LH front damper assembly to the LH front upper control arm mount.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  9. Remove the damper assembly from the vehicle.
    Note
    Press the knuckle down appropriately to ensure sufficient space for removing the damper.

Install

  1. Maneuver the damper assembly into place.
    Note
    Press the knuckle down appropriately to ensure sufficient space for installing the damper.
  2. Install the nuts (x3) that attach the LH front damper assembly to the LH front upper control arm mount.
    23 Nm (17.0 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  3. Hand tighten the bolt and nut that attach the LH strut to the LH front lower lateral link.
  4. Position the front stabilizer end link onto the LH front strut, and then install a new nut that attaches the front stabilizer end link to the LH front strut.
    98 Nm (72.3 lbs-ft)
    Note
    Counter-hold the ball joint while torquing the nut.
    Tip
    If needed, use a pry bar to help position the end link.
    Tip
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Torx T40 socket
  5. Install the hub jack adapter onto the LH front hub and hand-tighten the lug nuts (x5).
  6. Position and raise the underhoist stand to simulate the suspension at ride height.
  7. Measure the distance between the bottom of the fender and the center of the front axle to make sure that the front suspension is set to ride height. The distance should measure 461 mm.
  8. Tighten the bolt and nut that attach the LH front lower lateral link to the strut.
    106 Nm (78.2 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 21 mm socket
  9. Remove the underhoist stand from underneath the LH front suspension.
  10. Remove the lug nuts (x5) that attach the hub jack adapter, and then remove the hub jack adapter from the vehicle.
  11. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  12. Install the LH wiper bracket pencil brace. See Pencil Brace - Wiper Bracket - LH (Remove and Replace).
  13. Install the HEPA filter. See HEPA Filter Assembly (Remove and Replace).
  14. Remove the vehicle from the lift. See Raise Vehicle - 2-Post Lift.
  15. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
