Wiper Arm And Blade - Driver (Remove and Replace)

Correction code 1750020102 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:
  • 1058696-00-B - Wiper Arm Removal Tool

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the hood.

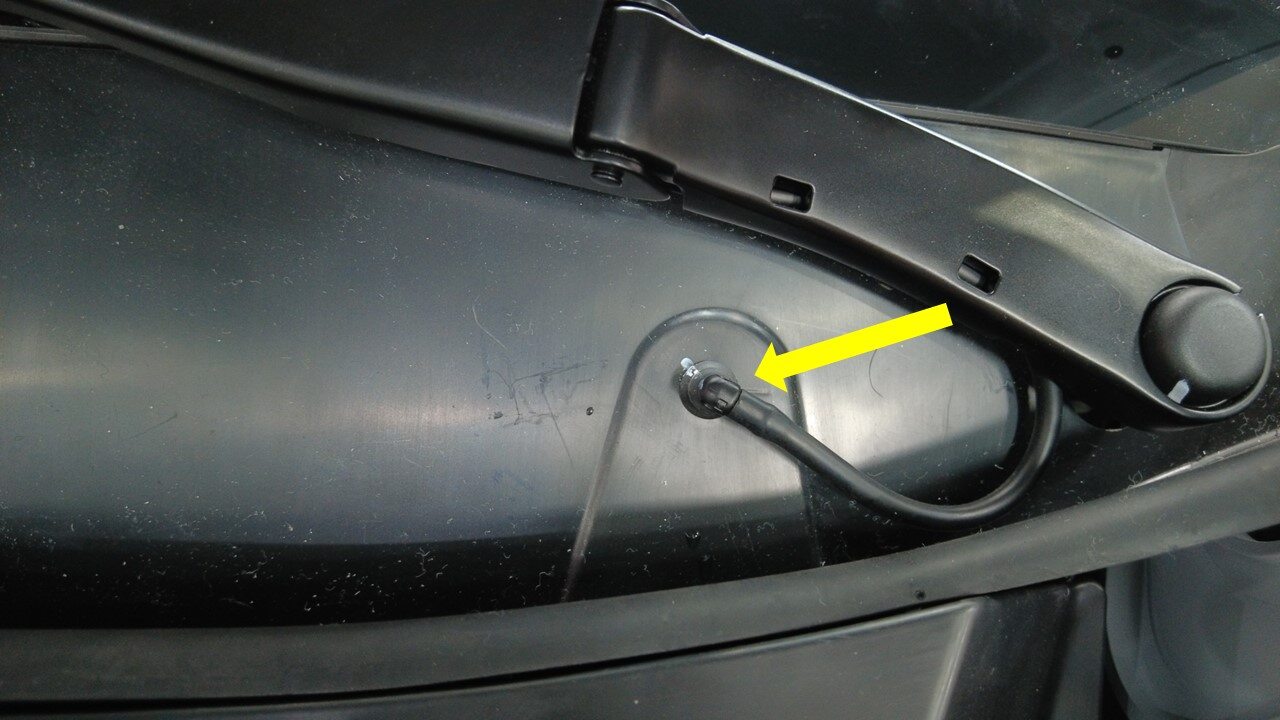

  3. Release the LH wiper arm hose nozzle.

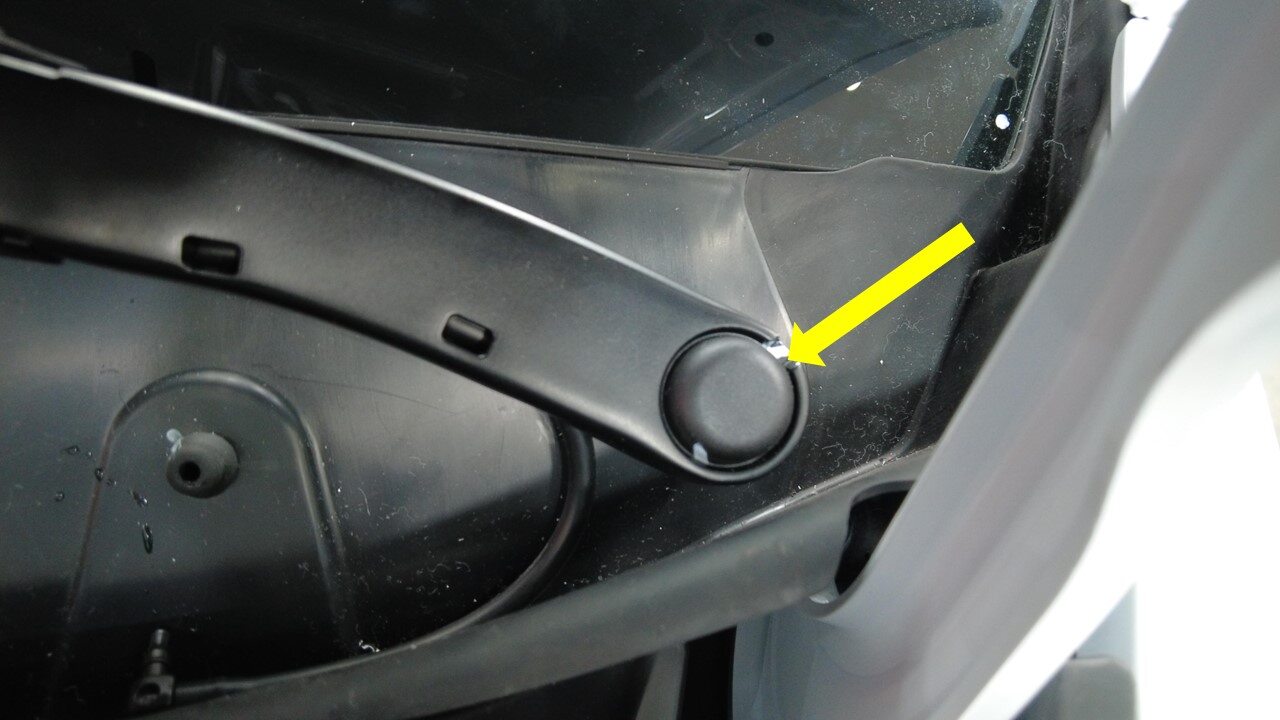

  4. Remove the LH wiper arm nut cover.

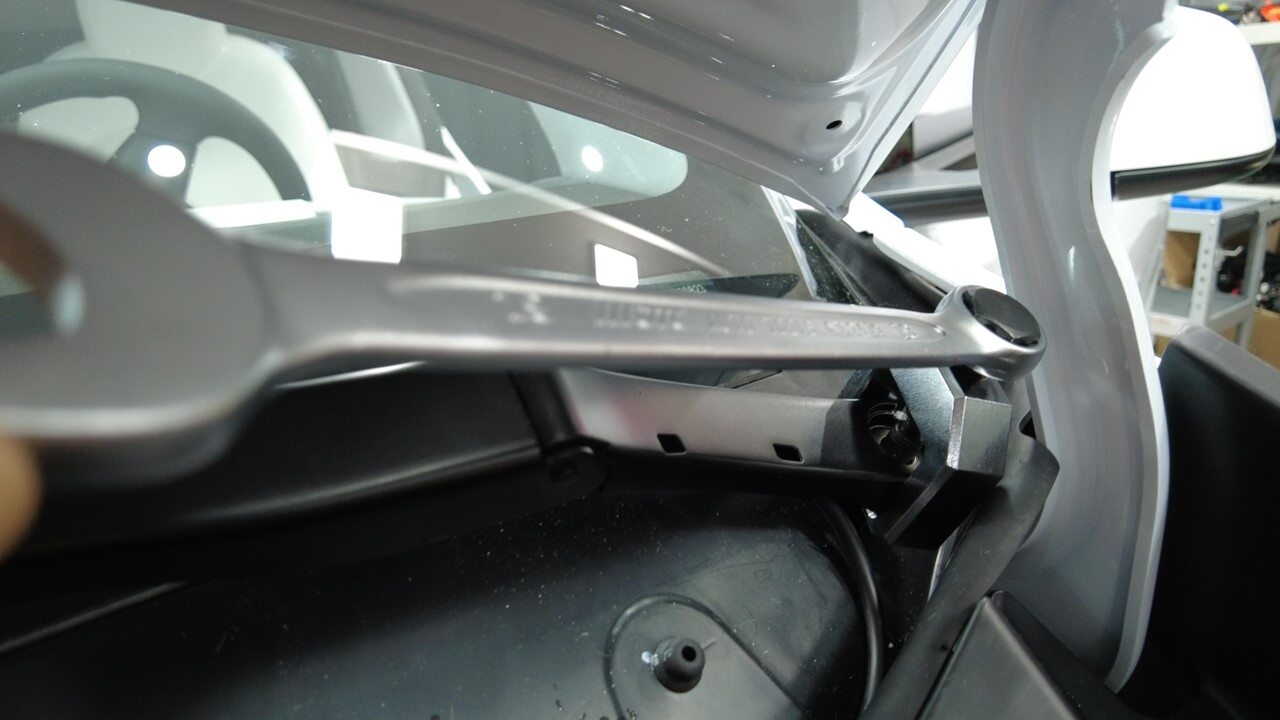

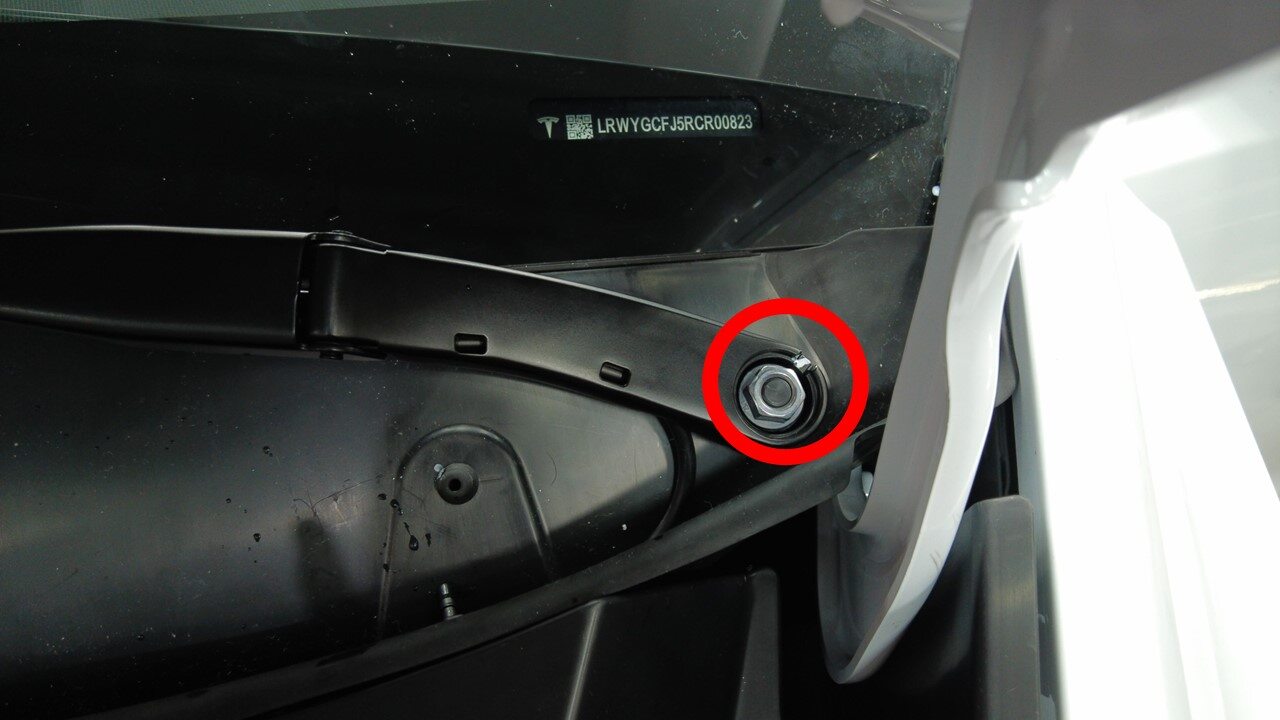

  5. Remove the LH wiper arm nut.
    Tip
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • Cordless Ratchet/Impact Driver
    • Ratchet/torque wrench

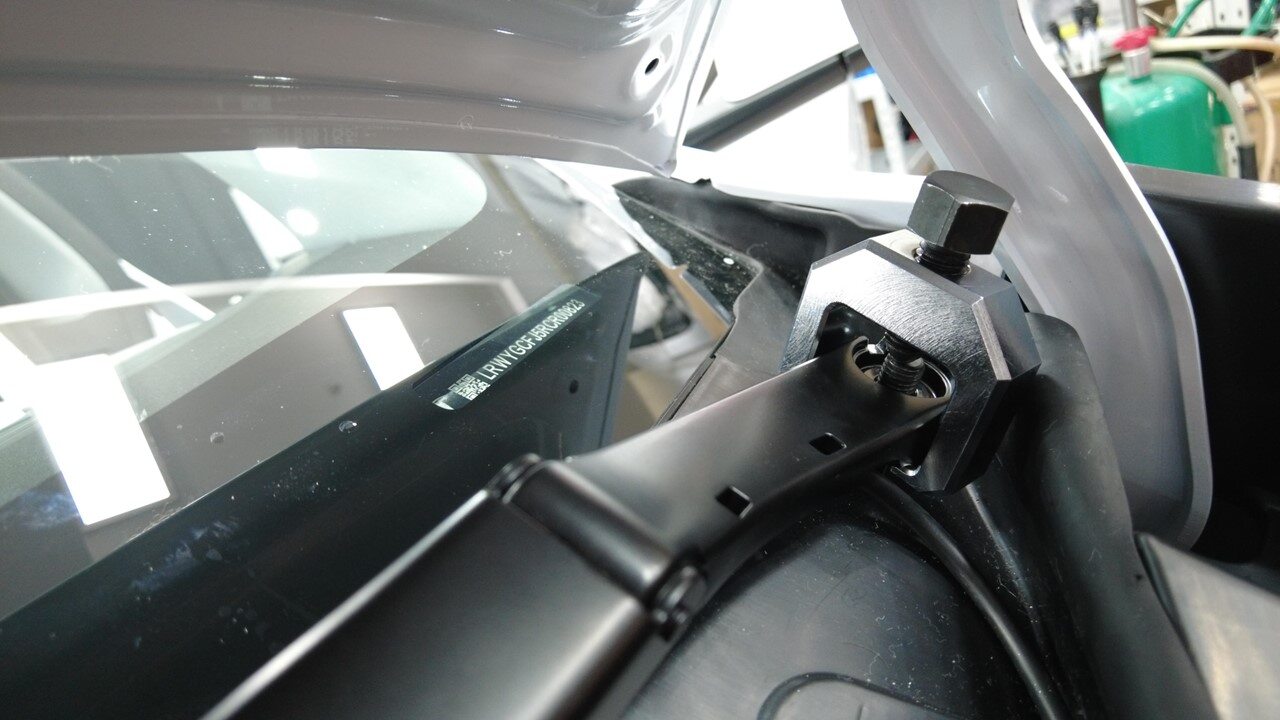

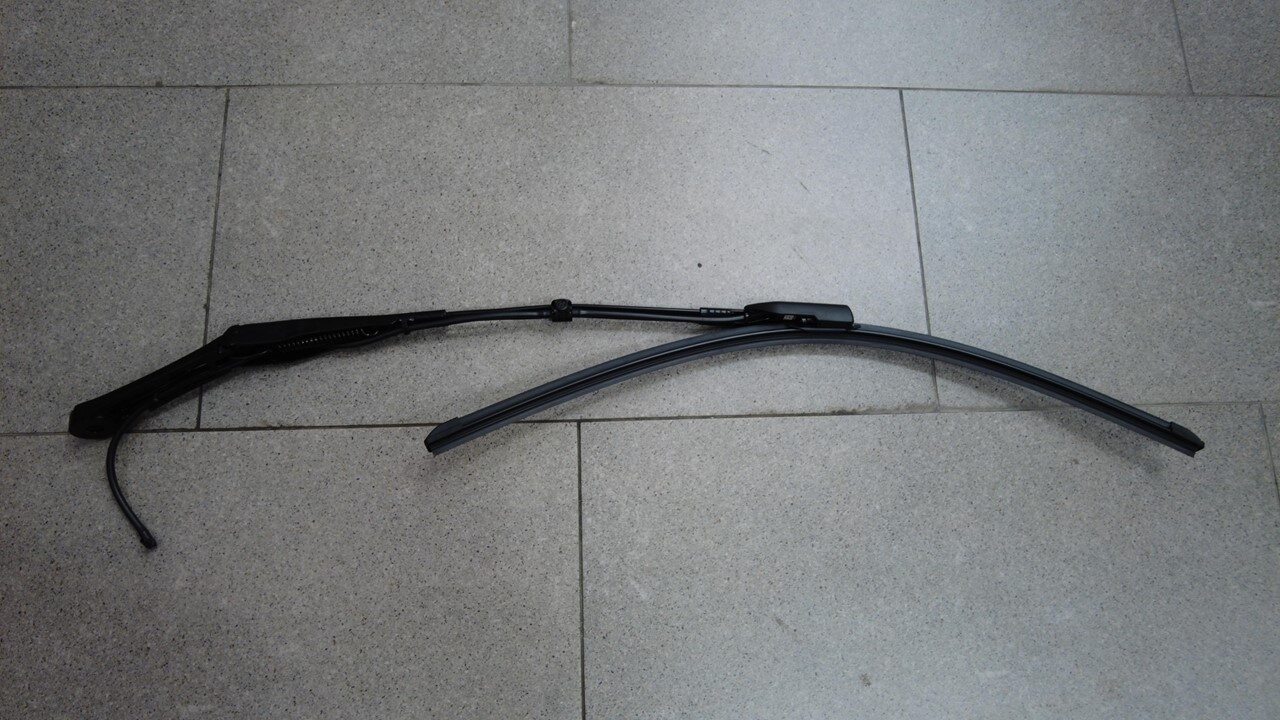

  6. Use the wiper arm removal tool (1058696-00-B) to remove the LH wiper arm and blade assembly from the vehicle.

Install

  1. Position the LH wiper arm and blade assembly onto the vehicle. Make sure the wiper tip is aligned between the two indicators at corner of windshield.
  2. Install the LH wiper arm nut.
    25 Nm (18.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • Cordless Ratchet/Impact Driver
    • Ratchet/torque wrench
  3. Install the LH wiper arm nut cover.
  4. Install the LH wiper arm hose nozzle.
    Note
    Make sure to route the hose below the LH wiper arm.
  5. Close the hood.
  6. Raise the LH front window and close the LH front door.
