Platter Enclosure Coolant Drain (Model Y L) (Test/Adjust)

Correction code 16100100300 FRT 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:
  • 1132185-00-E - KIT, COOLANT LEAK TEST ADAPTERS
  • 1065131-00-A - KIT, BATTERY COOLANT DRAIN & FILL
  • 1143980-00-A - GLASSES, ANTI-SCRATCH LENS
  • 1050448-00-B - Vacuum Refill Tool
  • 1135762-00-A - KIT, SVC PLUG, COOLING HOSE, MODEL 3
  • 1053600-00-D - Pressure Test Fixture
  • 1133843-00-C - KIT, COOLANT DRAIN & FILL ADAPTERS, M3
  • 1132185-00-B - Coolant Leak Test Adapter Kit
  • 1080568-00-A - OIL COOLANT CATCHER

Procedure

  1. Place the vehicle on the 2-post lift.
    Tip
    Ensure the vehicle is not charging.
  2. Open the LH front door and lower the LH front window.
  3. Place the vehicle in Service Mode by using the touchscreen. See Service Mode.
  4. Unlock the vehicle gateway. See Gateway (Unlock).
  5. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Actions > Start Thermal Fill/Drain, enter "1" for coolant fill and "0" for refrigerant fill, then click Run, and allow the routine to complete.
  6. Disconnect the LV battery power. See LV Power (Disconnect and Connect) (Modify).
  7. Remove the air intake duct. See Duct - Air Intake (Remove and Replace).
  8. Remove the front aero shield panel. See Aero Shield - Front (Remove and Replace).
  9. Remove the clips (x2) that attach the LH and RH wheel liners to the body, and then use bungee cord to secure the wheel liners to the subframe.
    Figure 1. LH Shown, RH Similar
  10. Remove the front skid plate. See Skid Plate - HV Battery - Front (Remove and Replace).

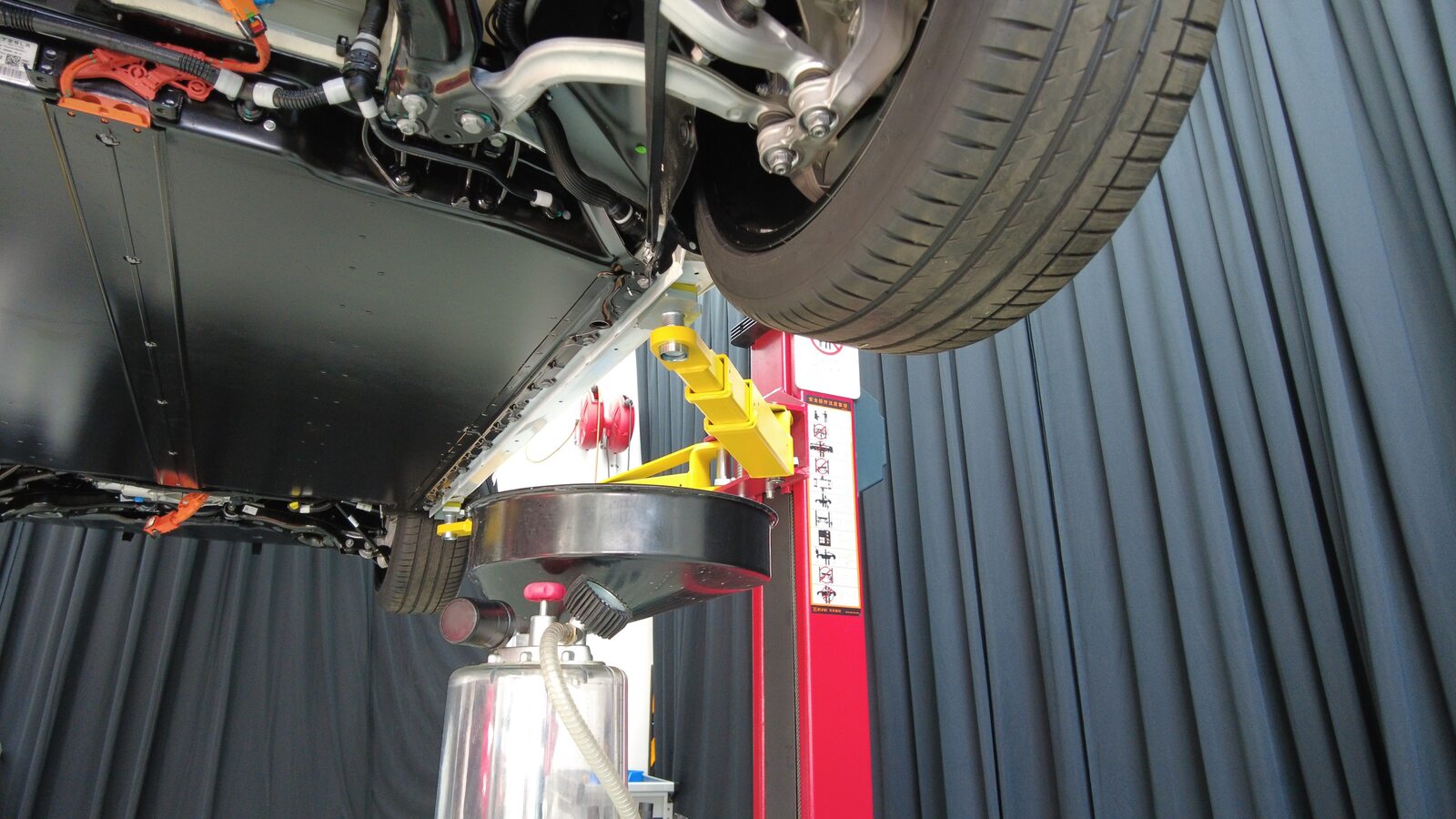

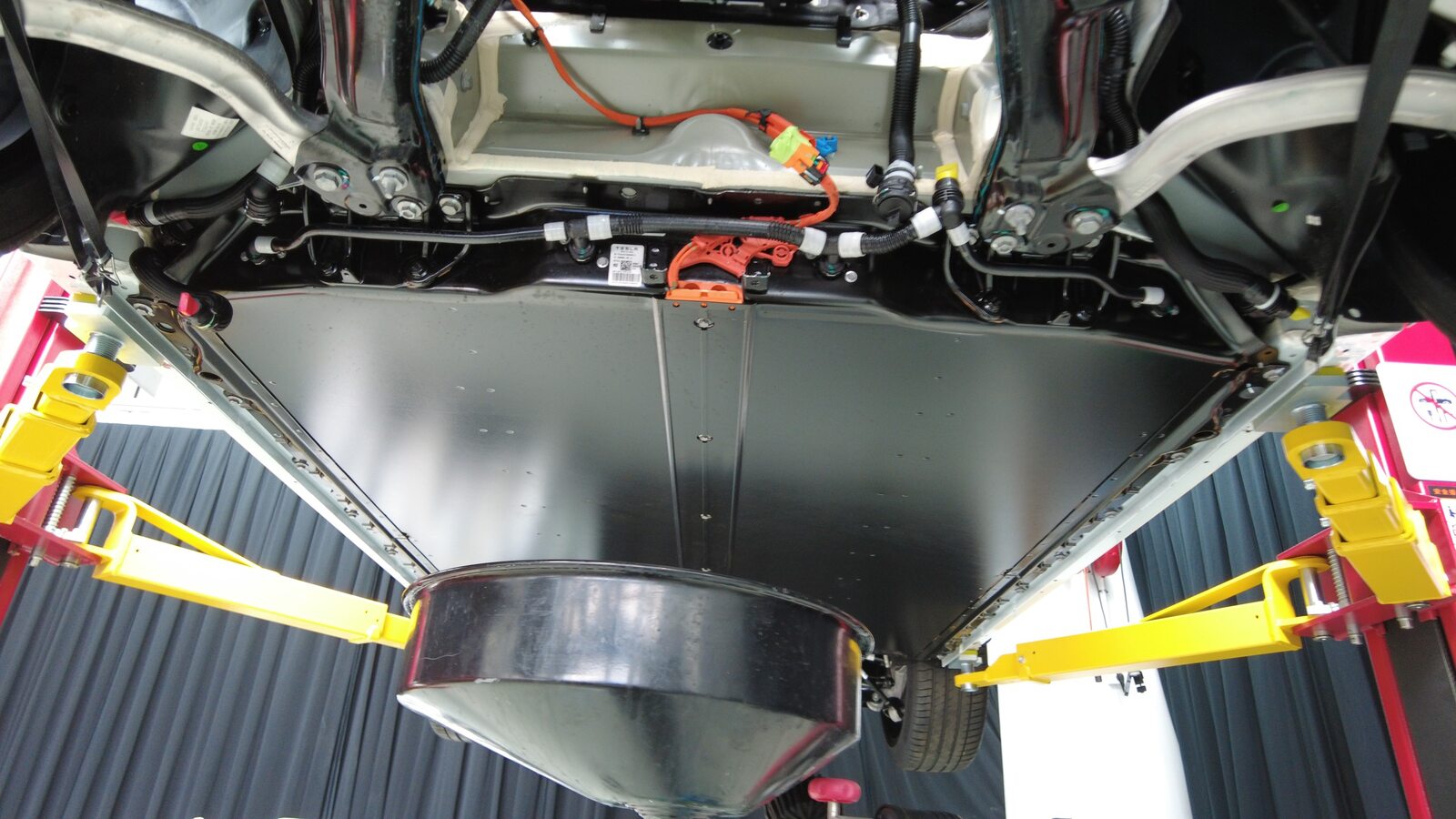

  11. Position the coolant drain container underneath the front of the HV battery.

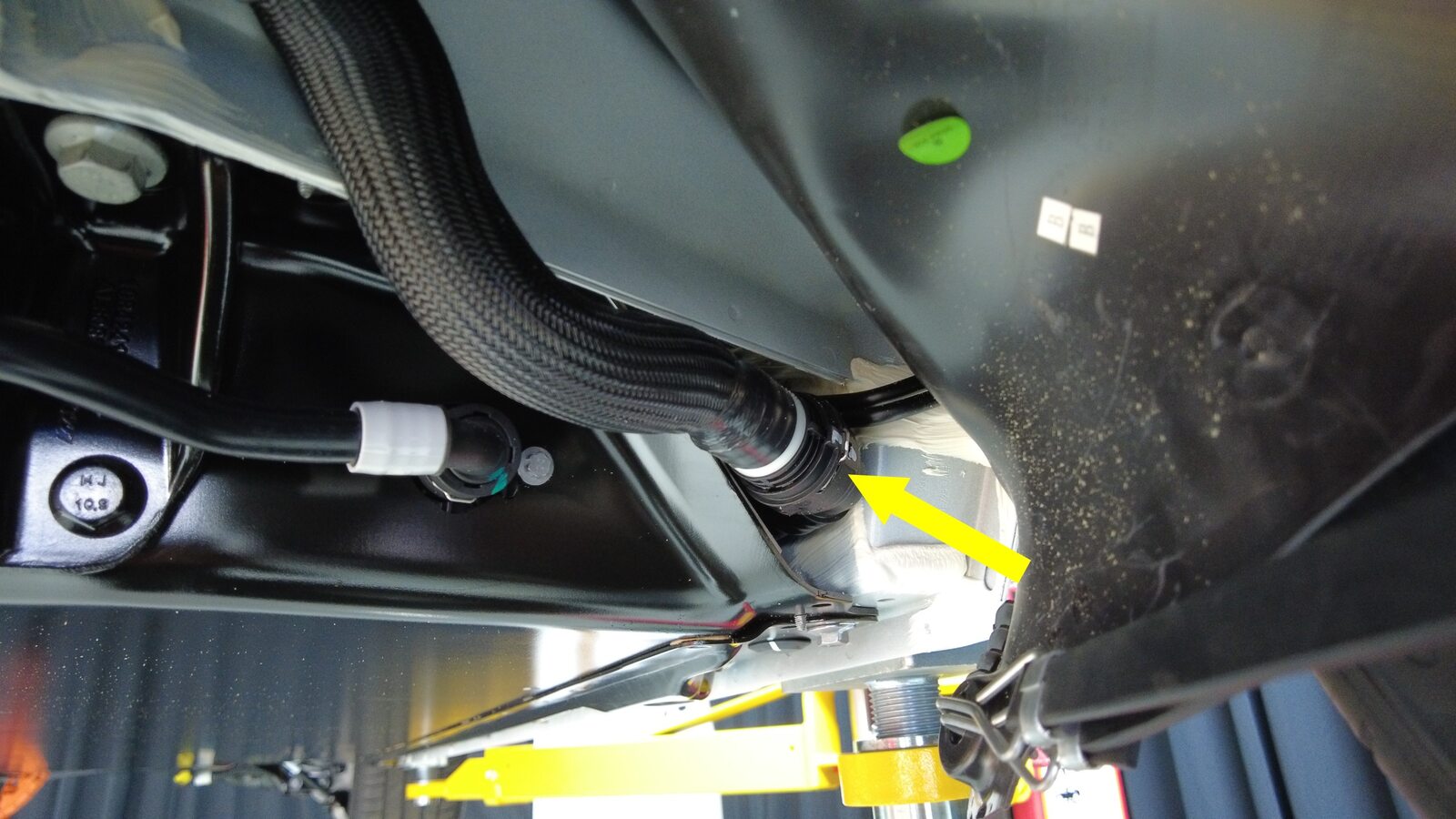

  12. Release the clip to release the chiller to battery hose from the body.
  13. Release the spring clip to disconnect the HV battery front manifold hose from the chiller to battery hose, and then plug the ends of fittings as soon as possible to avoid coolant loss.
    Note
    Coolant loss greater than 1L requires vacuum fill.

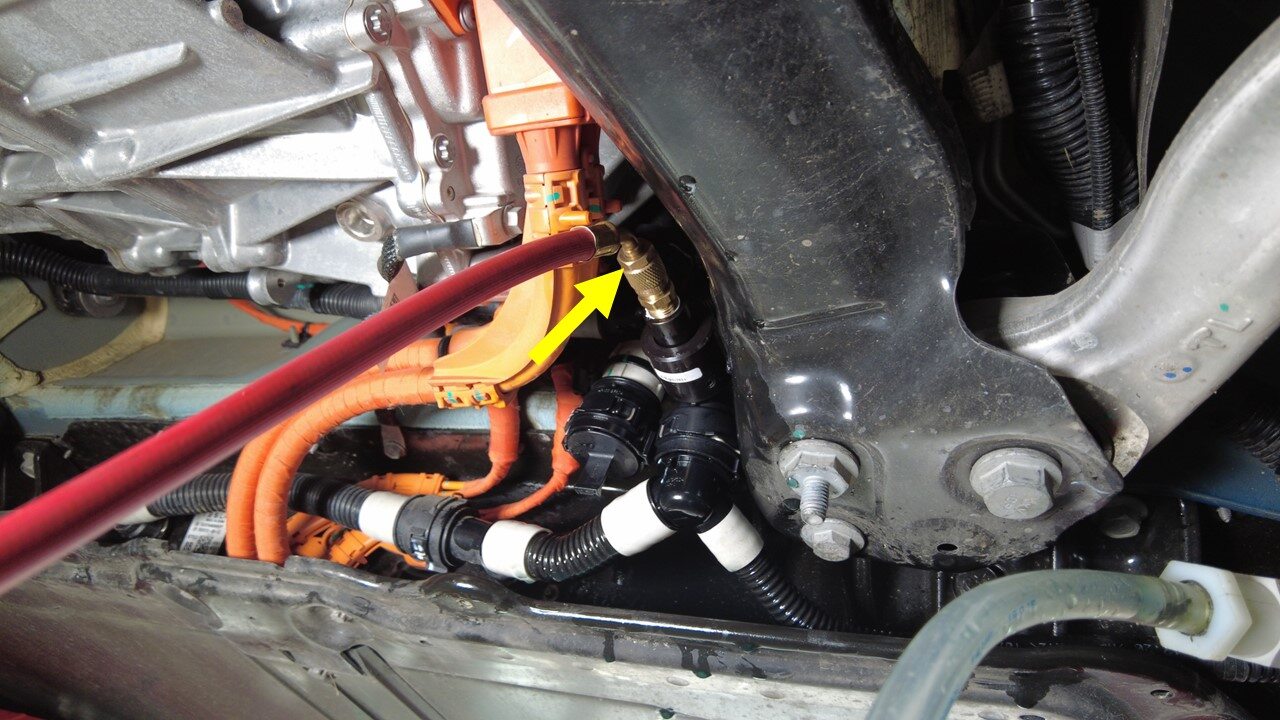

  14. Remove the plugs as needed, and then connect the coolant pressure tester onto the HV battery front manifold hose.
    Note
    Perform a push-pull-push test to make sure that the tester is fully secured.

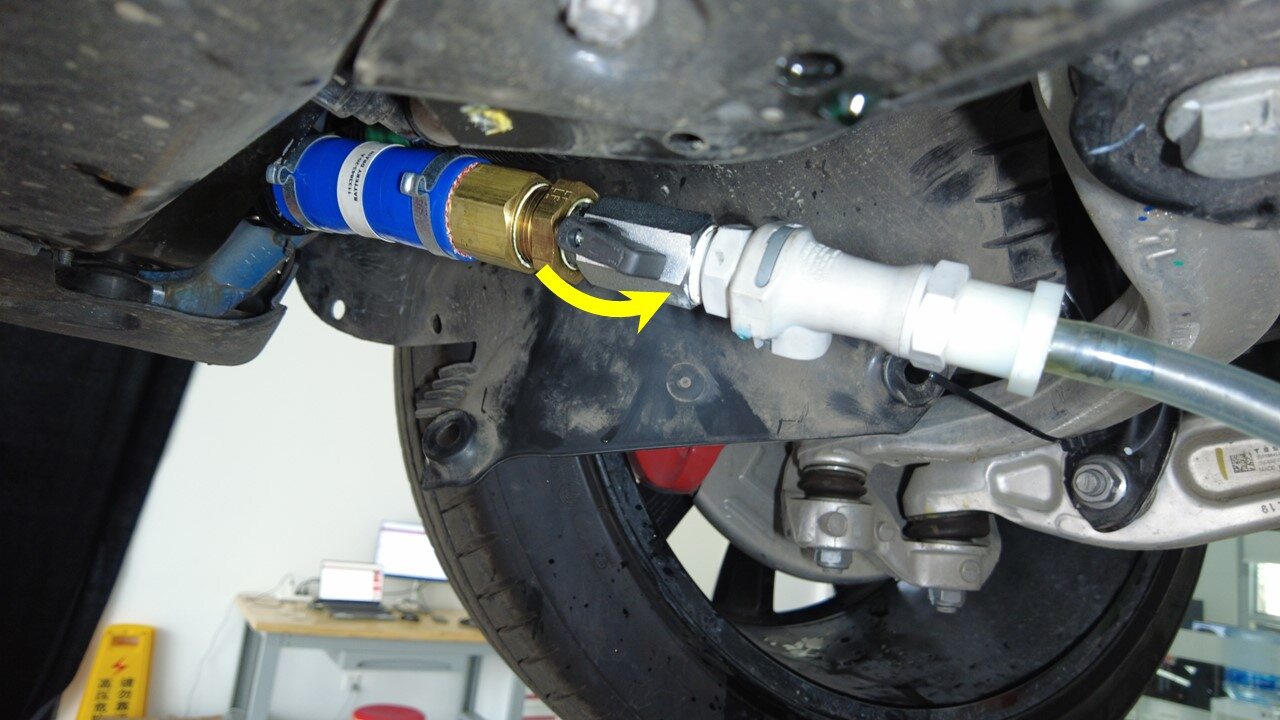

  15. Secure the coolant pressure tester onto the pressure fitting on the HV battery front manifold hose.
  16. Position the coolant drain container underneath the LH front of the HV battery.

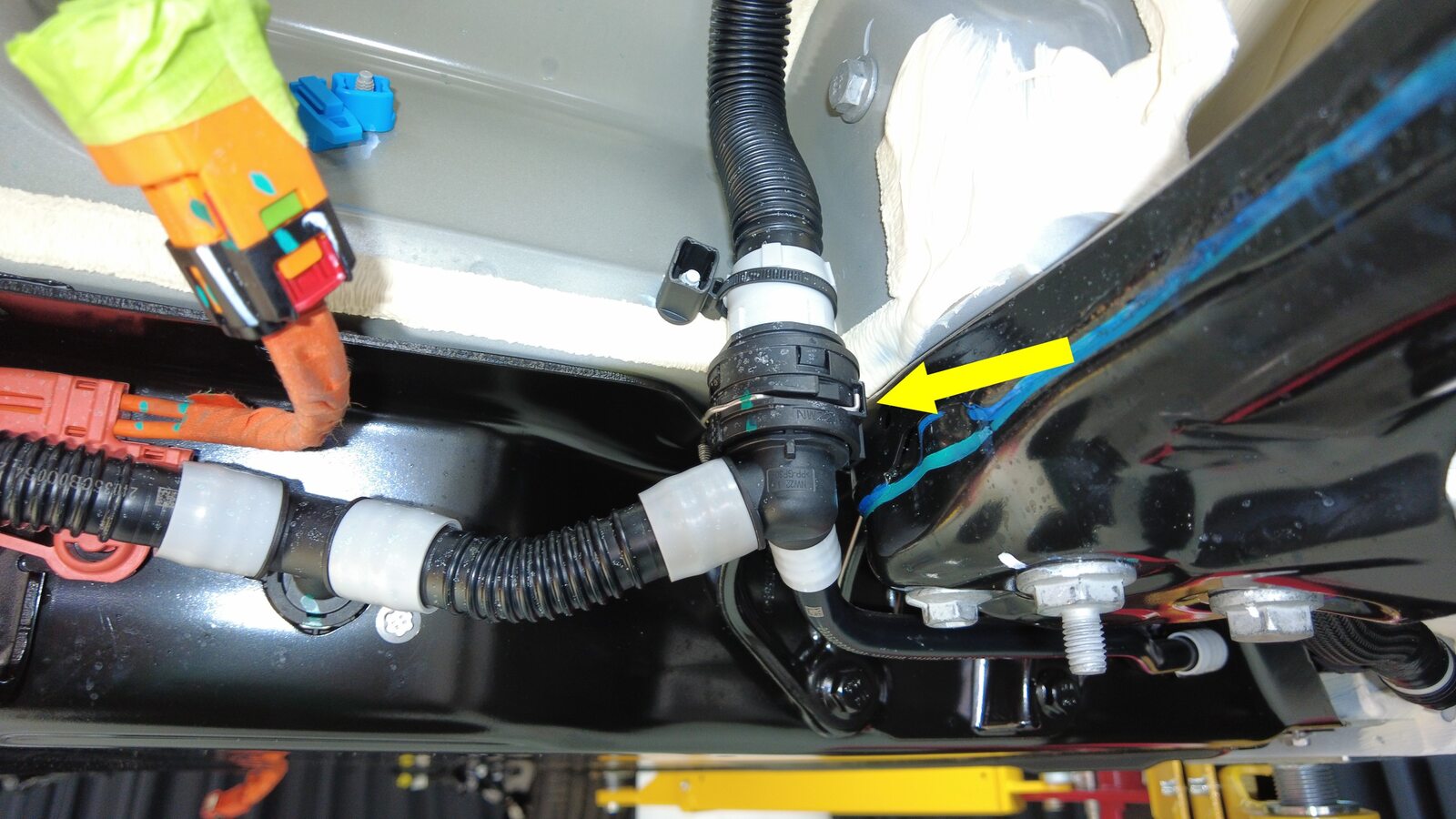

  17. Disconnect the HV battery return hose, and then plug the ends of fittings as soon as possible to avoid coolant loss.
    Note
    Coolant loss greater than 1L requires vacuum fill.

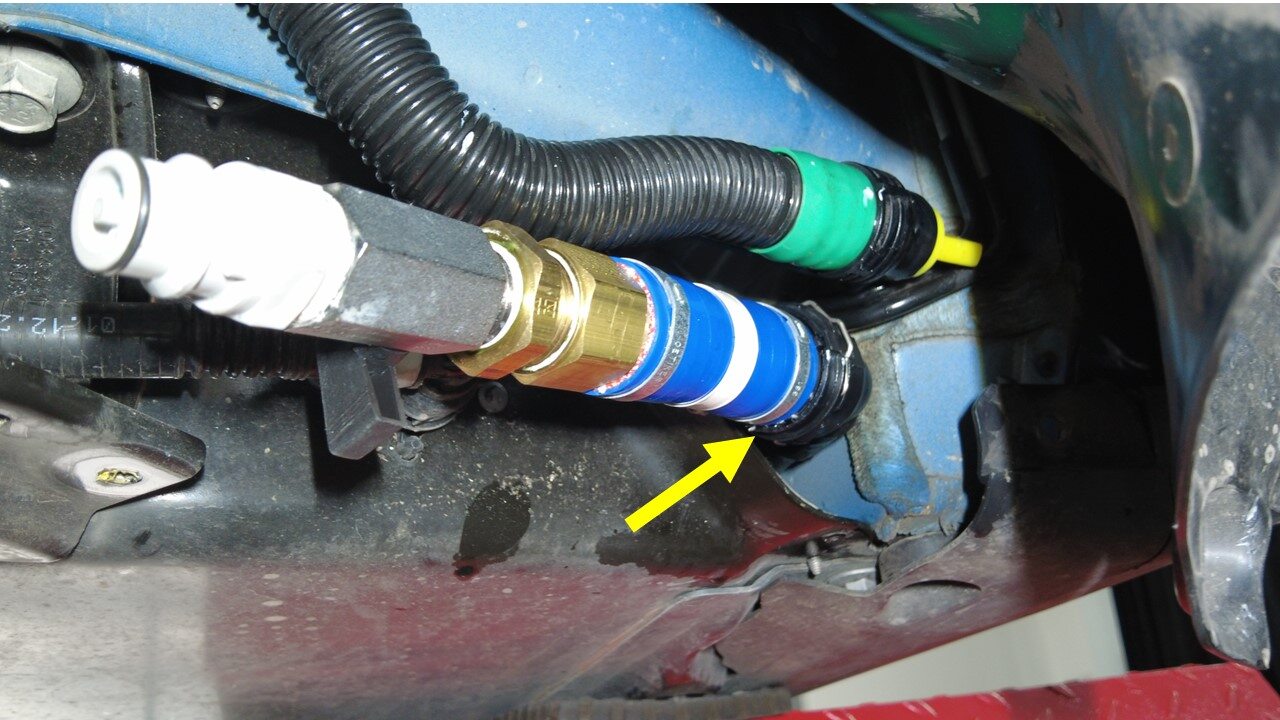

  18. Remove the plugs as needed, and then connect the coolant drain fitting onto the HV battery return hose.
    Note
    Perform a push-pull-push test to make sure that the tester is fully secured, and then open the adapter valve.

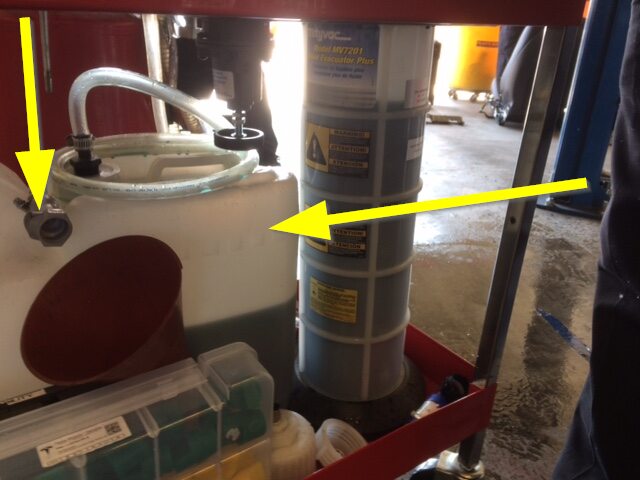

  19. Secure the coolant cart drain hose onto the fitting on the HV battery return hose.
  20. Remove the coolant drain container from underneath the vehicle.

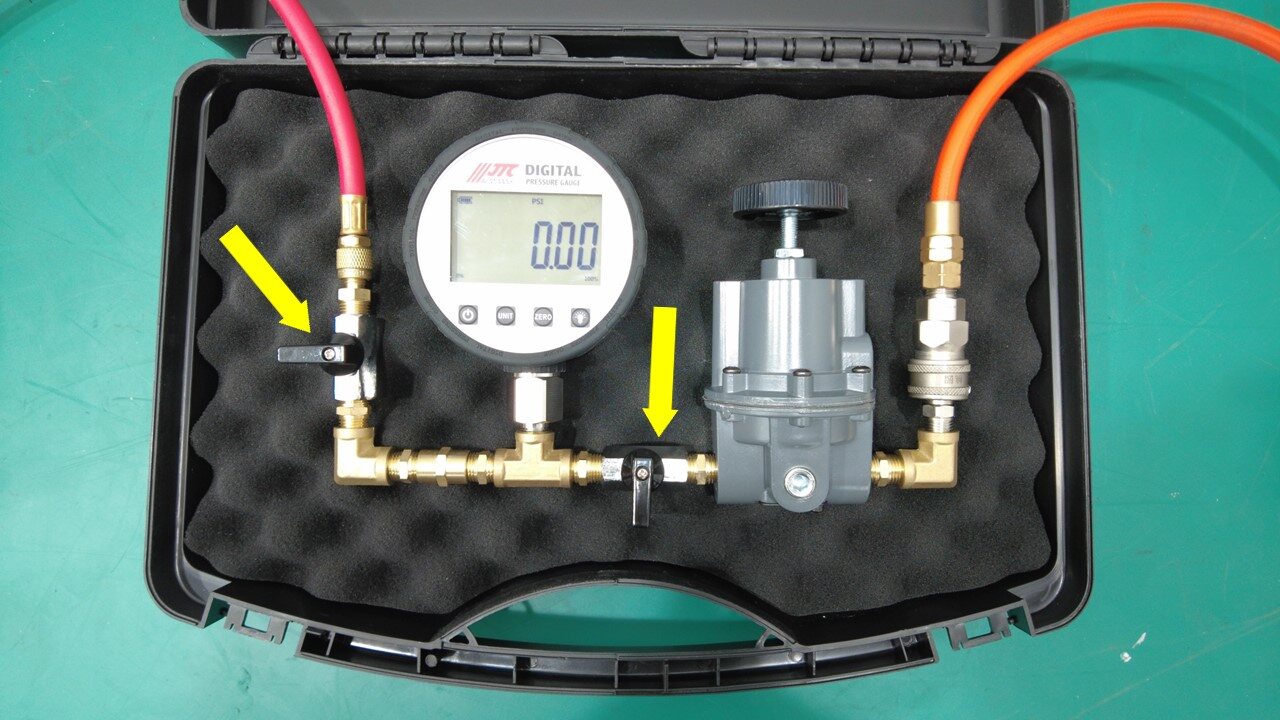

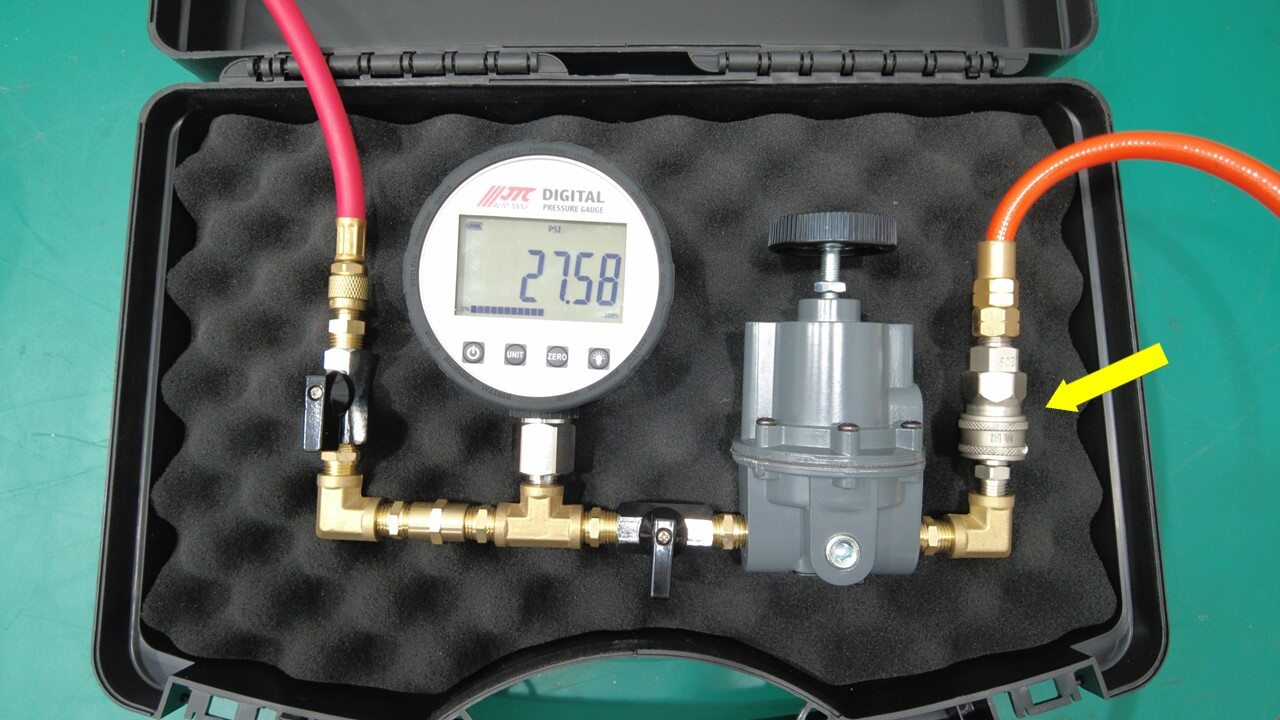

  21. Connect the compressed air to the coolant pressure tester.
    Note
    Make sure the valves on the pressure regulator are closed.

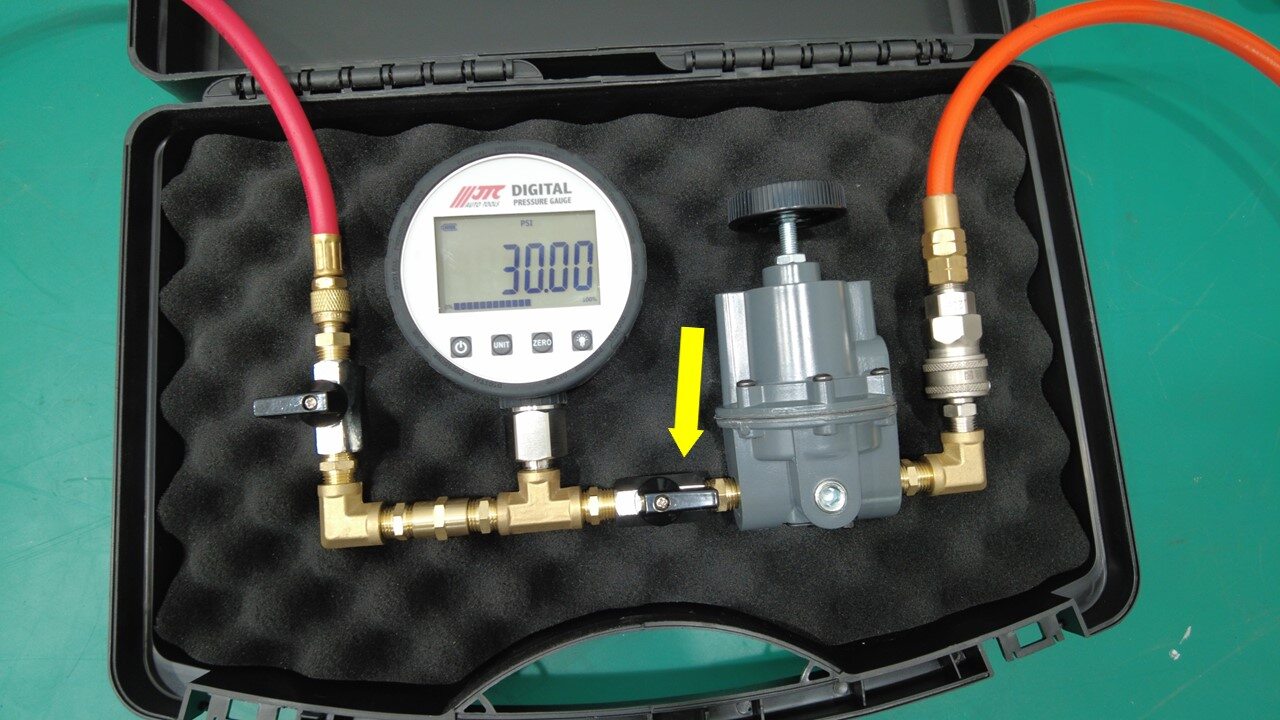

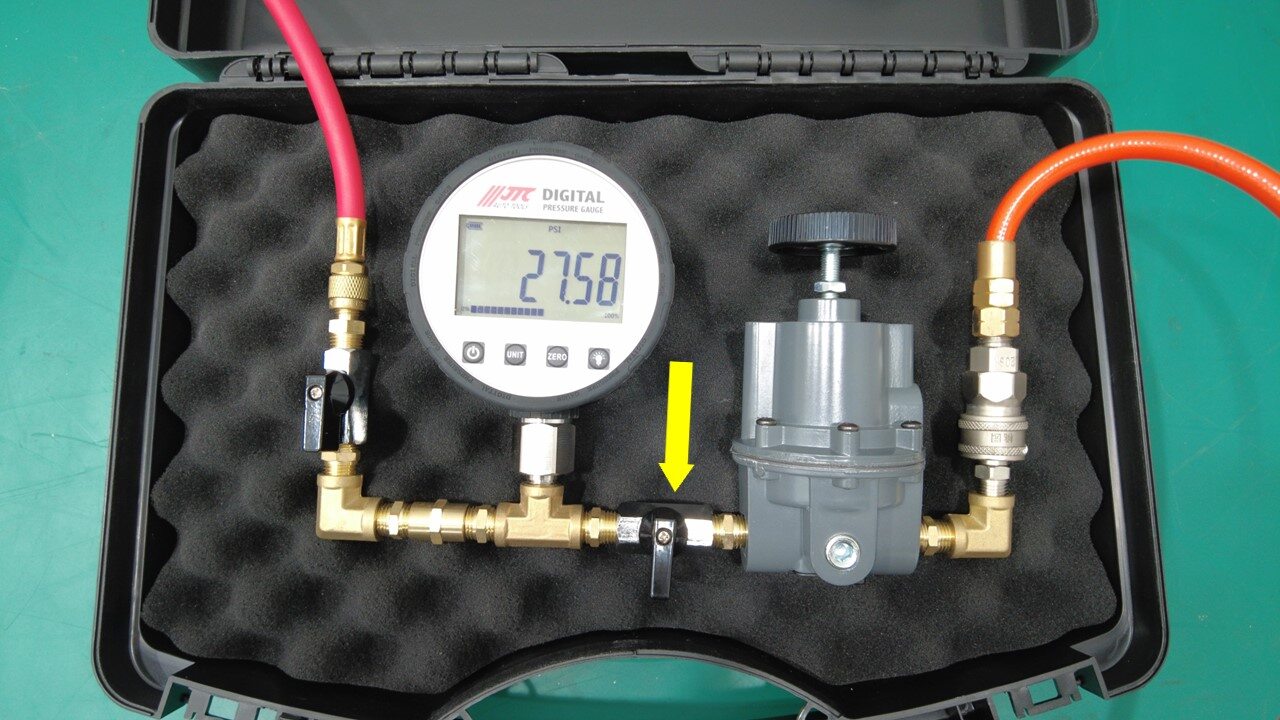

  22. Open the right side regulator valve, and then slowly adjust the regulator to 30 psi.
    Warning
    Use caution as the coolant may spill. Make sure to wear safety glasses.

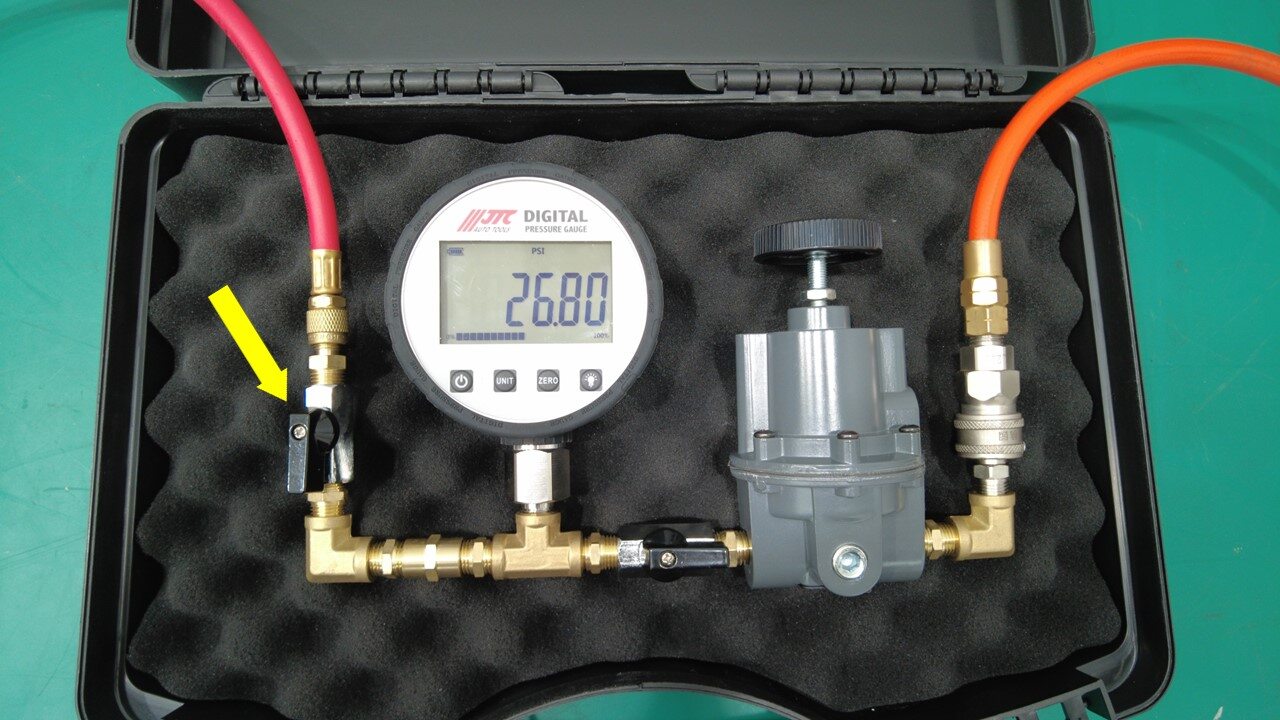

  23. Open the left side regulator valve slowly.
    Warning
    Use caution as the coolant may spill. Make sure to wear safety glasses.
  24. Wait at least 5 minutes for the coolant to completely drain.
  25. Close the valves and let the pressure test settle.
  26. Close the HV battery return hose valve.
  27. Open the right side regulator valve again, and then slowly adjust the regulator to 30 psi.
    Warning
    Use caution as the coolant may spill. Make sure to wear safety glasses.
  28. Open the left side regulator valve slowly again.
    Warning
    Use caution as the coolant may spill. Make sure to wear safety glasses.
  29. Allow 115 seconds for the pressure to stabilize.
  30. Close the right side regulator valve, record the starting pressure displayed, and start a 40-second timer.
  31. After 40 seconds, record the ending pressure displayed.
    Note
    Subtract the ending pressure from the starting pressure:
  32. Subtract the ending pressure from the starting pressure, and if:
    • If the difference is greater than 0.01 psi, check the hose, adapter, plug fittings, and check the regulator pressure, and then retest. If the difference is still greater than 0.01 psi, escalate a Toolbox session.
    • If the difference is 0.01 psi or less, continue the procedure.

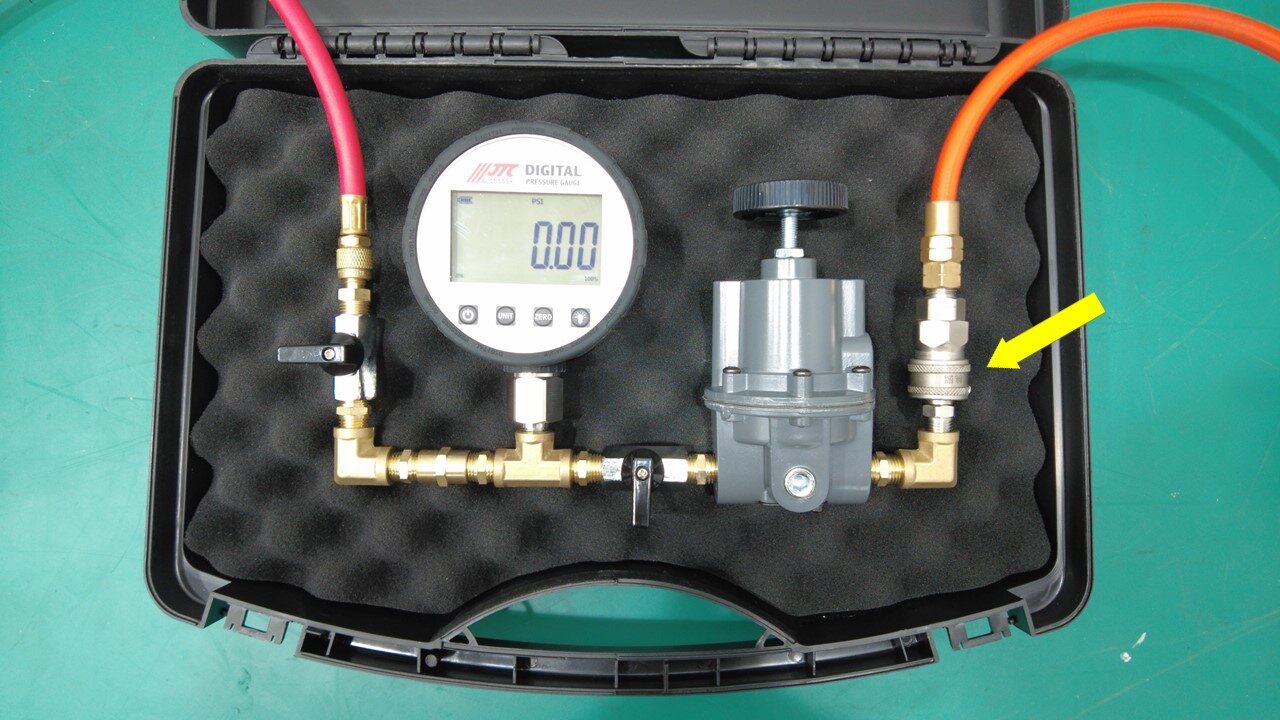

  33. Disconnect the compressed air from the coolant pressure tester.
  34. Release the coolant cart drain hose from the fitting on the HV battery return hose.
  35. Disconnect the coolant drain fitting from the HV battery return hose, and then plug the ends of fittings as soon as possible to avoid coolant loss.
  36. Remove plugs as needed, and then connect the HV battery return hose.
    Note
    Perform a push-pull-push test to make sure that the hose is fully secured.
    Note
    Coolant loss greater than 1L requires vacuum fill.

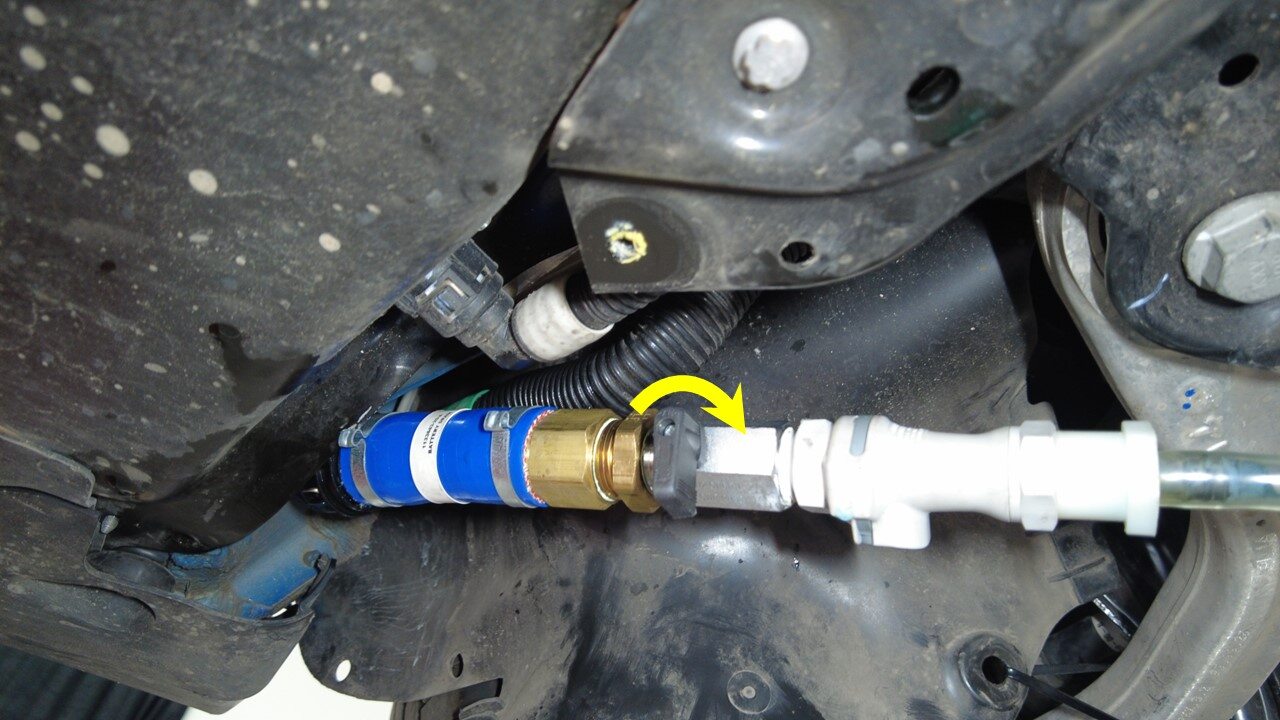

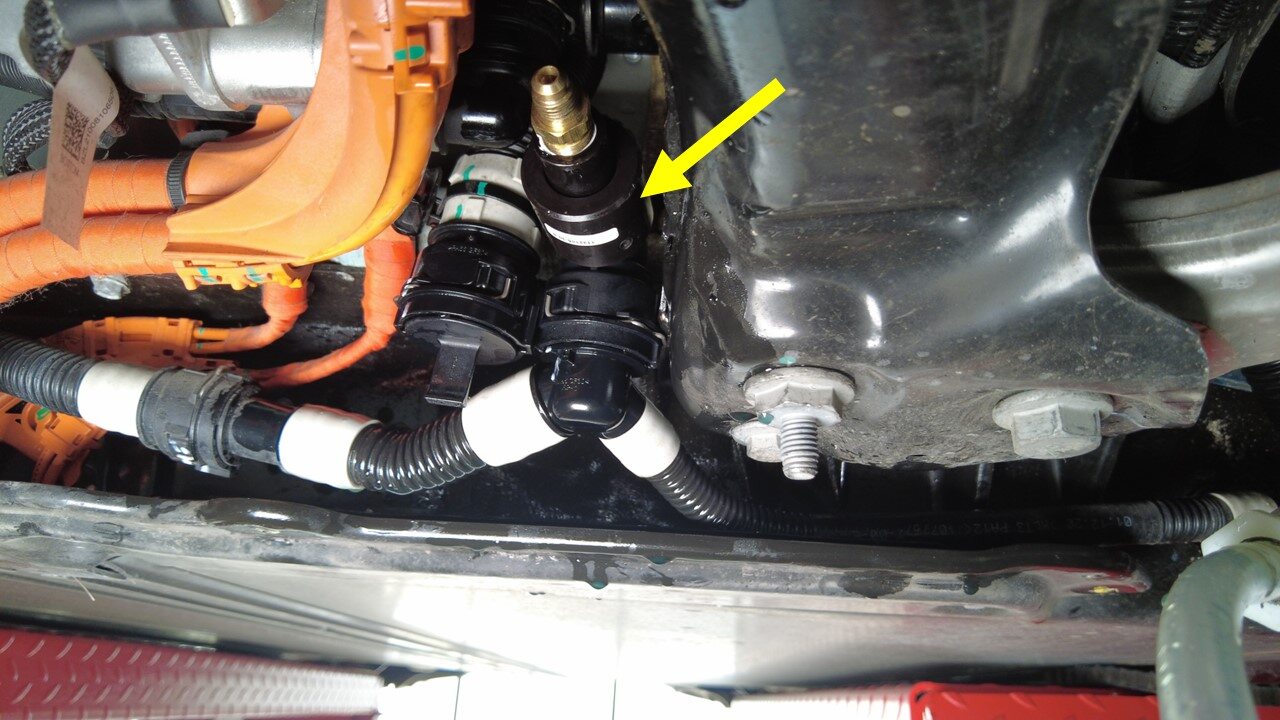

  37. Release the coolant pressure tester from the pressure fitting on the HV battery front manifold hose.
  38. Disconnect the coolant pressure tester from the HV battery front manifold hose, and plug the coolant connections as needed.
  39. Remove the plugs on the ends of fittings, and then secure the spring clip to connect the HV battery front manifold hose to the chiller to battery hose.
    Note
    Perform a push-pull-push test to make sure that the hose is fully secured.
    Note
    Coolant loss greater than 1L requires vacuum fill.
  40. Secure the clip to install the chiller to battery hose to the body.
  41. Install the front skid plate. See Skid Plate - HV Battery - Front (Remove and Replace).
  42. Release the LH and RH wheel liners from the subframe, and then install the clips (x2) that attach the wheel liners to the body.
    Figure 2. LH Shown, RH Similar
  43. Install the front aero shield panel. See Aero Shield - Front (Remove and Replace).
  44. Perform a cooling system vacuum refill. See Cooling System - Vacuum Refill (Test/Adjust).
  45. Connect the LV battery power. See LV Power (Disconnect and Connect) (Modify).
  46. Install the air intake duct. See Duct - Air Intake (Remove and Replace).
  47. Install the HEPA filter assembly. See HEPA Filter Assembly (Remove and Replace).
