Hockey Stick - Center Console - LH (Remove and Replace)
Correction code
1519020502
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the phone dock surround. See Surround - Phone Dock - Center Console (Remove and Replace).
-

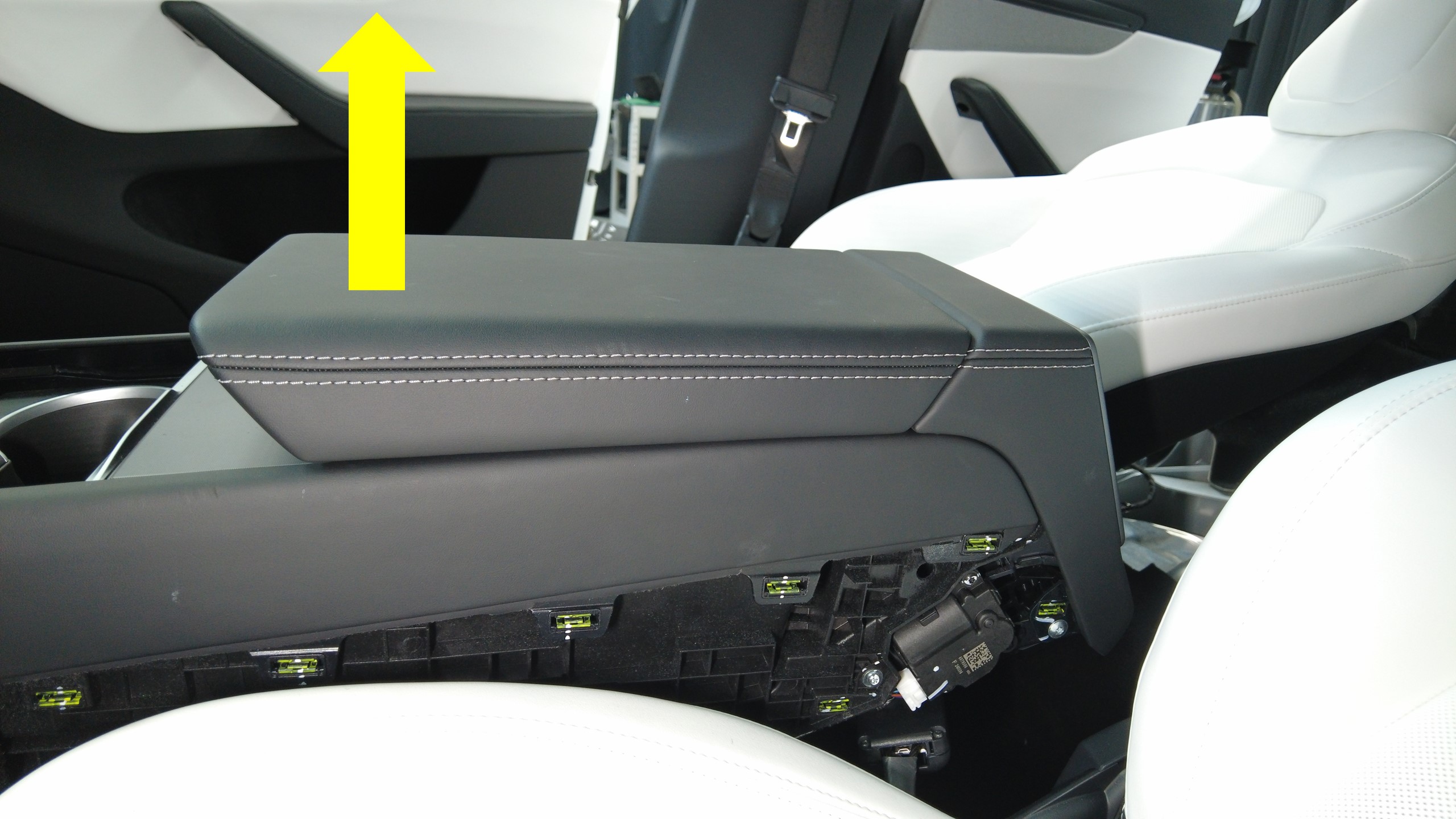

Lift up armrest.
-

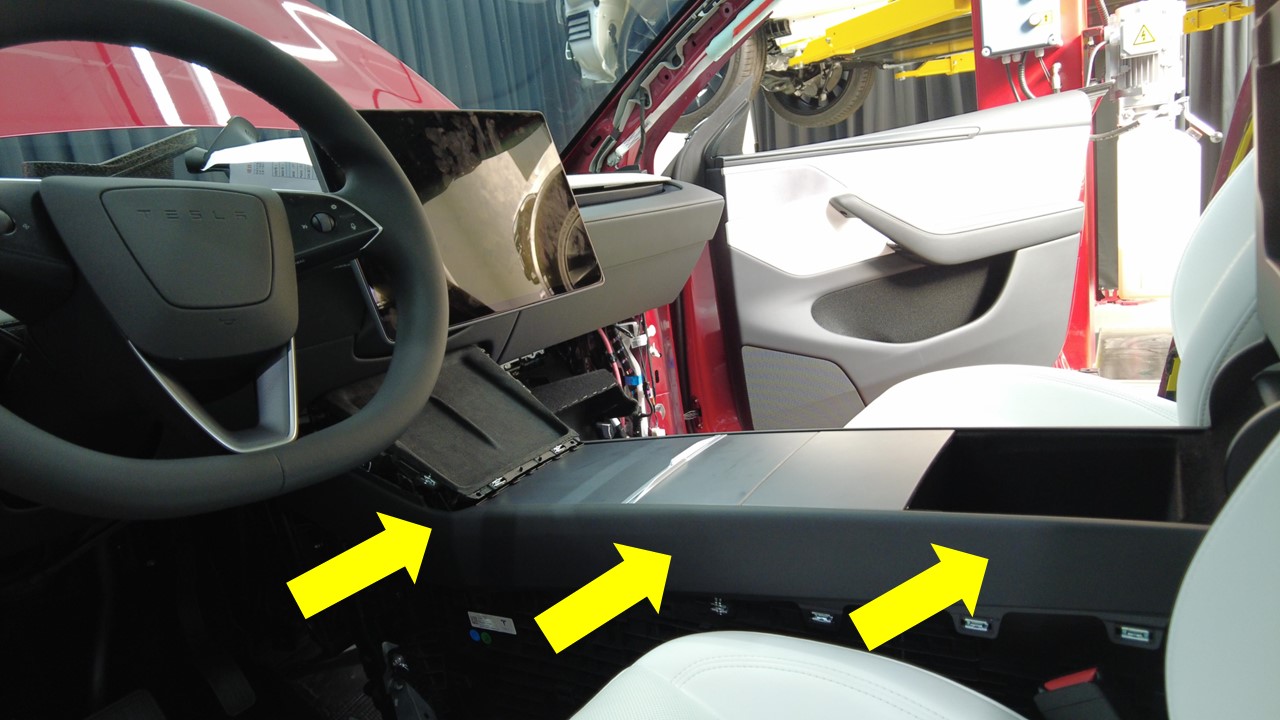

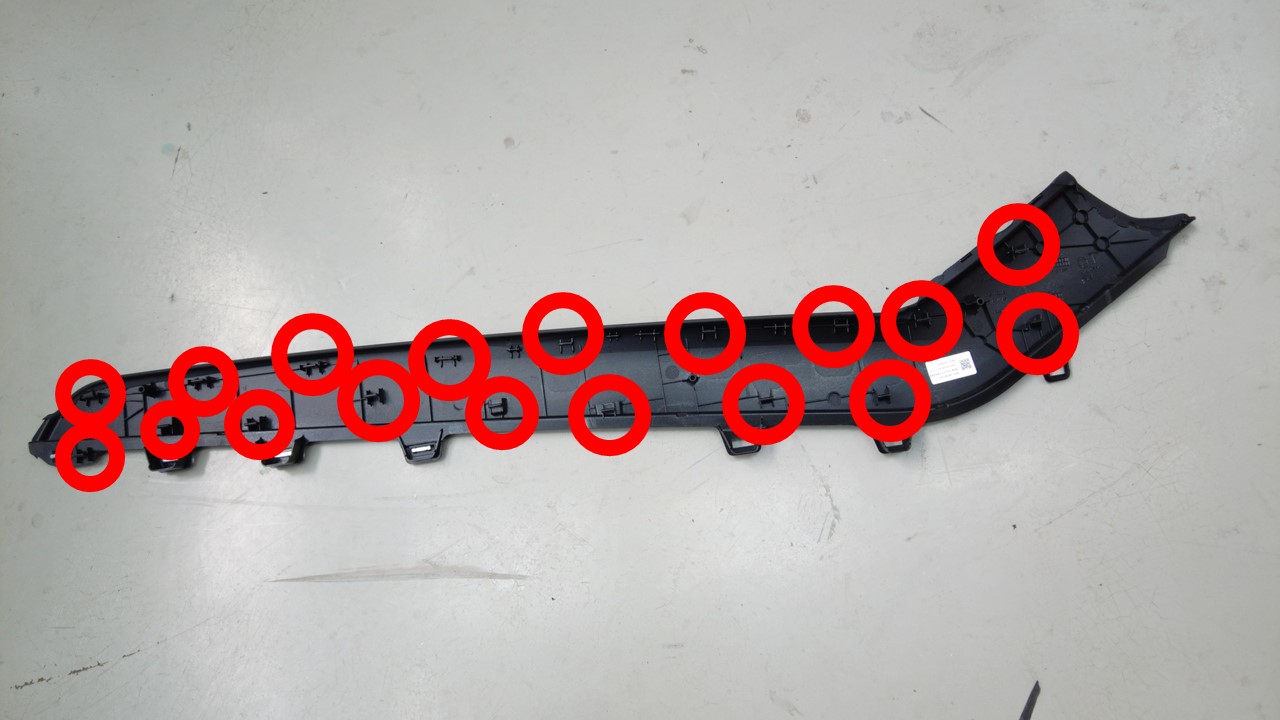

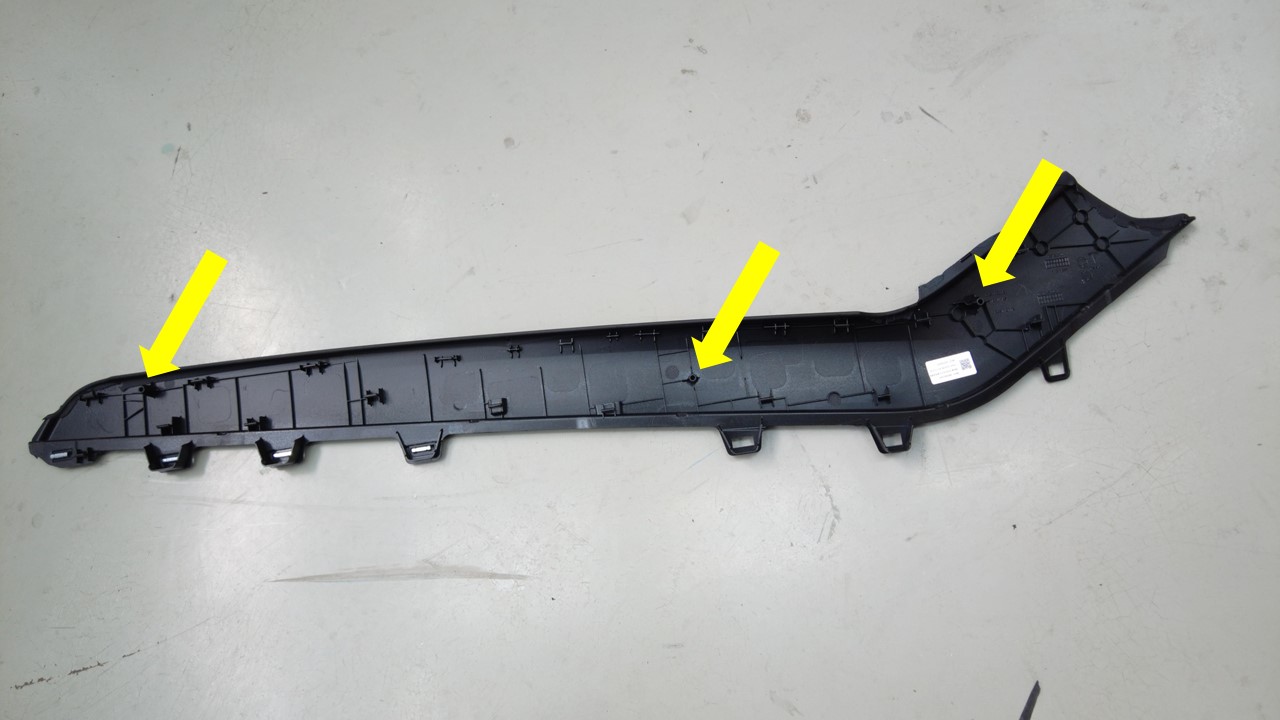

Remove the clips (x18) and tabs (x3)
that attach the LH hockey stick to the center console.

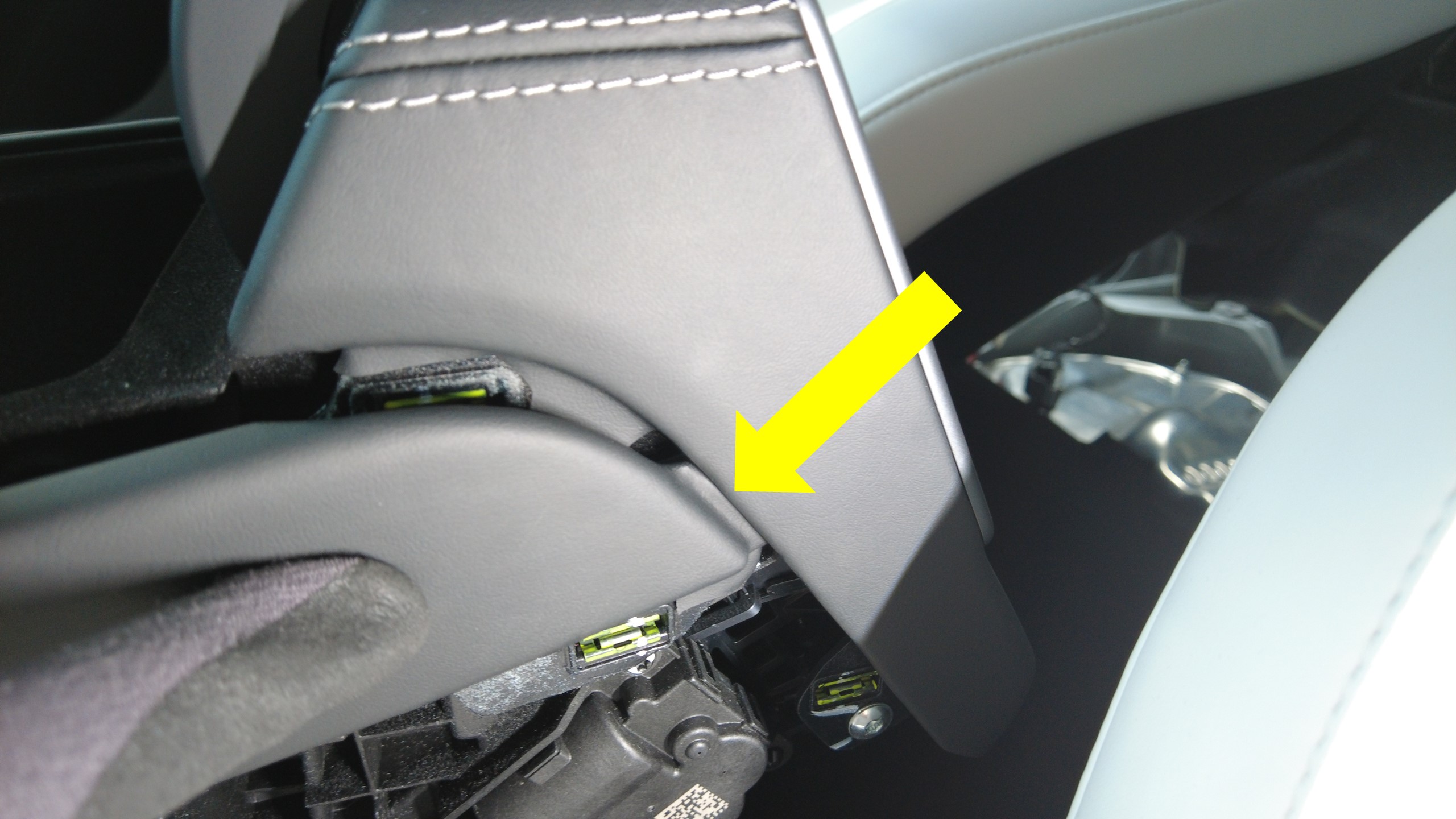

NoteRelease the clips from front to back in sequence.
Install
-
Install the clips (x18) and tabs (x3)
that attach the LH hockey stick to the center console.
NoteEnsure the guide tab is correct install to the center console.
- Put down armrest.
- Install the phone dock surround. See Surround - Phone Dock - Center Console (Remove and Replace).
