Restraint Control Module (Model YL) (Remove and Install)

Correction code 20200101101 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-04: Released new procedure.

Torque Specifications

Table 1. Torque Specifications: Restraint Control Module (Model YL) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nuts (x3) that attach the restraint control module to the body
10 Nm (7.4 lbs-ft)
  • Socket 1/4in Dr. 6pt. Std. x 10mm
Replace 1004378-00-B

Remove

  1. Remove the console connect duct. See Console Connect Duct (Model YL) (Remove and Replace).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

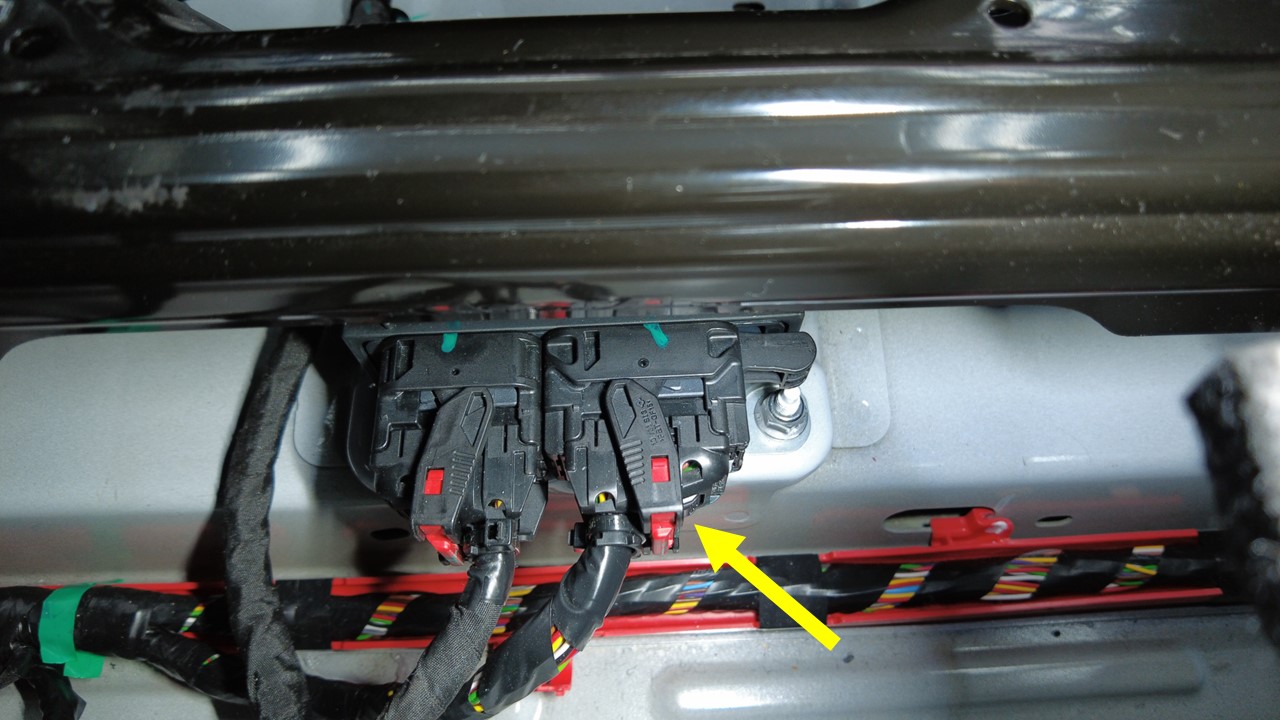

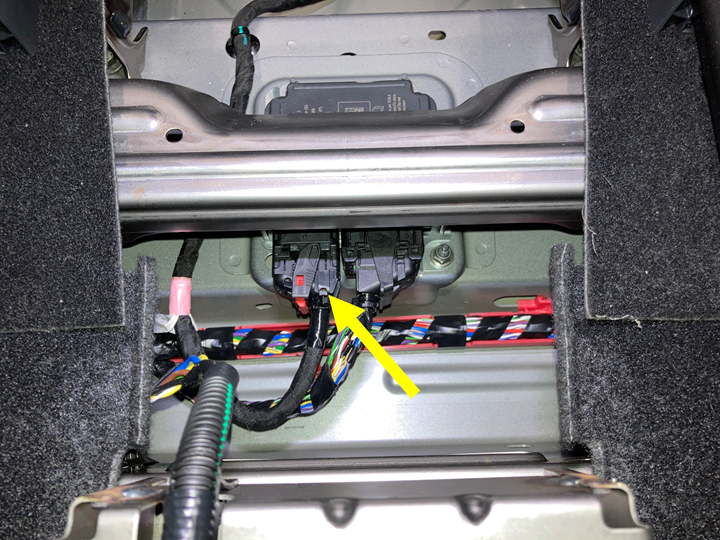

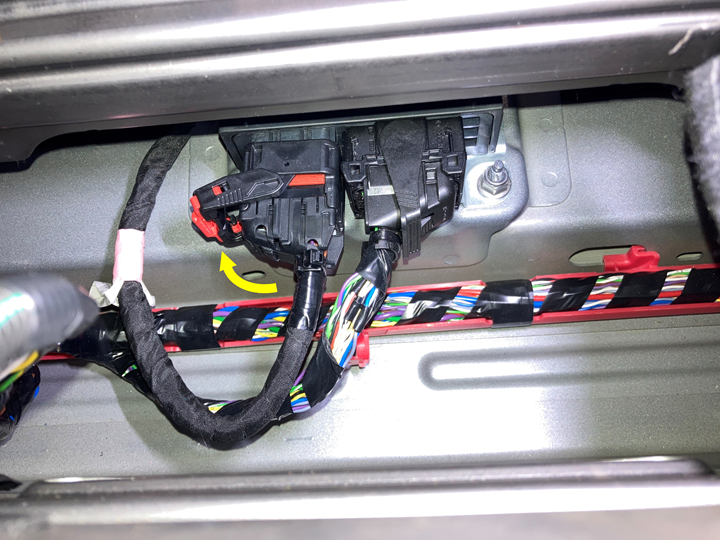

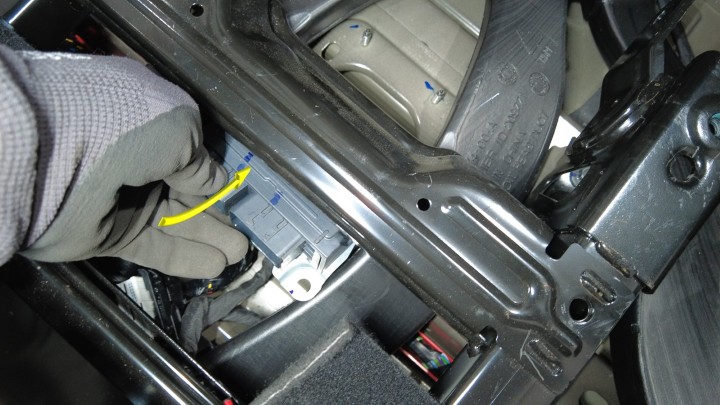

  2. Disengage the locking levers, and then disconnect the electrical connectors (x2) from the restraint control module.
    Warning
    Make sure LV power has been disconnected for at least 2 minutes before disconnecting the electrical harness from the restraint control module. Failure to do so can result in unintended safety system behaviors.

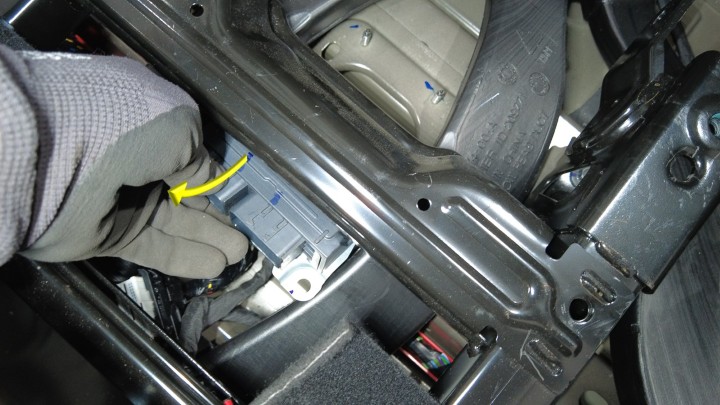

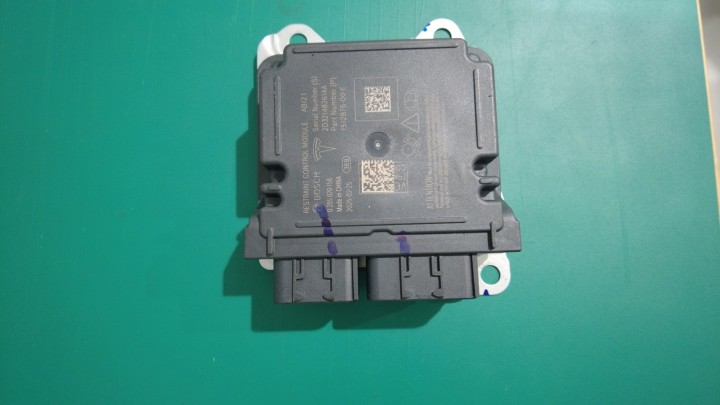

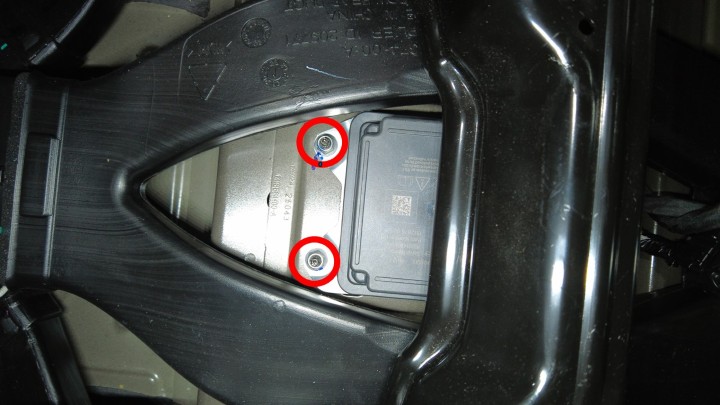

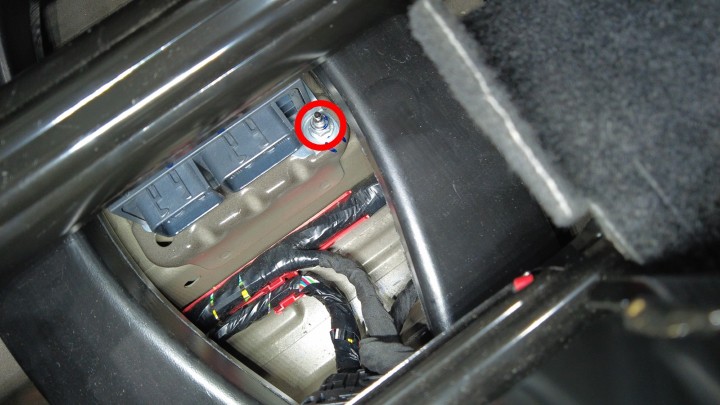

  3. Remove and discard the nuts (x3) that attach the restraint control module to the body, and then remove the module from the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Std. x 10mm

Install

  1. Place the restraint control module onto the body, and then install new nuts (x3) that attach the module to the body.
    10 Nm (7.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Std. x 10mm

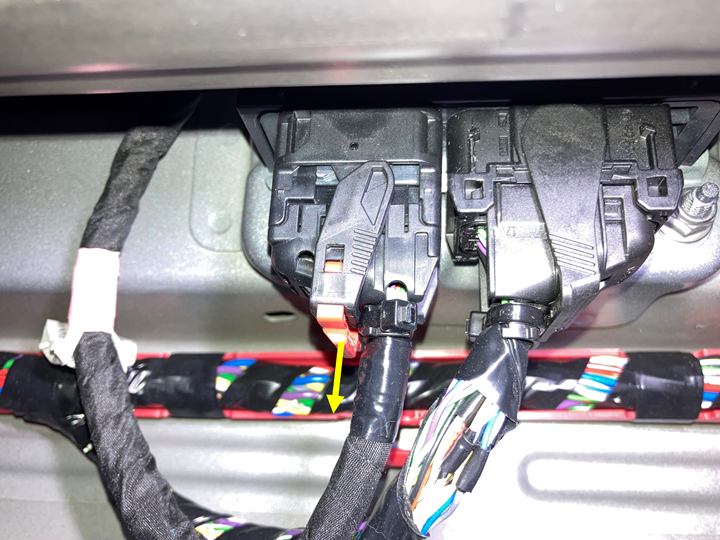

  2. Connect the electrical connectors (x2) to the restraint control module and then engage the connector locking levers.
  3. Install the console connect duct. See Console Connect Duct (Model YL) (Remove and Replace).
