NVH Stuffer - Quarter Cavity - RH (Model YL) (Remove and Replace)

Correction code 15301001702 FRT 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the subwoofer assembly. See Subwoofer (Model YL) (Remove and Replace).

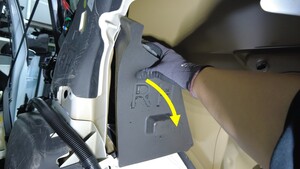

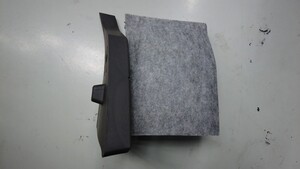

  2. Remove the RH quarter cavity NVH stuffer from the vehicle.
    CAUTION
    During removal, grasp both the inner and outer sides of the NVH stuffer to prevent the stuffer from being damaged, and take care not to damage the outer foam.

Install

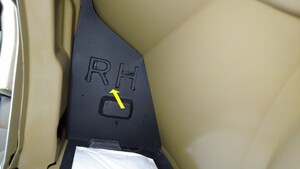

  1. Install the RH quarter cavity NVH stuffer to the vehicle.
    CAUTION
    During installation, grasp both the inner and outer sides of the NVH stuffer, and take care not to damage the outer foam.
  2. Install the subwoofer assembly. See Subwoofer (Model YL) (Remove and Replace).
