2nd Row Center Actuator Cable (Remove and Replace)
Correction code
1305030802
FRT
0.30
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the seat shoulder switch form the RH seatback seat frame. See Seat Fold Shoulder Switch - Center (Remove and Replace).
-

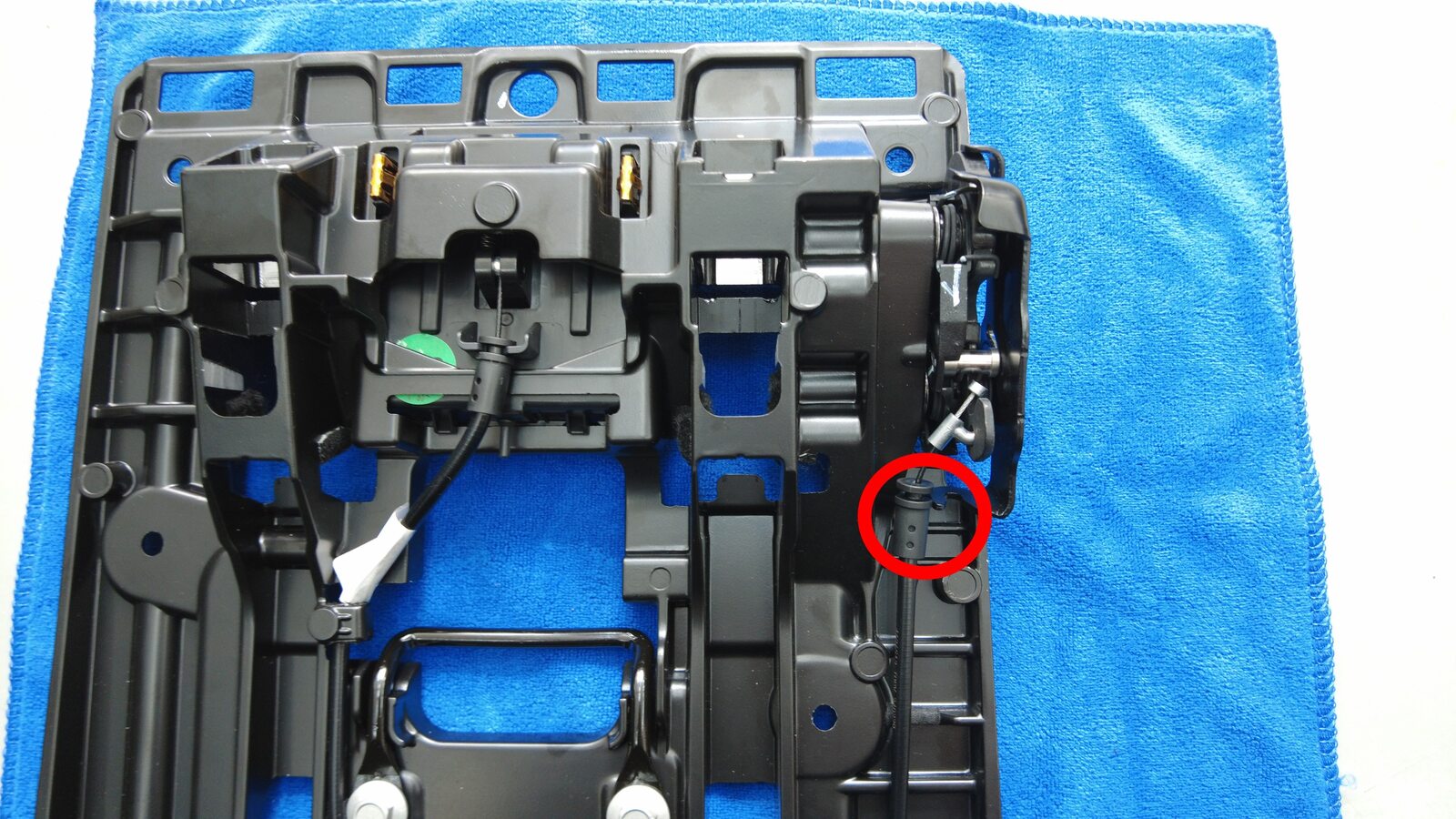

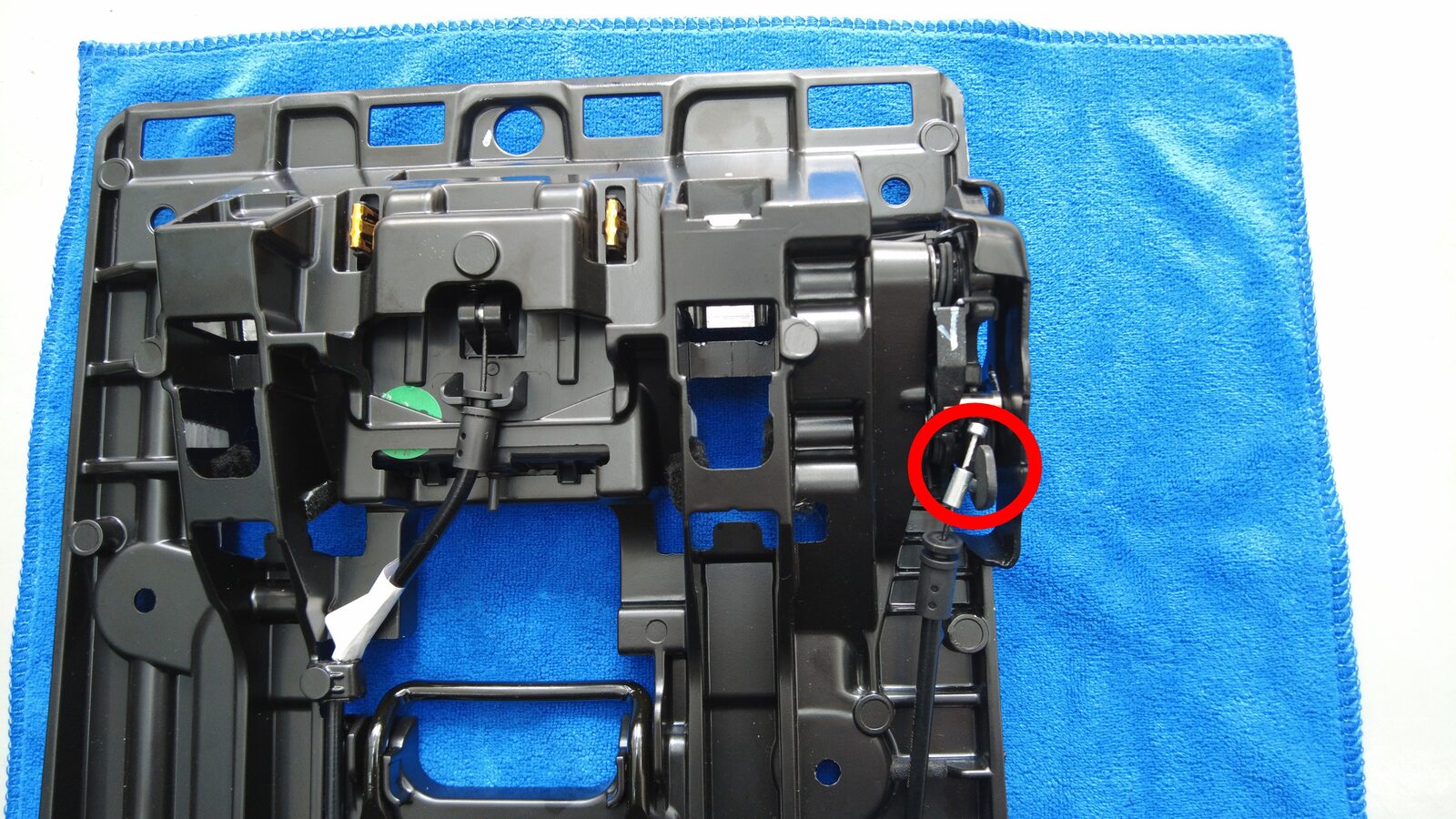

Release 20 latch actuator cable from
latch.
-

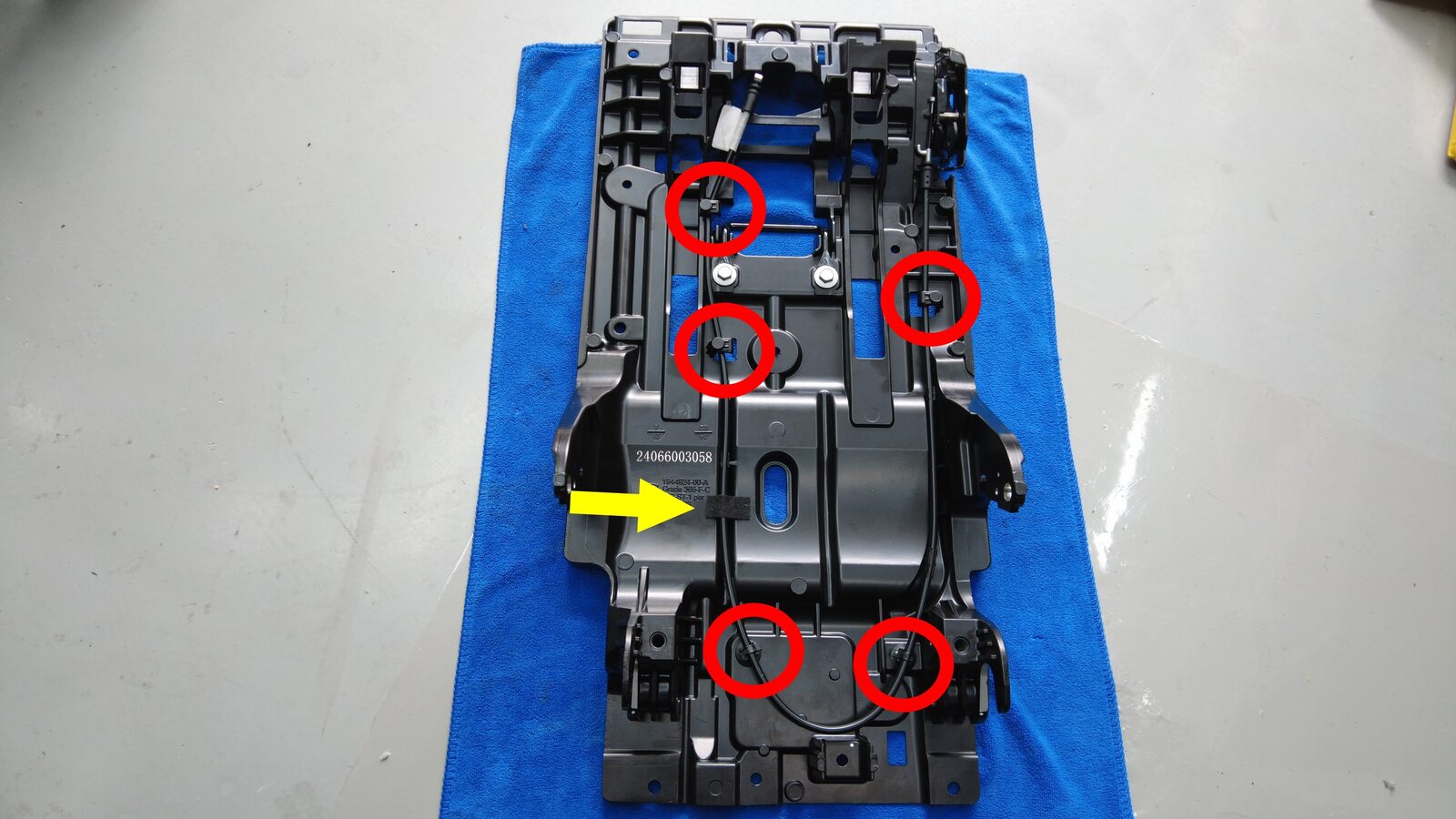

Release 20 latch actuator cable from
20 seatback frame.
Install
-
Secure 20 latch actuator cable to 20 seatback frame.
-
Secure 20 latch actuator cable to latch.
- Install the seat shoulder switch to the RH seatback seat frame. See Seat Fold Shoulder Switch - Center (Remove and Replace).
