Fill/Drain Plug (Remove and Replace)

Correction code 4001010402 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Fill/Drain Plug (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the fill plug to the drive unit
15 Nm (11.1 lbs-ft)
  • 8 mm socket
  • Ratchet/torque wrench
 Reuse

Remove

  1. Remove the mid aero shield. See Aero Shield - Rear (Remove and Replace).

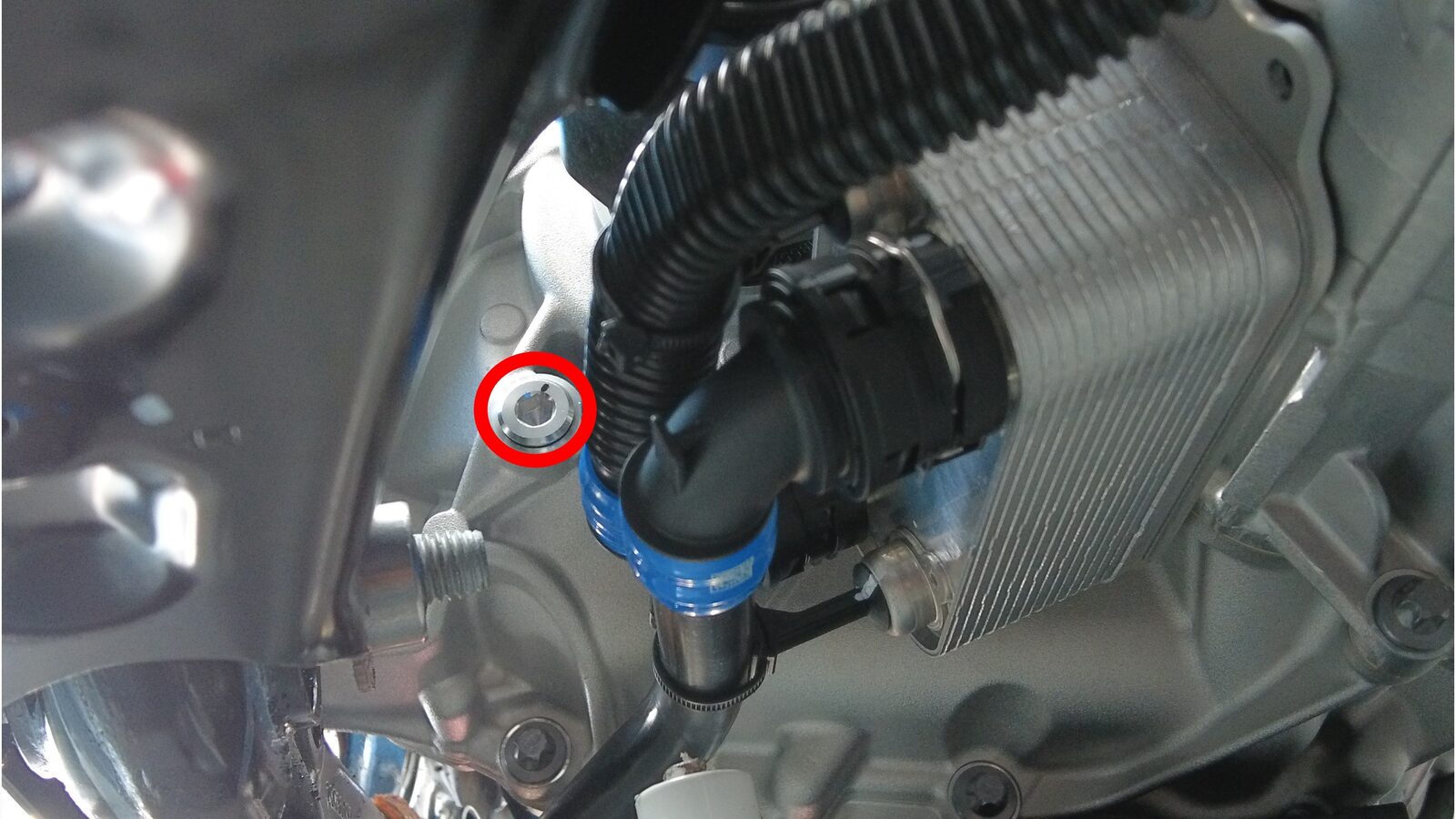

  2. Remove the nut that attaches the fill plug to the drive unit.
    Tip
    Use of the following tool(s) is recommended:
    • 8 mm socket
    • Ratchet/torque wrench

Install

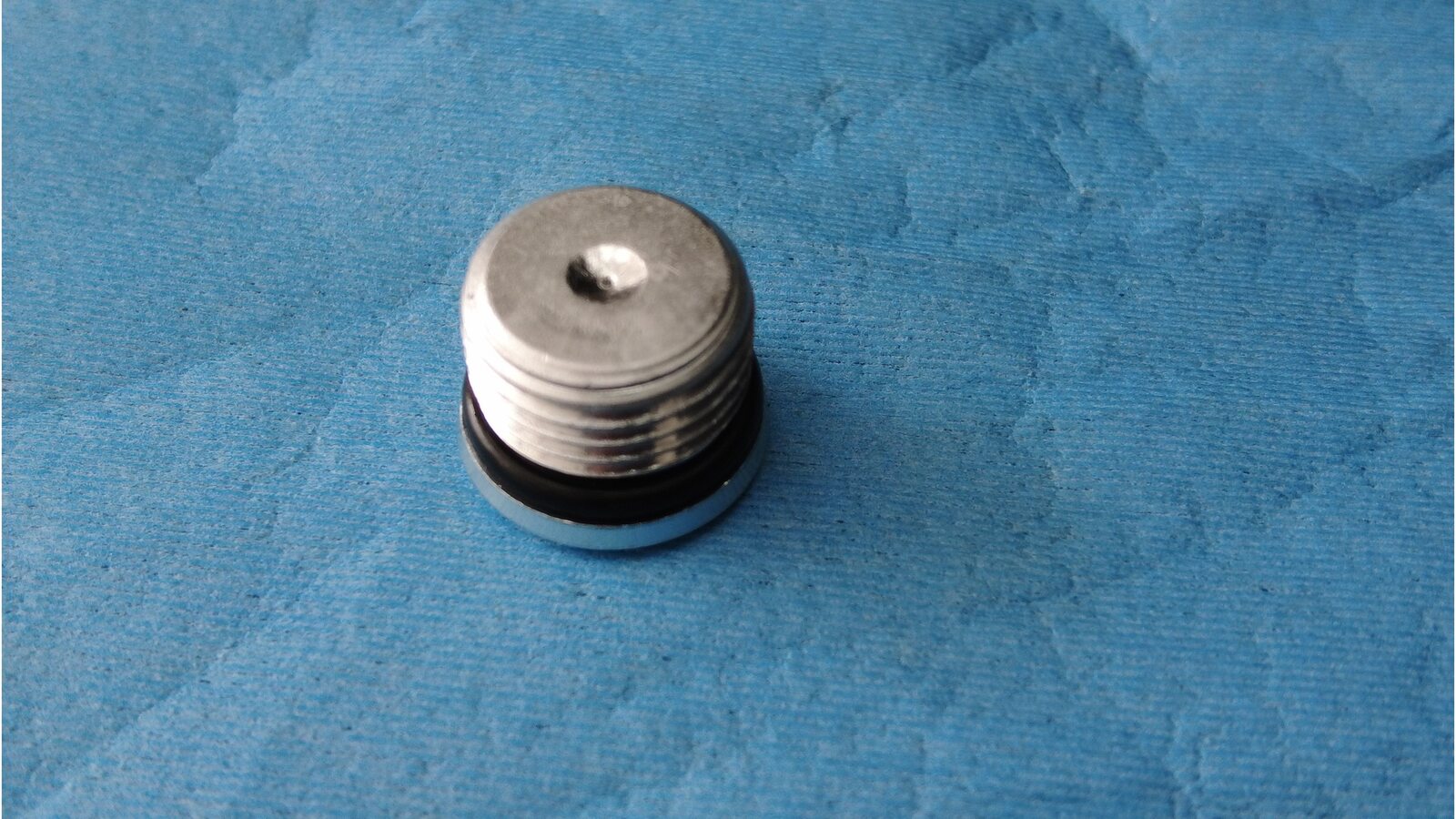

  1. Secure oil fill plug to the drive unit.
    15 Nm (11.1 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 8 mm socket
    • Ratchet/torque wrench
    Note
    Verify the O-ring is not damaged, replace O-ring as needed.
  2. Install the mid aero shield. See Aero Shield - Rear (Remove and Replace).
