Window Regulator Motor - Front - LH (Remove and Install)
Correction code
1150010031
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the LH front door trim. See Door Trim - Front - LH (Remove and Replace).
-

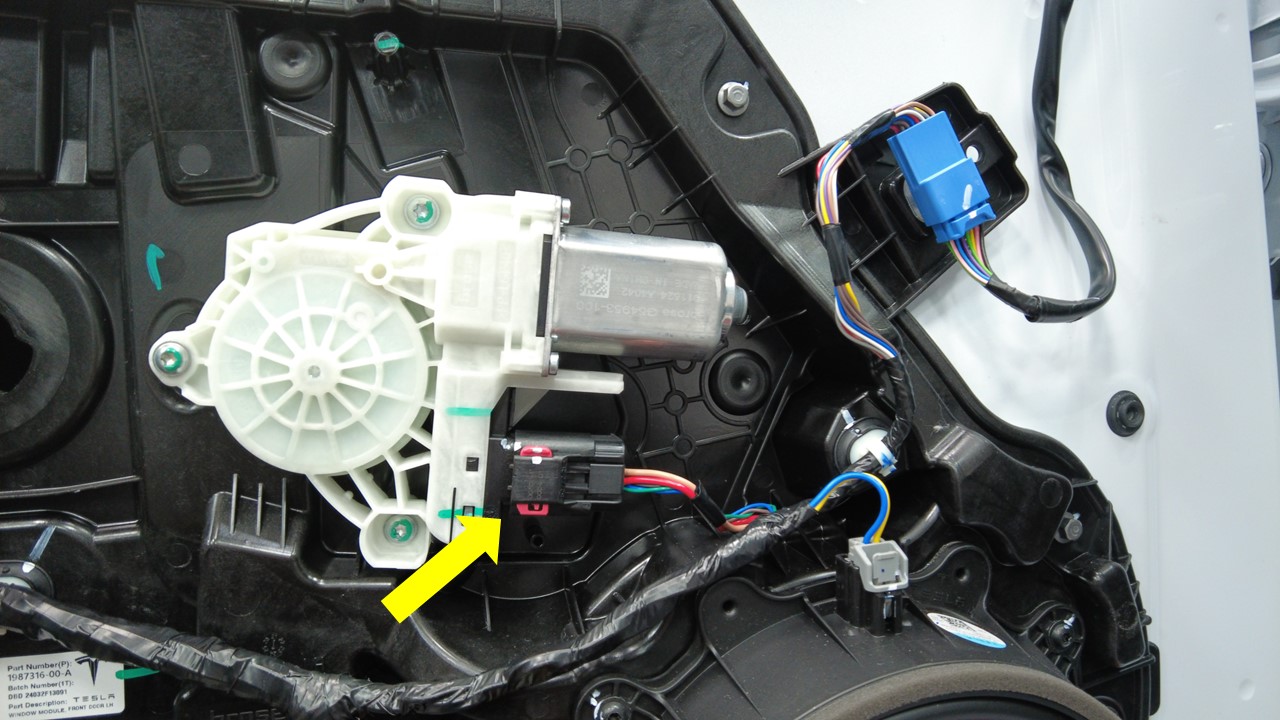

Disconnect LH front regulator motor connector.
-

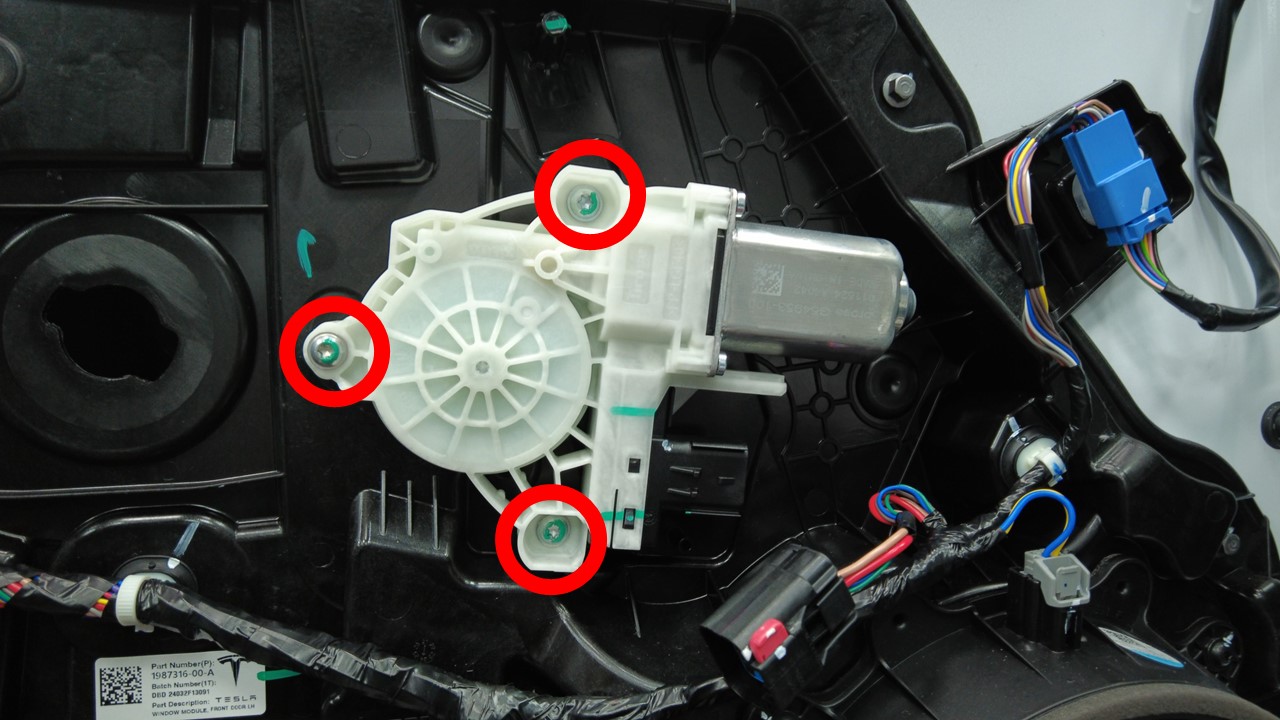

Remove LH front regulator motor.
Install
-

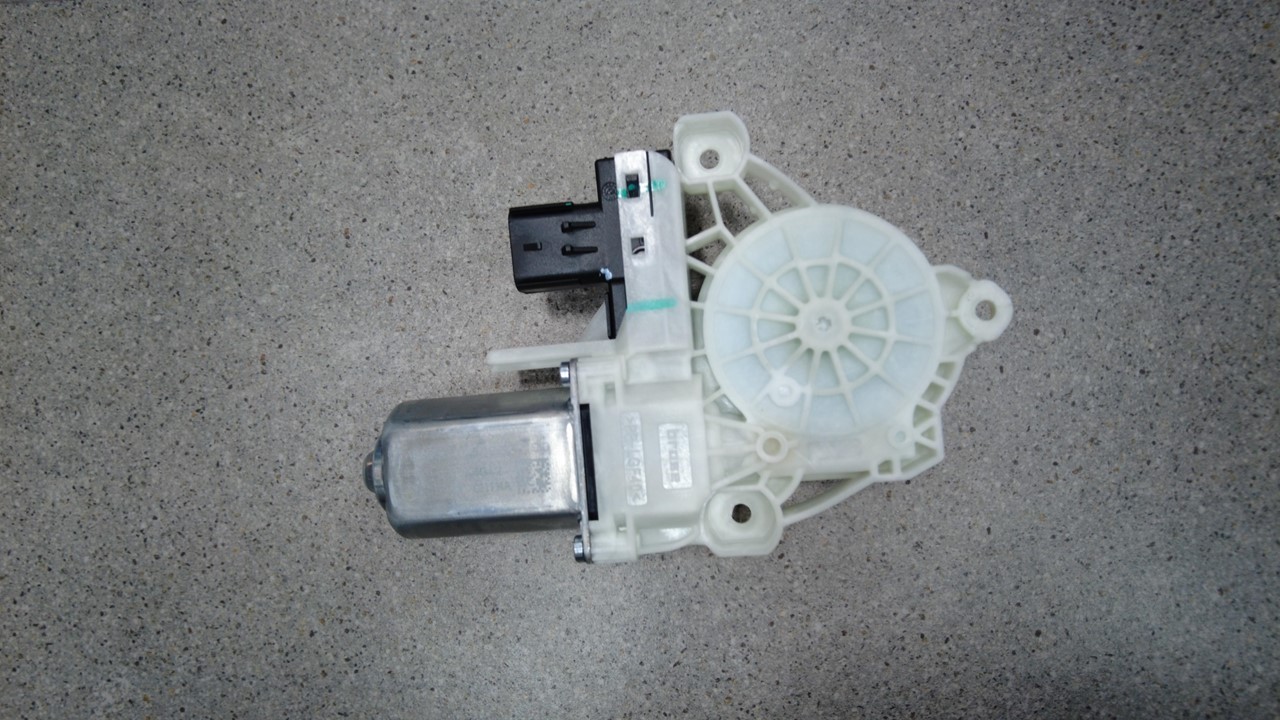

Install LH front regulator motor.
-
Connect LH front regulator motor connector.
- Install the LH front door trim. See Door Trim - Front - LH (Remove and Replace).
