Hush Panel - Footwell - Front Passenger (Remove and Replace)
Correction code
1405010402
FRT
0.10
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2025-11-19: Added steps to remove/install fasteners.
Remove
- Remove the RH knee airbag. See Knee Airbag - RH (Remove and Replace).
-

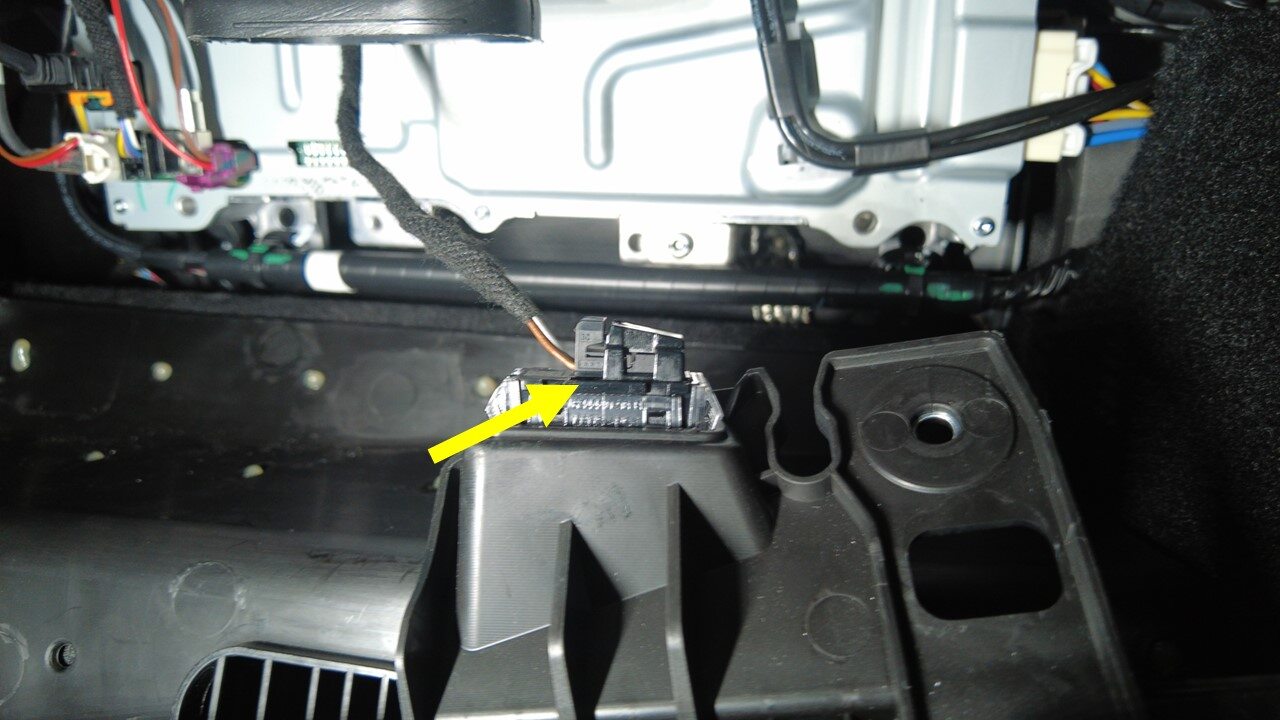

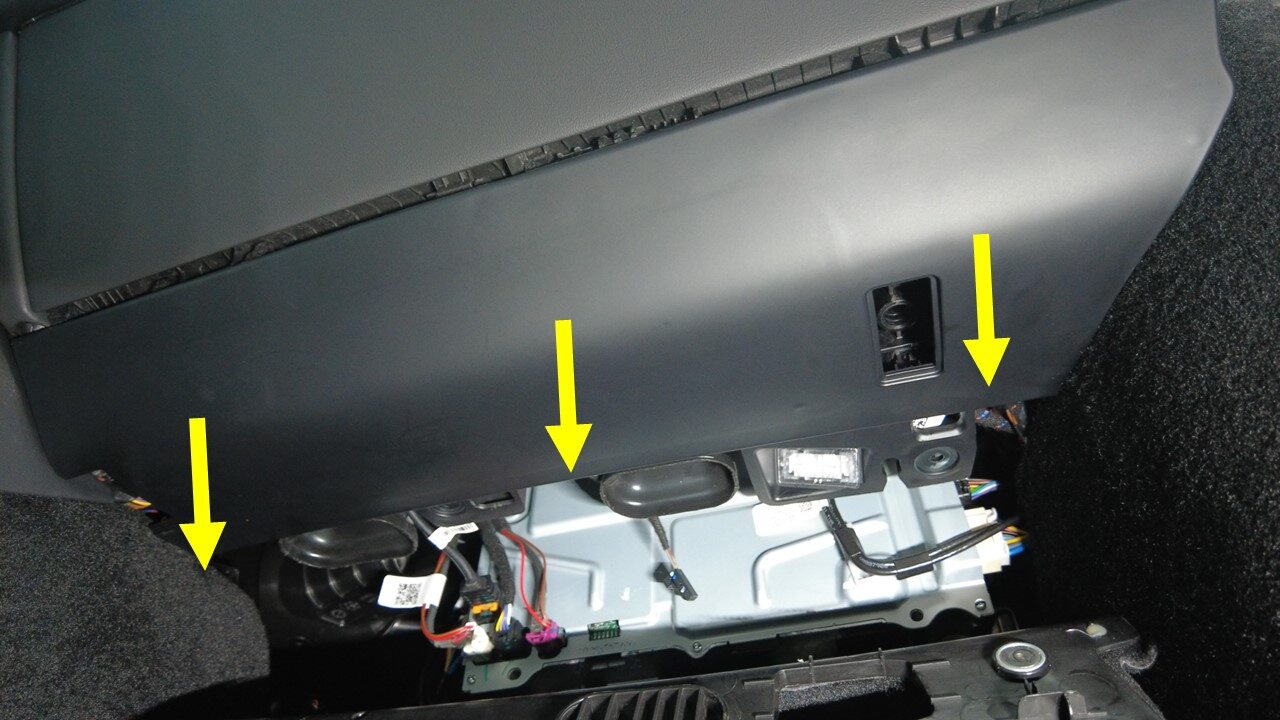

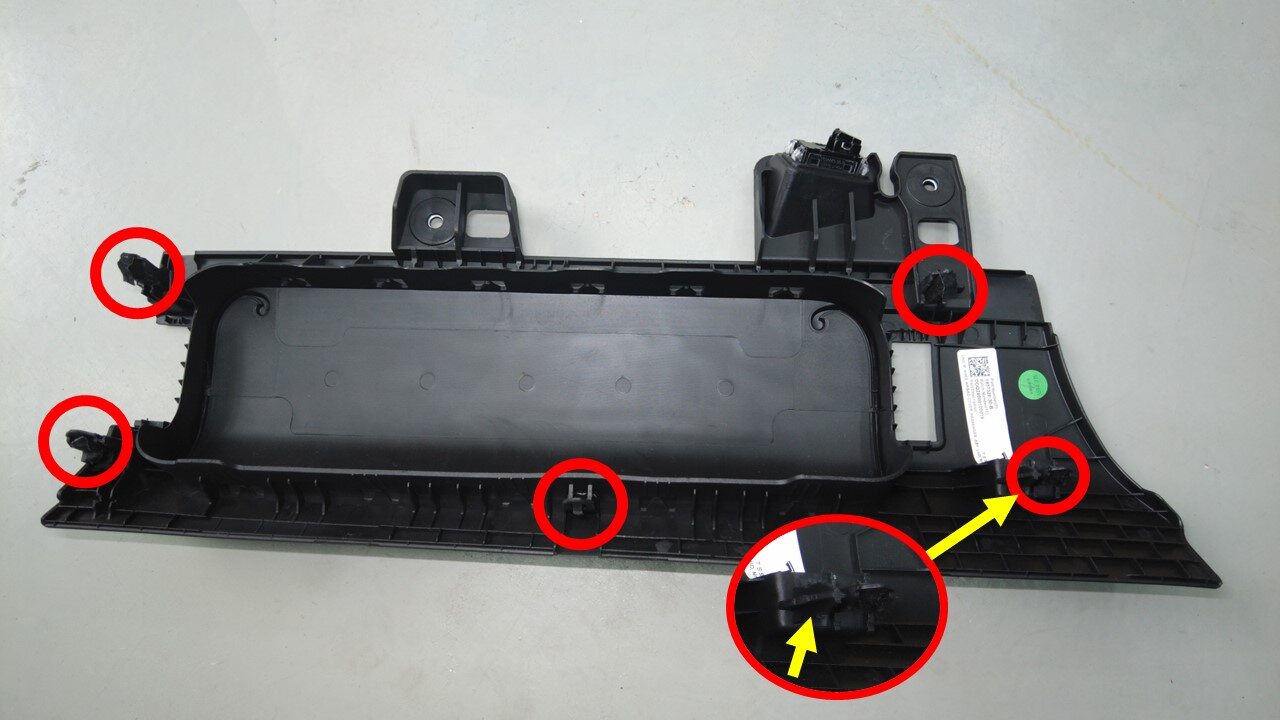

Release the tabs (x5) that attach the RH footwell hush panel to the instrument panel
carrier, and then disconnect the electrical connector.
-

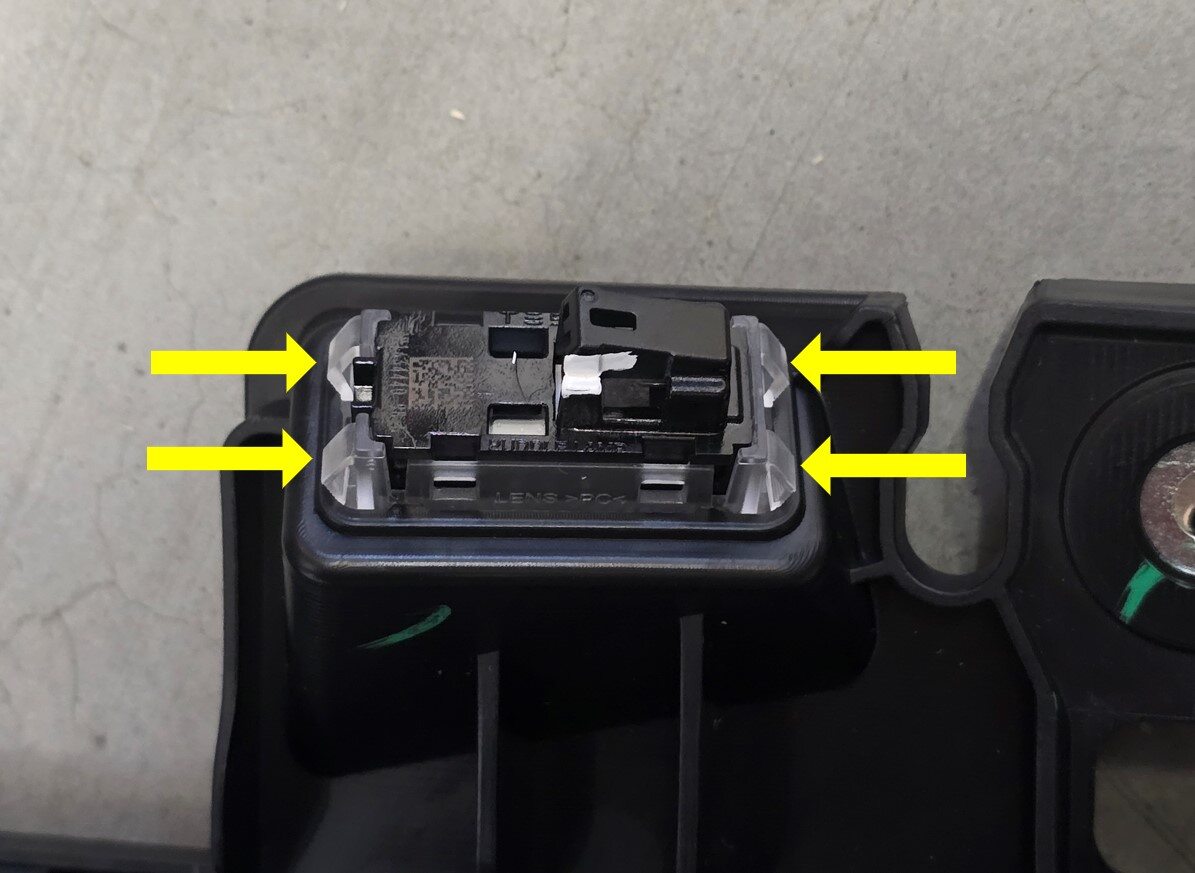

Release the tabs (x4) to separate the
puddle lamp from the passenger footwell hush panel.
Install
-
Secure the tabs (x4) to install the
puddle lamp to the passenger footwell hush panel.
-
Connect the electrical connector, and then secure the tabs (x5) that attach the RH
footwell hush panel to the instrument panel carrier.
- Install the RH knee airbag. See Knee Airbag - RH (Remove and Replace).
-

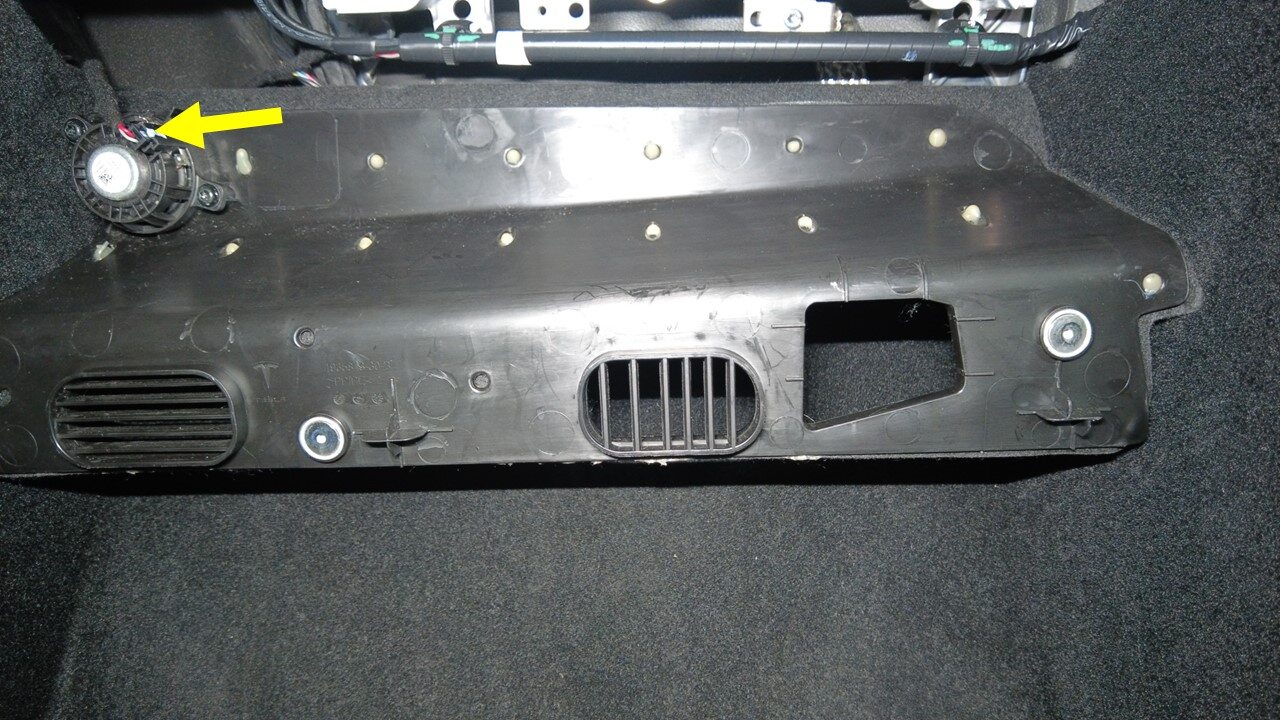

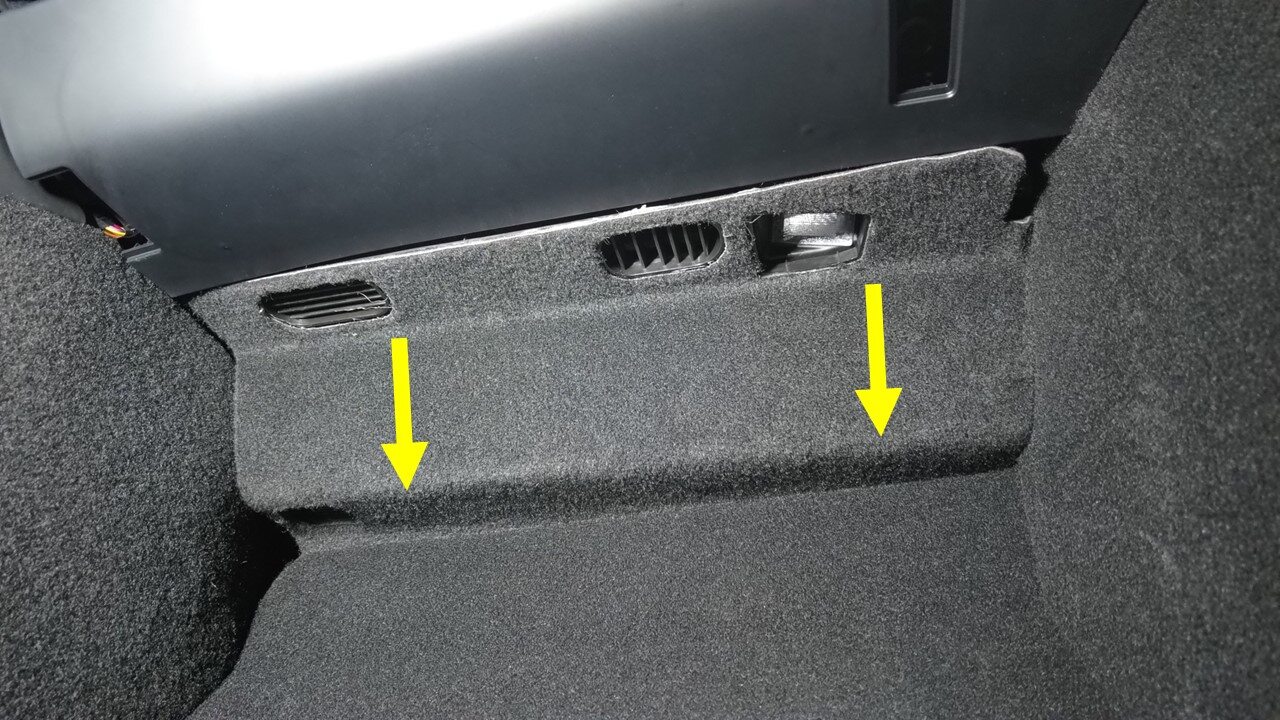

Connect the electrical connector, and then install the RH front cabin carpet cover to
the RH footwell hush panel.
