Side Panel - Rear - LH - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190404801 15190404802 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open all doors and lower all windows.
  2. Remove the center console rear end panel. See Air Vent Cover - Rear - Center Console (Model Y Standard) (Remove and Install).
  3. Move both front seats backward, and tilt their seatbacks backward.

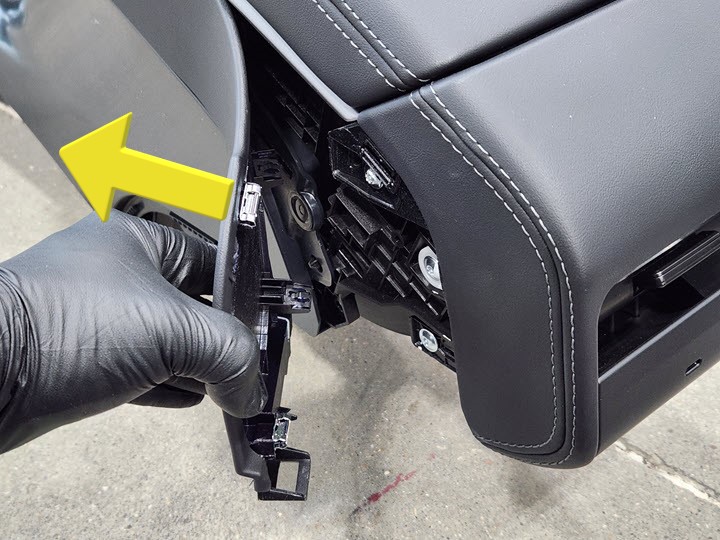

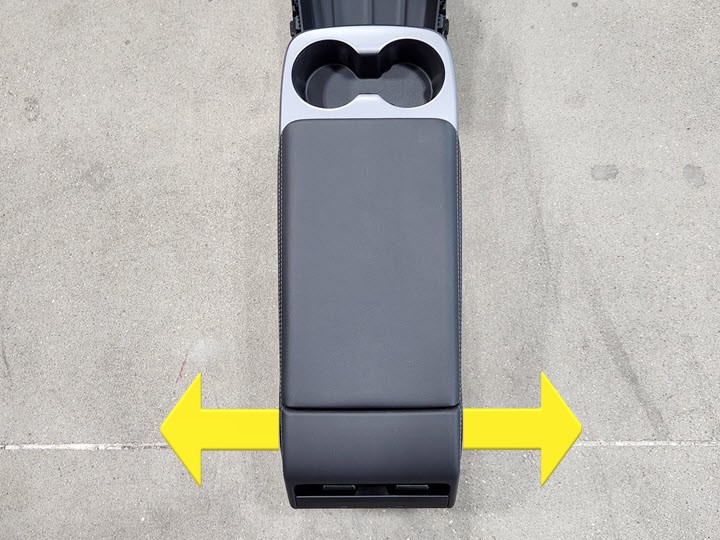

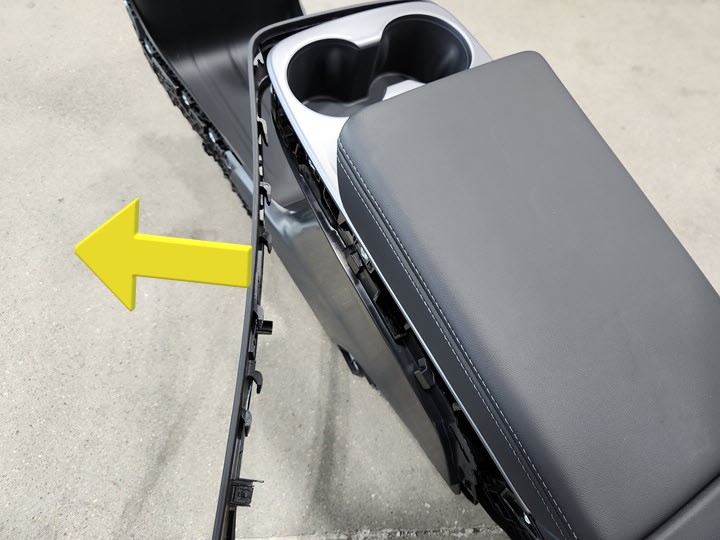

  4. Release the clips (x12), the tabs (x12) and the guides (x2) to remove the center console U-panel.
    Note
    The center console is out of vehicle in the image for demonstration purpose only.
    Note

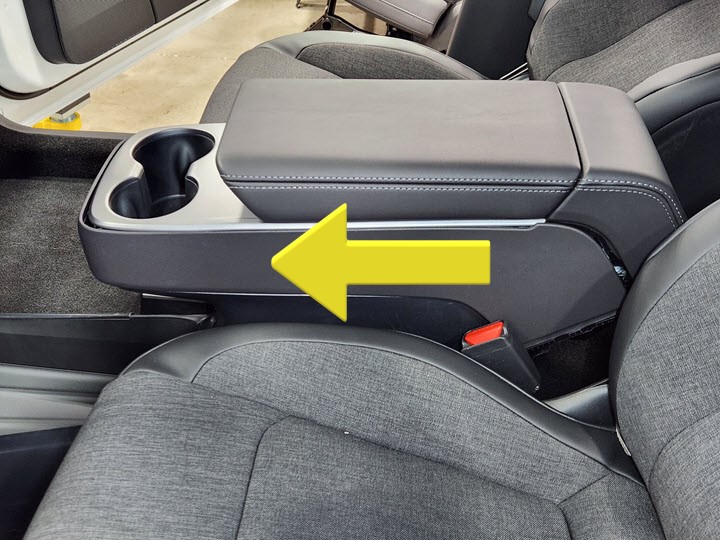

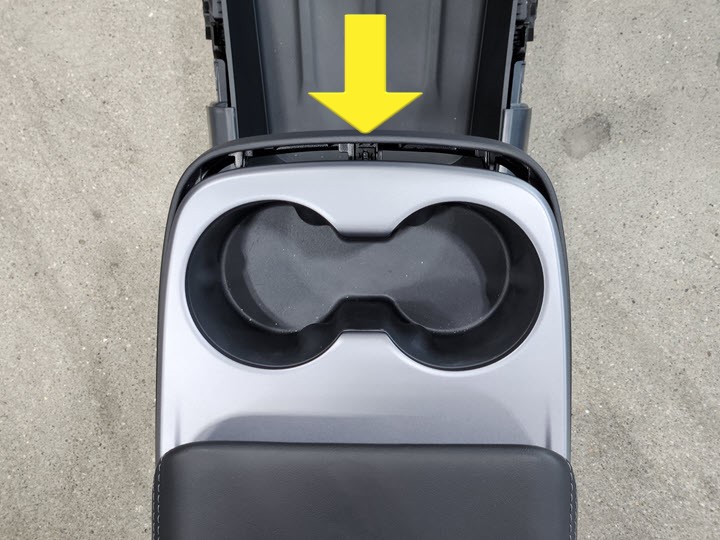

    Release the rear section of both sides first, and then work forward. Release the front section at last.
    Note

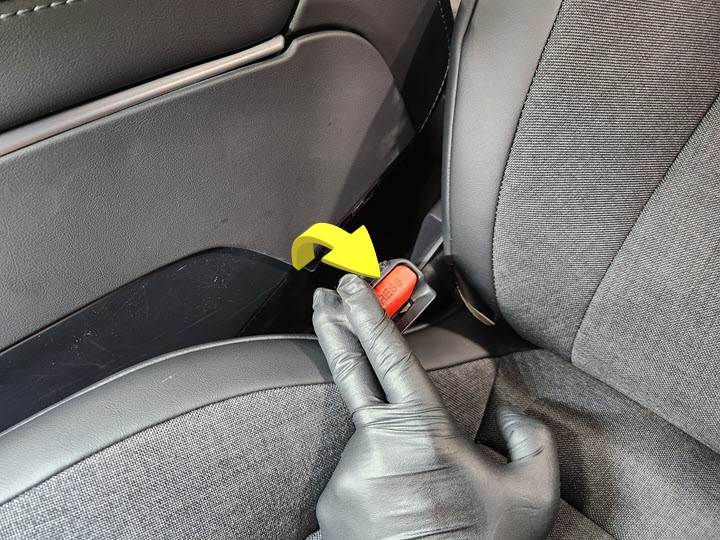

    Move the seatbelt buckle aside as needed. Make sure the seatbacks are tilted back.

Install

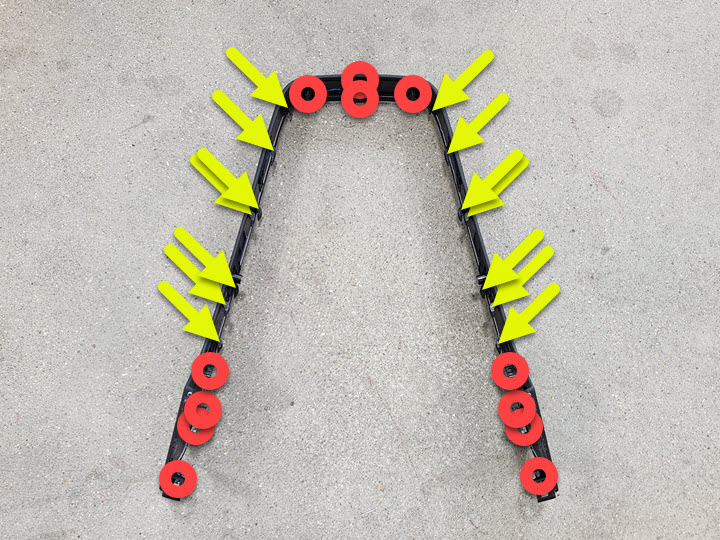

  1. Secure the clips (x12), the tabs (x12) and the guides (x2) to install the center console U-panel.
    Note
    The center console is out of vehicle in the image for demonstration purpose only.
    Note
    Move the seatbelt buckle aside as needed. Make sure the seatbacks are tilted back.
    Note

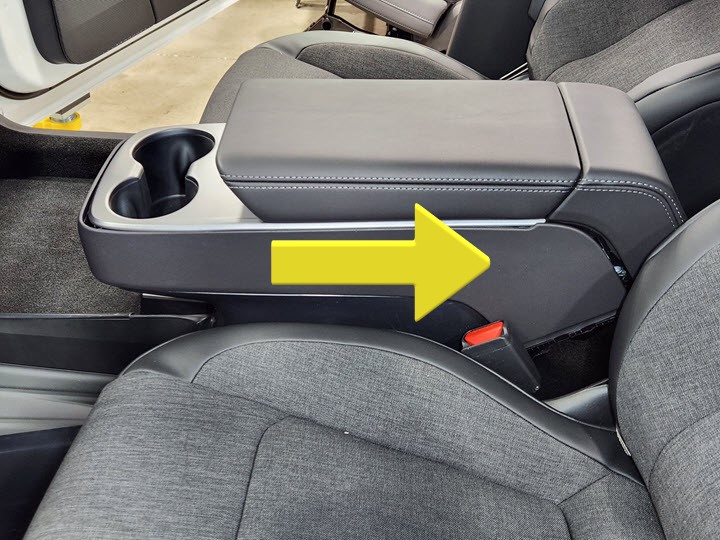

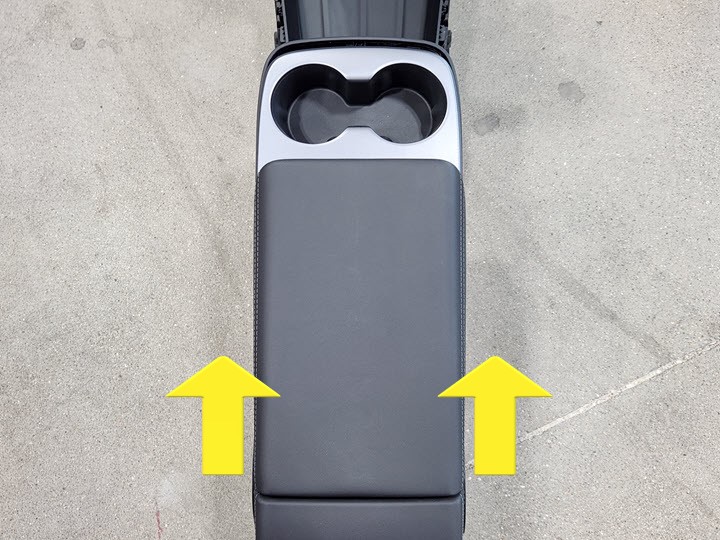

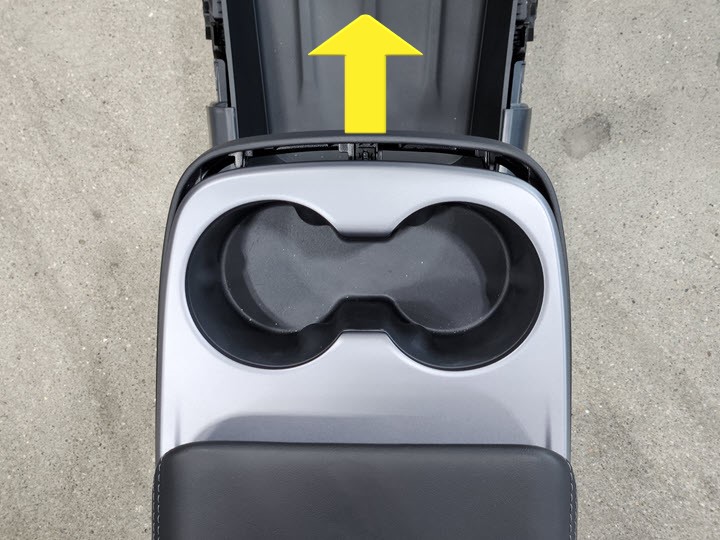

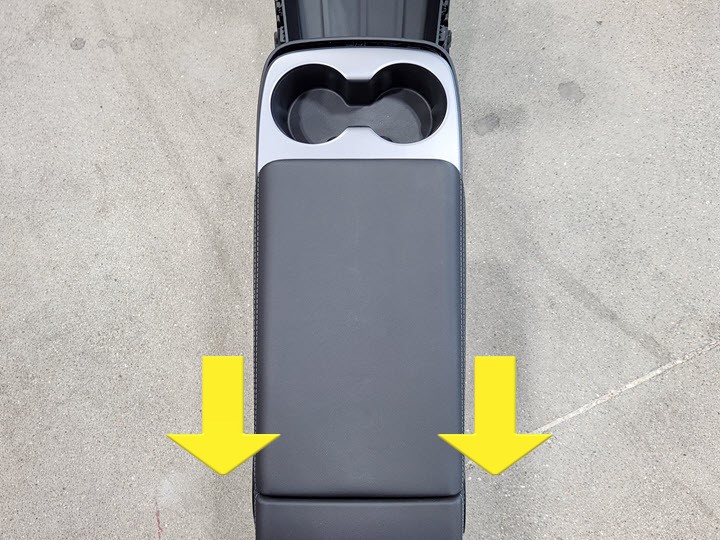

    Position the front and sides, and then push the front and sides rearward. Secure the sides from the front section and then work rearward.
  2. Move both front seats to original position.
  3. Install the center console rear end panel. See Air Vent Cover - Rear - Center Console (Model Y Standard) (Remove and Install).
  4. Raise all windows and close all doors.
