2nd Row Seat Back Harness - LH (7 Seater) (Remove and Replace)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-26: Released new procedure.

Remove

  1. Open LH front door.
  2. Lower LH front window.
  3. Move LH front seat forward.
  4. Open LH rear door.
  5. Lower LH rear window.

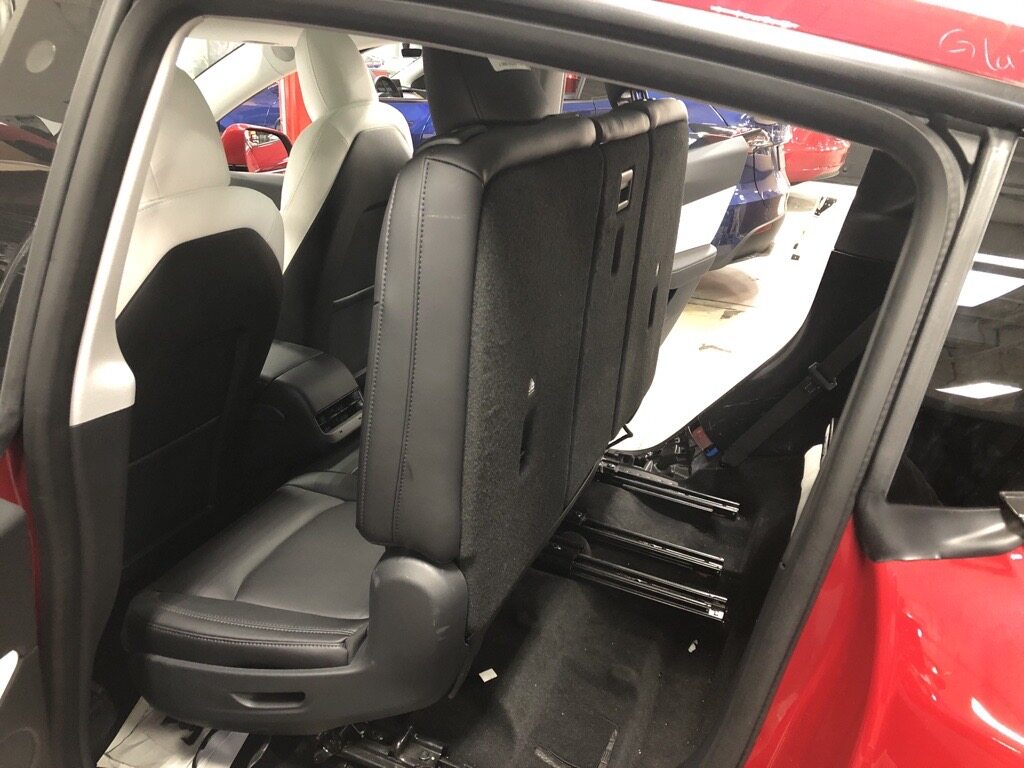

  6. Position 60 seat into easy entry mode.
    Note

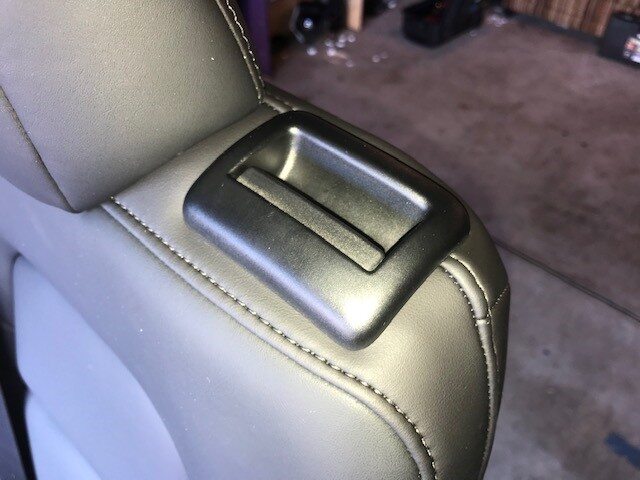

    Press shoulder switch and push LH seat forward to position into easy entry mode.
  7. Remove LH shoulder switch from LH seat assembly.
    Note

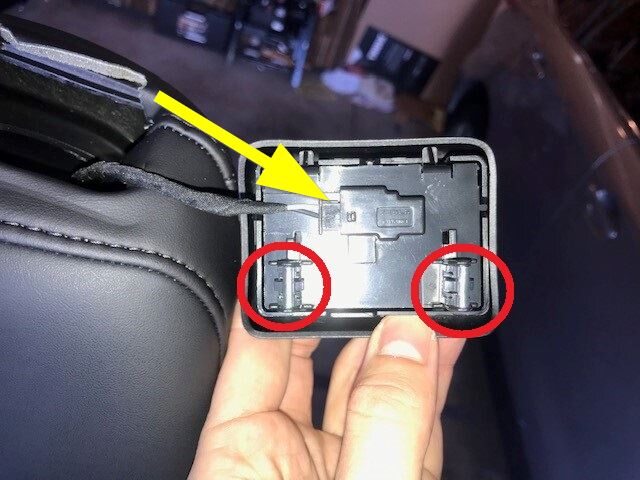

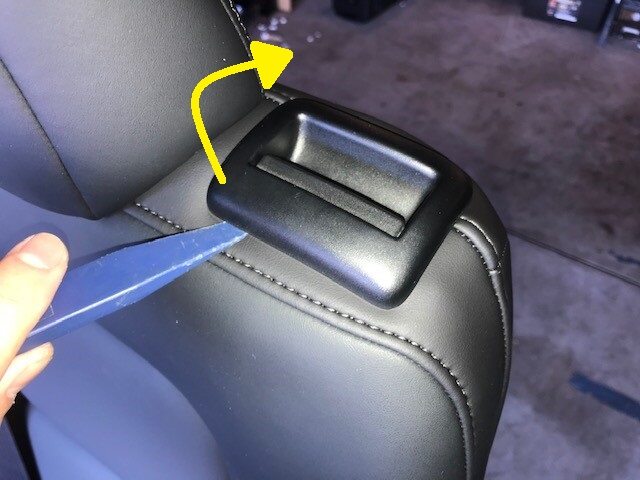

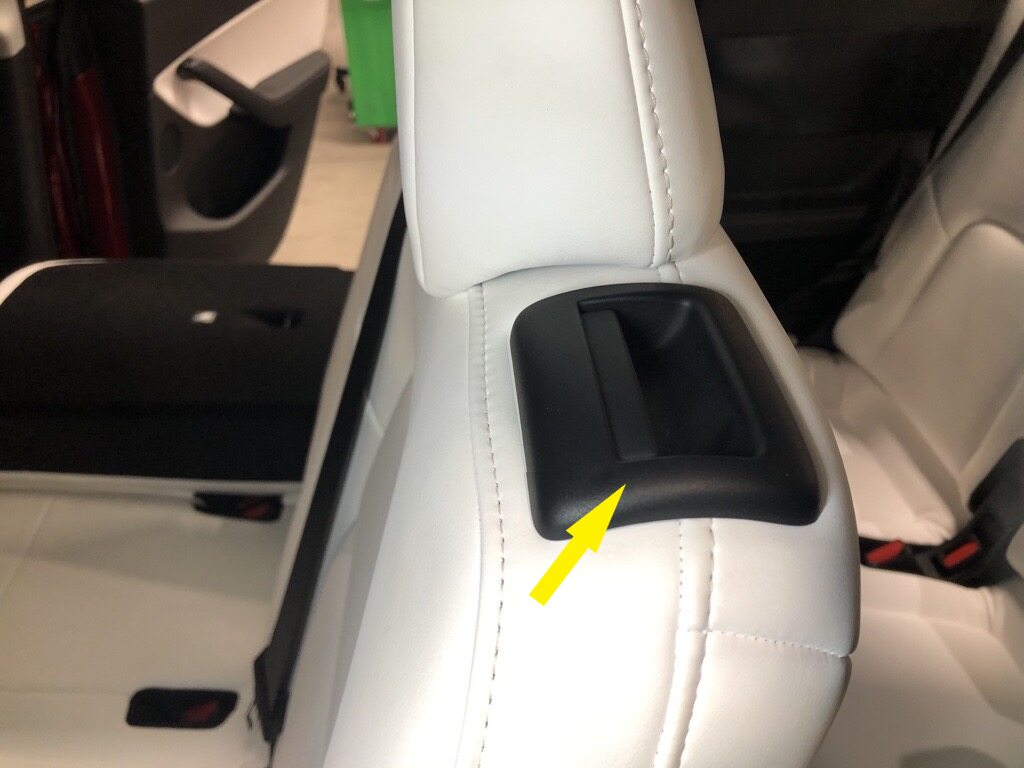

    Using plastic trim tool pry the top of the switch away from LH seat assembly to ease removal.
  8. Remove 2nd row LH seatback assembly toe kick panel.
    Note

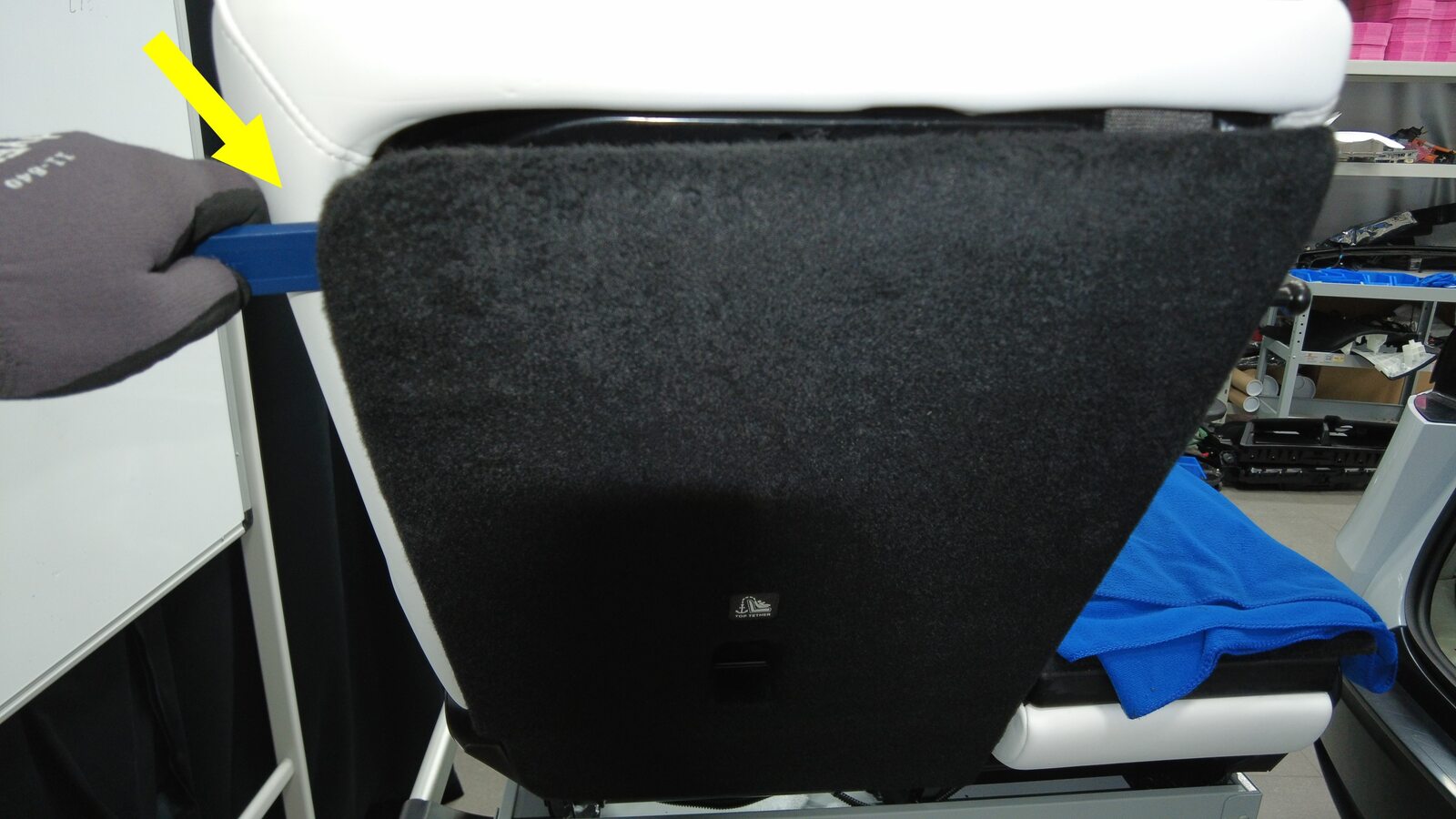

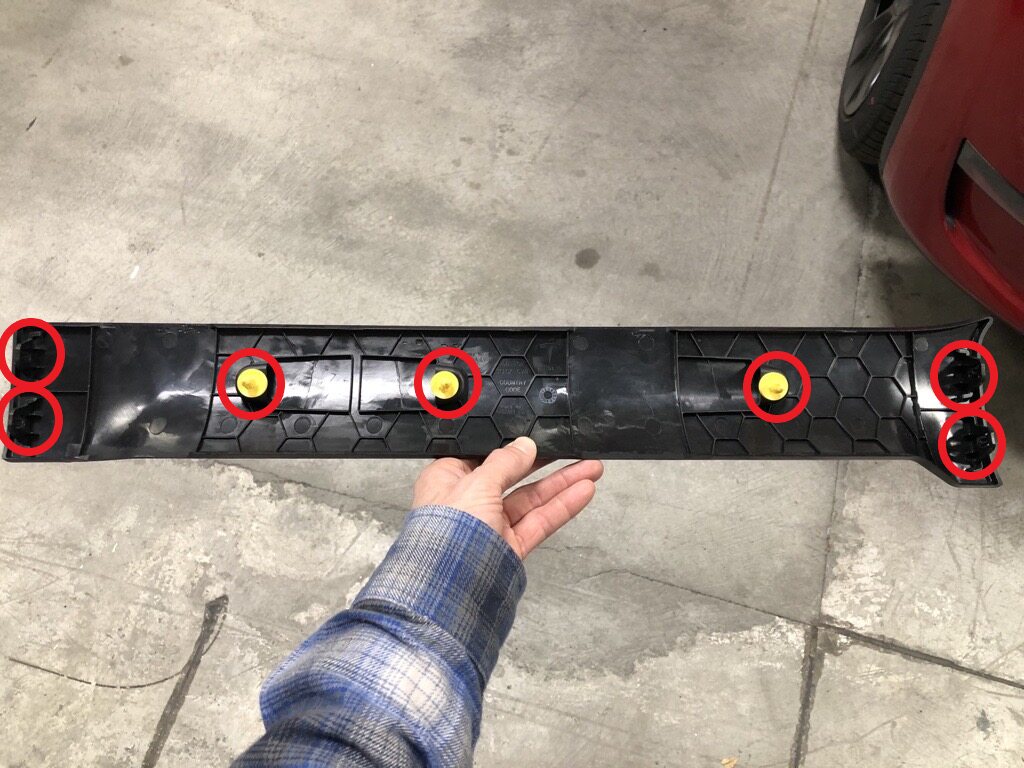

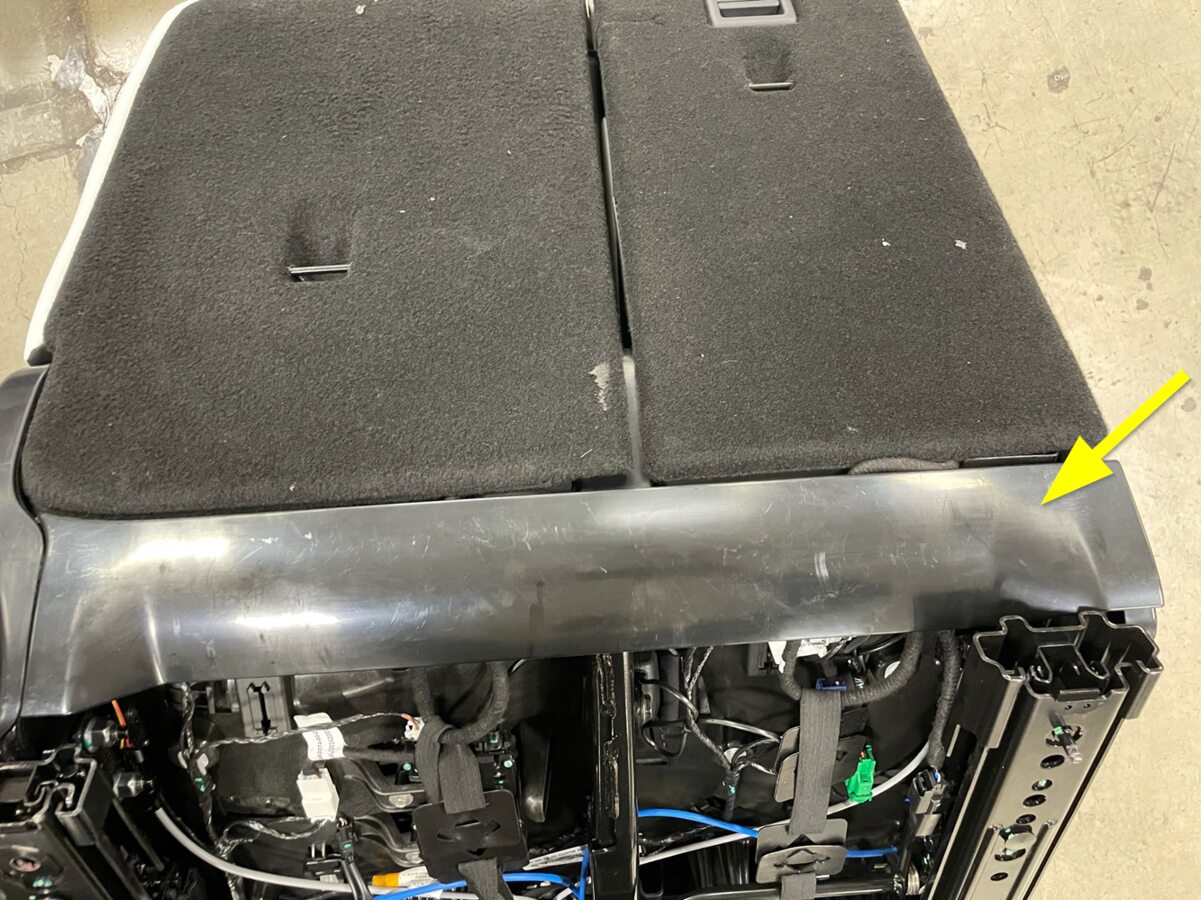

    Pry up on LH side of LH toe kick cover to release clips, and repeat on RH side to fully remove.

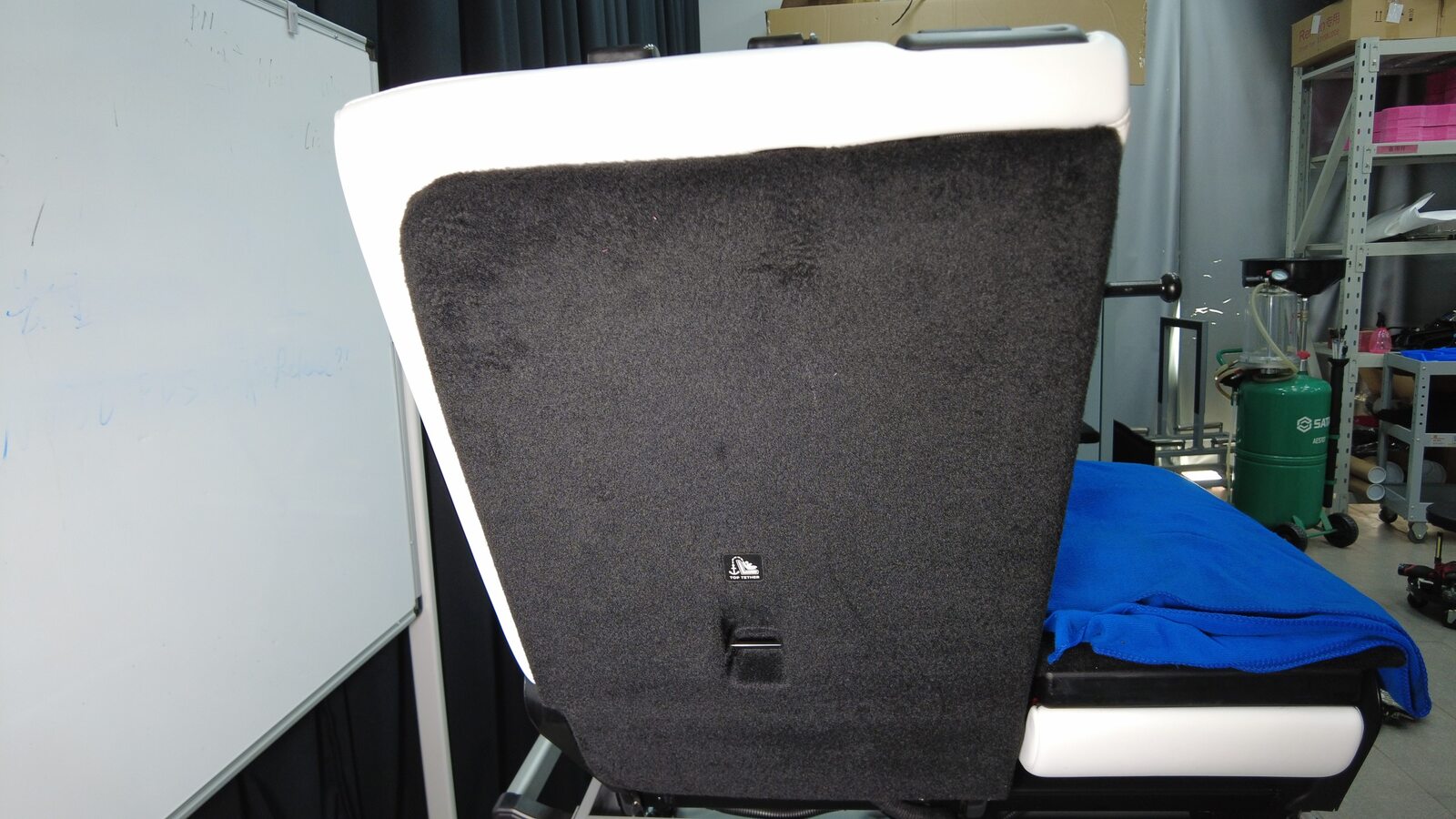

  9. Remove backpanel from 2nd row LH seatback.
    Note

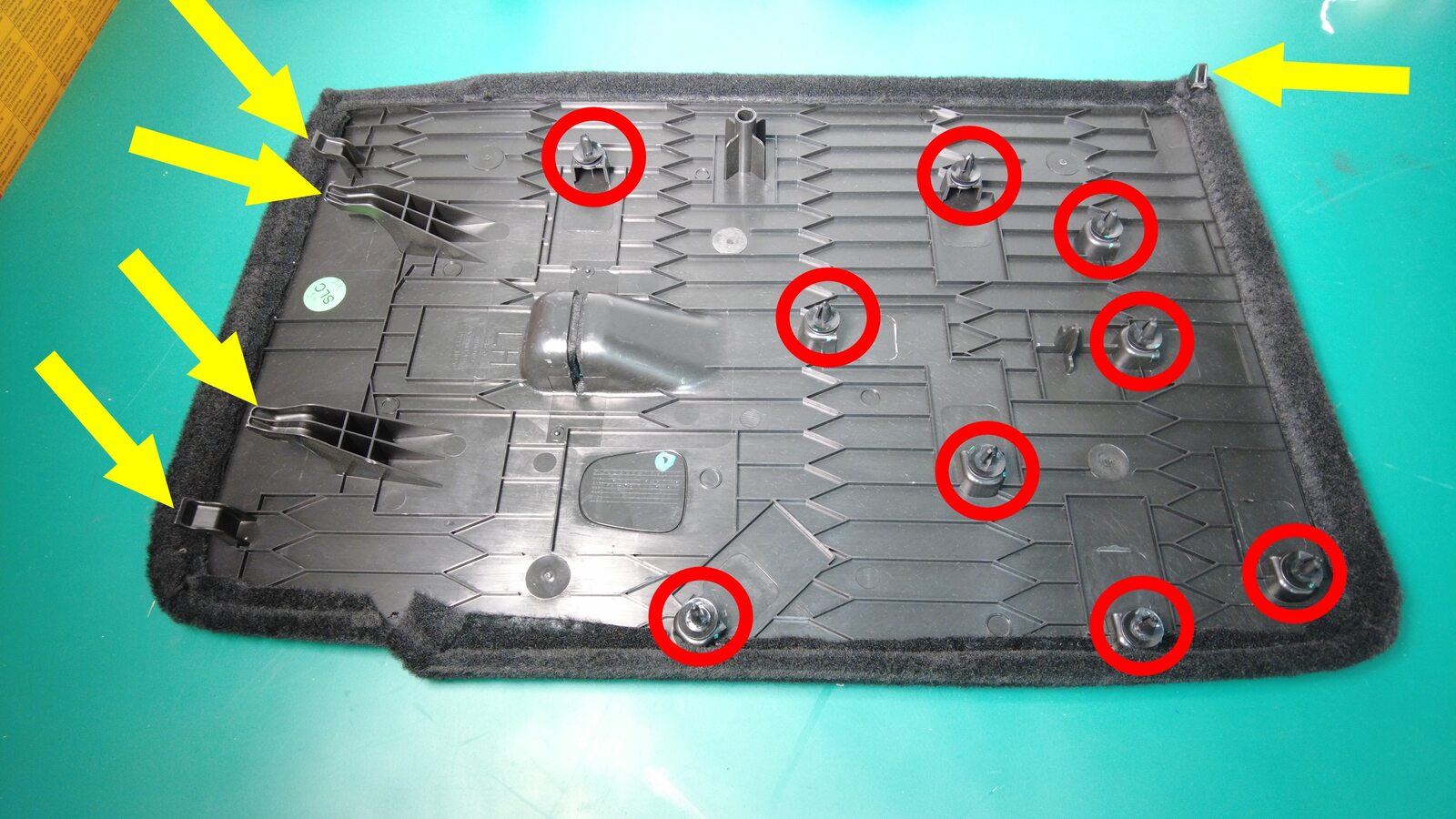

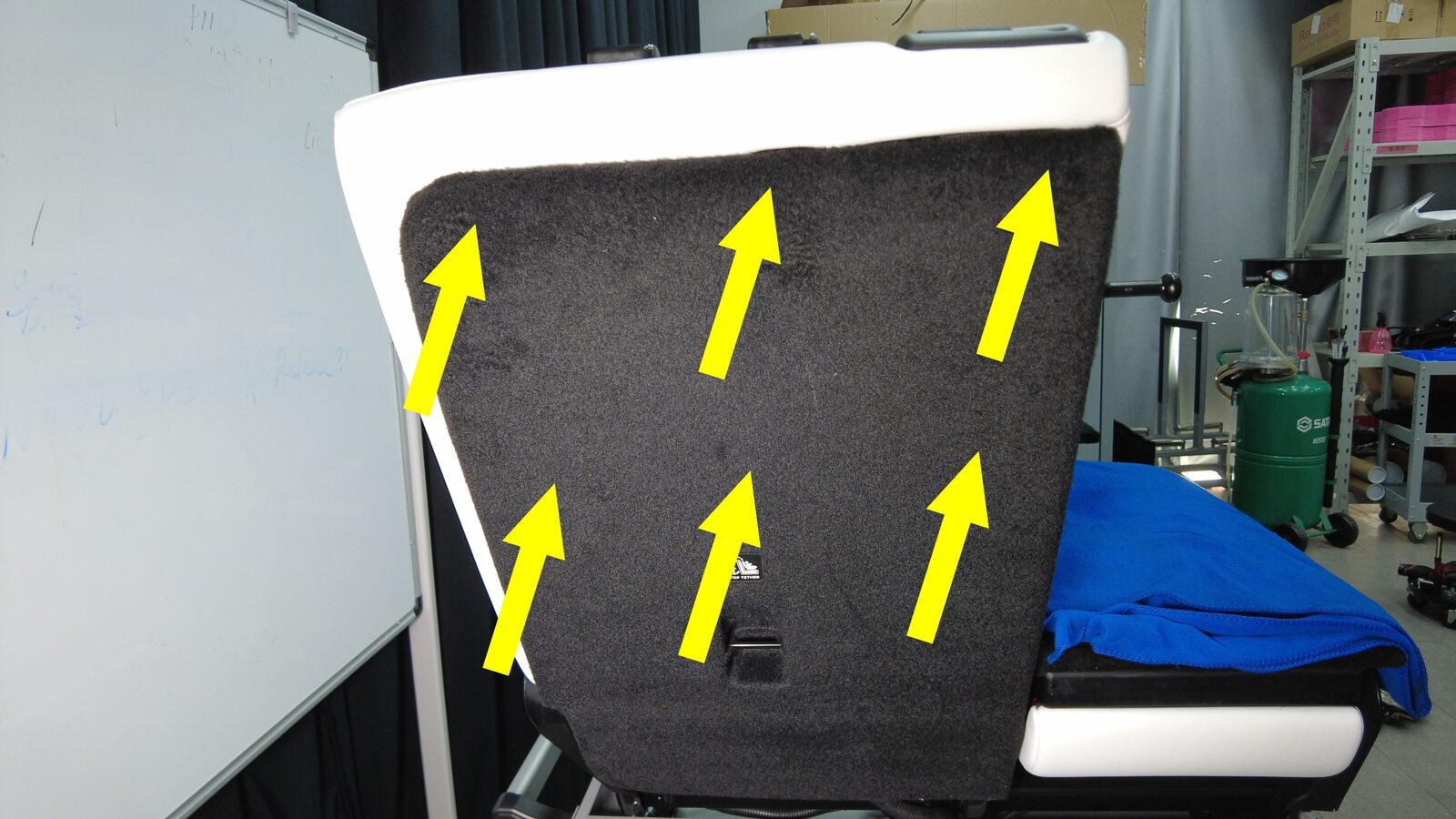

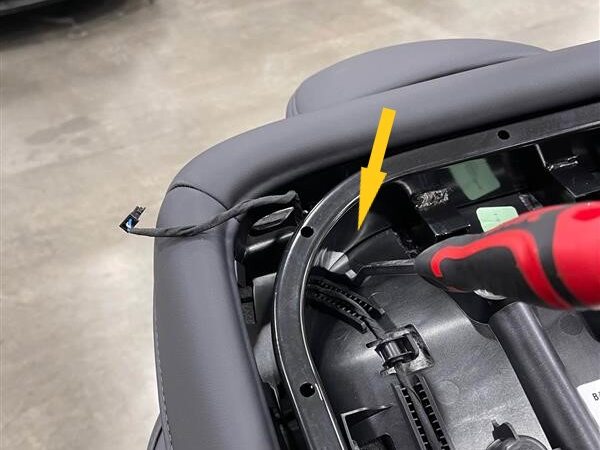

    Starting from upper left release all clips, and detach lower hooks afterwards.
  10. Remove LH seatback harness.
    Note

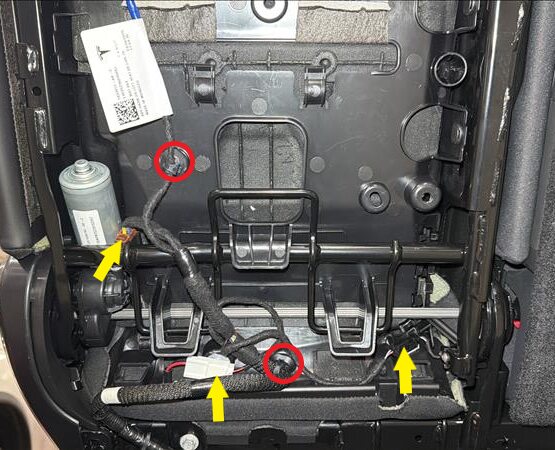

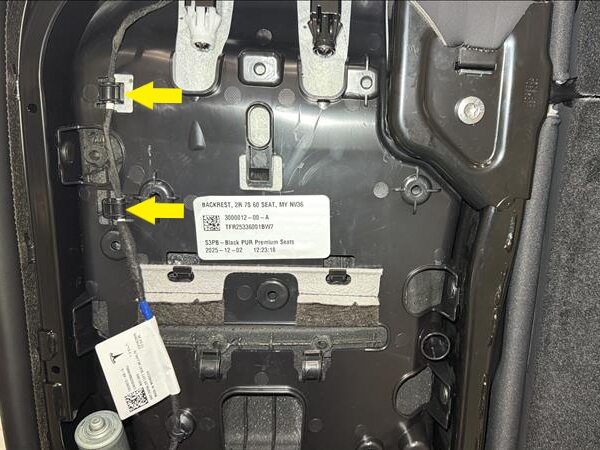

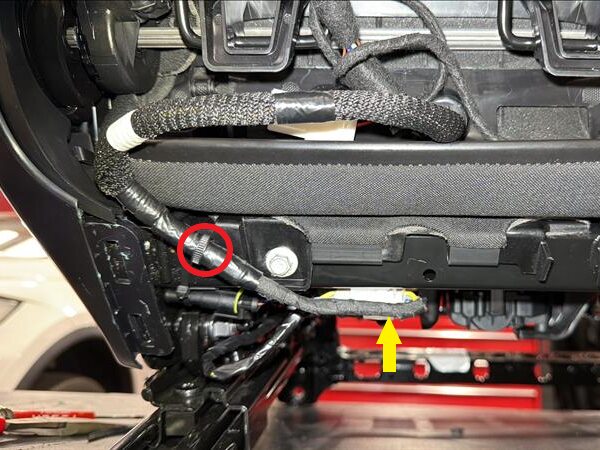

    4x connectors, 3x fir tree clips, Route shoulder switch connector into seat, unplug remaining connector and unclip harness from seat back, use pry tool if needed to fit connector between seat back and frame.

Install

  1. Install LH seatback harness.
    Note
    Route new seat harness onto seat back, plug in the connection, route shoulder switch connection back out of the seat, and clip the harness into place.
  2. Install LH shoulder switch to LH seat assembly.
  3. Install backpanel to 2nd row LH seatback.
    Note
    9x clips, 5 hooks, attach hooks onto frame rail, work upwards and fasten all the clips.
  4. Install LH toe kick cover.
  5. Move LH seat to original position.
  6. Raise LH rear window.
  7. Close LH rear door.
  8. Move LH front seat to original position.
  9. Raise LH front window.
