Tow Hitch Cover (Performance) (Remove and Install)

Correction code 10010502901 10010502902 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

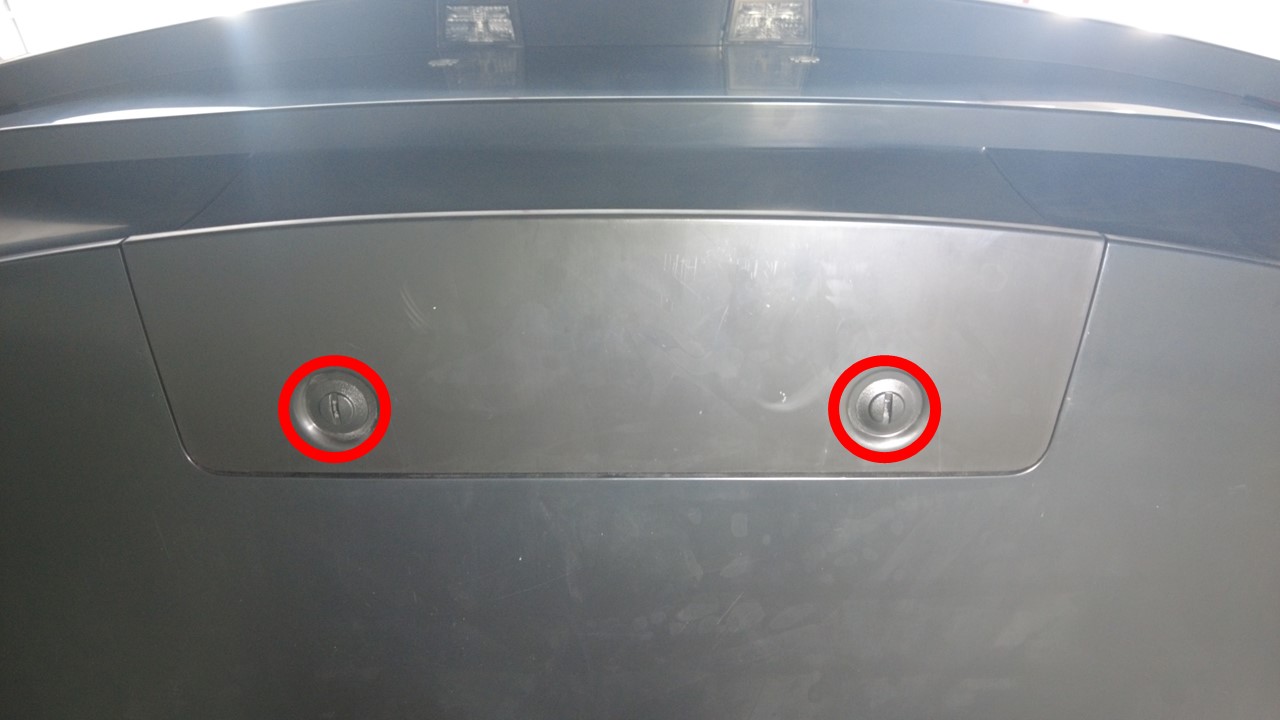

  1. Use a flat screwdriver to remove the plastic bolts (x2) that attach the tow hitch cover to the rear fascia assembly.
    Note
    Rotate the bolts clockwise to remove.

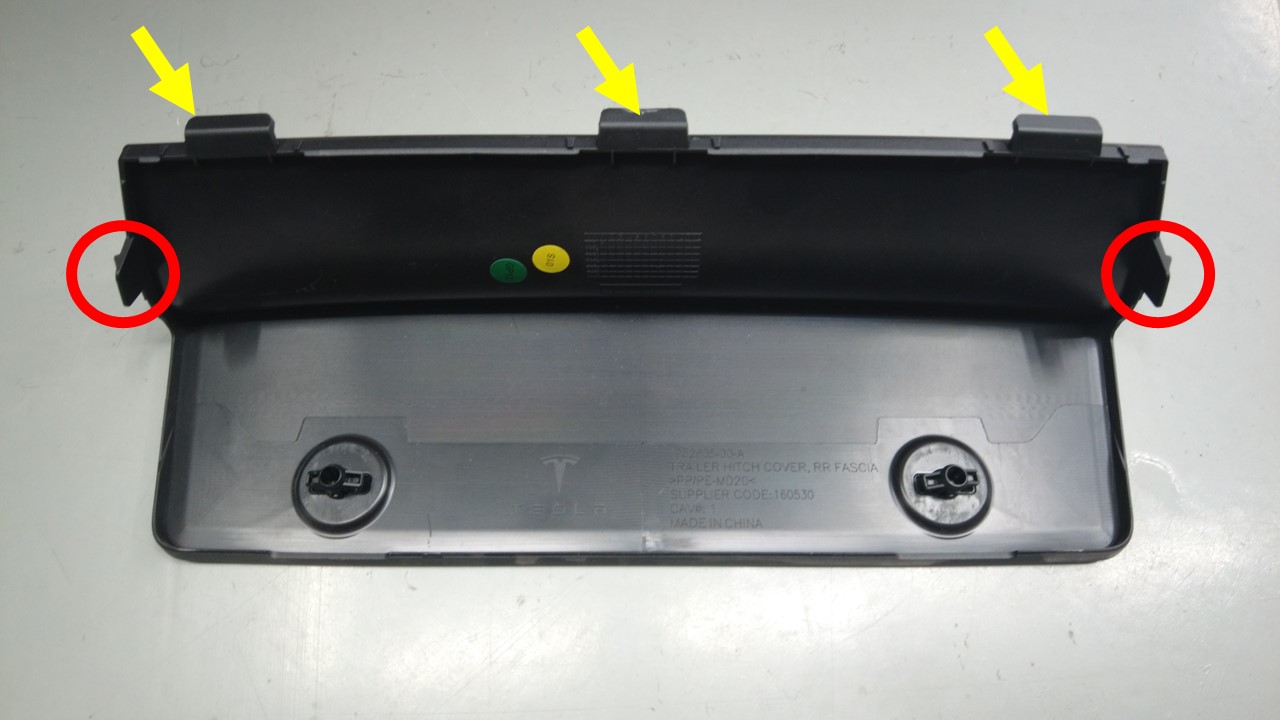

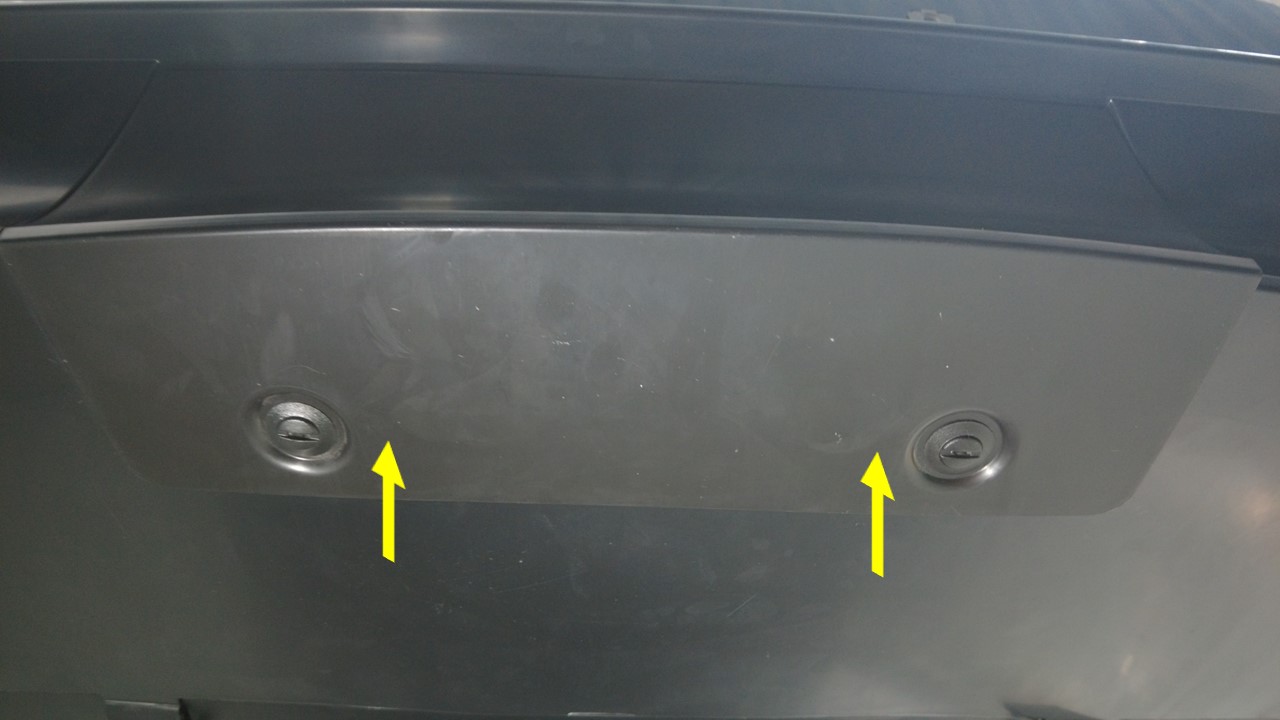

  2. Release the tabs (x2) and guides (x3) that attach the tow hitch cover to the rear fascia assembly, and then remove the cover from the vehicle.

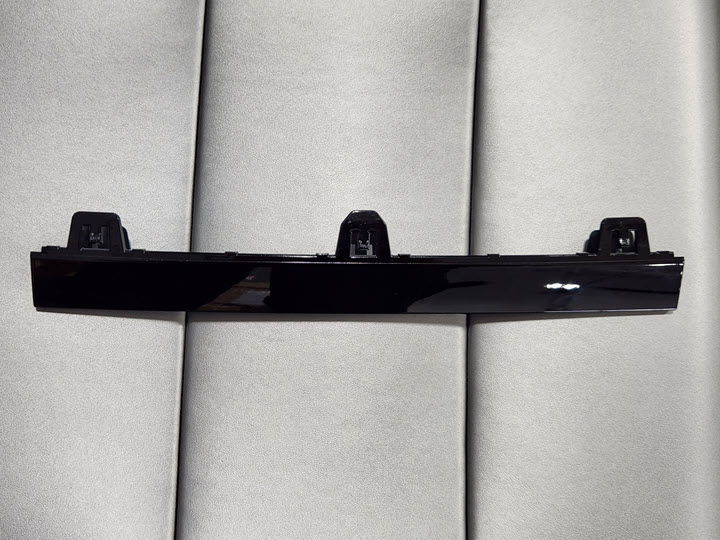

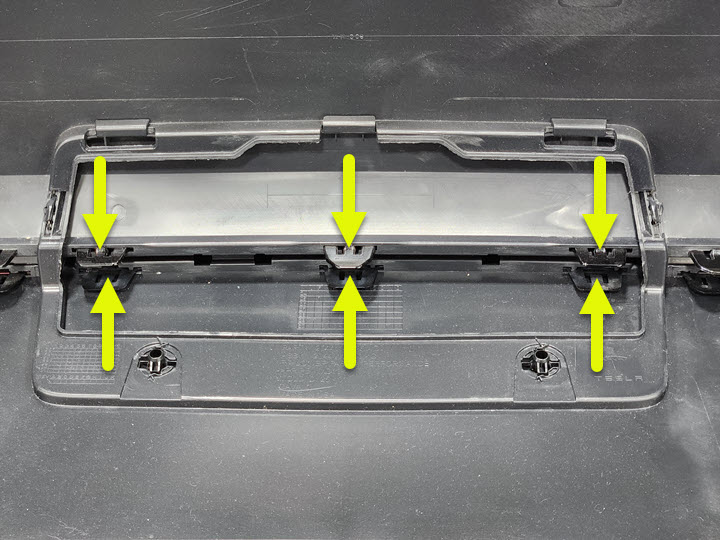

  3. Release the clips (x6) that attach the lower rear fascia tow hitch cover splitter to the rear fascia assembly, and then remove the cover splitter from the vehicle.
    Note
    Push the clips from the inside of the fascia to release them.

Install

  1. Install the clips (x6) that attach the lower rear fascia tow hitch cover splitter to the rear fascia assembly.
  2. Install the tabs (x2) and guides (x3) that attach the tow hitch cover to the rear fascia assembly.
  3. Use a flat screwdriver to install the plastic bolts (x2) that attach the tow hitch cover to the rear fascia assembly.
    Note
    Rotate the bolts counterclockwise to install.
