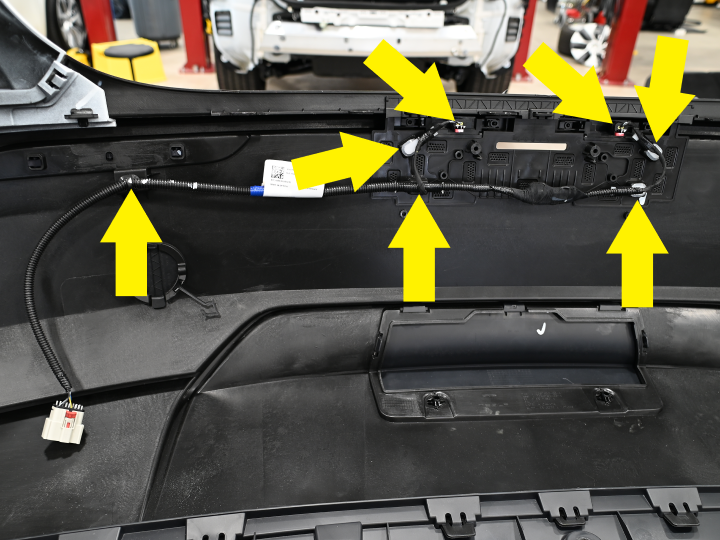

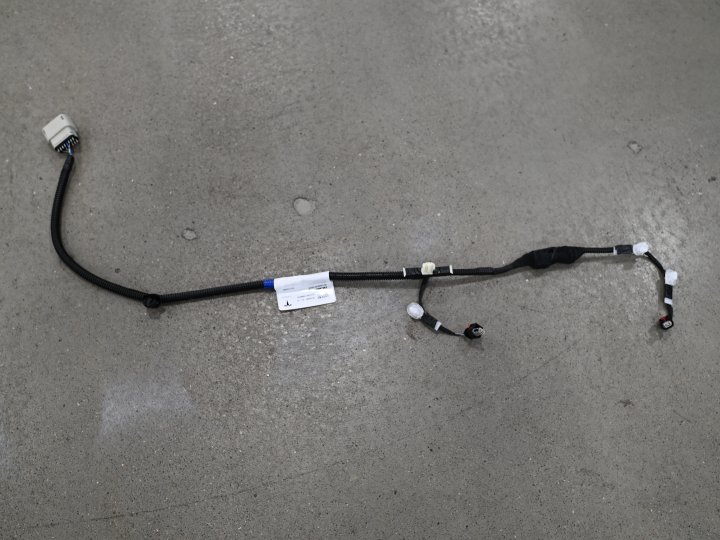

Harness - Fascia - Rear (Model Y Standard) (Remove and Install)

Correction code 17102700001 17102700002 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Fascia - Rear - Upper (Model Y Standard) (Remove and Install)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the LH rear fascia to the body	2 Nm (1.5 lbs-ft)	8 mm socket	Reuse
Bolt that attaches the LH corner of the rear fascia to the body	3.5 Nm (2.6 lbs-ft)	10 mm socket	Reuse
Bolts (x2) that attach the mid aero shield to the rear diffuser	5 Nm (3.7 lbs-ft)	10 mm deep socket	Reuse
Rear diffuser bolts	5 Nm (3.7 lbs-ft)	10 mm deep socket	Reuse
