Hub - Front - LH (AWD) (Remove and Replace)

Correction code 3101010102 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-06-16: Updated the torque of the bolt securing the hub to the knuckle from 115 Nm to 85 Nm.
  • 2025-04-25: Based on vehicle status, removed the steps relating to the brake rotor bolt.
CAUTION
If performing this procedure as a result of a collision, see the Collision Repair Manual to verify whether the steering gear must be replaced as well.
Equipment:
  • 1096075-00-A Tool, Hub Puller, Hydraulic
  • 1062500-00-A Card, Magnetic Field Viewer
CAUTION
Vehicles equipped with 18" steel wheels may only use hub part numbers 1044121* or 1044122*. Refer to the parts catalog for more information.
Part NumberSteel WheelAlloy Wheel
1044121*OK TO USEOK TO USE
1044122*OK TO USEOK TO USE
1044123*DO NOT USEOK TO USE
1044124*DO NOT USEOK TO USE

Torque Specifications

Table 1. Torque Specifications: Hub - Front - LH (AWD) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x3) that attach the LH front hub to the LH front knuckle
85 Nm (62.7 lbs-ft)
  • 18 mm socket
 Reuse
Bolts (x2) that attach the LH front caliper to the LH front knuckle
94 Nm (69.3 lbs-ft)
  • External Torx E18
 Replace 1088969-00-B
Bolt that attaches the LH front brake hose bracket to the LH front knuckle
5 Nm (3.7 lbs-ft)
  • 10 mm socket
 Reuse
The LH front halfshaft nut
300 Nm (221.2 lbs-ft)
  • 32 mm deep impact socket
Replace 1765133-00-A

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2-Post Lift.
  2. Remove the LH front wheel cap.
    Note
    Use wheel trim removal tool to release the clips.
  3. Loosen the LH front drive unit halfshaft nut.
    Tip
    Use of the following tool(s) is recommended:
    • Long Breaker Bar
    • 32 mm deep impact socket
  4. Remove the LH front wheel. See Wheel Assembly (Remove and Install).

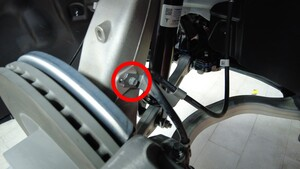

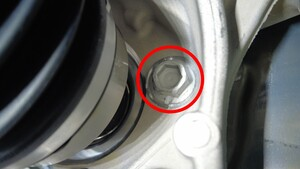

  5. Remove the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket

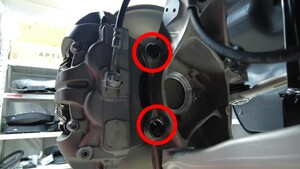

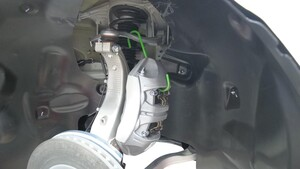

  6. Remove and discard the bolts (x2) that attach the LH front brake caliper to the LH front knuckle, remove the caliper from the knuckle, and allow the caliper to hang from an S-hook.
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E18
  7. Remove and discard the LH front drive unit halfshaft nut and washers.
    Note
    The washers are attached to the nut.
  8. Position the hydraulic hub puller tool onto the LH front wheel studs, and then hand tighten the wheel lug nuts (x5).
  9. Separate the LH front drive unit halfshaft from the LH front hub assembly.
    Note
    While holding the hub in position, turn the hydraulic hub puller tool handle clockwise to separate the LH front drive unit halfshaft from the hub assembly.
  10. Remove the hub puller tool from the LH front wheel studs.

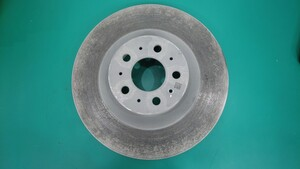

  11. Remove the LH front rotor from the vehicle.
    Note
    Store the rotor face down to reduce likelihood of damage to the rotor face.

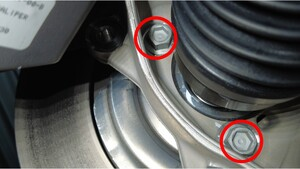

  12. Remove the bolts (x3) that attach the LH front hub to the LH front knuckle.
    Tip
    Use of the following tool(s) is recommended:
    • 18 mm socket
  13. Remove the LH front hub from the vehicle.

Install

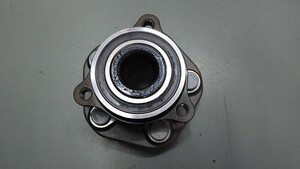

  1. Check the tone ring on the LH front hub prior to installation: Use a magnetic field viewing card to make sure that the magnetic field on the tone ring is not damaged.
  2. Apply Molykote M-77 Lubricant Paste to the outboard side of the LH rear halfshaft assembly.
    Note
    Clean the halfshaft before applying if necessary.
    CAUTION
    Apply no more than 1 gram to the axle only. Do not apply on the splines.

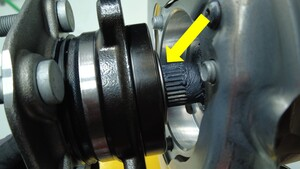

  3. Line up the LH front drive unit halfshaft splines, and then install the LH front hub on the LH front knuckle.
  4. Install the bolts (x3) that attach the LH front hub to the LH front knuckle.
    85 Nm (62.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 18 mm socket
  5. Install and hand tighten a new halfshaft nut and washer on the halfshaft.
  6. Install the LH front brake rotor onto the vehicle.
  7. Install new bolts (x2) that attach the LH front caliper to the LH front knuckle.
    94 Nm (69.3 lbs-ft)
    Note
    Mark with a pen after installation.
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E18
  8. Install the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
    5 Nm (3.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket
  9. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  10. Fully tighten the new LH front drive unit halfshaft nut.
    300 Nm (221.2 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 32 mm deep impact socket
  11. Install the LH front wheel cap.
    Note
    Align valve stem with the wheel cap cavity.
  12. Remove the vehicle from the lift. See Raise Vehicle - 2-Post Lift.
