3rd Row - Backpanel - RH (7-Seat)(Remove and Replace)

Correction code 1309011601 1309011602 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2026-01-26: Released new procedure.

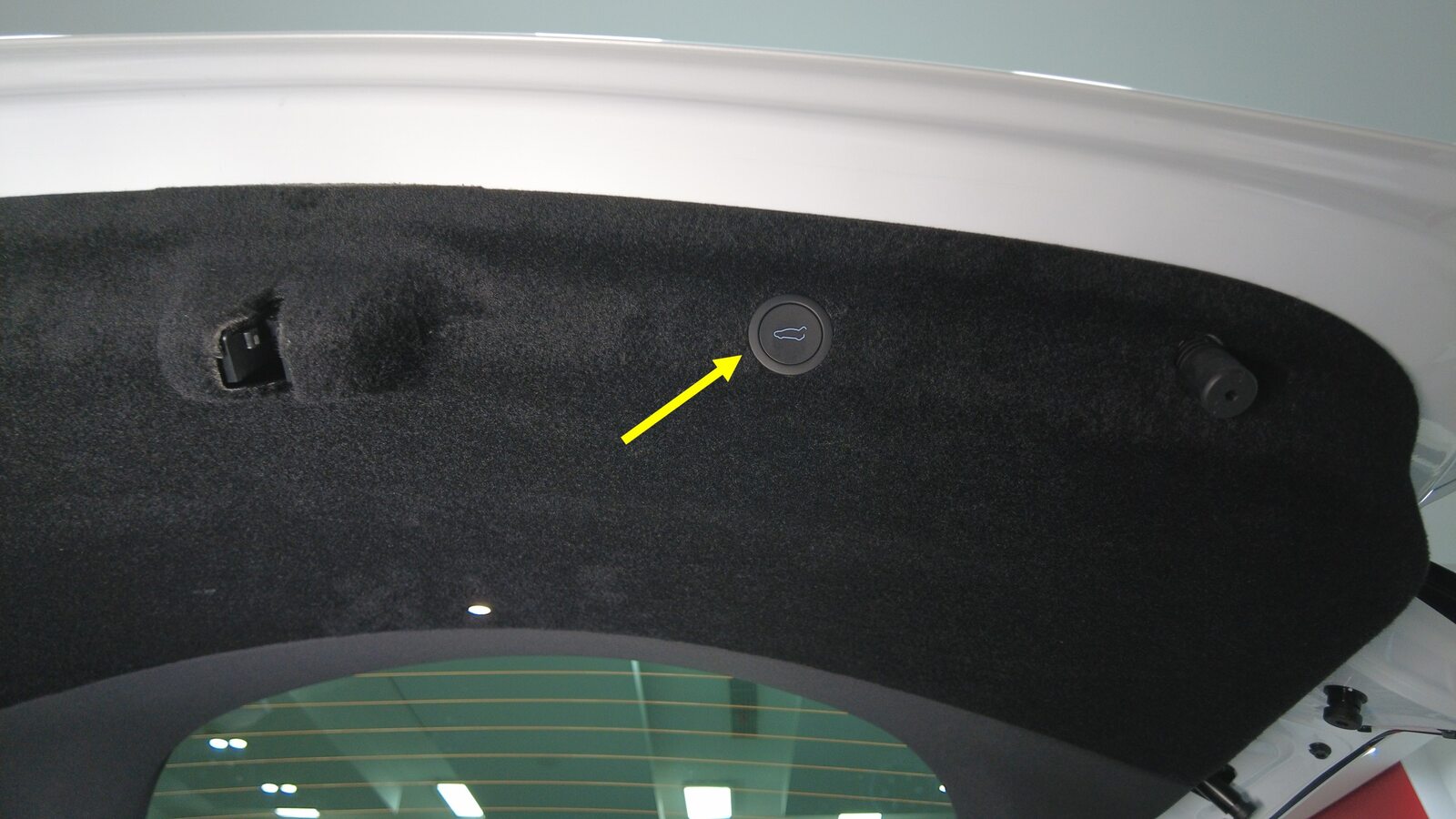

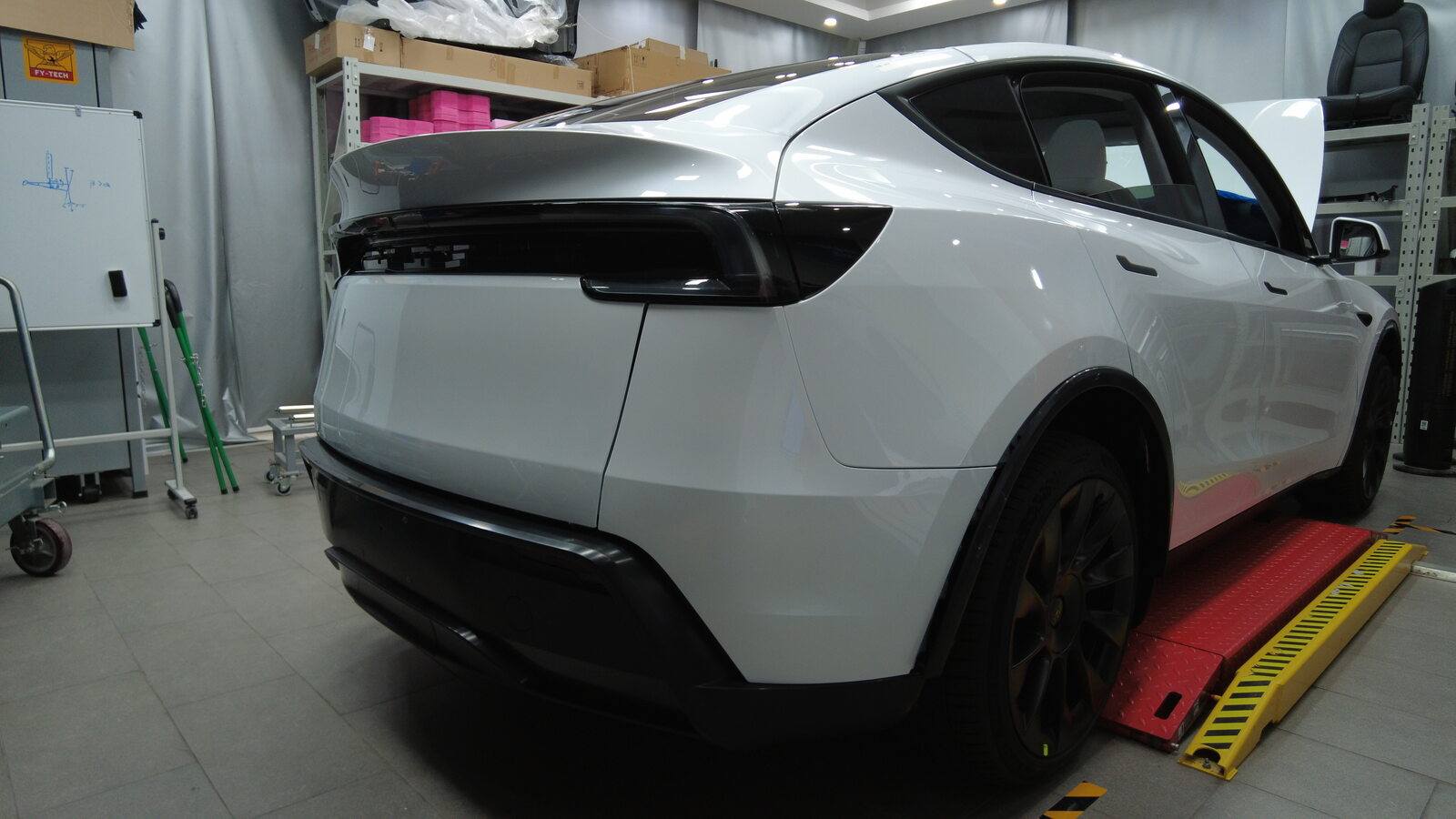

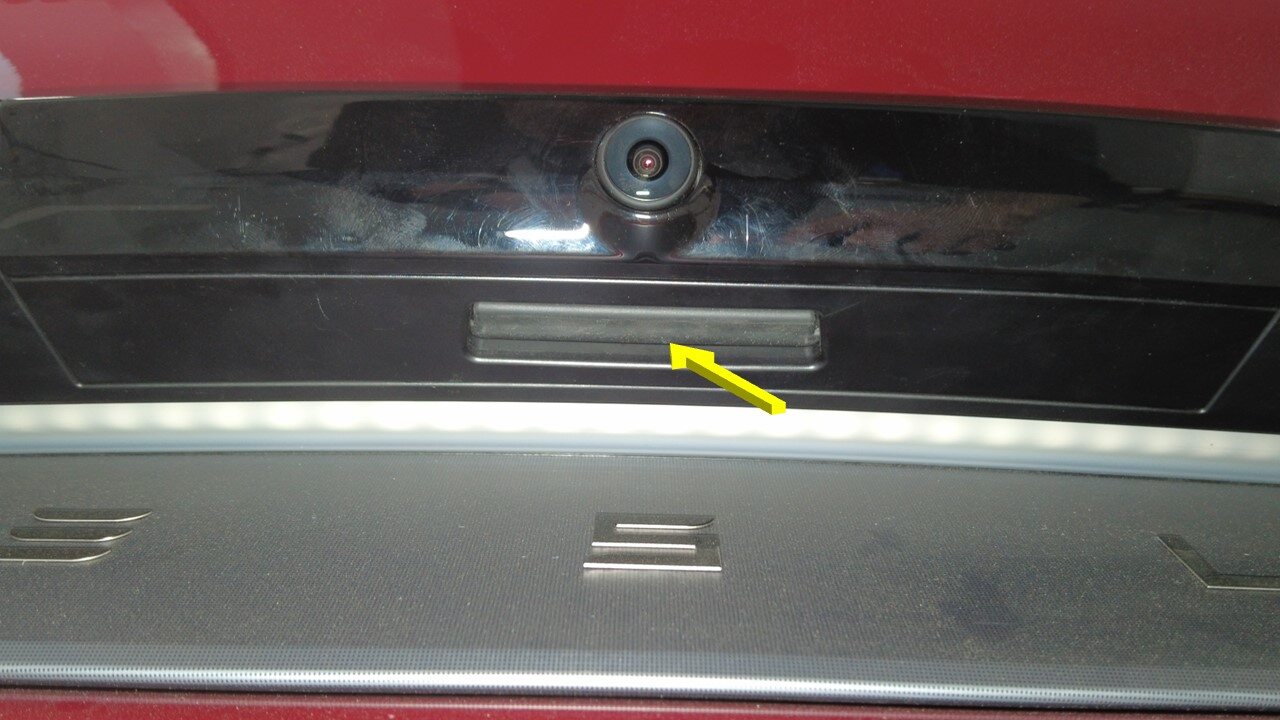

  1. Open liftgate

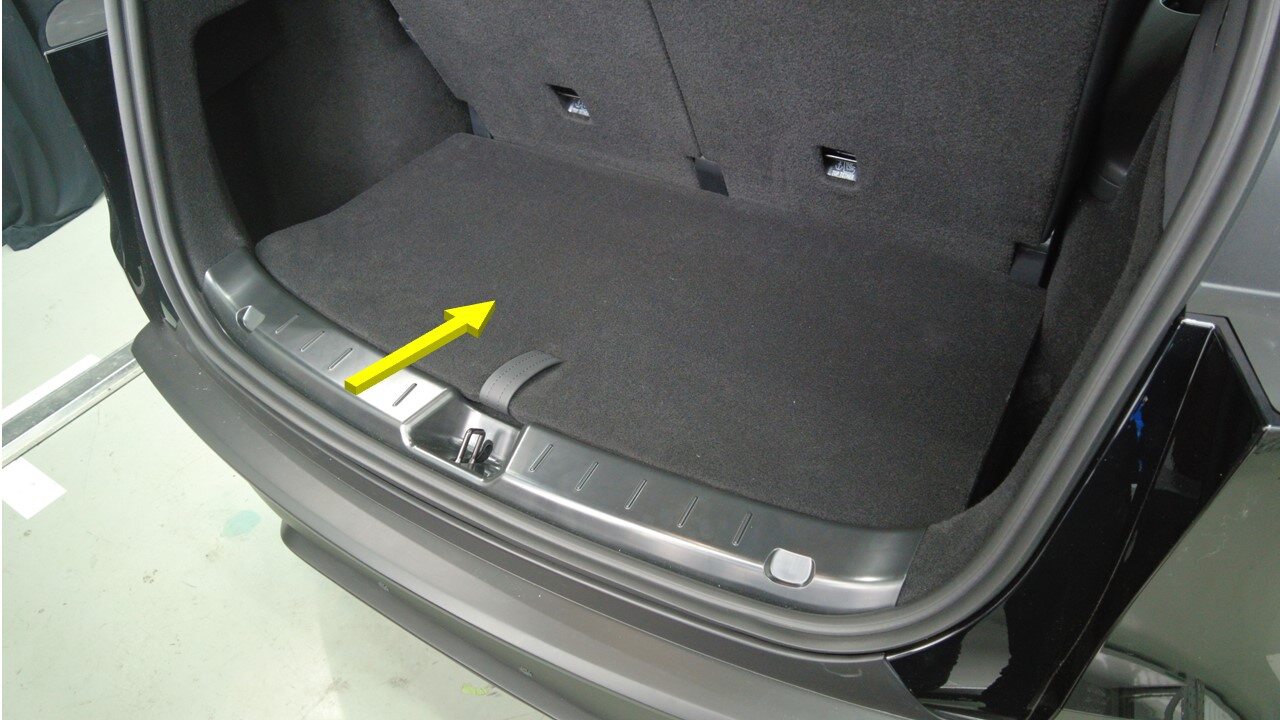

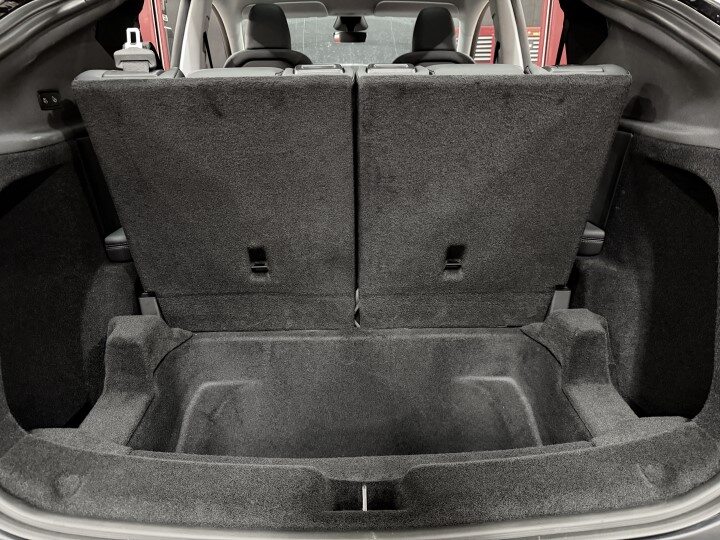

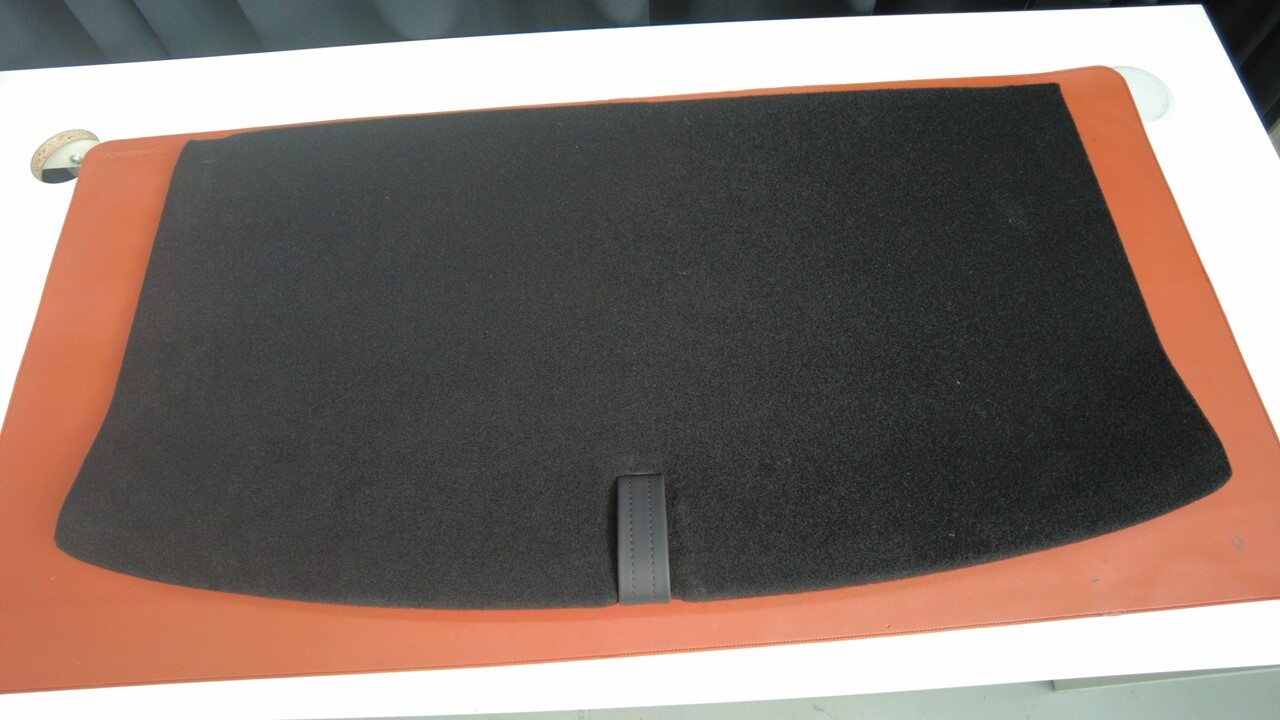

  2. Remove trunk load floor from vehicle

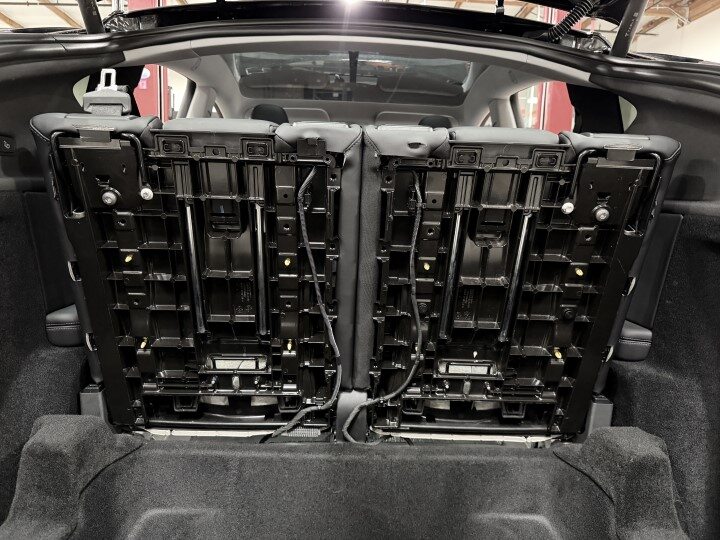

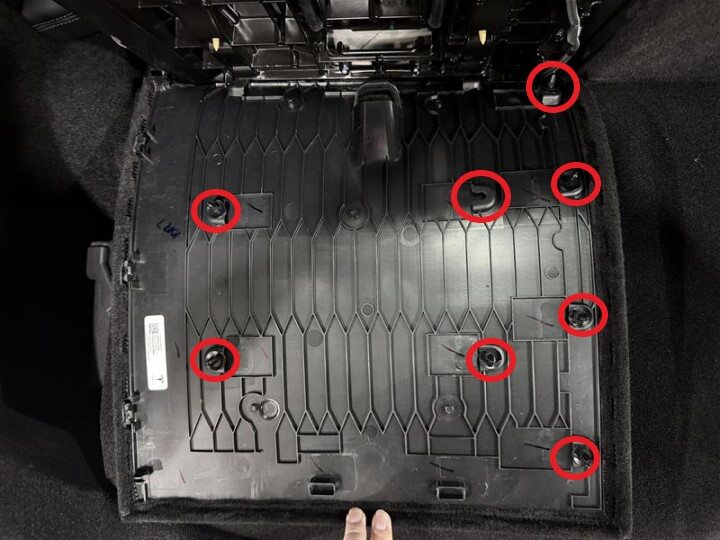

  3. Remove seatback covers
    Note

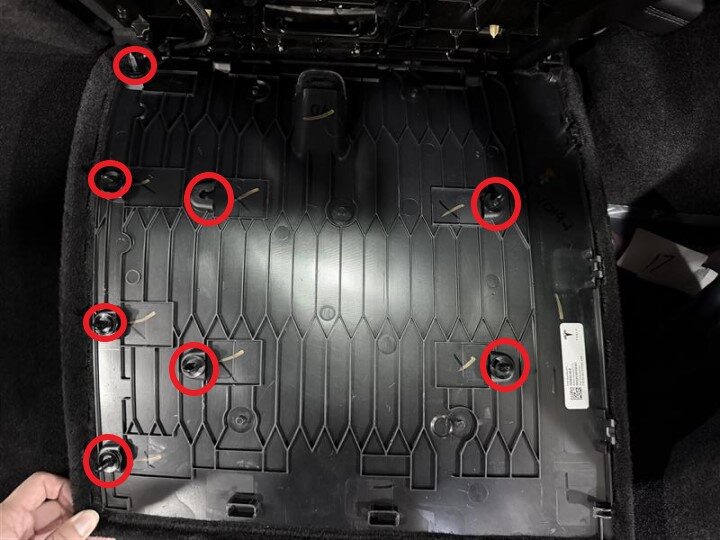

    2x covers, 4x location hooks, 8x clipsPull covers away and upward to remove properly.
  4. Install rear seatback covers
    Note
    2x covers,4x location hooks, 8x clipsRe-insert 4x location hook into lower seatback, and push cover to install.

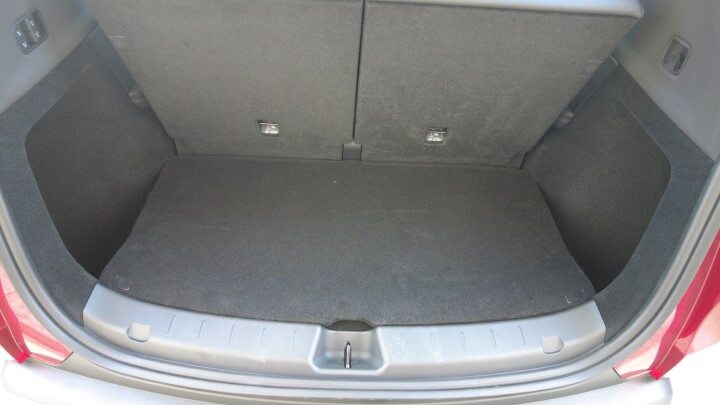

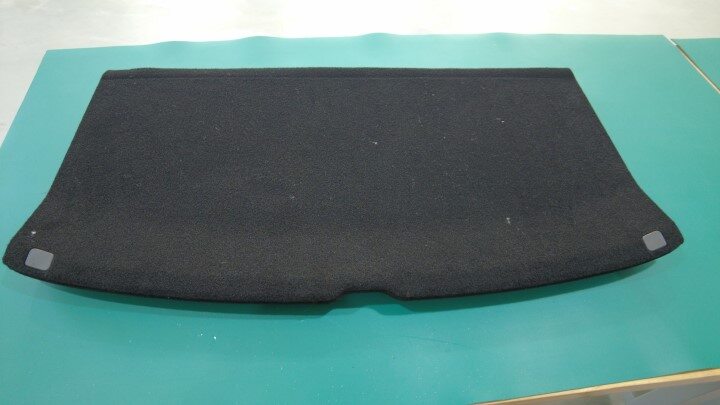

  5. Install trunk load floor onto vehicle

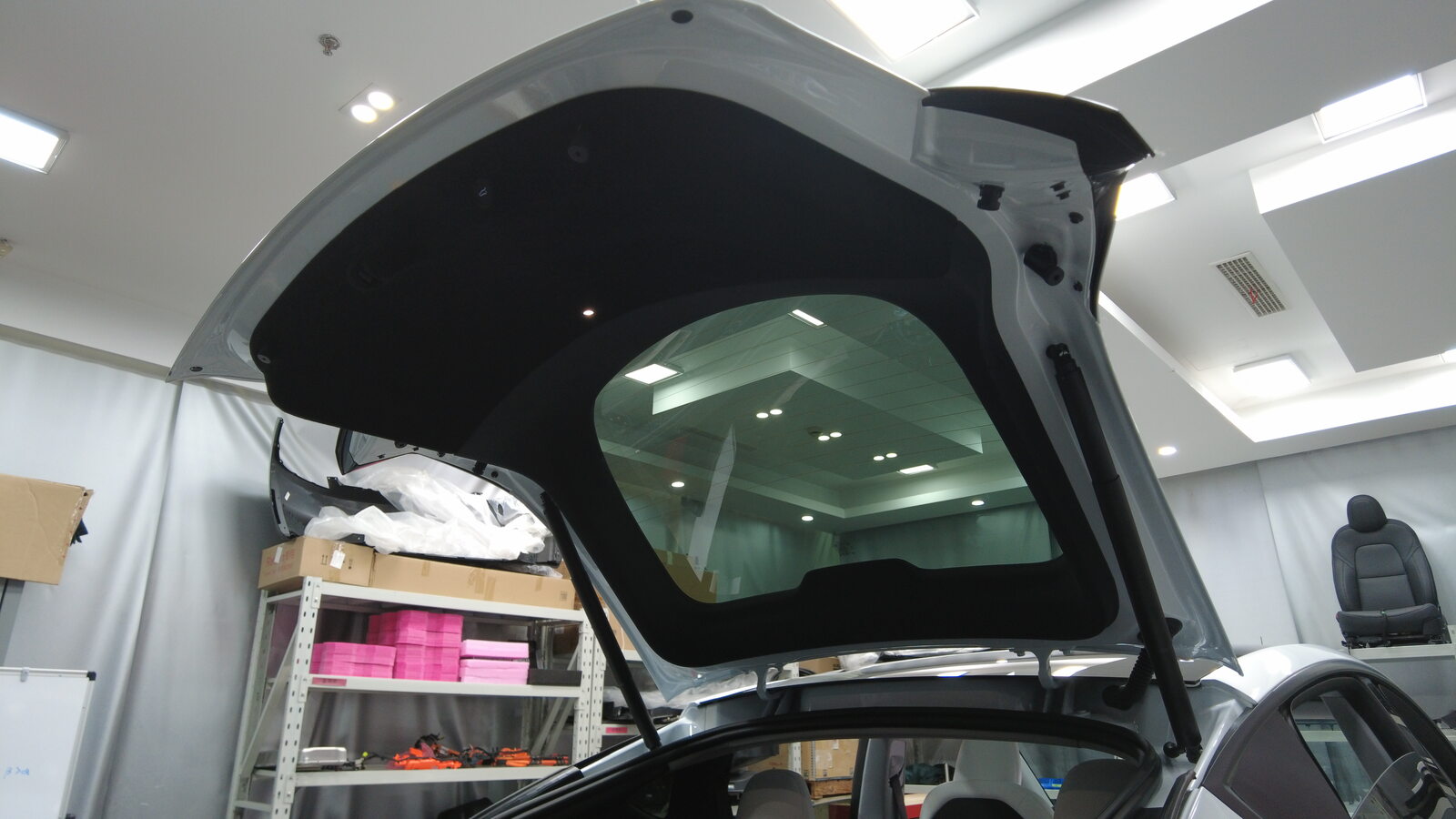

  6. Close liftgate
