Instrument Panel - Air Wave Duct - RH (Remove and Install)

Correction code 1405030701 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the passenger footwell duct. See Footwell Duct - Passenger (Remove and Replace).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.
  2. Disconnect the RH instrument panel air wave duct thermistor connector.

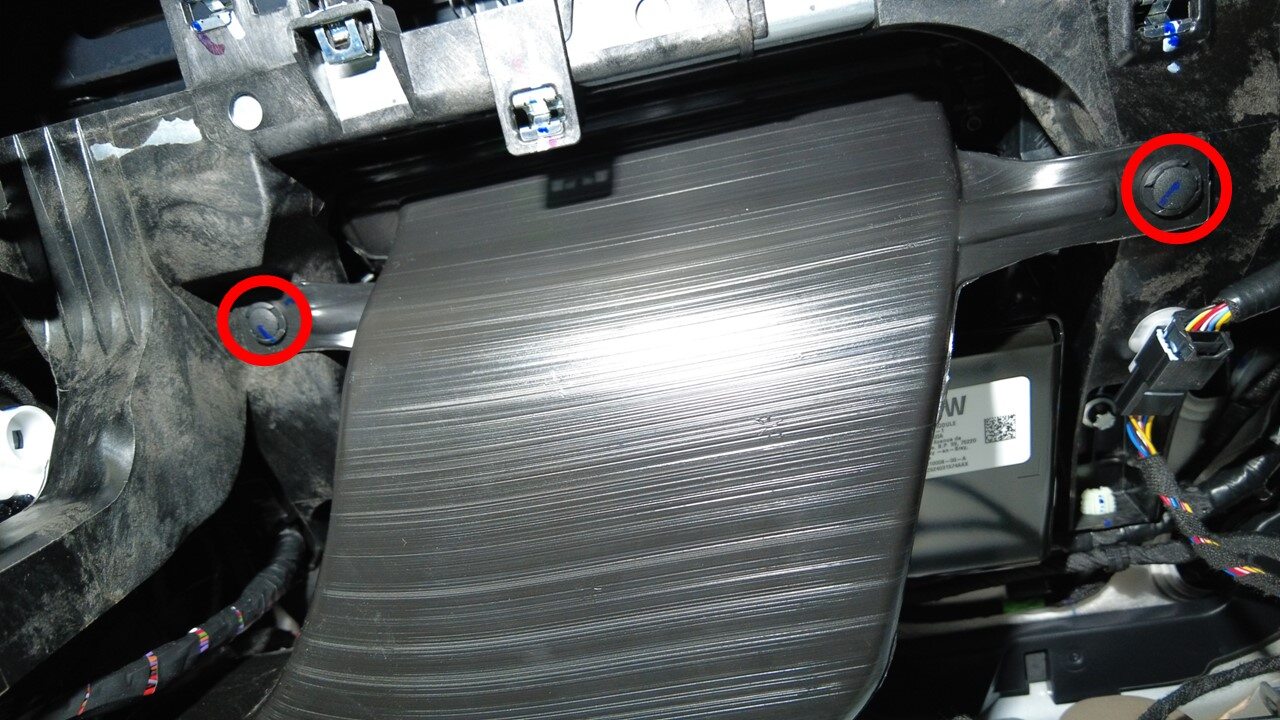

  3. Remove the clips (x2) that attach the RH air wave duct to the instrument panel carrier.

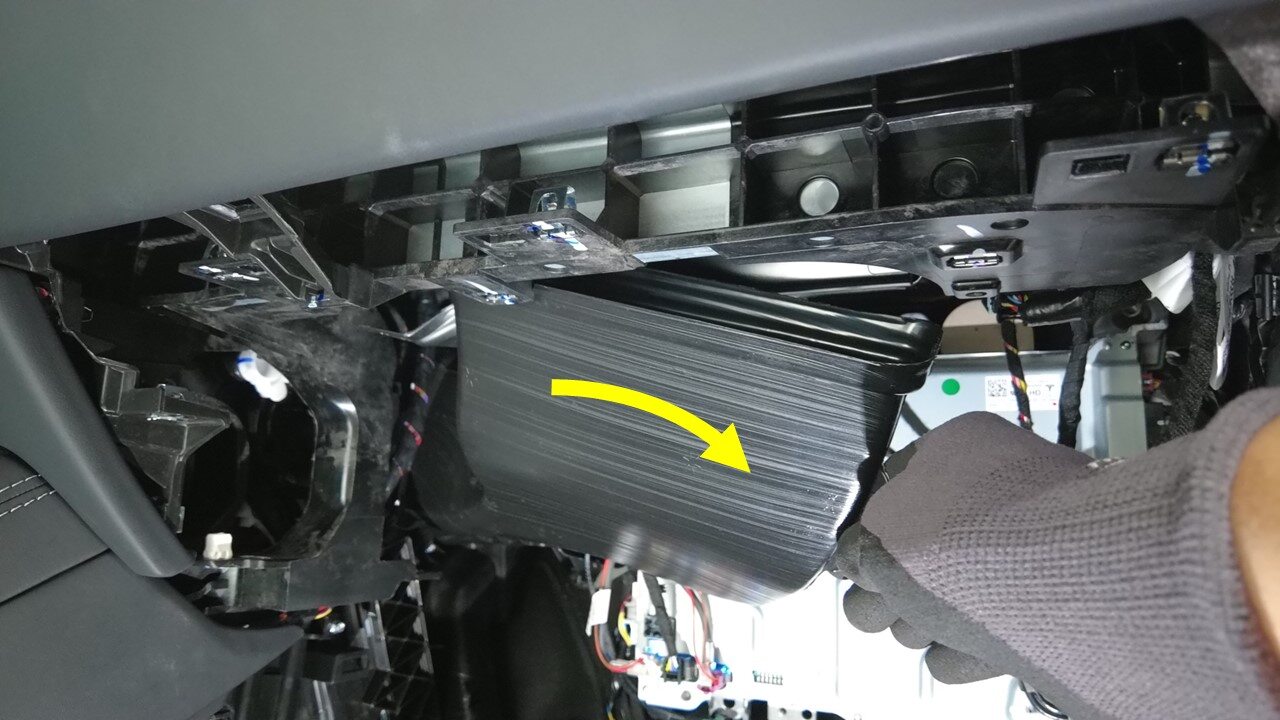

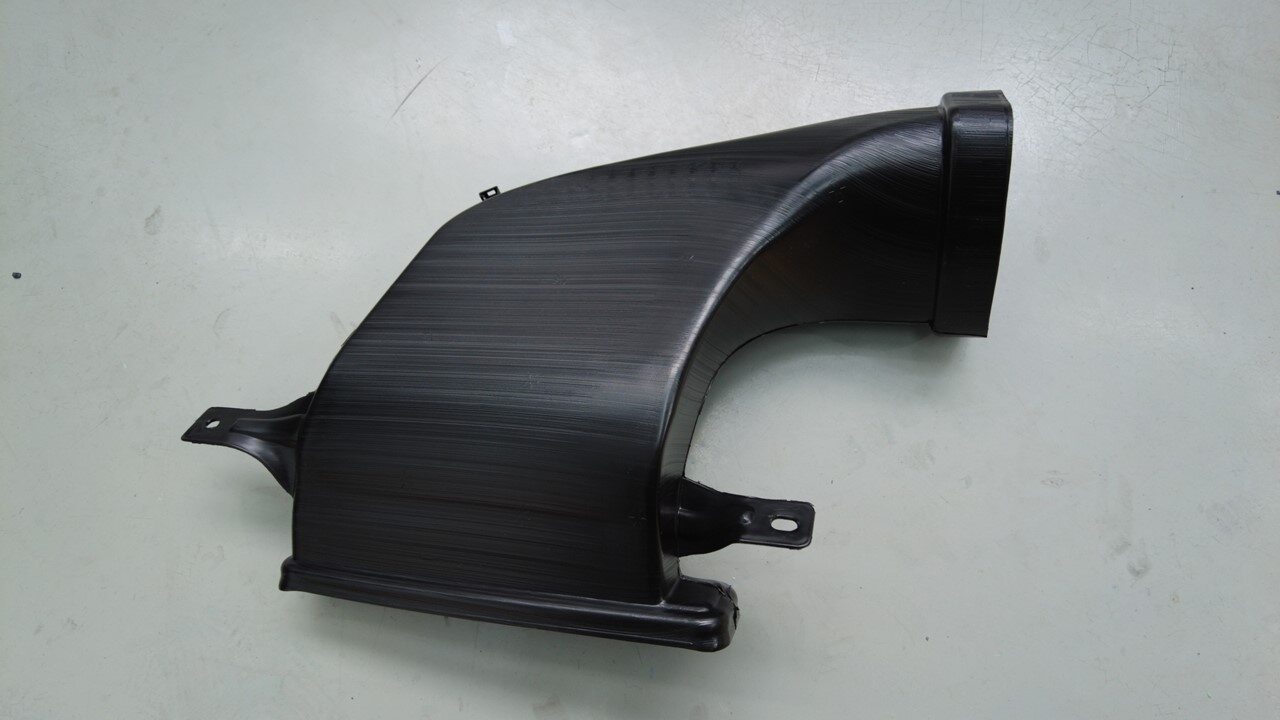

  4. Remove the RH air wave duct from the HVAC module.

Install

  1. Install the RH air wave duct to the HVAC module.
  2. Install the clips (x2) that attach the RH air wave duct to the instrument panel carrier.
  3. Install the passenger footwell duct. See Footwell Duct - Passenger (Remove and Replace).
