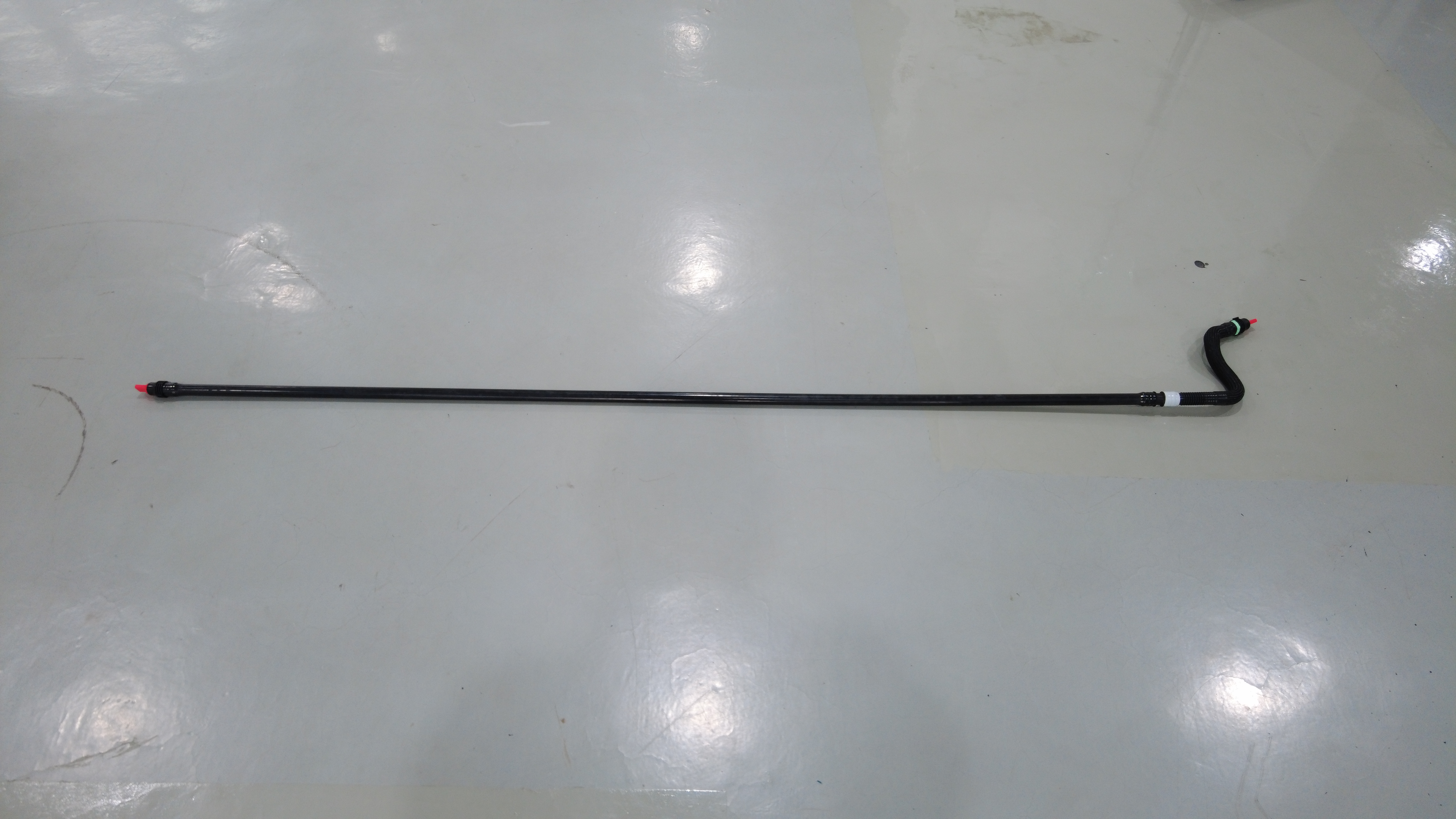

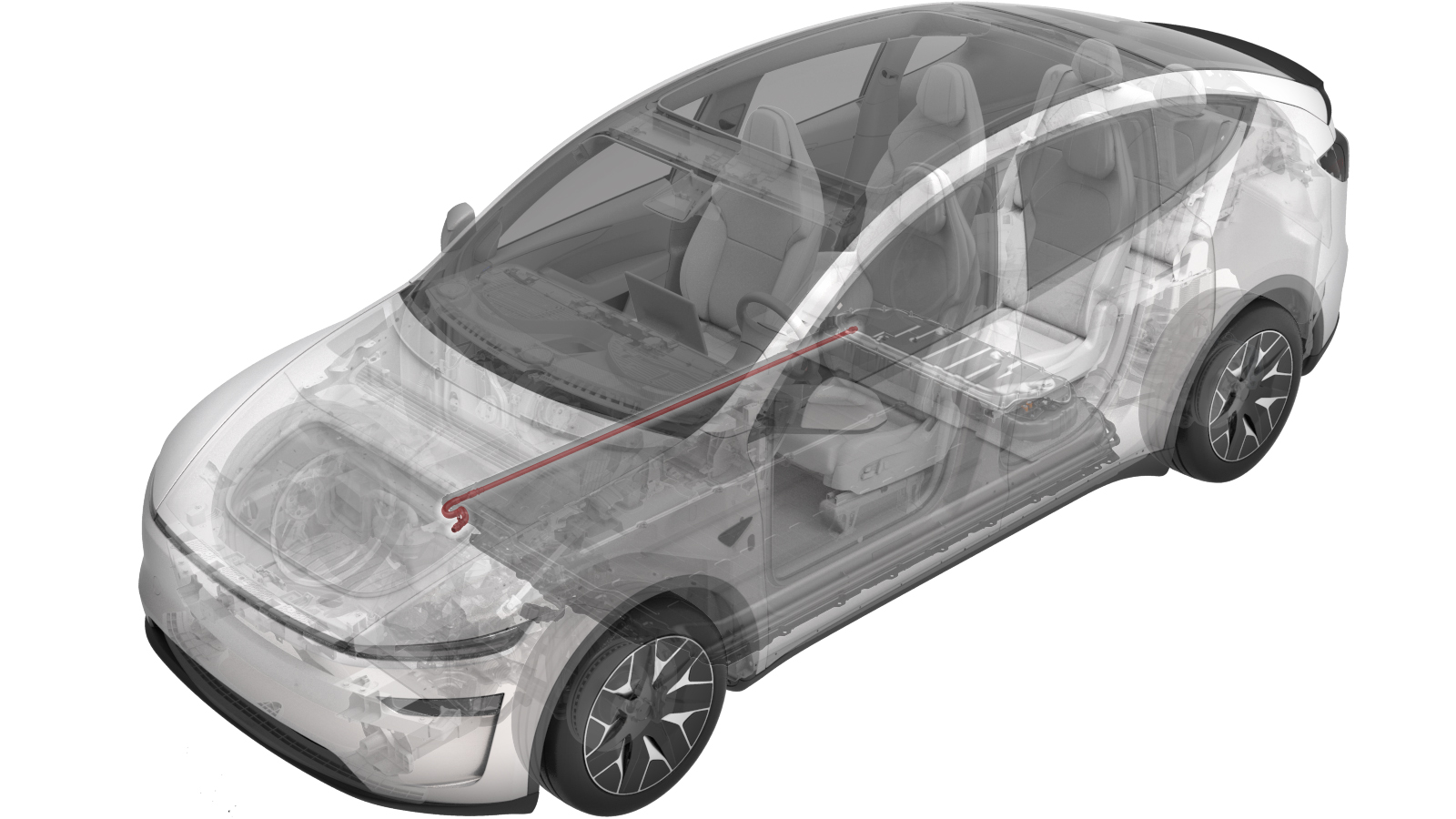

Tube - Powertrain Return - Rear (Model YL) (Remove and Replace)
Correction code
18302600302
FRT
3.42
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the HV battery. See HV Battery (AWD) (3-Phase) (Model YL) (Remove and Install).
-

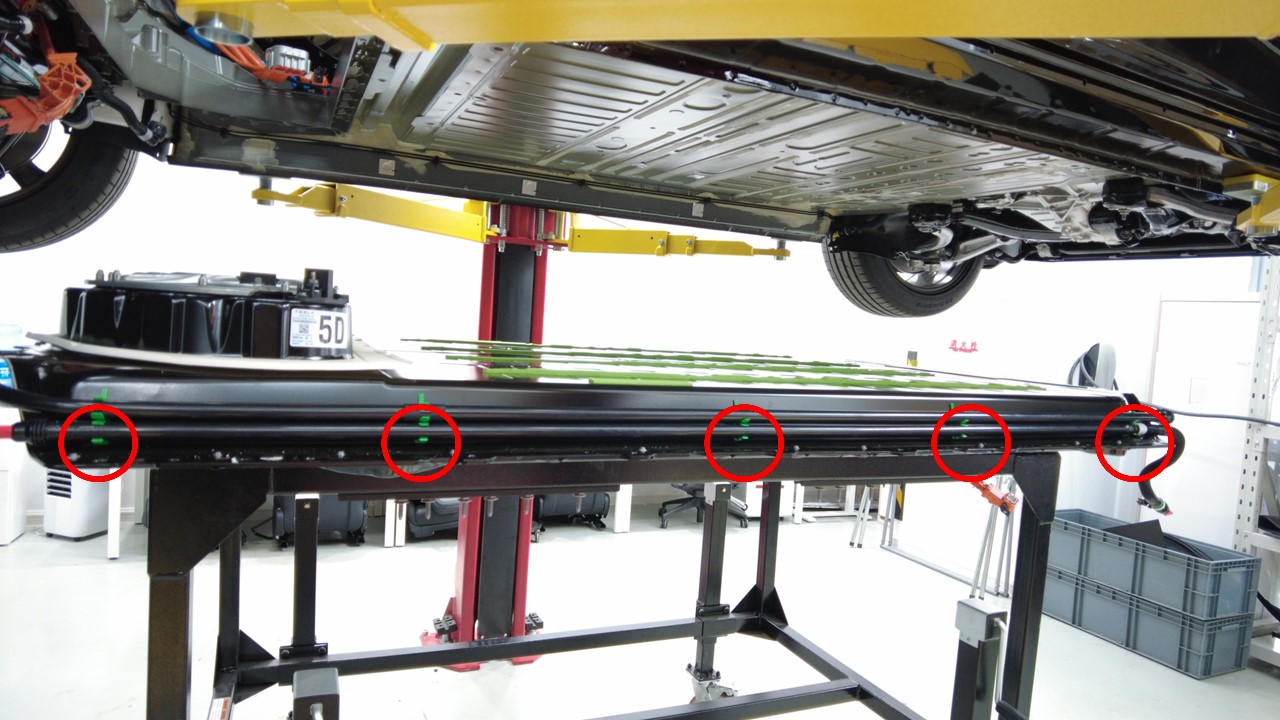

Remove the clips (x5) to remove the
powertrain return tube from the RH side of the HV battery.
Install
-
Install the clips (x5) to secure the
powertrain return tube to the RH side of the HV battery.

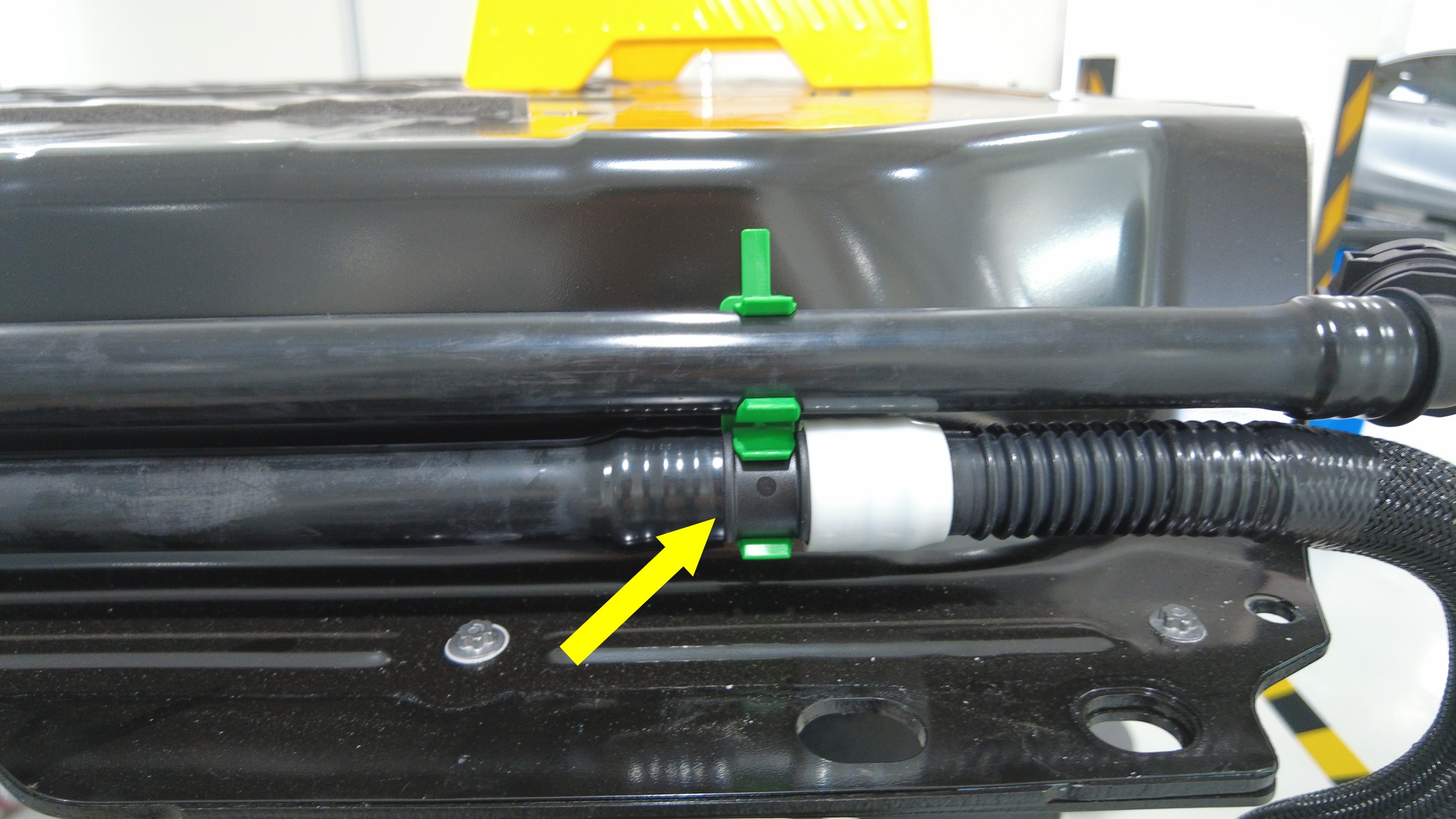

NotePay attention to the position of the tube.
- Install the HV battery. See HV Battery (AWD) (3-Phase) (Model YL) (Remove and Install).
