Headrest - 2nd Row - LH (Model YL) (Remove and Replace)

Correction code 13050400502 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-10: Updated the position information and the disassembly method of the headrest tabs.

Torque Specifications

Table 1. Torque Specifications: Headrest - 2nd Row - LH (Model YL) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screw that attaches the LH 2nd row seat headrest to the seat assembly
3 Nm (2.2 lbs-ft)
  • Torx T25 socket
 Reuse

Remove

  1. Remove the LH 2nd row seat back panel. See Panel - Seat Back - 2nd Row Seat - LH (Model YL) (Remove and Replace).

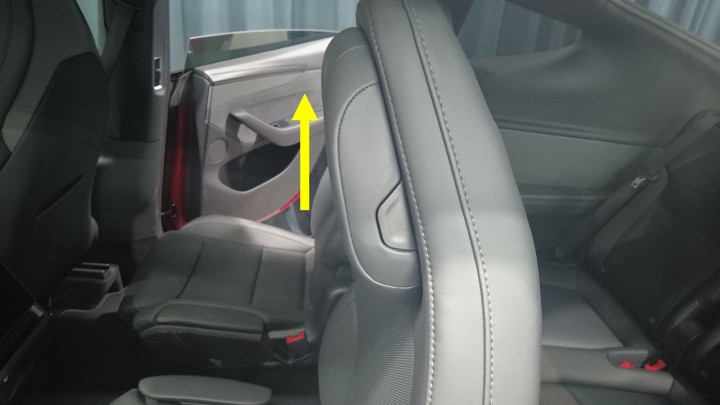

  2. Adjust the LH 2nd row seat backrest to reclining position.

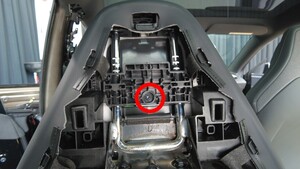

  3. Remove the screw that attaches the LH 2nd row seat headrest to the seat assembly.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 socket

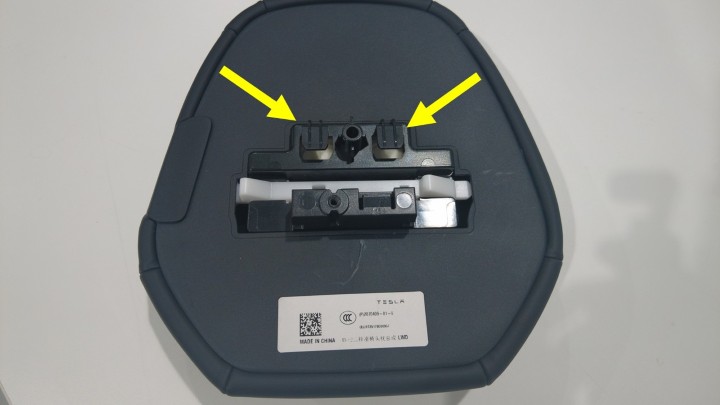

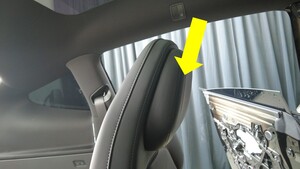

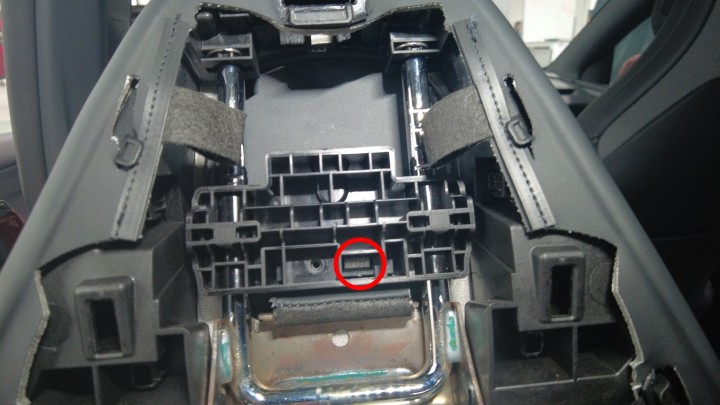

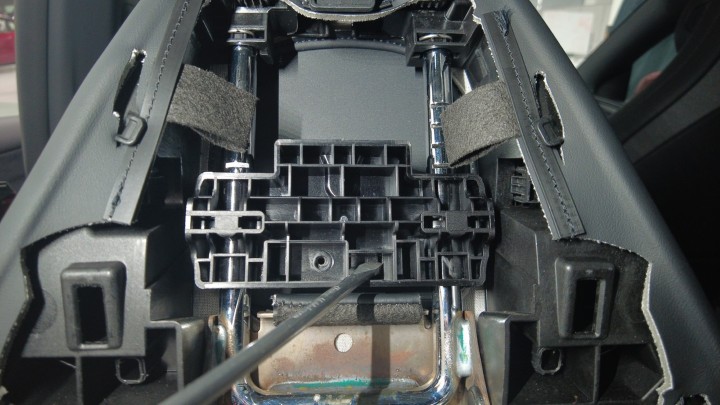

  4. Release the headrest tab from the back panel side, and then lift the headrest upward to release the hooks (x2) and remove the headrest from the seat assembly.

Install

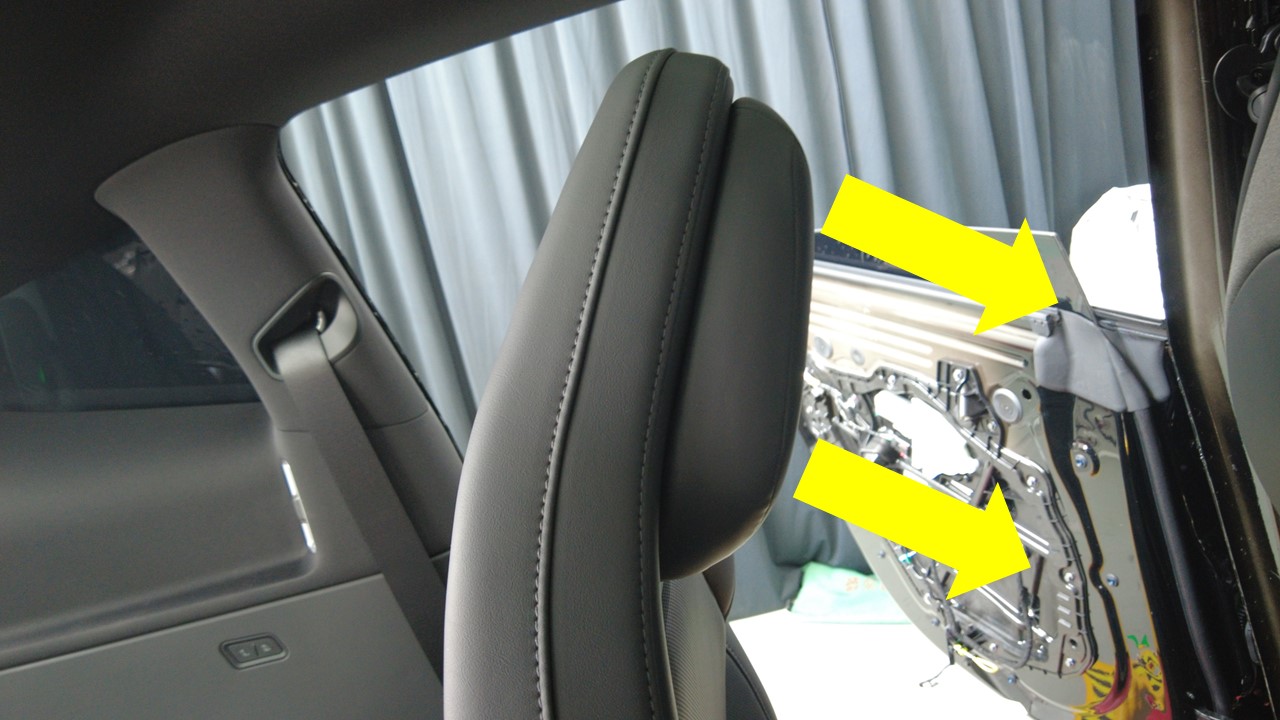

  1. Move the LH 2nd row seat headrest downward to seat it to the seat assembly.
    Note
    Make sure the hooks (x2) and the headrest tab are fully seated.
  2. Install the screw that attaches the LH 2nd row seat headrest to the seat assembly.
    3 Nm (2.2 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  3. Install the LH 2nd row seat back panel. See Panel - Seat Back - 2nd Row Seat - LH (Model YL) (Remove and Replace).
