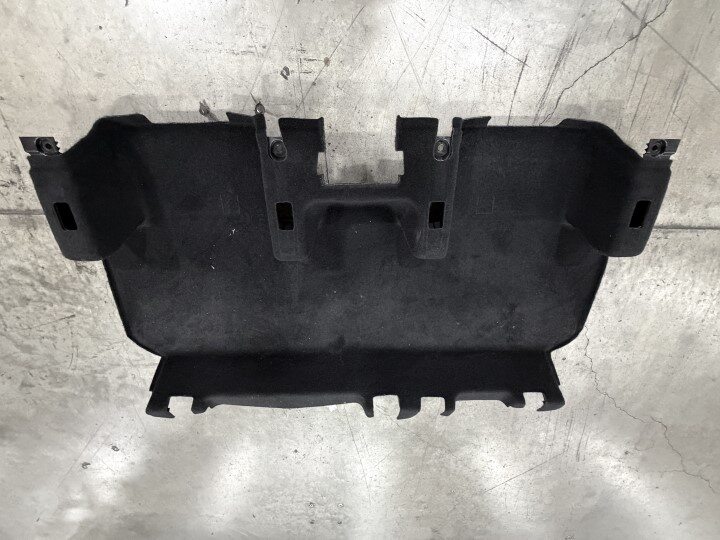

Cabin Carpet - Rear - 3rd Row (7-Seat) (Remove and Replace)

Correction code TBD FRT 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-09: Released new procedure.

Remove

  1. Open all four doors and lower all four windows.

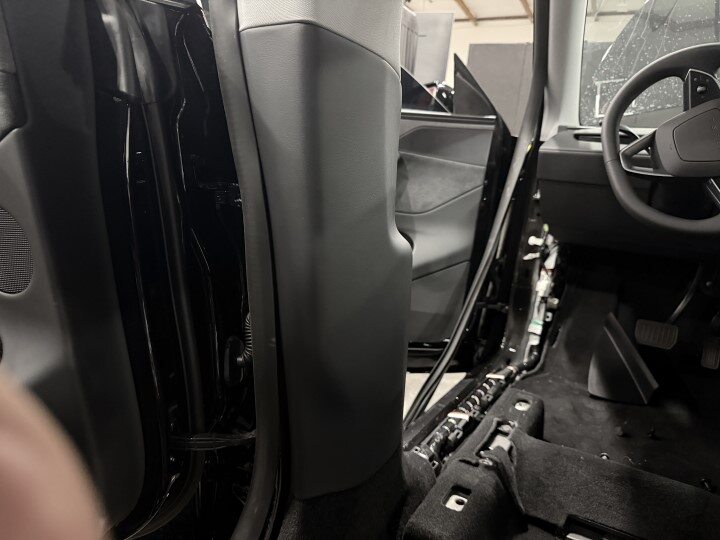

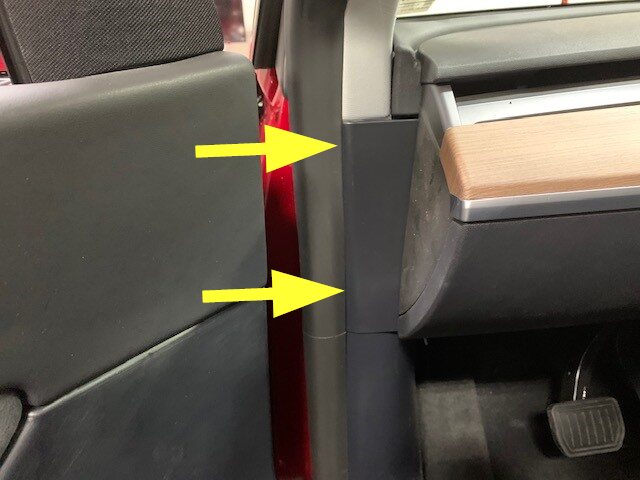

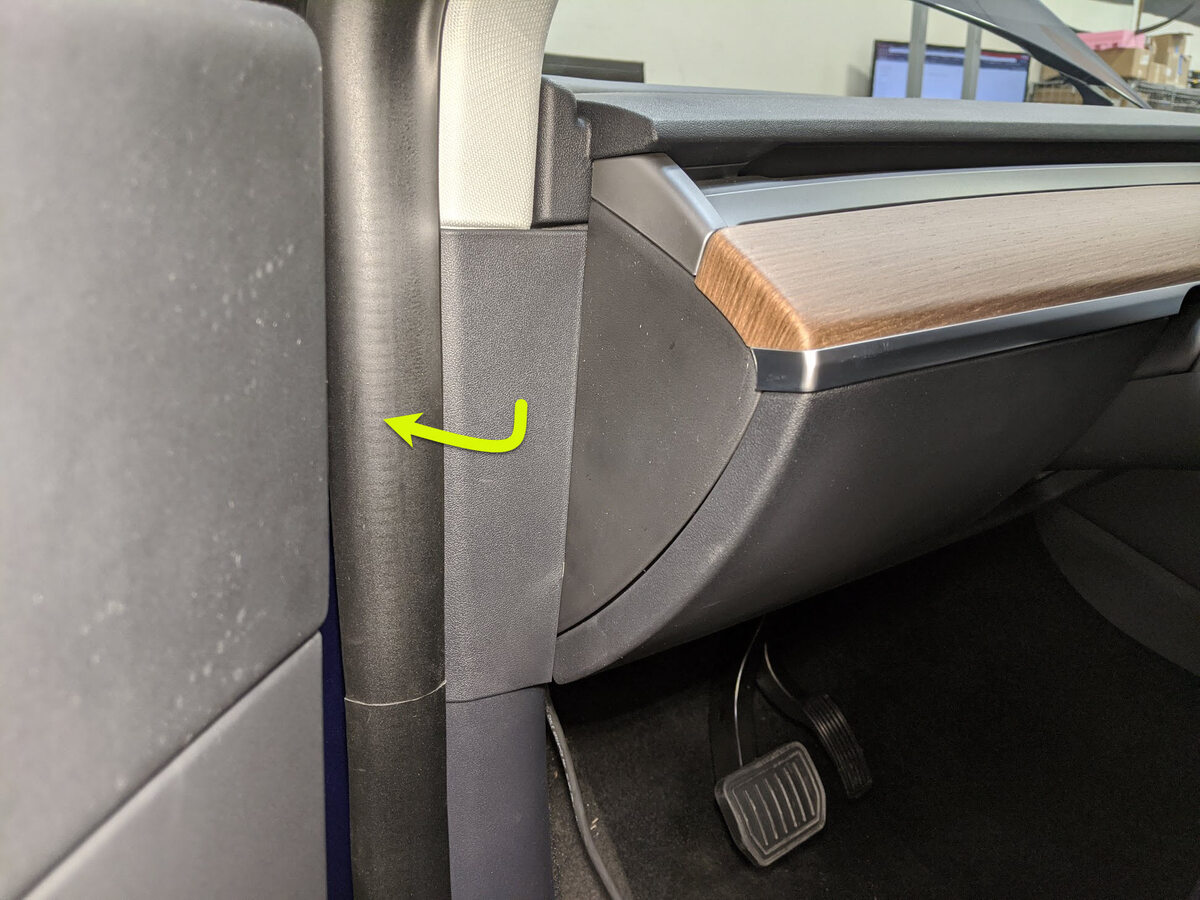

  2. Release the upper clip and tab, then pull the LH mid A-pillar assembly upward to remove.
  3. Remove the push clip that attaches the LH lower A-pillar trim to the vehicle.

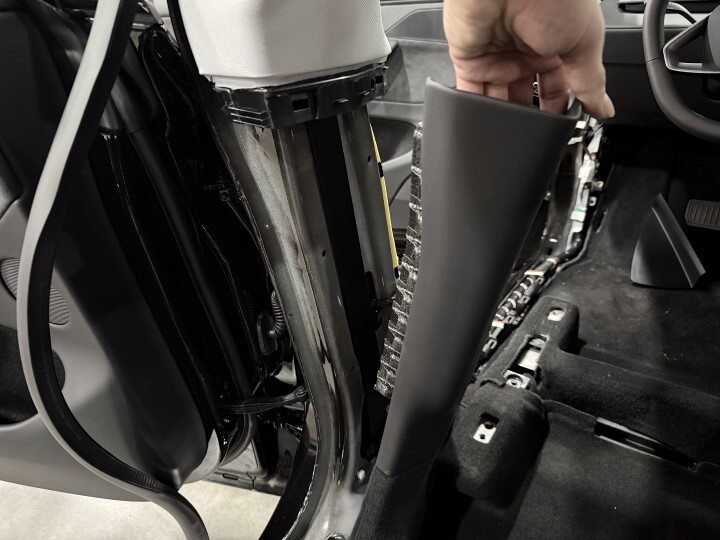

  4. Pull the rear of the LH lower A-pillar trim upward to release the clips (x6) and tabs (x2), then pull rearward to remove the trim panel.

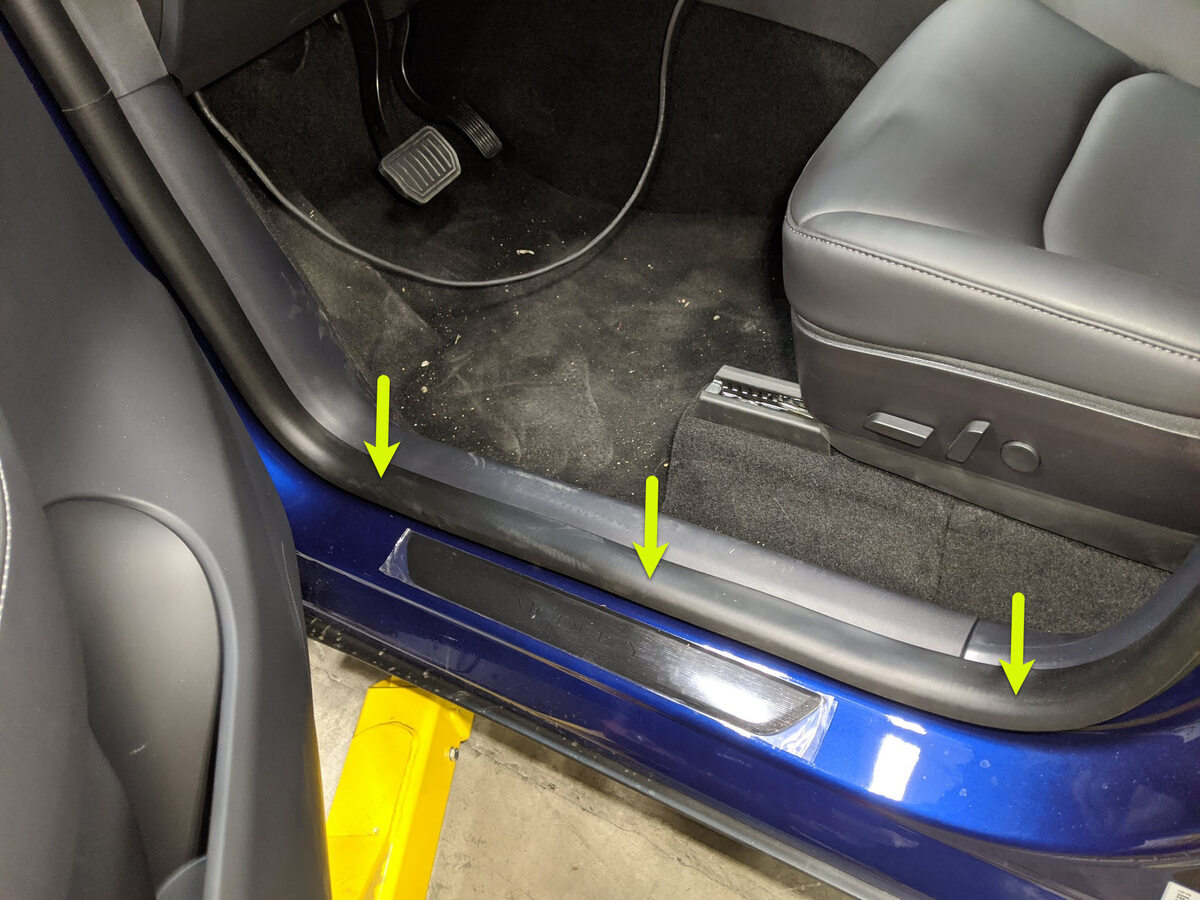

  5. Partially release the LH front primary door seal.

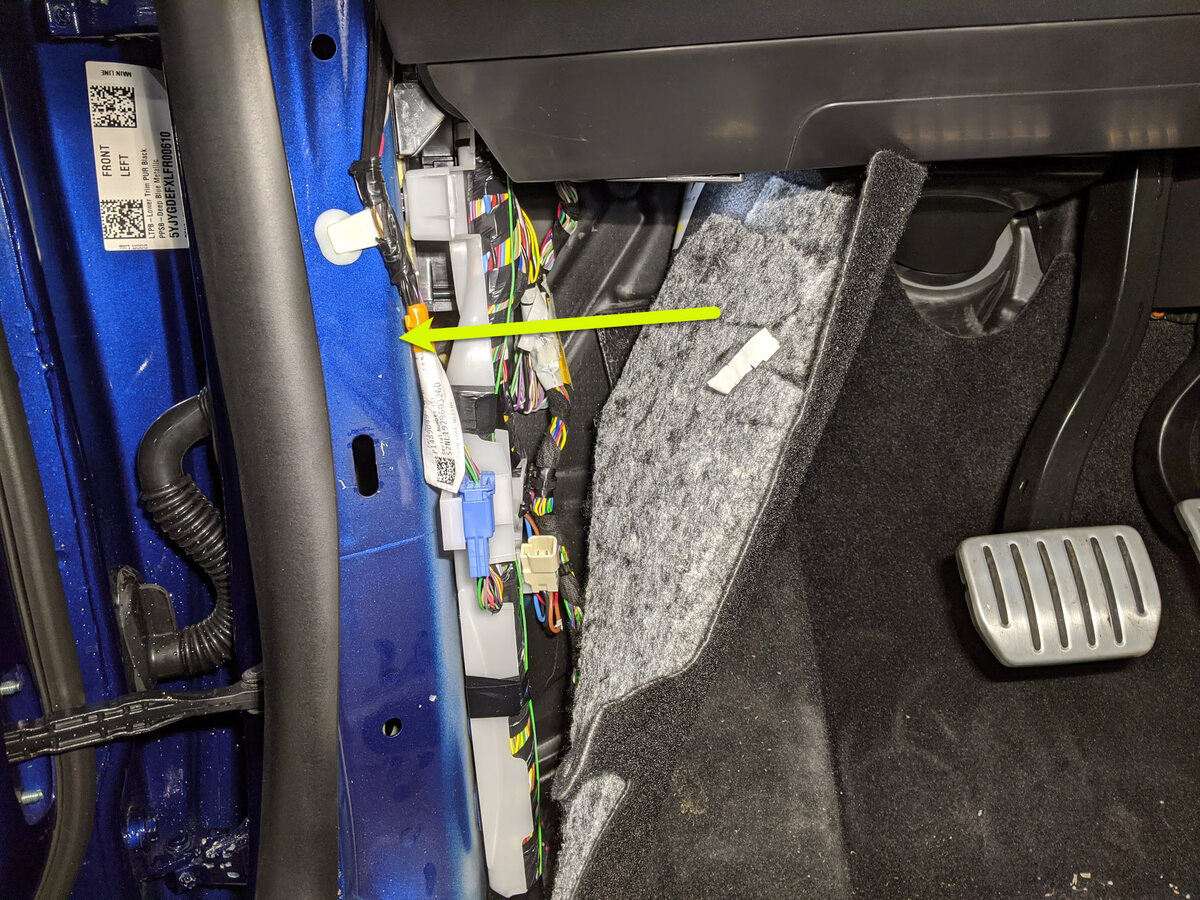

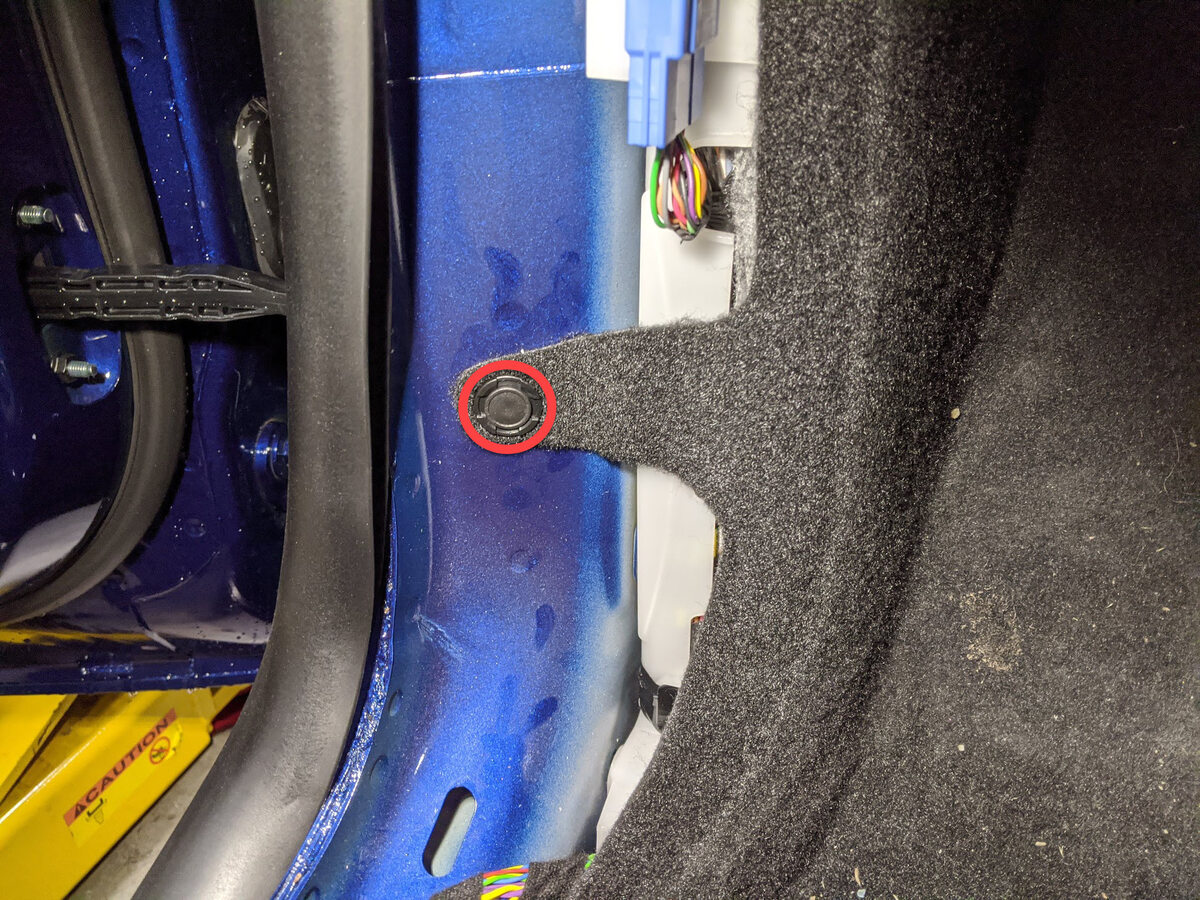

  6. Remove the push clip that attaches the LH front cabin carpet to the body.

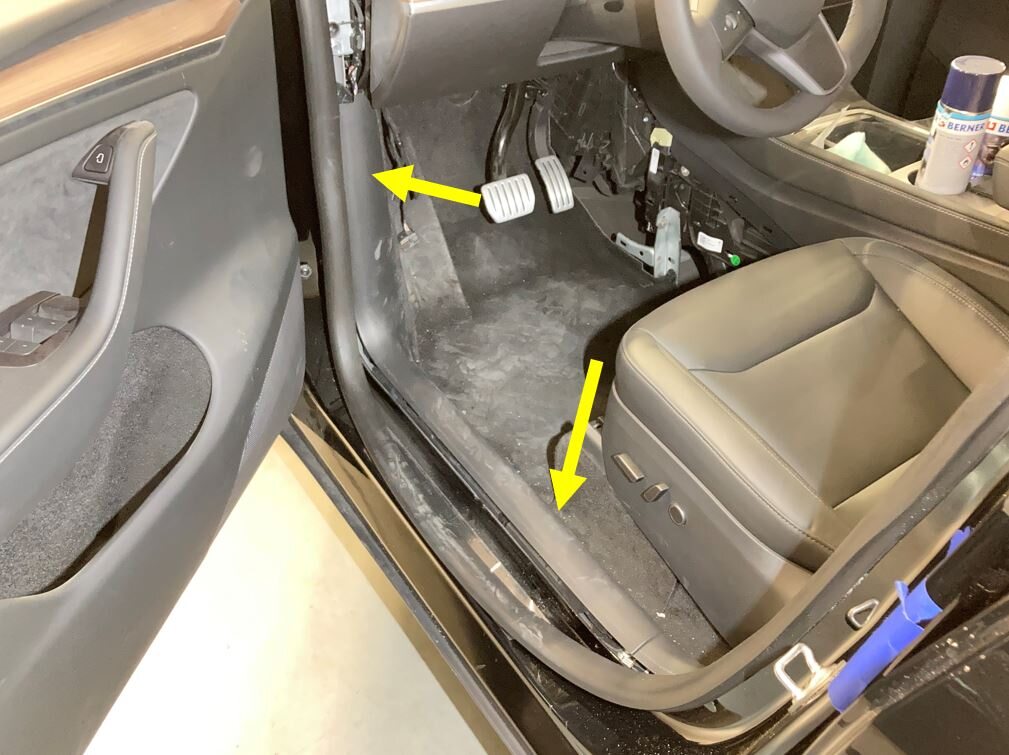

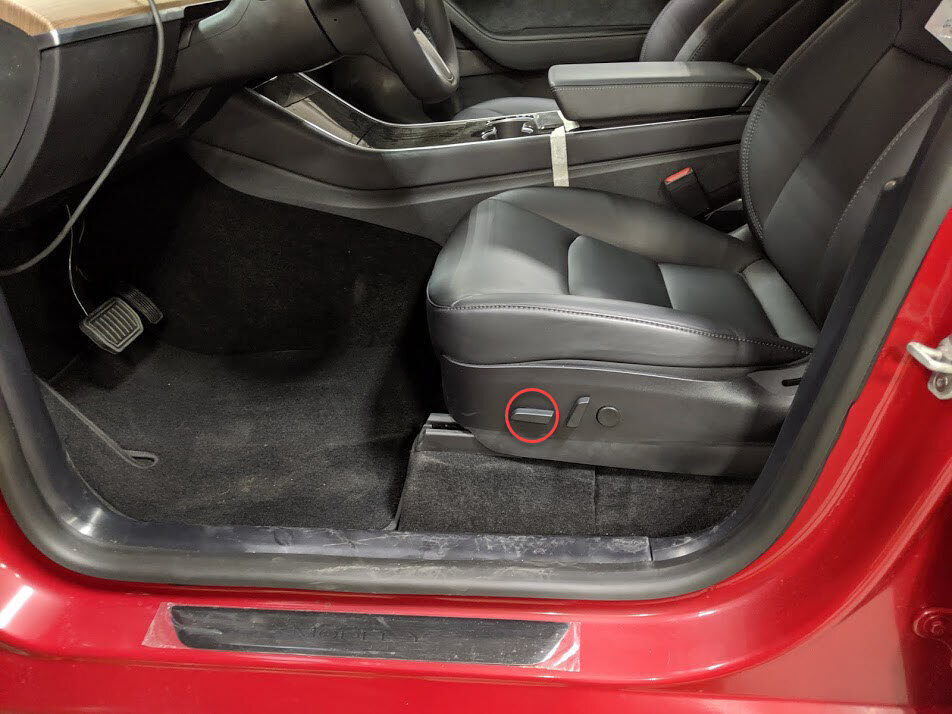

  7. Move the LH front seat forward.

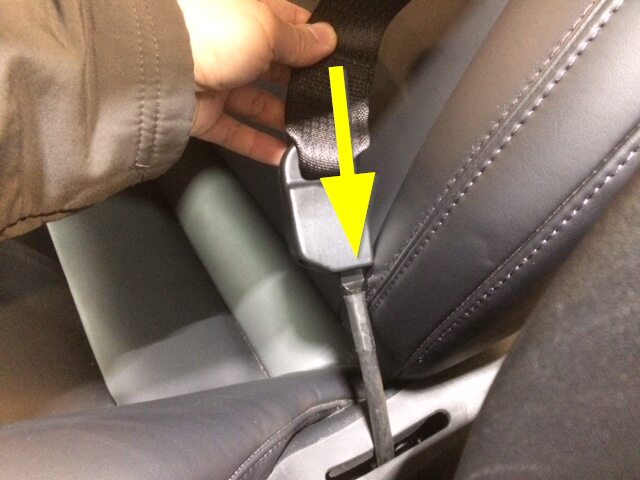

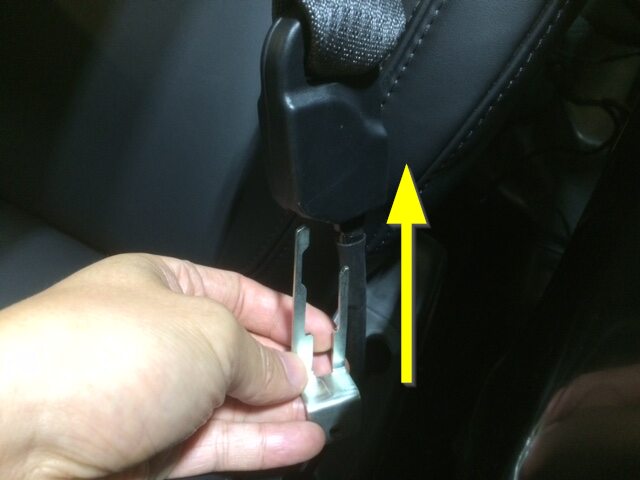

  8. Insert the seat belt release key (1133787-00-A) into the bottom of the LH front seat belt retractor to release it from the pretensioner.

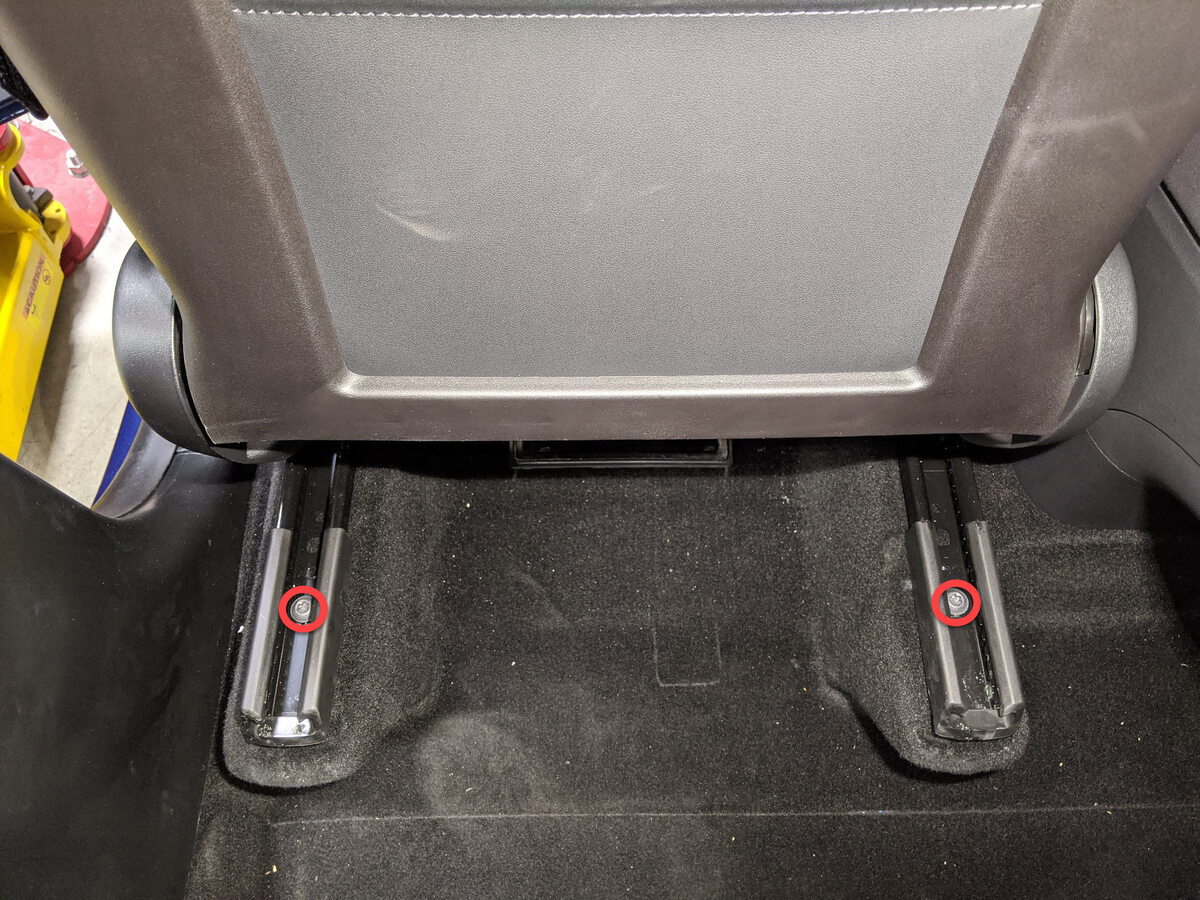

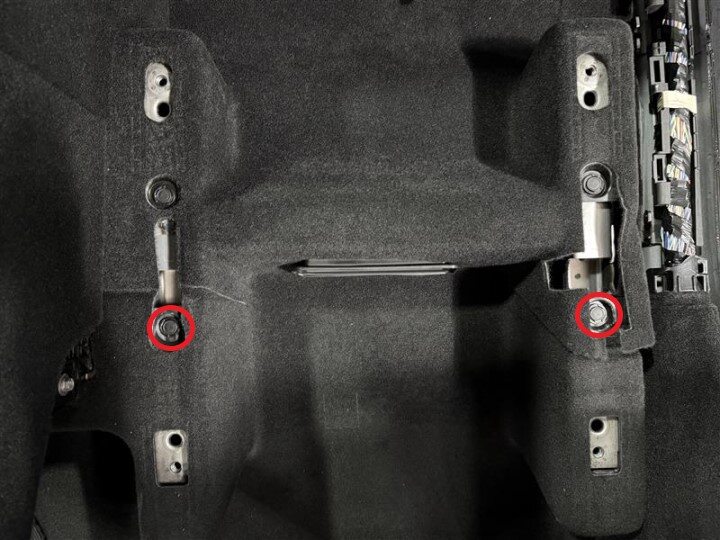

  9. Remove and discard the bolts (x2) that attach the rear of the LH front seat to the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • TP45 TORX PLUS Bit Sockets

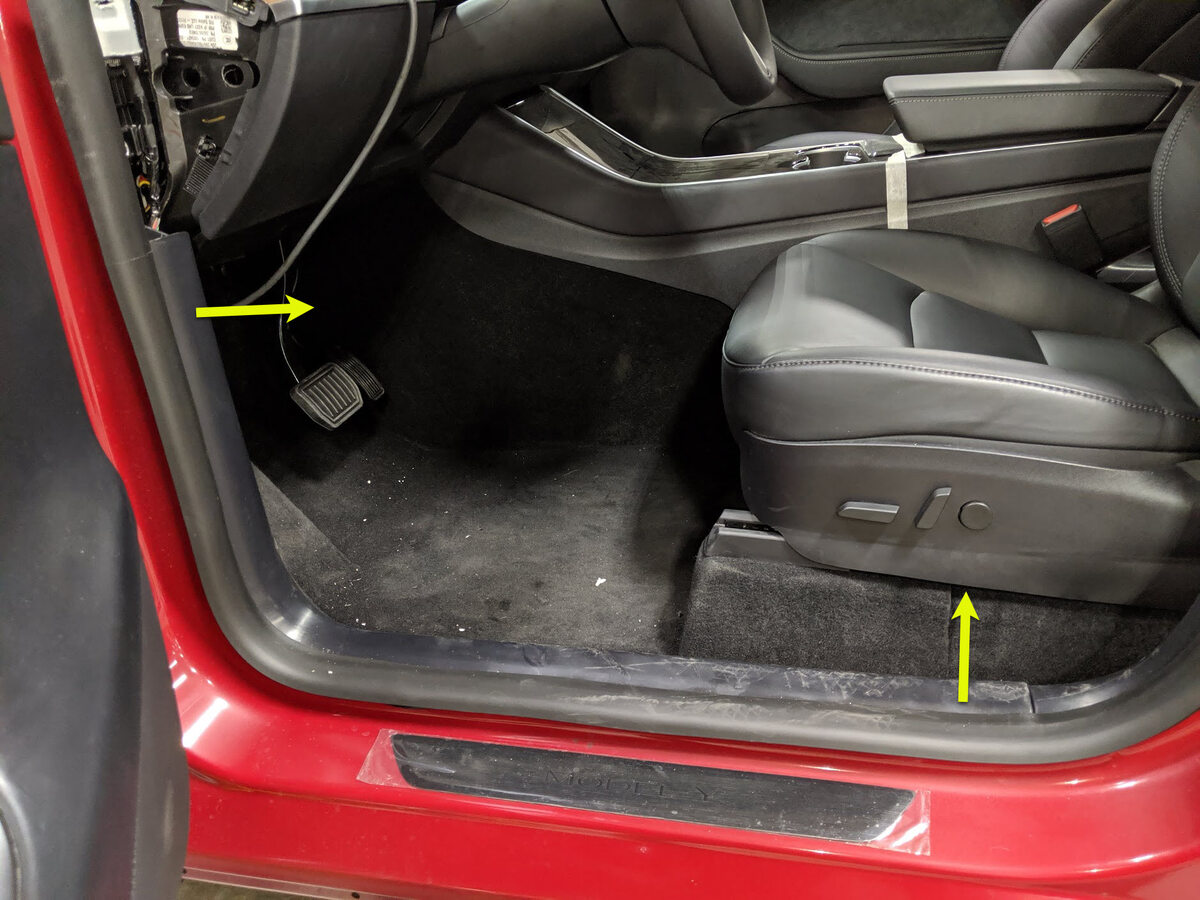

  10. Move the LH front seat backward.
    Note
    Ensure the profile is saved to allow the seat position to be restored.

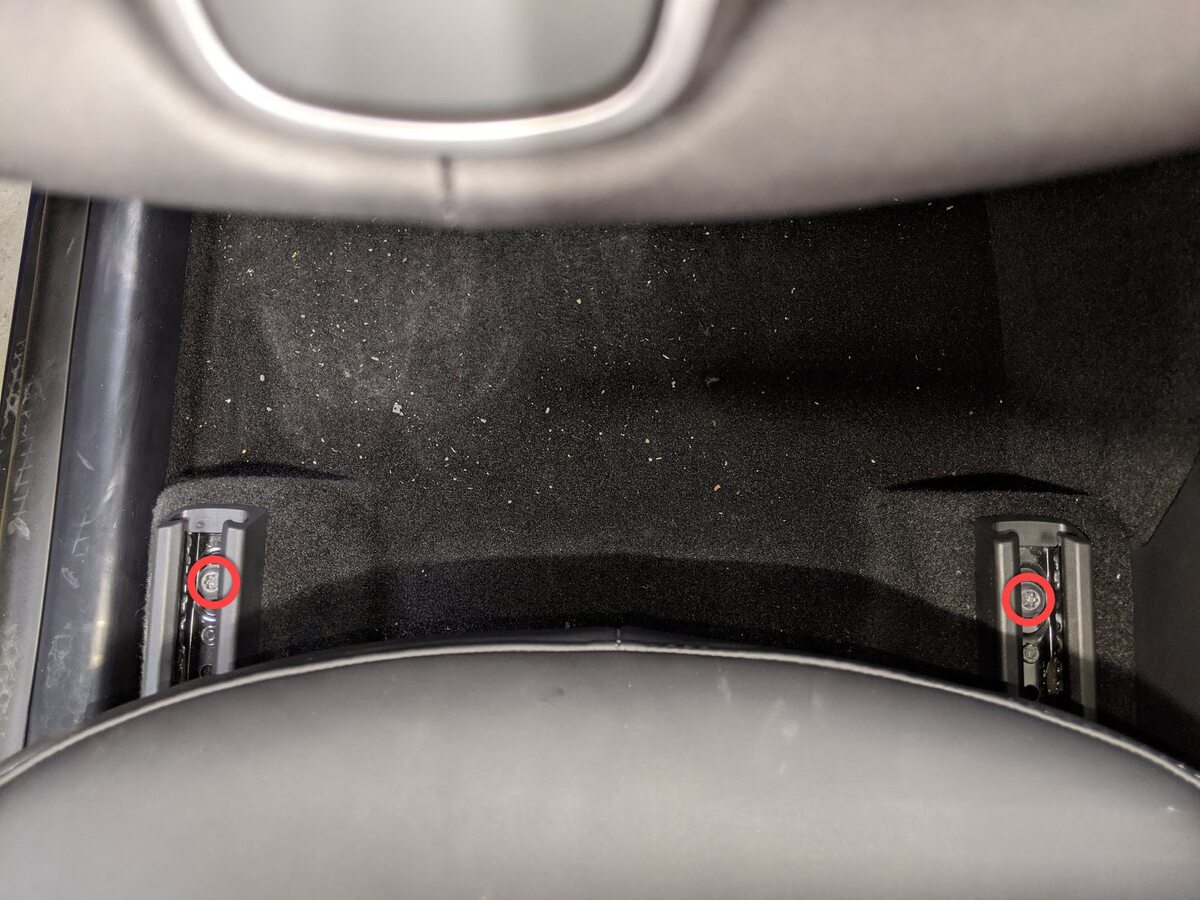

  11. Remove and discard the bolts (x2) that attach the front of the LH front seat to the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • TP45 TORX PLUS Bit Sockets

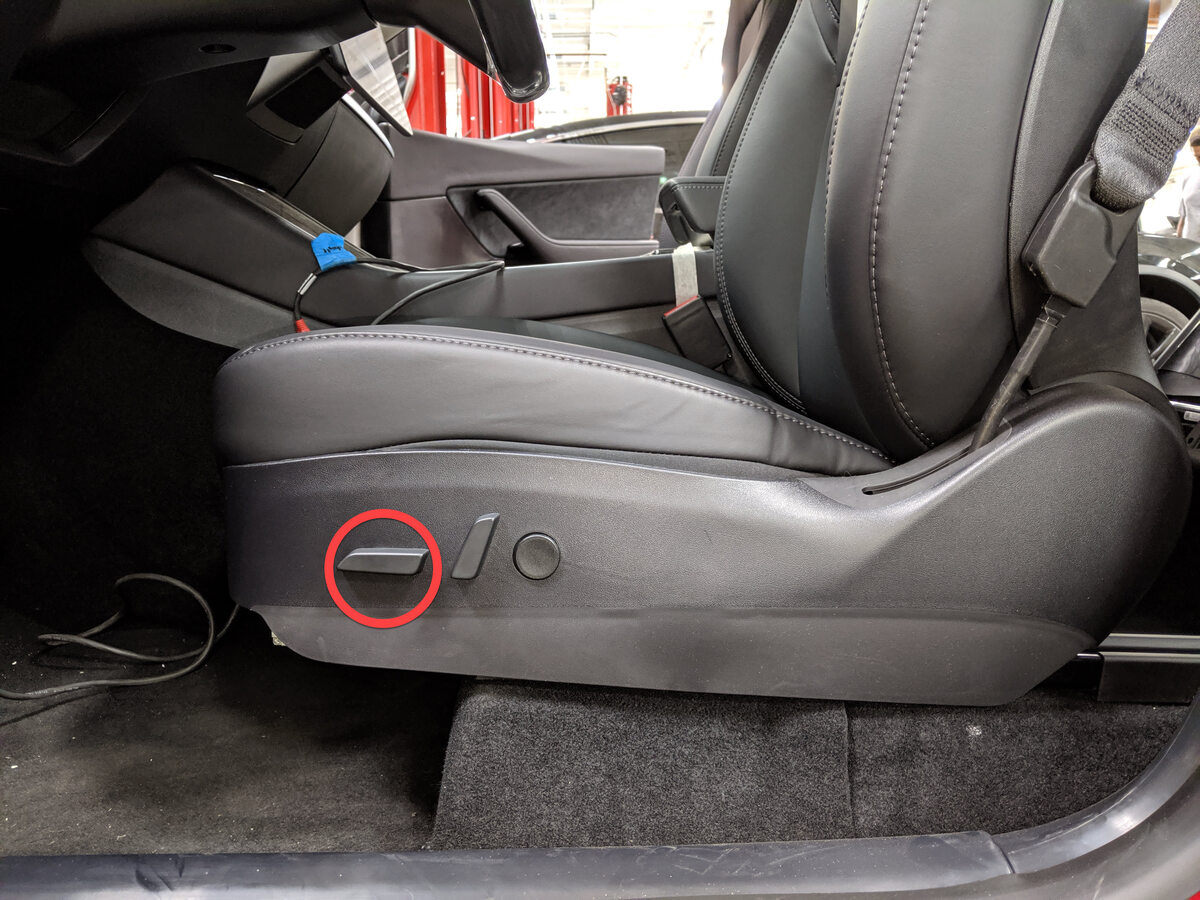

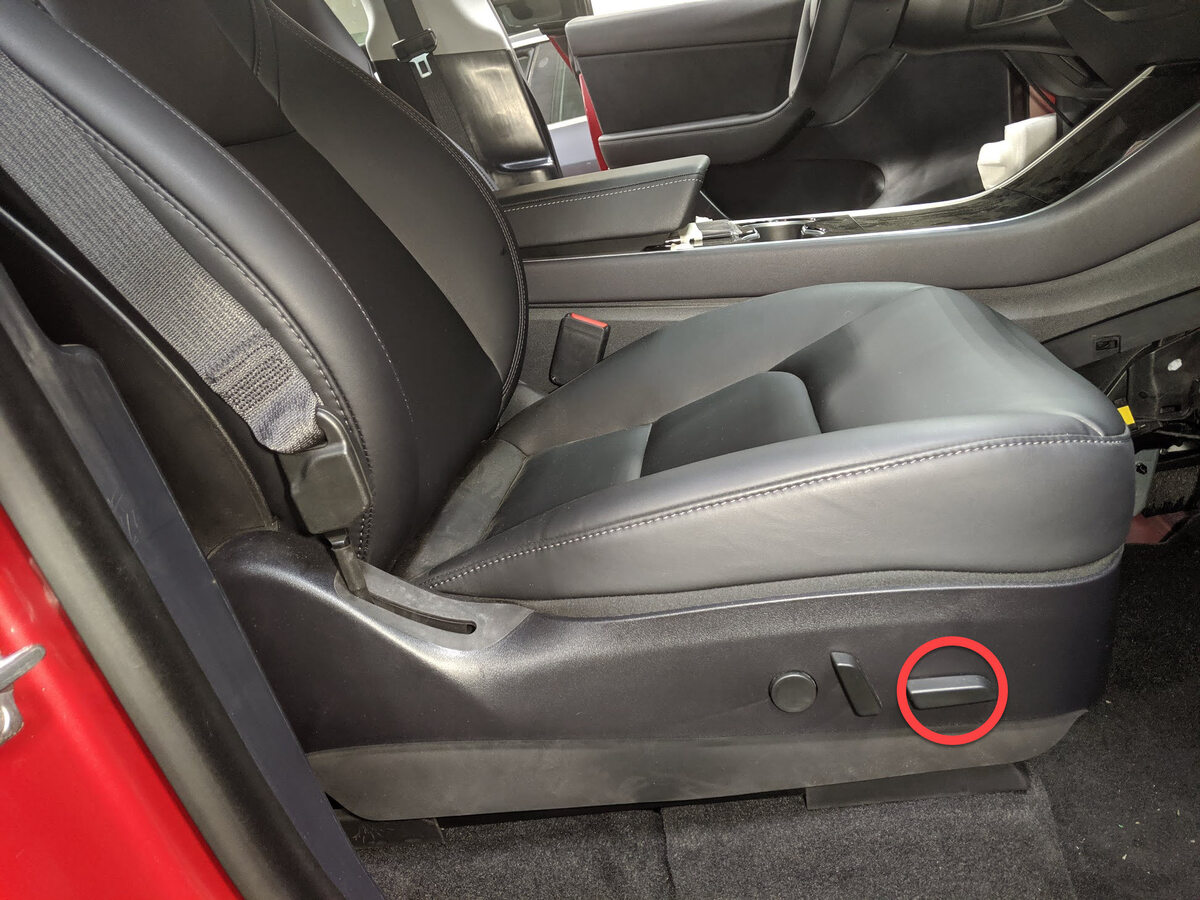

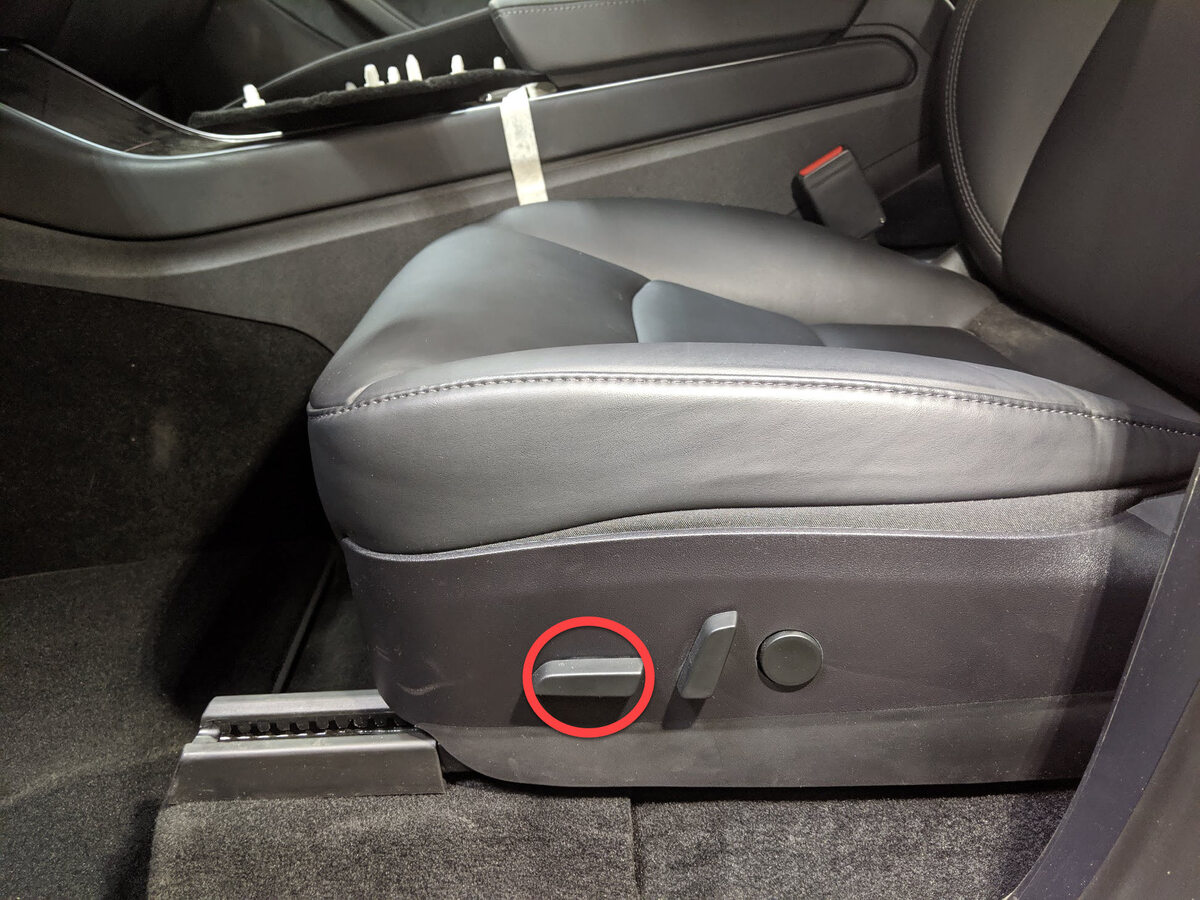

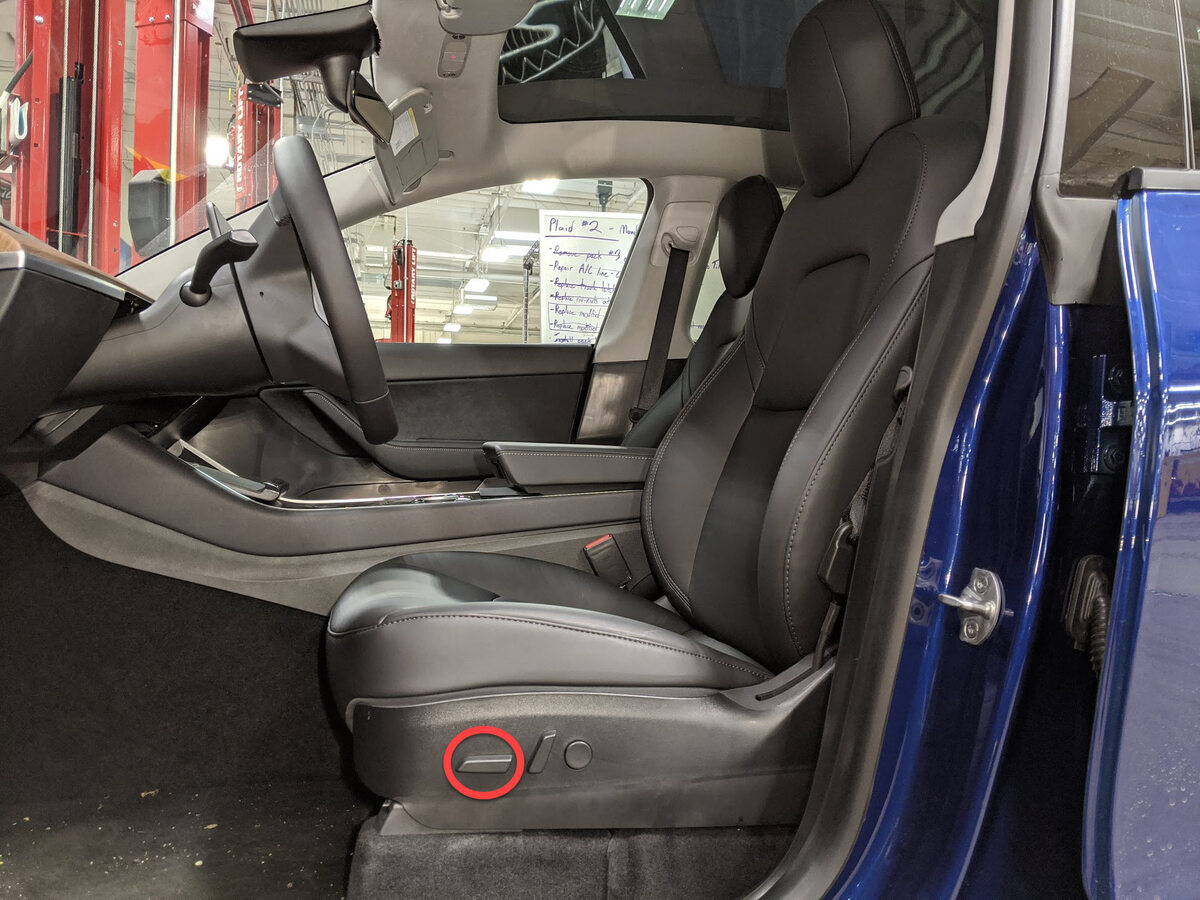

  12. Move the LH front seat to the middle of the track, then adjust to the most upright position.
  13. Repeat step 2 to 12 for RH side.
  14. Disconnect the LV power. See LV Power (Disconnect and Connect) (Modify).

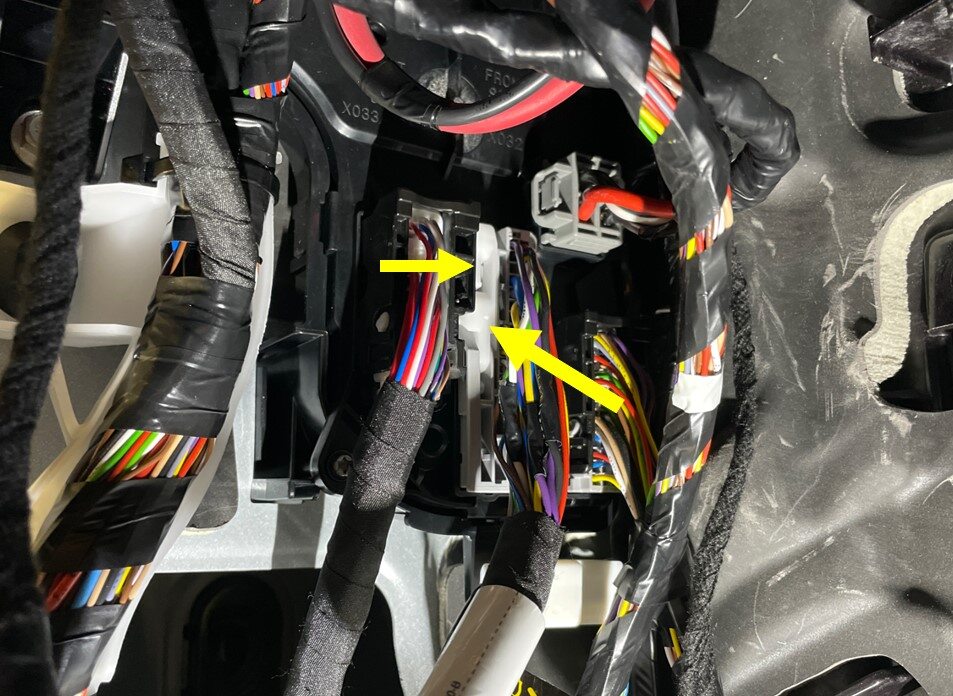

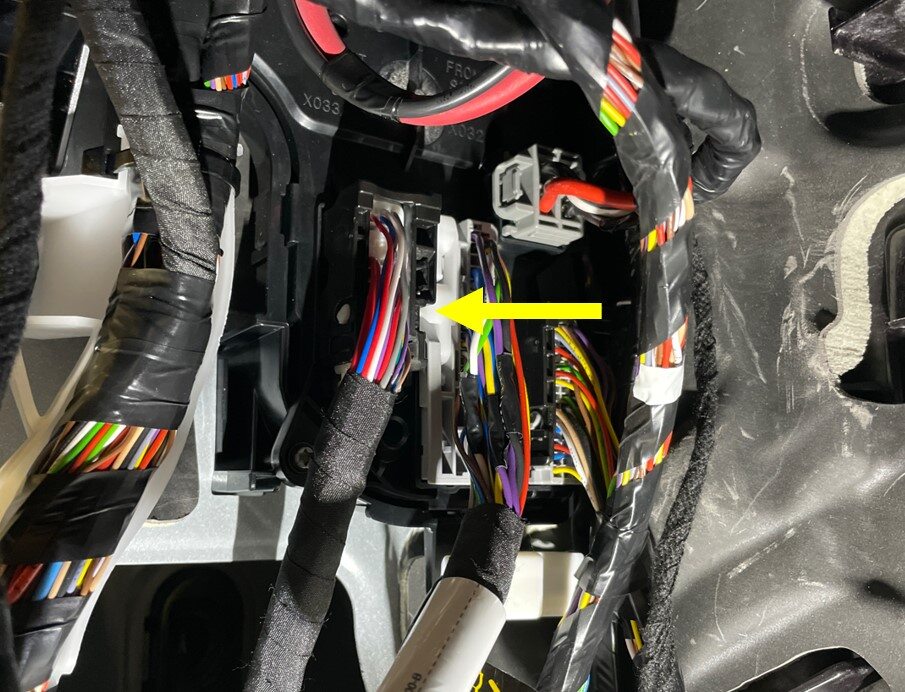

  15. Release the seat connector lock by squeezing the release tab, and then remove the LH front seat harness connector away from the LH body controller.

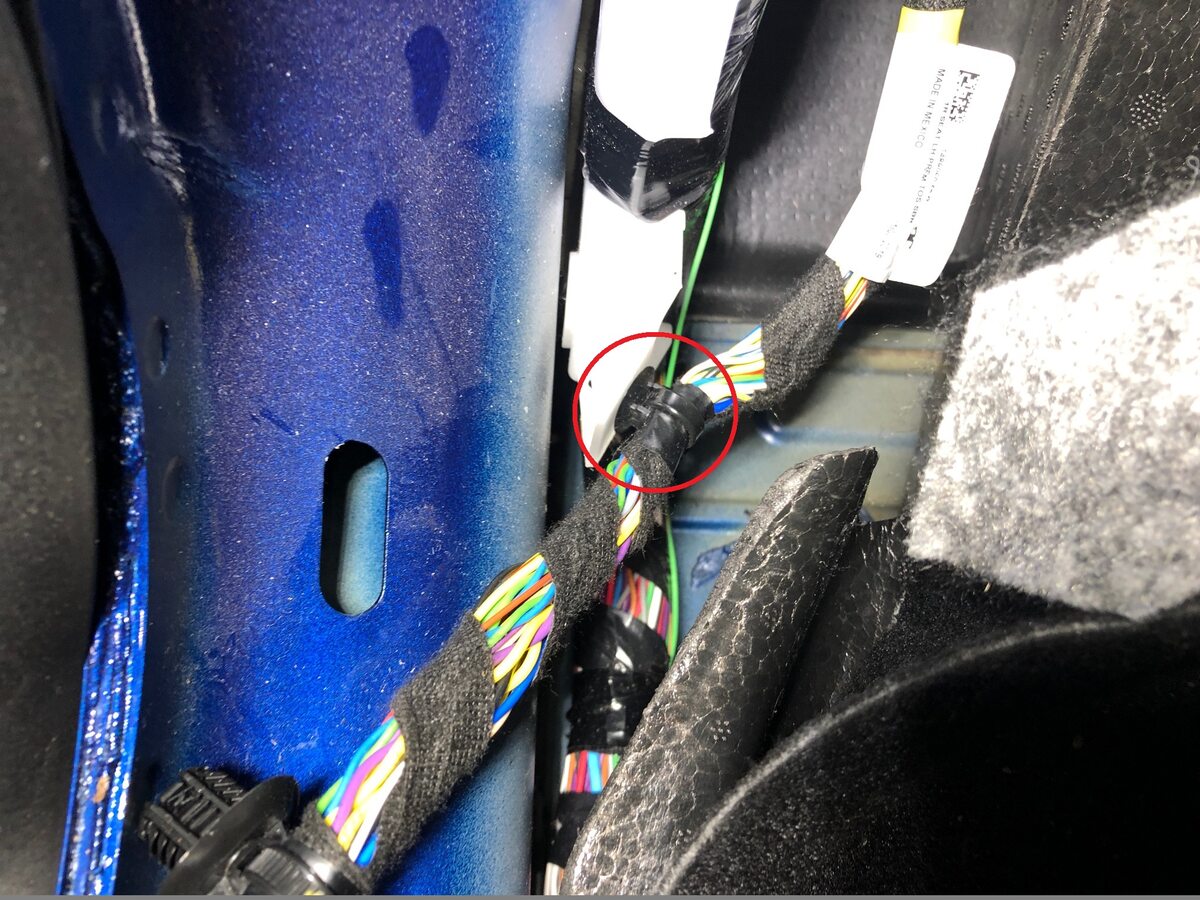

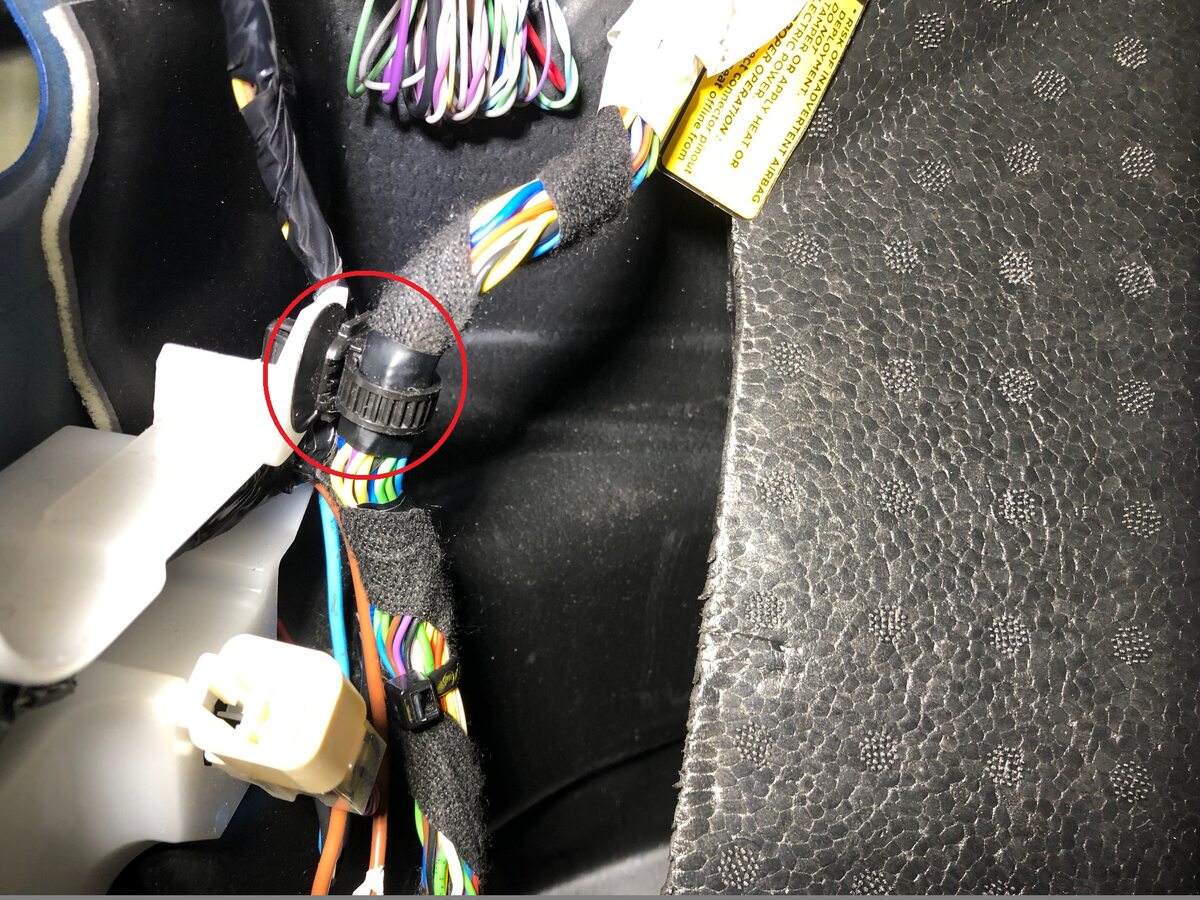

  16. Remove the retaining clips (x2) that attach the LH front seat harness to the LH footwell support bracket.

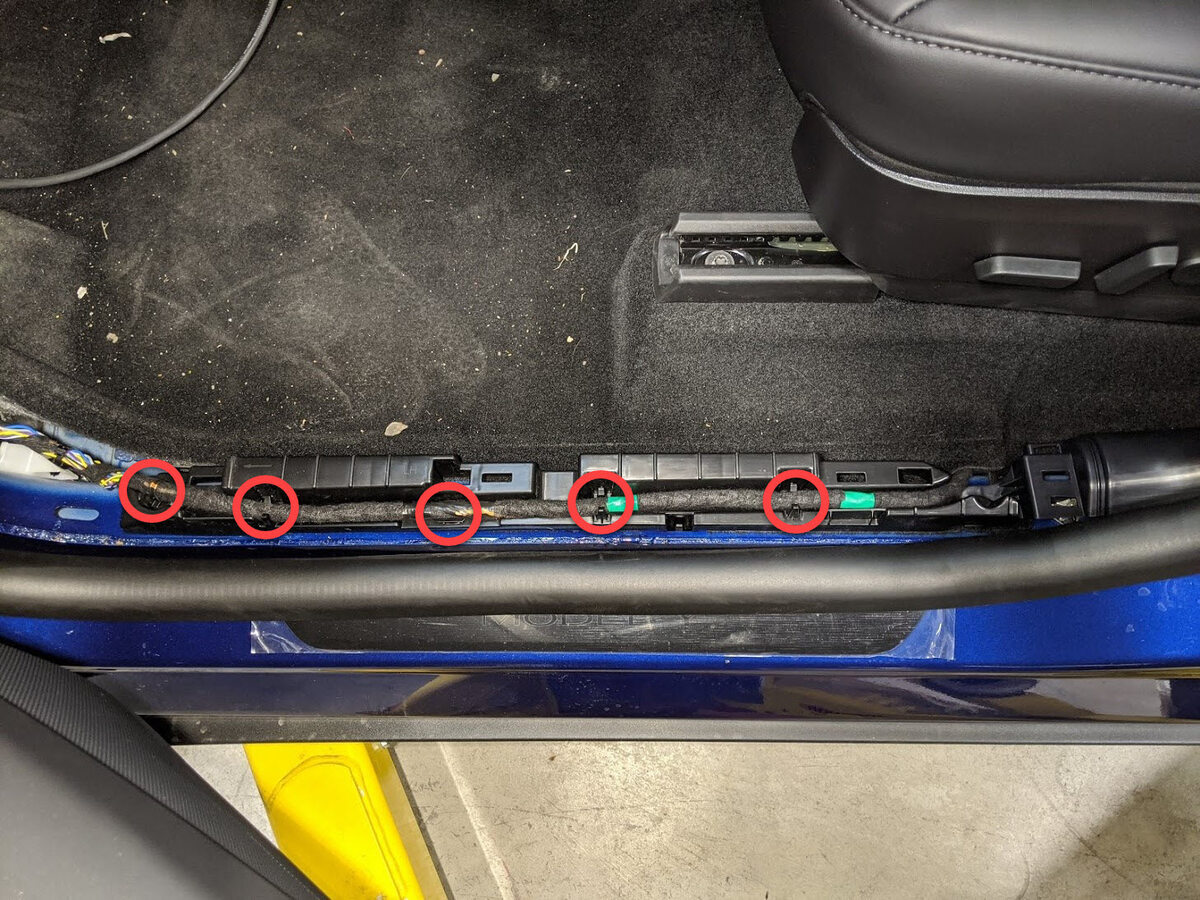

  17. Release the clips (x5) that attach the LH front seat harness to the LH front sill panel harness bracket.

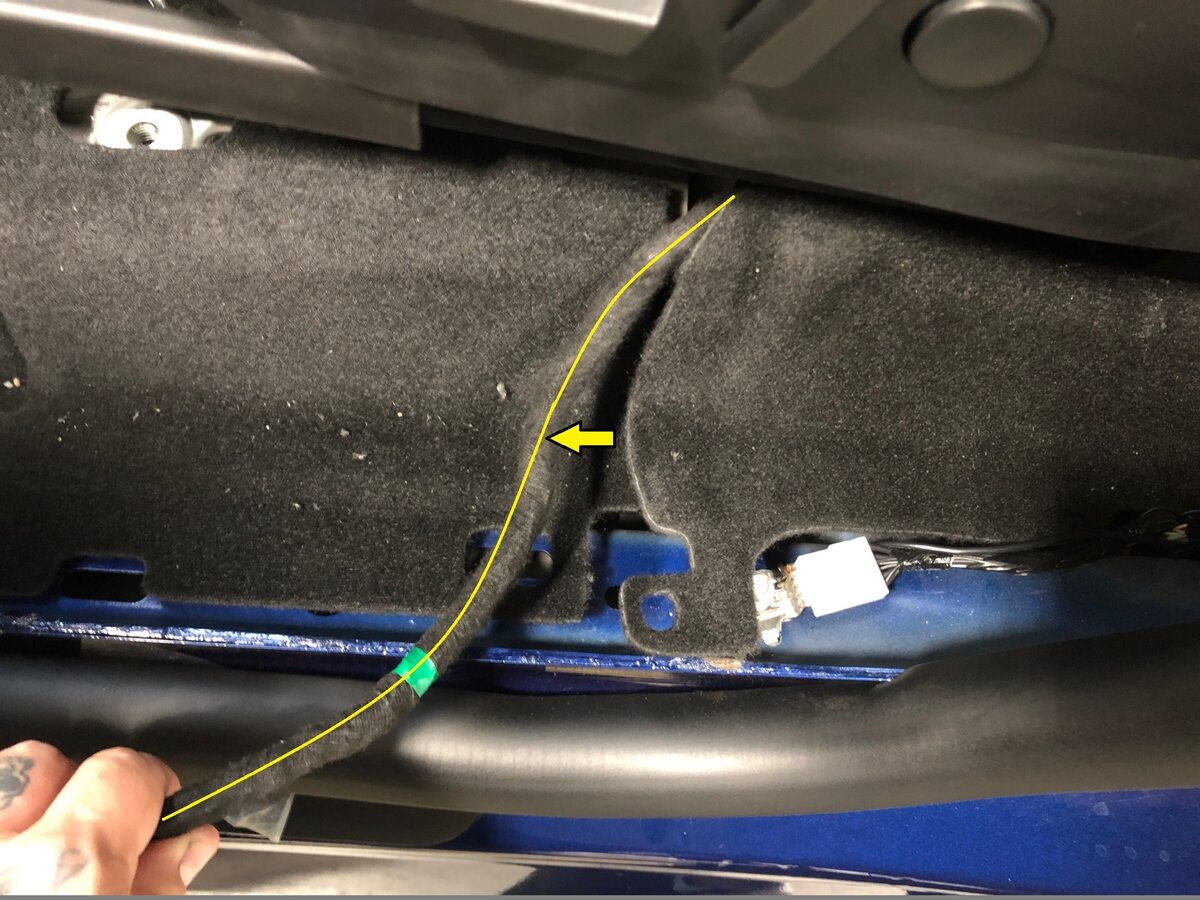

  18. Pull the LH front seat harness from under the LH front cabin carpet.

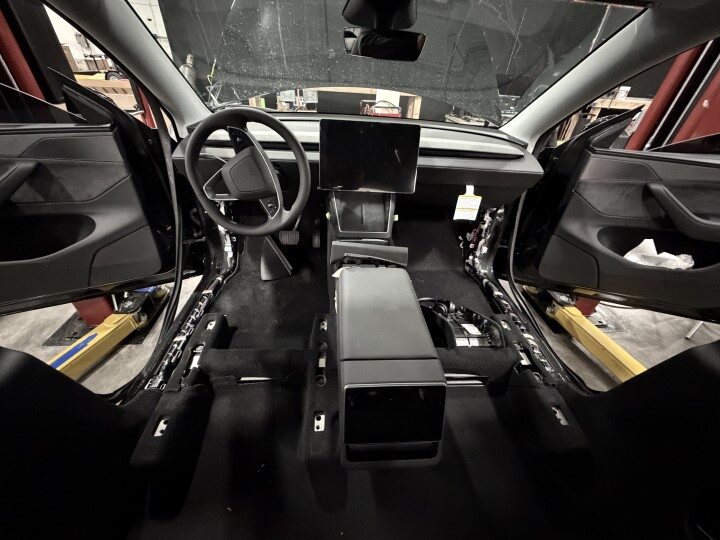

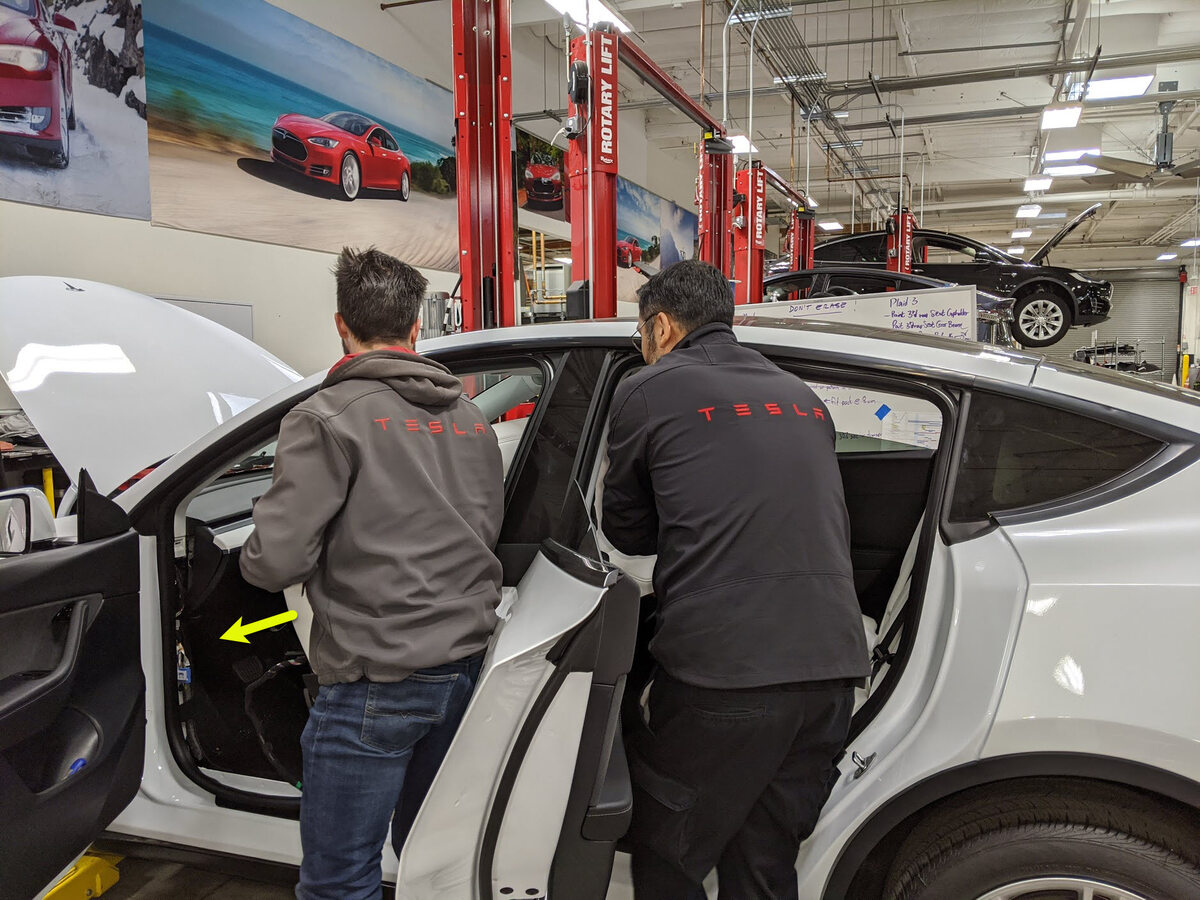

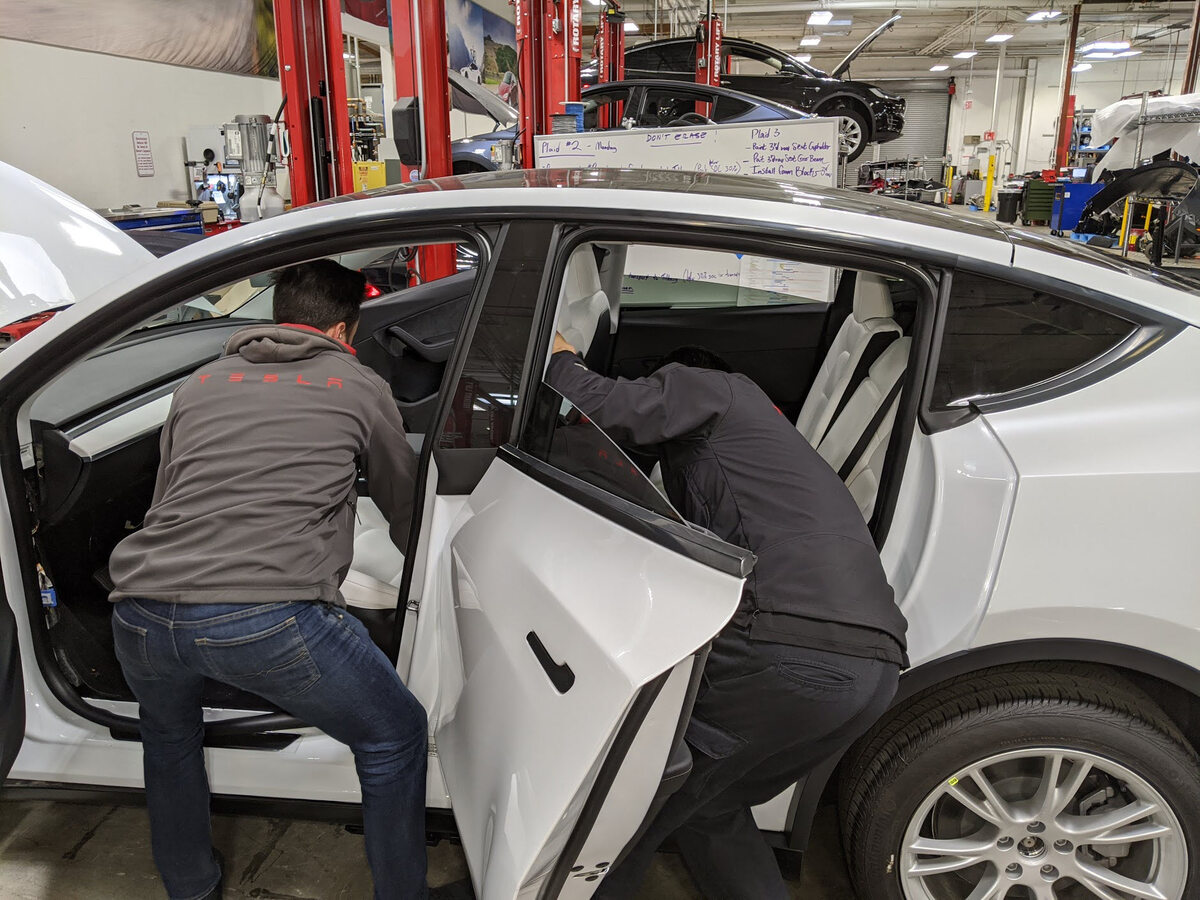

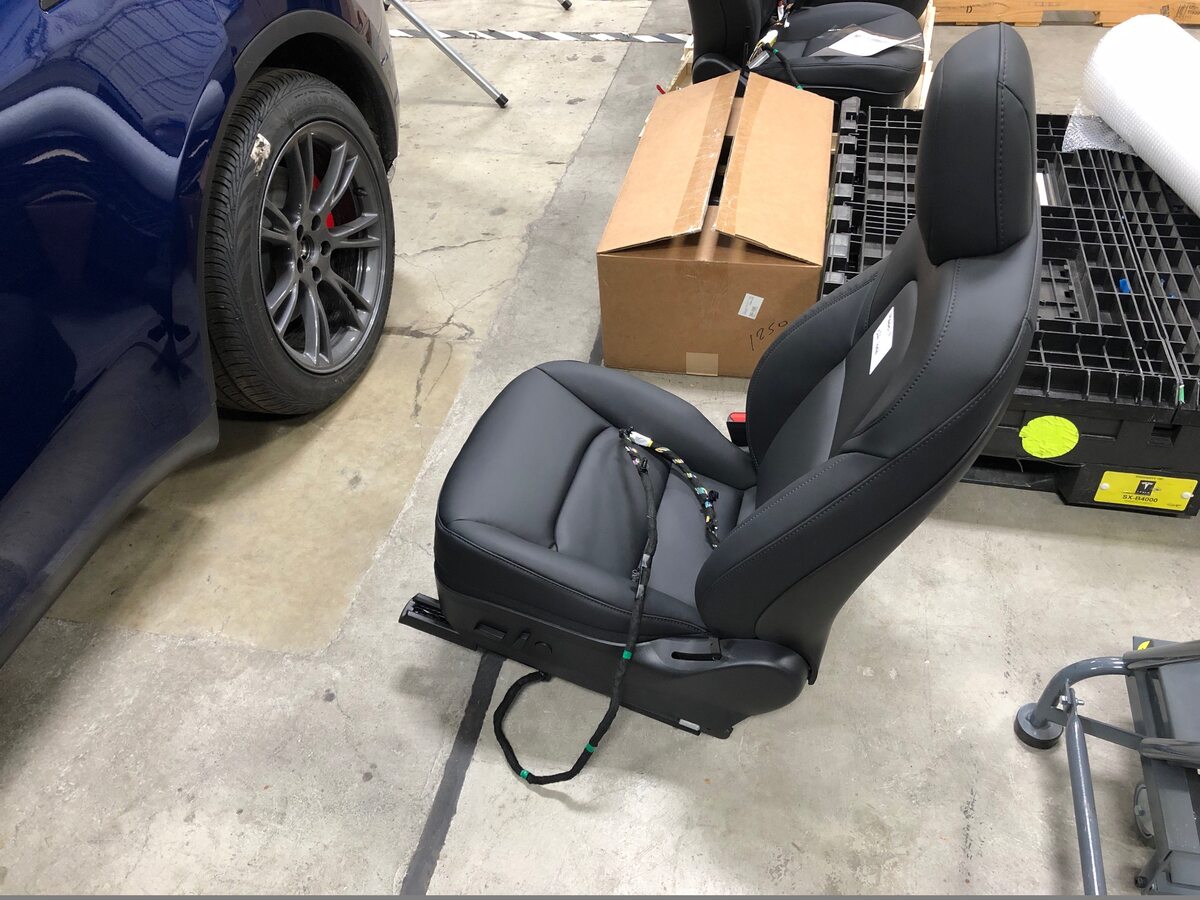

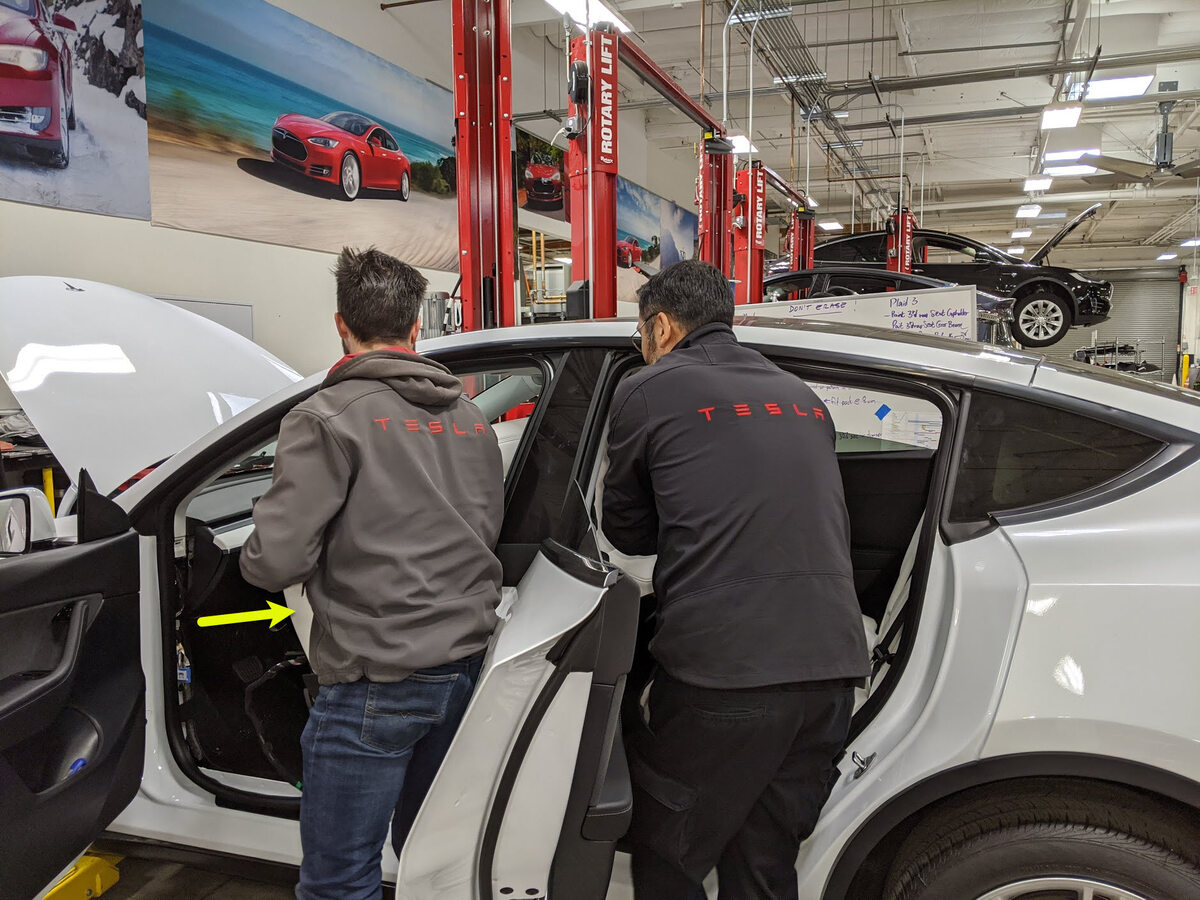

  19. Remove the LH front seat from the vehicle.
    Note
    Recommend assistance. Assistant should be ready to support the seat back. Caution not to damage any trim.
  20. Repeat step 15 to 19 to remove the RH front seat.
  21. Remove the LH and RH lower C-pillar trims. See GUID-68DD2EB2-3EAB-4F2E-9BD3-3ADA6B92CAA3.html.

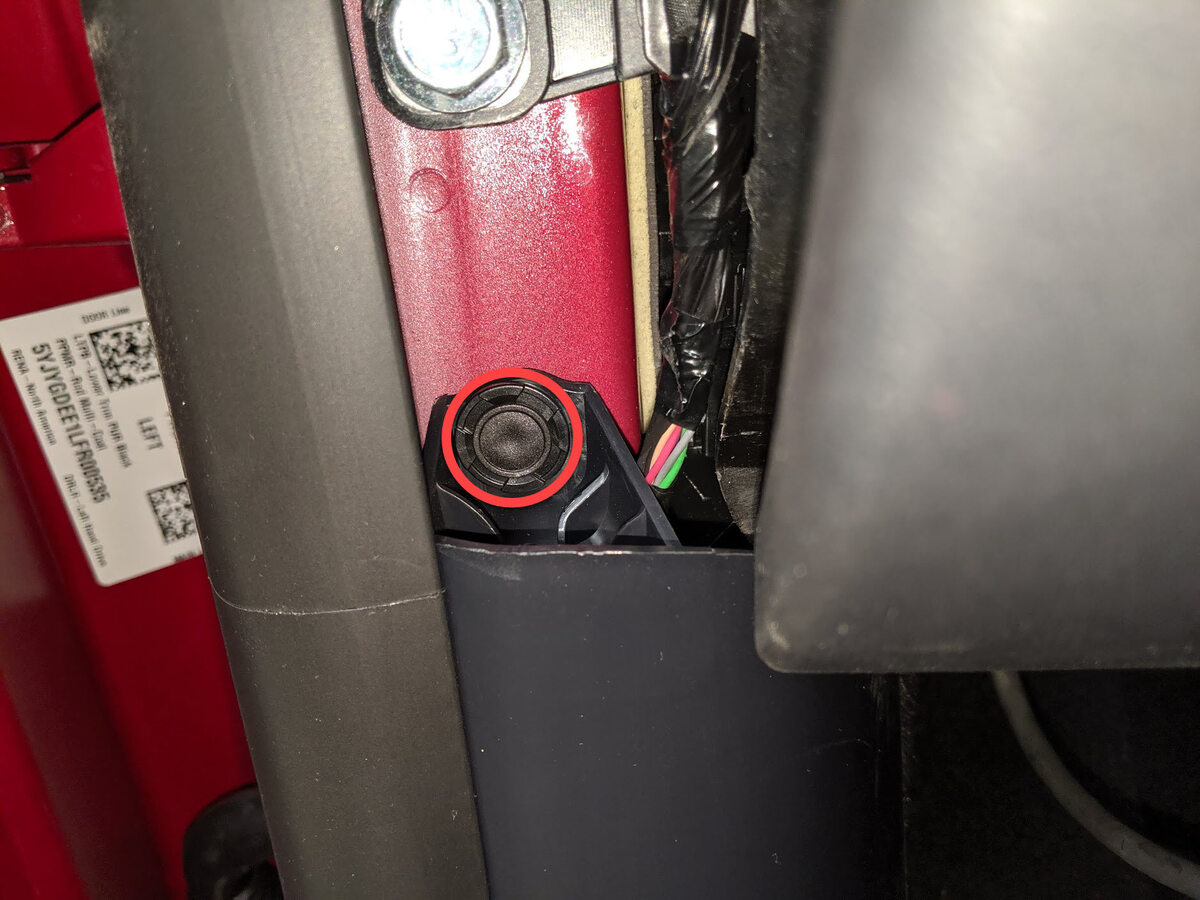

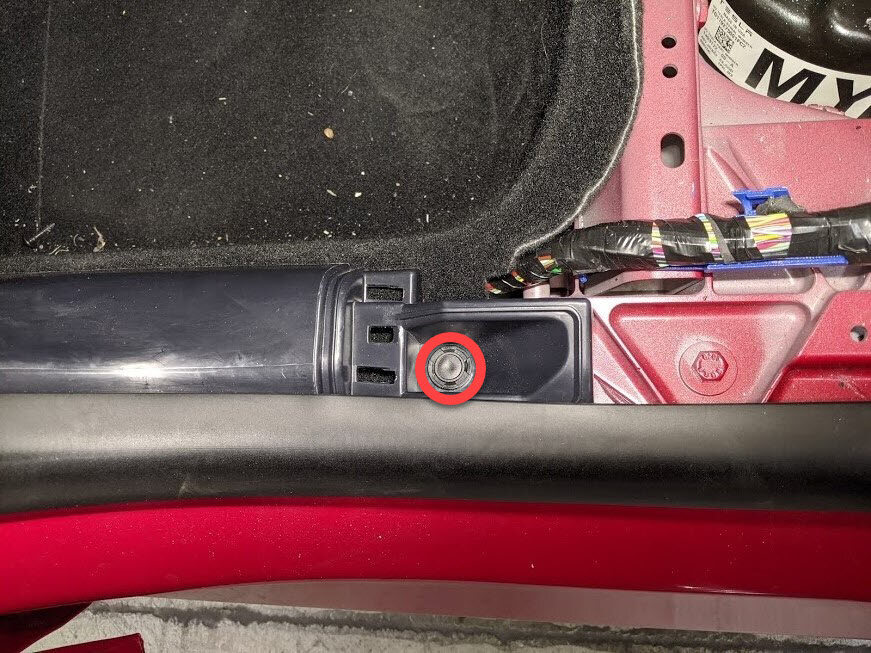

  22. Remove the clip that attaches the LH lower B-pillar and rear cabin carpet to the body.

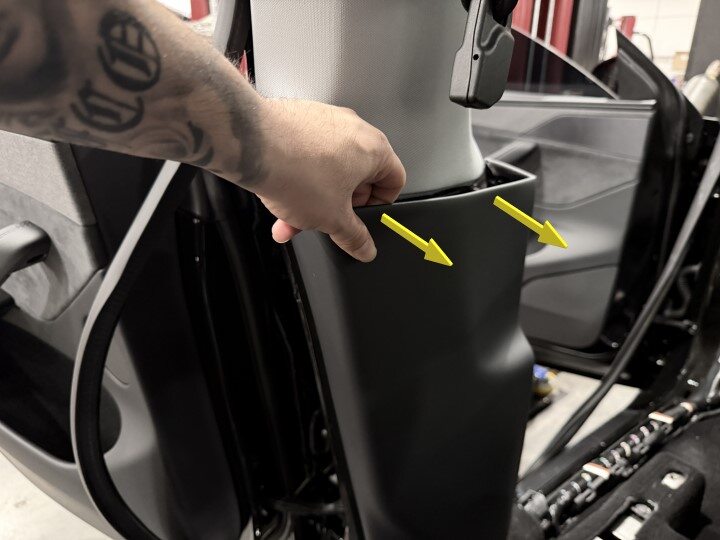

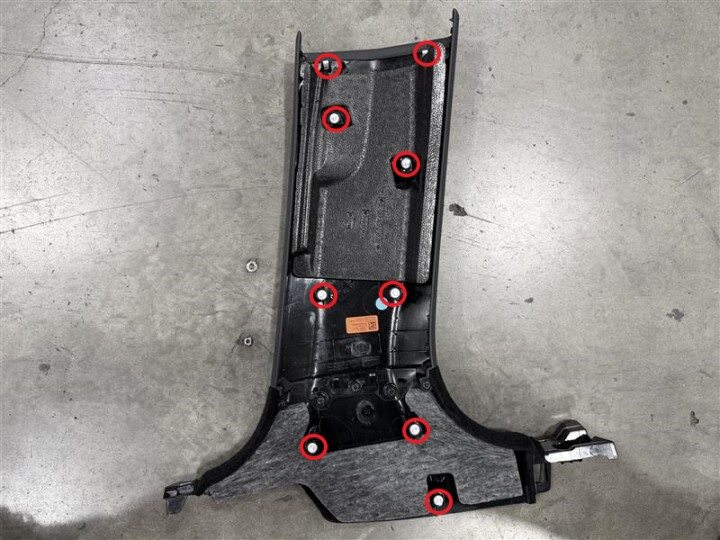

  23. Pull the top of the LH lower B-pillar assembly to release, then work down to the bottom to release the clips (x7) and tabs (x2).
  24. Repeat step 22 to 23 to remove the RH lower B-pillar assembly.

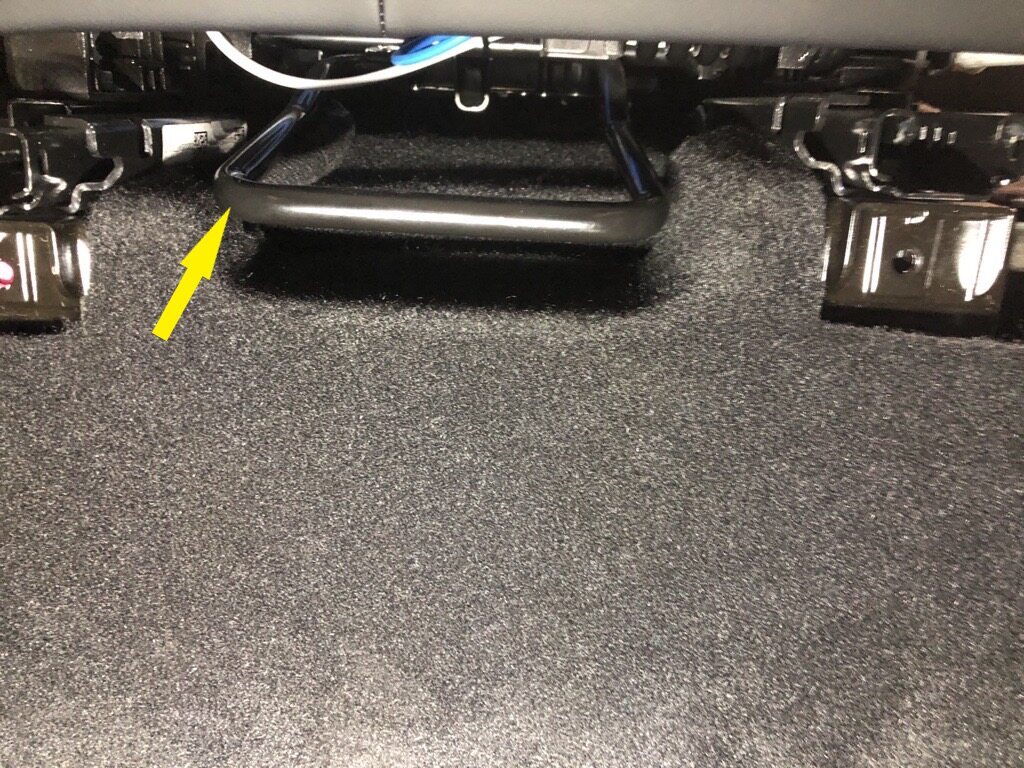

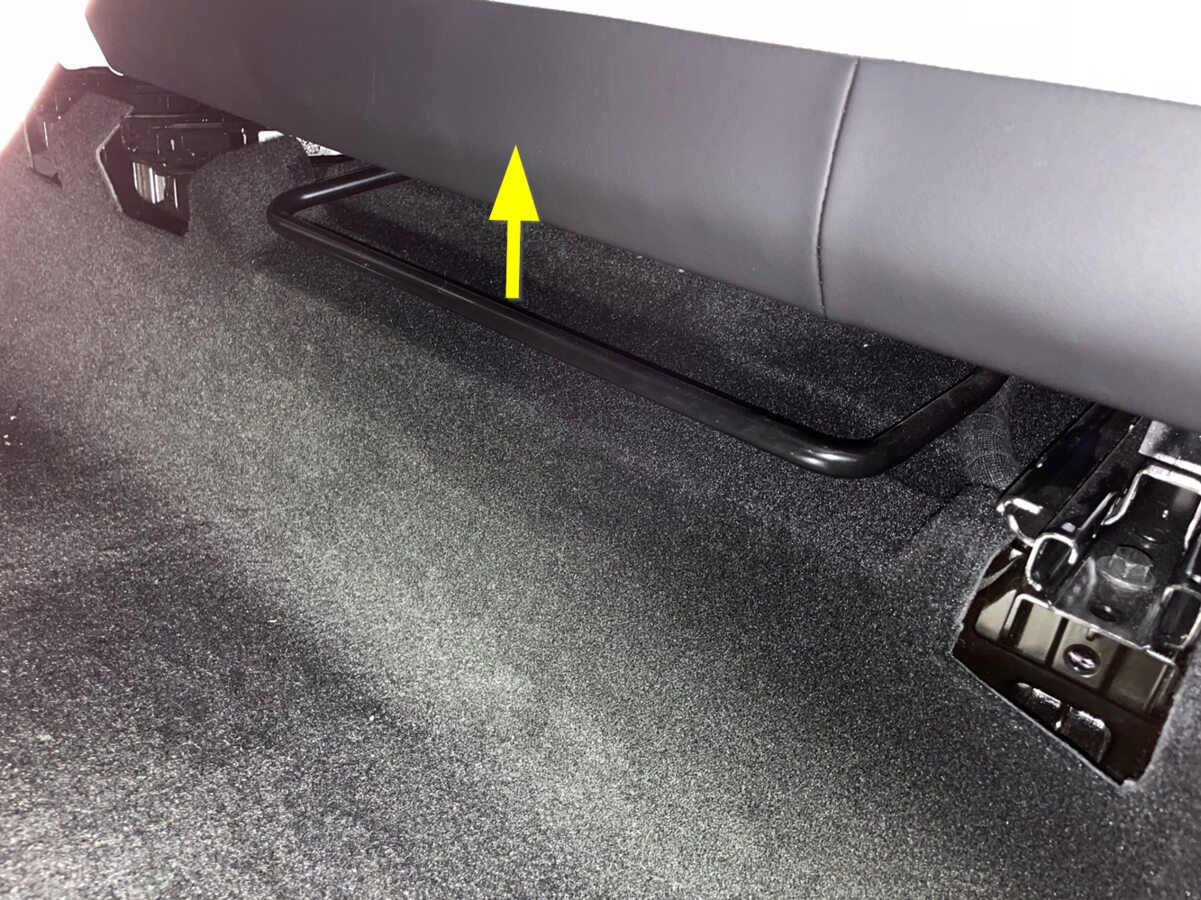

  25. Move the 40 seat and 60 seats fully rearward by pulling the towel bar.
  26. Remove the rear floor mat.

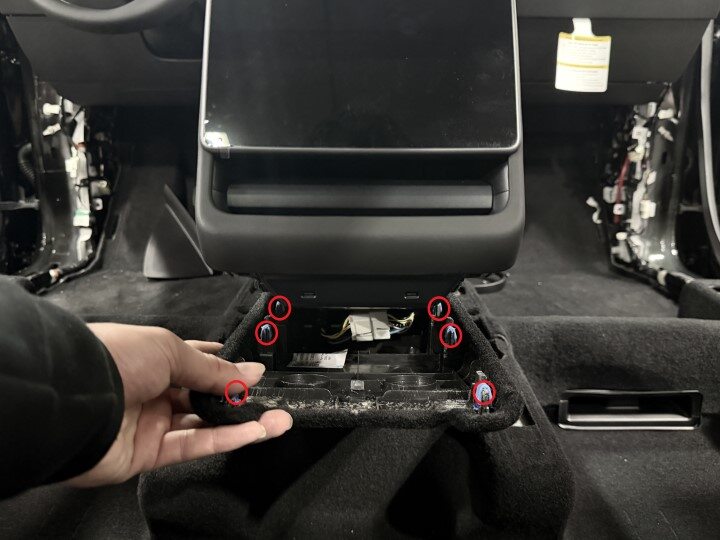

  27. Release the tabs (x6) that attach the center console lower trim to the center console assembly.
  28. Remove the 2nd row RH seat outboard track cover. See Track Cover - Outboard - 2nd Row Seat - RH (7-Seat) (Remove and Replace)
  29. Remove the 2nd row LH seat outboard track cover. See Track Cover - Outboard - 2nd Row Seat - LH (7-Seat) (Remove and Replace)
  30. Remove the 2nd row center track cover. See GUID-0A88F0BB-BAAC-4406-8C8F-D7F0A3B4342D.html

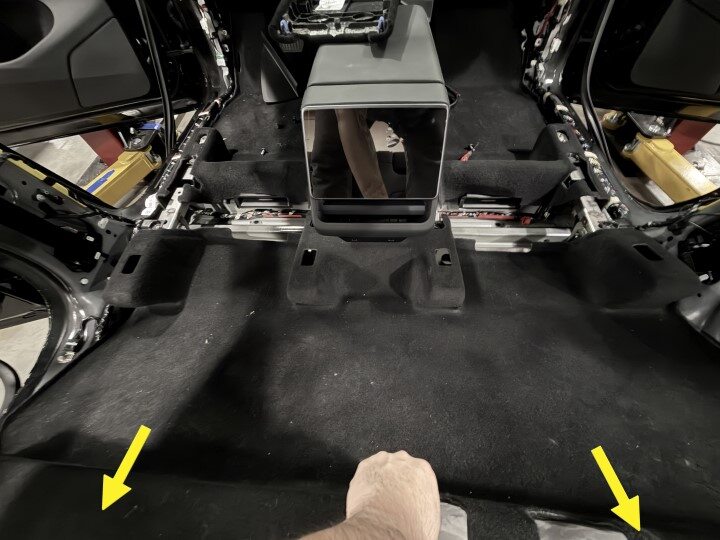

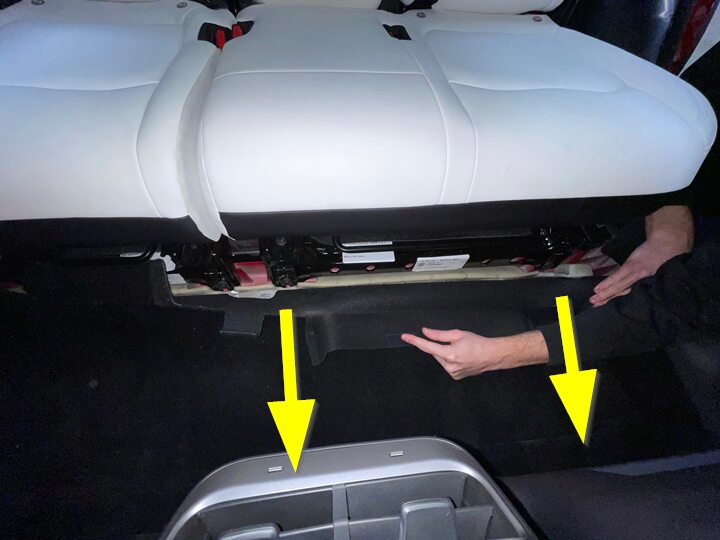

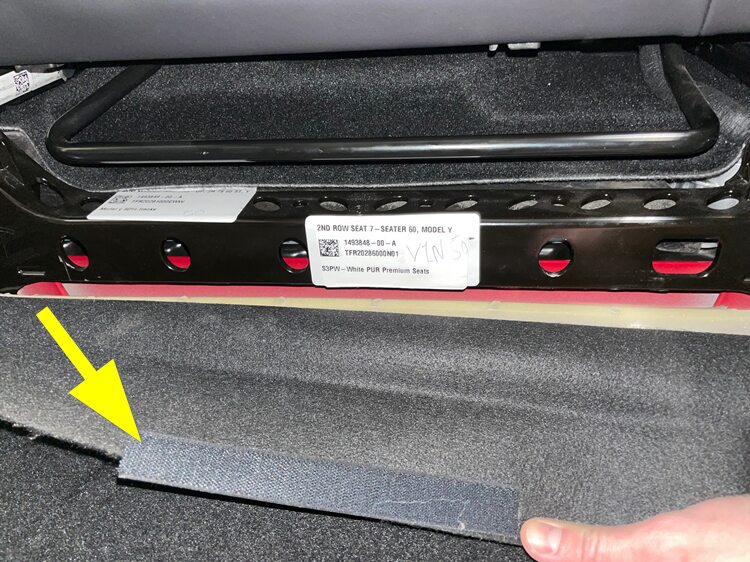

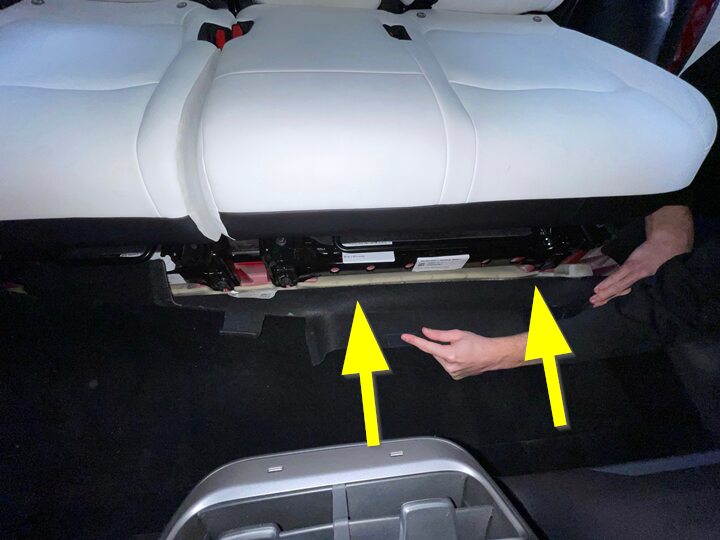

  31. Pull the cabin carpet towards the front of the vehicle to release the carpet from under the 2nd row LH and RH seats.

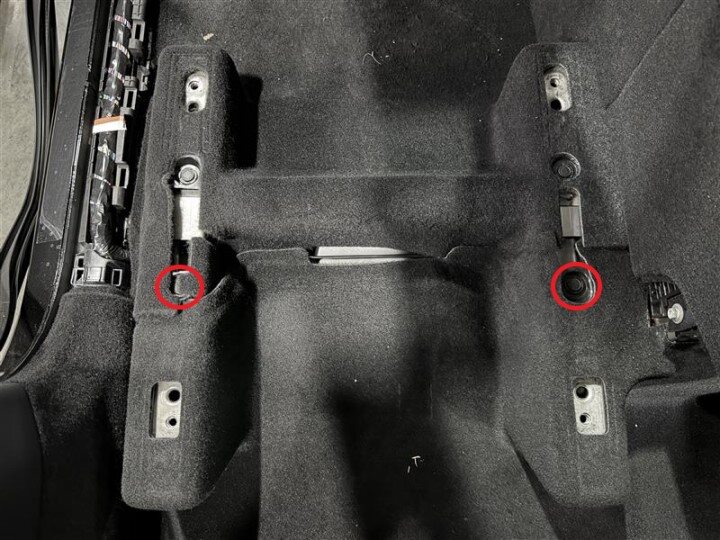

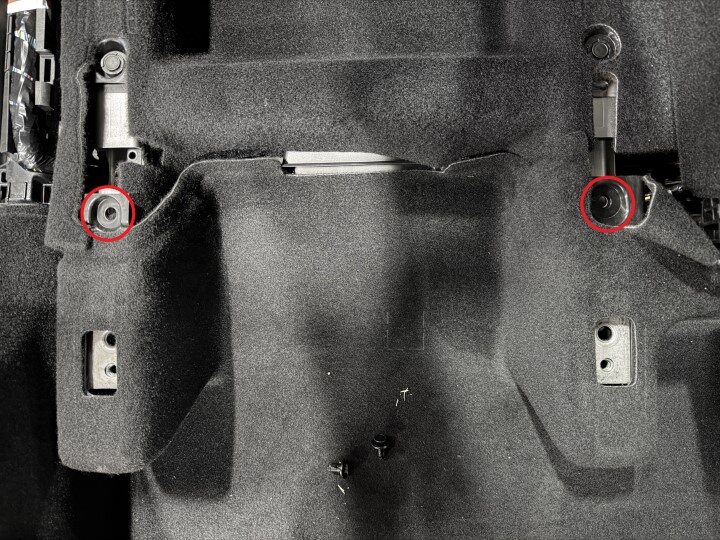

  32. Release the clips (x2) that attach the LH rear cabin carpet to the vehicle.
  33. Release the clips (x2) that attach the RH rear cabin carpet to the vehicle.

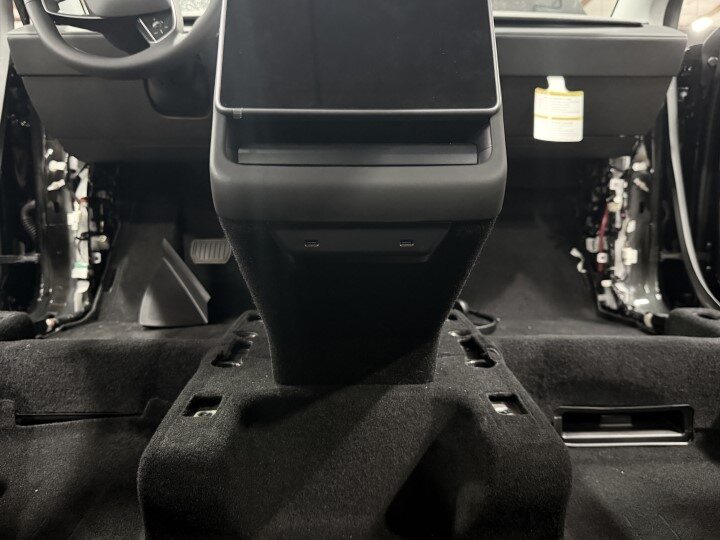

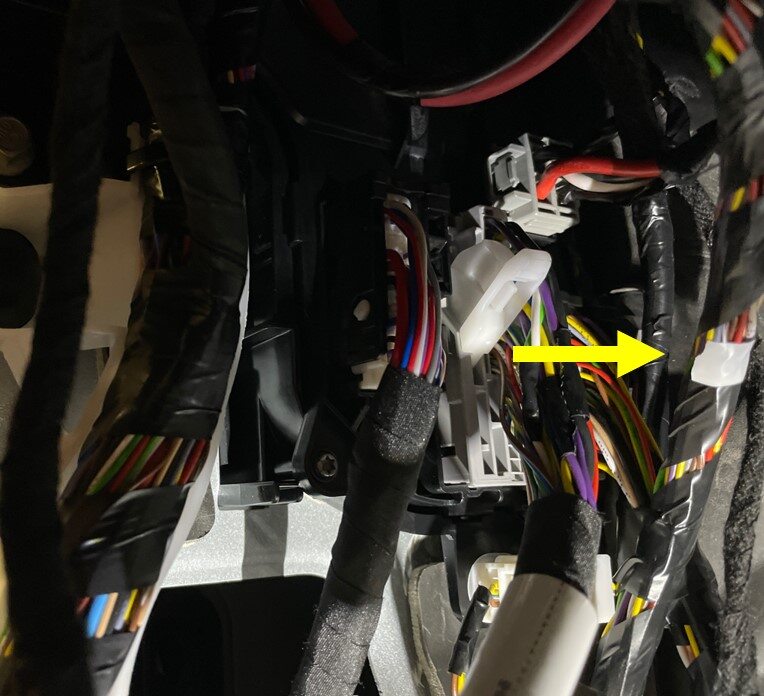

  34. Maneuver the right side of the carpet around the RH body harness to release, then pull the carpet upward to remove it from the vehicle.

Install

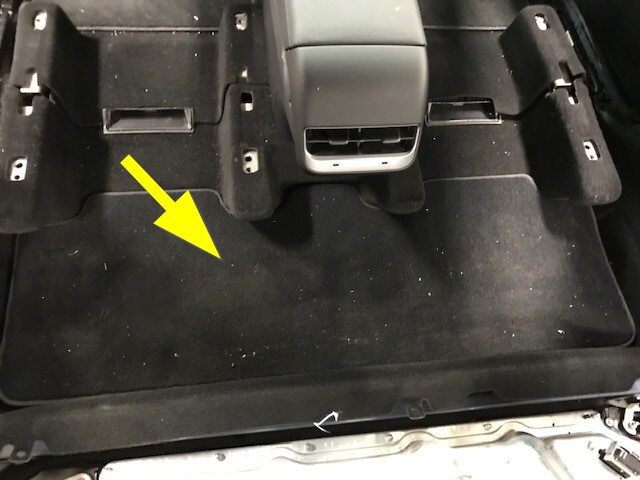

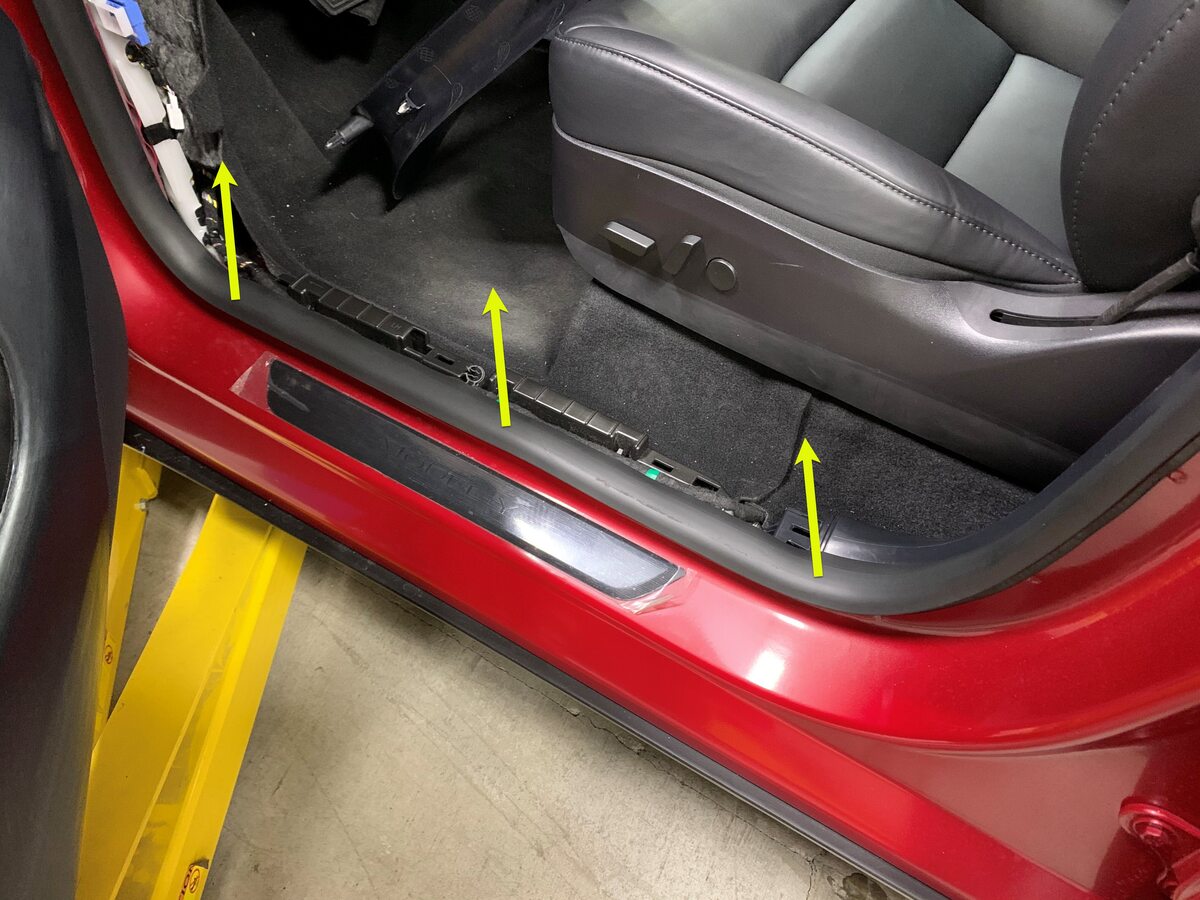

  1. Properly position and seat the rear carpet.
    Note
    Ensure that all fastening openings align.

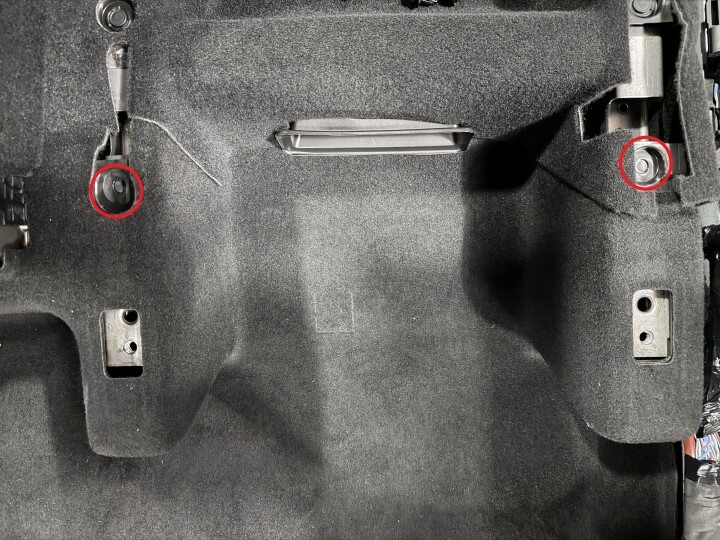

  2. Secure the clips (x2) that attach the LH rear cabin carpet to the vehicle.
  3. Secure the clips (x2) that attach the RH rear cabin carpet to the vehicle.

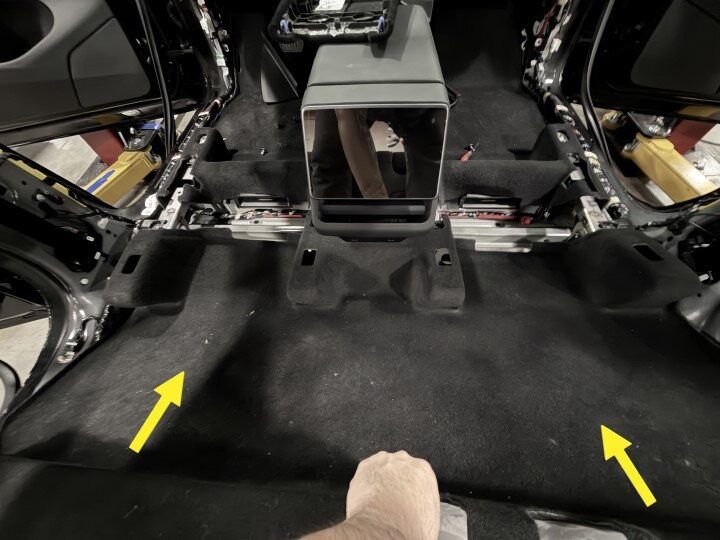

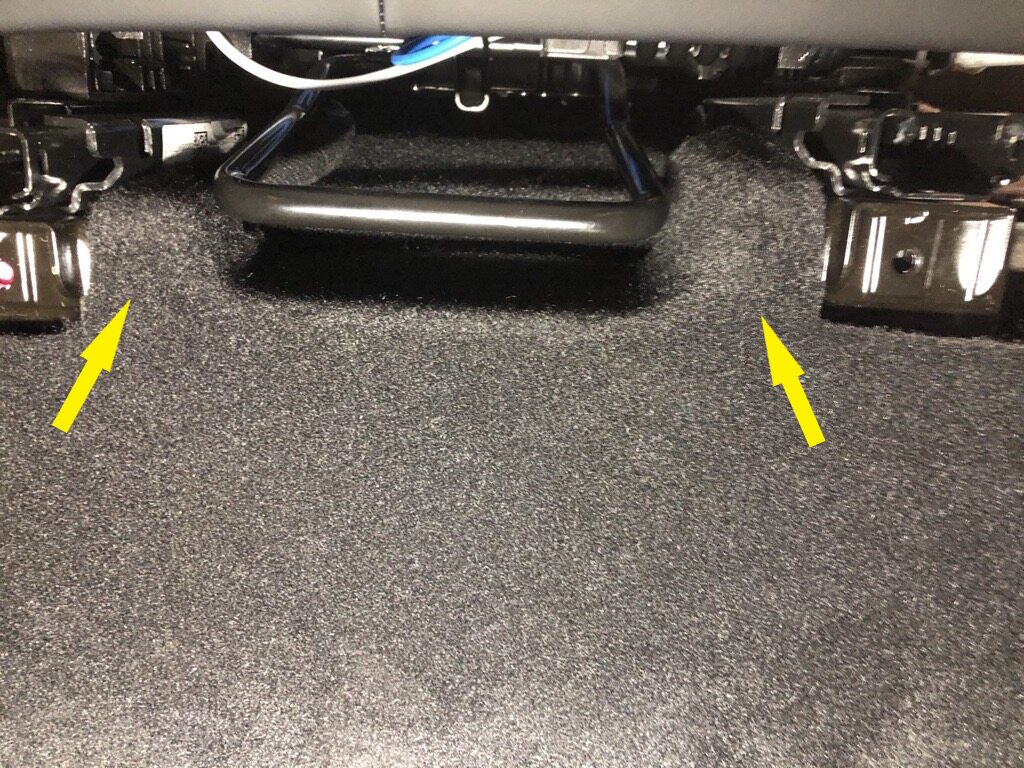

  4. Install the cabin carpet under the 2nd row LH and RH seats.
  5. Install the 2nd row RH seat outboard track cover. See Track Cover - Outboard - 2nd Row Seat - RH (7-Seat) (Remove and Replace)
  6. Install the 2nd row LH seat outboard track cover. See Track Cover - Outboard - 2nd Row Seat - LH (7-Seat) (Remove and Replace)
  7. Install the 2nd row center track cover. See GUID-0A88F0BB-BAAC-4406-8C8F-D7F0A3B4342D.html
  8. Move the 40 seat and 60 seats fully rearward by pulling the towel bar.
  9. Install the rear floor mat.
  10. Secure the tabs (x6) that attach the center console lower trim to the center console assembly.
  11. Install the clip that attaches the LH lower B-pillar and rear cabin carpet to the body.
  12. Align the bottom guide tabs (x2) to the slots, then work up to press the clips (x7).
  13. Repeat step 11 to 12 to install the RH lower B-pillar assembly.
  14. Install the LH and RH lower C-pillar trims. See GUID-68DD2EB2-3EAB-4F2E-9BD3-3ADA6B92CAA3.html.
  15. Install the LH front seat into the vehicle.
    Note
    Recommend assistance; assistant should be ready to support the seat back. Caution not to damage any trim
  16. Secure the LH front seat harness under the LH front cabin carpet.
  17. Secure the clips (x5) that attach the LH front seat harness to the the LH front sill panel harness bracket.
  18. Install the retaining clips (x2) that attach the LH front seat harness to the LH footwell support bracket.

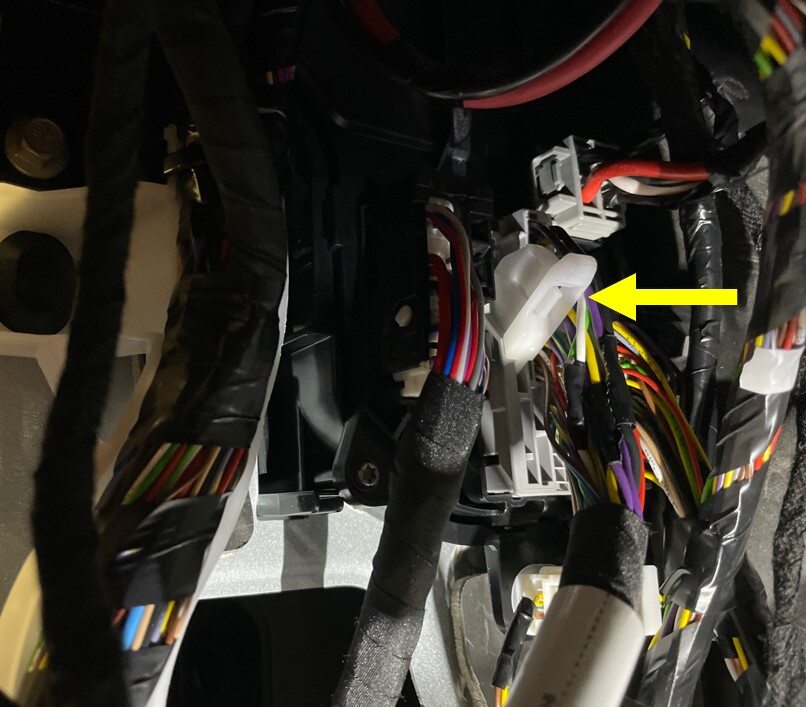

  19. Connect the LH front seat harness connector to the LH body controller.
    Note
    Perform the pull-push-pull test to ensure the connector and connector lock are fully seated.
  20. Fully seat the LH front cabin carpet.
  21. Install the push clip that attaches the LH front cabin carpet to the body.
  22. Align the location pins (x2), then secure the clips (x6) that attaches the LH lower A-pillar trim to the vehicle.
  23. Install the push clip that attaches the LH lower A-pillar trim to the vehicle.
  24. Align the bottom tab, then push the top clip to fully seat the LH mid A-pillar assembly.
    Note
    Pull the seal over the trim.
  25. Reseat the LH front door seal along the LH lower A-pillar trim.
  26. Repeat step 15 to 25 to install the RH front seat.
  27. Connect the LV power. See LV Power (Disconnect and Connect) (Modify).
  28. Move the LH front seat backward.
  29. Install new bolts (x2) that attach the front of the LH front seat to the vehicle.
    33.5 Nm (24.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • TP45 TORX PLUS Bit Sockets
  30. Move the LH front seat forward.
  31. Install the seat belt retractor to the LH front seat pretensioner.
  32. Install new bolts (x2) that attach the rear of the LH front seat to the vehicle.
    33.5 Nm (24.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • TP45 TORX PLUS Bit Sockets
  33. Repeat step a 28 to 32 for the RH side.
  34. Move the LH and RH front seats to original position.
  35. Raise four windows and close four doors.
