Correction code 2020010802 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Table 1. Torque Specifications: Actuator - Pedestrian Protection - Active Hood - LH (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

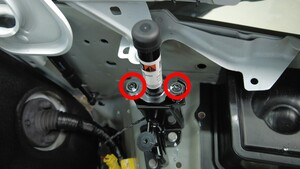

Bolts (x2) that attaches the LH pedestrian protection actuator to the body	4.7 Nm (3.5 lbs-ft)	Torx T30 socket Torque wrench with angle measurement	Reuse

CAUTION

Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See Airbag and Supplementary Restraint System (SRS) Precautions

CAUTION

In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.
