Button - Thigh Extension - 1st Row - LH (Model YL) (Remove and Replace)

Correction code 13010100302 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

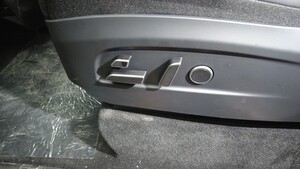

  1. Open the LH front door and lower the LH front window.

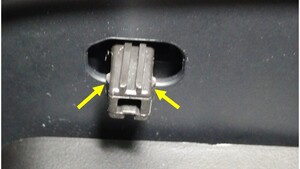

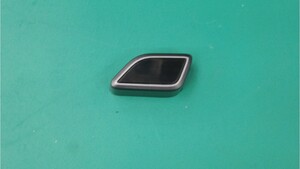

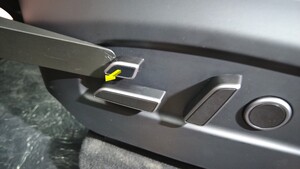

  2. Use a trim tool to carefully release the tabs (x2) that attach the LH 1st row seat thigh extension switch button to the seat assembly, and then remove the button from the assembly.
    CAUTION
    Be careful not to damage the button and seat trim.

Install

  1. Install the LH 1st row seat thigh extension switch button to the seat assembly.
    Note
    Ensure the switch button installation direction matches its removal direction.
    Note
    Make sure that the button is fully seated.
  2. Raise the LH front window and close the LH front door.
