Duct - Air Intake (Remove and Replace)

Correction code 1810010302 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Duct - Air Intake (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the fresh intake duct to the shock tower brace
4 Nm (2.9 lbs-ft)
  • 10 mm socket
Reuse

Remove

  1. Remove the HEPA filter. See HEPA Filter Assembly (Remove and Replace).

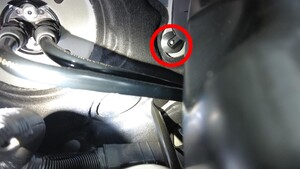

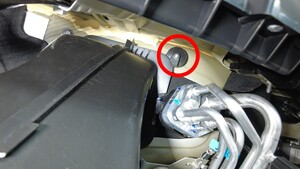

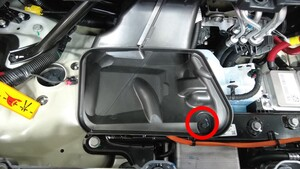

  2. Remove the bolt that attaches the fresh intake duct to the shock tower brace.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket

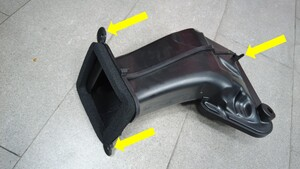

  3. Gently release the clips (x2) and pin that attach the fresh intake duct to the vehicle, and then remove the duct from the vehicle.

Install

  1. Position the fresh intake duct to the vehicle, and then install the clips (x2) and pin that attach the fresh intake to the vehicle.
  2. Install the bolt that attaches the fresh intake duct to the shock tower brace.
    4 Nm (2.9 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket
  3. Install the HEPA filter. See HEPA Filter Assembly (Remove and Replace).
