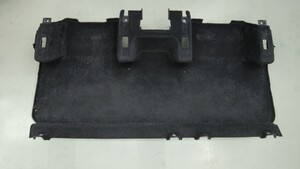

Cabin Carpet - Rear (Remove and Replace)
Correction code
1530030402
FRT
0.78
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the driver seat assembly. See 1st Row Seat- LH (Remove and Install).
- Remove the front passenger seat assembly. See 1st Row Seat- LH (Remove and Install).
- Remove the rear end panel. See Console - End Panel (Remove and Replace).
- Remove the LH and RH lower B-pillar trims. See Trim - B-Pillar - Lower - LH (Remove and Replace).
-

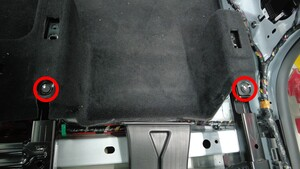

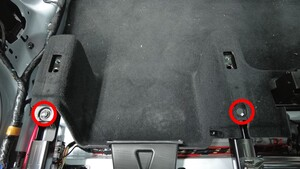

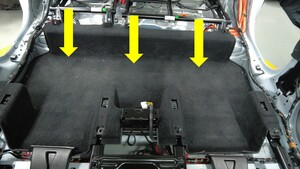

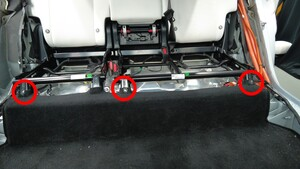

Remove the push clips (x7) that attach the rear main cabin carpet to the body, and
then remove the carpet from the vehicle.
Install
-
Position the rear carpet to the vehicle, and then install the push clips (x7) that
attach the rear main cabin carpet to the body.
- Install the LH and RH lower B-pillar trims. See Trim - B-Pillar - Lower - LH (Remove and Replace).
- Install the rear end panel. See Console - End Panel (Remove and Replace).
- Install the front passenger seat assembly. See 1st Row Seat- LH (Remove and Install).
- Install the driver seat assembly. See 1st Row Seat- LH (Remove and Install).
