Trim Assembly - B-Pillar - Upper - LH (Model YL) (Remove and Replace)

Correction code 15180100502 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:
  • 1133787-00-A - KEY, SEAT BELT RELEASE, MODEL 3

Remove

  1. Move the LH front seat forward.

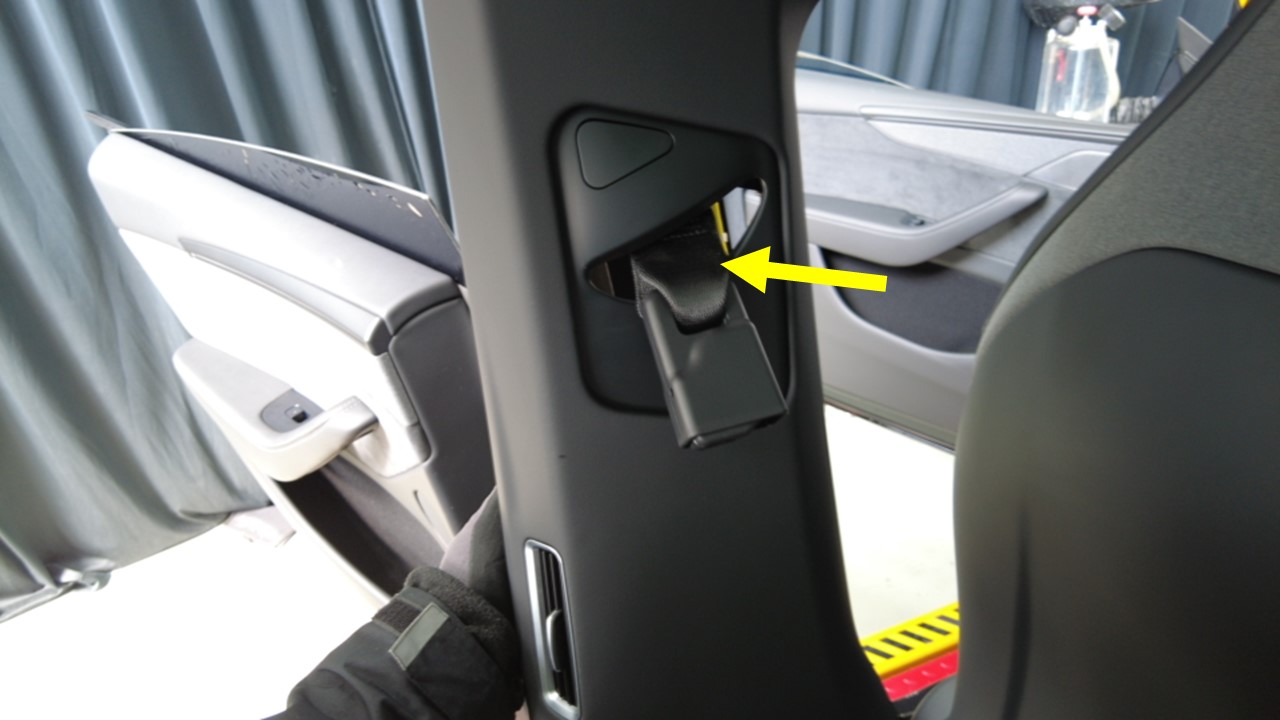

  2. Insert the seat belt release tool (1133787-00-A) into the bottom of the seatbelt pretensioner coupling to release the seatbelt from the pretensioner.
  3. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Model YL) (Remove and Replace).
  4. Release the clip that attaches the LH B-pillar lower air duct to the body.
  5. Release the clips (x5) that attach the LH upper B-pillar trim assembly to the vehicle, and then remove the trim.
    Note
    Pull the bottom of the upper B-pillar inwards, and then pull the top to release the remaining clips. Slide the seat belt through the hole.

Install

  1. Slide the seat belt through the hole, then connect the air vent and align location pins (x2) to the slots on the body, and then secure the clips (x5) that attach the LH upper B-pillar trim assembly to the vehicle.
  2. Install the clip that attaches the LH B-pillar lower air duct to the body.
  3. Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Model YL) (Remove and Replace).
  4. Install the LH front seatbelt pretensioner coupling onto the LH front seat pretensioner.
    Note
    Perform a pull-push-pull test to verify the pretensioner and coupling are fully seated.
  5. Move the LH front seat to original position.
