Hose - Chiller To Battery - RHD (Remove and Replace)

Correction code 1830020602 FRT 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-03-19: Released new procedure.

Remove

  1. Open the RH front door and fully lower the RH front window.
  2. Enable Service Mode. See Service Mode.
  3. Unlock the vehicle gateway. See Gateway (Unlock).
  4. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Coolant System > Coolant Fill/Drain > Run, and allow the routine to complete.
  5. Disconnect LV power. See LV Power (Disconnect and Connect) (Modify).
  6. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  7. Remove the front aero shield. See Aero Shield - Front (Remove and Replace).
  8. Position a coolant drain container underneath the LH front of the HV battery.

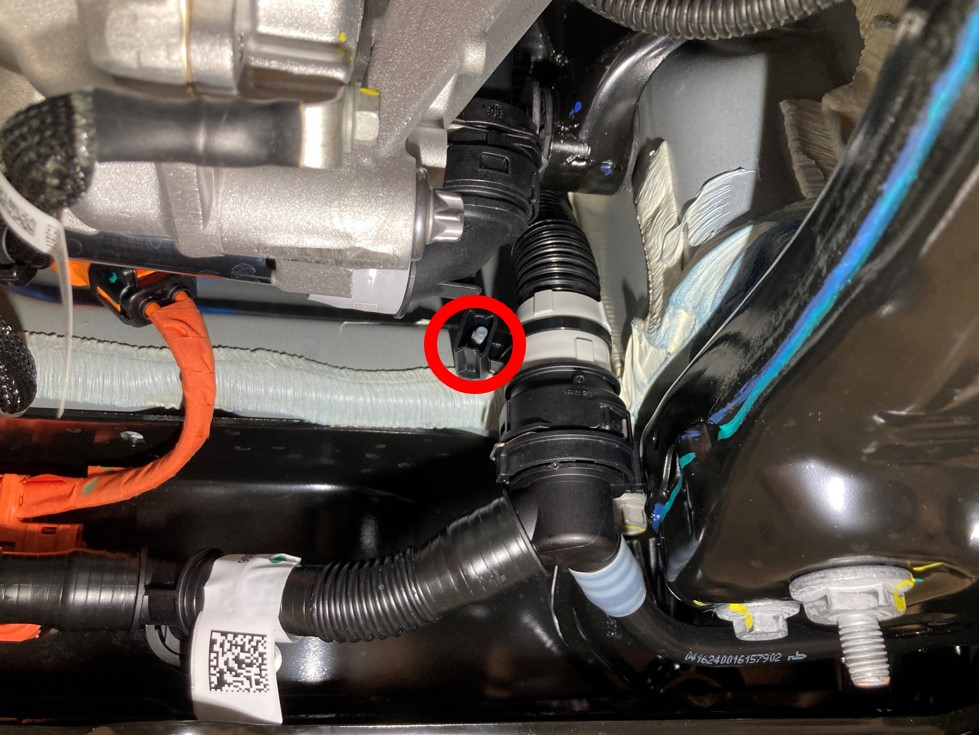

  9. Release the clip that attaches the chiller to battery hose to the dash cross member.
  10. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).

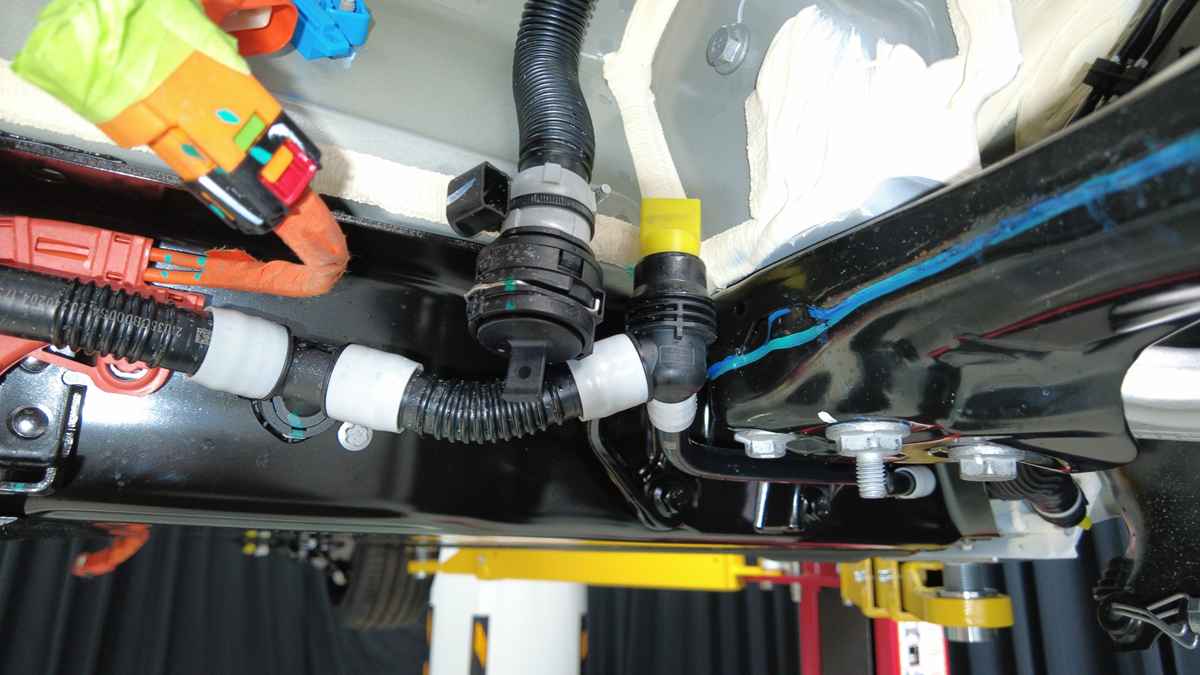

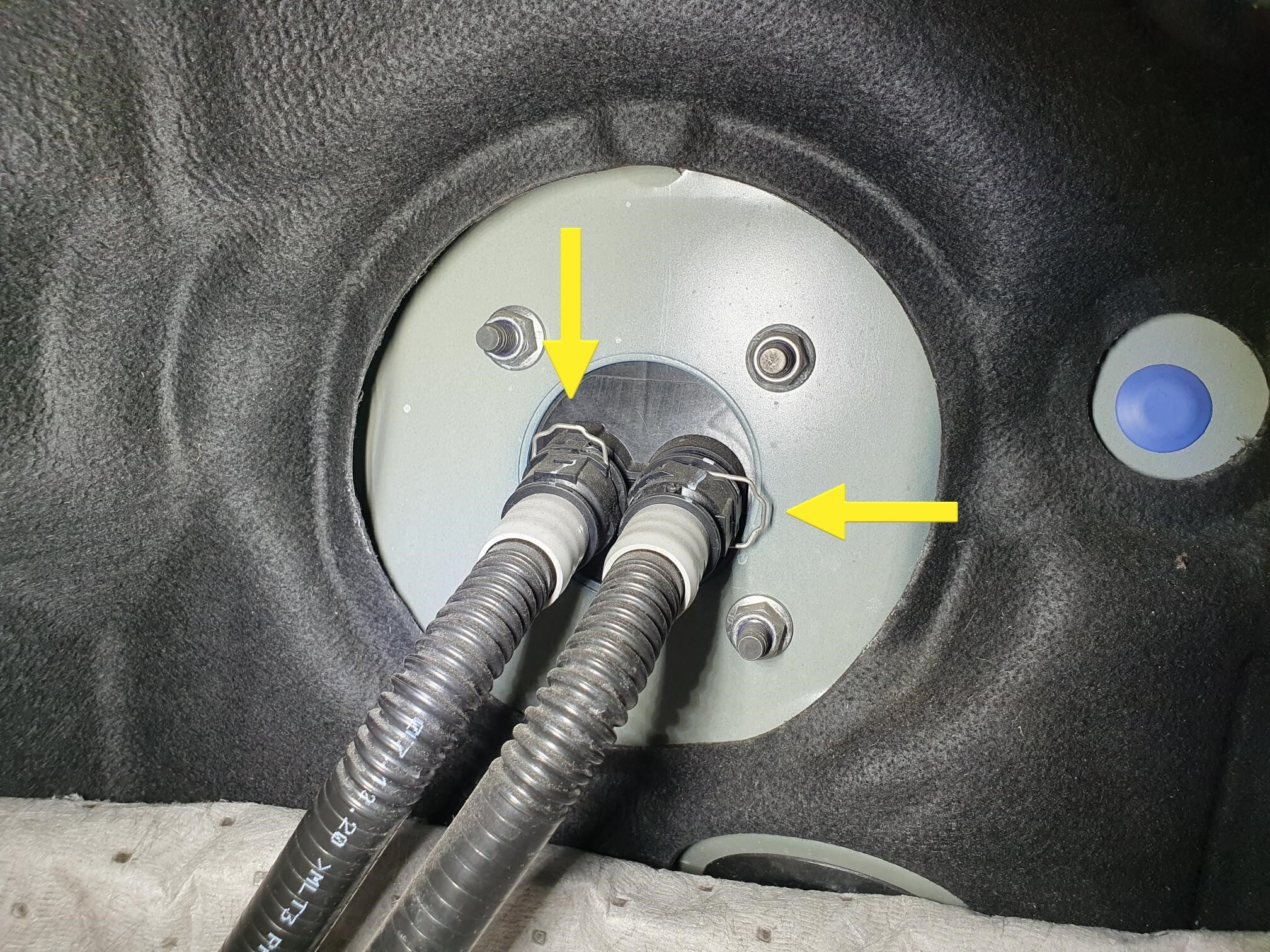

  11. Disconnect the HV battery manifold hoses, and then plug both hoses.
  12. Remove the fluid drain container from under the vehicle, and then lower the vehicle.
  13. Position a fluid drain container underneath the front of the vehicle.

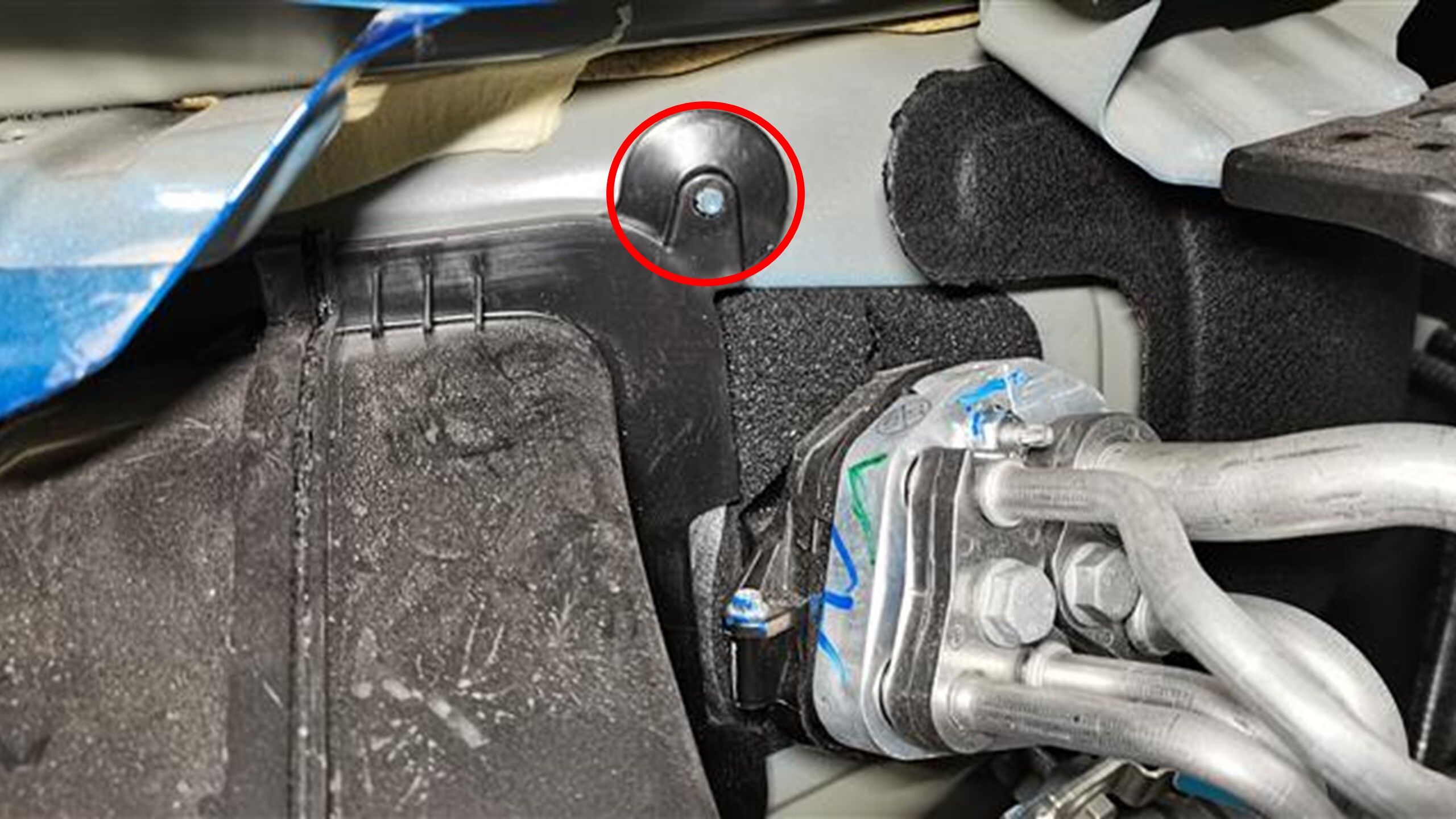

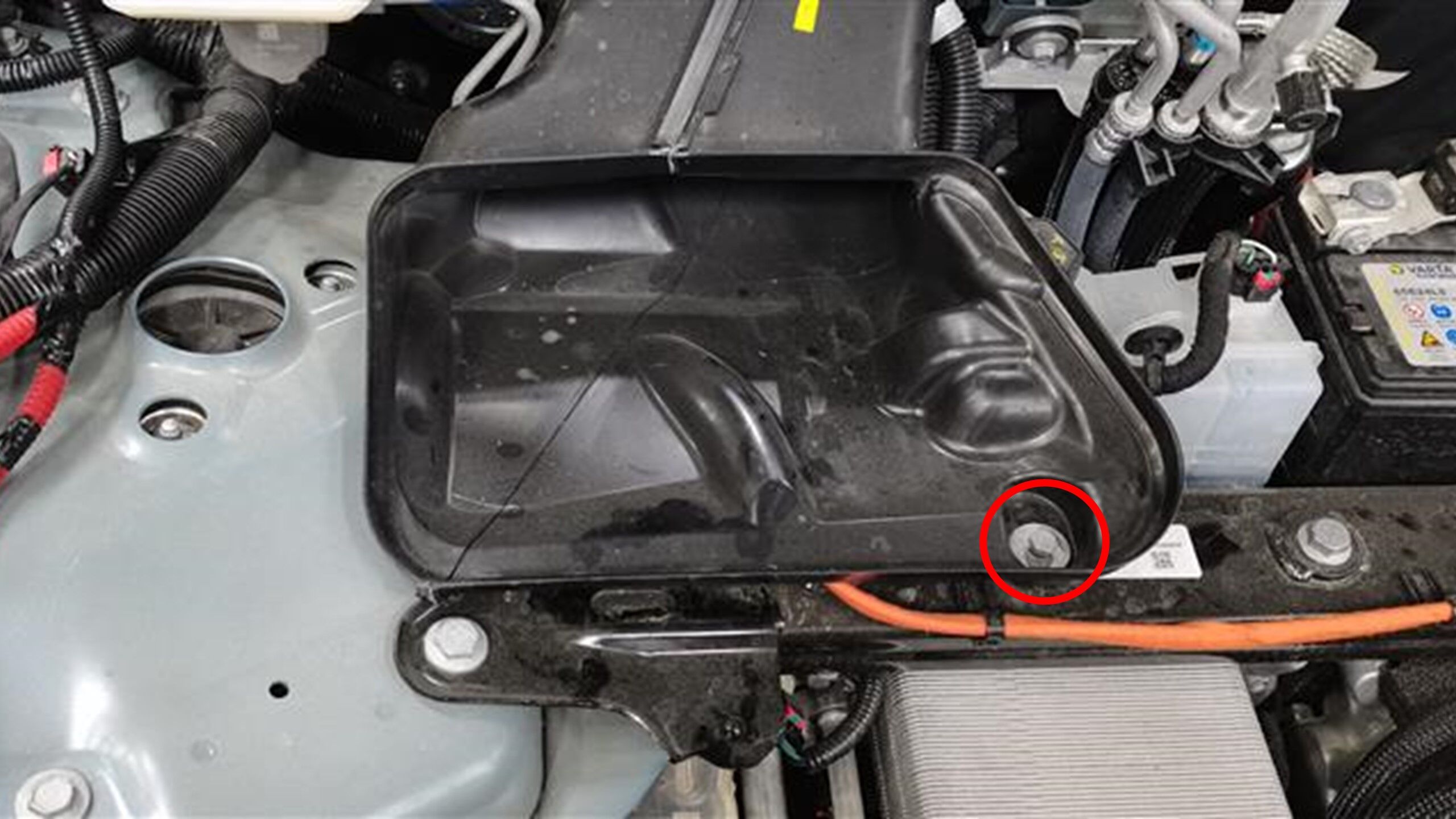

  14. Remove the bolt that attaches the fresh air intake duct to the thermal beam (torque 4 Nm).
  15. Release the fresh intake duct from the studs (x2) on the bulkhead, and then remove the duct from the vehicle.
  16. Remove the LV battery from vehicle. See LV Battery (Remove and Install).

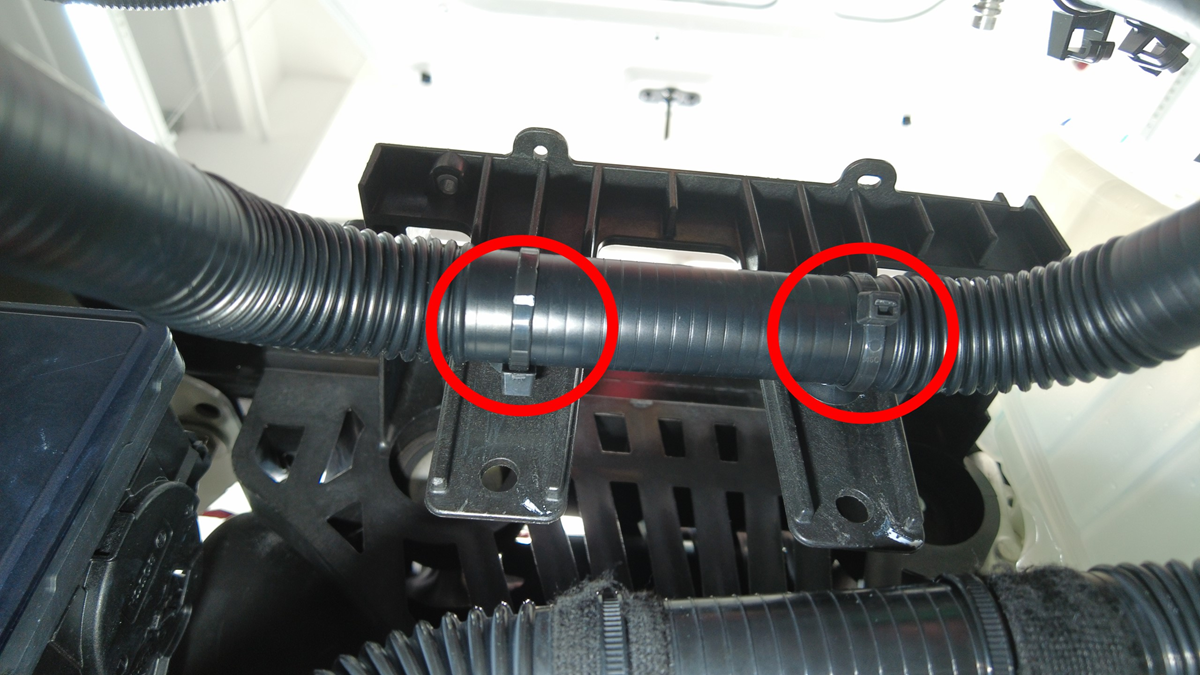

  17. Release the clips (x2) that attach the chiller to battery hose to the A/C compressor bracket.
  18. Disconnect the sensor on the chiller to battery hose.
  19. Place absorbent material under the car computer coolant connections to collect any spilled coolant.

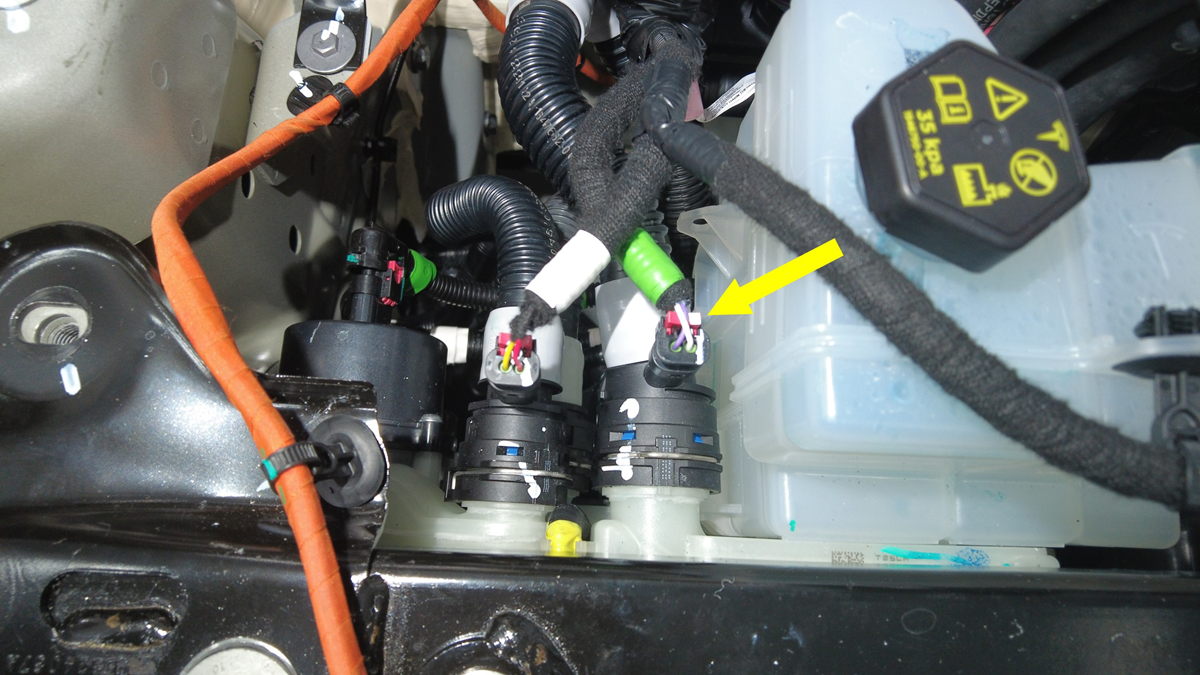

  20. Release the spring clips (x2) that connect the car computer coolant hoses to the car computer coolant ports, and then disconnect the hoses.
  21. Plug the car computer coolant ports and car computer coolant hoses.

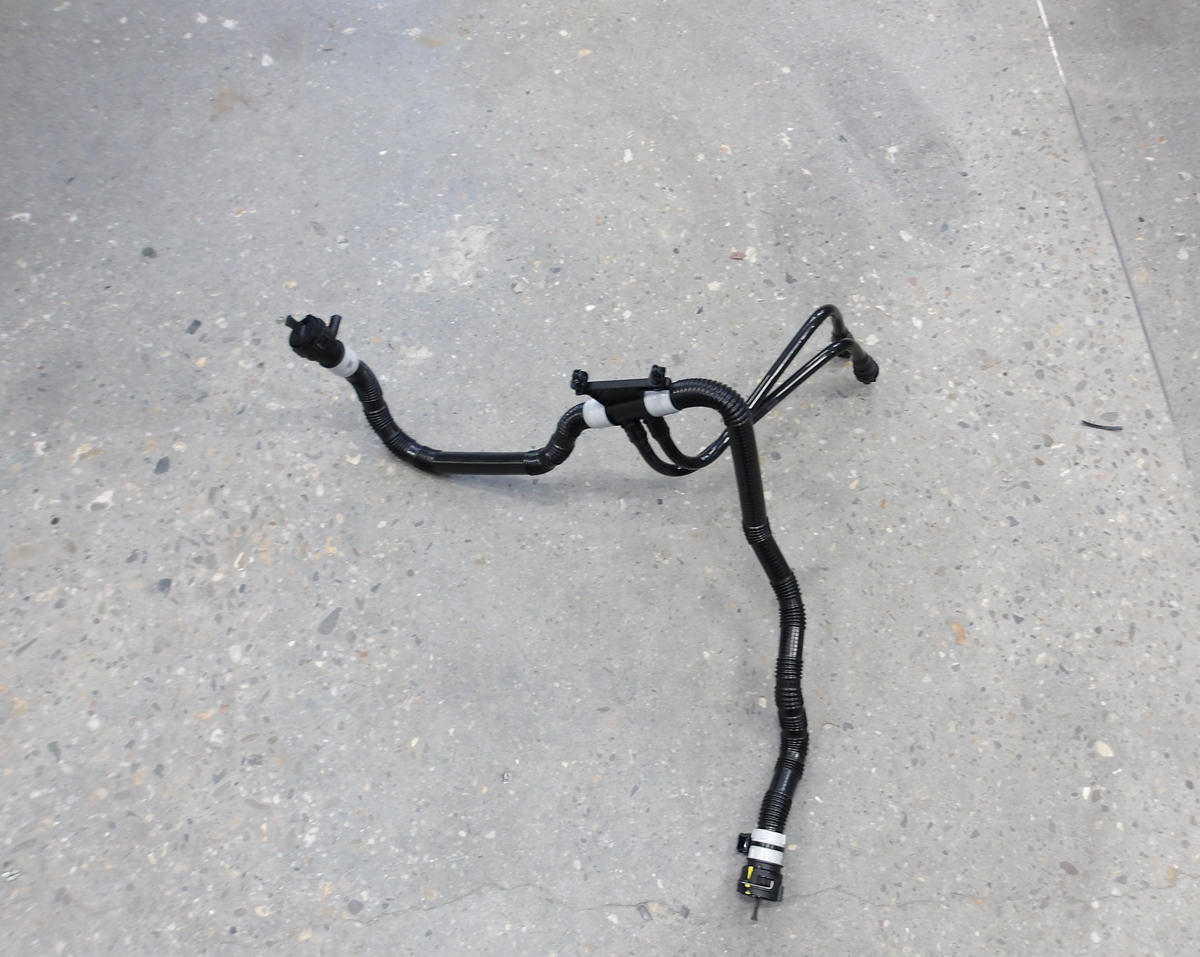

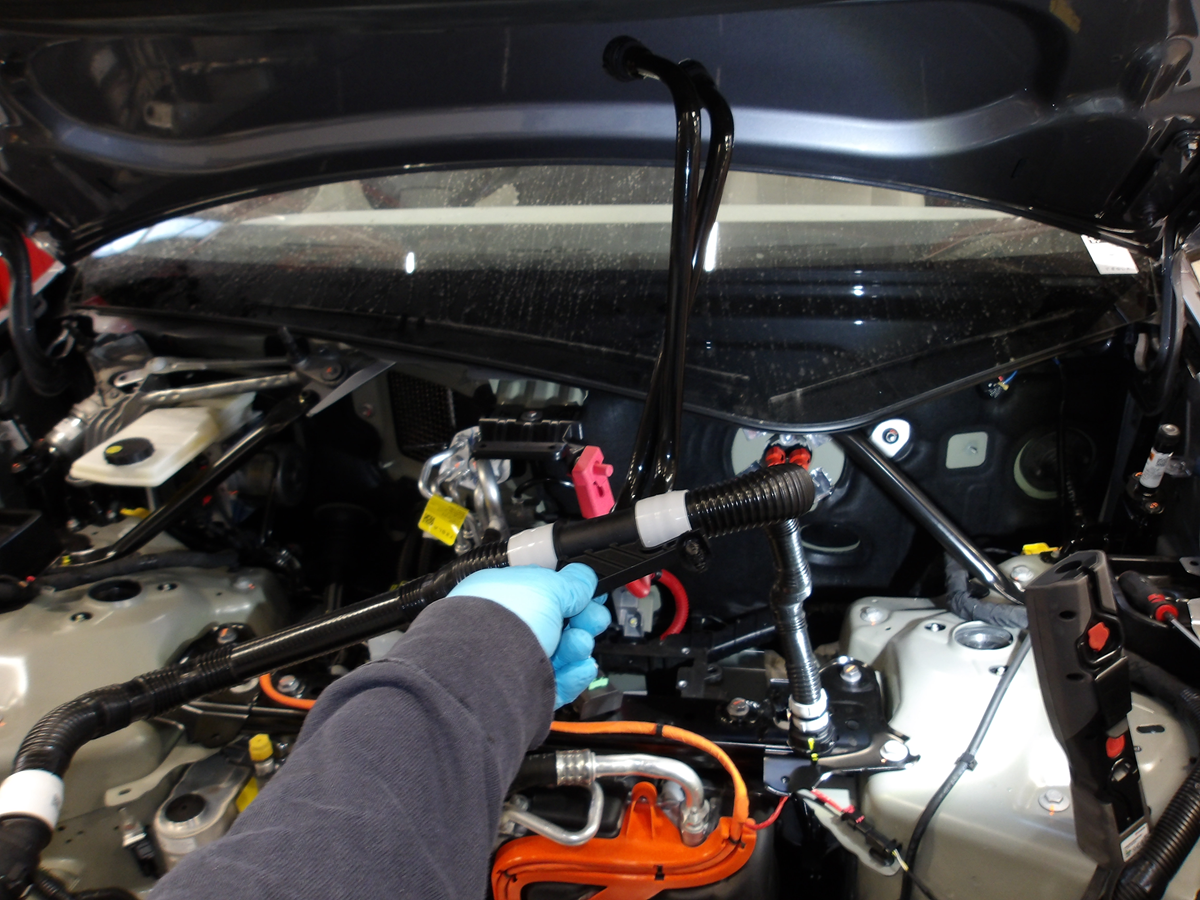

  22. Remove the chiller to HV battery hose from the vehicle.
    Note
    Remove hose from the LH side of the vehicle.

Install

Installation procedure is the reverse of removal, except for the following:

  • Before installing the LV battery, perform a coolant vacuum refill. See Cooling System - Vacuum Refill (Test/Adjust).
  • After installing the LV battery, stop the thermal fill/drain procedure. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Actions > Stop Thermal Fill/Drain > Run, and allow the routine to complete.
  • Perform a coolant air purge. Tap Thermal > Coolant System > Coolant Purge Start > Run, and allow the routine to complete.
    Note
    Make sure vehicle is not in Drive, shifting the vehicle into Drive will stop this routine. The test will last approximately 10 mins. The test will vary speeds from 3500-6500 RPM (idle speed = ~1500 RPM) and actuate the valve between series and parallel. If speed hovers at 7000 RPM, it indicates the pump is air locked, perform the vacuum fill again. Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle.
  • Inspect the coolant level and top off as necessary.
