Rail Assembly - 2nd Row Seat - LH (Model Y L) (Remove and Install)

Correction code 1302020101 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-25: Released new procedure.

Remove

  1. Remove the LH 2nd row seat assembly. See Seat Assembly - 2nd Row - LH (Model YL) (Remove and Install).

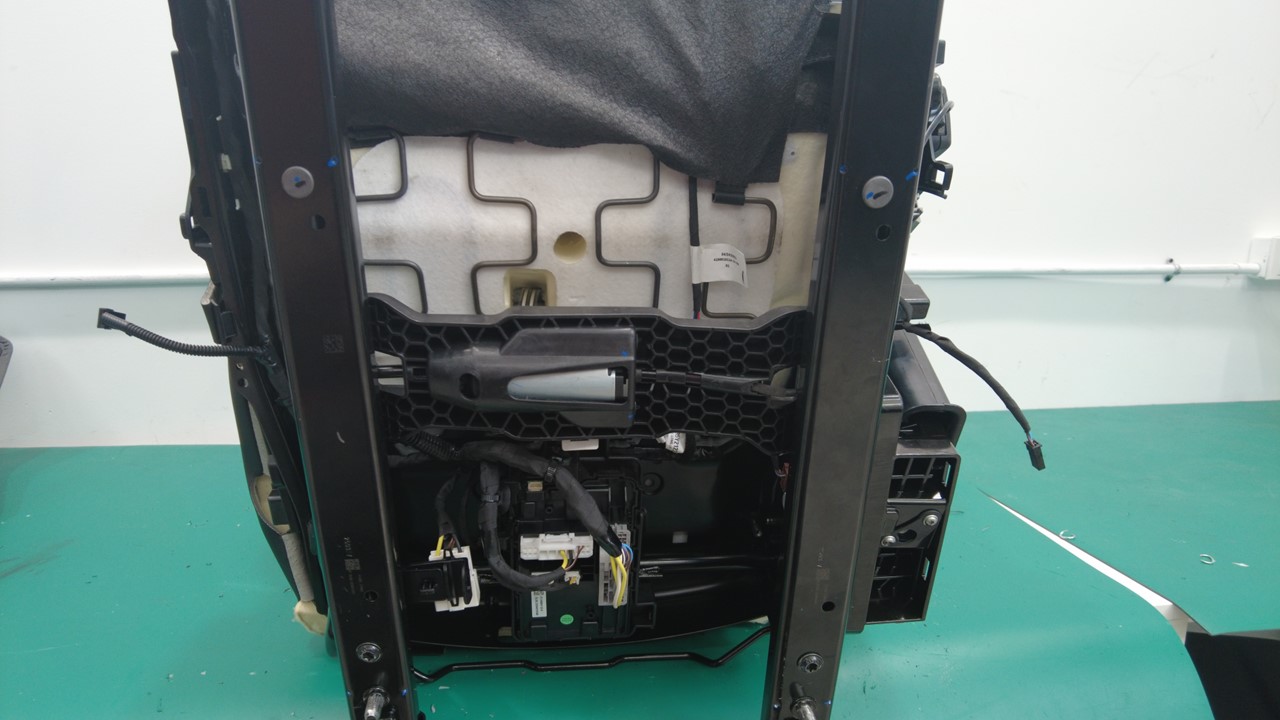

  2. Rotate the seat to gain access to the underside.
    Note
    Protect the seat cushion from damage.

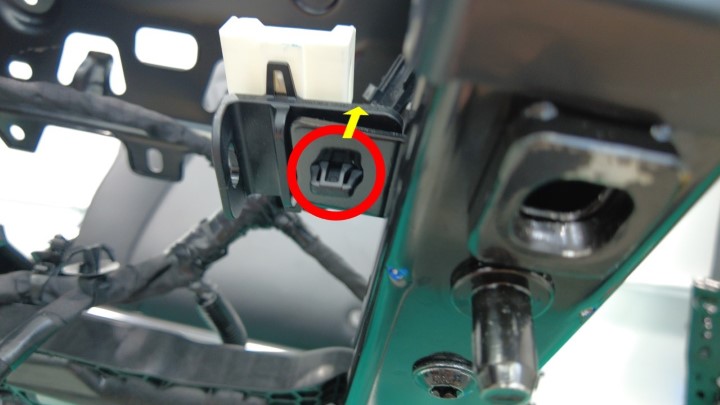

  3. Remove the harness clip.

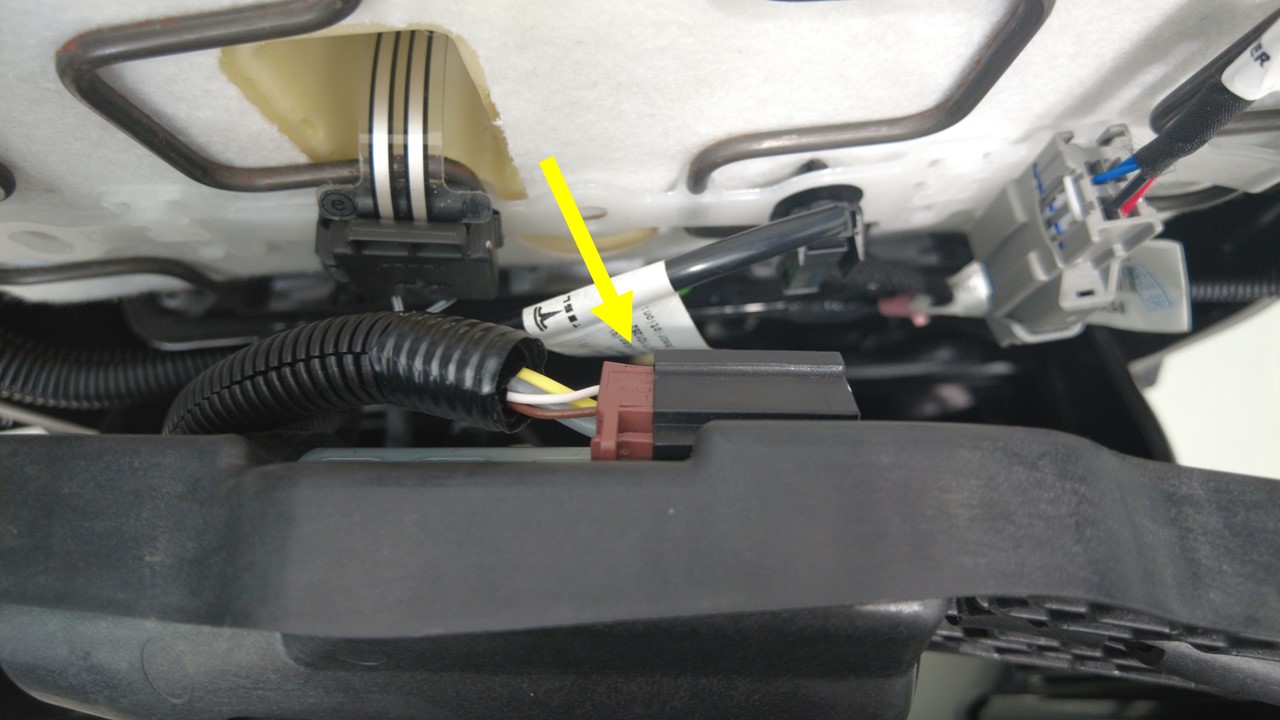

  4. Disconnect the 2nd row seat rail motor connector.

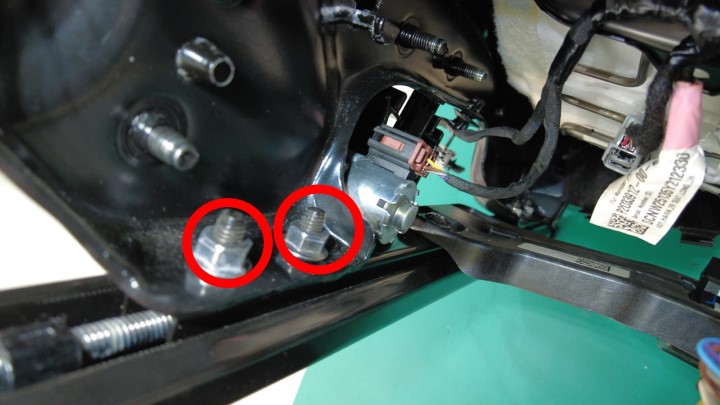

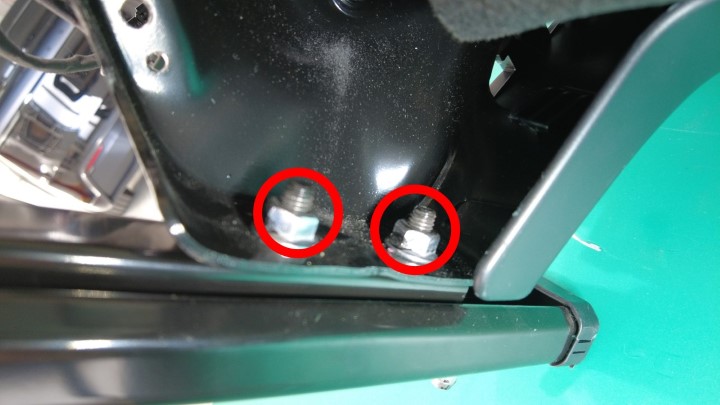

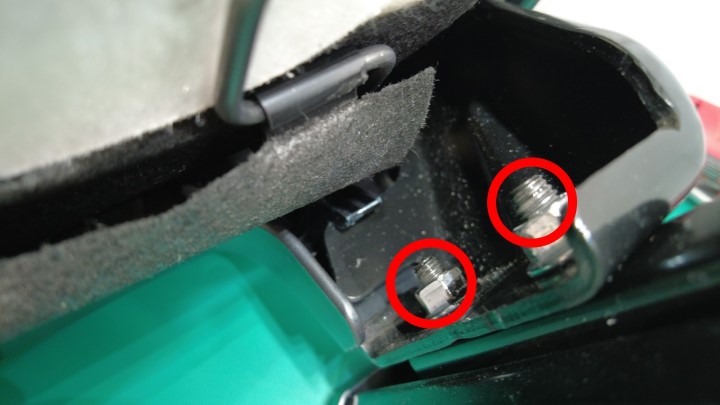

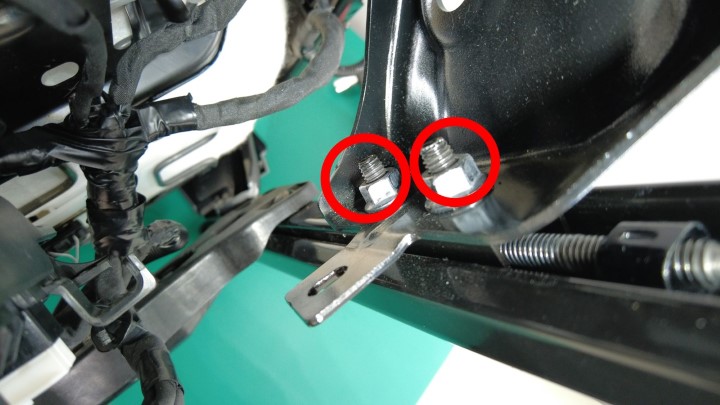

  5. Remove the nuts (x8) that attach the LH 2nd row seat rail assembly from the 2nd row seat.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket

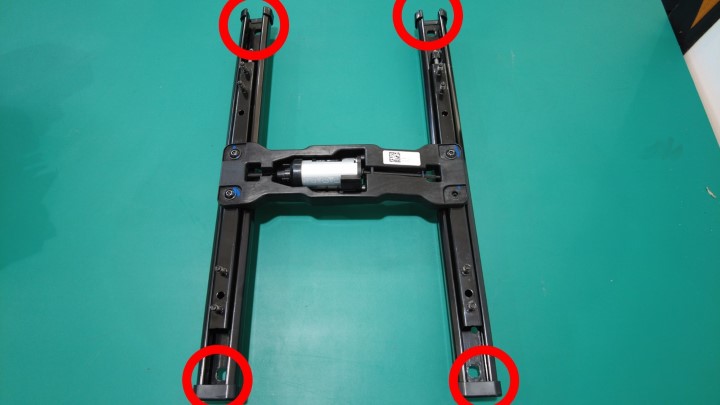

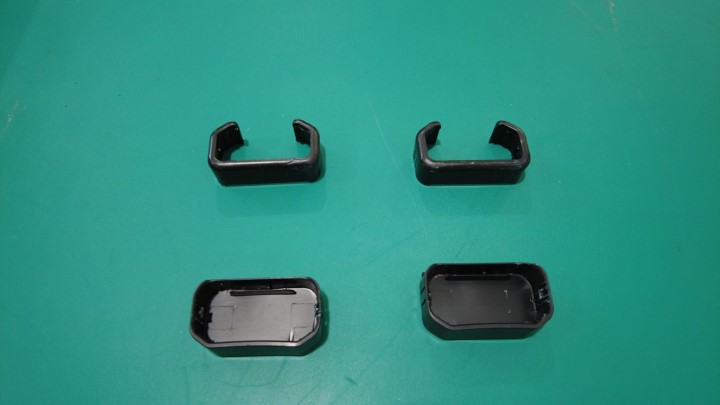

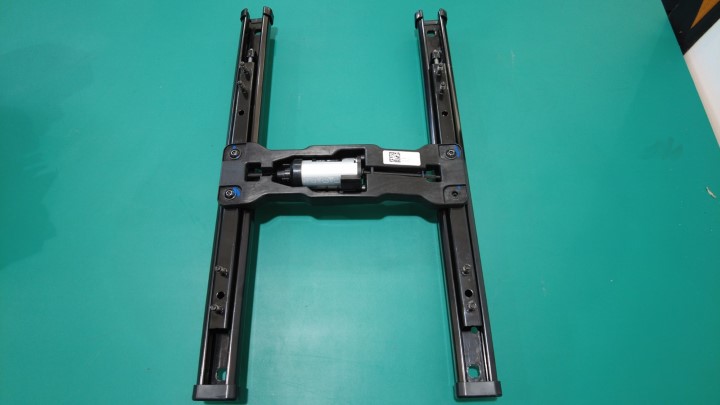

  6. Remove the track covers (x4) from the LH 2nd row seat rail assembly.

Install

  1. Install the track covers (x4) to the LH 2nd row seat rail assembly.
  2. Install the nuts (x8) that attach the LH 2nd row seat rail assembly from the 2nd row seat.
    28 Nm (20.6 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  3. Connect the 2nd row seat rail motor connector.
  4. Install the harness clip.
  5. Install the LH 2nd row seat assembly. See Seat Assembly - 2nd Row - LH (Model YL) (Remove and Install).
