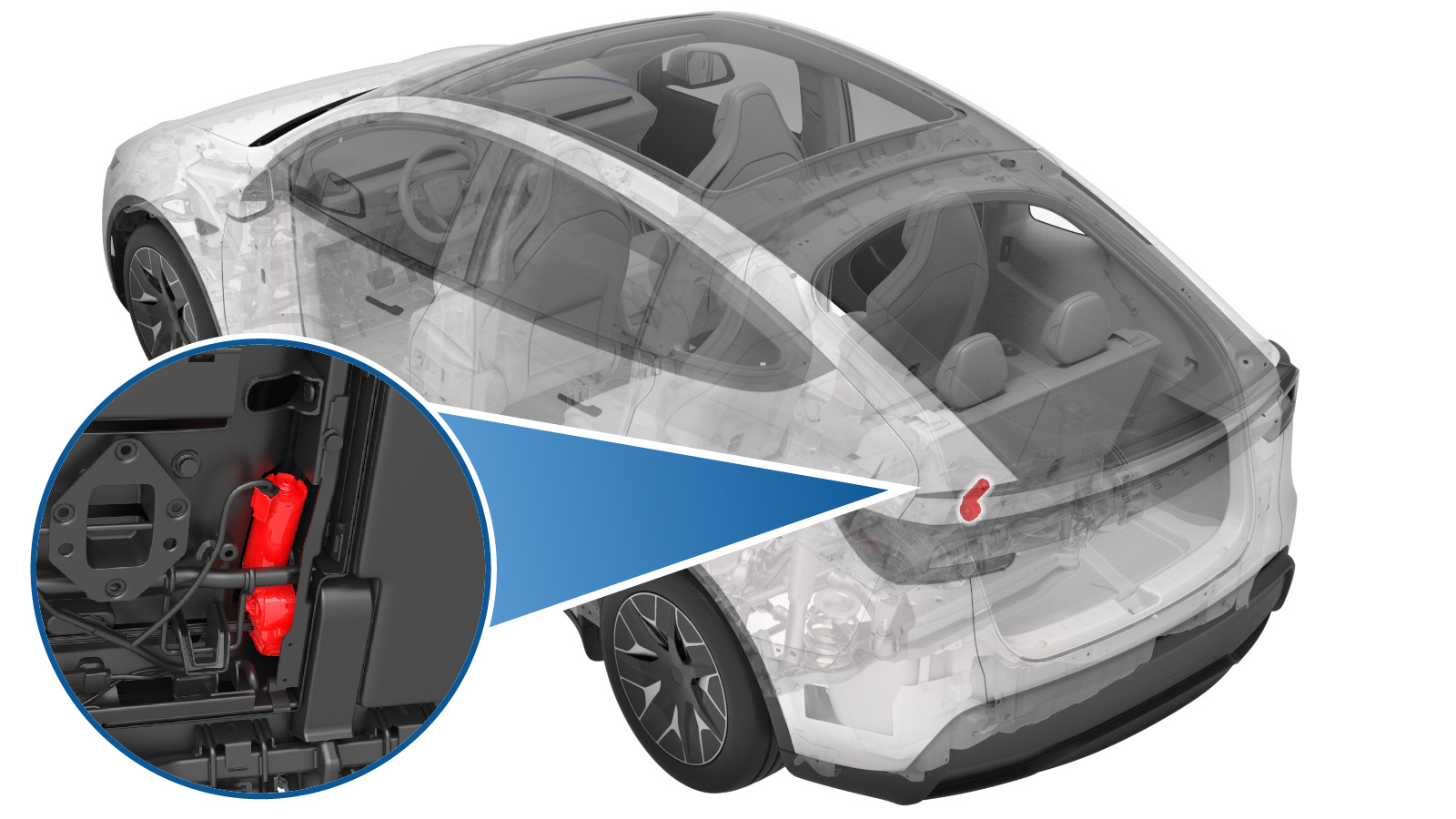

Motor - Recliner - 3rd Row (Model YL) (Remove and Replace)
Correction code
13030100002
FRT
1.62
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolt that attaches the recliner motor to the seat back frame |
 5 Nm (3.7 lbs-ft) |
|
Reuse |
Remove
- Remove the 3rd row recliner motor. See Motor - Recliner - 3rd Row (Model YL) (Remove and Install).
Replace
- Install the 3rd row recliner motor. See Motor - Recliner - 3rd Row (Model YL) (Remove and Install).
- Connect a laptop to the diagnostic port of the vehicle, and then use Toolbox 3 to locally connect to the vehicle. See Toolbox (Connect and Disconnect).
- Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): PROC_VCLEFT_X_3R-SEAT-RECLINE-CALIBRATIONvia Service Mode:Low Voltage ➜ Seats ➜ Calibratevia Toolbox:(link)
- Exit Service Mode Plus and disconnect the laptop from the vehicle. See Service Mode Plus.
