Seat Fold Switch Trunk (Remove and Replace)
Correction code
1530050702
FRT
0.30
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove LH trunk side trim. See Trunk Side Trim LH - Rear Under Body (Remove and Replace).
- Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
-

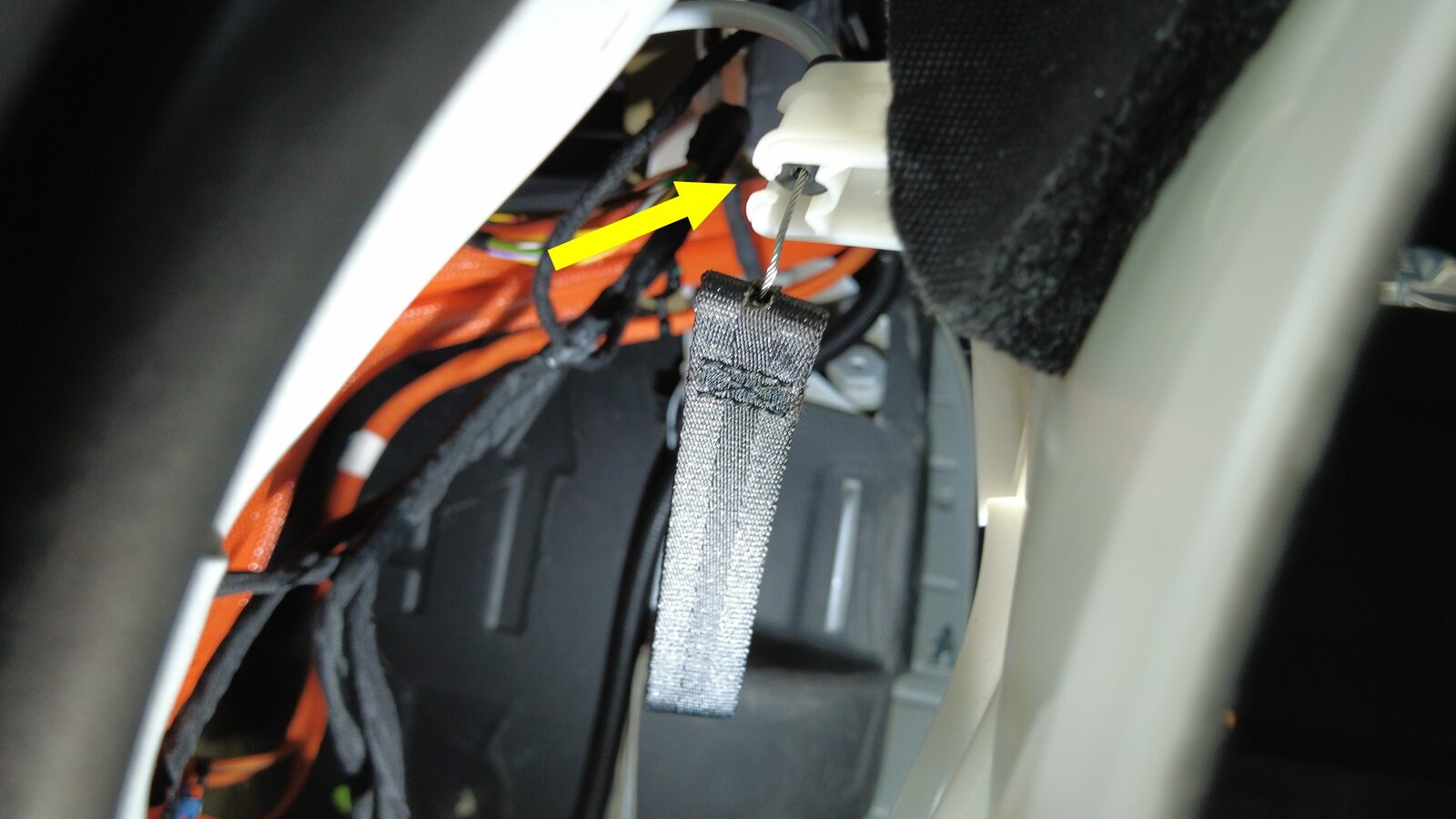

Release charge port manual release
cable from cable bracket.
NoteGently release clip to avoid damage, and do not apply excess force.
-

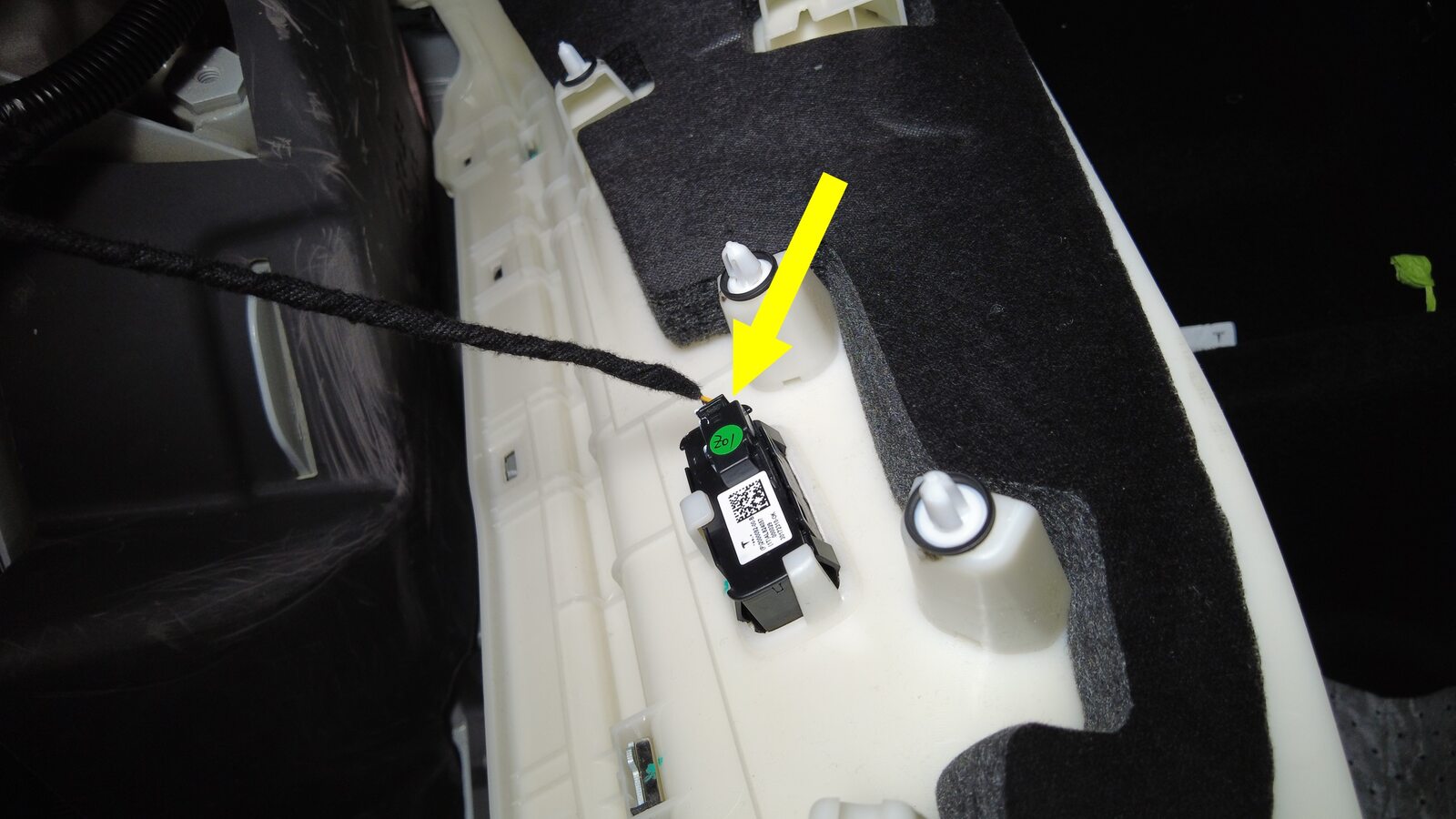

Disconnect 2nd seat dump switch.
-

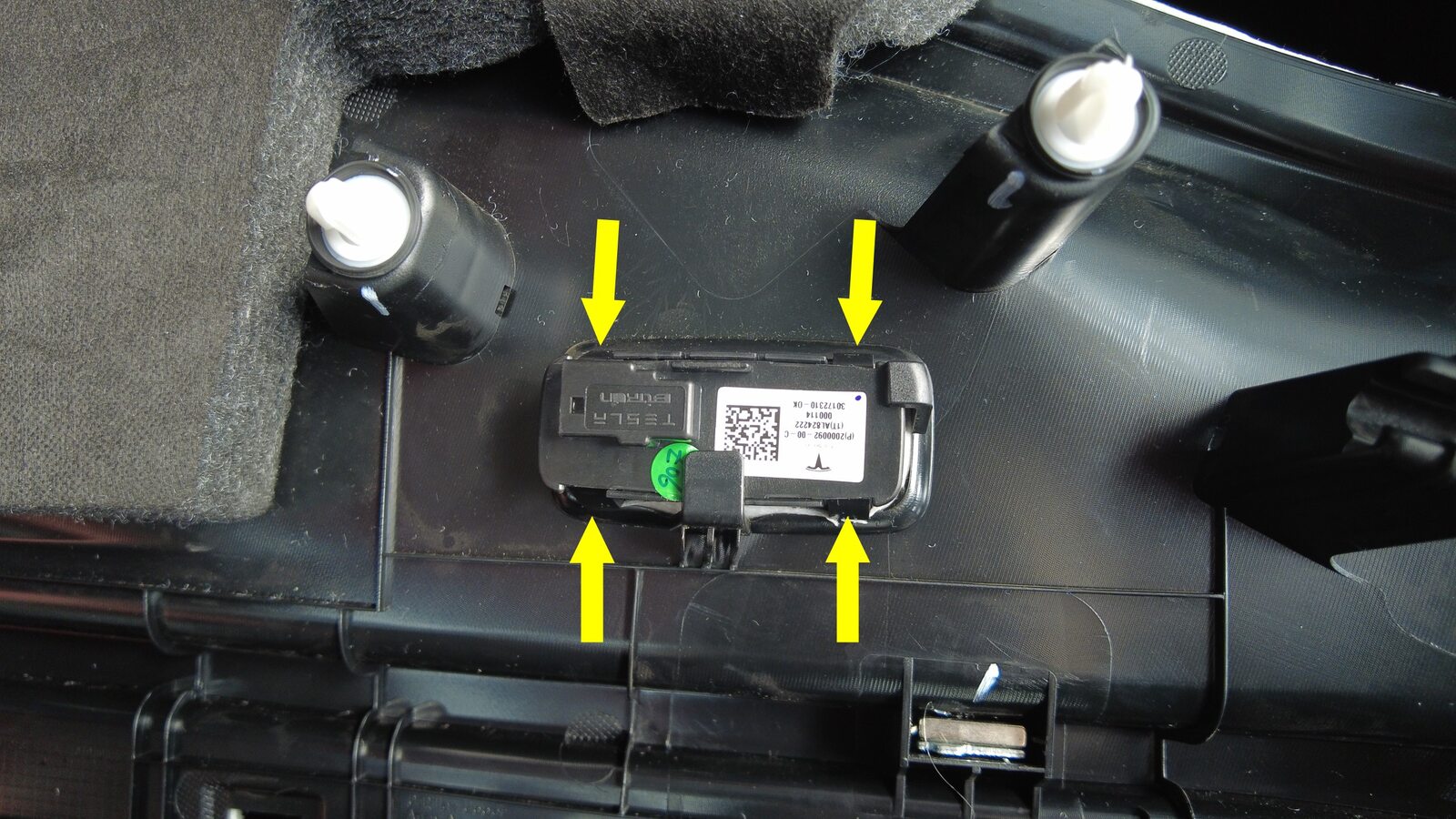

Remove 2nd row seat fold switch.
Install
-

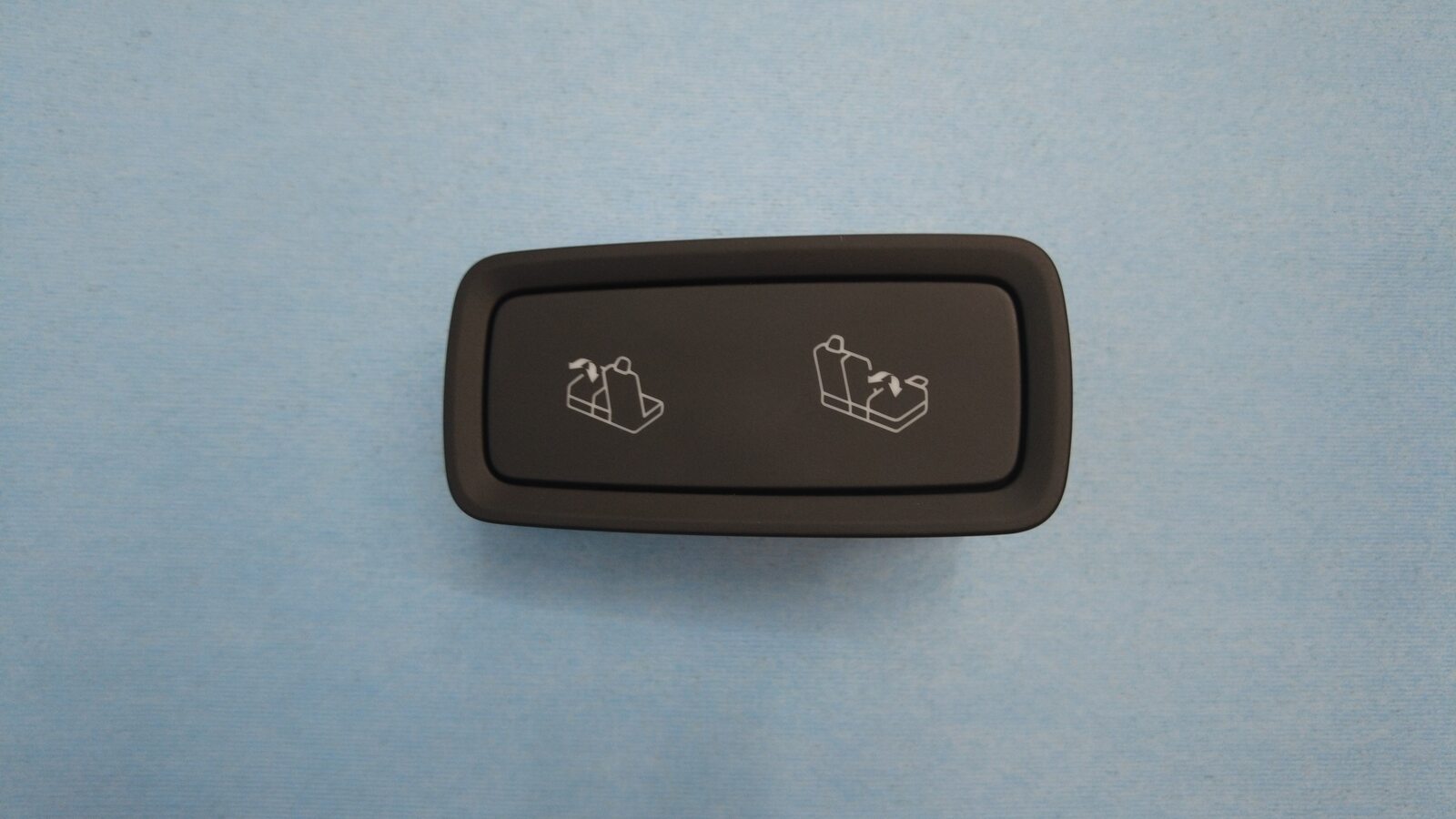

Install 2nd row seat fold
switch.
NoteEnsure all tabs secure and fold switch pack is fully seated.
-
Connect 2nd seat dump switch.
-
Secure charge port manual release cable to cable bracket.
- Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
- Install LH trunk side trim. See Trunk Side Trim LH - Rear Under Body (Remove and Replace).
