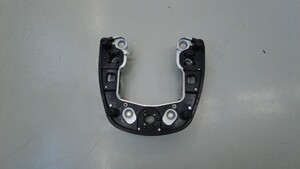

Steering Wheel - Horn (Remove and Replace)

Correction code 3205010902 FRT 0.15 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Steering Wheel - Horn (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x3) that attach the steering wheel horn to the steering wheel
3 Nm (2.2 lbs-ft)
  • 5 mm hex
 Reuse

Remove

  1. Remove the driver airbag. See Airbag - Driver (Remove and Replace).

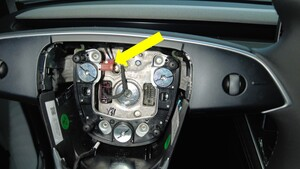

  2. Disconnect the steering wheel horn connector.

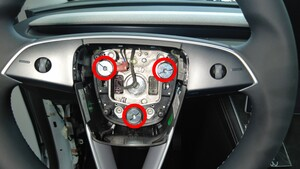

  3. Remove the bolts (x3) that attach the steering wheel horn to the steering wheel, and then remove the horn from the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • 5 mm hex

Install

  1. Position the steering wheel horn onto the steering wheel, and then install the bolts (x3) that attach the steering wheel horn to the steering wheel.
    3 Nm (2.2 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 5 mm hex
  2. Connect the steering wheel horn connector.
  3. Install the driver airbag. See Airbag - Driver (Remove and Replace).
