Instrument Panel - Air Wave Duct - LH (Remove and Replace)
Correction code
1405030602
FRT
1.62
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2026-08-25: Removed steps to remove and install the float wing assembly.
Remove
-
Remove the instrument panel upper
assembly. See Assembly - Instrument Panel - Upper (Remove and Replace).
NoteJust remove the assembly from the vehicle. Do not remove attached components, such as the defrost ducts, air vents, instrument panel trim harness, and the front passenger airbag, from the upper assembly.NoteDuring removal, certain steps require extra care. See the animation(s) for detailed guidance.
-

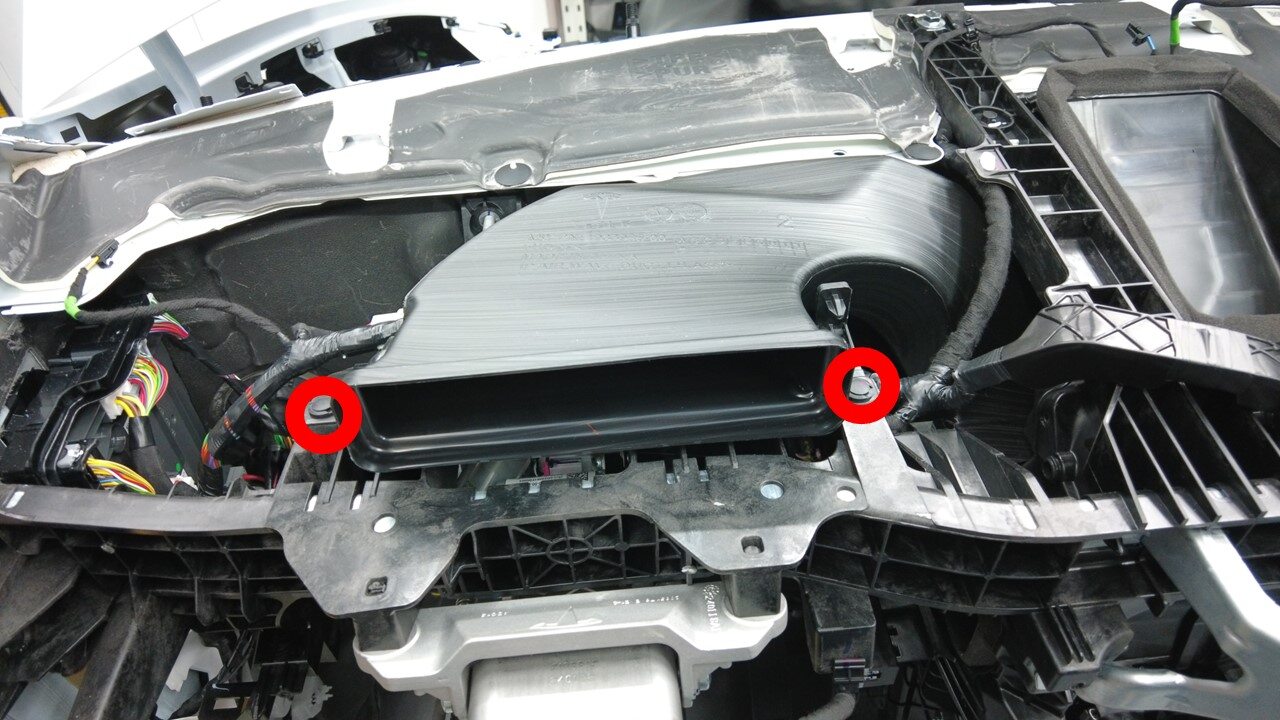

Release the LH instrument panel air
wave duct push clips (x2).
-

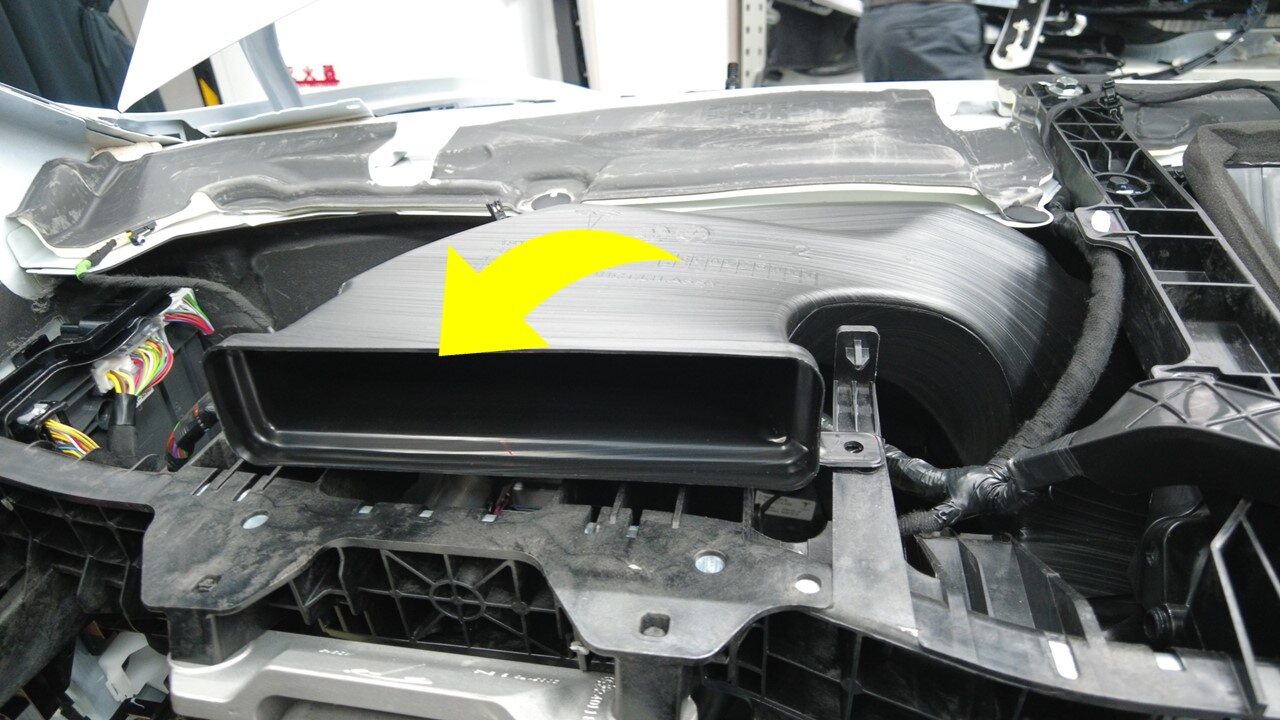

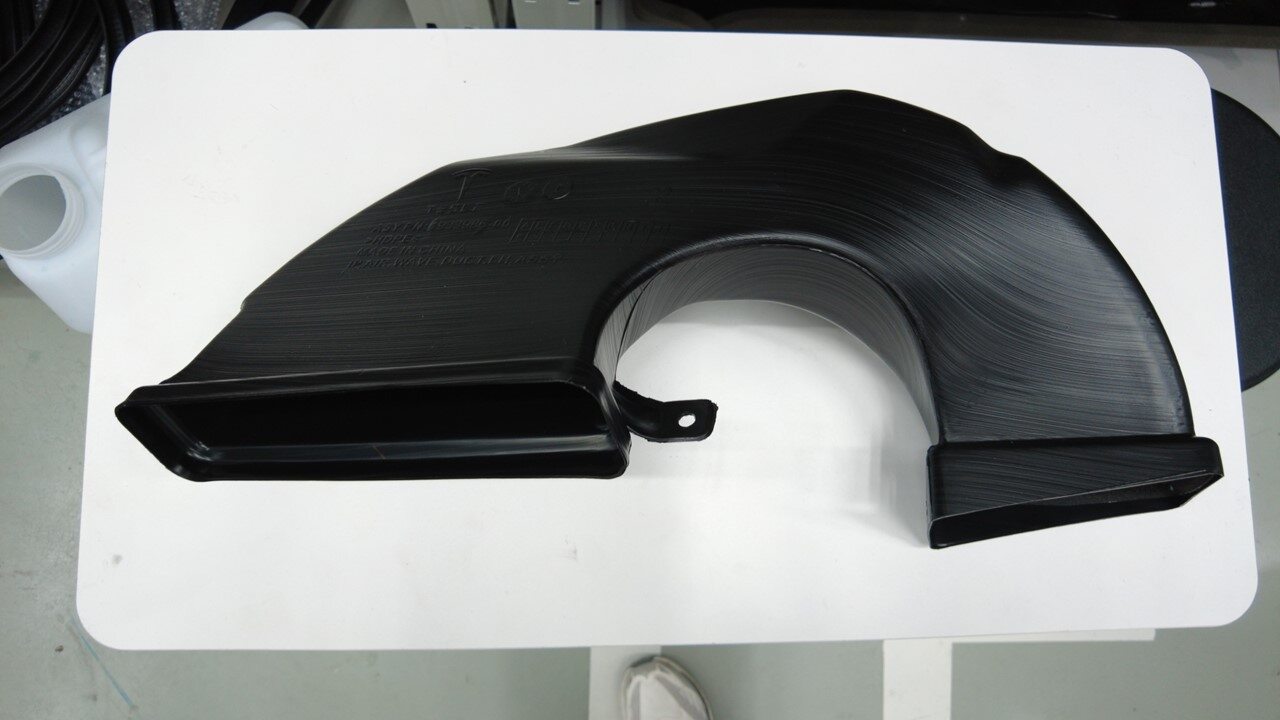

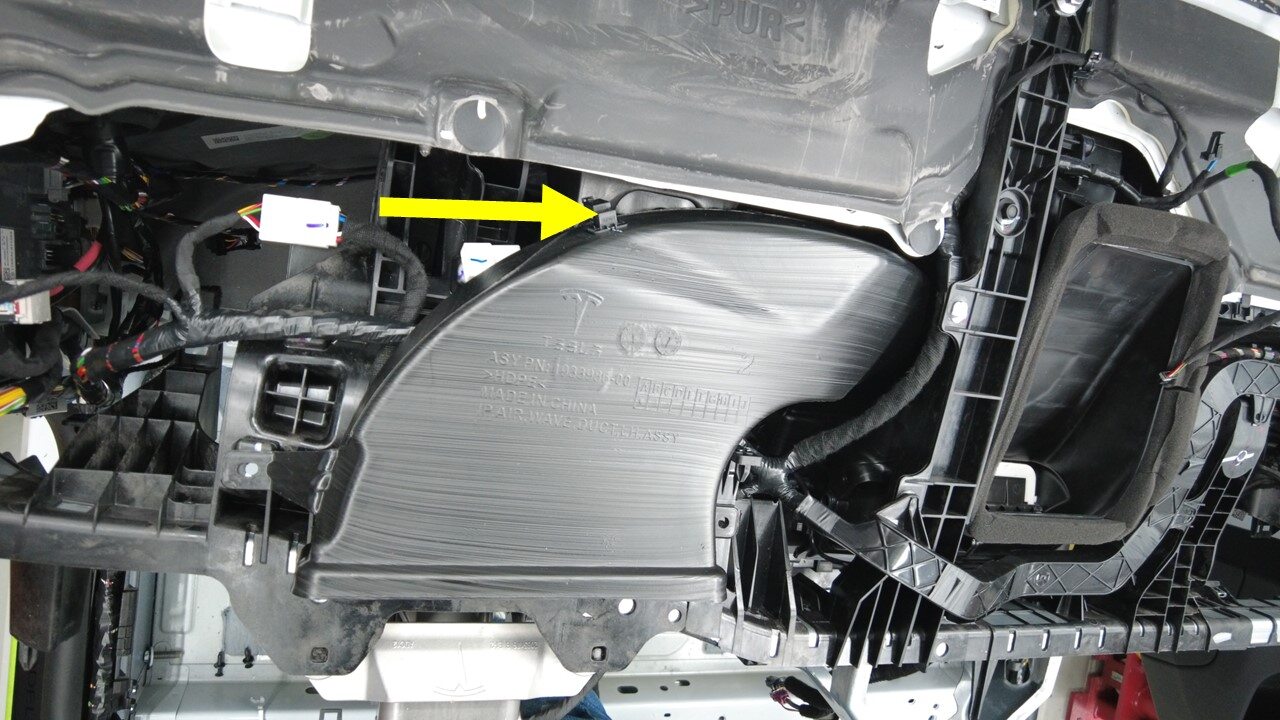

Disconnect the LH air wave duct
connector, and remove the duct from the vehicle.
Install
-
Position the LH air wave duct into the
vehicle, and connect the connector.
-
Install the LH instrument panel air
wave duct push clips (x2).
- Install the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (Remove and Replace).
