U-Panel Assembly - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190405001 15190405002 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH doors and lower the LH windows.
  2. Move the LH front seat forward.
    Note
    If needed, on the touchscreen, touch Seat Controls, use the scroll wheel to move the seat forward.

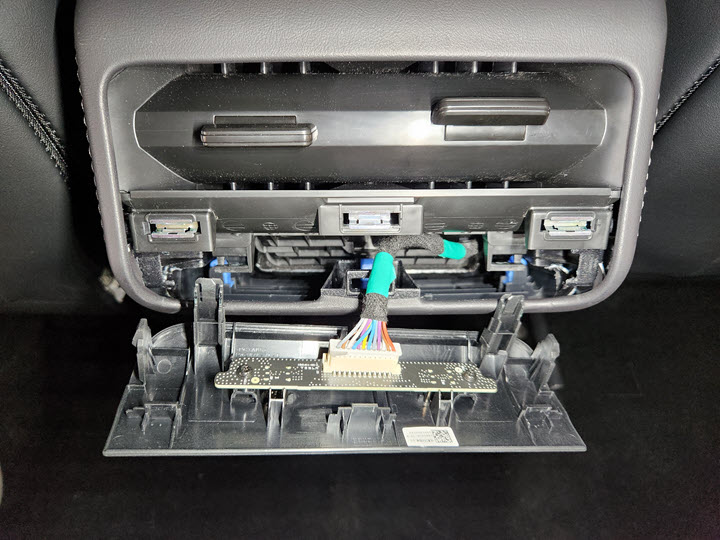

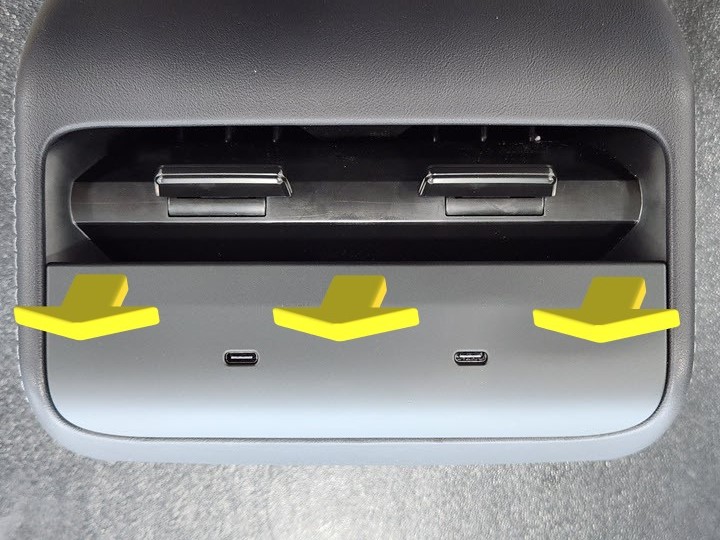

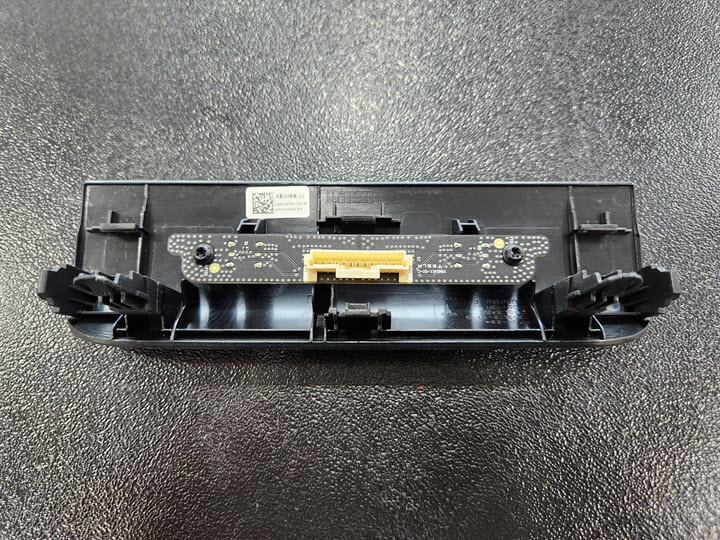

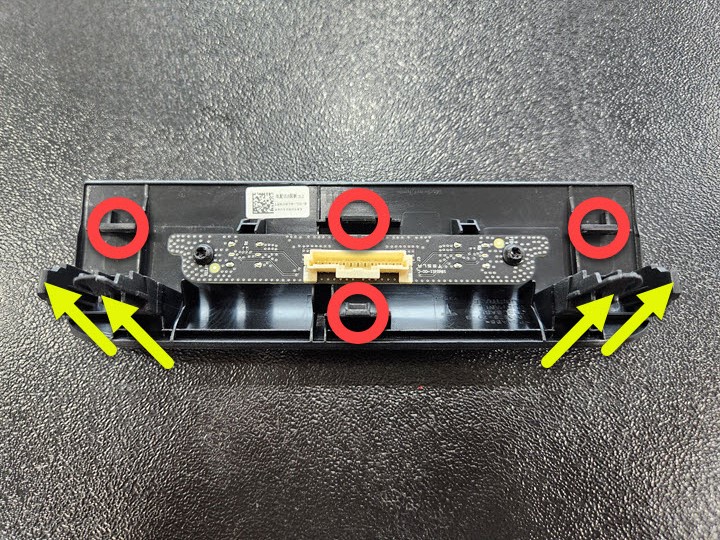

  3. Release the clips (x4) and tabs (x4) that attach the USB panel to the rear end module.

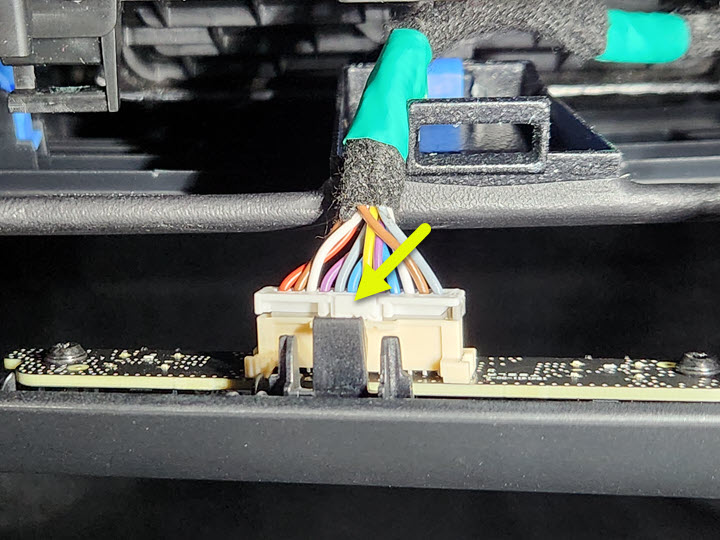

  4. Disconnect the USB panel connector, and then remove the USB panel from the vehicle.
    Note
    Route the electrical harness as needed.

Install

  1. Connect the USB panel connector.
    Note
    Route the electrical harness as needed.
  2. Install the clips (x4) and tabs (x4) that attach the USB panel to the rear end module.
  3. Return the LH front seat back to its original position.
    Note
    If needed, on the touchscreen, touch Seat Controls, use the scroll wheel to move the seat.
  4. Raise the LH windows and close the LH doors.
