Seal - Axle - Rear Drive Unit - LH (4DU) (Remove and Replace)
Correction code
4001010802
FRT
1.08
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Equipment:
- 1454928-00-A TOOL, SEAL PULLER, ADJUSTABLE, MS/MX/M3
- 1131206-00-A Install Tool, Output Seal, Model 3
Remove
- Remove the LH rear drive unit halfshaft. See Halfshaft - Rear - LH (Remove and Replace).
-

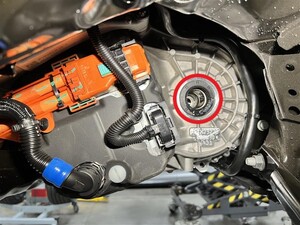

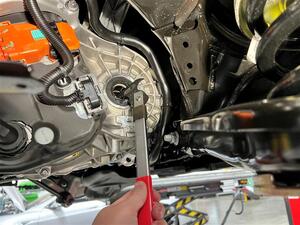

Use the adjustable seal puller tool to
remove the LH output seal from the rear drive unit.
Install
-

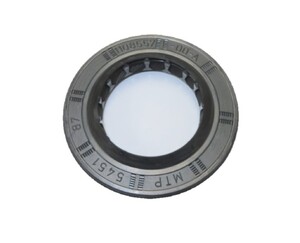

Use the seal install tool to install
the new seal into the rear drive unit.
NoteFully tap around the seal install tool to install the new seal. Make sure that the seal is fully flush with the rear drive unit casting.
- Install the LH rear drive unit halfshaft. See Halfshaft - Rear - LH (Remove and Replace).
