Bracket - Load Floor - LH (Model YL) (Remove and Replace)

Correction code 15301600602 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-10-15: Added notes on releasing/securing the clips that hold the load floor brackets, to prevent clip damage.

Remove

  1. Remove the trunk load floor. See Trunk Load Floor (Model YL) (Remove and Replace).
  2. Remove the trunk sill trim. See Trunk Sill Lower Trim (Remove and Replace).
  3. Release the location pins (x2) and clips (x5) to remove the LH load floor bracket.
    Note
    Do not adjust the clip position after the bracket is removed. Otherwise, the bracket will not seat properly during installation.
    Note

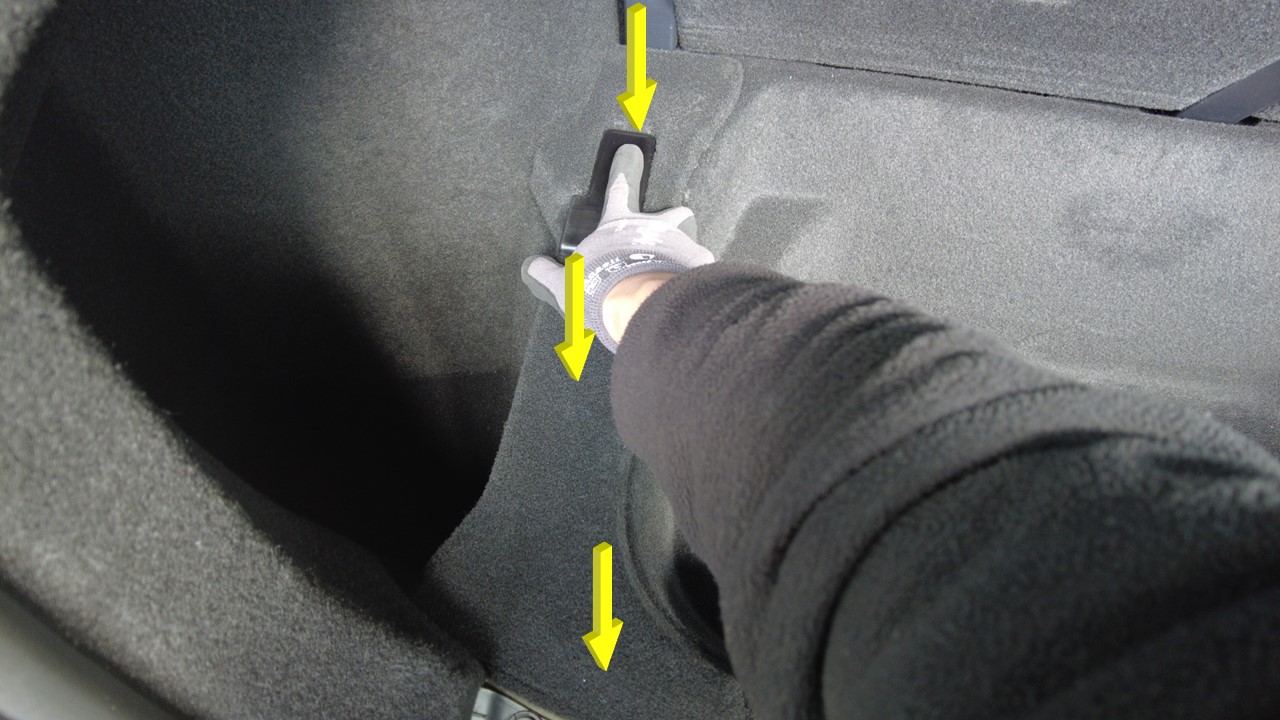

    Starting from the middle, pry forward with a plastic trim tool, then lift upward by hand at the rear inner position to release the clip. Take extra care with the clips attached to the vehicle body as they are easily damaged.

Replace

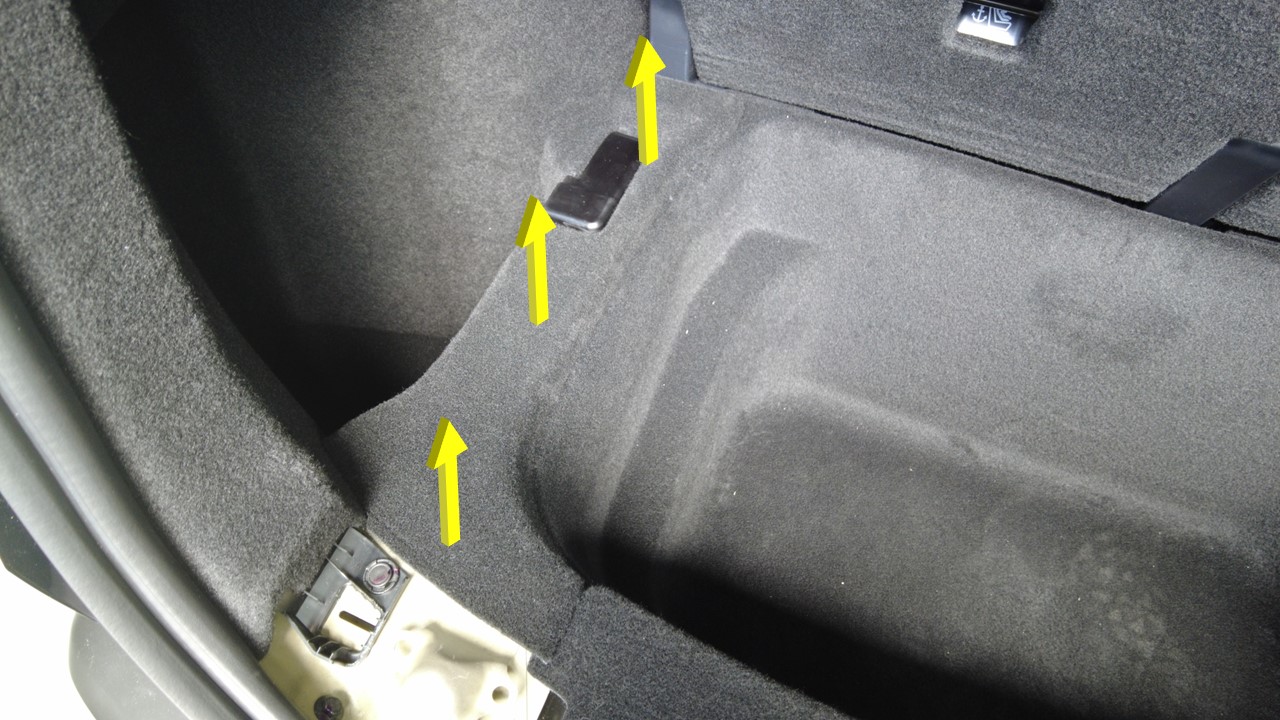

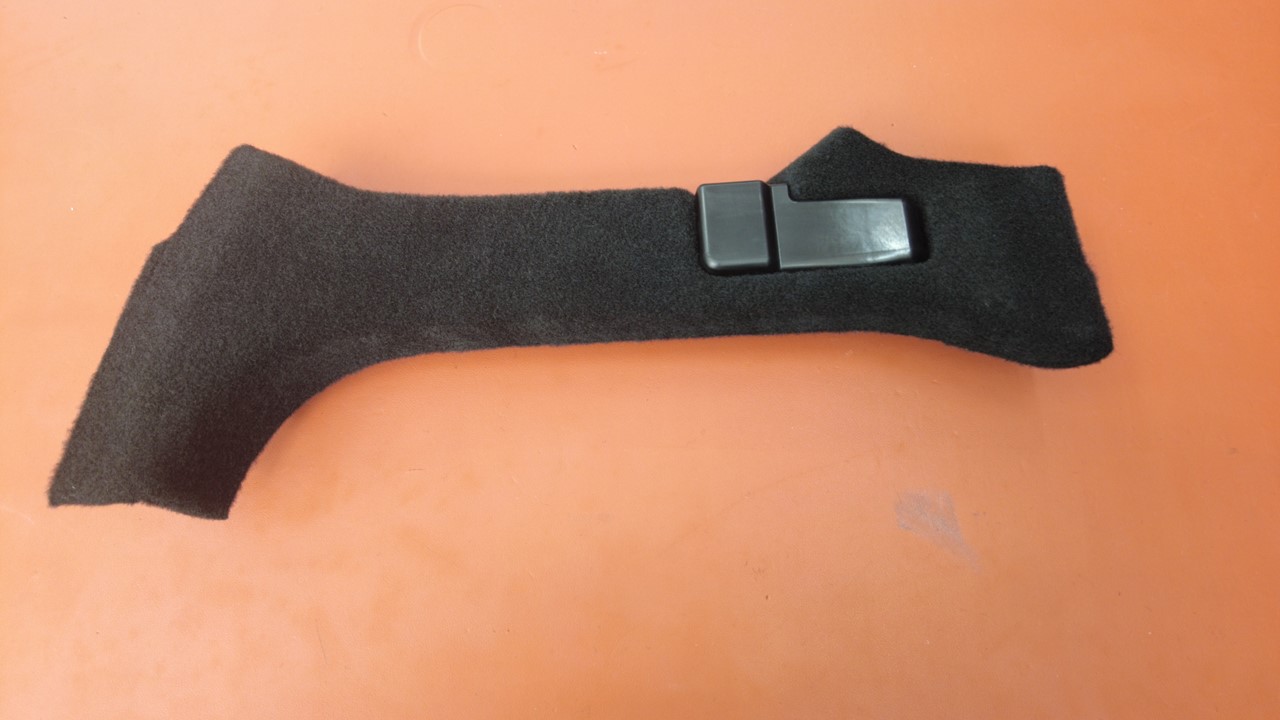

  1. Position the LH load floor bracket onto the vehicle, align the location pins (x2), and then install the load floor bracket downwards to secure the clips (x5).
    Note
    An audible click should be heard when the clips are secured. Confirm each clip installation with push-pull test to make sure the bracket seats properly.
    Note
    Do not adjust the clip position after the bracket is removed. Otherwise, the bracket will not seat properly during installation.
    Note

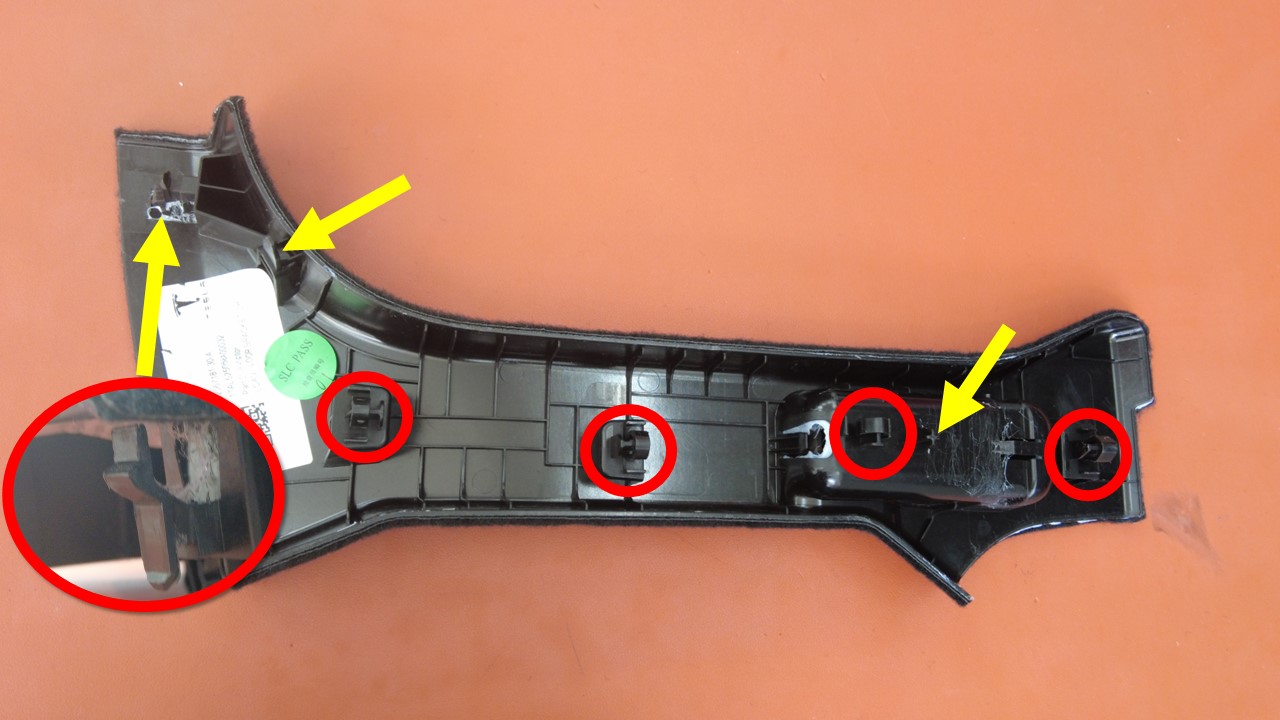

    If the clip position is changed or the push-pull test shows that the bracket is not secure, remove the clip from the tab, and then seat the clip into the doghouse on the bracket and reinstall.
  2. Install the trunk sill trim. See Trunk Sill Lower Trim (Remove and Replace).
  3. Install the trunk load floor. See Trunk Load Floor (Model YL) (Remove and Replace).
