Actuator Switch Box - 2nd Row Seat - RH (7-Seat) (Remove and Replace)
Correction code
1302011001
1302011002
0.48
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
-

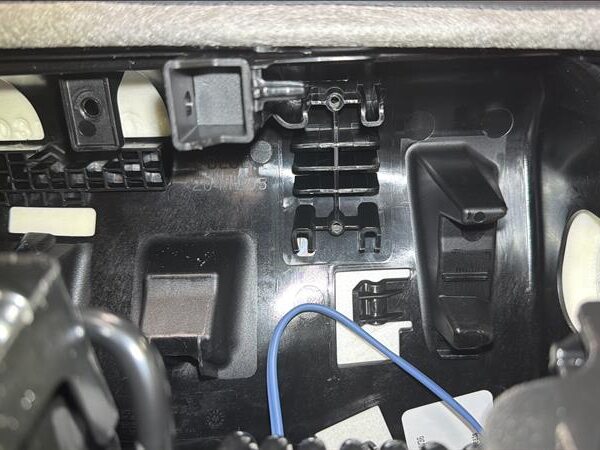

Release the 2nd row RH seat easy entry actuator and disconnect the connector. See
Actuator - EZ Entry - 2nd Row Seat - RH (7-Seat) (Remove and Replace).
NoteNo need to release the cable.
-

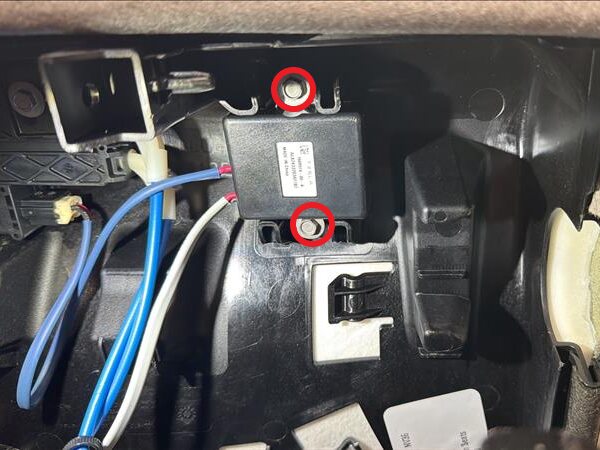

Remove the bolts (x2) that secure the
2nd row RH seat actuator switch box and disconnect the connector.
TipUse of the following tool(s) is recommended:
- 8 mm socket
Install
-

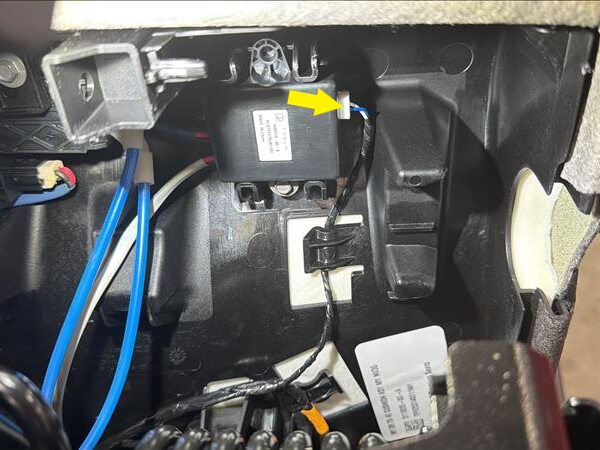

Install the bolts (x2) that secure the
2nd row RH seat actuator switch box and connect the connector.
2.5 Nm (1.8 lbs-ft)TipUse of the following tool(s) is recommended:- 8 mm socket
- Install the 2nd row RH seat easy entry actuator and connect the connector. See Actuator - EZ Entry - 2nd Row Seat - RH (7-Seat) (Remove and Replace).
