Trailer Hitch Controller (Remove and Replace)

Correction code 1715010802 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-09-15: Added steps for rear fascia removal for Mobile Service.

Torque Specifications

Table 1. Torque Specifications: Trailer Hitch Controller (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the trailer hitch controller to the hitch assembly
6 Nm (4.4 lbs-ft)
  • 10 mm socket
 Reuse

Install

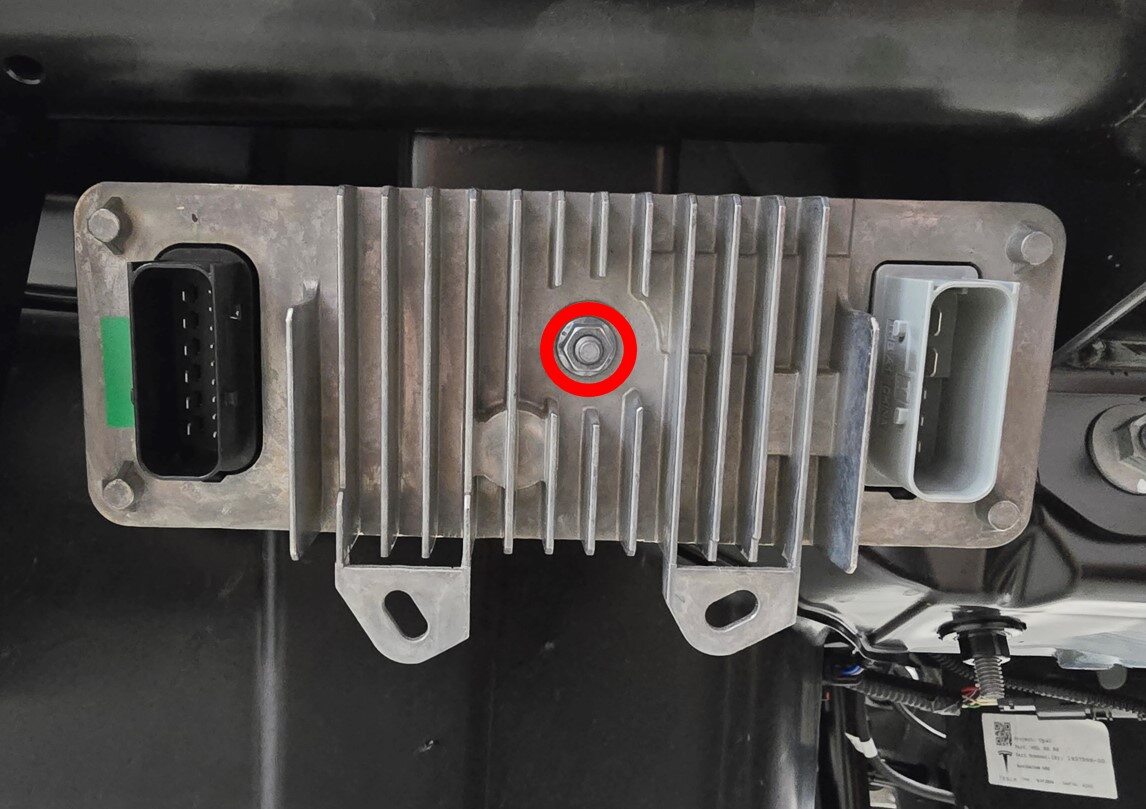

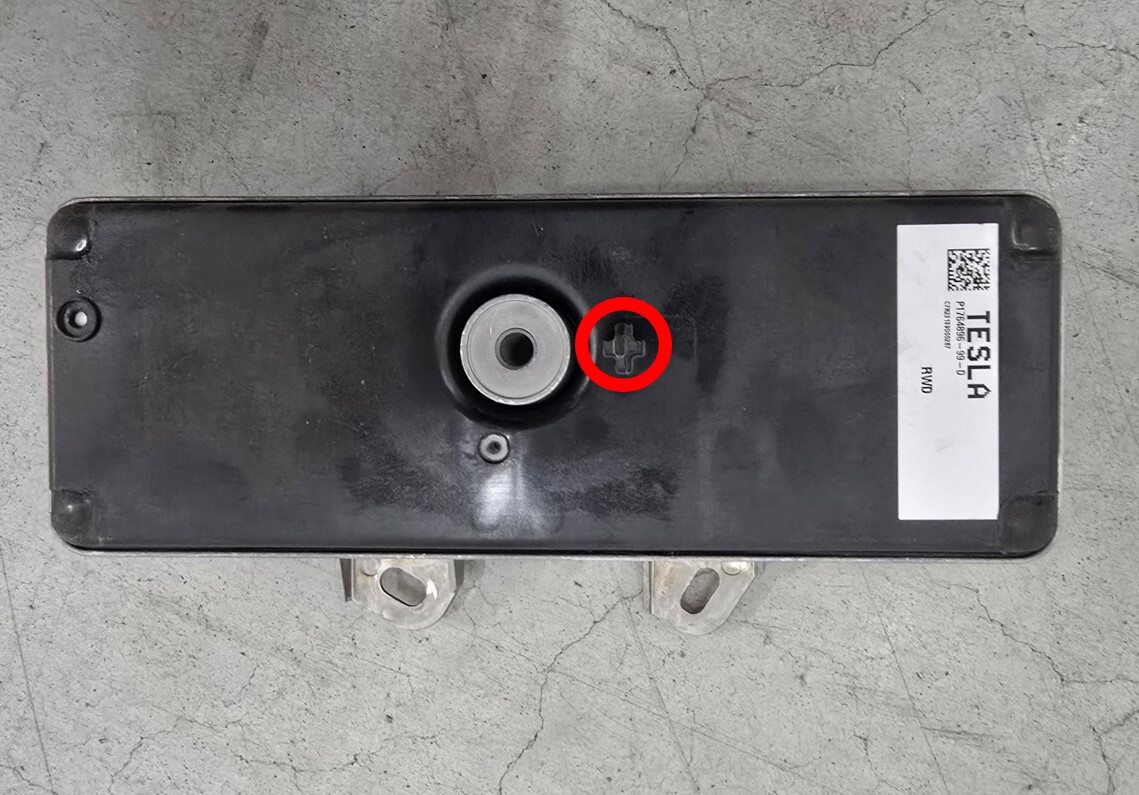

  1. Align the locating pin with the slot on the hitch assembly, and then install the nut that attaches the trailer hitch controller to the hitch assembly.
    6 Nm (4.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket

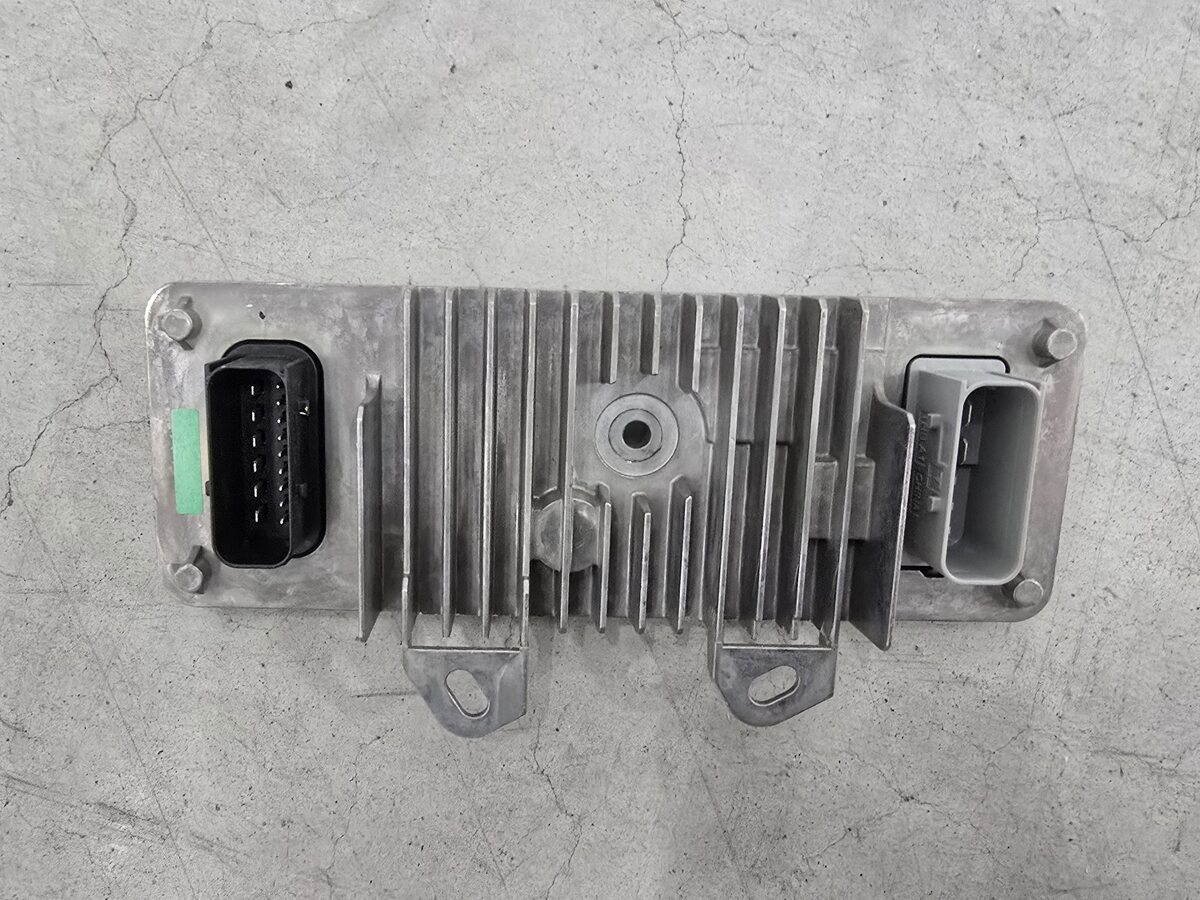

  2. Connect the trailer hitch controller connectors (x2).
  3. Reinstall the vehicle firmware. See Software Reinstall - Touchscreen.
  4. Install the rear fascia assembly. See Assembly - Fascia and Diffuser - Rear (Remove and Install) or, for Mobile Service, see Fascia Assembly - Rear - Partially Remove (Mobile Only) (Remove and Install).
