2nd Row - Escutcheon - LH (Remove and Replace)
Correction code
1305031002
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Open LH rear door, and lower LH rear window.
-

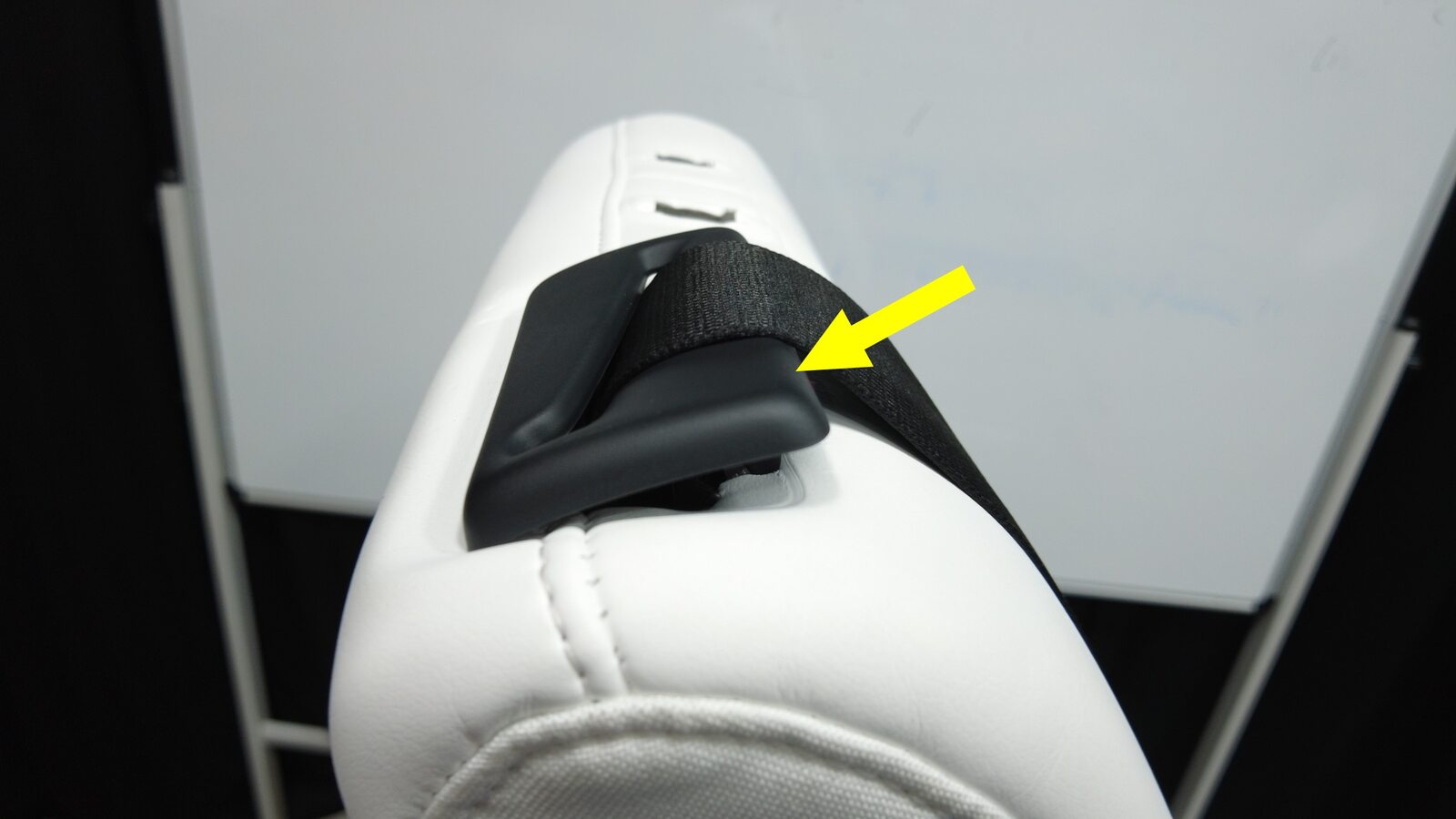

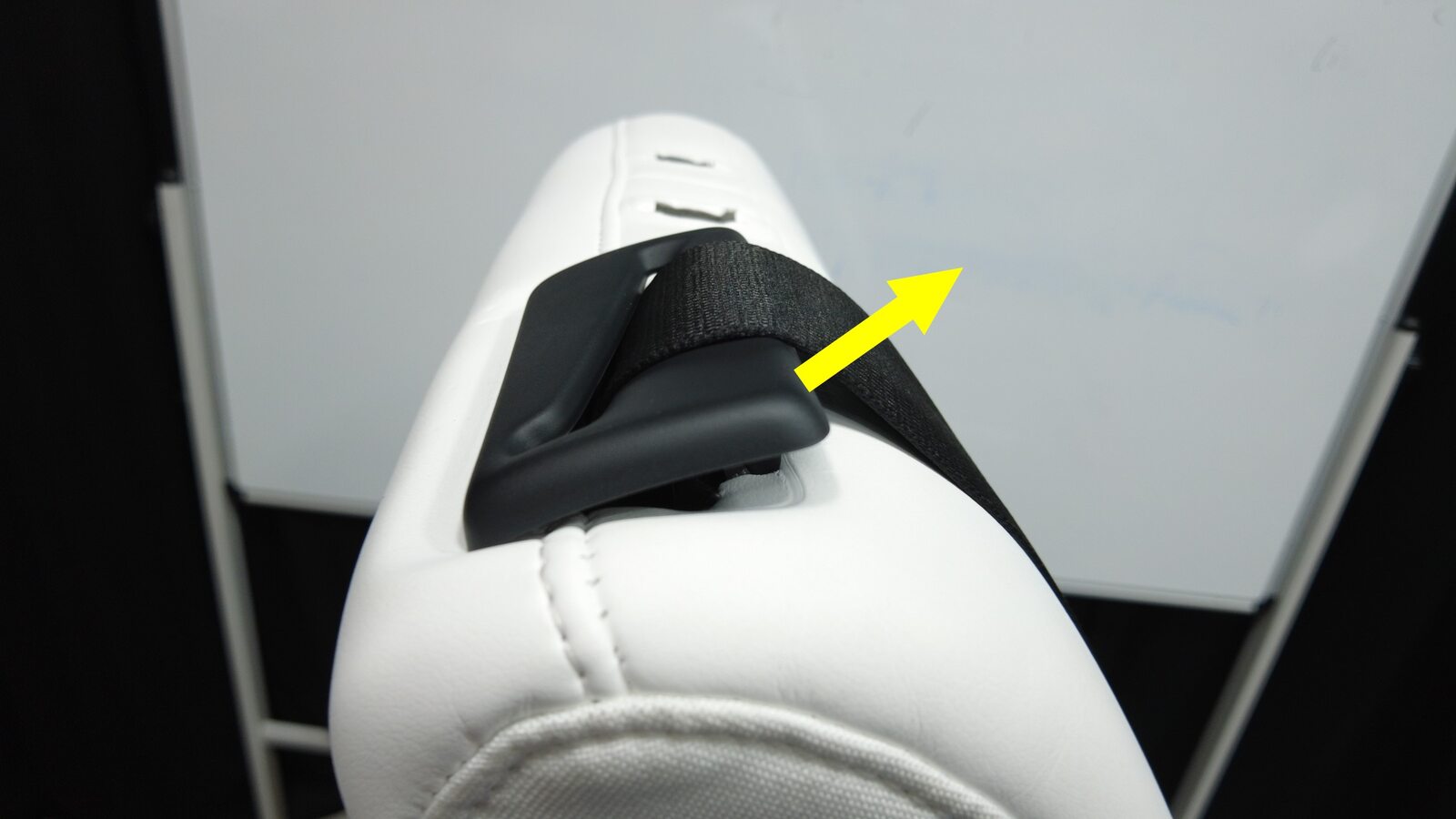

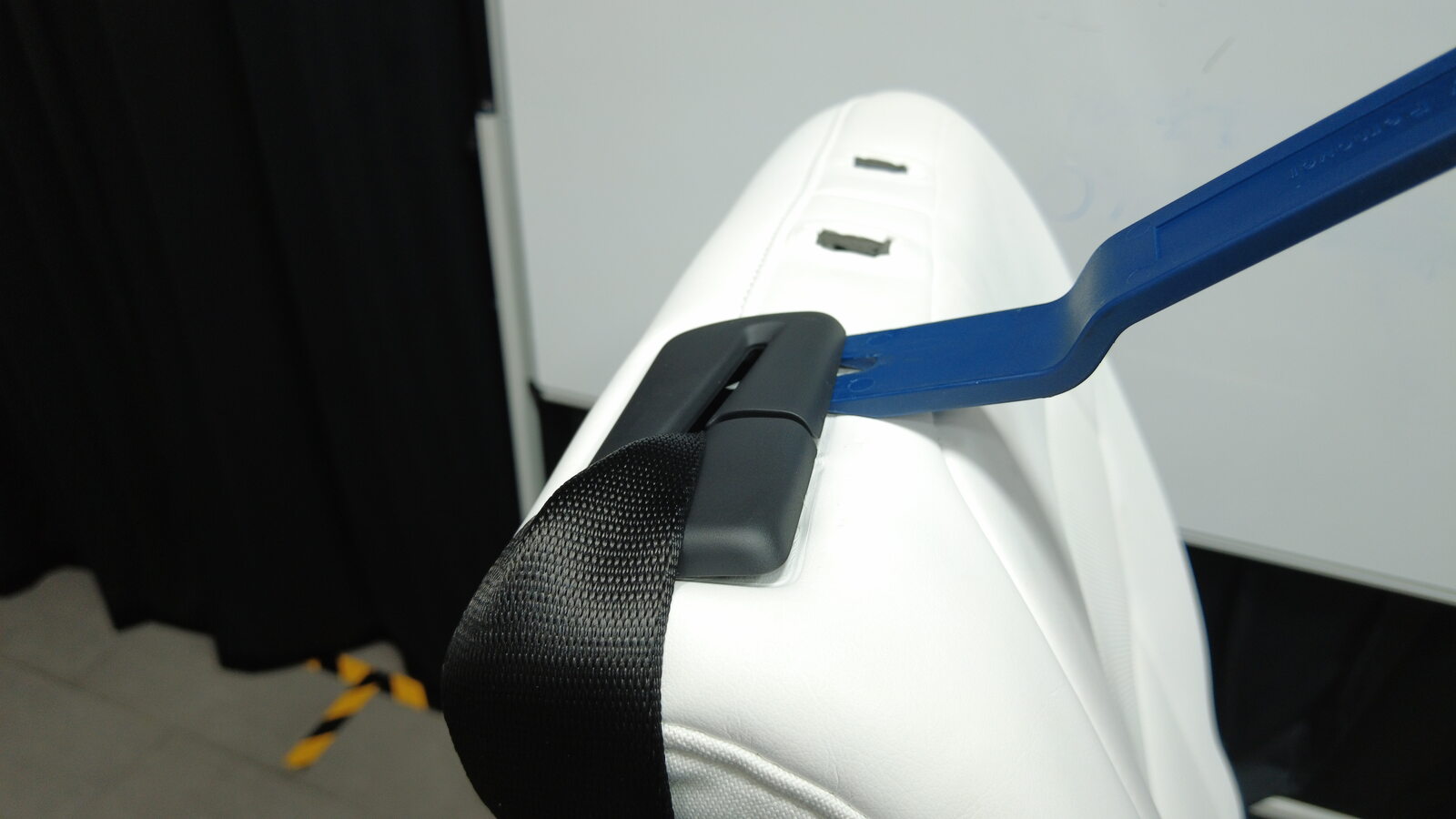

Use plastic trim tool to pry upwards
on front of LH escutcheon, and then remove it from LH seat assembly.
Install
-

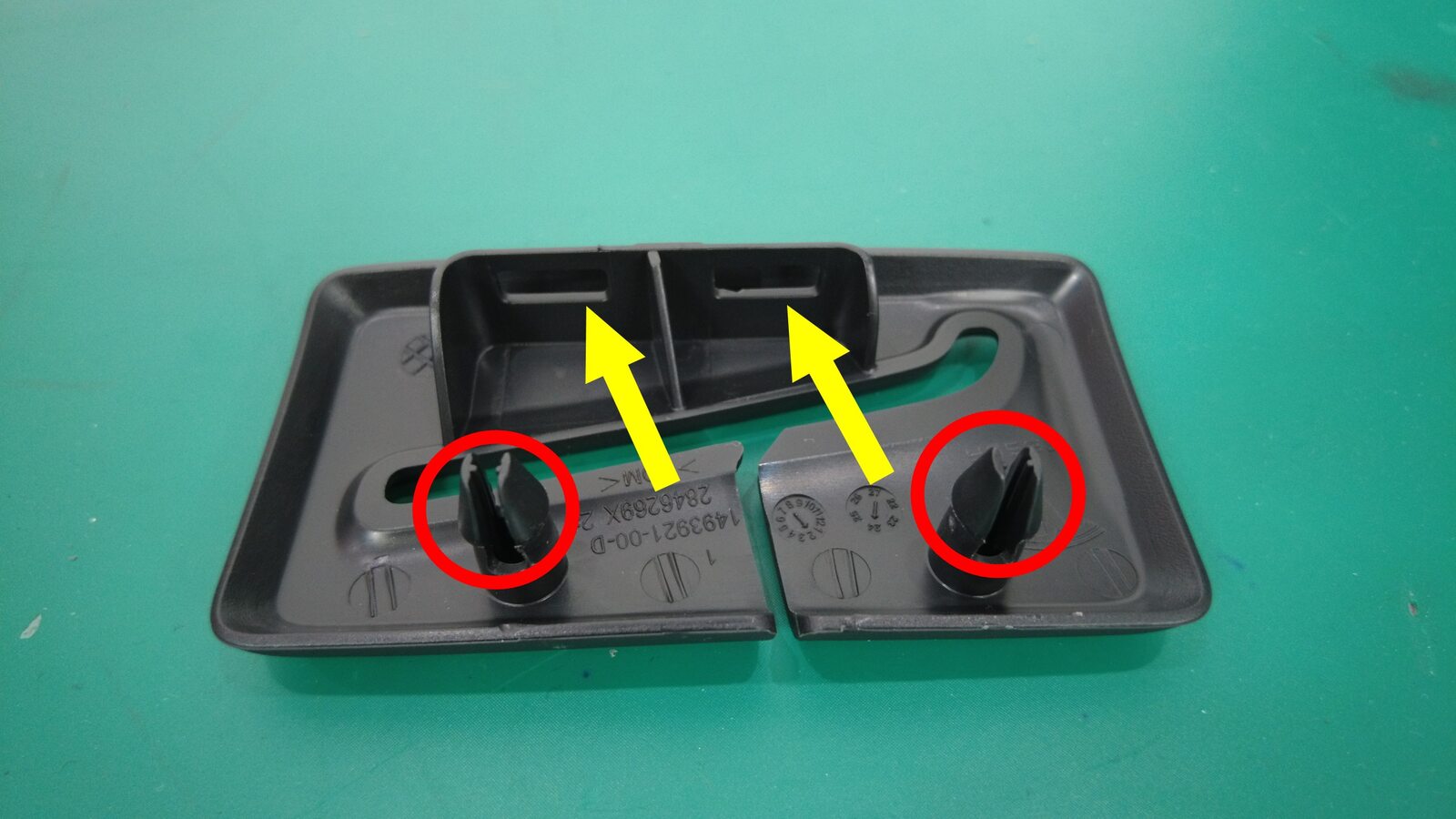

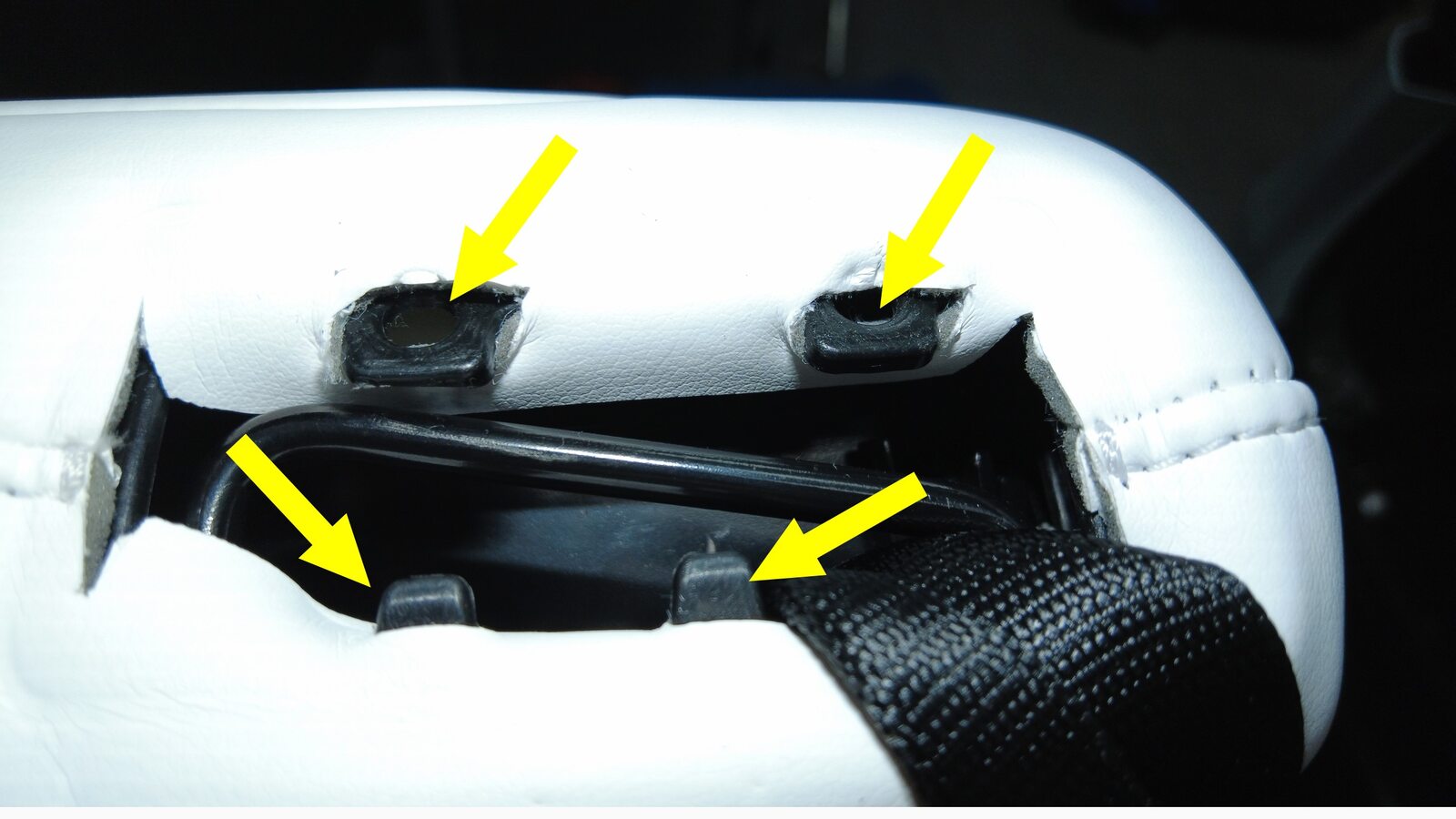

Install LH escutcheon to LH seat assembly.
- Close LH rear door, and raise LH rear window.
