License Plate - Rear (NA) (Install) (Installation)

Correction code 1207010306 FRT 0.05 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: License Plate - Rear (NA) (Install) (Installation)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x2) that attach the upper part of the license plate to the rear lower fascia
2 Nm (1.5 lbs-ft)
  • PH1 Stubby Phillips Screwdriver
  • PH1 Phillips Screwdriver Bit
Reuse

Procedure

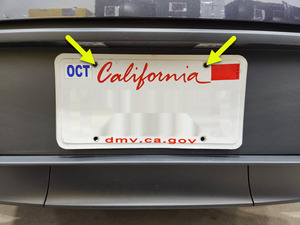

  1. Position the license plate onto the rear lower fascia, and align the plate with the fascia marks.
    Note
    The mounting bracket is not needed.

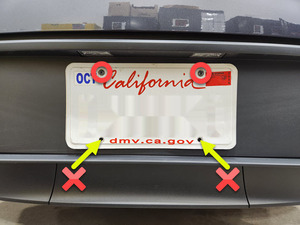

  2. Install the screws (x2) that attach the upper part of the license plate to the rear lower fascia.
    2 Nm (1.5 lbs-ft)
    CAUTION
    Do not install the screws to the lower part of the license plate, as it will damage the fascia.
    Tip
    Use of the following tool(s) is recommended:
    • PH1 Stubby Phillips Screwdriver
    • PH1 Phillips Screwdriver Bit
