LED Light - Center Console (Remove and Replace)

Correction code 1519020302 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the center console sliding lid.

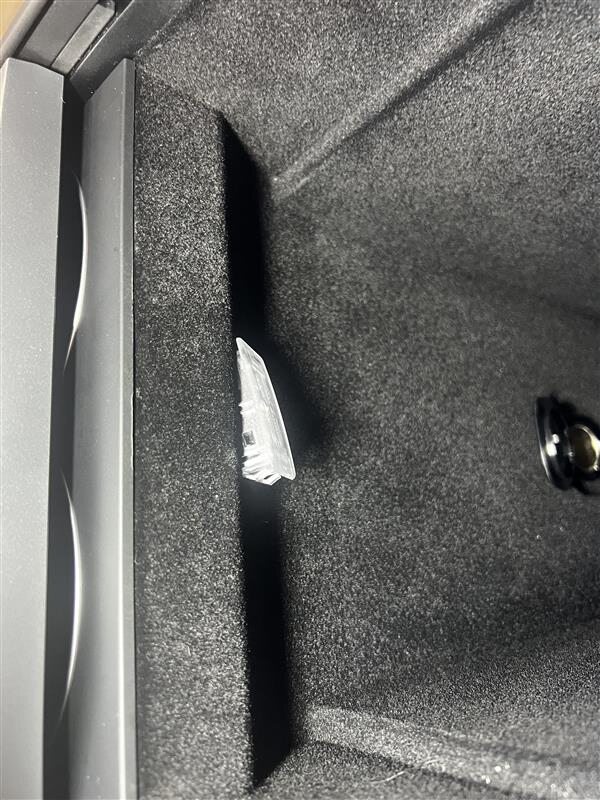

  3. Gently pry the center console LED light out and disconnect the connector.
    Note
    Pry one side of the LED light at a time.

Install

  1. Connect the center console LED light connector, and then press the LED light down evenly to fully seat it into the center console.
  2. Close the center console sliding lid.
  3. Raise the LH front window and close the LH front door.
