Retractor - Seatbelt - 2nd Row - LH (Remove and Replace)

Correction code 2005020802 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

CAUTION
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See Airbag and Supplementary Restraint System (SRS) Precautions
CAUTION
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

Torque Specifications

Table 1. Torque Specifications: Retractor - Seatbelt - 2nd Row - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the LH 2nd row retractor assembly to the body
35 Nm (25.8 lbs-ft)
  • 13 mm deep socket
 Replace 1846261-00-A
Bolt that attaches the LH rear upper D-ring to the adjustable top loop
30 Nm (22.1 lbs-ft)
  • Torx T50 socket
 Replace 2036088-00-A

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Disconnect the LV power. See LV Power (Disconnect and Connect) (Modify).
  3. Remove the LH 2nd row seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  4. Remove the LH lower C- pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
  5. Remove the trunk sill trim. See Trunk Sill Lower Trim (Remove and Replace).
  6. Remove the LH load floor bracket. See Bracket - Load Floor - LH (Remove and Replace).
  7. Remove the LH trunk pocket bracket. See Pocket Bracket - LH (Remove and Replace).
  8. Remove the LH trunk side trim. See Trunk Side Trim LH - Rear Under Body (Remove and Replace).
  9. Remove the LH upper C- pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).

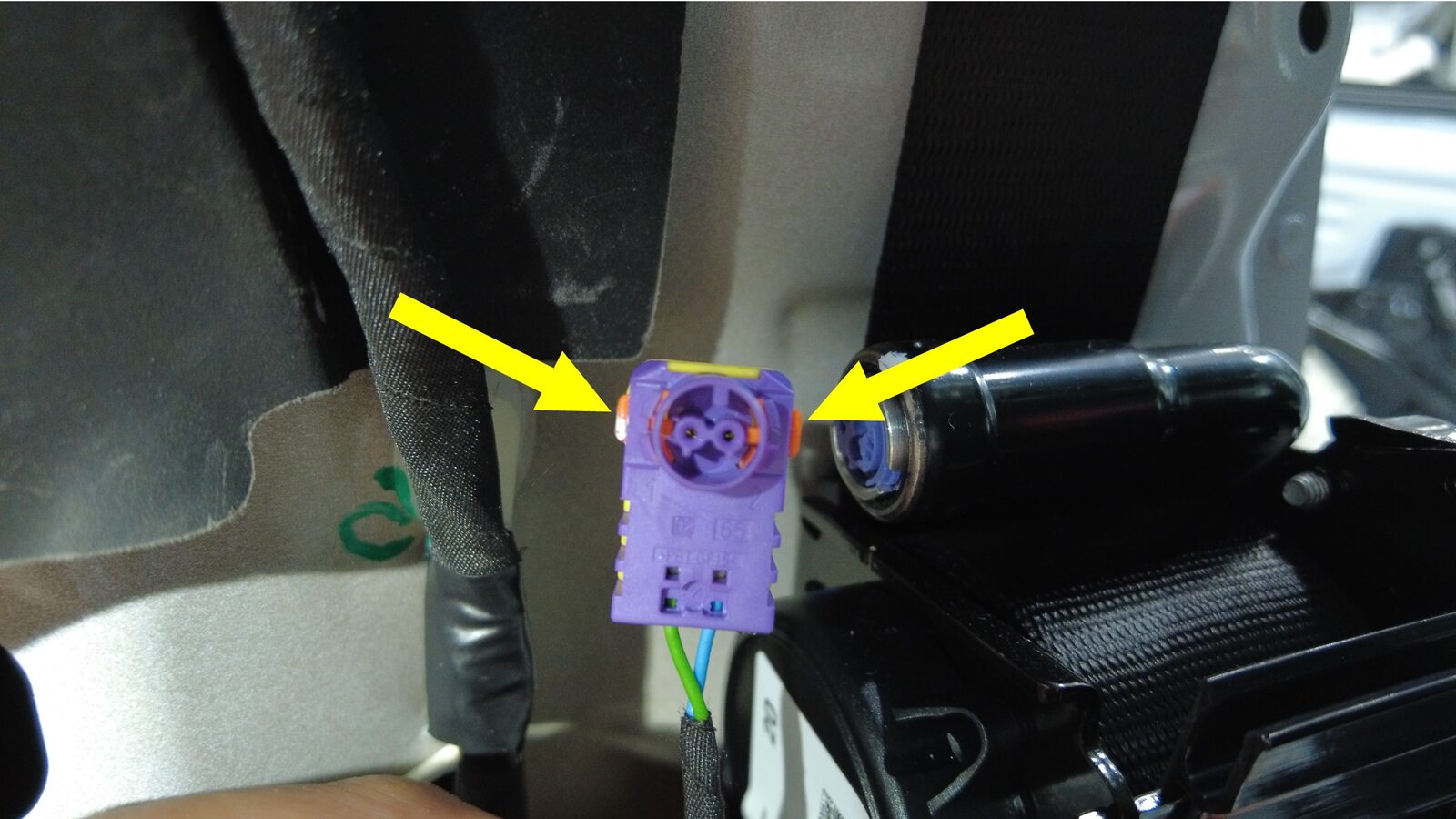

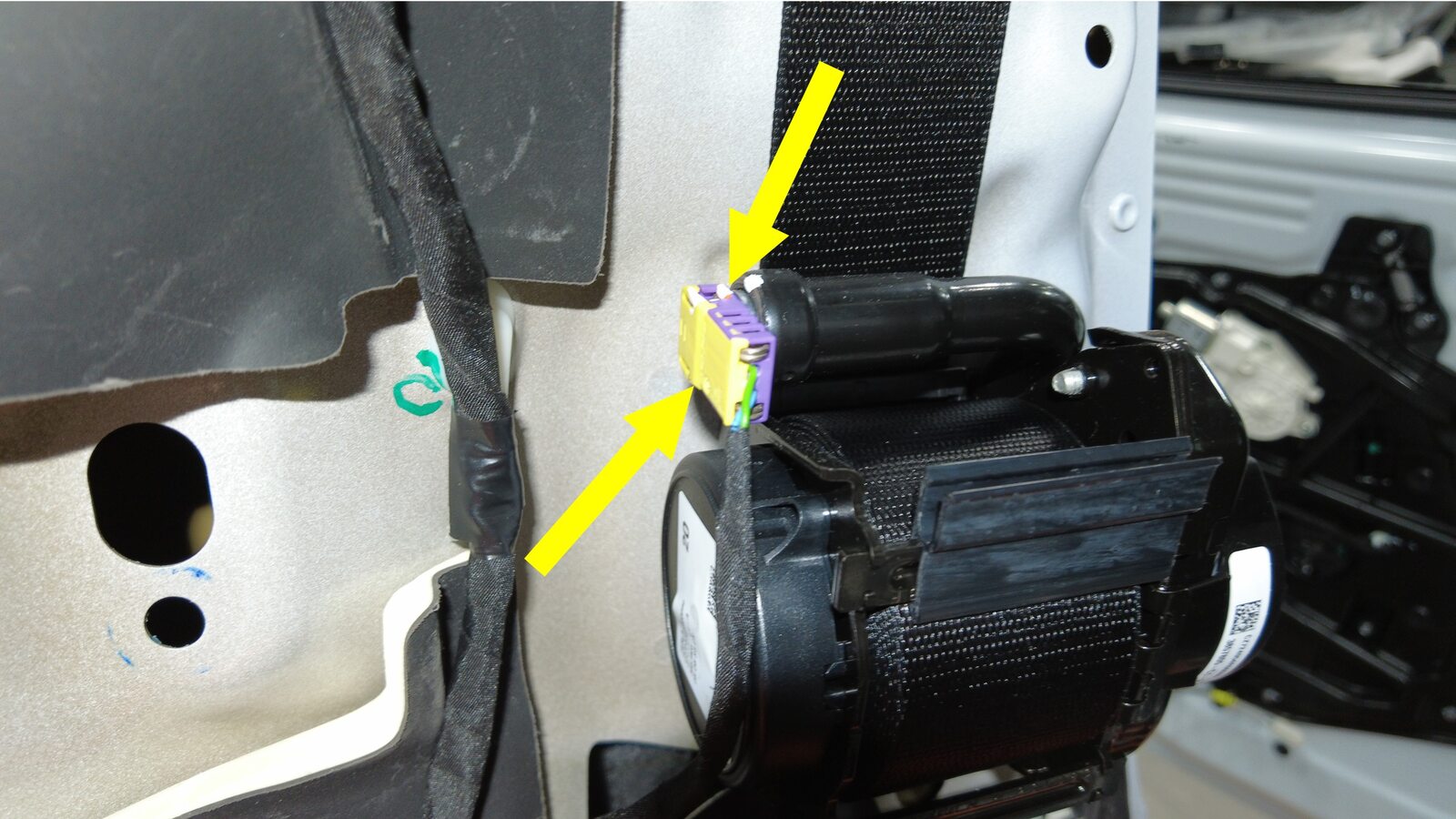

  10. Disconnect the LH 2nd row retractor connector.

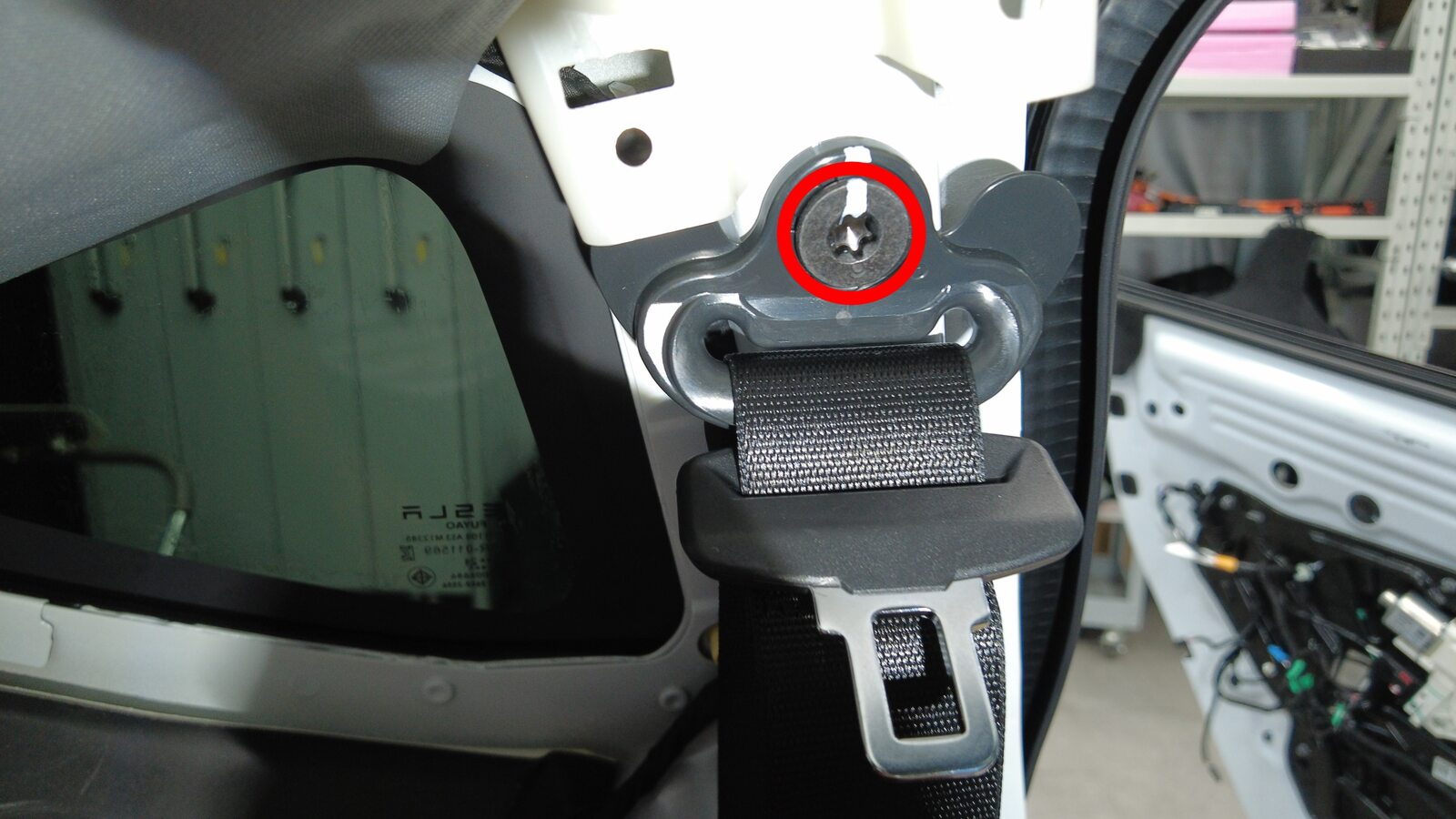

  11. Remove and discard the bolt that attaches the LH rear upper D-ring to the adjustable top loop.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T50 socket

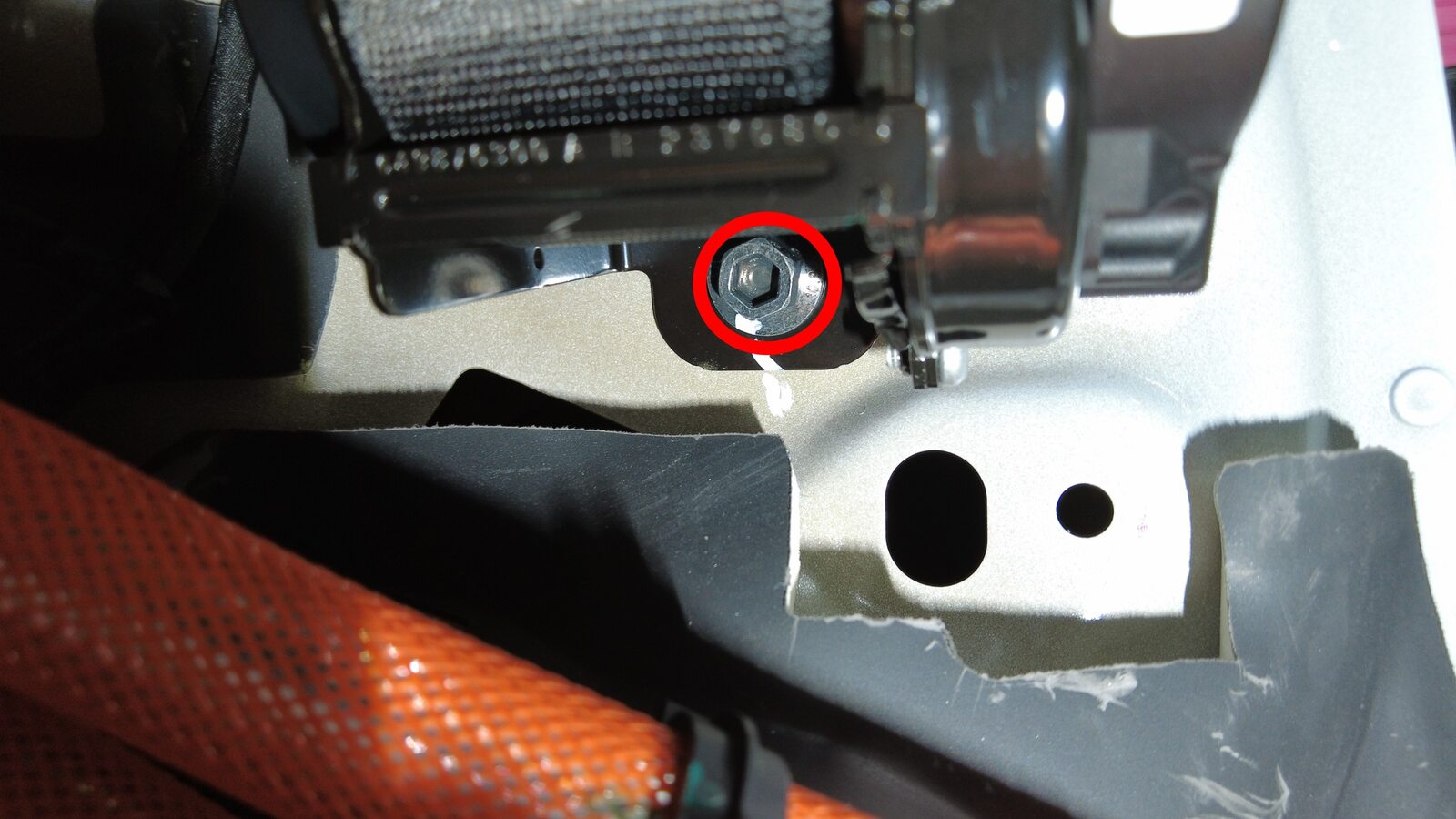

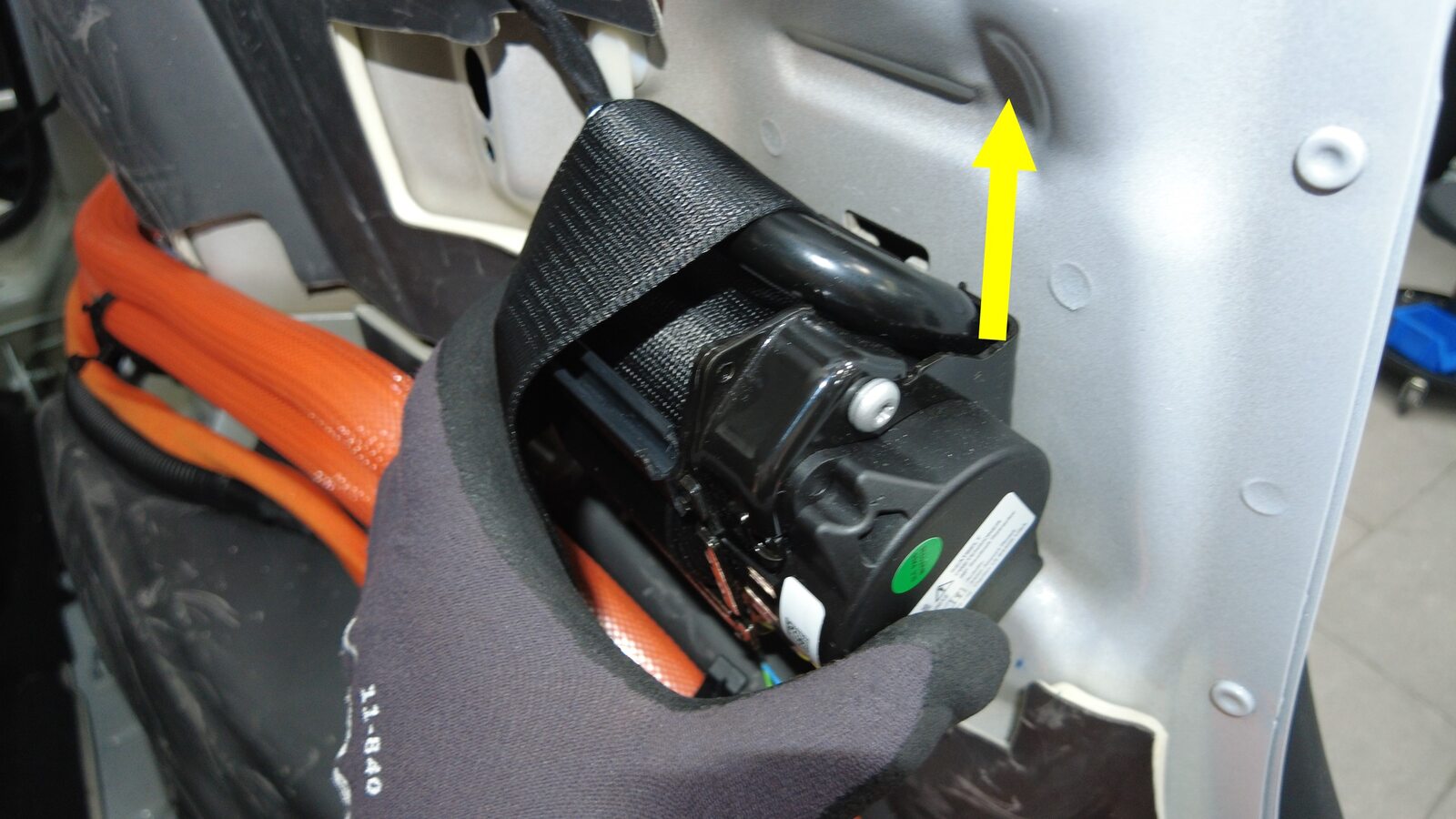

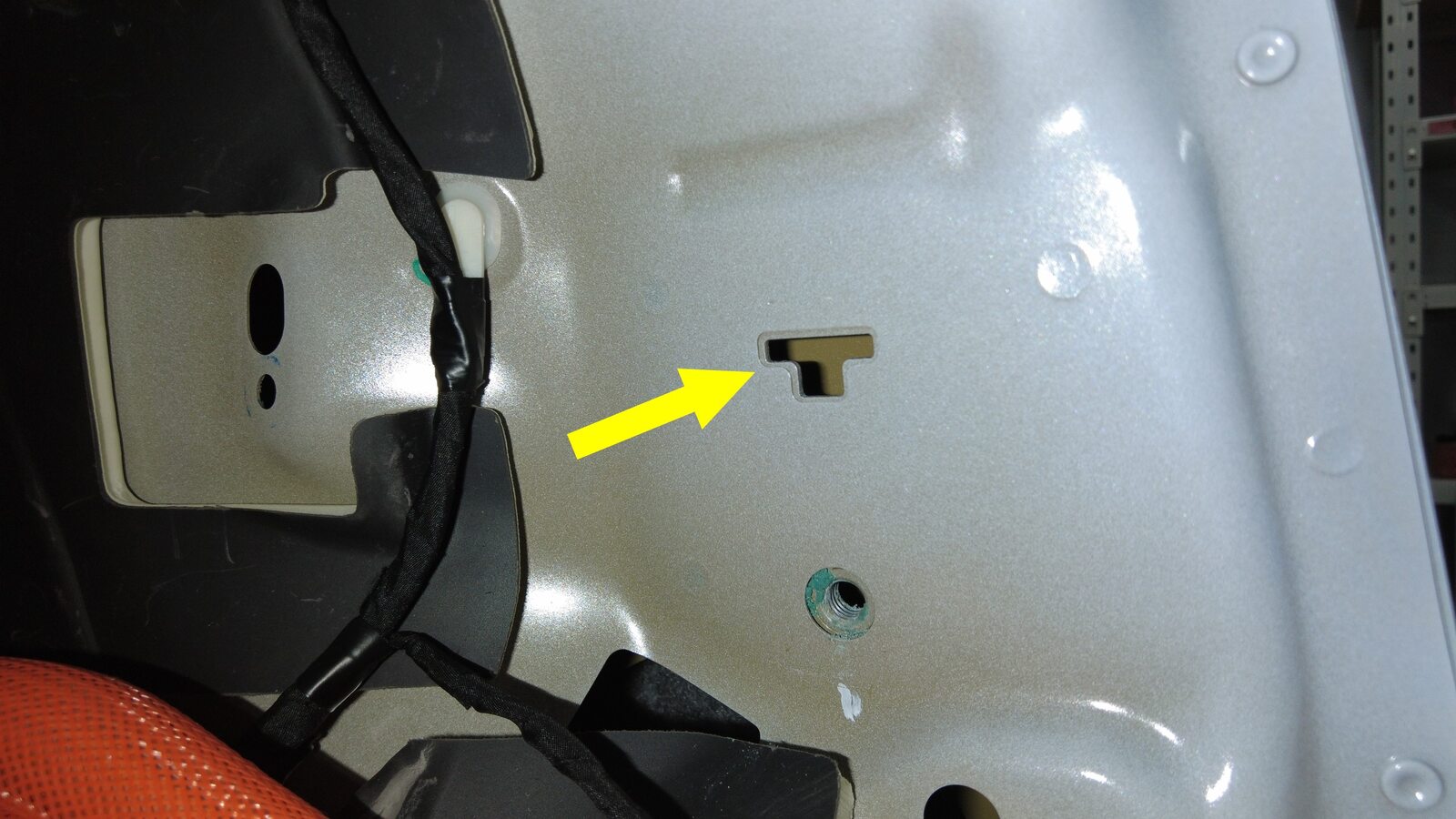

  12. Remove and discard the bolt that attaches the LH 2nd row retractor assembly to the body.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm deep socket

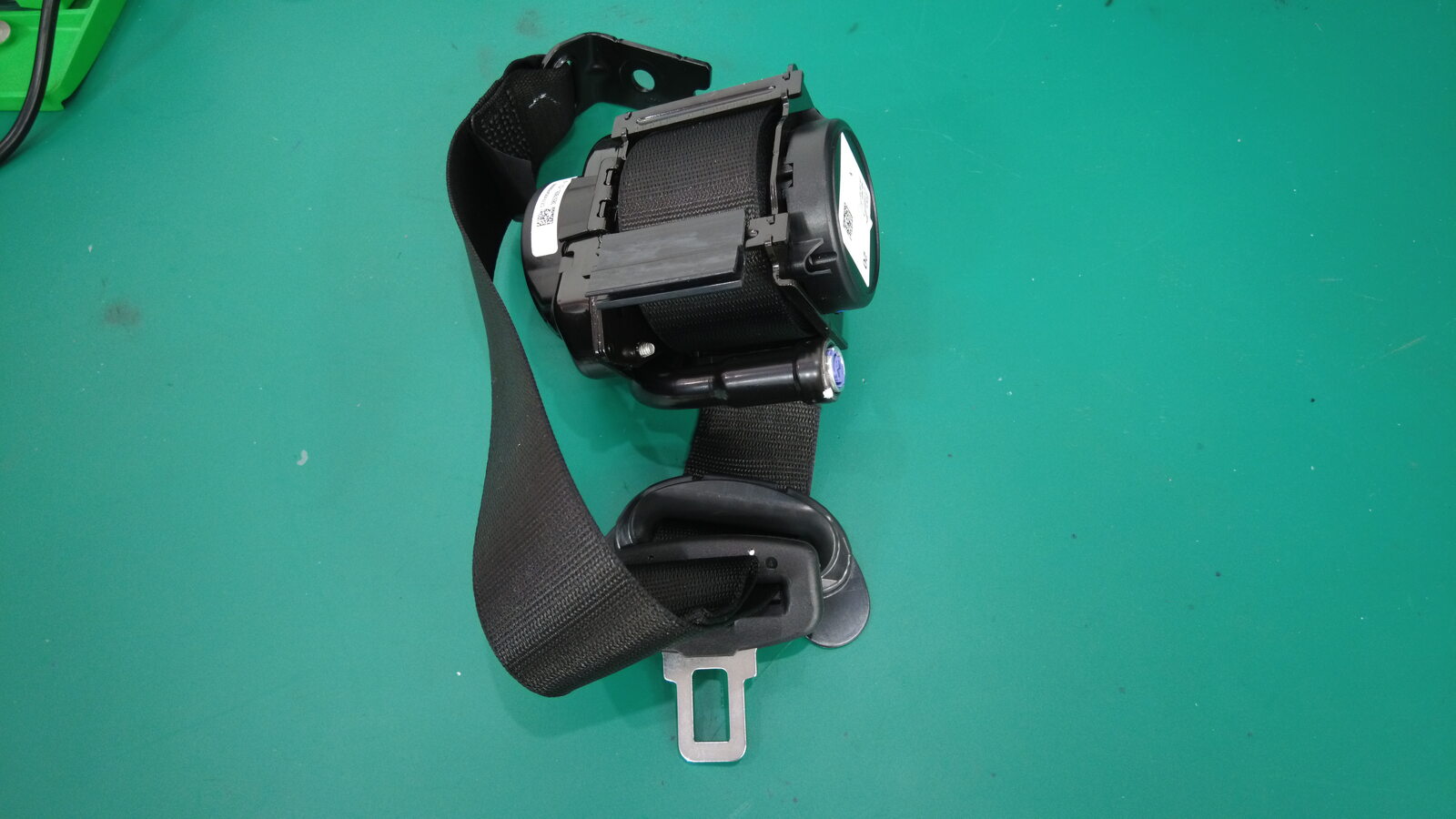

Install

  1. Install a new bolt that attaches the LH 2nd row retractor assembly to the body.
    35 Nm (25.8 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm deep socket
  2. Install a new bolt that attaches the LH rear upper D-ring to the adjustable top loop.
    30 Nm (22.1 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  3. Connect the LH 2nd row retractor connector.
  4. Install the LH upper C- pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Install the LH trunk side trim. See Trunk Side Trim LH - Rear Under Body (Remove and Replace).
  6. Install the LH trunk pocket bracket. See Pocket Bracket - LH (Remove and Replace).
  7. Install the LH load floor bracket. See Bracket - Load Floor - LH (Remove and Replace).
  8. Install the trunk sill trim. See Trunk Sill Lower Trim (Remove and Replace).
  9. Install the LH lower C- pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
  10. Install the LH 2nd row seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  11. Connect the LV power. See LV Power (Disconnect and Connect) (Modify).
  12. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
