Output Axle Seal (Remove and Replace)
Correction code
3901021102
FRT
0.66
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Equipment:
- 1454928-00-A TOOL, SEAL PULLER, ADJUSTABLE
- 1131206-00-A INSTALL TOOL, OUTPUT SEAL
Remove
- Remove the LH front drive unit halfshaft. See Halfshaft - Front - LH (Remove and Replace).
-

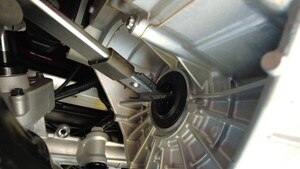

Use an adjustable seal puller tool to remove the LH front drive unit
differential-halfshaft assembly oil seal.
Install
-

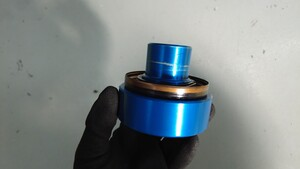

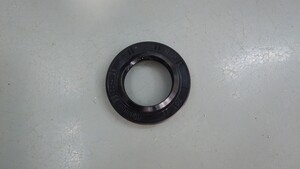

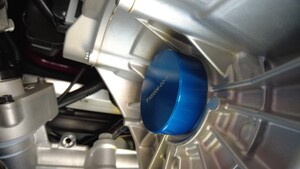

Use an output seal install tool and a dead blow hammer to install the new LH front
drive unit differential-halfshaft assembly oil seal. Make sure the seal is flush with
the front drive unit.
- Install the LH front drive unit halfshaft. See Halfshaft - Front - LH (Remove and Replace).
