Clip - Cushion - 3rd Row Seat - LH (Remove and Replace)
Correction code
1305111002
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the 3rd row seat cushion bolster. SeeBolster - Seat Cushion - 3rd Row - LH (Model YL) (Remove and Replace) or Bolster - Seat Cushion - 3rd Row - RH (Model YL) (Remove and Replace).
-

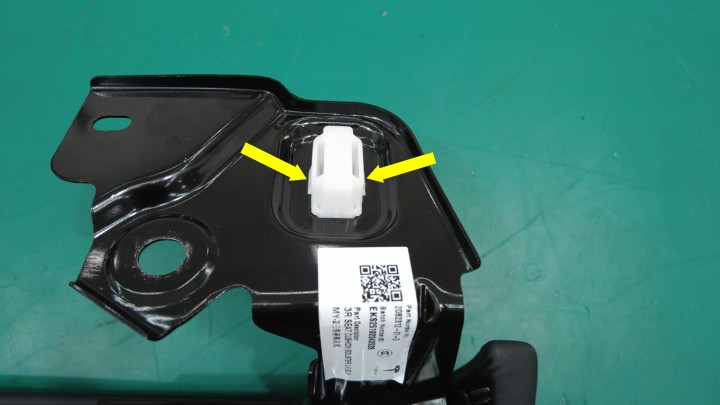

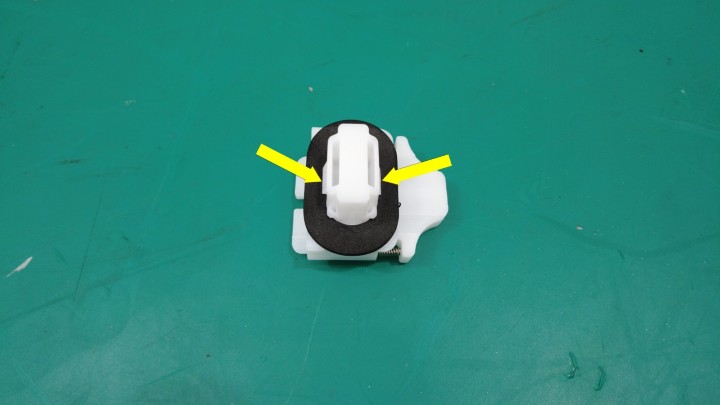

Use a small flat head screwdriver to release the clips (x2) that attach the cushion
clip to the bolster.
Install
-

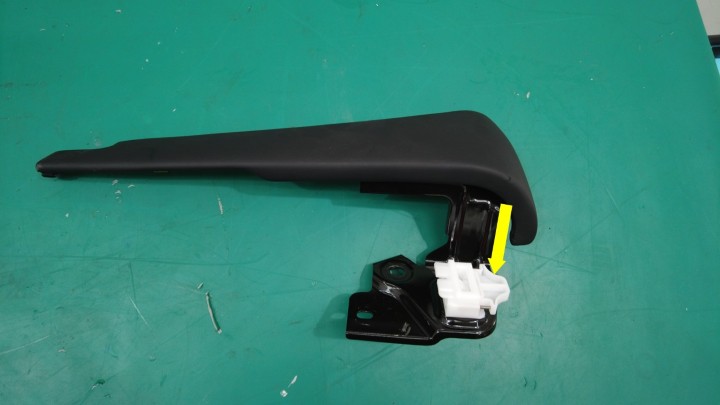

Press the cushion clip to the bolster to install.
NoteTwo clicking sounds are audible when the cushion clip is fully installed.NotePay attention to the installation orientation. The pointed end faces forward.
- Install the 3rd row seat cushion bolster. SeeBolster - Seat Cushion - 3rd Row - LH (Model YL) (Remove and Replace) or Bolster - Seat Cushion - 3rd Row - RH (Model YL) (Remove and Replace).
