Harness - Liftgate Trim (AWD) (Remove and Replace)

Correction code 1710051202 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the liftegate lower trim. See Liftgate Lower Trim (Remove and Replace).

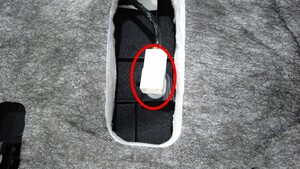

  2. Disconnect the liftgate switch connector.
  3. Disconnect the liftgate lamp connector.

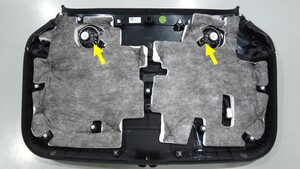

  4. Disconnect the liftgate speaker connectors (x2).

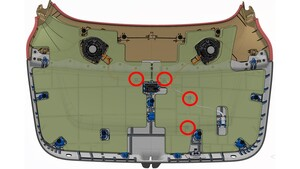

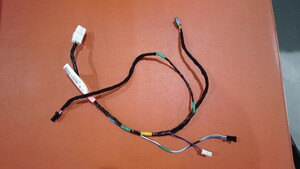

  5. Release the clip and hooks (x4) that attach the liftgate harness to the liftgate lower trim, and then remove the harness from the vehicle.

Install

  1. Route the liftgate harness through the NVH pad, and then install the clip and hooks (x4) that attach the liftgate harness to the liftgate lower trim.
  2. Connect the liftgate speaker connectors (x2).
  3. Connect the liftgate lamp connector.
  4. Connect the liftgate switch connector.
  5. Install the liftegate lower trim. See Liftgate Lower Trim (Remove and Replace).
