1st Row Heat Pad Seat Cushion (Remove and Replace)

Correction code 1307011802 FRT 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Note
Seat cushion heat pad replacement requires replacing the cushion foam and the occupancy sensor. Please order the cushion foam and the occupancy sensor together with the heat pad.

Install

  1. Remove the adhesive film from the occupancy sensor.

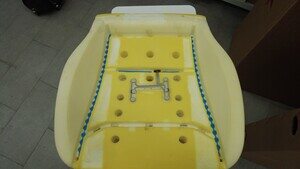

  2. Route the connector of the occupancy sensor through the notch and connect it, and then stick the sensor onto the new seat cushion foam.
  3. Install a new heat pad onto the new foam pad.
  4. Install the driver seat cushion trim. See Soft Trim Cover - Seat Cushion - 1st Row - LH (Remove and Replace).
