2nd Row - Backpanel - LH (Remove and Replace)

Correction code 1308011602 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Move the LH front seat forward.
  2. Fold the LH 2nd row seatback down.

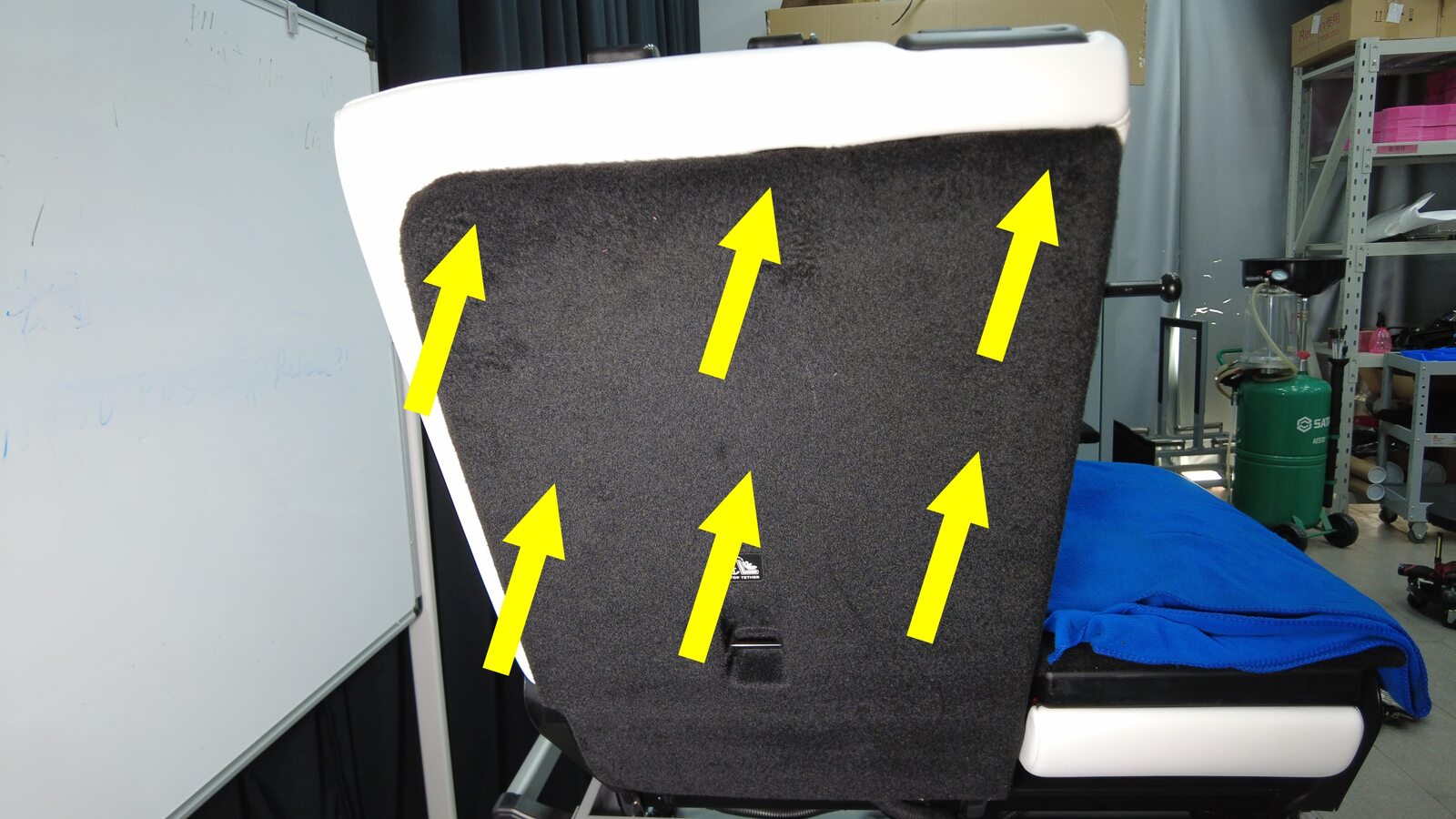

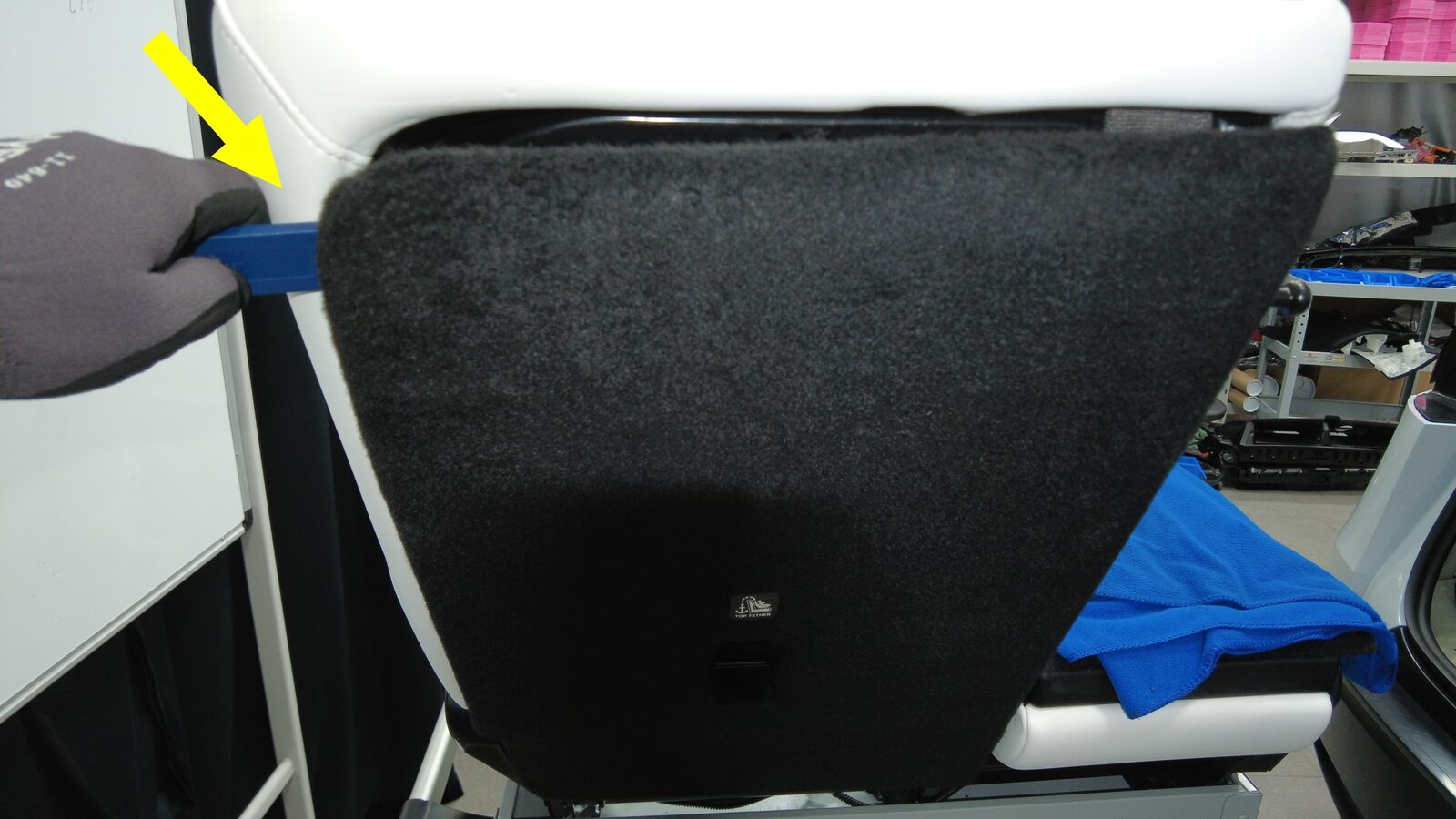

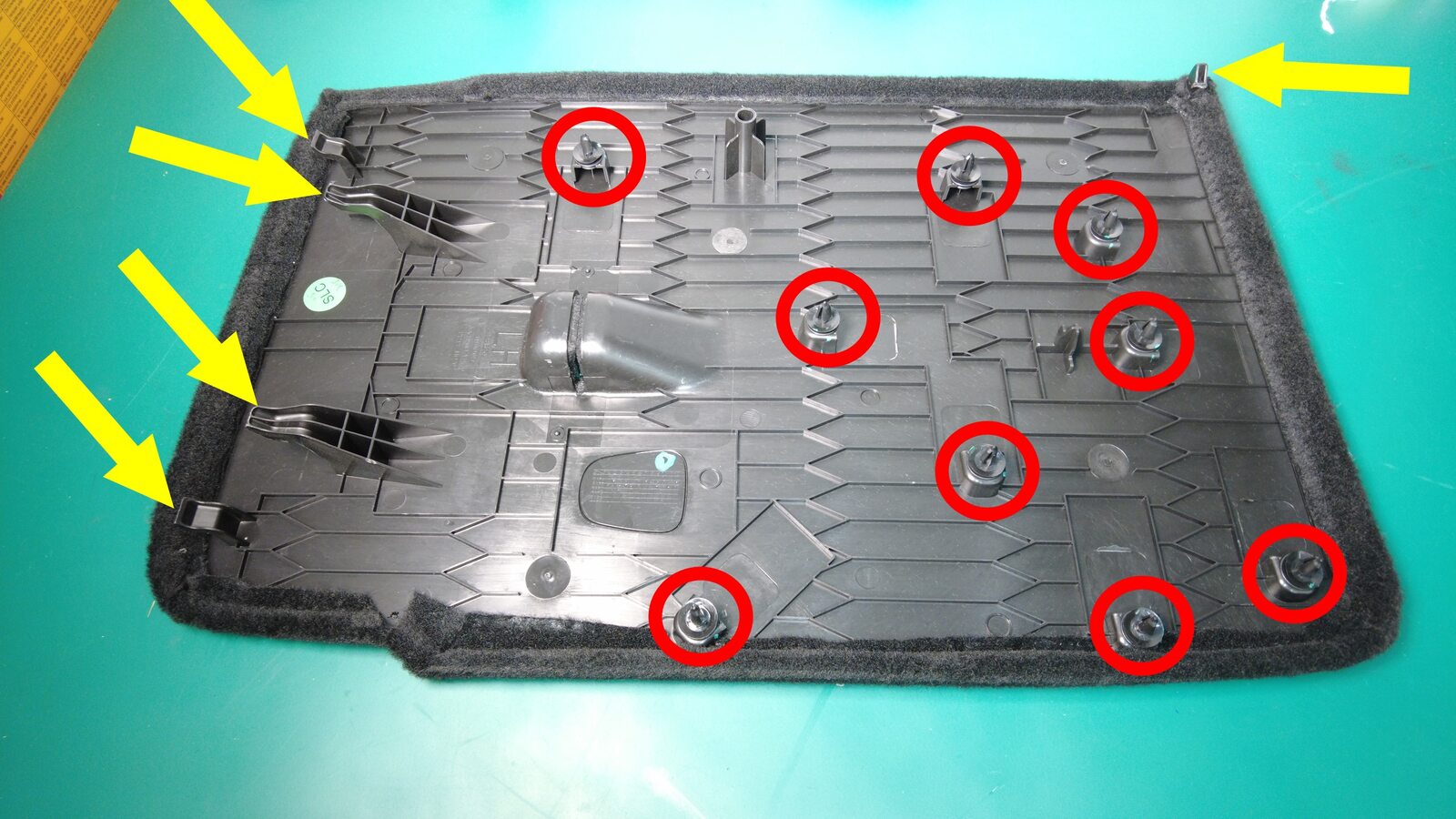

  3. Remove the clips (x9) and hooks (x5) that attach the LH seat backpanel to the seat.

Install

  1. Install the clips (x9) and hooks (x5) that attach the LH seat backpanel to the seat.
  2. Move the 2nd row LH seatback to vertical position.
  3. Move the LH front seat to its original position.
