Armrest - Outer - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the center console inner armrest. See Armrest - Inner - Center Console (Model Y Standard) (Remove and Install).

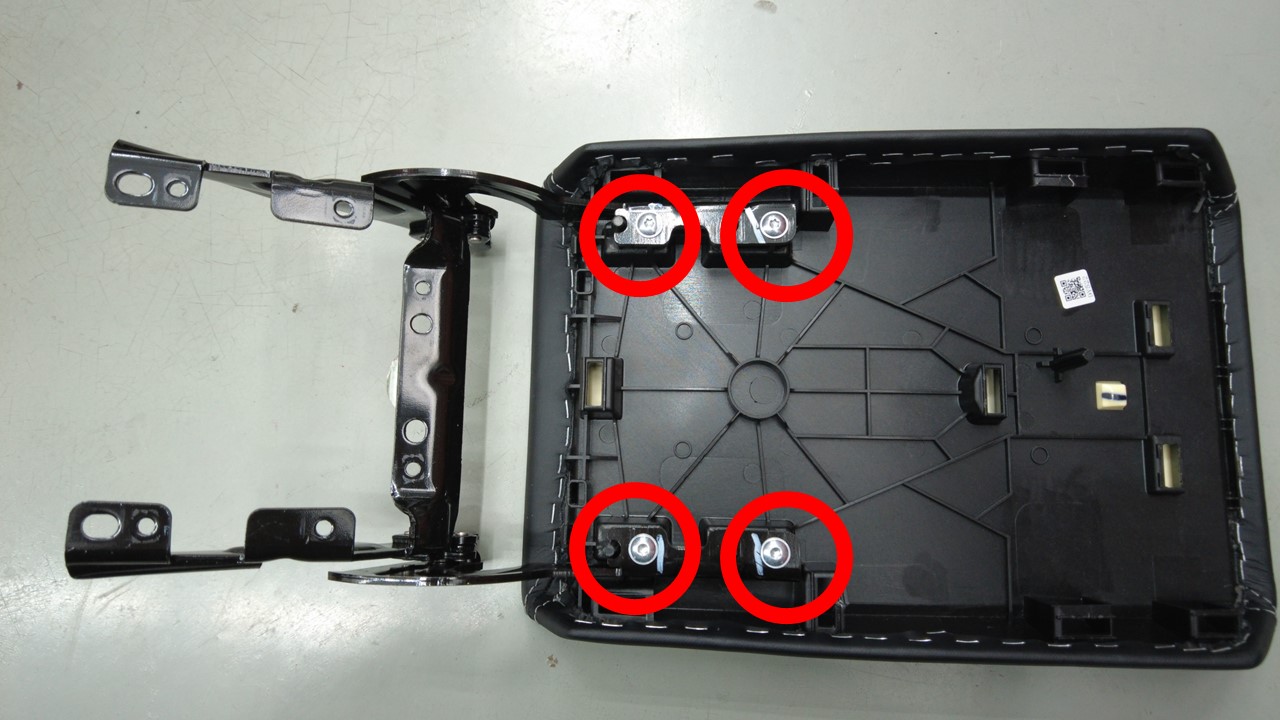

  2. Remove the screws (x4) that attach the armrest hinge to the outer armrest.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

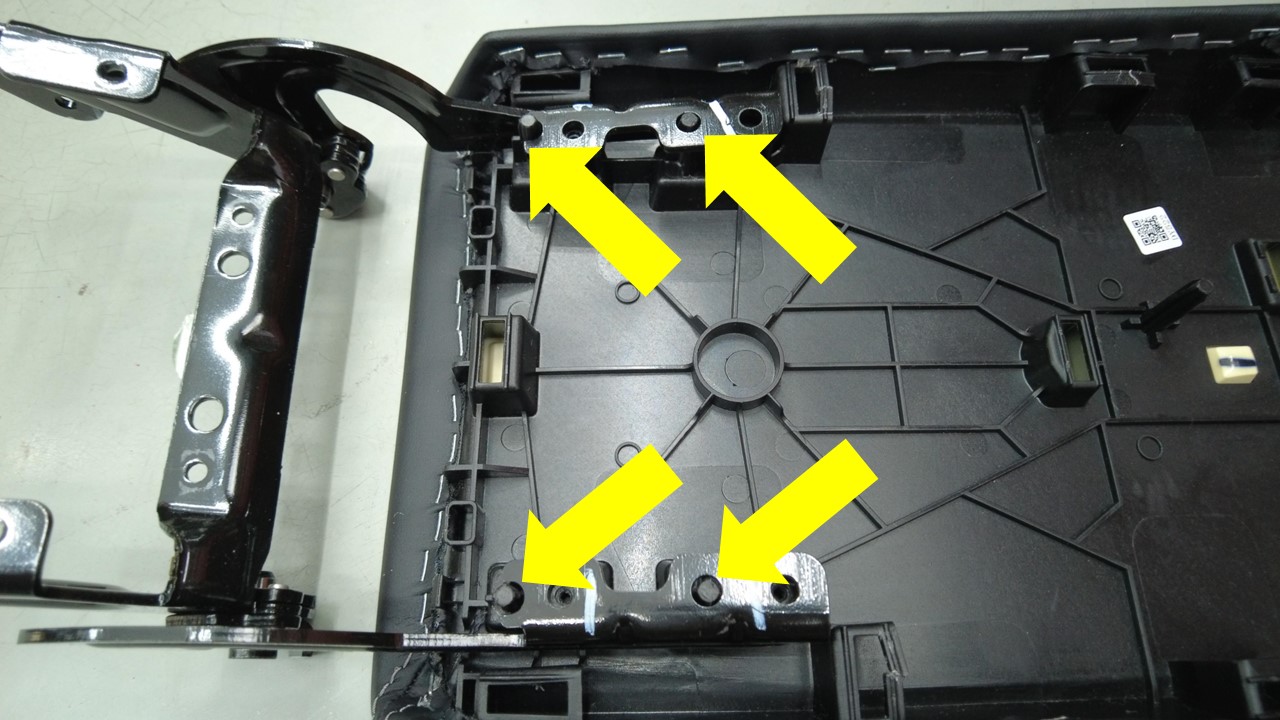

  3. Release the datums (x4) that attach the armrest hinge to the outer armrest, and then separate the outer armrest and the armrest hinge.

Install

  1. Install the datums (x4) that attach the armrest hinge to the outer armrest.
  2. Install the screws (x4) that attach the armrest hinge to the outer armrest.
    1.2 Nm (.9 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  3. Install the center console inner armrest. See Armrest - Inner - Center Console (Model Y Standard) (Remove and Install).
